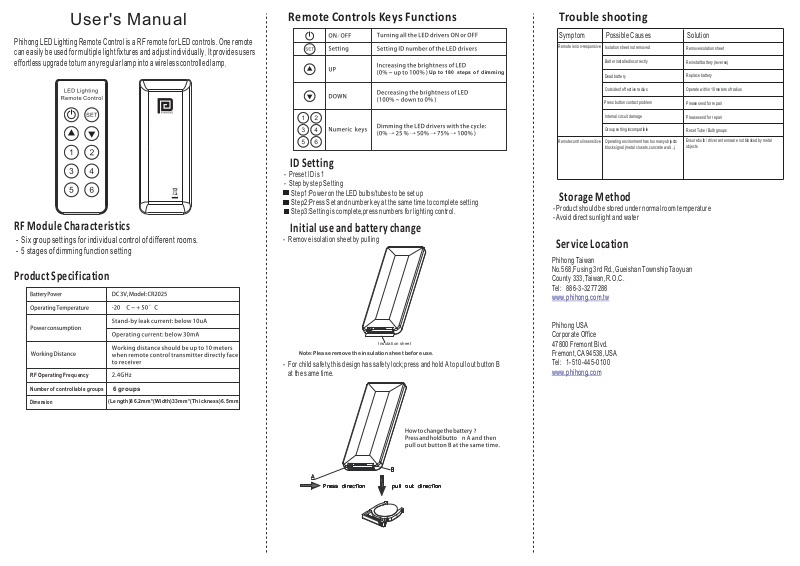

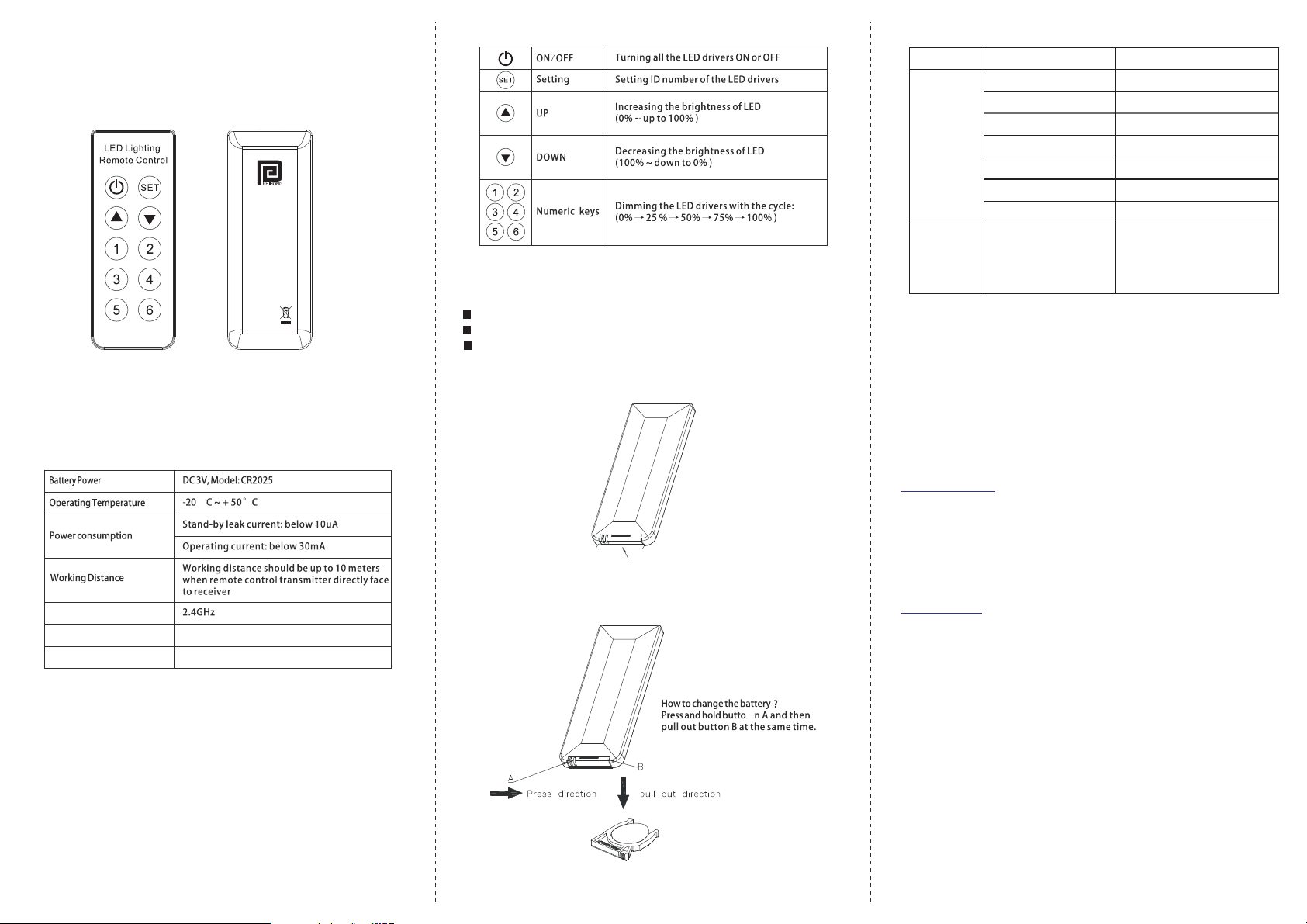

PHIHONG TECHNOLOGY CO RCARF User Manual

User s Manual'

Phihong LED Lighting Remote Control is a RF remote for LED controls. One remote
can easily be used for multiple light fixtures and adjust individually It provides users
effortless upgrade to turn any regular lamp into a wireless controlled lamp

RF Module Characteristics

- Six group settings for individual control of different rooms

- 5 stages of dimming function setting

Product Specification

.

.

.

Remote Controls Keys Functions

Up to 180 steps of dimming

ID Setting

- PresetIDis1

- Step by step Setting
Step1:Power on the LED bulbs/tubes to be set up
Step2:Press Set and number key at the same time to complete setting
Step3:Setting is complete,press numbers for lighting control.

Initial use and battery change

- Remove isolation sheet by pulling

Trouble shooting

Symptom

Remote isnon-responsive

Remote controlinsensitive

Possible Causes

Isolation sheetnot removed

Batter installedincorrectly

Dead battery

Outside ofeffective radius

Press buttoncontact problem

Internal circuitdamage

Group settingincompatible

Operating environmenthas too manyobjects
block signal(metal closets,concrete wall...)

Solution

Remove isolationsheet

Reinstall battery(reverse)

Replace battery

Operate within10 meters ofradius

Please sendfor repair

Please sendfor repair

Reset Tube/ Bulb groups

Ensure bulb/ driver antennaare not blockedby metal
objects

Storage Method

- Product should be stored under normal room temperature

- Avoid direct sunlight and water

Service Location

Phihong Taiwan
No.568,Fusing 3rd Rd.,Gueishan Township Taoyuan
County 333,Taiwan,R.O.C.
Tel: [phone]

www.phihong.com.tw

RF Operating Frequency

Number of controllable groups

Dimension

6 groups

(Length)86.2mm*(Width)33mm*(Thickness)6.5mm

Note:Please remove theinsulation sheet before use.

Insulation sheet

- For child safety,this design has safety lock;press and hold A to pull out button B

at the same time.

Phihong USA
Corporate Office
47800 Fremont Blvd.
Fremont,CA 94538,USA
Tel: [phone]

www.phihong.com

WARNINGS:

Any changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the

equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference that may cause undesired operation.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If

this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following measures:

—Reorient or relocate the receiving antenna.

—Increase the separation between the equipment and receiver.

—Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

—Consult the dealer or an experienced radio/TV technician for help.
