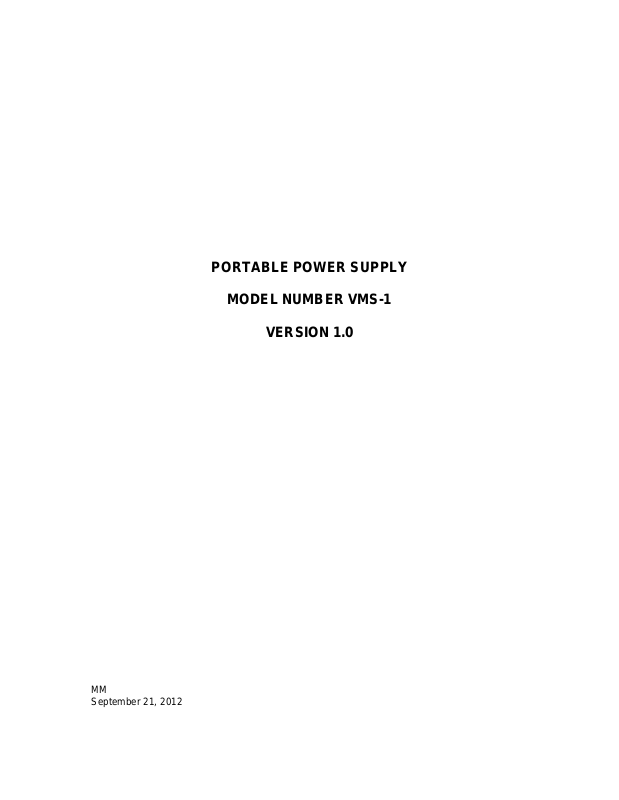

MM
September 21, 2012
PORTABLE POWER SUPPLY
MODEL NUMBER VMS-1
VERSION 1.0
TABLE OF CONTENTS
Section Number
DANGER
INTRODUCTION AND TECHNICAL SPECIFICATIONS 1
CONTROL AND METERING DESCRIPTION 2
OPERATION AND CALIBRATION 3
CIRCUIT DIAGRAM SYMBOLS 4
ELECTRICAL DRAWINGS 5
PARTS LIST 6
RECOMMENDED SPARE PARTS 7
PARTS ORDERING INFORMATION 8
RETURNED MATERIAL 9
GENERAL SAFETY PRECAUTIONS
HIGH VOLTAGE
This equipment is capable of providing POTENTIALLY LETHAL VOLTAGES!
Improper operation or test practices may result in injury or death to the
operator or surrounding personnel.
The operation of High Voltage test equipment should only be performed by personnel
familiar with HIGH VOLTAGE testing and safety procedures. The operator of this
equipment must be aware of all hazards associated with High Voltage testing. The
operator is responsible for himself and others in close proximity of the testing area.
Some General Safety Practices for working with High Voltage Test Equipment have been
listed below for your reference.
Become familiar with your instrument before performing an actual test
Know your work area, check that all circuits are de-energized and locked out.
Never work alone; always work with another qualified worker.
Mark off entire work area with barriers and warning tape.
Make all personnel aware of your testing activities.
Be aware of dangerous conditions that may arise from energizing a test specimen.
Never modify test equipment, modifications to equipment could introduce an
unknown hazard or hinder a designed-in safety feature.
DO NOT operate damaged equipment. Remove power, and do not use the
equipment until safe operation can be verified by service-trained personnel.
Phenix Technologies, Inc. assumes no liability for unsafe or improper use of test equipment.
1-1
INTRODUCTION
The Phenix Technologies VMS-1 Portable Power Supply is well equipped with
the various features listed on the specifications page to allow for the easy testing
of the operational voltage/current of electro-mechanical devices. The VMS-1
allows the user to carefully dial in an output voltage or current to determine the
operational voltage or current levels needed for the “switching state” of various
electro-mechanical devices. Both the voltage and current output levels can be
simultaneously read and monitored with the highly accurate, onboard meters.
The output terminals in the form of binding posts provide convenient hookup
configurations depending on the type of component being tested.
1-2
Model:
VMS-1 Portable Power Supply
Input:
120 Volts, 10 Amps, 60 Hz, Single Phase
Output:
0-120VAC; 10AAC MAX through binding posts.
Instrumentation:
Digital Voltmeter, 3 ½ digit resolution
Scale: 0-199.9VAC. Accuracy: 0.4% FS 2 counts
Digital Ammeter, 3 ½ digit resolution
Scale: 0-19.99AAC. Accuracy: 0.15% FS 6 counts
Features:
Main power circuit breaker with indicator lamp.
Output via binding posts.
Heavy-duty construction designed for continuous duty.
Portable case with handle.
Simultaneous digital readouts of both RMS Voltage and Current
Two levels of adjustment: Coarse and Fine
Push button resettable circuit breakers for Overload protection
Onboard storage for Power Cord and Output leads and cables
Two copies of instruction manual, parts list, and schematics
Size:
20”L x 16”W x 7”H; 29 lbs.
TECHNICAL SPECIFICATIONS
2-1
CONTROL AND METERING DESCRIPTION
(Key numbers refer to Figure 1)
1. Main Power In.
2. Main Power Circuit Breaker. Serves dual function as main switch and provides overload
protection for all circuits in test set.
3. Main Power Indicator Lamp. Lights when main power circuit breaker is energized and in
the ON position.
4. Coarse Adjust. Adjusts voltage and current output levels.
5. Fine Adjust. Adjusts voltage and current output with finer precision than coarse adjust
knob.
6. Digital Voltmeter. Provides continuous display of output voltage in Volts.
7. Digital Ammeter. Provides continuous display of output current in Amps.
8. Overload Circuit Breakers. Push button circuit breakers for each adjustment circuit.
Button will pop up when breaker is tripped, push down to reset breaker.
9. Output Binding Posts. Output connection terminals to hook up components to be tested
with the power supply.
10. Cable Storage Area. Onboard cable storage for input power cord and output clip lead
wires.
TECHNOLOGIES
PHENIX
3-1
OPERATION AND CALIBRATION
OPERATION
Setup
1. Open unit and connect input power supply cord to the power inlet and a standard wall
outlet.
2. Ensure Coarse and Fine adjustment knobs are dialed to their zeroed out positions before
connecting output terminals.
3. If either of the two Overload circuit breakers are tripped, press the push button to reset the
breakers.
4. Connect the output supply via the binding posts and hook up the component to be tested
with the two leads that would “switch the state” of the component.
Operation
5. Turn on main circuit breaker switch to power on unit. Note indicator light comes on.
6. Using the component manufacturer’s current ratings as a guide, slowly dial the Coarse
adjust to within 5V of the desired level.
7. Once the output is dialed to within a ~5V margin below the desired level, slowly dial the
Fine adjust until the component activates.
8. Upon completion of testing, turn off main power by switching off the main breaker before
disconnecting the output leads from the test component.
9. Disconnect input power cord and output power cables and place back into the onboard
storage area after each use.
10. For safety reasons, dial back the Coarse and Fine adjust knobs to their zeroed out positions
before placing the unit back in storage.
3-2
CALIBRATION
Your VMS-1 portable power supply itself does not require any calibration for normal operation.
The onboard digital Voltmeter and Ammeter will also hold its normally calibrated settings during
the lifetime of your VMS-1 for all normal indoor operations. In the rare case that either meter
needs calibration adjustments, the procedure for doing so should be performed by qualified
technical personnel such as the Phenix Technologies Service Department during a scheduled
service appointment.
MAINTENANCE
During the lifetime of your portable power supply, certain items will need replacement. Common
replacement parts are listed on page 7-1 under “Recommended Spare Parts.” With the exception
of the input and output cables, all other components that may need replacement require the
removal of the front panel from the Portable Power Supply enclosure case. This is done through
the removal of the mounting screws and washers along the perimeter of the front panel, and
pulling the panel with its attached components from the enclosure. After the needed components
are replaced, replace the front panel with the mounting screws and washers, carefully hand
tightening the screws into place. Using screwdrivers or over-tightening the screws may cause the
brass hardware to dislodge from the frame.
ELECTRICAL DIAGRAMS
Drawing Number
Description
1.
9907000
VMS-1 Electrical Schematic
5-1
VMS-1 PARTS LIST
QTY.
ITEM #
PHENIX
PART #
DESCRIPTION
1 2100479
Portable Power Supply Case with Carry Handle
1
CON1
1153328
Screw MNT Power Inlet Receptacle
2
F1-2
1603601
AGC-1 Fuse
2
F1-2
1603910
Single Pole Fuse Holder for AGC type Fuse
1
CB1
1601310
10A Single Pole CKT BRKR
1
CB2
1601413
Push Button CKT BRKR 1A
1
CB3
1601423
Push Button CKT BRKR 10A
1
LP1
1423270
Neon Lamp Yellow
1
CON2
1351100
Binding Post Black
1
CON3
1351104
Binding Post White
1
T3
1890209
1210B Variable Transformer
1
T2
1890100
171 Variable Transformer
1
T1
1894431
100VA Transformer
1
VM1
1506511
Digital AC Voltmeter
1
CM1
1506512
Digital AC Current meter
1 1077164
Input Power Cord 16/3 10FT
2 N/A
Output lead wires
1 1353205
Banana Plug Black
1 1356200
Banana Plug Red
2 1353042
Gator Clip – 20 Amp
1 1353041
Gator Clip Boot Black
1 1353040
Gator Clip Boot Red
6-1
QTY.
ITEM #
PHENIX
PART #
DESCRIPTION
2
F1-2
1603601
AGC-1 Fuse
1
LP1
1423270
Neon Lamp Yellow
1 1077164
Power Cord 16/3 10FT
1
VM1
1506511
Digital AC Voltmeter
1
CM1
1506512
Digital AC Current meter
2 N/A
Output lead wires
1 1353205
Banana Plug Black
1 1356200
Banana Plug Red
2 1353042
Gator Clip – 20 Amp
1 1353041
Gator Clip Boot Black
1 1353040
Gator Clip Boot Red
RECOMMENDED SPARE PARTS
7-1
8-1
PARTS ORDERING INFORMATION
Replacement parts are available from Phenix Technologies, Inc.
Changes to Phenix Technologies' products are sometimes made to accommodate improved
components as they become available, and to give you the benefit of the latest technical
improvements developed in our Engineering Department. It is, therefore, important when
ordering parts to include the serial number of the unit as well as the part number of the
replacement part. When your purchase order is received at our office, a representative of Phenix
Technologies will contact you to confirm the current price of the part being ordered. If a part you
order has been replaced with a new or improved part, an Applications Engineer will contact you
concerning any change in part number.
Your order for replacement parts should be sent to:
Replacement Parts Department
Phenix Technologies, Inc.
75 Speicher Drive
Accident, Maryland 21520
RETURNED MATERIAL
If for any reason it should become necessary to return this equipment to the factory, the Service
Department of Phenix Technologies, Inc. must be given the following information:
Name Plate Information
Model Number
Serial Number
Reason for Return
Cause of Defect
If Phenix Technologies, Inc. deems return of the part appropriate, it will then issue an
"Authorization for Return".
If return is not deemed advisable, other inspection arrangements will be made.
NOTE: Material received at this plant without the proper authorization shall be held as
"Customer's Property" with no service until such time as the proper steps have been taken.
Your cooperation is requested in order to ensure prompt service.
