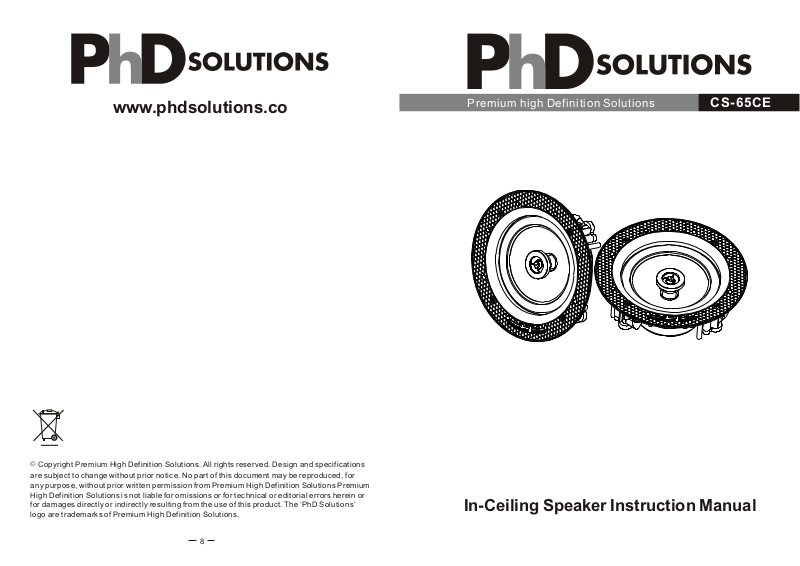

Page 1
www.phdsolutions.co
Premium high Definition Solutions CS-65CE
© Copyright Premium High Def init ion Solutions. All rights re served. De sign and specifications
are sub ject to change without prior notice. No part of this doc umen t may be reproduced, for
any pur pose, with out prior written permission from Premium High Defi niti on Solutio ns Premium
High Defi niti on Solutions is not liable fo r omission s or for te chnical or editorial errors herein or
for dam ages directly or indirectly resulting from the use of this product. The ‘PhD Solutions’
logo are trademarks of Premium Hig h Definition Solutions.
8
In-Ceiling Speaker Instruction Manual

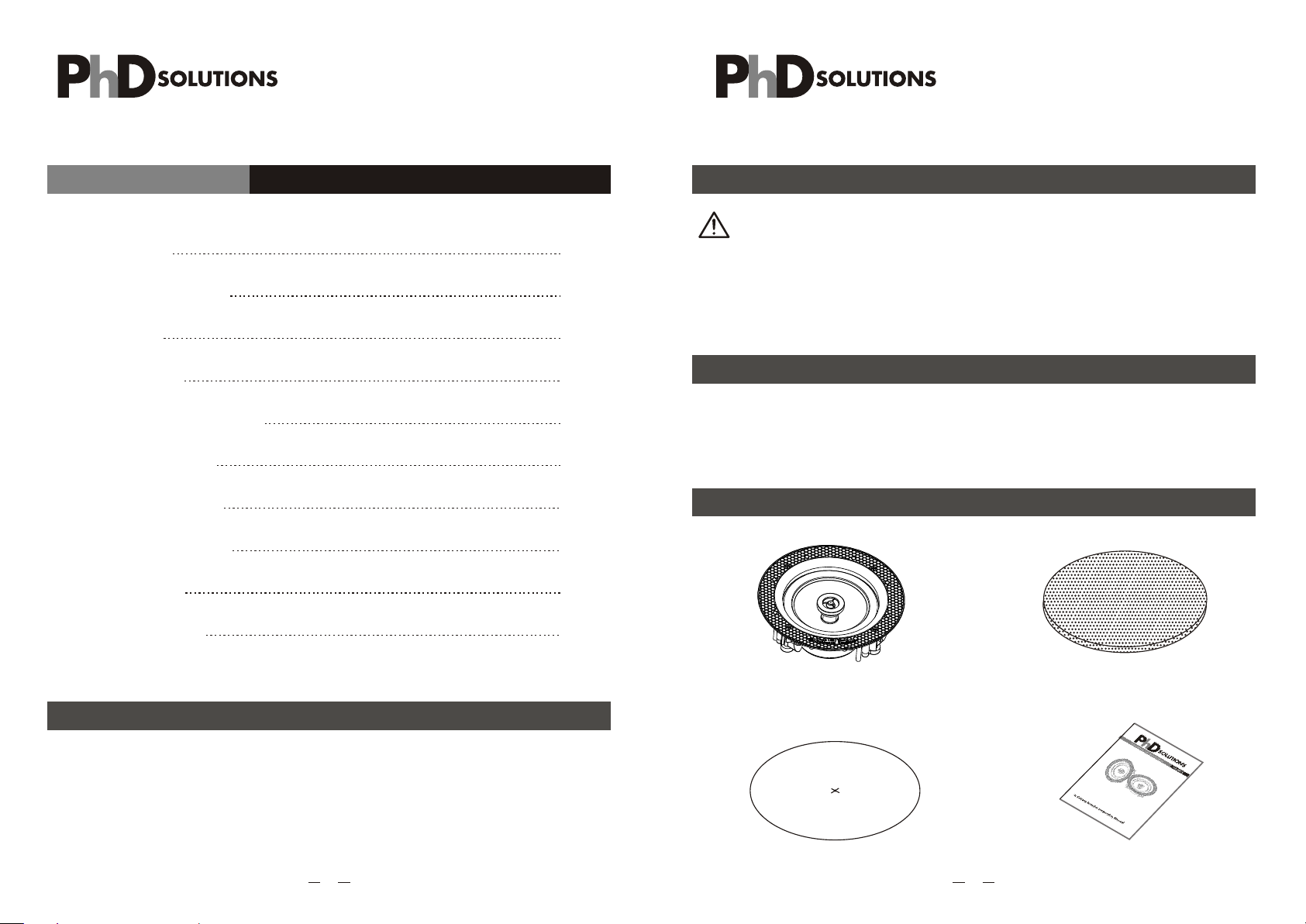

Page 2
In-Ceiling Speakers
CS-65CE
In-Ceiling Speakers
CS-65CE
CONTENTS
Introduction
Safety Instructions
Description
Box Contents
Installation Instructions
Speaker Removal
Painting Speakers
Additional Features
Specifications
Safety Instructions
Caution: Installation should be carried out and checked before providing power
•
to the system. Damage caused by improper wiring or installation is not covered
2
3
by the warranty.
• Keep this product away from small children and animals as it contains small parts.
• Keep this product away from naked flames and sources of ignition including
lighting. Building regulations may require that you install a fire hood.
3
3
4
Description
The speaker is designed for installation in ceilings, or other suitable surfaces such as
plasterboard walls. It is a two-way array design with Polypropylene bass/mid driver and
Mylar tweeter.
5
6
Box Contents
6
6
Limited Warranty
Introduction
Thank you for purchasing our speakers. Please read these instructions carefully to
complete your installation quickly and efficiently for trouble free installation.
2 3
7
In-ceiling speaker (x1) Speaker grille (x1)
xx
x
x
x
x
x
x
xxx xx
Cutout template (x1) Instruction manual (x1)
xx
xx
x
x
x
x
x
x

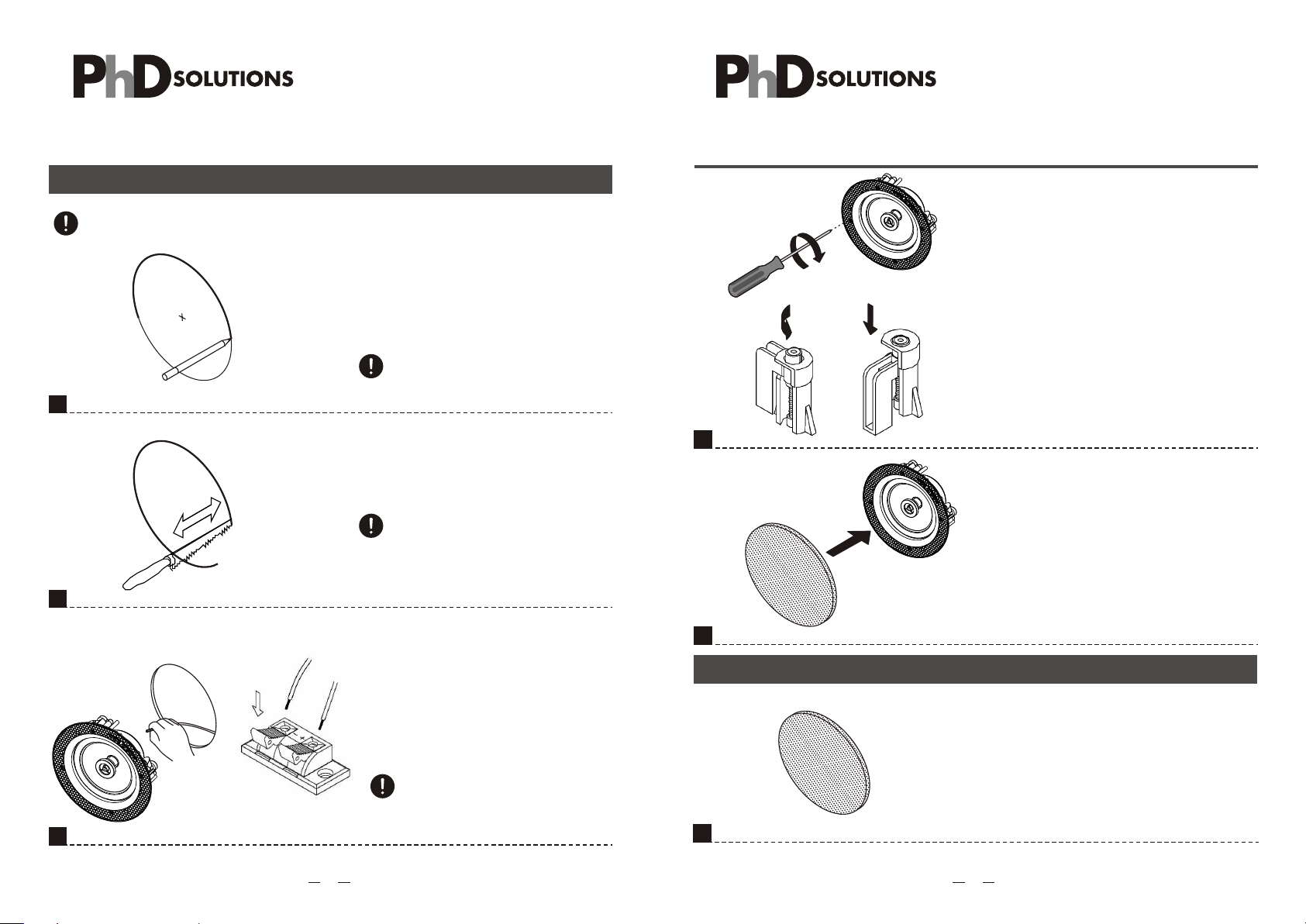

Page 3
In-Ceiling Speakers
Installation Instructions
CS-65CE
In-Ceiling Speakers
CS-65CE
Be careful when handling the speaker. It is okay to hold using the tweeter pole but do not
touch the drive unit as it could result in damage.
Using the cut out template, draw
a 8.27”/210mm circle on the ceiling / wall,
xxx x
xx
x
x
x
x
x
x
x
xx
x
x
x
x
where you wish to install the speaker.
Ensure there are no joists in
the way.
1
Cut out a hole using a suitable saw
or hole cutting tool.
Be careful not to cut through
wiring or pipes.
2
Now pull through the speaker cable and
connect it to the spring clip connectors
located on the rear of the speaker.
4
5
Spesker Removal
Place each speaker into the hole,
with the blue plastic dog legs on
the rear of the speaker tucked in,
and tighten the four screws with a
Phillips-head screw- driver.
The dog legs will turn and lock the
speaker into the ceiling / wall. The
fixing should be firm but do not over
tighten as this can strip the thread
and cause difficulties for speaker
removal.
When you are happy the system is
working, apply the speaker grille to
the speaker. The magnets will hold
the grille in place.
Repeat these steps for all speakers.
To do this, press down on each spring clip
and feed the bare cable wire into the hole.
Releasing the clip will lock the wire in place.
Holding the edges, pull the speaker
Make sure you connect the speaker
cable to the corresponding + / -
grille from the wall or ceiling to release
it from the magnets.
outputs from the amplifier.
3
1
4 5

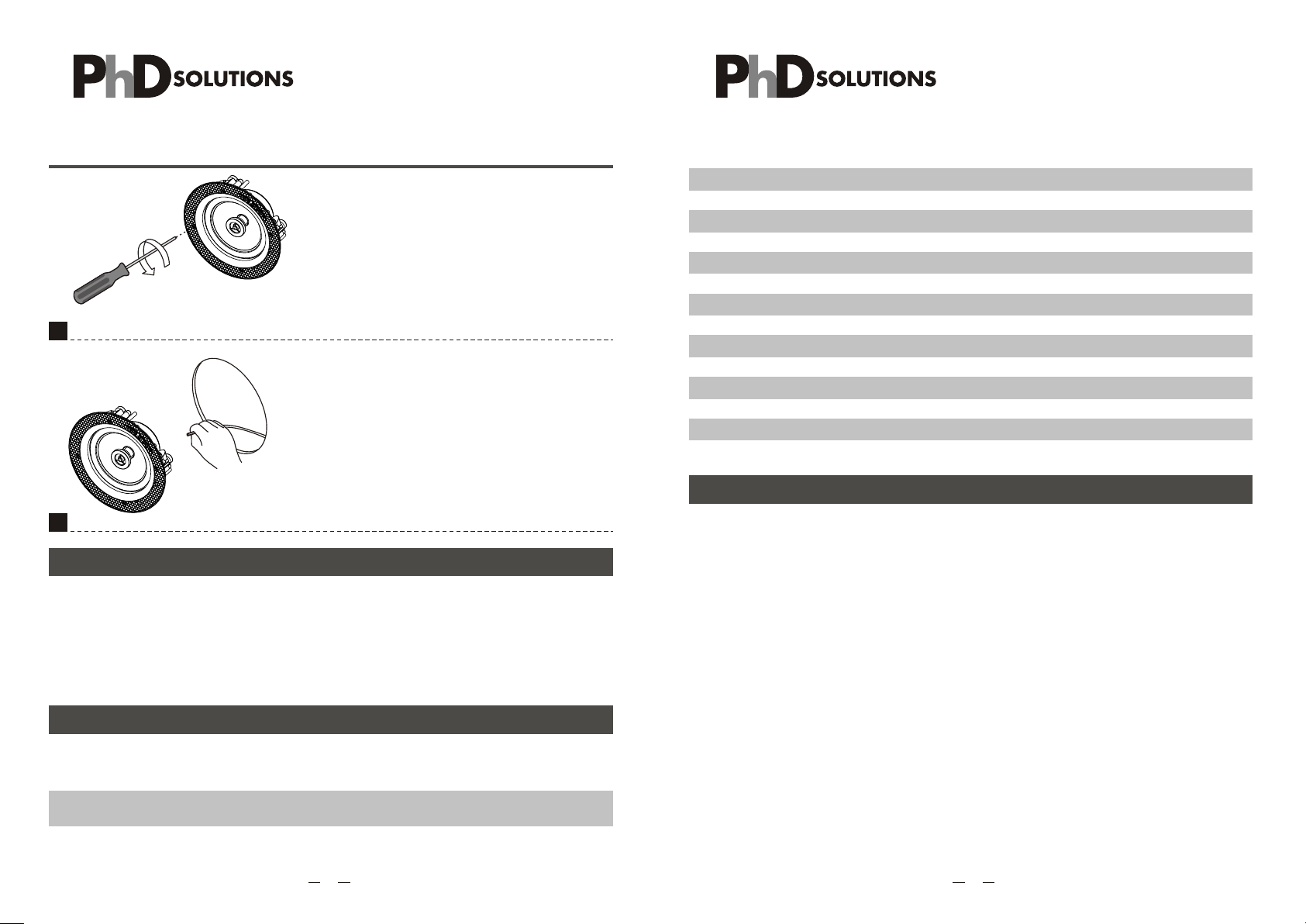

Page 4
In-Ceiling Speakers
3
CS-65CE
Unscrew the four screws around the speaker
rim and hold it securely as it loosens. The dog
legs should automatically retract.
To release the speaker, gently pull it out from the
hole and disconnect the speaker cable from the
binding posts.
In-Ceiling Speakers
CS-65CE
Mechanical
Woofer: 6.5” polypropylene cone with rubber surround, 1” voice coil
Tweeter: 0.5" (13mm) Mylar dome
Tweeter protection: Capacitor protection
Recommended amplification: 10-40W RMS
Maximum power: 80W Peak
Impedance: 8 Ohm
Sensitivity: 88dB 1w/1m
Frequency response: 60-20,000Hz
Weight (per speaker): 2.43lbs (1.1kgs)
Packed Weight: 2.65 lbs(1.2kgs)
Cutout size: 8.27” (210mm)
Mounting depth: 3.43” (87mm)
Speaker Diameter with grille fitted: 9.21“(234mm）
Grille: 3.8mm low profile treated steel with magnetic attachment
Limited Warranty
3
Painting Grille
PLEASE REMOVE THE FIBRE MATERIAL UNDER THE GRILL AFTER PAINTING.
This speaker has a paintable grille which must be decorated separately and with the correct
methods to avoid directly painting or damaging the drivers.
Use the cutout template supplied with the speaker as a paint shield.
Place the template under the grille before painting. Spray paint the grille with a light coat of
paint. Repeat if necessary. DO NOT US E A BRUSH OR ROLLER.
When spraying it, use suitable methods to ensure the grille holes are not blocked.
Remove the paint shield once paint is dry.
Specifications
General
Model Number:
Box contents:
1x speaker grille
Included accessories: 1x cut out template
1x instruction manual
CS-65CE
1x in-ceiling speaker
6 7
This Premium High Definition Solutions product is warranted free of defects in workmanship and materials
on purchase for 5 (FIVE) Years. If the goods are found to be defective within the warranty period, they will
be repaired or replaced, at Premium High Definition Solutions option, without charge on return to the
vendor upon satisfactory proof of purchase from the vendor and date of purchase. This warranty does not
apply if, in the judgment of Premium High Definition Solutions, the product fails due to damage from
shipment, handling, storage, accident, abuse, over driving, under driving or misuse, or if it has been used
or maintained in a manner not conforming to product manual instructions, has been modified in any way,
or has had any serial number removed or defaced. Repair by anyone other than Premium High Definition
Solutions or an approved agent will void this warranty. The maximum liability of Premium High Definition
Solutions under this warranty is limited to the purchase price of the product covered by the warranty.
Premium High Definition Solutions shall not under any circumstances be liable to any person for any
special, incidental, indirect or consequential damages, including without limitation, damages resulting
from use or malfunction of the products, loss of profits or revenues or costs of replacement goods, even
if Premium High Definition Solutions is informed in advance of the possibility of such damages.
In the first instance consumers should contact their vendor.
Territorial distributor details can be found at
www.phdsolutions.co
