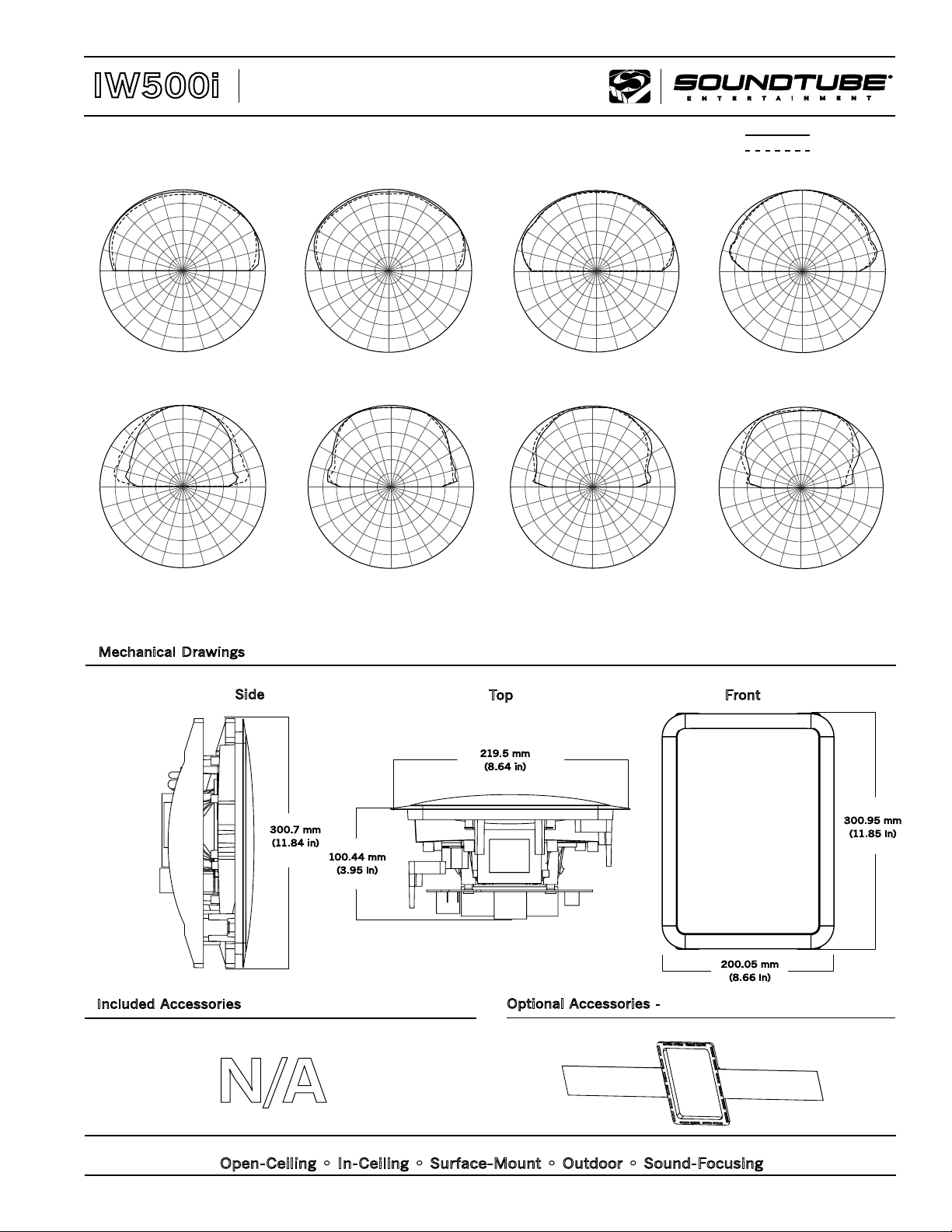

Phase Technology IW500i User Manual
IW500i
Specifications: IW500i
System Type
Impedance (nominal)
Sensitivity dB @ 2.83V/1M
Sensitivity dB @ 1W/1M
Frequency Response (- 3 dB)
Frequency Response (-10 dB)
Max. Program Power
Max. Continuous Power RMS
Max. Power SPL @ 1 M 6
Coverage Angle (-6 dB @ 2 kHz)
Coverage Angle (-6 dB @ 10 kHz)
Coverage Angle (Avg. 2 - 10 kHz)
Directivity Factor (Q)
Directivity Index (DI) dB
Tap Selector
Transducer - Low Frequency Driver
Transducer - High Frequency Driver
Low Frequency Voice Coil
Crossover Frequency
Network Type: Low Pass
Network Type: High Pass
Enclosure Material
Motor-board
Grille
Inputs
Colors
Height
Width
Depth
Weight
Shipping Weight
Included Accessories
Optional Accersories
Packaging
Regulatory - CE
1
Impedance listed per IEC 60268-5 with
a minimum less than 80% the nominal
impedance
2
1w1m sensitivity determined using
nominal impedance
3
Frequency response measured in half
or full space as dictated by speaker
mounting configuration
4
Max program power is 3 dB above max
continuous power
5
Continuous power rating, EIA-426-B test
6
Max output based on max continuous power
7
Max useable SPL based on testing
by NWAA Labs
Technical Information for System Engineers
1
2
3
4
5
In-Wall Speaker
5.25" Coax, in wall, sealed (33 Watt transformer for
25/70.7/100 Volt or 8 Ohm direct)
8 ohm
88.0 dB
88.0 dB
72 Hz - 22 kHz
3
55 Hz - 22 kHz
150 w
75 w
107.0 dB
80º horizontal / 120º vertical
120º horizontal / 120º vertical
115º horizontal / 115º vertical
4.2 (Averaged 100 HZ - 10 kHz) / 7.8 (2 kHz)
5.6 dB (Averaged 100 HZ - 10 kHz) / 8.9 dB (2 kHz)
6 Position rotary switch with 8 ohm direct
1 x 133 mm (5.25 in) Polypropylene cone, butyl rubber surround
25mm (1in) Convex aluminum tweeter with waveguide
25.4 mm / 1.00 in
3.0 kHz
12 dB per octave, 2nd order
12 dB per octave, 2nd order
Injection molded ABS, glass fiber reinforced
Cast aluminum
Powder coated steel
Spring terminal
White (only) Paintable
11.84 in / 300.7 mm
8.64 in / 219.5 mm
3.90 in / 99.1 mm
7.9 lb / 3.6 kg
10.0 lb / 4.5 kg
Paint mask, hole template
Preconstruction bracket (AC-IW5-PCB)
1 per box
Approved
Transformer Taps
70.7 V Output 100 V Output 25 V Output
33 w 103.0 dB
17 w 100.5 dB
9 w 97.5 dB
6 w 96.0 dB
3 w 93.0 dB
33 w 103.0 dB
17 w 100.5 dB
9 w 97.5 dB
6 w 96.0 dB
5 w 95.0 dB
3 w 93.0 dB
1.3 w 89.0 dB
0.63 w 86.0 dB
Key Features
• BroadBeam® waveguide technology
delivers a consistent dispersion pattern up
to 10 kHz for maximum coverage area per
speaker (EASE™ documented).
• One 133 mm (5.25 in) polypropylene
woofer and one 25 mm (1 in) convex aluminum tweeter with FerroFluid cooling
mounted to an M5 Motorboard.
• 107 dB Max. SPL offers high output capabilities and reduced amplification costs.
• Rapid installation blind-mount system for
quick and secure installation.
• Easy-access 6-position tap switch for 25,
70.7 & 100 Volt applications with voice coil/8
Ohm direct simplifies ordering & inventory
tracking.
• Included accessories: Mounting hardware,
Paint mask, Hole template.
• Optional accessory: pre-construction
bracket (AC-IW5-PCB).
• High-quality white paint finish. Custom
paint colors optional.
Description
The IW500i is a 5.25” coax in-wall loudspeaker that delivers effective low-end
response (55 Hz, -10 dB) and optimal offaxis performance (up to 10 kHz, EASE™
documented). SoundTube’s proprietary
BroadBeam® waveguide tweeter system delivers consistent high-performance audio across
the operating bandwidth. The IW500i speaker
design incorporates a low-profile grille and
6-position tap switch with an 8 Ohm bypass.
Mounting hardware is included and features a
fast and secure optimally engineered constanttension mounting system. A pre-construction
bracket is offered as an optional accessory.
Applications
Designed for in-wall applications, the
IW500i is ideal for music and messaging in
boardroom, church, corporate A/V, retail,
hotel, hospital and education applications.
For additional bass response down to 41 Hz
(-10 dB), the CM1001d subwoofer may be
used.
Patented SoundTube
Technologies
SoundTube Entertainment and the MSE
Audio Group constantly develop new technologies which enhance audio product
performance. SoundTube Entertainment inno-
© 2008 SoundTube Entertainment. All rights reserved. PN-TS-CMEZ REV 11.04.08
100
1000
10000
20
50
200
500
2000
5000
20000
Hertz
0
10
20
30
40
50
60
70
80
90
100
110
dBSPL
Frequency Response
100
1000
10000
20
50
200
500
2000
5000
20000
Hertz
0
8
16
24
32
40
48
56
64
Ohms
-180
-135
-90
-45
0
45
90
135
180
Phase(Degrees)
Impedance/Phase
Impedance
Phase
IW500i
Technical Information for System Engineers
In-Wall Speaker
vations are protected by multiple U.S. &
international patents, which explicitly cover
SoundTube dome, enclosure and dispersion technologies. The MSE Audio Group
actively defends its patents in order to protect SoundTube resellers and end-users.
Technical Data and
Specification Tools
Technical Data
SoundTube Entertainment strives to
provide complete and effective technical information and data to dealers,
engineers and designers. All data are
available from SoundTube Entertainment or at www.soundtube.com and
includes EASE™ Data – 3-D polar plots
and SoundTubeSPEC™ – Proprietary
SoundTube speaker placement software.
Independent Data Acquisition &
Verification
All data for SoundTube speakers is independently collected from and verified by
NWAA Labs (www.nwaalabs.com) using
their proprietary MACH testing system.
All data is collected and analysed according to ASTM, ISO and AES standards using
EASERA, TEF and MLSSA. Full balloon
data including both phase and magnitude
is compiled into a variety of formats including EASE 4.x, GLL and CLF.
Architectural Specifications
The loudspeaker shall consist of a 133
mm (5.25 in) low-frequency transducer and
a 25 mm (1 in) high-frequency transducer
with a frequency-dividing network installed
to an infinite baffle. The low-frequency
transducer shall have a polypropylene cone
with a butyl rubber surround. The high-frequency transducer shall be constructed of
aluminum with a proprietary BroadBeam®
waveguide. The low-frequency voice coil
diameter shall be 25.4 mm (1 in).
Performance specifications of a typical
production unit shall be as follows: Useable
frequency response shall extend from 55
Hz – 22 kHz (-10 dB, half space, no external equalization). Measured sensitivity
(2.83 Volt, 1 meter) shall be at least 88 dB.
The speaker shall have a nominal impedance of 8 Ohms and shall be available for
25/70.7/100 Volt modes with voice coil/8
Ohm direct. The frequency-dividing network shall have a crossover frequency of 3
kHz with slopes of 12 dB per octave (second
order) for both low and high-pass filters.
Rated power capacity shall be at least 75
Watts continuous power (RMS) and conform to EIA-426-B testing. Maximum continuous output at 1 meter shall be 107 dB.
Installation for the IW500i shall be by
4-screw, optimally engineered constanttension mounting assembly. The external
wiring input connector shall be a spring
terminal for 8 Ohm or distributed systems
and shall accept from 10 – 22 gauge wire.
The grille shall be constructed of powder-coated steel for lasting performance
and attach via pressure fit directly to the
ABS baffle.
The system shall be the SoundTube
IW500i with mounting hardware for both
low & high impedance applications.
SoundTube Entertainment
6430 North Business Park Loop
Park City, Utah 84098
Phone 435.647.9555
Fax 435.647.9666
Toll Free 800.647.TUBE
www.soundtube.com
Graphs and Plots
Frequency Response
Phase/Impedance Reponse
