Phase Technology CL-1.5 User Manual

T E C H N O L O G Y

R

Custom Installation Series

Owners Manual / Installation Instructions

Power FL-8 Power FL-10 Power FL-12

CI-1.5

Speaker seismic
restraint hole

SpeedWing™ mounting arms

Baffle

Grille safety clip

Box contents

1 Speaker
1 Grille
1 Paint mask
1 Hole template
1 Euroblock connector

Installation aid/paint mask

Grille

MSE Audio Group 8650 College Boulevard Overland Park, Kansas 66210 [phone]

www.mseaudio.com www.phasetech.com

T E C H N O L O G Y

R

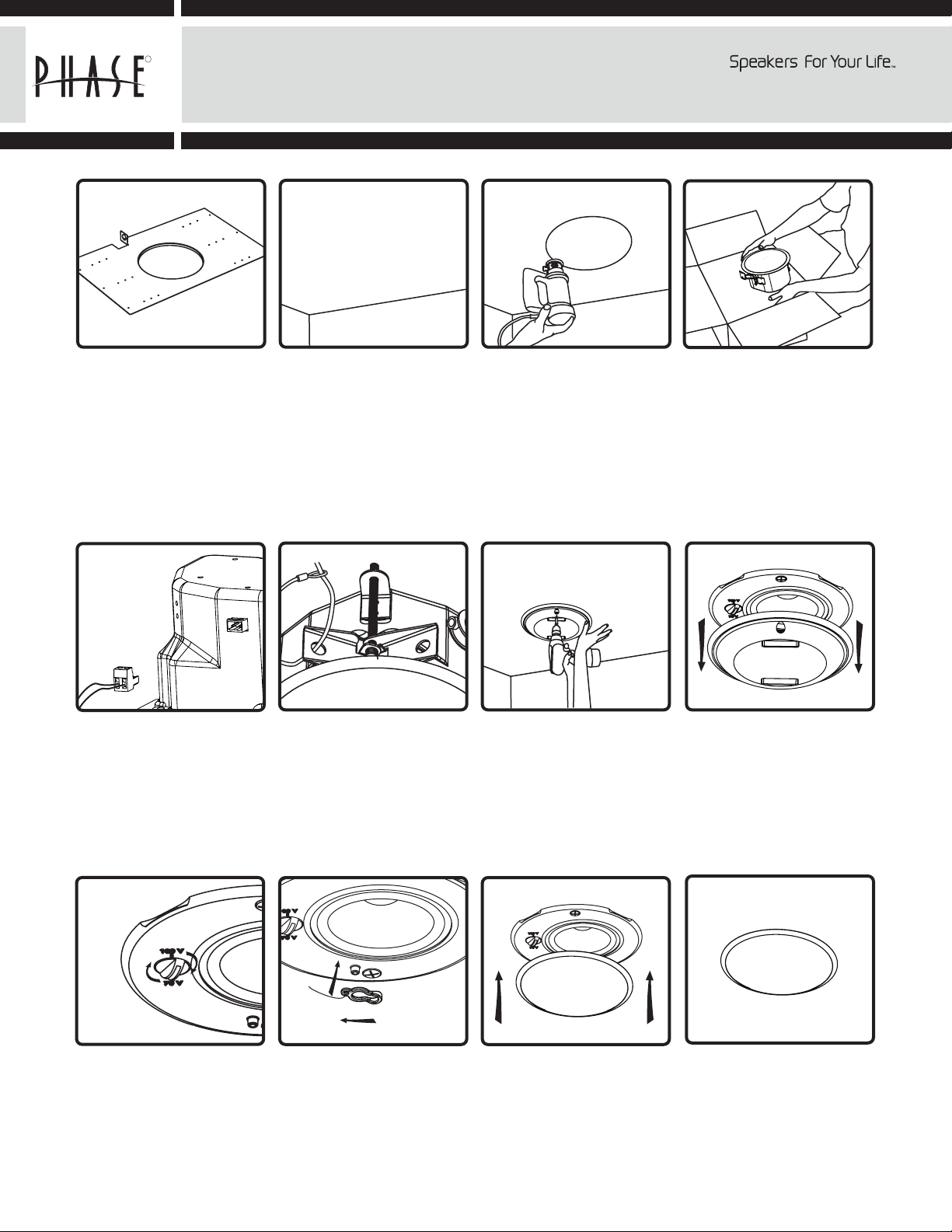

Installation Instructions: Installing the
CI-1.5 in a Sheetrock Ceiling

1. Unpack speaker. Leave
paint mask in place until
after speaker is installed or
painting is complete.

5. If required, attach seismic
restraint system to hole in
clamping arm, then to
reinforced structure (safety
cable not included).

2. Use hole template to
mark cutout on sheetrock.

6. Insert speaker into
mounting hole with paint
mask in place. Tighten both
screws on the baffle face to
actuate the mounting wings.
Firmly secure both screws,

DO NOT OVERTIGHTEN.

3. Use RotoZip or other tool

to cut hole. Hole diameter:

5.6 in. (142 mm).

7. Remove paint mask
unless painting is required.
In that case, follow steps
8-11 when painting is
complete.

4. Connect Euroblock to
speaker wires, and connect
to speakers.

8. Adjust tap switch to
proper setting. Switch is
preset to 8-ohm mode.

1.

2.

9. Attach grille safety clip by

placing the large end of the
clip over snap-fit post (1),
then sliding clip until small
end snaps into place around
post (2).

10. Align tabs on snap-fit
grille with slots in baffle,
gently press grille into place.

11. Done!
