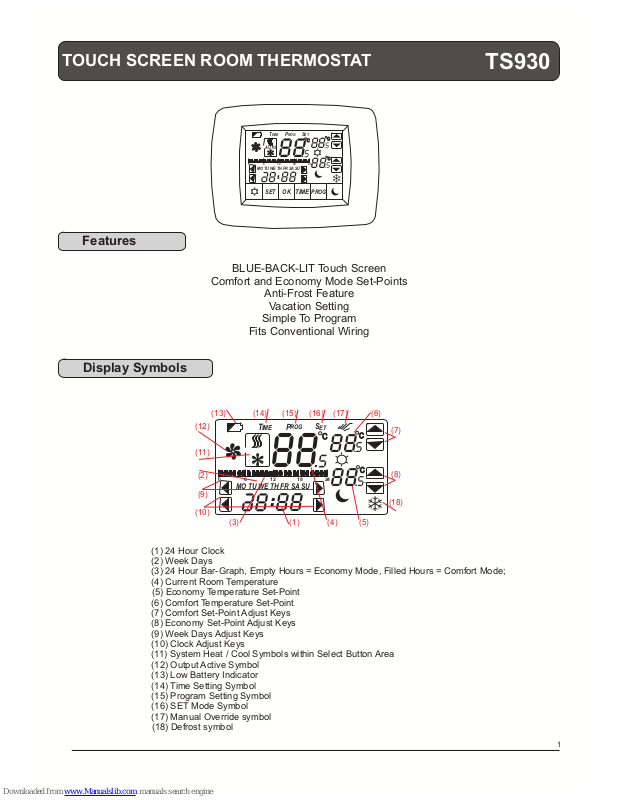

PHASELINER TS930 User Manual

TOUCH SCREEN ROOM THERMOSTAT

TS930

Features

0

24

18

12

6

CC

CC

CC

d

88

88
88

88

.

.

.

.

.

SET

IMET

ROG

P ET

S

MO TU WE TH FR SA SU

AUTO

OK

TIME

PROG

[[

BLUE-BACK-LIT Touch Screen

Comfort and Economy Mode Set-Points

Anti-Frost Feature

Vacation Setting

Simple To Program

Fits Conventional Wiring

0

24

18

12

6

CC

CC

CC

d

88

88

88

88

.

.

.

.

.

IMET

ROG

P ET

S

MO TU WE TH FR SA SU

[[

(2)

(1)(3) (4) (5)

(18)

(7)

(8)

(6)(17)(16)(15)(14)(13)

(12)

(11)

(10)

(9)

(1) 24 Hour Clock
(2) Week Days
(3) 24 Hour Bar-Graph, Empty Hours = Economy Mode, Filled Hours = Comfort Mode;
(4) Current Room Temperature

(5) Economy Temperature Set-Point

(6) Comfort Temperature Set-Point
(7) Comfort Set-Point Adjust Keys
(8) Economy Set-Point Adjust Keys
(9) Week Days Adjust Keys
(10) Clock Adjust Keys
(11) System Heat / Cool Symbols within Select Button Area
(12) Output Active Symbol
(13) Low Battery Indicator
(14) Time Setting Symbol
(15) Program Setting Symbol
(16) SET Mode Symbol
(17) Manual Override symbol

(18) Defrost symbol

Display Symbols

1

TOUCH SCREEN ROOM THERMOSTAT

TS930

PHASELINER LTD 17 HERVEY CT 20 SURREY LANE LONDON SW113PT ENGLAND TEL.[phone] FAX [phone] EMAIL: [e-mail]

Feature program sequence

2

STANDARD USER

SCREEN MODE

OPERATING MODE

SELECTION SCREEN

DEFROST MODE

SCREEN

VACATION SET-UP

SCREEN

HEAT-COOL CYCLE

TEMPERATURE DIFFERENTIAL

COOLING/HEATING START DELAY

TEMPERATURE DISPLAY ADJUST

US ONLY: B22 CONFIG

BACK LIGHT ENABLE/DISABLE

PRESS

’’SET’’

PRESS

’’SET’’

SET

PRESS

’’OK’’

SET

OK

OK

SET

OK

SET

OK

SET

OK

SET

OK

SET

OK

ENABLE

DISABLE

ENABLE

DISABLE

ENABLE

DISABLE

TURN ON

TURN OFF

SET TEMPERATURE ADJUST

SET VACATION DURATION

SET VACATION SET-POINT TEMPERATURE

1 C

DIFERENTIAL

SET

SET

COMFORT MODE

ECONOMY MODE

OFF

SELECT:

Y

Y

Y

Y

Y

2 C

DIFERENTIAL

RETURN

STANDARD USER

SCREEN MODE

ADJUST COMFORT AND ECONOMY

SET-POINT TEMPERATURES

CHOOSE DAYS

OF THE WEEK

CHOOSE

FURTHER DAYS

SELECT COMFORT HOURS

AND ECONOMY HOURS

STORES NEW PROGRAM

PRESS

PROG

PROG

PROG

OK

OK

OK

PROG

RETURN

Heating or cooling program

CLOCK CONFIGURATION

DEFROST FEATURE:
DEFROST active - See section “DEFROST FEATURE”.

36

0

24

18

12

6

MoMo

CC

CC

.

.

.

.

COMFORT MODE (Comfort TEMP determines state of the output):
Current room temperature is displayed in the middle, current time at the
bottom of the screen. Top right corner presents COMFORT MODE Set­Point with its adjustment keys. The FAN symbol indicates an active
output. Note that hour bar-graph is enabled between 6AM and 11AM. 24­hour bar-graph clear fields indicate ECONOMY MODE, filled entries
indicate COMFORT MODE.

36

0

24

18

12

6

MoMo

CC

CC

.

.

.

TOUCH SCREEN ROOM THERMOSTAT

TS930

PHASELINER LTD 17 HERVEY CT 20 SURREY LANE LONDON SW113PT ENGLAND TEL.[phone] FAX [phone] EMAIL: [e-mail]

36

0

24

18

12

6

MoMo

CC

.

.

.

d

36

0

24

18

12

6

MoMo

CC

F

.

.

.

Press “TIME” button at the toolbar. The display changes as depicted
bellow. Use upper adjustment keys for setting the day of the week and
lower adjustment keys for setting current time. Press and hold for high
speed scan to commence. Once the setting is complete, press “OK” to
revert back to normal operating mode.

ECONOMY MODE (Economy TEMP determines state of the output):
Current room temperature is displayed in the middle, current time at the
bottom of the screen. Bottom right corner presents ECONOMY MODE
Set-Point with its adjustment keys. Note that hour bar-graph is clear
between 9AM and 4PM. 24-hour bar-graph clear fields indicate
ECONOMY MODE, filled entries indicate COMFORT MODE.

Common Display Views

CURRENT MODE: OFF

36

0

24

18

12

6

.

.

IMET ET

S

MO

Time adjust keys

Day adjust keys

0

24

18

12

6

CC

CC

CC

d

88

88

88

88

.

.

.

.

.

SET

IMET

ROG

P ET

S

MO TU WE TH FR SA SU

AUTO

OK

TIME

PROG

[[

3

7 DAY PROGRAM EXAMPLE

This section deals with:
Adjusting comfort and economy temperature set-points for single or
sequence of days in a week. Also, see Heating or Cooling Program Chart,
Page 2.

Comfort temperature is household target temperature during the hours of
occupancy, and is generally assumed to be the temperature for which the
heating system is to be active. Economy temperature is assumed to be
the temperature during hours when heating system is not required,
usually during daytime on workdays.

To start, press “PROG” key at the command bar.

TOUCH SCREEN ROOM THERMOSTAT

TS930

PHASELINER LTD 17 HERVEY CT 20 SURREY LANE LONDON SW113PT ENGLAND TEL.[phone] FAX [phone] EMAIL: [e-mail]

0

24

18

12

6

CC

CC

CC

d

88

88

88

88

.

.

.

.

.

IMET

ROG

P ET

S

MO TU WE TH FR SA SU

AUTO

[[

SET

OK

TIME

PROG

0

24

18

12

6

ROG

P ET

S

FR

SET

OK

TIME

PROG

CC

CC

6

SET

OK

TIME

PROG

.

.

0

24

18

12

6

6

ROG

P ET

S

MO TU WE TH FR

SET

OK

TIME

PROG

36

0

24

18

12

6

????

CC

CC

.

.

.

.

Once complete, press “OK” button at the command bar to revert back to
the normal operating mode.

To continue to Schedule Programming, press “PROG” button at the
command bar. For this specific setting COMFORT and ECONOMY hours
have to be specified. The selection is displayed on current day program
bar. COMFORT hour entries are indicated with black rectangle, while
ECONOMY hour entries are empty hour slots. Use cursor to select
specific hour, by pressing adjustment keys left and right from the current
clock. Once at the required hour slot, press SUN to select COMFORT or
MOON to select ECONOMY mode. Repeat the procedure for all hours of
the day.

The screen now changes to allow selection of the day in the week.
Symbol “FR” for Friday is blinking underneath the current day program
bar. Use left and right adjustment keys to select day in the week and then
press SELECT button above the current day program bar. Note that once
SELECT button has been pressed, the day symbol stops blinking, and
new day symbol appears. Now you can select further days to contain the
same program, by again clicking adjust keys followed by SELECT button.
Repeat this procedure to select all desired days. Note: at least one day in
the week has to be selected to enable further steps of the programming
sequence.

Top right corner shows COMFORT set-point temperature, SUN symbol as
COMFORT MODE symbol, and its related adjustment keys.

Centre temperature presents ECONOMY MODE set-point with its MOON
symbol and related adjustment keys.

Directly press the adjustment keys to configure the required set-points for
a specific day in the week. Once completed, press “PROG” button on the
toolbar.

0

24

18

12

6

6

.

CC

CC

S

ETP

ROG

SET

OK

TIME

PROG

4

Select Button Area

PHASELINER LTD 17 HERVEY CT 20 SURREY LANE LONDON SW113PT ENGLAND TEL.[phone] FAX [phone] EMAIL: [e-mail]

TOUCH SCREEN ROOM THERMOSTAT

TS930

Select HEAT, OFF or COOL, plus Defrost Feature

Defrost feature can be disabled or enabled, status of which is indicated
by presence of a defrost symbol (snowflake) at the lower right corner of
the screen.

After pressing “SET”, DEFROST symbol will appear flashing at the lower
right corner of the screen. Flashing of the defrost symbol indicates defrost
currently disabled. To enable, press SELECT button. Defrost symbol will
now stop flashing, defrost thus being enabled. To alternate defrost mode,
press SELECT as required.

Once complete, press “OK” at the command bar to exit configuration
mode and return back to normal display.

0

24

18

12

6

ET

S

This section deals with operating mode selection, and DEFROST feature:
Choose between HEAT, OFF or COOL, plus enable or disable DEFROST
feature.

DEFROST feature is intended to keep ambient temperature above 7°C at
all times. Once enabled, and the system is in HEAT mode, Ts930 will
engage the output if ambient temperature falls bellow 7°C.

[[

FF

SELECT

COOL

OFF

Press SET to confirm and

save.

Press OK to exit configuration

and revert back to normal

operating mode.

To start, press “SET” button on the command bar, as depicted to the left.

Display will now change to mode selection screen, where SELECTION
symbol is shown. At the same time, current operational mode symbol will
also be shown. As default, this will be the HEAT mode symbol, as
presented to the left.

0

24

18

12

6

ET

S

0

24

18

12

6

FF

ET

S

0

24

18

12

6

[[

ET

S

MODE Selection Screen with
HEAT as current active mode

Press SELECT BUTTON to

change current MODE

Press SELECT BUTTON to

enter defrost configuration

DEFROST Symbol:
Flashing - Disabled
Solid - Enabled

OFF Selected

SET

OK

TIME

PROG

SET

OK

TIME

PROG

COOL selected

To shuffle between modes, press SELECT button until next mode symbol
appears and the current one turns off. Repeat the procedure until
required mode symbol is displayed.

To save the chosen operating mode press “SET”. User now have option
to proceed with DEFROST feature enable/disable option by pressing
“SELECT” or simply to return to normal operating mode by pressing “OK”.

DEFROST

d

0

24

18

12

6

ET

S

d

d

HEAT

5

TOUCH SCREEN ROOM THERMOSTAT

TS930

Screen will now show UC vacation symbol and vacation set-point
temperature bellow it. The current ambient temperature and clock are
displayed as normal. This screen will remain for the duration of the vacation
period.

0

24

18

12

6

6

UC

CC

ET

S

To enter Vacation Setting

screen press “SET” three (3)

times

Vacation Setting Screen

Vacation Setting Symbol

Vacation Duration (Days)

Vacation Set-Point Temperature

0

24

18

12

6

6

UC

CC

ET

S

To configure vacation setting, press “SET” at the command bar several
times until symbol UC appears on the screen (see left).

To cancel vacation setting, enter the vacation setting screen and set the
vacation duration to zero (0).

VACATION SETTING

0

24

18

12

6

CC

CC

CC

d

88

88

88

88

.

.

.

.

.

IMET

ROG

P ET

S

MO TU WE TH FR SA SU

AUTO

[[

SET

OK

TIME

PROG

Vacation Setting is provided to allow special temperature set point to be
active during several consecutive days, without changing normal
COMFORT and ECONOMY settings. This is useful when property is not
to be occupied for several days, but the system is still required to
maintain certain ambient temperature.

Vacation setting can be enabled for a maximum off 99 consecutive days.

To enter Vacation Setting

screen press “SET” three (3)

times

36

0

24

18

12

6

MOMO

.

.

.

UC

CC

CC

CC

Screen will now show UC

vacation symbol and vacation

set-point temperature

Press OK to confirm and

return to the normal display

mode

SET

OK

TIME

PROG

PHASELINER LTD 17 HERVEY CT 20 SURREY LANE LONDON SW113PT ENGLAND TEL.[phone] FAX [phone] EMAIL: [e-mail]

6

Use left-right vacation duration adjust keys to set the required vacation
period (maximum 99 days). Use up-down vacation set-point adjust keys
to program the vacation set-point temperature. This set-point will become
immediately active and will remain such for the duration of the vacation
period.

TOUCH SCREEN ROOM THERMOSTAT

TS930

0

24

18

12

6

CC

C

c

ET

S

0

24

18

12

6

CC

C

c

ET

S

TEMP DIFF screen with

2°C setting

COOLING or HEATING TEMP DIFFERENTIAL

0

24

18

12

6

CC

CC

CC

d

88

88

88

88

.

.

.

.

.

IMET

ROG

P ET

S

MO TU WE TH FR SA SU

AUTO

[[

SET

OK

TIME

PROG

The status is displayed as ON or alternatively OFF. Use the SELECT
button to alternate. Once configured, press OK to return to normal mode
screen.

Cooling or Heating temperature differential - This setting can be adjusted
to 1 or 2 °C. When enabled, it will exclude potential temperature
oscillations near to set-point temperature.

To configure temperature differential, press SET button at the command
bar four (4) times.

To enter TEMP

DIFFERENTIAL setting

screen press “SET” four (4)

times

TEMP DIFF screen with

1°C setting

Press OK to confirm and

return to the normal display

mode

SET

OK

TIME

PROG

PHASELINER LTD 17 HERVEY CT 20 SURREY LANE LONDON SW113PT ENGLAND TEL.[phone] FAX [phone] EMAIL: [e-mail]

7

TOUCH SCREEN ROOM THERMOSTAT

TS930

BACKLIGHT Enable/Disable

The status is displayed as ON or alternatively OFF. Use the SELECT
button to alternate. Once configured, press OK to return to normal mode
screen.

Use to enable or disable Back Light.

Back Light de-activated OFF

Use SELECT to alternate

0

24

18

12

6

SetSet

F

0

24

18

12

6

SetSet

To enter DELAY setting

screen press “SET” five (5)

times

Back Light activated ON

Use SELECT to alternate

Press OK to confirm and

return to the normal display

mode

Back Light symbol

SELECT

0

24

18

12

6

SS

????

Back Light status

PHASELINER LTD 17 HERVEY CT 20 SURREY LANE LONDON SW113PT ENGLAND TEL.[phone] FAX [phone] EMAIL: [e-mail]

0

24

18

12

6

CC

CC

CC

d

88

88

88

88

.

.

.

.

.

IMET

ROG

P ET

S

MO TU WE TH FR SA SU

AUTO

[[

SET

OK

TIME

PROG

8

TOUCH SCREEN ROOM THERMOSTAT

TS930

COOLING or HEATING START DELAY

0

24

18

12

6

CC

CC

CC

d

88

88

88

88

.

.

.

.

.

IMET

ROG

P ET

S

MO TU WE TH FR SA SU

AUTO

[[

SET

OK

TIME

PROG

The status is displayed as ON or alternatively OFF. Use the SELECT
button to alternate. Once configured, press OK to return to normal mode
screen.

Cycle Start Delay - This feature ensures 5 minute delay between system
cycles. For instance, during HEAT mode, if the ambient temperature falls
bellow set-point minus the temperature differential, Ts930 will delay
heating for 5 minutes. This feature is useful for areas with rapid, short
duration oscillations in temperature. For instance, in case window or door
is opened for short period of time in TS930’s vicinity.

DELAY disabled OFF

Use SELECT to alternate

To enter DELAY setting

screen press “SET” six (6)

times

DELAY active ON

Use SELECT to alternate

Press OK to confirm and

return to the normal display

mode

SET

OK

TIME

PROG

0

24

18

12

6

SS

????

F

Ly

0

24

18

12

6

SS

????

Ly

DELAY symbol

SELECT DELAY status

0

24

18

12

6

SS

????

Ly

PHASELINER LTD 17 HERVEY CT 20 SURREY LANE LONDON SW113PT ENGLAND TEL.[phone] FAX [phone] EMAIL: [e-mail]

9

TOUCH SCREEN ROOM THERMOSTAT

TS930

US ONLY: B22 ENABLE

0

24

18

12

6

CC

CC

CC

d

88

88

88

88

.

.

.

.

.

IMET

ROG

P ET

S

MO TU WE TH FR SA SU

AUTO

[[

SET

OK

TIME

PROG

Enable/Disable B22 Offset:
Use this screen to enable or disable temperature offset for B22 boilers.
US and Canada models only.

TEMP DIFF screen with

1.00°C adjustment bellow the
measured ambient

CC

CC

CC

TEMP DIFF setting symbol

Variation

HI - indicates plus (+) variation
LOW - indicates minus (-) variation

Current ambient

temperature

To enter DELAY setting

screen press “SET” seven (7)

times

TEMP DIFF screen with 1.5°C

adjustment above the

measured ambient

PHASELINER LTD 17 HERVEY CT 20 SURREY LANE LONDON SW113PT ENGLAND TEL.[phone] FAX [phone] EMAIL: [e-mail]

10

Display TEMP Adjust

0

24

18

12

6

0

24

18

12

6

SS

ЕТЕТ

F

Displayed temperature adjust.
This feature is available to allow +/- modification of the displayed
temperature. Ts930 has been accurately calibrated before dispatch, but in
case displayed temperature is needed to be corrected (for instance when
match has to be made with an old or other local thermostats), this feature
can be used. It will allow +/- 2.5°C variation around the current measured
ambient temperature.

MANUAL OVERRIDE

Manual Override Reverse Status.
It is very simple to switch between COMFORT and ECONOMY modes,
by selecting COMFORT or ECONOMY buttons from the command bar.
The action is followed by manual override symbol being displayed, and
this mode will remain active until the current hour ending.

TOUCH SCREEN ROOM THERMOSTAT

TS930

Manual Override during ECONOMY program: Simply use adjust buttons
to increase or decrease current set-point. Ts930 will display manual
override symbol. Manually adjusted set-point will remain active until end
of ECONOMY time frame.

36

0

24

18

12

6

????

CC

CC

.

.

.

.

Manual Override Symbol

36

0

24

18

12

6

????

CC

CC

.

.

.

To temporary switch from

ECONOMY mode to

COMFORT mode press

COMFORT mode button.

36

0

24

18

12

6

????

CC

CC

.

.

.

36

0

24

18

12

6

????

CC

CC

.

.

.

.

To temporary switch from

COMFORT mode to

ECONOMY mode press

ECONOMY mode button.

PHASELINER LTD 17 HERVEY CT 20 SURREY LANE LONDON SW113PT ENGLAND TEL.[phone] FAX [phone] EMAIL: [e-mail]

11

Manual Override
Quite often it is required to change temperature set-point in flight, without
actually changing already active program. Ts930 allows seamless
temporary set point adjustment. For either COMFORT or ECONOMY
modes press adjust buttons to alter the current set point temperature.

Manual Override during COMFORT program: Simply use adjust buttons
to increase or decrease current set-point. Ts930 will display manual
override symbol. Manually adjusted set-point will remain active until end
of COMFORT time frame.

TOUCH SCREEN ROOM THERMOSTAT

TS930

PHASELINER LTD 17 HERVEY CT 20 SURREY LANE LONDON SW113PT ENGLAND TEL.[phone] FAX [phone] EMAIL: [e-mail]

DIMENSIONS

TECHNICAL DATA

Power Rating:
230VAC 50Hz

Switching Capacity:
4A Resistive

Temperature Range: 0°C - 35°C
Setting Temperature Range: 5°C - 30°C

Power:
2x AA Alkaline Batteries

Data Subject to Change Without Notice.

12

0

24

18

12

6

CC

CC

CC

d

88

88

88

88

.

.

.

.

.

SET

IMET

ROG

P ET

S

MO TU WE TH FR SA SU

AUTO

OK

TIME

PROG

[[

130

96

32

WIRING DIAGRAM
