Phase Electronics FL500PRO User Manual

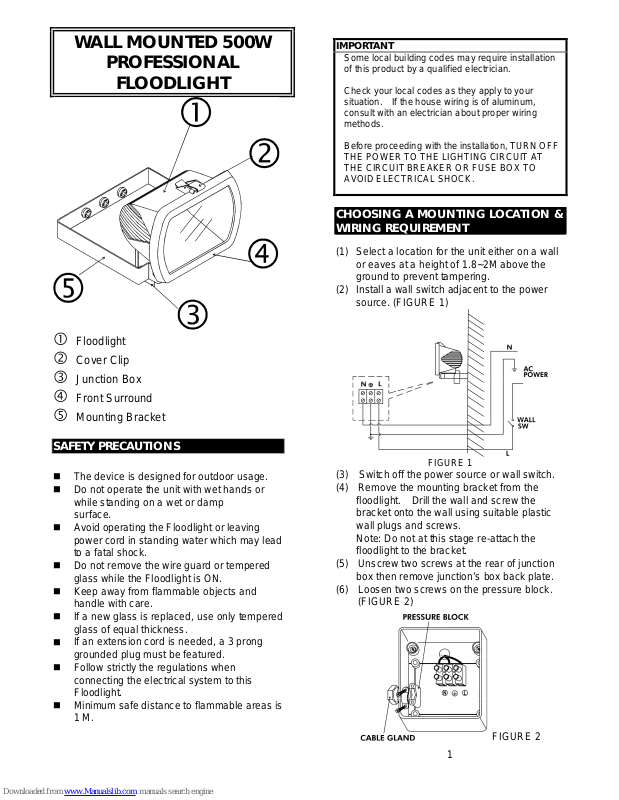

WALL MOUNTED 500W
PROFESSIONAL
FLOODLIGHT
Floodlight Cover Clip Junction Box
Front Surround
Mounting Bracket
SAFETY PRECAUTIONS
The device is designed for outdoor usage.
Do not operate the unit with wet hands or
while standing on a wet or damp
surface.
Avoid operating the Floodlight or leaving
power cord in standing water which may lead to a fatal shock.
Do not remove the wire guard or tempered
glass while the Floodlight is ON.
Keep away from flammable objects and
handle with care.
If a new glass is replaced, use only tempered
glass of equal thickness.
If an extension cord is needed, a 3 prong
grounded plug must be featured.
Follow strictly the regulations when
connecting the electrical system to this Floodlight. Minimum safe distance to flammable areas is
1 M.
IMPORTANT
Some local building codes may require installation of this product by a qualified electrician.
Check your local codes as they apply to your situation. If the house wiring is of aluminum, consult with an electrician about proper wiring methods.
Before proceeding with the installation, TURN OFF THE POWER TO THE LIGHTING CIRCUIT AT THE CIRCUIT BREAKER OR FUSE BOX TO AVOID ELECTRICAL SHOCK.
CHOOSING A MOUNTING LOCATION & WIRING REQUIREMENT
(1) Select a location for the unit either on a wall
or eaves at a height of 1.8~2M above the ground to prevent tampering.
(2) Install a wall switch adjacent to the power
source. (FIGURE 1)
FIGURE 1
(3) Switch off the power source or wall switch. (4) Remove the mounting bracket from the floodlight. Drill the wall and screw the bracket onto the wall using suitable plastic wall plugs and screws. Note: Do not at this stage re-attach the floodlight to the bracket. (5) Unscrew two screws at the rear of junction box then remove junction’s box back plate. (6) Loosen two screws on the pressure block.
(FIGURE 2)
FIGURE 2
1
(7) Route the power cord through the cable
gland and pressure block. (FIGURE 3)
FIGURE 3
(8) Strip approx. 6-8mm insulating part of the wires from the power cord.
(9) Connect the
BROWN
wire to the terminal
block
L
“ mark (Live wire).
Connect the
BLUE
wire to the terminal
block
N
“ mark (Neutral wire)
Connect the
YELLOW/GREEN
wire to the
terminal block “ “ mark (Ground wire). (FIGURE 4)
FIGURE 4
(10) Use the pressure block and its two screws to fix the power cord, then cover back the back plate. (11) Secure the Floodlight with its mounting bracket using the screws provided. Note: The Floodlight can be installed only horizontally (see the FIGURE 5a). not vertically (see the FIGURE 5b).
HORIZONTAL VERTICAL
FIGURE 5a & 5b
2
BULB INSTALLATION
CAUTION : Always handle quartz halogen bulbs with a soft cloth. Do not touch the bulb with your bare hand as it will shorten the life of the bulb.
(1) Do not touch the Floodlight while it is in use or
still hot. Allow it to cool (about 5 minutes) before touching it. (2) Do not use halogen bulb rated higher than 500
watts. (3) Disconnect the power cord or wall switch and
then use a flat screwdriver to open the cover clip
at the rear of floodlight. (FIGURE 6)
FIGURE 6
(4) Pull down the front surround which is mounted on
hinges and will swing open. (FIGURE 7)
FIGURE 7
(5) Install bulb by inserting one end first and
depressing until enough clearance is gained to
seat the other end of the socket. Rotate
halogen bulb to assure proper seating. Refit the
front surround in place and fasten it with cover
clip.(FIGURE 8a & 8b)
FIGURE 8a FIGURE 8b (6) To change a new bulb, lift one end of the bulb to
remove. Install a new bulb with the same steps
above.
3
TROUBLESHOOTING
Lights do not light on at all.
Check power supply.  Make sure that the bulbs have not burned out.  Check all wiring and connections.
Others
The specification of protective shield shall consult to local service agent.
SPECIFICATIONS
Power Requirement AC 220 ~ 240V/ 50Hz Lighting Load Max. 500 watt Halogen
Bulb Waterproof IP54 Protection Class Class I Power Cord Requirement H05RN-F, 3G, 1.0mm² Adjustable Angle 90° downwards
01623 758861 NG15 0DP
4
