Phase 3 SECURITY SYSTEM User Manual

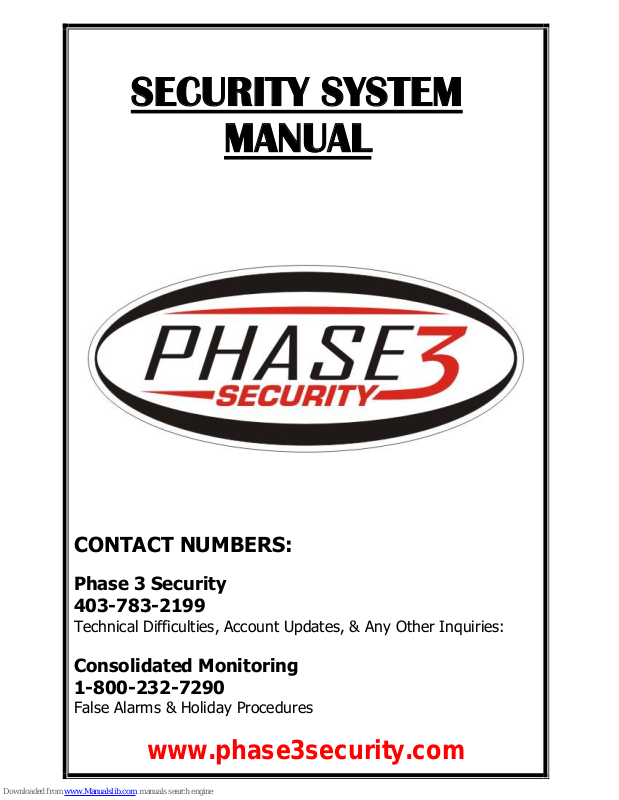

SECURITY SYSTEM

MANUAL

CONTACT NUMBERS:

Phase 3 Security
403-783-2199

Technical Difficulties, Account Updates, & Any Other Inquiries:

Consolidated Monitoring
1-800-232-7290

False Alarms & Holiday Procedures

www.phase3security.com

TABLE OF CONTENTS

Holiday Updates – when you will be away for any period of
time it is very important to notify Phase 3 Security or
Consolidated Monitoring so the necessary adjustments can be

made to the contact list / call out procedure . This ensures a

fast response to any alarm event. An online form is available
at www.phase3security.com /current customers / Holiday

Updates-online form.

Keypad Display Symbols

1

Keypad User Sheet

2-3

Programming Access Codes

4

Programming The Time & Date

5

Trouble Shooting Guide

6-7

Using Your Keyfob

7

Alarm Protocol

8-9

Accessing & Controlling Partitions

9

Keypad Display Symbols

Indicator Lights

Keypad Buttons

Emergency One Touch Buttons – Must press with

2 fingers and hold left and right side of button. Hold for 2
seconds.

Keypad User Sheet

 If the alarm is set off by accident enter your access code

into the keypad to stop the alarm and call the alarm
monitoring company at 1-800-232-7290 (Consolidated
Monitoring) immediately.

 ACCESS CODE - 4 digit code used to arm/disarm the

system.

 PASSCODE – 4 digit code (same as access code) OR a

chosen password; used to identify yourself to the monitoring
station in an alarm event.

NOTES:

 The alarm system will not set if any zones are active.

Close all doors and stop motion, the green indicator light
should be on ().

Action Instructions

1. Arm System –
Away Button

Press your [access code] and leave
through the entry/exit door

OR
Press & hold the away button until
the keypad beeps.

You have 2 minutes (typical programmed
time) to leave the premise. The keypad will
beep during the exit delay time period.
When disarming the system you have 30
seconds to enter your code in the keypad.

2. Stay Arm
System – Stay Arm
Button

 Bypasses the
interior protection and
arms the perimeter of
the system
(doors/window)

Press your [access code] and do not
leave the premise/open door

OR
Press & hold the stay arm button
until the keypad beeps.

Stay arm will disable the exit delay
countdown beeps but the delay is still in
effect.
When the exit delay is over and the alarm
is set the keypad indicator will display the
armed indicator.

3. Disarm System

Press your [access code]

You have 60 seconds (typical
programmed time to enter your code before
the monitoring station will call the premise
and begin alarm protocol.

4. Quick Exit –
When Stay Armed

Press & hold the exit button until the
keypad beeps and exit through the
entry/exit door.

 Use this function to leave premise stay
armed when leaving the house.

5. Turn the Door
Chime On/off –
Chime Button

Press & hold the chime button until
the keypad beeps

 3 fast beeps indicates the chime is on
1 long beep indicates the chime is off

6. Silence the Fire
Alarm – (during a
false alarm)

Press [#] and your [access code]

You have a 90 second delay to silence
the keypad before the signal will be sent.
Silencing the keypad will not silence your
smoke detector.

7. View/Clear
Memory

Memory or

System Indicator

Fire Indicator
(will turn on in a fire
alarm event)

To view which sensor generated the alarm:

Step 1: Press [] [3]. The memory
indicator light and sensor/zone
number or word will flash.
Step 2: Press [#] to exit.
Step3: Arm & disarm the system to
clear the memory and the memory
indicators will turn off.

8. Bypass A Zone

When you need to
access a protected
area or when a
specified zone is out
of service.

Step 1: Press [] [1] [2 digit zone
number] of zone you want to bypass.
Step 2: Press the [#] key to return to
the main screen.

Must bypass the zone each time the
system is armed.

Programming Access Codes

Adding / Deleting Access Codes From The Keypad

 Users need to be added / deleted both manually in your keypad

and with Phase 3 Security. You can call in any changes to
403-783-2199, or email [email protected].

 If the code you are trying to enter is the duplicate of any

existing code already used in the keypad an error tone will
sound and the original code you were attempting to change will
be restored.

 The system must be disarmed while making changes

 Pressing the [#] key will exit out of programming and return the

keypad to the main screen at any time.

Keypad Instructions:

To Add A New User / Access Code
Step 1: []

Step 2: [5]
Step 3: [Master Code] – 4 digit code of user 40 / owner / manager
Step 4: [User Number] – 2 digits, ie 01, 02, or 03…. If you are

unsure of the user number please contact Phase 3 Security.

Step 5: [new 4 digit access code]

Step 6: [#] [#]
Example: Add user 04 with access code 1234 & mastercode of 5678

[] [5] [5678] [04] [1234] [#] [#]

To Delete A User / Access Code

Step 1: []

Step 2: [5]

Step 3: [Master Code] - 4 digit code of user 40 / owner / manager

Step 4: [User Number] – 2 digits, ie 01, 02, 03….If you are unsure

of the user number please contact Phase 3 Security.

Step 5: []
Step 6: [#] [#]

Programming The Time & Date

 The time operates on a 24 hour clock.
 The time will need to be manually reset when the time changes

due to daylight savings

 The new time may not be displayed for a few minutes

afterwards!

Keypad Instructions:

Step 1: []

Step 2: [6]
Step 3: [Master Code] - 4 digit code of user 40/owner/manager
Step 4: [1]
Step 5: [hh:mm:MM:DD:YY]
[hour / minute / month / day / year]

Step 6: [#] [#]
Ex: Set time for 8:05am March 28, 2008 using mastercode of 5678

[] [6] [5678] [1] [08 05 03 28 08] [#][#]

Ex: Set time for 1:26 pm May 2, 2008 using mastercode of 5678.

[] [6] [5678] [1] [13 26 05 02 08] [#][#]

Troubleshooting Guide

 The keypad will beep if troubles are present. The [#] key will

silence the beeping; it will not repair the problem.

 Step 1: Press [] 2 to view what the trouble is

Step 2: The trouble light will flash a light on a specific
number to indicate the problem or the screen will display a
number.

 Use the arrow keys [< >] to scroll, if there is more than one

problem present it will scroll to the other occurring troubles.

 See the following chart to learn more on trouble conditions

causes and instructions.

Action Instructions

1. Service Required

Press 1 to determine the specific
trouble. One of the following will
display:

1. Low Battery on Main Panel

2. Bell Circuit Trouble

3. General System Trouble

4. General System Tamper

5. General System Supervisory

6. Not Applicable

7. Low Battery in Wireless Device

8. Loss of Date & Time – Reprogram the
date & time as per instructions on page 6.

2. AC Failure

AC power is no longer being supplied to the
control unit. Call for service.

3. Telephone Line
Trouble

Troubles with the phone line prevent your
alarm system from communicating with the
monitoring station. Call for service.

Using Your Keyfob

4. Failure to
Communicate

Your panel failed to communicate with the
monitoring station. Call for service

5. Zone Fault
(includes the fire
zone)

One of more of the zones has a problem
that will prevent it from signalling an alarm.

Press [5] to determine which zones are
causing the trouble. If you don’t know the

zone numbers for your system call Phase 3
Security.
Wireless Devices not communicating with
the panel will also cause this trouble.

6. Zone Tamper

Press [6] to view which zones have a
tamper condition occurring.

7. Wireless Device,
Low Battery (Key
Fob, Door, Motion
etc)

Press [7] once to view the wireless
zones
Press [7] twice to view the handheld
devices

Press[7] three times to view wireless

keys

8. Loss of System
Time & Date

The internal clock is not set. Refer to Page
5 “Programming the Time & Date”

Alarm Protocol

Different alarm events are handled in a different manner. For each
event the alarm monitoring station will respond in the following
ways:

1 Hit Protocol – System is armed and 1 device (a door or
motion detector) is violated. The monitoring system will take the

following course of action:

 Call the premise phone or verify through 2 way voice keypad –

they will require a valid name and passcode.

 If there is no answer or they do not receive a valid name and

passcode they will begin calling numbers on the keyholder list
until they reach someone to send to the premise.

 All persons listed as keyholders should have a key to the

premise.

2 Hit Protocol – System is armed and 2 or more devices (any
combinations of doors and motion detectors) are violated. The

monitoring station will take the following course of action:

 Call the premise phone or verify through 2 way voice keypad –

they will require a valid name and passcode.

 If there is no answer or they do not receive a valid name and

passcode they will dispatch the authorities and begin calling
numbers on the keyholder list until they reach someone to meet
the authorities.

Smoke Detector / Heat Detector – These devices are active at
all times & there is a 90 second delay between the detector
being activated and the monitoring station taking action. In

the event of a smoke or heat alarm the monitoring station will take
the following course of action:

 Call premise phone / verify through two voice keypad, if there is

no answer to verify a false alarm, the fire department will be
dispatched and the monitoring station will proceed to contact
keyholders to meet the fire department on site.

Panic Buttons – The panic button can activate the alarm
whether the system is armed or disarmed. The monitoring

station will take the following course of action:

 No call to premise. The RCMP will be dispatched and the

monitoring station will proceed to contact keyholders until they
reach someone to meet RCMP on site.

Flood Sensor & Temperature Sensors – These devices are
active at all times. The monitoring station will take the following

course of action:

 Call the premise phone / verify through 2 way voice keypad.

If they do not get an answer with a valid name / passcode they will

begin calling keyholders on the callout list until someone is reached.

Accessing & Controlling Partitions

An alarm system consisting of more than one partition splits your
alarm system into two or more sections, arming and disarming
each area separately while using only one phone line, therefore,
operating it as one alarm not two.

 To control one partition from the keypad of the other partition you will
need to know the number which corresponds to the partition you are
working with. Typically the house would pertain to partition 1 and the
detached building or garage would pertain to partition 2. If you are
unsure call Phase 3 Security.

To access partition 2 from the keypad in partition 1

Step 1: Press & hold the [#] key & wait for the
confirmation beep.
Step 2: Press & hold the [2] key & wait for the
confirmation beep.
 The keypad in partition 1 will now operate as the

partition 2 keypad.

NOTE: The same process can be done to access the partition 1 keypad
from the keypad in partition 2.

www.phase3security.com
