Phase 2500A User Manual

Page 1
Phase Angle Voltmeter
Model 2500A
Graphical, Color Display Isolated inputs
0.020º Phase Accuracy
0.001° Phase Resolution On board reference generator 80 dB harmonic rejection Wide frequency response IEEE-488, USB
Description
The Model 2500A PAV replaces the very popular Model 2500. With the latest and most advanced DSP technology, this instrument provides a new level of performance and user friendliness. In addition, the 2500A PAV is considerably less expensive than other “traditional” PAVs. By keeping classic measurements, at- the-touch-of-a-button, the Model 2500A behaves more like an instrument and less a computer. The unit is extremely easy to use yet contains a host of features and performance characteristics that set it apart from all others.
Specifically targeted at Synchro/Resolver and LVDT/RVDT applications this instrument makes measurements of Phase Angle, In-Phase, Quadrature, Fundamental and Total a breeze. All parameters can be displayed simultaneously on a bright color high resolution graphical display. The Model 2500A even includes a built-in oscilloscope for viewing input waveforms.
Isolated inputs allow null, ratio and gain measurements of key parameters and a reference offset facilitates bridging measurements. A sensitive null meter is also included. An optional on-board reference generator has enough power to drive most LVDT/Synchro references. This feature can eliminate the need for an external reference; although the unit can be used with an external generator if so desired. The Model 2500A also includes pre-defined LVDT/RVDT functions such as (A-B)/(A+B) and (A-B)/Ref.
But the 2500A PAV goes further. By using an external shunt, it can also, measure power, power factor, THD, harmonics, and can be used to calculate impedance.
Page 2
Typical Displays
Multifunction Display
In Phase with null meter
Oscilloscope
Specifications
Channels 2, galvanically isolated Measurement Total, Fundamental, In-phase,
Quadrature, Ratio, Frequency and Phase plus Null Meter
Voltage Input Ranges
Resolution Phase Input Ranges 0.00º - 360º or ±180º Frequency Range, Total 20Hz to 2MHz Frequency Range, Fundamental Modes 20Hz to 100KHz DC Recorder Output: +/- 10VDC full scale
20mV rms to 630V rms in ½ decade ranges or Autoranging 5 digits voltage, 6 digits phase
Page 3
Voltage Accuracy: % of scale +% of Range/Over frequency and Voltage range
Range 20-2K 2K-5K 5K-20K 20K-50K 50K-100K 100K-300K 300K-2M 20mV 0.06+0.05 0.09+0.10 0.09+0.10 0.3+0.20 1.5+0.50 - ­63mV 0.06+0.05 0.09+0.10 0.09+0.10 0.3+0.20 0.04+0.50 - -
200mV-
20V 63V 0.05+0.05 0.05+0.10 0.10+0.10 0.20+0.20 0.40+0.50 1.2+1.0 -
200V-630V 0.12+0.05 0.12+0.10 0.12+0.10 0.40+0.20 1.20+0.50 - -
Fundamental modes to 100KHz. Add 30µV to Total mode specs.
0.05+0.05 0.05+0.10 0.10+0.10 0.20+0.20 0.40+0.50 1.2+1.0 4.5+1.0
Phase Accuracy
20Hz to 2KHz ±0.02º 2kHz to 5kHz ±0.03º 5kHz to10kHz ±0.04º 10kHz to 20kHz ±0.05º 20kHz to 50kHz ±0.10º 50kHz to 100kHz ±0.20º
Common Mode Rejection Ratio (CMRR) 5Hz to 1KHz : 126dB
1kHz to 5kHz: 110dB 5kHz to 32 kHz: 100dB
32kHz to 150KHz: 91dB Harmonic Rejection 80dB (even and odd)
Max input 650Vrms
Input impedance 1 M // 30pF (excluding. Leads)
Coupling AC
Nulling Sensitivity 1 µV
Optional Signal Generator
Frequency 20Hz to 20KHz
Accuracy* Frequency ±0.05%; Amplitude ±5% (to
100kHz), no load
Output Voltage 10mV to 115Vrms
0 to 12.00V 0.5A
Output Current
*Accuracy can be improved significantly by using voltage tracking loop mode. Consult factory for details.
12.01 to 30.00V 0.2A
30.01 to 120V 0.05A
Page 4

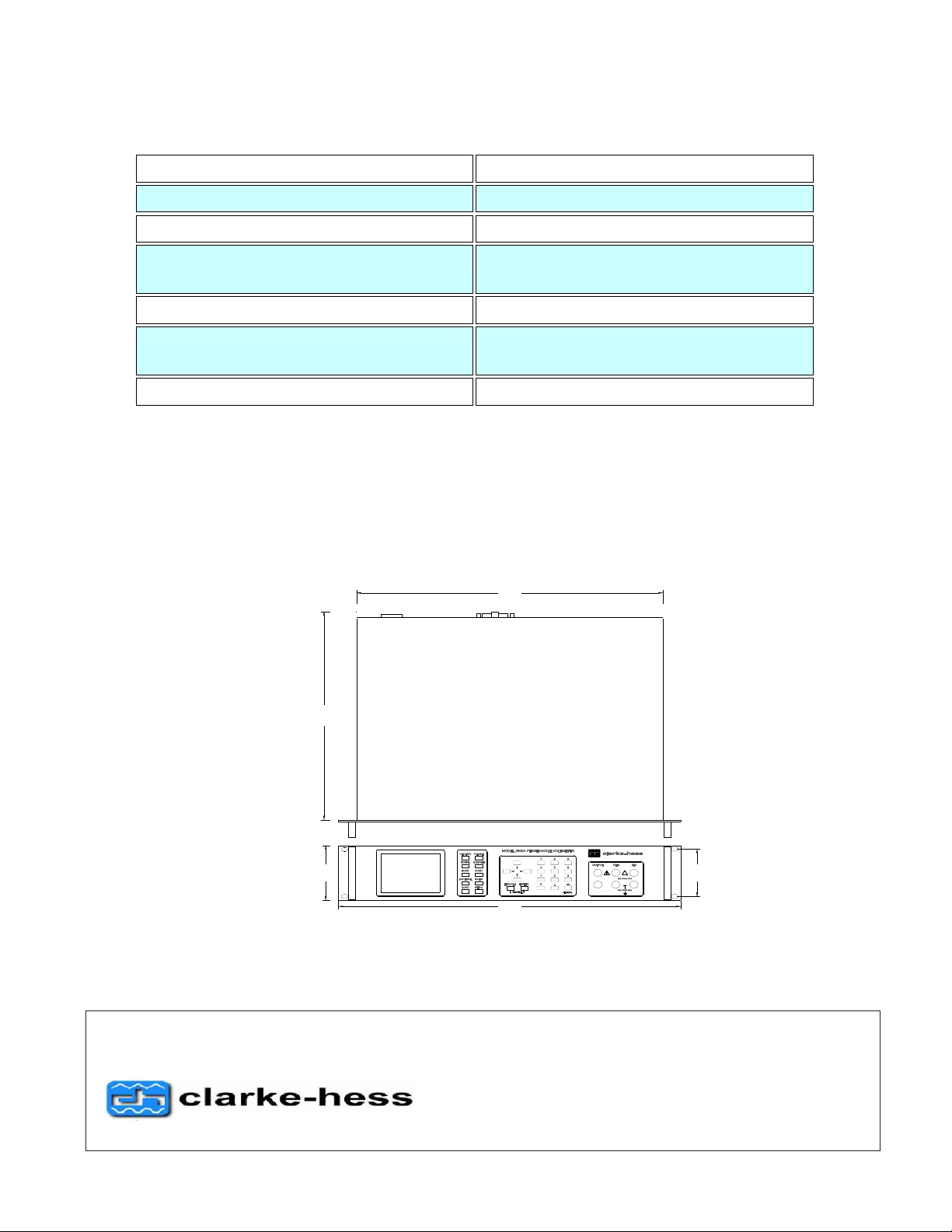

General
Display High Resolution Color TFT Digital Interface IEEE-488.2, USB Size Approximately 17.3" W x 3.5" H x 13” D Temperature range Operating: 0° to 40°C
Within specification: 23° ±5°C
Weight Approximately 13 pounds
Power supply
100 to 260V rms, 47 to 63Hz, 30VA max.
Warranty 1 year
Options: Ordering information example: 01: Signal Generator Model 2500A with signal generator and 02: Front and Rear Inputs trigger output: Order: 2500A-01-03 03: Isolated Trigger Output
17.00
13.22
3.48
㈱ノヴァエンタプライズ
日本総代理店
URL:www.nova-ent.co.jp E-mail:info@nova-ent.co.jp
!
19.00
3.00
〒105‑0004東京都港区新橋6‑2‑9折田ビル
TEL 03(3437)9281 FAX 03(3437)9611
