Ostia 7.60 Manual
1
SYSTEM REQUIREMENTS AND TERMS USED IN THE
MANUAL
Windows® Mobile-based device - Pharos Traveler GPS
devices, Pocket PCs, and Pocket PC Phones.
Windows CE device – Pharos Drive GPS devices
Pocket PC Requirements
Processor Type: StrongArm or XScale
Operating System: Windows CE Version 4.0 or higher
Memory: 5-MB Program (memory cards are suggested for
map storage)
Compact Flash card or SD/MMC card memory: 64 MB
minimum
Desktop/Laptop Requirements
CPU: Pentium class
Operating System: Windows 98/ME/NT/2000/XP
USB port or Card Reader for data transfers to Windows
Mobile-based devices: Microsoft ActiveSync must be
installed and connected if transferring data via connection
from the device to USB port using MapFinder. ActiveSync
does not have to be installed for Pharos Drive GPS devices.
Available hard drive space: 64-MB minimum for map
installation.
2
TABLE OF CONTENTS
System Requirements and Terms Used 2
Table of Contents 3
Precautions and Notices 6
Introduction to Pharos GPS Software and Hardware 7
1.0
2.0
2.1 Get Connected, Install Ostia and Open MapFinder
2.2 Using the MapFinder Software
2.3 Selecting Maps
2.4 Extracting and Transferring Maps
2.5 Other MapFinder Functions
3.0
4.0
4.1 Map Screen Buttons
4.2 GO Buttons
4.3 Power User
4.4 View Buttons
4.5 Options Buttons
4.6 Smart Navigator Buttons
4.7 Options Details
5.0

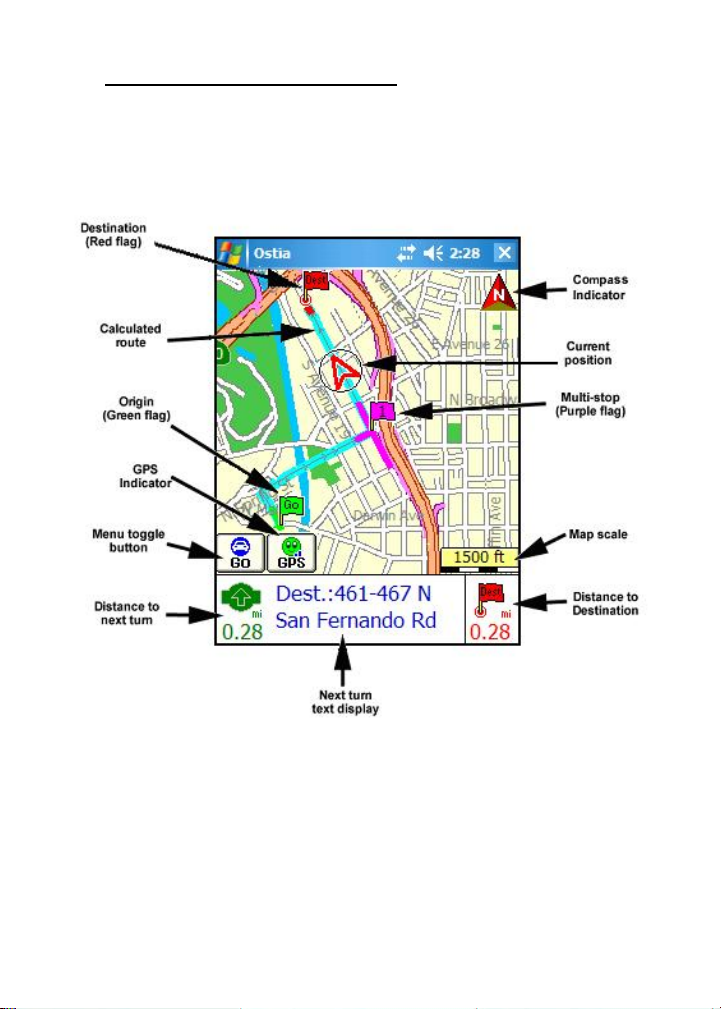

5.1 Anatomy of the Navigation Screen
5.2 Opening and Viewing a Map
5.3 Satellite and Compass Information Screens
5.4 User Interface Options
5.5 Display Options
5.6 Zooming (In/Out) Capabilities
5.7 Smart Navigator Services
Summary of Features 8
Getting Started with Ostia and MapFinder 10
10
11
12
14
15
Ostia Terms and Abbreviations 16
On-screen Features 17
17
18
19
21
22
23
24
General Features of Ostia 26
26
27
28
29
30
33
34
PG
3
6.0
6.1 Creating a Route
6.2 Adding Multi-Stops to a Route
6.3 Using the Point of Interest Search
6.4 Saving Position as a Favorite, Contact, or Home
6.5 Using Trip Trace
6.6 Exporting Favorites
6.7 Deleting Favorites
6.8 When to use the Highway/Motorway Map
7.0
7.1 Register & Subscribe
7.2 Smart Login
7.3 Using Maps on Demand, POI Finder, and Real-
7.4 Using Follow Me
8.0
8.1 GPS Status Indicator/Powering on GPS Receiver
8.2 Configuring GPS in Ostia
8.3 Installing Pharos GPS Hardware
9.0
10.0
11.0
Using Features in Ostia 36
Smart Navigator Services 53
time Traffic
GPS Receiver Setup and Configuration 65
Troubleshooting 72
Contact Us at Pharos 73
SOFTWARE LICENSE AGREEMENT 74
36
43
44
48
49
51
51
52
53
55
57
61
65
66
68
4
!! IMPORTANT !!
Register your Pharos Ostia Software NOW at:
www.pharosgps.com/support
As a Pharos Registered Customer, you are
eligible to download updated maps and software
and participate in any future programs or services
that Pharos may announce. Discounted fees
and/or additional charges may apply. Registration
is easy and easy, and Pharos never sells or
releases user information to any outside entities.
5
Precautions and Notices
¾ Do not attempt to operate a Pharos GPS system in a vehicle while in
motion or in any way that interferes with safe driving.
¾ Secure your device to the vehicle in such a way as to not endanger the
driver or passengers while driving or during operation.
¾ Do not place your device in any area of the vehicle where the use of
electronic displays is prohibited in motor vehicles.
¾ GPS signals cannot pass through opaque solid materials. Obstacles,
such as tall buildings, tunnels, highways, dense trees, and bad weather
can effect signal reception. If window tint contains metallic material,
GPS signal may be poor. Cordless phones, radar detectors, satellite
radio receivers, and other wireless devices may interfere with GPS
reception or result in poor GPS reception quality.
¾ Navigation maps may contain errors and omissions or may be out-of-
date with recent road changes or conditions. Please be attentive to
roadway signage, all posted roadway information, an d the condition of
the road itself. Calculated routes are reference only. Users must obey
traffic signs and local regulations.
¾ GPS positioning is intended for use as a reference, not precise
measurement of direction, distance, or topography. Routes in Ostia
are recommendations only.
¾ Do not leave the product in direct sunlight or heat for extended periods
of time. Overheating the battery can be dangerous and/or cause
malfunctions.
Pharos software and hardware may not be used for any purpose in
which failure could lead to personal injury, physical, or
environmental damage.
6
Introduction to Pharos GPS Software and Hardware
winning mobility tools will help you travel in a more efficient, organized
and informed manner. This introduction should be used as a reference
when getting started with our system. While you may not need to use all
the steps in the introduction regularly, being familiar with these features
will make usage easier.
Use this product prudently. The product manufacturer is not liable for
any damages or lost profits caused by misuse of the product. Pharos
and its suppliers specifically disclaim any warranties, either
expressed or implied, for their products’ fitness for use in any highrisk activity
Thank you for choosing Pharos GPS products. These award-
¾ Make sure Microsoft ActiveSync is installed on your desktop/
laptop computer if using Windows Mobile-based devices
¾ Before Copying Maps (Section 2), make sure your Storage
Card is in your device or card reader
¾ Use the MapFinder utility to choose and load maps (Section 2)
¾ Before installing Ostia on your Windows Mobile-based devices
(Section 2), make sure ActiveSync on your desktop shows
“Connected”
¾ Know both your departure location and your destination to
determine which maps you need
¾ To prevent many new-user issues, read the Owner’s Manual
that came with your device
7
1.0 Summary of Features
NMEA-0183 compliant
Detailed street level data, with up to 10 maps opened
Automatically opens the map for your current location when a
GPS lock is acquired
Screen View supports landscape as well as portrait options
Reference by address, intersection, POI, longitude/latitude or
Outlook Contacts
Routing from one Point of Reference to another, with up to 10
intermittent “Multi-Stops” in a single Route
Easy to use Points of Interest categories such as Cash, Fuel,
Food, Hotel, etc.
Text directions, Visual driving directions, and Voice guidance
Tap a street on the map to show street information
Zoom in and zoom out with stylus
Favorites stored on Pocket PC independent of Contacts
GPS status indicator with on-screen strength indicator
Real-time simulation of Route with GPS Powered Off

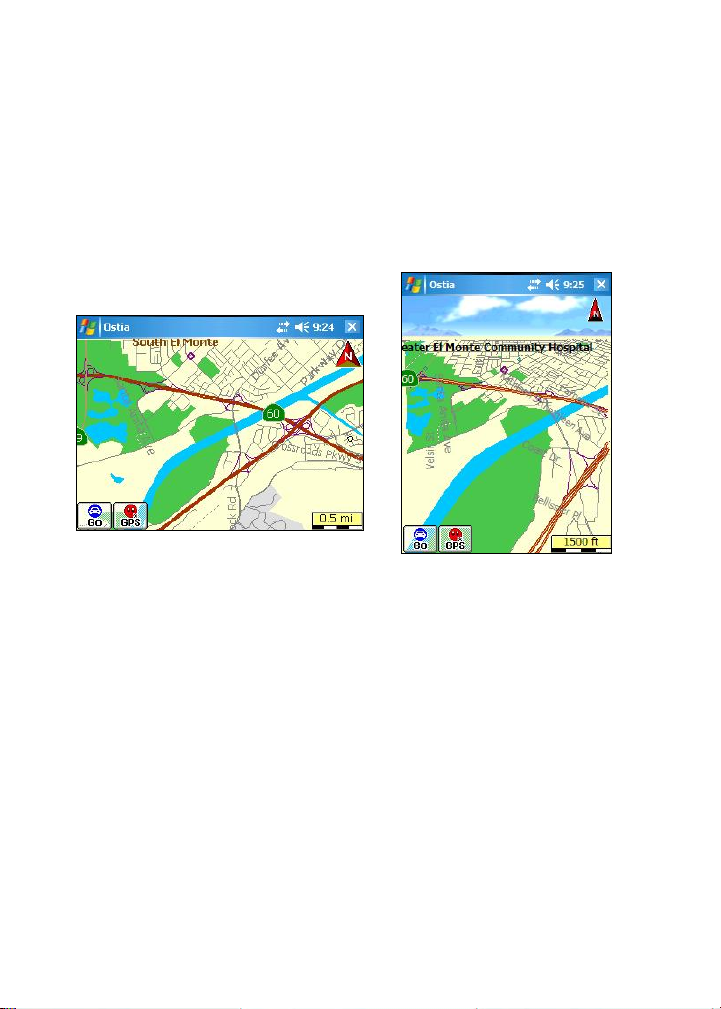

Two views (1 overhead, 1 3D Birds-Eye), with night-view map
display option
8
When navigating with the Pharos GPS Receiver you will find:
o Three routing methods: Fastest, Shortest, No
Highway/Motorway, Avoid Toll Roads
o Street name of the next turn at the bottom of screen
o Displays the distance and direction of the next turn and distance
to final Destination
o Screen display options: Map, Split Map with Arrow, and Arrow
o Audible Voice-prompt Route guidance
o Auto zoom-in and out before and after change in trajectory
o GPS Receiver position is always Point of Origin, when GPS is
enabled
o An Auto Re-Route option and one-touch Re-Route button
o Moving map while navigating with the GPS Receiver
o Selectable “North Up” or “Heading Up” for map display
Smart Navigator Services
o 4 internet-based services with subscription
o Real-time Traffic shows traffic speed and/or incident data based
on your city
o Maps on Demand lets you load a map over the internet without
using a CD
o POI Finder provides Points of Interest such as businesses, fire
departments, WiFi Hotspots, Fedex-Kinkos, and more
o Follow Me allows you to see where other Members of your group
are on the road, or for a Member to view a driver on the road
o Access each of these services wirelessly using built-in WiFi,
GPRS, or other data connection at any WiFi hotspot
9
2.0 Getting Started with Ostia and MapFinder
2.1 Get Connected, Install Ostia and Open MapFinder
Step 1: Make sure your device
is connected to your PC through
Microsoft ActiveSync.
Note: Applies only for Windows
Mobile-based devices
Microsoft ActiveSync
Step 2: Insert the Ostia CD into the CD-ROM drive, and the
Pharos Setup Screen will appear
Note: Only applies if Auto-run is enabled on your PC. If not, you will
need to open My Computer and double-click on the CDROM Drive to
open the Pharos Setup Screen.
Step 3: Select “Ostia”
to install Ostia to your
device, and follow the
installation instructions
on your screen.
Note: Ostia is pre-installed
on some Pharos’ devices
Note: After Ostia has been successfully installed on your device,
please perform a Soft Reset on your device. This will ensure that the
Ostia shortcut will appear on the Today screen
Step 4: To begin transferring maps from the CD to your
device, select MapFinder from the Pharos Setup Screen
Note: To activate Ostia on your Windows Mobile-based device, enter
the registration code that is located on the inside flap of the
cardboard CD holder. This does not apply for Smartphones.
10
2.2 Using the MapFinder Software
The World MapFinder will
open. Select the region of
the world where your maps
are located by clicking on
the colored area of the
map.
Note: You will need to have the map CDs on-hand to use Pharos MapFinder.
MapFinder helps you determine which maps you need. Simply
select the maps you wish to use and copy them to your PC,
Pocket PC, Pharos navigation device, Smartphone, or Storage
Card. You can also browse features and data within your
maps.
USA
Canada
If using European maps, select the country that covers your
area by clicking on the map. The appropriate MapFinder for
that country will appear.
Europe
UK
11
2.3 Selecting maps
There are two methods used to select a map(s) you want to use:
1. Using the Search Field
Enter a city name or
zip/postcode and click
“Search”.
Note: A zip/postcode is the most precise way to search. Areas on
the edge of maps may need more than one map to travel efficiently.
After searching, a list
matching your criteria will
appear in the results field.
Double-click the city name
you wish to select. The map
selection will become
highlighted below. Repeat for
additional map selection.
To view a map on the PC,
right mouse click on the
desired map, and select
“View Current Map”.
This allows searching for
Addresses, Points of Interest
(i.e. Airports, City Centers,
etc.), and other features.
12
2. Directly Selecting Maps
Place the mouse cursor over
the map to be selected; the
information for that map will
be displayed (as seen to the
right).
Double-click on the map to select it. (Repeat for additional
map selection.)
MapFinder displays how
many maps you have
selected, how much free
space is available on your
hard drive, and how much
storage is required to transfer
this map to your Device in the
upper right corner of the
window.
13
2.4 Extracting and Transferring Maps
After maps are selected, they need to be extracted and sent to
the “My Documents” folder on the Storage Card or the main
memory of Pocket PC or handheld device.
After selecting maps, the upper
right corner of the screen displays
two options:
• MS ActiveSync
Transfer maps directly to
Pocket PC or memory card
via ActiveSync
Note: Applies only if using
Windows Mobile-based device
1. Choose appropriate option, and
click “Execute Map Copy.”
2. Select location to store maps. Click the drop-down menu
arrow to scroll through additional options in list:
• For the Windows Mobile-
based device: choose
either Main Memory or
Storage Card
3. Select the appropriate location and click OK to continue.
Continue to click OK on the next windows. The last screen will
display the progress of the transfer.
begin right away, move the mouse to prevent the program from idling.
• Card Reader
Transfer maps directly to a
memory card in a card reader.
Make sure you know to which
drive letter your card reader is
assigned.
• If using a Card Reader, it
will ask which drive letter
to use
Note: If transfer does not
14
2.5 Other MapFinder Functions
Right-click on a map and the following menu will appear:
MapFinder Menu Functions
Note: MapFinder will only function if the correct map CD is already
inserted into the CD drive on your PC.
View Current Map – opens a
map to be viewed on the PC
Un-Select ALL Maps – clears all
map selections
Copy highway map – copy
selected Country Hwy/Motorway
Map to device
Note: This selection is not available
for all MapFinders. It will only appear
in the list if you right-click over white
space
Copy Current Map(s) – map(s)
currently selected will be copied
to the device
Copy Selected Map –
downloads maps already on your
hard drive to your device
Extracting Maps to the Hard
Drive – extracts maps directly to
your hard drive only
Deleting Maps – deletes maps
from your hard drive only
About Pharos MapFinder –
displays program information
Minimize – minimizes
MapFinder
Exit – exits MapFinder
completely
15
3.0 Ostia Terms and Abbreviations
Action Button
Pressing the center of the Directional Pad located on the Windows
Mobile-based device allows you to automatically recalculate a Route
from your current location once you have driven off-Route.
Waypoints
Saved locations stored on your device as Favorites for use as Point
of References (POR).
Intersection
Intersection of roadways. An intersection can be set as a POR.
MapFinder
Utility used to automate the transferring of maps to your device.
Microsoft ActiveSync
Developed by Microsoft. Use with a Windows Mobile-based device
and your desktop computer to install/manage maps. This software
can be downloaded from: www.microsoft.com/windowsmobile
Multi-Stop
Add up to 10 stops to a route between Origin & Destination.
Point of Interest (POI)
Common points of interest, which can be used as “PORs”, are listed
in the following categories: Cash, Fuel, Food, and Hotel. City
Centers, Shopping Centers, Airports, and other public landmarks are
also available.
Point of Reference (POR)
Any item used to define a specific point or coordinate used in
navigation (e.g. Origin, Destination, Point of Interest (POI),
Intersection, Address, etc.). A POR may also be set by doubletapping on the map.
16
4.0 On-screen Features
4.1 Map Screen Buttons
GO – Brings up on-screen Buttons that allow
you to search for a POR, change map view, see
GPS info, access Smart Navigator services,
manage Favorites, and view Options.
GPS – Enables you to turn the GPS on/off,
initialize/reset the GPS, and indicates the
current status of the GPS receiver.
Map Screen GO Screen View Screen
Options Screen Smart Navigator
Screen
17
4.2 GO Buttons
Address – Enter specific
address as a Destination.
POI – Search for specific POI’s
near your current location (or the
center of the screen) within a
given set of parameters.
Waypoint – Accesses pre-
designated Favorites, Recent
Destinations, and Pocket Outlook
Contacts database to set a
Destination.
Home – Routes user to the
Favorite pre-designated as
Home.
Power User – Gives user access
to additional Ostia features such
as setting an Origin or Opening a
Map. See Section 4.3 Power
User for a list of specific
functions within this option.
Map – Returns user to the map
screen. This applies to all
screens in which this button
appears.
Forward Arrow – Moves user
forward to the next Screen. This
applies to all screens in which
this button appears.
18
4.3 Power User
Maps – Open maps, List Active Maps,
Close Maps and Delete Maps. Provides
software and map version information,
and exits Ostia.
Find – Search for a POR, view Recent
Destinations, make a New Route, and
make a Reverse Route.
Note: New Route and Reverse Route are
only available if an Origin and Destination
have been selected.
Smart Navigator – Accesses Smart
Navigator Services. For more
information see Section 4.6 Smart
Navigator. Requires Internet access
and paid subscription from Pharos:
www.PharosGPS.com/SmartNavigator
Note: Applies only if using Windows Mobile-
based devices.
19
View – View Text Directions, GPS Info, POR, Full Route, Real-time Traffic, Places Found from POI Finder, a saved Trip Trace, and Favorites.
Note: Some features are only available if
they have been activated on the map, such
as Real-time Traffic and POIs Found, or
have been previously saved such as Trip
Trace and Favorites.
Clear – Clear features that have been
added to the map such as Real-time
Traffic, Places Found, a Route, Multistops, Trip Trace, and Favorites.
Tools – Allows user to Simulate a
route, Turn GPS receiver On/Off,
Record a Trip Trace, Save a Waypoint,
Delete Favorites, Export Favorites as a
text file, or view Options. For more info
on Options, see Section 4.7 Options
Details.
20
4.4 View Buttons
21
2D/3D View – Change map view
from Overhead to Bird’s Eye
View.
Text Directions – View the
complete text directions of a predetermined route.
GPS Info – View Satellite
strength and Compass info such
as Latitude/Longitude, time,
altitude, etc.
based on Height Above Ellipsoid, not
Height Above Sea Level.
Note: Altitude is
Show Destination – View the
currently selected Destination on
the map.
Back Arrow – Moves user back
to the previous Screen. This
applies to all screens in which
this button appears.
4.5 Options Buttons
Save a Waypoint – Allows the
user to save the GPS
Location/Map Center, Current
Destination, Current Origin, or a
Lat/Lon as a Favorite, as Home,
or to Outlook Contacts.
Delete Favorites – Delete a
Favorite from the list of saved
Waypoints.
Clear Route – Clears the route
from the map screen, including
the Origin, Destination, and MultiStops.
Options – Allows for
Customization of Ostia. For
details on features inside
Options, see Section 4.7
Options Details.
22
4.6 Smart Navigator Buttons
Note: Applies only if using Windows Mobile-based device
Real-time Traffic – Allows access to real-
time traffic data. (subscription required).
Check our website for availability.
Maps on Demand – Capability to
download maps to your device via the
Internet to your Pocket PC (Free service to
Registered Users).
are not included in Smart Maps download.
POI Finder – Allows access to a large
active POI database (subscription
required).
Follow Me – Allows you to see exact
locations of any member/subscriber within
your “network” account, or for any member
to see you (subscription required).
Note: POI database files
Smart Help – Lists detailed
information about Pharos’ Smart
Navigator Services.
23
Login – Enter registered email
address and password to gain access
to the Smart Navigator Services, while
connected to the Internet.
4.7 Options Details
Auto/Manual Re-route
Enabling the Auto Re-route option will have the software
automatically calculate a new route if the GPS indicator goes
off the calculated route. Manual Re-route requires the user to
press the action button to Re-route.
North Up/Smart Heading Up
Enabling the North Up option will orient the screen to have
North always at the top of the screen. Smart Heading Up
option will set the display to always show the GPS indicator
pointing towards the top of the screen with a compass in the
upper right corner of the screen.
Voice Guidance
This will allow either the Default (USA English using miles) or
an Alternative voice prompt (UK English using kilometers) to
be used for navigation, or to turn Off the Voice Guidance.
Route Options
This option sets the method on how the software will calculate
a route:
• Fastest: This will calculate the fastest route based on
posted speed limits
• Shortest: This will calculate the most direct route
• No Hwy: This will calculate a route avoiding
highways/motorways completely (Can not be used when
actually on a highway/motorway, or when using a Highway
map to route between two maps that are not touching)
• Avoid Toll Roads: This will calculate a route avoidin g
marked toll roads completely. Only applies to officially
designated toll roads
Daylight/Night View
Enabling Daylight View will use lighter colors on your screen.
Night View will display darker colors on the map, making it
less bright
(and less distracting to the driver) than Daylight View.
24
Smart Server
This will change server access between sites A and B. This may be necessary if experiencing slow downloading time for Smart Navigator services such as POI Finder and Real-time Traffic.
Note: Applies only if using Windows Mobile-based dev ice.
Tracking Interval
This will allow the user to change the Follow Me and Trip Trace Interval times between 10 sec, 30 sec, 1 min, 5 min, and 20 min.
Note: Applies only if using Windows Mobile-based dev ice.
Follow Me ID
This will allow the user to enter your Follow Me Vehicle ID. (subscription required)
Note: Applies only if using Windows Mobile-based dev ice.
Smart Navigator User ID
This will allow the user to change the email address and
password for access to the Smart Navigator Services.
(subscription required)
Note: Applies only if using Windows Mobile-based dev ice.
25
5.0 General Features of Ostia
5.1 Anatomy of the Navigation Screen
26
5.2 Opening and Viewing a Map
Opening Map Automatically
Maps will automatically open when a GPS lock is acquired,
provided that the maps are already saved on the storage card or
main memory of the Device.
Opening Map Manually
To open maps, tap GO Æ Power User Æ Maps Æ Open, and
select desired map from the list of available maps. Tap the
Forward Arrow when finished. Repeat to open multiple maps.
The maximum number of maps that can be opened at one time
is 10.
Note: Last map opened when Ostia was turned off will be the first map
opened when Ostia is turned back on, and previous PORs are cleared
when new maps are opened.
27
5.3 Satellite and Compass Information Screens
This screen displays Satellite
Information. Typically, a nominal
value of 40 or higher on at least 3
bars is normal for a GPS Lock. The
bars will be gray when searching for a
signal and blue when a lock is
acquired. The satellites are the gray
circles in the black target, which will
turn green when you have a Lock.
The Compass indicates the following
information when moving at 5mph or
faster:
• General direction of travel
• The red line represents the
general direction to your
selected Destination.
• Approximate:
o Latitude
o Longitude
o Altitude (based on HAE – Height Above
Ellipsoid)
o Global Time
o Speed
o Line-of-Site Distance to Destination from current
location
28
5.4 User Interface Options
With a Windows Mobile-based device running Windows
Mobile 2003 Second Edition, Version 4.21 or later, you have
the option to view the screen in Landscape mode or Portrait
mode, as seen below:
Landscape
Portrait
Note: To change the view of your device, follow these instructions:
Tap on the Start Menu Æ Settings Æ System Æ Screen, and select
the desired Orientation.
29
5.5 Display Options
Navigation Screen Options
Tapping the text directions will cycle through the three (3) navigation
screens that can be used while driving, as shown below, as well as
repeat the audible Voice Guidance. Refer to Section 4.7 Options
Details:
Standard Map View
30
Simplified Arrow
Night View
Uses optimal color scheme for night use.
You can set this view by checking “Night
View” on your Options screen, by tapping GO
Æ Power User Æ Tools Æ Options Æ select
either Daylight View or Night View, and
Forward Arrow to cycle through the options.
Select Map when finished.
View
Split Map & Arrow
View
Map Scale
Tapping on yellow “scale” box will
convert all units from Kilometers to
Miles, and vice versa, including all
distance information related to Route
calculation.
2D/3D View
Tapping on the Screen where the Sky
appears (in the horizon), will change the
3D Bird’s Eye View to 2D Overhead
View.
31
2D Overhead View
3D Bird View
Moving the Map Manually
There are 3 ways to move the maps manually so that other
sections of the map can be viewed:
1) Without a GPS
Lock, press the
Directional Pad on
your device in the
direction you wish to
view, and the map
will move
accordingly.
3) With a GPS Lock,
press the Directional
Pad in the direction
you wish to view and
the circled cross icon
will appear (pictured
to the right), and
the map will move
accordingly. If you
wish to resume back
to the view
displaying your
current position on
the map, select the
“Cancel” button with
red “X”, at the lower
left-hand side of the
screen.
2) Without a GPS Lock, Using
the stylus, tap and hold on
the screen, dots will circle
around the tip of the stylus.
Without letting go, drag the
stylus in the direction you
wish to view, and the map
will move accordingly.
Note: Applies only if using
Windows Mobile-based devices
or Pharos Drive GPS
32
5.6 Zooming (In/Out) Capabilities
Note: Applies only if using Windows Mobile-based devices.
Zoom In
Drag the stylus or your finger on the
screen in a motion from the upper
left corner towards the bottom right
corner (creating a box on the
screen). The software will attempt
to do a best-fit zoom to the area
within the box.
Zoom Out
Zooming out is the opposite
direction, bottom left corner to the
upper right corner.
33
5.7 Smart Navigator Services
Note: Applies only if using Windows Mobile-based devices
Smart Navigator
A web-based suite of location-based services, including Maps
on Demand, POI Finder, Follow Me and Real-time Traffic.
With these Smart Navigator services, users can download
maps on the go, receive traffic information, find points-ofinterest, and view geographic locations of other users, all
delivered via internet connection directly to their mobile
device. Smart Navigator integrates these web-based
information services with Pharos' navigation and routing
software for Windows Mobile-based Pocket PCs, to give users
the ultimate mobility tool for information anywhere. For more
information or to subscribe to any of the Smart Navigator
services, visit
Navigator services is described below. Refer to Section 7.0
Smart Navigator Services to learn how to use these
services.
Real-time Traffic
Real-time Traffic lets you view live traffic flow and events via
internet connection, allowing you to better react to traffic
conditions. Simply connect to the Internet via ActiveSync from
your desktop PC, WiFi, wireless modem or Pocket PC phone.
Check our website for availability in your city.
POI Finder
POI Finder helps you find location information and directions
to a location using your Pocket PC and an internet connection.
Look up restaurants, banks, hotels and other businesses,
specifying location by proximity to a destination or to your
current location. Refer to Section 7.0 Smart Navigator
Services to learn how to use this service.
www.pharosgps.com. Each of the Smart
34
Maps on Demand
Get the map you need downloaded directly to your mobile
device when you have an internet connection. Maps on
Demand is a service that delivers the map you need directly to
your Pocket PC, when you have an internet connection. Refer
to Section 7.0 Smart Navigator Services to learn how to use
this service.
Note: Typical download time varies depending on file size and
connection speed (2-3 minutes for broadband internet connection, or
15-30 minutes for wireless connection using GPRS).
Follow Me
Follow Me allows you to see the exact location of Members of
your Follow Me Group, and allows other Members to see your
location. Refer to Section 7.4 Using Follow Me to learn how
to use this service.
35
6.0 Using Features in Ostia
6.1 Creating a Route
Note: GPS needs to be enabled in Ostia before navigation can begin.
Refer to Section 8.0 GPS Receiver Setup and Configuration.
To create a Route, you need to have both an Origin and a
Destination selected. These PORs (Points of Reference) are
defined below:
• The Origin is your starting point. If the GPS has a lock
(Green Smiley Face), and the GPS position indicator (red
arrow) is displayed on a paved road, the center of the
screen will represent your Route Origin.
If you do not have a GPS lock, you can search for your Origin
by using any of the following methods from Go Æ Power User
Æ Find: Outlook Contacts, Favorites, Address, Intersection, or
Point of Interest.
You can also select any location on the map as the Origin by
double-tapping the screen.
• The Destination is your ending point. You can search for
your Destination by using any of the following methods
from the GO screen: Address, Point of Interest, Waypoint,
or Home (Home is a pre-designated location and cannot
be selected unless a location has been previously saved
as Home).
Again, you can also use any location on the map as the
Destination, just by double-tapping the screen.
Note: For information regarding Multi-Stop Routing, refer to Section 6.2
Adding Multi-Stops to a Route.
36
Note: If you do not have a GPS lock, we suggest that you locate the
Origin first, and then the Destination. If Ostia does not automatically
create the Route after the Origin and Destination are set, you can
manually create it, by tapping GO Æ Power User Æ Find Æ New Route.
The features inside of the GO screen can only be set as a
Destination. To set a location as an Origin, refer to Section 6.1
Creating a Route Æ Origin. To set a Destination using the GO
screen features, do the following:
1. Hit GO Æ and choose between Address, Point of
Interest, Waypoint, or Home. Each of these options is
described in detail below.
Note: For information regarding Multi-Stop Routing, refer to Section 6.2
Adding Multi-Stops to a Route.
Address
This option allows you to search for a location by a specific
address that can be used as the Destination in a Route. Make
sure that all necessary maps are already opened.
From the Map screen, tap GO Æ Address, and follow the
steps below to perform an Address search:
Choose between the USA or
Canada.
Choose the State/Province in
which to look. This will progress
you to the City Name, House
Number, and Street Name to find
the location.
37
Choose the Zip/Postal Code in
which to look. This will progress
To Enter a House Number and Street Name
1. Regardless of which entry option you chose, when you arrive at
the House Number screen, enter the House Number you’re
looking for and tap the Forward Arrow.
Note: You can use the “Del” (Delete) button to backspace and correct or
change your entry.
you to enter the House Number,
and Street Name, then give a list
of possible cities that match that
zip/postal code.
If the map containing the location
is already opened, this option will
search by first the House
Number, then the Street Name,
and give a list of possible cities
in which that street is located.
2.a Enter the street
name in the field
provided. As you type
each letter, only the
next available letters
matching the street
search results will
appear on the
keyboard.
38
2.bThis will provide a
list of the most closely
matching streets
available, appearing on
the next screen. Select
the desired street
name, and tap the
Forward Arrow.
Note: Avoid entering “N”, “E”, “S”, and “W” at the beginning of the street
name. In Ostia’s database, such directions usually come after the street
name, such as Main St, N. If the desired street name does not appear,
verify that the correct map is open. Refer to Section 5.2 Opening and
Viewing a Map.
3. Next, select the city. Based on which street you chose, Ostia
will show a list of cities in which that street is found. Select the
desired city from the list, and tap the Forward Arrow.
4. If accessing the Address from the Go Button, the location can
only be saved as a Destination. If accessing the Address from
Power User, you have the option to select this location as an
Origin, Destination, or a Multi-Stop. Highlight your selection, and
tap the Forward Arrow.
Note: If you would like to Save this location, refer to Section 6.4 Saving
Position as a Favorite, Contact, or Home.
39
Point of Interest
This option allows you to search for Points of Interest, such as
Cash, Food, Fuel, Hotels, or other Public Landmarks, that can be
used as the Destination in a Route.
From the Map screen, tap GO Æ Point of Interest, and refer to
Section 6.3 Using the Point of Interest Search.
Waypoint
This option will bring up a list of previously stored Waypoints to
select from that can be used as the Destination. Make sure that all
necessary maps are already opened.
From the Map screen, tap GO Æ Waypoint, then select from
Favorites, Recent Destinations, or Outlook Contacts.
Home
Once you have saved a location to be designated as your “Home”,
you can select this option to have a Route created from your
current location, to your Home. Make sure that all necessary maps
(from your current location to your home) are already opened.
From the Map screen, tap GO Æ Home.
Note: Home can only be set as a Destination. If it needs to be set as
the Origin, the address will need to be re-entered and sa ved as an
Origin.
40
Outlook® Contacts
This option allows you to search for a location utilizing the Pocket
Outlook Contacts database. A Contact can be used as the
Destination, Multi-Stop, or Origin in a Route. Make sure that all
necessary maps are already opened.
From the Map screen, tap GO Æ Power User Æ Find Æ
Outlook Contacts, select the location from the list of
Contacts, then tap the Forward Arrow.
Note: Contacts only applies if using Windows Mobile-Based Pocket PC or
Pocket PC Phone.
Intersection
This option allows you to search for a specific Intersection that can
be used as the Destination, Multi-Stop, or Origin in a Route.
From the Map screen, tap GO Æ Power User Æ Find Æ
Intersection, and follow the steps below to perform an
Intersection search:
1. Enter the street name in the field provided. As you type each
letter, only the next available letters matching the street search will
appear usable on the keyboard. This will provide a list of the most
closely matching streets available, which will appear in the next
screen. Select the desired street name, and tap the Forward
Arrow (visual example of Street Name entry on keyboard is
available on page 38).
Note: Avoid entering “N”, “E”, “S”, and “W” at the beginning of the street
name. In Ostia’s database, such directions usually come after the street
name, such as Main St, N. If the desired street name does not appear,
verify that the correct map is open. Refer to Section 5.2 Opening and
Viewing a Map.
41
2. Next, select the city from the list. Tap on the city name and hit
the Forward Arrow. Make sure the city selected is the city in which
the two streets intersect.
3. Based on the city chosen, a list of streets intersecting the Street
you entered will appear. Tap on the desired Street and hit the
Forward Arrow.
Note: If desired Street not available, reverse the order in which you enter
the intersecting streets.
4. You have the option to select this location as an Origin,
Destination, or a Multi-Stop. Highlight your selection, and tap OK.
Note: If you would like to Save this location, refer to Section 6.4 Saving
Position as a Favorite, Contact, or Home
The Route will be displayed on
the screen, zoomed in on the
Destination. The on-screen text
directions display at the bottom
(if in Simulation Mode or if GPS
lock is acquired). To view the
whole route, hit Go Æ Power
User Æ View Æ Full Route.
Origin displays as a Green Flag,
Destination as a Red Flag, and
Multi-Stop(s) as Purple
numbered Flags.
You are now ready to navigate.
42
6.2 Adding Multi-Stops to a Route
When creating a Multi-Stop Route, you can enter up to 10
stops between the Origin and Destination. The Origin and
Destination are not considered as Multi-stops.
Selecting a Multi-Stop Route
Once all Stops are set (limit up
to 10 between Origin and
Destination) plus the Origin and
Destination locations, tap GO
Æ Power User Æ FindÆ New
Route to calculate the Route.
This screen will allow you to
change the order of the stops,
to Optimize the order of the
stops based on your routing
options, to create a route StopBy-Stop, to create a route
connecting all the Multi-stops to
the Destination, or to not use
the Multi-stops in the route.
You also have the option here
to delete any of the Multi-stops
in the list.
Viewing a Multi-Stop
To View the Multi-stops, tap Go Æ Power User Æ View Æ
Multi-stop. This will show the Multi-stops in order according
to the order in which they were entered.
Clearing all Multi-Stops
If you want to Clear all Multi-Stops in the Route, tap GO Æ
Power User Æ Clear Æ Multi-Stop. You will need to
recalculate the Route after this if needed. To do this, tap on
GO Æ Power User Æ Find Æ New Route
43
6.3 Using the Point of Interest Search
The Point of Interest option allows you to search for Points
of Interest around a specific location, based on the area
surrounding the center of the screen (or the red arrow when
you have a GPS Lock) and when a map is opened.
Tap GO Æ Point of Interest Æ and select one of the
following POI categories: Cash, Food, Fuel, or Hotel. Select
the Forward Arrow for a list of additional Points of Interest,
such as Public Landmarks, Airports, City Centers, and
Museums, etc.
Option A: If you have a GPS Lock, with or without a Route created,
the center of the screen will represent your current location. Using the
POI button at this time will provide you with a list of POI categories to
choose from, based on your current location only.
(Proceed to Step 1: page 45 to continue POI Search)
Option B: If you do not
you can search for POIs based on a POR (for example your Origin,
Destination, or one of your pre-selected Multi-Stops).
B1. To make sure that the POR is visible in the center of the
screen, tap GO Æ Power User Æ View, and select your
POR (Origin, Destination, or Multi-stop), bringing this
location to the center of the screen.
have a GPS Lock, but a Route is created,
(Proceed to Step 1: page 45 to continue POI Search)
44
Option C: If you do not have a GPS Lock or a Route created,
but wish to search for a POI in an area other then the center of
the screen such as a specific city or a public landmark, you
will need to make this location the center of the screen. For
this example, we will search for a POI in a specific City:
C1. You will need to locate the City first. To do this, make
sure that the desired map is installed and open on
Pocket PC, then tap GO Æ Point of Interest Æ
Forward Arrow Æ City Center, and tap the Forward
Arrow again
C2. Type the first letter of the name of the City you are
searching for, and a list of cities will become available.
Select the appropriate City, and tap the Forward
Arrow
C3. Select this POI as the Origin, Destination, or Multi-
Stop in the Route, then tap the Forward Arrow.
Note: If accessing Points of Interest through the Go Button, it will
automatically set the POI as a Destination. To set the POI as an
Origin or Multi-stop, hit GO Æ Power User Æ Find Æ Point of
Interest.
C4. This will bring the location to the center of the screen.
If an Origin was previously selected, and you chose
this POI as a Destination, it will automatically make
the route and zoom in on the Destination in the center
of the screen.
(Proceed to Step 1: page 45 to continue POI Search)
45
Step 1:
Tap GO Æ Point of
InterestÆ select the POI
from the following POI
category list: Cash, Food,
Fuel, or Hotel
Step 2
around the selected Destination.
Step 3
keyword or the name of the location, and tap the Forward
Arrow. If you leave the field blank, it will bring up the maximum
number of results within the pre-designated radius.
The results will list each available POI, including distance from
the center of the screen (your current location, or POR), and
the name of the POI.
Step 4:
selecting the Forward Arrow, the full details for that POI are
displayed along with the options to Route to that POI, to set
that POI as a Multi-stop, to Call the POI (only on Pocket PC
Phones), or to Cancel.
After choosing one of the above options, you will return to the
map screen and display all the POIs from the list. Icons differ
between categories. For example, a knife and fork for Food,
and a bed for Hotel.
: For this example, we are going to search for Food
: To narrow the search results, you can type in a
By tapping on one of the POIs from the list and
46
The icons above
represent the POIs for Food,
Cash, Fuel, and Hotel. All
other POIs will only display
one result, unless the
category was found using the
optional paid subscription
service, POI Finder. Refer to
Section 7.0 Smart Navigator
Services.
Showing POI icons
To bring up previously found POI
icons on the screen, tap GO Æ
Power User Æ View Æ Places
Found to display a list of all POIs.
Those that have been searched
for will have a white box in which
to place a check mark to view the
results for that category on the
map screen; if a category has
never been searched for before, it
has no past record and will show
a gray box that cannot be
checked.
POI Information
To retrieve the specific
information for any given POI (to
Route to, Call, or Set as a Stop),
tap and hold on any of the POI
icons on the screen (as seen
below).
47
6.4 Saving Position as a Favorite, Contact, or Home
Save Selected Position as Favorite
1. Tap GO Æ Forward Arrow (twice) Æ Save a Waypoint
Æ select which location to save from the list of
GPS/Map Center, Current Destination, Current Origin,
or Lat/Lon
2. Æ Choose Save as Favorite. Enter Favorite Name,
and tap on the Forward Arrow
Save Selected Position as Home
1. Repeat Step 1 above
2. Æ Choose Save as Home. This will now be the
location the software will route to when choosing GO
Æ Home
Save Selected Position to Outlook Contacts
1. Repeat Step 1 above
2. Æ Choose Save to Contact
3. Enter Contact Name, and tap on the Forward Arrow
4. Contacts screen will appear. Tap Ok in the upper right
corner
Note: Contacts only applies if using Windows Mobile-based devices
48
6.5 Using Trip Trace
Recording a Trip
To begin Recording a Trip, make sure you have a GPS Lock
(Green Smiley Face), with a map opened. Tap GO Æ Power
UserÆ Tools Æ Record Trip Trace. Enter a name for this
specific Trip, and tap the Forward Arrow when finished.
Note: To Record a Trip, you must have a GPS Lock, with or without a
Route created. Alternately, you can have the GPS turned Off (Red
Smiley Face) with a route selected, and choose to run a Simulation
from GO Æ Power User Æ Tools Æ Simulation
Setting Trip Interval
To set the amount of time between each marker, tap GO Æ
Forward Arrow (twice) Æ Options Æ Tracking IntervalÆ
Change. You have the option to select the amount of time
between each marker to be 10 sec, 30 sec, 1 min, 5 min, or 20
min. Once you have chosen the desired time, tap on the Map
Button to return to the map screen. Refer to Section 4.7
Options Details
Note: Applies only if using Windows Mobile-based dev ices
49
Viewing a Trip Trace
To view or use a pre-recorded Trip Trace, tap GO Æ Power
User Æ View Æ Trip Trace
A list of pre-recorded Trip Trace
Files will be displayed. Select
the Trip Trace of your choice,
tap the Forward Arrow when
finished
Your Trip Trace will be
displayed with blue diamonds,
representing the markers (or
bread crumb trail) recorded for
you to follow.
Note: When Viewing a previously Recorded Trip Trace, it will not
provide an actual Route, text directions, or voice prompts. It will only
provide markers (bread crumb trail) to follow.
Clearing a Trip Trace
To clear the markers from your Trip Trace, tap GO Æ Power
User Æ Clear Æ Trip Trace
50
6.6 Exporting Favorites
To export your Favorites into a text file (*.txt), tap GO Æ
Power User Æ Tools Æ Export Favorites. Provide a Name
for this file, which will contain all the currently stored Favorites
(NOT the Contacts). This file will be stored in the My
Documents folder on the Main Memory of the Device
To view the exported file on the Device, go to Start Æ
Programs Æ File Explorer Æ My Documents Æ and select the
.txt file that contains the name you provided in the previous
step
The text file contains the following information for each
Favorite: Name of Favorite, Latitude, Longitude
6.7 Deleting Favorites
To Delete Favorites, tap GO Æ Forward Arrow (twice) Æ
Delete Favorites, the pick from the list which Favorite to be
deleted, and tap on the Forward Arrow. Tap Yes on the next
screen to confirm Delete, or No to Cancel
51
6.8 When to use the Highway/Motorway Map
The Highway/Motorway map is to be used in conjunction with the
standard street-level maps to assist in routing from one map to
another, so that the fewest maps are opened at once. This single
Highway map contains only the Highways/Motorways for the
specified Country, but no street-level information.
If the Highway/Motorway map is loaded to the mobile device or
Storage Card, Ostia will automatically open it when required. In
addition, Ostia will also open the map for the Destination if it is not
already opened.
When Ostia automatically opens the Highway/Motorway and the
Destination maps, it will clear out any POR previously set on the
map. After Ostia opens the Highway/Motorway and the Destination
maps, the Origin will have to be re-entered manually unless you
have a GPS Lock.
Note: If the Route calculation method for “No Highway/Motorways” is
used, and you are on a Highway/Motorway, it will not be able to calculate
the Route until you are no longer on the Highway/Motorway
The Canadian Highway/Motorway Map contains
highway/motorway information for all metropolitan areas, but some
additional areas are not covered by this map. If you are unable to
create a route using the Highway/Motorway map, please make
sure you manually open all the local maps needed for the route in
order to make the calculation.
52
7.0 Smart Navigator Services
Note: Applies only if using Windows Mobile-based dev ices
7.1 Register & Subscribe
All users who register on the Pharos GPS website with Ostia
version 7.5 or higher receive one month free of all Smart
Navigator Services. Otherwise, you must purchase the
subscription and Register the Pharos product at the following
website:
http://services.PharosGPS.com/shopping/store/registration_form.asp
Step 1: Go to the following website and choose from the list of
available subscriptions:
http://www.pharosgps.com/products/services/smartnavigator.htm
Note: Real-time Traffic may be referred to as Smart Traffic, and POI
Finder may be called Smart Finder, though in both cases there is no
difference in the service offered. Follow Me and Get a Map come free
with a registration of any Smart Navigator subscription
Step 2:
Make sure the product and quantity of the product you selected is
correct and click “To Checkout Click Here”
Click “Add to Shopping Basket” at the top of the screen.
Step 3:
If it is the first time registering, click on the link for New
Users, and enter your personal registration info. If you are
already registered, simply enter your email and password,
confirm your registration info is correct and hit Submit
53
Step 4:
Necessary or Digital Delivery)
Step 5:
all is correct, hit Submit Order and proceed to Step 6; if not, hit
Cancel Order
Step 6:
The next page confirms your purchase and registration of the
product. You will receive an email confirmation of the
purchase.
At this point, you may start using the Smart Navigator Service
you purchased immediately; you do not need to wait until you
receive the confirmation email
Click Select on the Shipment Type page (No Shipping
This next page shows a summary of your purchase. If
Enter the Credit Card number and Expiration Date.
54
7.2 Smart Login
To Enter User ID
Your User ID is the email address
you registered with when you
bought the subscription. The User
ID is NOT case sensitive.
Enter the letters for your User ID.
If your email address contains
numbers, select the “abc” or
“123” button in the bottom right
corner to access the numeric
keyboard.
55
To get the @ symbol for the email
address, select the “*%#” button
on the right side of the window
From the Symbols Menu, you can
then choose to go back to
numbers, or to the upper case
alphabet
Note: After entering the email carrier
name (
Jane@yahoo), you will have
to repeat the steps above to get back
to the Symbol Menu in order to input
the period (
Jane@yahoo.com)
When you are done entering the
email address, select the Forward
Arrow and enter the password,
which IS case sensitive
After entering the password,
select the Forward Arrow
and you will arrive back at
the Map Screen
Provided you have an internet connection on your handheld
device, you are now ready to start using the Smart Navigator
Services for which you have registered.
56
7.3 Using Maps on Demand, POI Finder and Real-time Traffic
Maps on Demand
To download a Map (limit 3 maps per day) to your device or
Storage Card, follow the steps below after login:
Tap GO Æ Power User Æ Smart Navigator Æ Get a Map
1. Select the Country
2. Choose to search by City Name or Zip/Postal code
3. Enter the City Name or Zip/Postal code for the map
you want, depending on which Search format you
chose in Step 2
4. Select where to store the map. This window will show
all available storage locations as well as the available
amount of storage for each
5. The next window will show the possible matches for
your Search, as well as the size of each map listed.
Tap on the map you want and select the Forward
Arrow
6. Loading time for the map depends on the map size
and what type of internet connection you are using.
Wireless downloads are typically slower than direct
connections
7. When the spinning circle in the center of the screen
disappears, the download is complete, and the map
can now be found in your list of maps
Note: When loading a map in this way, the POIs for Cash, Food,
Fuel, and Hotel, will not be included. Only the map itself will be
loaded.
57
POI Finder
To download Points of Interest (in addition to Cash, Food,
Fuel, or Hotel) to your device, follow the steps below after
using Smart Login:
Tap GO Æ Power User Æ Smart Navigator Æ POI Finder
1. Enter a keyword, or name of POI to narrow the search
results or leave blank for a general search, then Tap
the Forward Arrow
2. Select a POI category, and tap the Forward Arrow
3. Lists available POIs as well as the distance from the
designated POR or center of Map Screen, and their
address of each. Refer to Section 6.3 Using the
Point of Interest Search for additional assistance
58
Real-time Traffic
To download Traffic information, follow the steps below after
Using Smart Login:
Tap GO Æ Menu Æ Smart Navigator Æ Real-time Traffic
1. First make sure you have the correct map open. Select
your City (area), and then tap the Forward Arrow.
2. The next window will show the city you chose and display
the current time and date. These indicate the time and
day for which the traffic info currently being displayed on
the map was recorded
Note: You may only view the Traffic info for one city at a time
Depending on the availability in your city, you may see one of the
following:
Real-time Traffic and Data Real-time Incident Data Only
Note: The traffic and data info is based solely on the databases of the Department
of Transportation. Some cities do not have Real-time Traffic because the DOT has
not built traffic sensors into the highways in that state.
59
Viewing Incident Data
To view the Real-time Incident Data (yellow triangles), simply tap
and hold on a triangle to view the data exactly as the Highway
Patrol or other law enforcement entered it into their own
computers
60
7.4 Using Follow Me
Before you can use Follow Me, you must set up your Follow
Me Account at the following website:
http://66.161.28.109/monitoring/login.asp
Managing Follow Me Accounts
1. Supervisor
a. Supervisor is the only individual with all rights
to adding, editing, and deleting Members. The
Supervisor can be located other Members and
Observers when logged in to Follow Me
2. Members
a. Members are allowed to invite Observers
(also known as Buddies) and can edit their
own account and Buddy List. Members can be
located by Supervisor, other Members and
Observers when logged in to Follow Me
3. Observers (Buddies)
a. Observers are only able to view the location of
Members that have invited them after creating
their Observer Account at the following
website:
http://66.161.28.109/monitoring/add_observer.asp
An Observer must be on a Member’s Buddy
List to view any activity
61
Supervisor Account
1. The user that originally registered the Pharos products
(refer to Section 7.1 Register & Subscribe) is
considered the Supervisor
Add Members
1. Login as Supervisor at:
http://66.161.28.109/monitoring/login.asp
2. Click “Manage Members”
3. Click “Add Member”
4. Fill in necessary fields, and click Submit
5. The new member will receive an email about his/her
account, including a randomly created password
Note: Members can also be added in a Batch. This information is
available on the website
Invite a Buddy
1. Log in as Supervisor or Member
2. Click “Manage My Buddy List”
3. Click “Invite to Join”
4. Complete and Edit the invitation email, and click
Submit
Once the person invited receives the email, he/she needs to
create an account by following the instructions in the email.
You can invite Observers or existing Members/Supervisors
Additional Features
1. Edit Profiles
2. Reassign the Supervisor privileges
3. Remove Members/Buddies
4. Send Messages to Buddies
Note: Please visit the Pharos website for more information
62
Using Follow Me
From your Pocket PC:
1. Must have a valid Internet connection
2. GPS must be enabled
3. Must be logged in to Smart Login
4. Tap GO
Æ Power User Æ Smart Navigator Æ
Follow Me
5. This will turn on Follow Me. The program will provide a
beeping sound to notify you that you are being
tracked, and you will be visible to anyone on your
Follow Me Buddy List either from a Pocket PC or via
the Follow Me Real-Time Monitoring website.
6. To turn off Follow Me, Tap GO
Æ Power User Æ
Smart Navigator Æ Follow Me
7. To change Tracking Interval, tap GO
Æ Power User Æ
Tools Æ Options Æ Tracking Interval Æ and hit the
Forward Arrow until you’ve selected the desired
interval
8. When done, tap the Map Button to return to the Map
Screen
Note: If one or more members of the same group are being tracked
at the same time, Ostia will automatically display those members as
different colored cars, allowing them to be viewed on the same map
screen. Select members you want to see using check boxes. Drivers
need to be within 5 miles of each other (limited by screen size &
zoom level) to be displayed on the screen. Up to four members can
be seen on the screen at once
63
Follow Me Real-Time Monitoring
From your Personal Computer (PC):
1. Login as Supervisor, Member, or Observer to view
drivers on screen here:
http://66.161.28.109/monitoring/login.asp
2. Select Real-Time Monitoring
3. Select individual drivers, or all, to be displayed
4. You will then see the selected drivers on the map
64
8.0 GPS Receiver Setup and Configuration
Note: For Pharos All-In-One devices such as Traveler GPS 505, Traveler
GPS 525, and EZ Road, the GPS receiver does not need to be setup or
installed because it is already built into the device
8.1 GPS Status Indicator/Powering On the GPS Receiver
The Smiley Face at the
bottom of the screen
Tap the GPS Status Indicator (face) to Power ON/OFF the GPS,
as well as to Initialize (reset) the GPS. Refer to Section 4.1 Map
Screen Buttons
indicates the current status of
the GPS receiver
65
Red Face = The Pocket PC is not receiving data
from the GPS receiver. The receiver is either turned
Off, or the connection, power or communication port
(does not apply for Pharos All-In-One devices) may
be disabled and should all be checked
Yellow Face = The GPS receiver is currently
acquiring signals from the satellites for a signal lock,
but does not yet have a lock
Note: This will also occur If the GPS does not have a clear view
of the sky, or if there is environmental or electronic interference
from any of the following items: radar detector, CB radio, Satellite
radio, metallic material in windshields, 3
systems, etc.
Green Face = A GPS signal lock has been
established and the system is ready for navigation.
A red arrow will appear on the map, signifying the
current position of the GPS receiver. The blue bars
next to the face indicate the GPS signal strength.
rd
party in-car navigation
8.2 Configuring GPS in Ostia
Note: Comm Port Selection only applies if using Windows Mobile-based
devices
The first time Ostia starts, the Select Comm Port screen will appear.
The screen allows you to configure the communication port that the
GPS will be using. You can select the Comm Port manually or
automatically.
Selecting Auto will allow
Ostia to configure your GPS
automatically. For the
majority of users, this will be
sufficient.
If you prefer to set your GPS
Comm Port manually, please
refer to the User Manual of
your handheld device for the
appropriate Comm Port #.
Select the COM# from the list,
and tap OK when finished.
To access the GPS Configuration screen manually at any time,
tap GO Æ Power User Æ Tools Æ Select Comm Port. Select
the appropriate Comm Port needed, and tap the Forward Arrow
when finished.
Note: If the GPS is taking a long time to acquire a satellite lock, tap
Æ Initialize, to reset the GPS Receiver
GPS
66
If you are using a Third-party
GPS receiver on a Pocket PC
or Pocket PC Phone, you can
select the Baud Rate at which
the GPS communicates to the
software. The Baud Rate for
your receiver should be listed
in the packaging it came in.
For all Pharos labeled GPS
receivers, the Baud Rate is
4800, or the Default.
Select the proper Baud Rate
and hit the Forward Arrow.
67
8.3 Installing Pharos GPS Hardware
iGPS-SD
1.
Insert the iGPS-SD into
the Secure Digital Card
port of the Pocket PC.
Make sure you have
installed the iGPS-SD
driver from the driver
disc. This is a separate
process from installing
any other software.
2. To install the driver,
connect your device to
the computer/laptop via
Microsoft Activesync and
run the Setup from the
Driver Disk. When
finished, perform a soft
reset on your device,
making sure the iGPSSD driver is plugged into
your device. This will
activate the driver and
allow you to use the
GPS receiver.
iGPS-SD
PDA
68
iGPS-360 and iGPS-500
Configurations
There are 4 (four) different setup
configurations available for the
iGPS-360 and iGPS-500.
1) Compact Flash Mode
1a. Insert the iGPS-360 or iGPS500 into the Compact Flash
adapter, and then into the Compact
Flash slot of the Pocket PC.
your GPS did not come with a CF
adapter, you can purchase one from
www.services.pharosgps.com/shopping
1b. The Universal Car Power
Adapter can also be used, while in
a vehicle, to supply power to the
Pocket PC and GPS.
Note: If
69
2) Compact Flash
Extended Antenna Mode
2a. Detach the iGPS-360 or
iGPS-500 receiver from the
Compact Flash Adapter base.
2b. Attach the CF extension
cable between the iGPS-360
or iGPS-500 and the base.
2c. Insert the iGPS-360 or
iGPS-500 Compact Flash
Adapter base into the
Compact Flash slot of the
Pocket PC.
2d. The Universal Car Power
Adapter can also be used,
while in a vehicle, to supply
power to the Pocket PC and
GPS simultaneously.
70
3) Serial Attach Mode
3a. Connect the iGPS-360 or
iGPS-500 to the Serial Cable
specifically for your Pocket
PC.
3b. Connect the Serial Cable
to your Pocket PC serial port
and connect the Universal
Car Power Adapter. This
mode requires power via the
12V cigarette lighter adapter
in your vehicle to work.
4) Bluetooth
Your Passkey is:
12345678
For further info, please refer
to the Walkthrough Guides in
section II of your iGPS-BT
User Manual or the Support
section at
www.pharosgps.com for
Bluetooth setup instructions.
71
9.0 Troubleshooting
Visit the Pharos website (http://www.pharosgps.com/support) for FAQs,
tips, troubleshooting and latest updates.
Some things to watch for:
• Know how to do a “Soft Reset” on your Pocket PC as per your
Pocket PC manual. This can resolve a large number of
issues.
• With a serial-based GPS setup, you may need to disable the
external keyboard for your PDA in your Programs list, if you
have one. It may need to be disabled every time you soft
reset, as most are programmed to be enabled by default.
• Make sure you are outside in an area cle ar o f any obstructions
that may block the GPS satellite signals to your GPS receiver.
Obstructions include large buildings, as well as mountains,
tunnels, and even large trees planted very close together
• To use a storage card for map storage, make sure the *.rmf
and *.inx files for each map are stored in a "My Documents"
folder and that the folder is not located inside any other folders
or directories. It must appear as follows to function properly:
My Documents
(Take note of spacing and capitalization. They are important.)
• The Registration key is located on the inside flap of the
cardboard CD holder, and the UPC code is on the back
• When trying to connect your device to your laptop/tablet/PC,
you need to have the latest version of ActiveSync installed and
showing that it is both Connected and Synchronized. If you do
not have the latest version, you can download it from
www.microsoft.com/windowsmobile. Devices using Windows
Mobile 5.0 or higher require ActiveSync 4.1 or higher
• Since the Canadian highway/motorway map does not cover
the entire country, when trying to route in Canada across long
distances, and you are unable to create a route using the
highway/motorway map, try opening all the necessary local
maps to create the route
72
10.0 Contact Us at Pharos
Pharos Science and Applications, Inc.
http://www.PharosGPS.com
411 Amapola Avenue
Torrance, CA
90501-1478
USA
Phone: • Toll free at 888-PHAROS8 (888-742-7678) for
Technical Support in USA and Canada
• 877-774-2767 for Product Info & Sales
Fax: 310-320-1808
Email:
Sales@PharosGPS.com
Info@PharosGPS.com
Telephone technical support is available Monday through
Friday between the hours of 8:30 AM to 5:30 PM Pacific
Standard Time
Support@PharosGPS.com
73
11.0 SOFTWARE LICENSE AGREEMENT
This is a legal agreement ("this Agreement") between you
("Licensee") and Pharos Science & Application, Inc. (Pharos). By
opening the Pocket PC, Ostia software package ("Software Package")
and or by using the Pocket PC, Ostia software ("Software"), you agree
to be bound by the terms of the Agreement.
If you do not agree to the terms of this Agreement, promptly return the
software, and its accompanying items, to the retailer.
1. Grant of License: This Software License Agreement ("License")
permits Licensee to use one (1) copy of the Software Package
enclosed with the License. The Software Package includes Software
and documentation. This non-exclusive License, without the right to
sublicense, rent or lease, is to install and use the Software on a single
personal computer.
2. Software Transfer: Licensee may permanently transfer the License
and all rights hereunder to a third party by written notification to
Pharos and where the recipient agrees to the terms of the License.
When Licensee delivers the entire Software Package to a third party,
Licensee must also destroy any and all remaining copies of the
Software whether installed on a personal computer or other device.
Such a transfer terminates Licensee's rights to upgrade the Software
or map information.
3. Pharos' Rights: Licensee acknowledges that the Software consists
of proprietary, unpublished products of Pharos, protected under U.S.
copyright law and trade secret laws of general applicability. Licensee
further acknowledges and agrees that all right, title, and interest in
and to the software are and shall remain with Pharos. This
Agreement does not convey to licensee an interest in or to the
software, but only a limited right of use, revocable in accordance with
the terms of this Agreement.
74
4. Limitation of Liability: IN NO EVENT WILL PAHROS OR ITS
SUPPLIERS BE LIABLE FOR ANY INDIRECT, SPECIAL
INCIDENTAL, ECONOMIC OR CONSEQUENTIAL DAMAGES,
ARISING OUT OF THE USE OF OR INABLITY TO USE THE
SOFTWARE PACKAGE, INCLUDING SOFTWARE OR
DOCUMENTATION, EVEN IF ADVISED OF THE POSSIBILITY OF
SUCH DAMAGES. IN NO CASE SHALL PHAROS OR ITS
SUPPLIERS' LIABILITY EXCEED THE AMOUNT PAID BY
LICENSEE FOR THE SYSTEM. Some states do not allow the
exclusion or limitation of liability for incidental or consequential
damages, so in those states, the above limitation or exclusion may not
apply to you.
5. Disclaimer of Warranty: THIS SOFTWARE AND THE
ACCOMPANYING FILES ARE SOLD "AS IS". PHAROS AND ITS
SUPPLIERS DISCLAIM ANY WARRANTIES AS TO
PERFORMANCE OR MERCAHNDISE OR ANY OTHER
WARRANTIES WHETHER EXPRESSED OR IMPLIED. In particular,
there is no warranty for high-risk activities. NO WARRANTY OF
FITNESS FOR A PARTICULAR PURPOSE IS OFFERED. The user
must assume risk of using the program.
6. Limitations on Reverse Engineering, Decompilation, and
Disassembly: Licensee may not reverse engineer, decompile, or
disassemble the Software, except and only to the extent that such
activity is expressly permitted by applicable law notwithstanding this
limitation.
7. Separation of Components: The Software is licensed as a single
product. Its component parts may not be separated for use on more
than one computer.
8. Termination: Without prejudice to any other rights, Pharos may
terminate this License if Licensee fails to comply with the terms and
conditions of this license. In such event, Licensee must destroy all
copies of the Software and all its component parts.
75
9. Copyright: All title and copyrights in and to the Software (including
but not limited to any images, photographs, animations, video, audio,
music, and or text incorporated into the Software), the accompanying
printed materials, and any copies of the Software are owned by
Pharos or its suppliers. Copyright laws and international treaty
provisions protect the Software. You may not copy the printed
materials accompanying the Software.
10. Governing Law: The agreement shall be governed by the laws of
the State of California.
11. Export Laws and Regulations: Licensee agrees to comply fully
with all relevant export laws and regulations thereof, is not exported,
directly or indirectly, in violation of United States laws.
12. Proprietary Products: For purpose of any public disclosure
provision under and federal, state or local law, it is agreed that the
Products are a trade secret and a proprietary commercial product and
not subject to disclosure.
13. Restricted Rights: End User hereby represents and warrants that
the Products shall be protected for public disclosure and considered
exempt from and statute, law, regulation, or code, including any
sunshine Act, Public Records Act, Freedom of Information Act, or
equivalent, which permits access and/or reproduction or use of the
Products. In the event of breach of any part of this paragraph by such
disclosure, this Agreement shall be considered breached and any and
all right to retain any copies or to use of the Products shall be
terminated and considered immediately null and void. Any copies of
the Licensed Products held by End User shall immediately be
destroyed. If any court of competent jurisdiction considers this clause
void and unenforceable in whole or in part, for any reason this
Agreement shall be considered terminated and null and void, in its
entirety, and any and all its copies of the products shall immediately
be destroyed.
14. Portions of this product may be Copyrighted (c) by 1996-2006
Telcontar, TeleAtlas, or NAVTEQ.
76
Loading...
