iGPS-BT User Manual
FCC Notices
This device complies with Part 15(b and c) of the FCC Rules. Operation is subject to
the following conditions:
• This device may not cause harmful interference.
• This device must accept any interference received, including interference that
may cause undesired operation.
CAUTION: Change or modification not expressly approved by the party responsible
for compliance could void the user’s authority to operate this equipment.
Class B
This equipment has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the manufacturer’s
instruction manual, may cause interference with radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, you are encouraged to try to
correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and the receiver.
• Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
• Consult the dealer or an experienced radio/television technician for help.
FCC ID# Q7M-IGPS-BT
CE Notices
This device has been tested and found to comply with CE marking according to the
R&TTE Directive, 99/5/EEC. The test standards are listed below:
CE/LVD EN60950: 1992+A1+A2+A3+A4+A11
CE/EMC EN301 489-17 V 1.1.1: 09-2000
EN301 489-1 V 1.3.1: 09-2001
Radio Spectrum EN300 328-1 V 1.3.1: 12-2001
EN300 328-2 V 1.2.1: 12-2001
1
I. iGPS-360 Receiver and Bluetooth Dock
iGPS-BT
Dock
DC Jack
for charging
Bluetooth Status
(Internal Blue LED)
DC Jack
On/Off Switch
Bluetooth Status Indicator (Internal Blue LED)
- Plug either the DC charging adapter (included in PT200 and PT300) or
AC battery charger (included in PT100 and PXT02 accessory) into the
DC Jack to charge the battery.
Refer to III. Battery charging instructions.
- iGPS-BT will need to be charged for approximately 2-3 hours before
initial use.
- Turns the iGPS-BT on or off. Blue LED’s will light up when powered.
- Blinking: Searching for Bluetooth signal
- Steady: Bluetooth communication established, ready to use.
Indicator
iGPS-360
Receiver
On/Off
Switch
2
II. iGPS-BT Setup (see walkthrough guides at the end of this section)
1. The iGPS-BT will need to be charged for two to three hours before initial
use.
2. Turn on the iGPS-BT. The status indicator will blink as it searches for a
Bluetooth connection.
3. Launch the Bluetooth configuration software on your mobile device. (This
should be provided by the manufacturer of your Bluetooth device)
4. Have the Bluetooth configuration software search for any Bluetooth
devices present. It should detect the iGPS-BT and list it as an available
device (a “Pharos iGPS-BT” icon should be displayed).
5. Select the “Pharos iGPS-BT” device. Depending on your Bluetooth
software, this should bring up a screen that will ask for a PIN Code or
Security PIN. Enter the following PIN code:
IMPORTANT
PIN Code: 12345678
(Please memorize this code for future use)
6. After the PIN number is entered, a connection between your mobile device
and the iGPS-BT should be established. The blue LED on the iGPS-BT
dock will change from blinking to a steady glow.
7. Once a connection is established, check the properties of the iGPS-BT in
the Bluetooth configuration software and make a note as to what number
COM port is assigned to it. The navigation software that will be used will
require this COM port number. Or check the COM port setting for your
Pocket PC in the Quick Start Guide
For more information regarding the iGPS-BT setup, please visit our
Support Æ Product Support Æ Bluetooth Setup page at
www.pharosgps.com
Hints & Tips
• GPS receiver must have a direct view to the sky. GPS receiver does
not work well indoors.
• If possible, make sure the GPS is stationary when getting the initial
satellite position lock. Allow 1-2 minutes at initial start-up for the GPS
receiver to acquire a satellite lock for tracking.
• Make sure that the communication (COM) port is configured correctly
in the navigation software being used to ensure proper functioning of
the GPS system.
.
.
3
Walkthrough Guides
iGPS-BT Setup for Pocket PCs with built-in Bluetooth Technology running the
Windows Mobile Pocket PC OS
Steps 1 – 10: How to Pair the iGPS-BT with your Pocket PC’s Bluetooth Manager
Steps 11 – 15: Establishing a Bluetooth Connection using Ostia
1. Make sure that the iGPS-BT is turned
on (the blue light will be flashing). Tap the
Bluetooth icon in the lower right-hand
corner and select “Bluetooth Manager”
2. To create a shortcut, tap on “New”,
“Connect” (For some devices, you may
not need to select “Connect” before
proceeding to the next step)
3. Select “Explore a Bluetooth device”,
and tap on “Next”
4. To create the connection to the Pharos
iGPS-BT, select: “Tap here to choose a
device”
4
5. Provided that your iGPS-BT is turned
on and fully charged, it will be discovered.
Tap on the “Pharos iGPS-BT” icon to
select it
6. Enter the Passkey:
select “OK” in the upper right-hand
corner
12345678, and
7. Select “GPS RFcom” so that it
becomes highlighted, and tap on “Next”
8. The shortcut has been created. Tap
on “Finish”
5
9.Tap and hold on the “Pharos iGPSBT: GPS RFcom” icon, select
“Connect” from the Menu that appears
10. Once the GPS has a connection, the
icon will change to Green. You will also
notice that the Blue light on the GPS itself
is now a solid, steady Blue.
11. Open Pharos Ostia on your Pocket
PC, click through the Warning screens,
and tap on “Tools”, “Options”…
12. …”Select Comm”. To select the
appropriate COM Port for your Pocket PC
(with built-in Bluetooth Technology), refer
to the list here:
iPAQ 22XX/51XX/54XX/55XX – COM8
iPAQ 41XX/43XX – COM6
iPAQ 194X – COM5
Dell Axim X3i/X30 – COM7
Toshiba e80X – COM6
ASUS A620BT/A716 – COM6
HTC XDAII – COM4
6

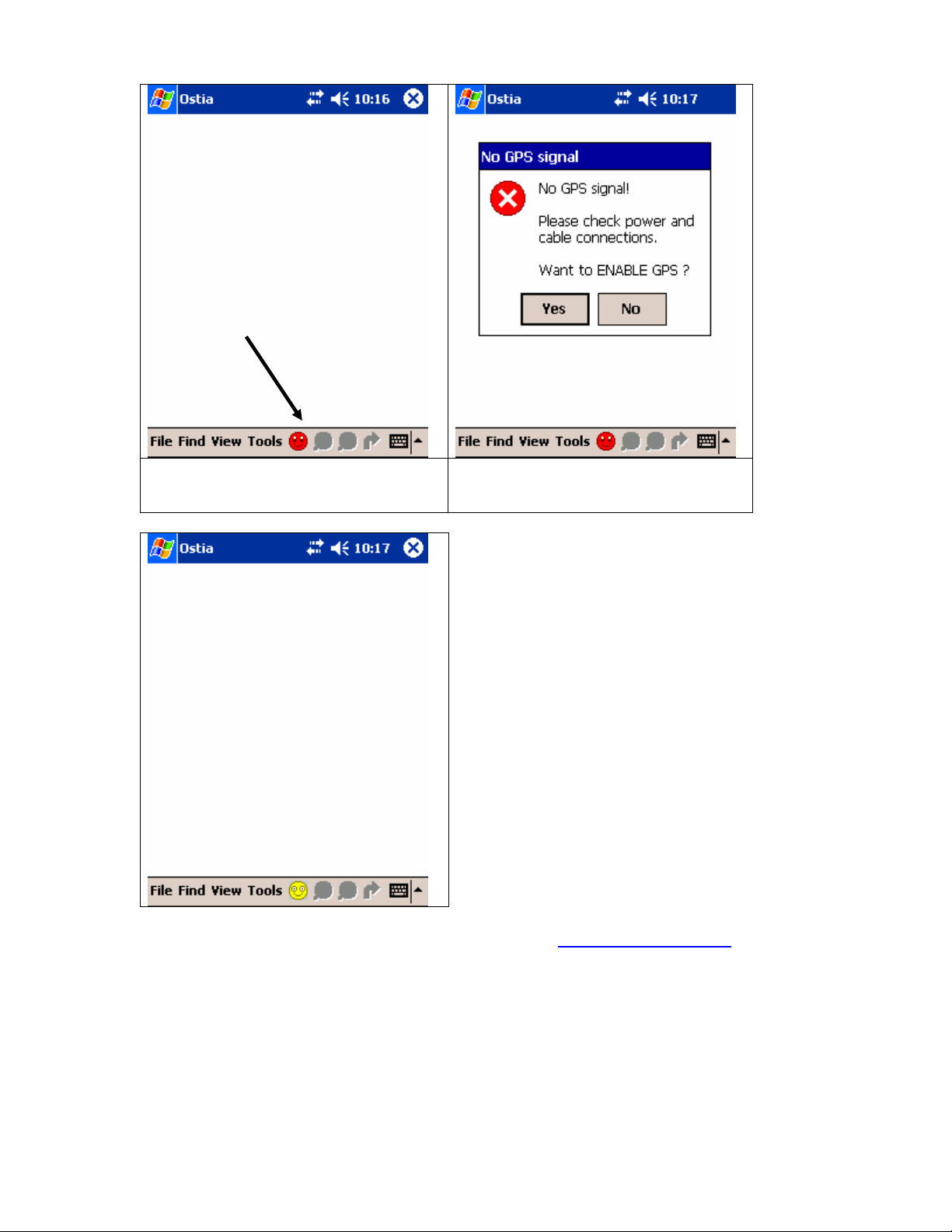

13. Now that the COM Port is setup, you
can Enable the GPS by tapping on the
RED Smiley face
14. Select “YES” to Enable the GPS
For Bluetooth setup on other devices, please visit: www.pharosgps.com for
walkthrough guides under the Support section.
7
III. Battery charging instructions
The Pharos Bluetooth Dock (BT Dock) for the GPS receiver includes a
rechargeable and replaceable Li-Polymer battery. The optional Power
Accessory Kit (PXT02), which contains a spare battery, battery charging
holder, and an AC battery charger can be purchased from Pharos.
Below are three common ways to charge the battery (and PDA).
A. Charging the battery in the car (or at home) with DC charging
adapter:
1. Charging both battery and PDA in the car simultaneously
Plug the DC plug (black) from the DC charging adapter into the DC
jack on the BT Dock (or the battery charging holder with the battery
loaded – PXT02) then make sure the car charger is plugged into the
car cigarette lighter jack (red LED is on) and is connected to the DC
charging adapter. When the LED indicator turns green, the battery is
fully charged.
Connect the DC plug (gray or beige) to the PDA (some PDAs require a
charging adapter which comes along with the PDA) to charge the PDA
simultaneously.
8
2. Charging both battery and PDA at the home simultaneously
Plug the DC plug (black) from the DC charging adapter into the DC
jack on the BT Dock (or the battery charging holder with the battery
loaded – PXT02) then make sure the PDA AC charger is plugged into
the AC wall outlet and is connected to the DC charging adapter. When
the LED indicator turns green, the battery is fully charged.
Set the PDA in the cradle (comes with your PDA) and then connect the
DC plug (gray or beige) to the DC jack on the PDA cradle to charge the
PDA simultaneously.
B. Charging the battery at home with AC battery charger:
Plug the DC plug of the AC Battery charger (optional – in PXT02) into
the DC jack on the BT Dock (or the battery charging holder with the
battery loaded – PXT02) then plug the AC charger into the AC wall
outlet. When the LED indicator turns green, the battery is fully
charged.
9
10
Battery Precautions (w: WARNING!)
1.w Reverse charging is not acceptable.
2. Charge before use. The cells/batteries are delivered in an
uncharged state.
3.w Do not charge/discharge with more than our specified current
(400mA).
4.w Do not short circuit the cell/battery, permanent damage to the
cell/battery may result.
5.w Do not incinerate or mutilate the cell/battery.
6. Do not solder directly to the cell/battery.
7.w The life expectancy may be reduced if the cell/battery is subjected
to adverse conditions like: extreme temperature, deep cycling,
excessive overcharge, or over-discharge.
8.w Store the cell/battery uncharged in a cool dry place. Always
discharge batteries before bulk storage or shipment.
Note: Please follow the instructions whenever you use or dispose of your
battery pack.
a. Use provided charger only.
b. Do not incinerate the battery.
c. Do not disassemble or modify the battery.
d. Do not allow metal objects to contact or short circuit the battery
terminal.
e. Avoid exposure to excessive heat (> 60
caustic environments.
f. Stop using the battery whenever there are unusual conditions (for
example: deformed, discolor, peculiar smell, leakage, etc.)
g. Must be recycled or disposed of according to the local waste
disposal agency
.
o
C or 140℉), moist, or
11
IV. iGPS-BT GPS Receiver Specifications
Performance
Chipset SiRF StarIIe/LP
Antenna Integrated patch antenna
Frequency L1, 1575.42 MHz
Sensitivity -140 dBm (typical)
Channels 12 Channel all-in-view tracking
Acquisition time (Avg.) Cold Start: 60 sec
Warm Start: 40 sec
Hot Start: 5 sec
Reacquisition 0.1 sec
Position update 1 Hz
Accuracy Position: 10 meters 2D-RMS, SA off
Velocity: 0.1 meter/second, SA off
Time: 1 microsecond synchronized to GPS time
Datum: WGS-84
Electrical Power
Battery 720mAh Li-Polymer rechargeable/replaceable
Battery charger AC battery charger optional, DC charging adapter
Operation time 6 hours minimum continuous use with full charge
Interface
Connection Communicate with Host Platform via
Protocol NMEA-0183 (V2.3) standard
Data rate 4800 bps
NMEA message GGA, GSA, GSV, and RMC
WAAS/EGNOS Enabled
Trickle power Programmable
Bluetooth spec Frequency band: 2400-2483.5 MHz
Data rate: up to 721 Kbps
Security: data encryption up to 128-bits
Typical range: up to 32 feet (10 meters)
Physical
Dimension 60 mm x 85 mm x 25 mm
Weight 85 grams
Environmental
Operation temperature
Dynamics Altitude < 20 km
Velocity < 900 km/h
Acceleration < 3g
Specifications are subject to change without prior notice.
battery
(works with car charger – in car or PDA AC charger
– at home) included. Constant current charging
circuit included in both AC and DC battery charger.
> 6 hours in trickle power mode
Bluetooth(Class2) Serial Profile
-20°C to 60°C (-4°F to 140°F)
12
V. Precautions
• Position fixing may not be available when this receiver is used near highvoltage wire, electronics equipment that generates electrical noise, or
mobile phones in operation at 1.5 GHz. The noise from PDA or PC may
deteriorate the GPS receiver performance.
• Note that some glass material containing metal, such as UV resistant
windows may screen out signals from GPS satellites.
• GPS satellites are under the control of the U.S. Department of Defense.
Therefore, services provided for general consumers are subject to change
without prior notice. Pharos is not liable for losses caused by such
changes.
• Do not touch the connectors of the Bluetooth Dock with fingers or insert
foreign substances; otherwise, a failure may be caused.
• Do not expose the receiver to direct sunlight for a long period of time; near
heating equipment; a place that can become hot, or high levels of
humidity.
• Do not expose or submerse the device to moisture, liquids, or harsh
environments to avoid damaging it..
• Dropping the receiver, heavy impact, or excess vibration may cause
damage or malfunction.
• Use a soft cloth to wipe dirt off this receiver. If dirt is severe, dampen a
soft cloth with diluted neutral detergent, securely wring it out, and wipe off
the dirt. Do not use a spray-type detergent; highly volatile solvent, such
thinner and benzene; or a chemical cloth. Otherwise, deformation or
discoloration may be caused.
VI. Package contents
PT200: Bluetooth Pocket GPS Navigator
Ostia software and street level maps
iGPS-360 receiver
iGPS-BT Dock with Li-Polymer battery
DC charging adapter
Car charger
Vent mounted PDA Holder
Friction mounting pad
Belt case
PT 300: Bluetooth Pocket GPS Navigator
It includes PT200 plus PXT01 (CF Adapter Kit), PXT02 (Power
Accessory Kit), and PXT03 (Travel Carrying Case)
PT100: Bluetooth iGPS Receiver
iGPS-360 receiver
iGPS-BT Dock with Li-Polymer battery
AC battery charger
Belt case
Note: Contents may vary- see the box or contents list.
New products may not be listed here.
TM
TM
Premium
13
VII. Quick Start Guide for Ostia Navigation Software(for PT200/PT300)
1. Install the Pharos Ostia & MapFinder Software
• Insert the CD-ROM. If Auto-Run is enabled for your CD-ROM, the Setup
program will run automatically. If not, run the Setup program on the CDROM.
• Select “Install Ostia” to install the navigation software to your Pocket PC and
follow the on-screen instructions.
• Select “Install MapFinder” to install the map loading utility to your
Desktop/Laptop PC and follow the on-screen instructions.
2. Install Map Data
• Insert map CD, MapFinder will appear.
• Type a city name or zip code in the search field, then click "Search“.
• Double click on the appropriate result (to the right).
• -OR- Double click sections directly on the map to select multiple maps.
• Right click on the map to bring up the command menu and choose where you
want the maps to be transferred to.
• You will have the option to copy the maps directly to your Pocket PC or to
your PC hard drive for later use.
• If you choose to extract maps to your PC hard drive, you can use MapFinder
later to transfer the maps to your Pocket PC or Memory Card.
Installing Map
Data to Internal
PLEASE NOTE: IN EITHER CASE MAPS SHOULD RESIDE IN THE “\My
Documents” DIRECTORY OF THE POCKET PC OR MEMORY CARD.
MAPFINDER WILL AUTOMATICALLY CREATE THE “\My Documents”
FOLDER.
Storage
Map
Data
SYNCHRONIZATION
CABLE
Installing Map
Memory Card
Docking
Station
Data to
Memory
Card
Map
Data
14
Create a Route Using the Pharos Pocket GPS Navigator
Start in a safe area with a clear view of the open sky (GPS does not work well
indoors), then proceed with the following steps:
• On the PDA, start running the Pharos Ostia program.
• Click “File” then “Open” and select the map(s) you want to use.
• In the “Find” menu, select your destination using “Recent Destination,”
“Contacts,” “Favorites,” “Address,” “Intersection,” or “Point of Interest.”
• Click the “Happy Face” icon then click “Yes” to Enable GPS.
• Wait approximately 60 seconds for a red arrow to appear indicating your
current position on the map.
• In the “Find” menu click “New Route” to calculate a route from your current
position to the selected destination. The calculated route will be highlighted
on the map in light blue.
• Start driving along the blue route with the advisory of the voice/sound
prompts and on-screen graphics.
• A “Favorite” can be used to find a specific Latitude and Longitude point on the
map that can then be used to find the nearest street which can be selected as
either the Origin or Destination.
Additional Tips
• If you should miss a turn or make a wrong turn, the voice prompt will inform
you that “You are off route.” Simply press the Pocket PC’s “Action Button”
(Refer to your PDA manual to identify the “Action Button”) to have a new
route calculated from your current position to the selected destination. To
have the program automatically generate a new route when you go off route,
access the “Tools”/”Options…” menu, and then check “Auto Re-route.”
• Under “Tools"/”Options…,” check "Heading Up" to choose the vehicle’s
forward direction as the orientation of the map on the PDA display. This
option will display a compass in the bottom, right-hand corner of the map.
North up is the default map orientation.
• In the “View” menu, click “GPS Info” to view Compass Information (Lat., Lon.,
Alt., Time, Speed, and Distance) about the current position of the iGPS
receiver.
• In the “View” menu, click “Text Directions” to view turn-by-turn text directions
for your route with street names and distances between each.
Please refer to the Ostia User’s Manual for detailed instructions.
VIII. Troubleshooting
For any troubleshooting assistance, please check the Frequently Asked
Questions section at www.pharosgps.com.
15
IX. Warranty
The iGPS-BT Receiver is warranted by Pharos to the original purchaser to be free
from defects in material workmanship under normal use for a period of one year from
the date of purchase (three months for the battery). During the warranty period, and
upon proof of purchase, the product will be repaired or replaced (with the same or a
similar model) at Pharos' option without charge for parts or labor. This warranty will
not apply if the product has been misused, abused, or altered.
To obtain warranty service, you must take or send the product, postage paid, with a
copy of your sales receipt or other proof of purchase and the date of purchase to
Pharos at 411 Amapola Avenue, Torrance, CA 90501, USA. Prior approval and
RMA number must be included for your warranty return to be accepted.
X. Return Policy
• Our goal is for every customer to be satisfied with each purchase, and we will
make every effort to resolve any issues you may have.
• All non-defective returns must be shipped with the original packaging with all
original components within the first 30 days from purchase. There is a 15%
restocking fee on all non-defective returns. Shipping charges are not refundable.
The customer is responsible for returning items to Pharos at their own expense.
Any return(s) that were not purchased directly from Pharos, please contact the
reseller where it was purchased from.
• All defective returns for either repair or replacement will be processed and returned
to the customer within 3 business days of receipt. For items beyond the 1year
warranty, a repair charge of $35 to $50 or a replacement charge of $95 to $150 will
be due. For items sent to us after 90 days from purchase, an $8.50 shipping and
handling fee will be due upon completion of repair or replacement.
Every return, defective or not, MUST have prior written approval from Pharos. The
RMA number MUST be marked on the outside of the package otherwise it will be
rejected. The RMA form must also be included in the box with the customer's
information and reason for return. Proof of purchase must also be attached.
411 Amapola Avenue
Torrance, CA 90501
www.pharosgps.com
361-1010-01 rev. C
16
Loading...
