EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
Lab ID#: PH19550100 Receipt Date: Aug 26, 2019
Phanteks PH-P550G
Report: 19PS804A
Test Date: Aug 27, 2019 Report Date: Aug 30, 2019
DUT INFORMATION
Brand Phanteks Manufacturer (OEM) Seasonic Series AMP Model Number PH-P550G Serial Number R1906AA252120125 DUT Notes
DUT SPECIFICATIONS
Rated Voltage (Vrms) 100-240 Rated Current (Arms) 8-4 Rated Frequency (Hz) 50-60 Rated Power (W) 550 Type ATX12V
Cooling
Semi-Passive Operation ✓ (selectable) Cable Design Fully Modular
120mm Fluid Dynamic Bearing Fan (HA1225H12F-Z)
POWER SPECIFICATIONS
Rail 3.3V 5V 12V 5VSB -12V
Max. Power
Total Max. Power (W) 550
Amps 20 20 45 3 0.3 Watts 100 540 15 3.6
CABLES AND CONNECTORS
Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors ATX connector 20+4 pin (610mm) 1 1 18-22AWG Yes 4+4 pin EPS12V (650mm) 2 2 18AWG No 6+2 pin PCIe (750mm) 2 2 18AWG No SATA (420mm+150mm+150mm+150mm) 2 8 18AWG No SATA (300mm+150mm) 1 2 18AWG No 4 pin Molex (450mm+120mm+120mm) 1 3 18AWG No 4 pin Molex to SATA 3.3V Adapter (150mm+150mm) 1 2 18AWG No AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 1/9
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
General Data
Manufacturer (OEM) Seasonic PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Discharge IC Inrush Protection NTC Thermistor & Relay Bridge Rectifier(s) 2xGBU1006 (600V, 10A @ 100°C) APFC MOSFETS 2x Champion GPT13N50D (500V, 13A, 0.49Ohm) APFC Boost Diode 1x NXP BYC8-600 (600V, 8A @ 109°C) Hold-up Cap(s) 1x Hitachi (400V, 390uF, 2,000h @ 105°C,HU) Main Switchers 4x Champion GPT10N50AD (500V, 9.7A, 0.7Ohm) APFC Controller Champion CM6500UNX Resonant Controllers Champion CM6901T6
Topology
Secondary Side
+12V MOSFETS 2x NexperiaPSMN2R6-40YS(40V, 100A @ 100°C, 5.3mOhm @ 175°C) 5V & 3.3V DC-DC Converters
Filtering Capacitors
Supervisor IC Weltrend WT7527V (OCP, OVP, UVP, SCP, PG) Fan Model Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Fluid Dynamic Bearing Fan)
Primary side: Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Electrolytics: 6x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 3x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 2x Nichicon (2­5,000h @ 105°C, HD), 3x Nichicon (4-10,000h @ 105°C, HE) Polymers: 9x FPCAP, 2x NIC, 4x United Chemi-Con
Phanteks PH-P550G
5VSB Circuit
Rectifier 1xPFC P10V45SP SBR (45V, 10A) Standby PWM Controller Excelliance MOS EM8569
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 2/9
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
Phanteks PH-P550G
RESULTS
Temperature Range (°C /°F) 30-32 / 86-89.6 Average Efficiency 90.688 Efficiency With 10W (≤500W) or 2% (>500W) Load -115V 59.362 Average Efficiency 5VSB 76.505 Standby Power Consumption (W) -115V 0.0440029 Standby Power Consumption (W) -230V 0.0727701 Average PF 0.925 ErP Lot 3/6 Ready ✓ (EU) No 617/2013 Compliance ✓ Avg Noise Output 14.50 Efficiency Rating (ETA) ETA-A­Noise Rating (LAMBDA) LAMBDA-A++
TEST EQUIPMENT
Chroma 63601-5 x4
Electronic Loads
AC Sources Chroma 6530, Keysight AC6804B Power Analyzers N4L PPA1530 x2 Sound Analyzer Bruel & Kjaer 2270 G4 Microphone Bruel & Kjaer Type 4955-A Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2 Tachometer UNI-T UT372 x2 Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD UPS CyberPower OLS3000E 3kVA x2 Transformer 3kVA x2
Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
PAGE 3/9
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
EFFICIENCY GRAPH
Phanteks PH-P550G
INFO
This graph depicts the PSU’s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
NOISE GRAPH
INFO
The PSU’s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 4/9
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
5VSB EFFICIENCY -115V (ERP LOT 3/6 & CEC)
Test # 5VSB
0.045A 0.231
1
5.121V 0.336 115.13V
0.090A 0.462
2
5.120V 0.628 115.13V
0.550A 2.811
3
5.110V 3.623 115.13V
1.000A 5.100
4
5.099V 6.584 115.13V
1.500A 7.634
5
5.088V 9.799 115.13V
DC/AC (Watts)
Efficiency PF/AC Volts
68.750%
73.567%
77.588%
77.461%
77.906%
0.055
0.100
0.330
0.397
0.432
Phanteks PH-P550G
5VSB EFFICIENCY -230V (ERP LOT 3/6 & CEC)
Test # 5VSB
0.045A 0.231
1
5.121V 0.373 230.26V
0.090A 0.462
2
5.120V 0.673 230.26V
0.550A 2.811
3
5.109V 3.695 230.26V
1.000A 5.100
4
5.099V 6.637 230.26V
1.500A 7.632
5
5.087V 9.891 230.26V
DC/AC (Watts)
Efficiency PF/AC Volts
0.019
61.930%
0.034
68.648%
0.161
76.076%
0.241
76.842%
0.295
77.161%
6
3.000A 15.140
5.046V 19.915 115.13V

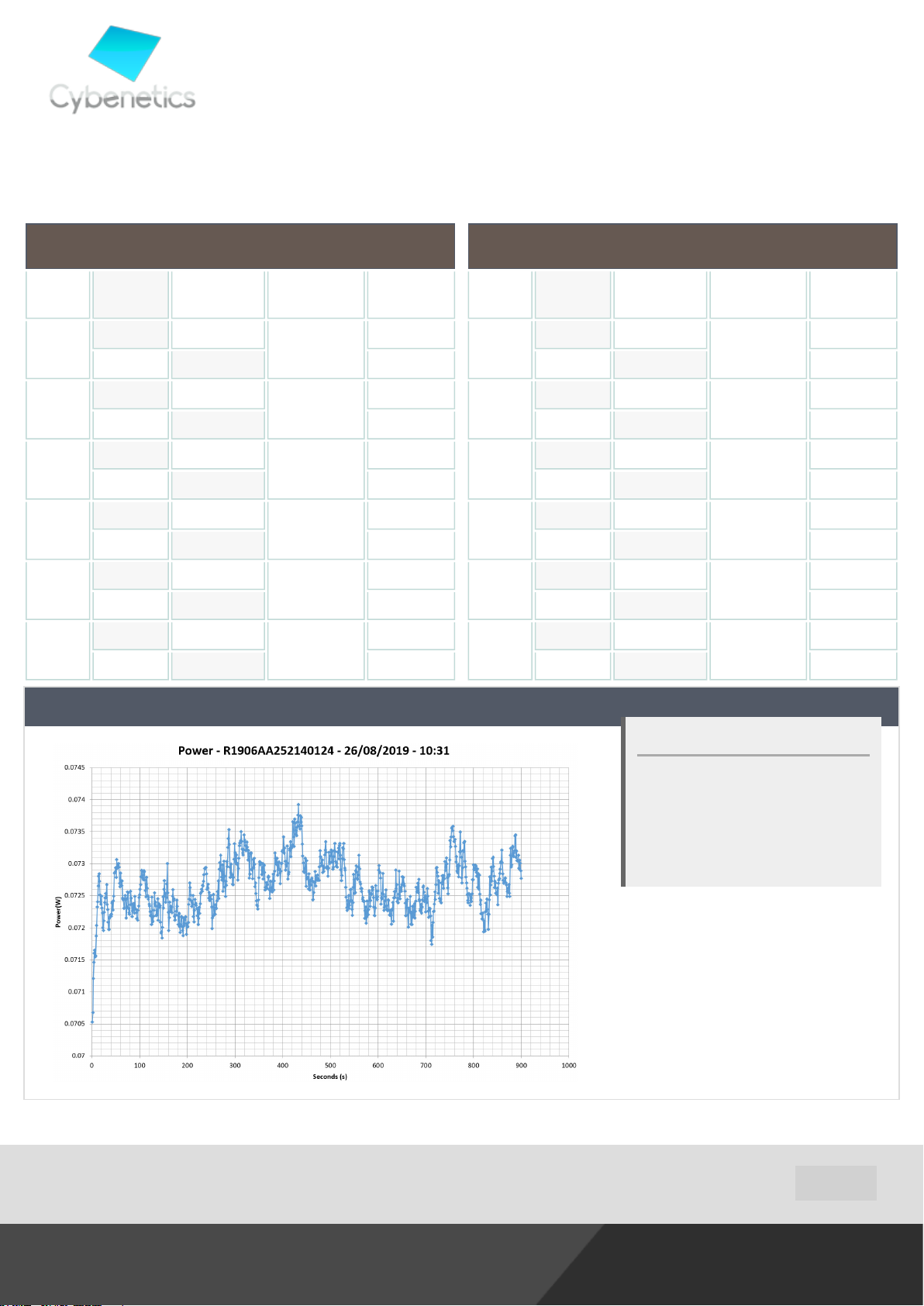

VAMPIRE POWER -230V
76.023%
0.482
6
3.000A 15.160
77.660%
5.053V 19.521 230.26V
0.368
INFO
This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 5/9
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
EFFICIENCY UNDER HIGH AMBIENT TEMPERATURE
Phanteks PH-P550G
INFO
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5VSB EFFICIENCY
INFO
This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
PAGE 6/9
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
10-110% LOAD TESTS
Test #
1
2
3
4
5
12V 5V 3.3V 5VSB
2.725A 2.002A 1.990A 0.982A 54.569
12.096V 4.997V 3.318V 5.092V 64.590 40.38°C 230.27V
6.496A 3.004A 2.987A 1.181A 109.491
12.096V 4.995V 3.317V 5.083V 122.173 40.43°C 230.27V
10.661A 3.507A 3.469A 1.380A 164.984
12.098V 4.992V 3.315V 5.073V 181.017 41.39°C 230.27V
14.758A 4.009A 3.985A 1.580A 219.802
12.101V 4.991V 3.314V 5.064V 239.912 48.58°C 230.26V
18.524A 5.012A 4.983A 1.781A 274.699
12.102V 4.991V 3.312V 5.055V 299.636 49.57°C 230.27V
DC/AC (Watts)
Fan
Efficiency
84.485% 0 <6.0
89.620% 0 <6.0
91.143% 0 <6.0
91.618% 424 6.0
91.678% 563 8.5
Speed (RPM)
PSU Noise (dB[A])
Phanteks PH-P550G
Temps (In/Out)
45.90°C 0.713
46.33°C 0.854
47.51°C 0.907
41.87°C 0.933
42.05°C 0.948
PF/AC Volts
6
7
8
9
10
11
CL1
CL2
22.292A 6.016A 5.982A 1.984A 329.619
91.577% 577 8.6
12.103V 4.989V 3.310V 5.043V 359.936 50.47°C 230.27V
26.093A 7.021A 6.985A 2.186A 384.930
91.396% 738 12.6
12.103V 4.987V 3.308V 5.035V 421.168 51.76°C 230.27V
29.895A 8.027A 7.988A 2.390A 440.226
91.052% 1045 22.1
12.102V 4.986V 3.306V 5.023V 483.488 52.74°C 230.27V
34.065A 8.529A 8.472A 2.392A 494.742
90.758% 1351 30.2
12.101V 4.985V 3.305V 5.019V 545.122 53.59°C 230.28V
38.041A 9.033A 8.989A 3.001A 549.945
90.287% 1746 33.1
12.098V 4.984V 3.304V 5.000V 609.108 54.87°C 230.28V
42.613A 9.036A 8.993A 3.003A 605.180
89.844% 2114 42.0
12.096V 4.983V 3.303V 4.996V 673.591 57.52°C 230.27V
0.149A 12.004A 12.000A 0.000A 101.329
86.363% 0 <6.0
12.108V 4.983V 3.309V 5.100V 117.329 41.93°C 230.28V
45.012A 1.003A 1.002A 1.000A 557.892
90.939% 1883 38.4
12.097V 4.993V 3.311V 5.057V 613.479 54.60°C 230.28V
42.57°C 0.957
43.23°C 0.964
43.85°C 0.969
44.17°C 0.972
45.05°C 0.975
46.94°C 0.978
48.80°C 0.848
45.10°C 0.975
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 7/9
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE LEVEL CERTIFICATIONS
Anex
20-80W LOAD TESTS
Test # 12V 5V 3.3V 5VSB
1.204A 0.501A 0.482A 0.196A 19.670
1
12.092V 5.005V 3.324V 5.114V 27.401 230.28V
2.463A 1.001A 0.996A 0.392A 40.098
2
12.093V 4.999V 3.320V 5.108V 48.761 230.27V
3.654A 1.501A 1.475A 0.588A 59.585
3
12.093V 4.998V 3.319V 5.101V 69.225 230.27V
4.909A 2.003A 1.990A 0.785A 79.982
4
12.094V 4.997V 3.318V 5.095V 90.805 230.27V
RIPPLE MEASUREMENTS
DC/AC (Watts)
Phanteks PH-P550G
Efficiency
71.786% 0 <6.0
82.234% 0 <6.0
86.074% 0 <6.0
88.081% 0 <6.0
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
0.489
0.640
0.731
0.800
Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.6 mV 10.5 mV 5.5 mV 5.1 mV Pass 20% Load 15.3 mV 11.6 mV 6.8 mV 5.4 mV Pass 30% Load 18.5 mV 12.3 mV 7.5 mV 5.5 mV Pass 40% Load 20.6 mV 13.1 mV 8.3 mV 5.9 mV Pass 50% Load 22.9 mV 14.4 mV 9.2 mV 6.2 mV Pass 60% Load 24.5 mV 16.1 mV 10.2 mV 6.5 mV Pass 70% Load 26.2 mV 16.1 mV 11.4 mV 6.7 mV Pass 80% Load 27.4 mV 18.3 mV 13.0 mV 7.6 mV Pass 90% Load 29.1 mV 22.8 mV 14.4 mV 7.7 mV Pass 100% Load 30.0 mV 24.0 mV 15.3 mV 7.9 mV Pass 110% Load 32.1 mV 24.5 mV 14.9 mV 7.9 mV Pass Crossload 1 14.7 mV 18.1 mV 10.1 mV 5.5 mV Pass Crossload 2 30.2 mV 15.5 mV 13.6 mV 6.5 mV Pass
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 8/9
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
Top side
Power specifications label
LEVEL CERTIFICATIONS
Anex
HOLD-UP TIME & POWER OK SIGNAL (230V)
Hold-Up Time (ms) 19.50 AC Loss to PWR_OK Hold Up Time (ms) 15.20 PWR_OK Inactive to DC Loss Delay (ms) 4.30
Phanteks PH-P550G
CERTIFICATIONS
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
PAGE 9/9
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
