ENTHOO PRO II

USER MANUAL V1.1

Thank you

for choosing

TABLE OF CONTENTS ENTHOO PRO II

1. WHAT’S INSIDE?

Introduction

Specications

Exploded View

Accessories

2. CHOOSE YOUR SETUP

Congure your Enthoo Pro 2

Getting started

Installing the Motherboard

Installing the Power Supply

Installing a second Power Supply

Installing Fans

Installing Drives

Installing Water Cooling

Radiator Clearance

Drain Port

Installing the GPU Anti-Sag Bracket

Connecting Front I/O

Lighting Control

Cable Management

Dust Filters

Optional Upgrades:

Installing a Vertical GPU

Installing the 5.25 inch bay

Installing a Dual System

3. SUPPORT

Warranty

INTRODUCTION ENTHOO PRO II

Welcome to Phanteks!

The Enthoo Pro 2 has been designed with extreme performance in mind, featuring Phanteks’ innovative

‘High-Performance Fabric’ that sets a new airow performance standard in the PC enclosure industry. With

an extremely spacious and versatile interior design and state-of-the-art features, the Pro 2 is ready to house

any high-end conguration. From SSI-EEB motherboards to extreme water cooling to extensive storage

capabilities, anything is possible. When combined with the Revolt X or Revolt PRO even a Dual System or the

most powerful workstations can be a reality.

Phanteks believes that meaningful designs are created through

the fusion of form and function.

The Phanteks team

SPECIFICATIONS

ENTHOO PRO II

CASE SPECIFICATIONS

Dimension (WxDxH)

Form Factor

Materials

MB Support

Front I/O

240 mm x 580 mm x 560 mm (9.45 x 22.83 x 22.05 in)

Full Tower

Steel chassis, Tempered glass window**

SSI-EEB, ATX, Micro-ATX, Mini-ITX, E-ATX *

*280mm wide to use grommets

Power button, 4x USB 3.0, Microphone,

Headphone, Reset Button, D-RGB Mode**,

D-RGB Color**, USB 3.1 GEN 2 Type-C

PCI SLOTS & DRIVE BAYS

PCI slots

Internal 3.5”

Internal 2.5”

FAN

Front

Top

Rear

Bottom

Side

8x (+2x 3-vertical slot)

12x (4 included)

11x (11 included)

120 MM

4x 3x

3x 3x

1x 1x

3x 1x

4x -

140 MM

INCLUDED ACCESSORIES

3.5” Stackable HDD Bracket

Vertical GPU Mount

Accessory Bag

GPU Anti-Sag Bracket

Dual PSU Cover

Dual System Cover

Toolbox

CLEARANCE

Max Motherboard width

CPU Cooler Clearance

GPU Clearance

330mm (13.49 in)

195 mm (7.7 in)

503 mm (19.95 in)

SUPPORT

Contact (International)

Contact (America)

Warranty

support@phanteks.com

support@phanteksusa.com

5 Years, see page 33

RADIATOR

Front

Top

Rear

Bottom

Side

120 MM

Up to 480 Up to 420

Up to 360 -

120 140

Up to 360 -

Up to 480 -

140 MM

** Only PH-ES620PTG model is equipped with a

Tempered Glass sidepanel and D-RGB lighting

EXPLOADED VIEW ENTHOO PRO II

1. Chassis

2. Front Panel

3. Right Side Panel

4. Left Side Panel*

5. Dual PSU Bracket

6. SSD Cover

7. Front Dust Filter

8. Top Dust Filter

9. Side Dust Filters

10. Bottom Dust Filter

11. Bottom Radiator Bracket

12. SSD Bracket

4* PH-ES620PC_BK version is not

equipped with a tempered glass panel

ACCESSORIES

ENTHOO PRO II

3.5” MODULAR HDD BRACKET

- 4 included in accessory box

- For 3.5” or 2.5” Drive

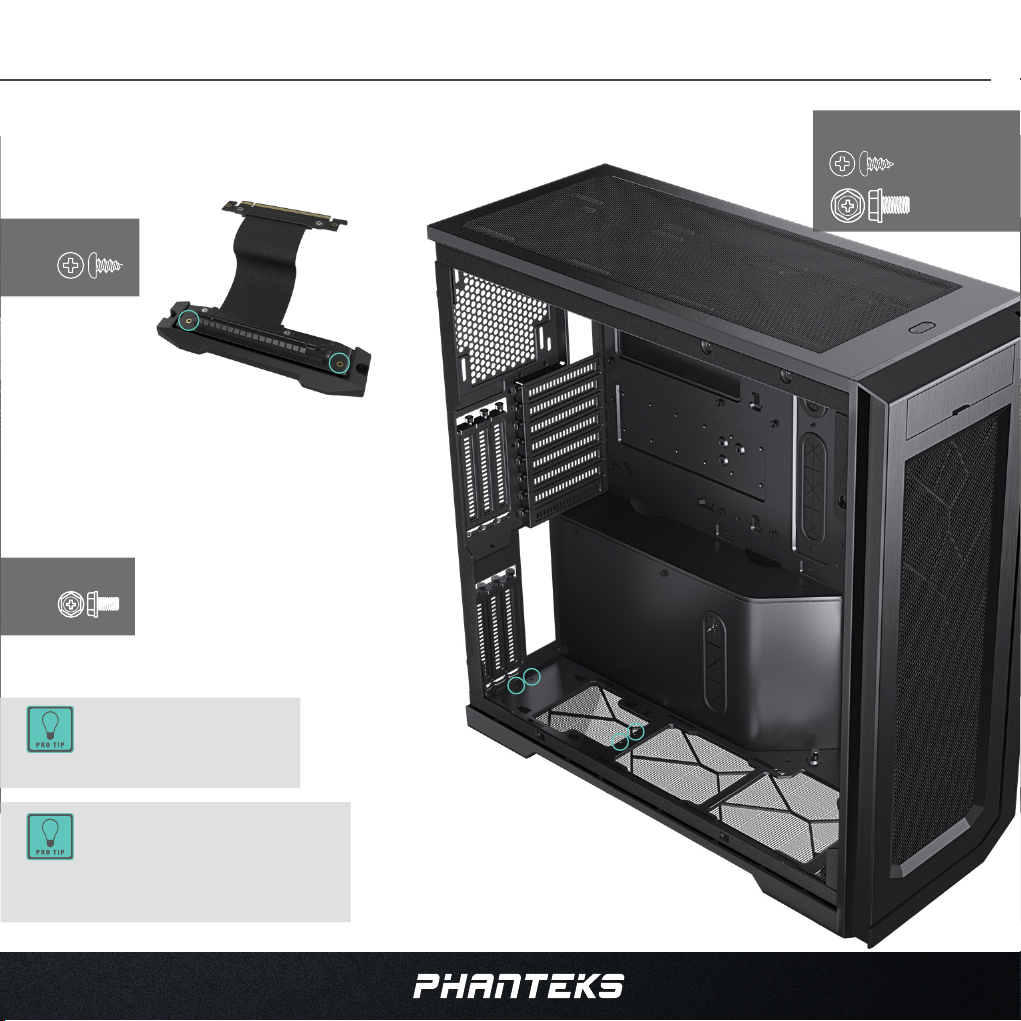

VERTICAL GPU MOUNT

- Included in accessory box

- Riser Cable is sold separately

ACCESSORY BAG AND TOOLBOX

Accessory bag Toolbox

DUAL PSU COVER

- Pre-installed

- Allows for an optional second Power Supply

- Includes cover for a closed look (pre-installed)

DUAL SYSTEM COVER

- Included in accessory box

- Allows for a second Mini-ITX system

- Allows for a vertical GPU*

- Revolt X power needed for Dual System

* Riser cable sold separately (see page 26)

M3x5 mm

Motherboard /

SSD screw

Fan screw

Motherboard

Stando + tool

GPU Anti-Sag Bracket

6x Zip Tie 150mm

Phanteks Logo Badge

6-32x6 mm

Hex screw

38x

6-32x6 mm

Thumb screw

14x 4x 16x 3x12x

Rubber PSU

pad

6-32x9 mm

HDD screw

Riser Cable

screw

CONFIGURE YOUR ENTHOO PRO II

The Enthoo Pro 2 has the most versatile chassis design, providing you with a myriad of

options. With so many possibilities to pick from, you can use this overview to choose

and plan the best conguration for your build.

ENTHOO PRO II

AIR COOLING- P13.

STORAGE - P14.

WATERCOOLING - P17.

DUAL SYSTEM - P29. DUAL PSU - P12.

GETTING STARTED

PREPARATIONS

The Enthoo Pro 2 case is designed to support installation in a standing position.

Don’t turn on the power to your system until installation is complete.

Discharge your body’s static electric charge by touching a grounded surface

before performing any hardware procedure.

Make sure to consult the manuals of your hardware before installation.

If you do not feel comfortable with performing the installation

procedure, consult a qualied computer technician.

REMOVING FRONT PANEL

ENTHOO PRO II

PULL CORNER

GETTING STARTED

REMOVING LEFT SIDE PANEL*

ENTHOO PRO II

SLIDE

LOOSEN:

REMOVING RIGHT SIDE PANEL

LOOSEN:

Allign the tab in the slot when re-installing

SLIDE & OPEN

* Only PH-ES620PTG model is equipped

with a Tempered Glass sidepanel

INSTALLING MOTHERBOARD

ENTHOO PRO II

Use the motherboard screws from the toolbox to install your motherboard on the

pre-installed standos.

REQUIRES:

STANDOFF POSITIONING

ATX / E-ATX (Pre-installed)

Micro ATX/SSI-EEB

These standos have a special collar to keep the

motherboard in place when installing vertically.

(install extra standos)

Some motherboards require installation or repositioning

of the standos. Please consult your motherboard

manual for the correct stando positioning.

For repositioning standos

INSTALLING POWER SUPPLY

ENTHOO PRO II

The power supply can be installed by opening the cable cover.

1. Open the Cable Cover.

2. Place the Power Supply.

3. Secure the Power Supply with 4x PSU screws.

REQUIRES:

LOOSEN:

INSTALLING A SECOND POWER SUPPLY ENTHOO PRO II

A second power supply can be installed by removing the cover in the rear panel.

1. Remove the rear PSU Cover.

2. Place the 4x rubber pads from the toolbox.

3. Place the Power Supply.

4. Secure the Power Supply with 4x PSU screws.

REQUIRES:

REMOVE:

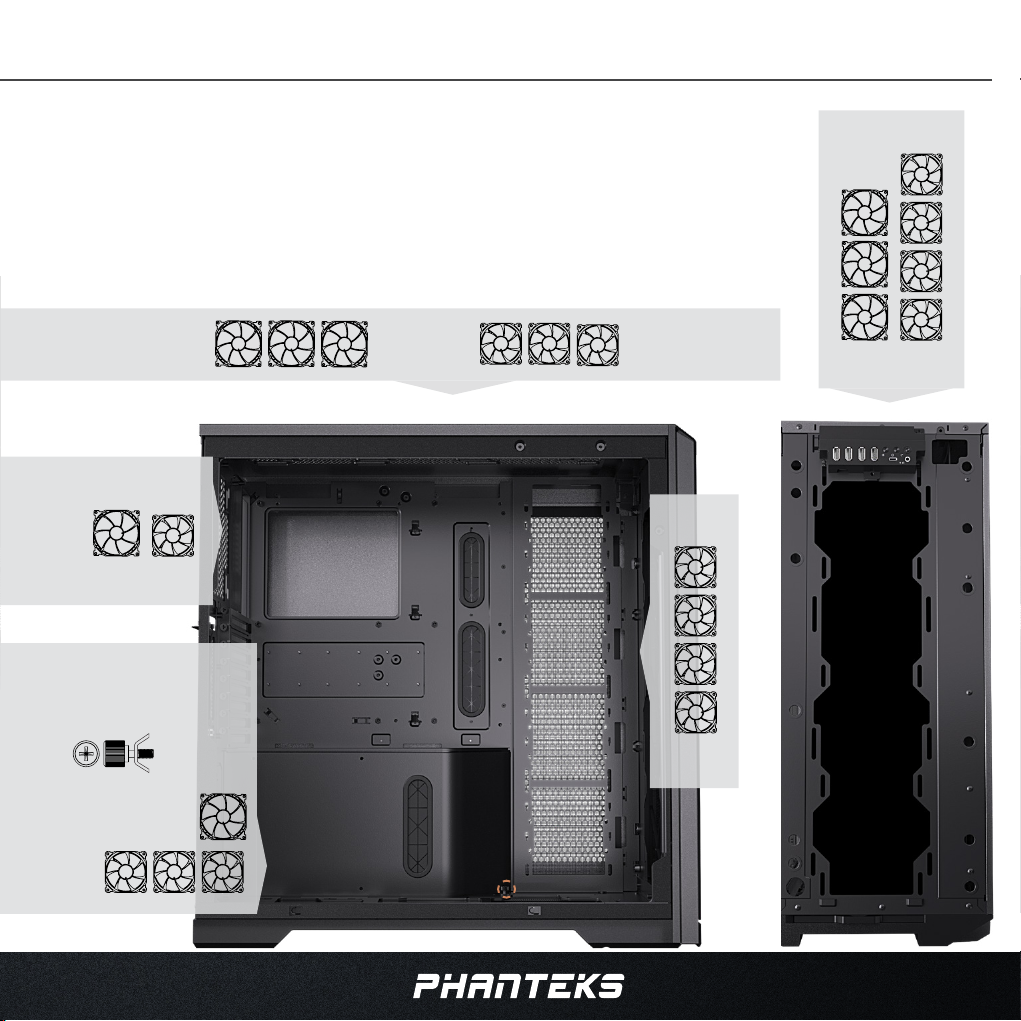

INSTALLING FANS

ENTHOO PRO II

Congure your airow-path with this overview. Some fan locations allow you to choose between

storage or cooling to oer more exibility.

The bottom radiator bracket is removed by loosening the thumb screw and sliding it forward.

TOP

140 FAN

120 FAN

REAR

SIDE

140

120

FAN

BOTTOM

LOOSEN:

120 FAN

140 FAN

FRONT

140 FAN

120 FAN

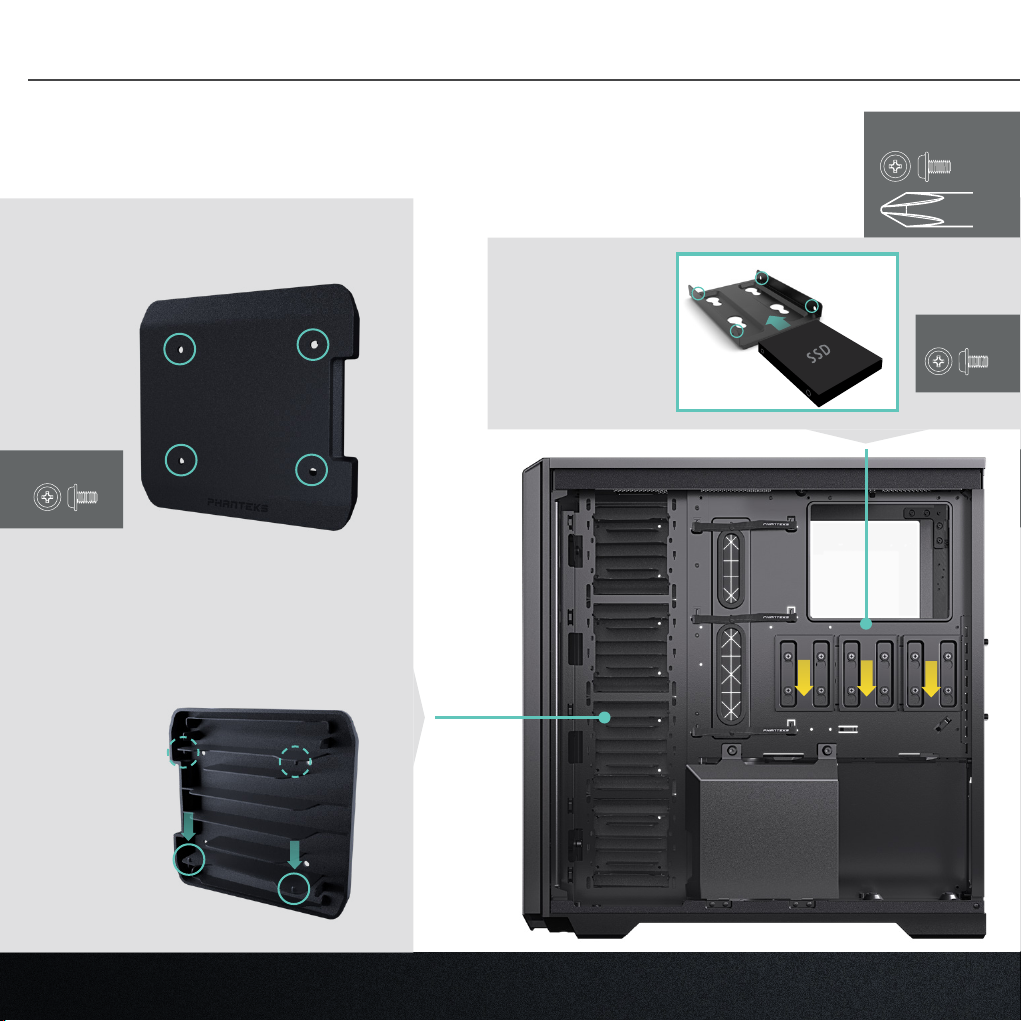

INSTALLING DRIVES

ENTHOO PRO II

2.5” SSD INSTALLATION

Three SSDs can be installed on the 3x dedicated SSD bracket and two on

each of the 4x SSD covers for a total of 11 SSD drives.

SSD Cover

One SSD can be installed on the front of the cover with 4x

SSD screws:

Another SSD can be placed without tools on the rear side of

the cover. Press the SSD down on the bottom 2 pins and then

place the SSD in the top 2 pins.

SSD Bracket

Install the SSD with 4x SSD

screws and place it back on

the 4x grommets.

REQUIRES:

INSTALLING DRIVES

ENTHOO PRO II

MAIN COMPARTMENT

A total of 8 Stackable HDD brackets can be installed on the side fan positions. Before installation

please remove the SSD Covers.

left view right view

REQUIRES:

1. Mount the bracket in the

chassis.

2. Secure with 2x thumb screws

in the chassis.

STACKSTACKSTACKSTACK

Stack 2 HDD brackets before mounting

if you install more than 1x bracket.

SCREW HOLES

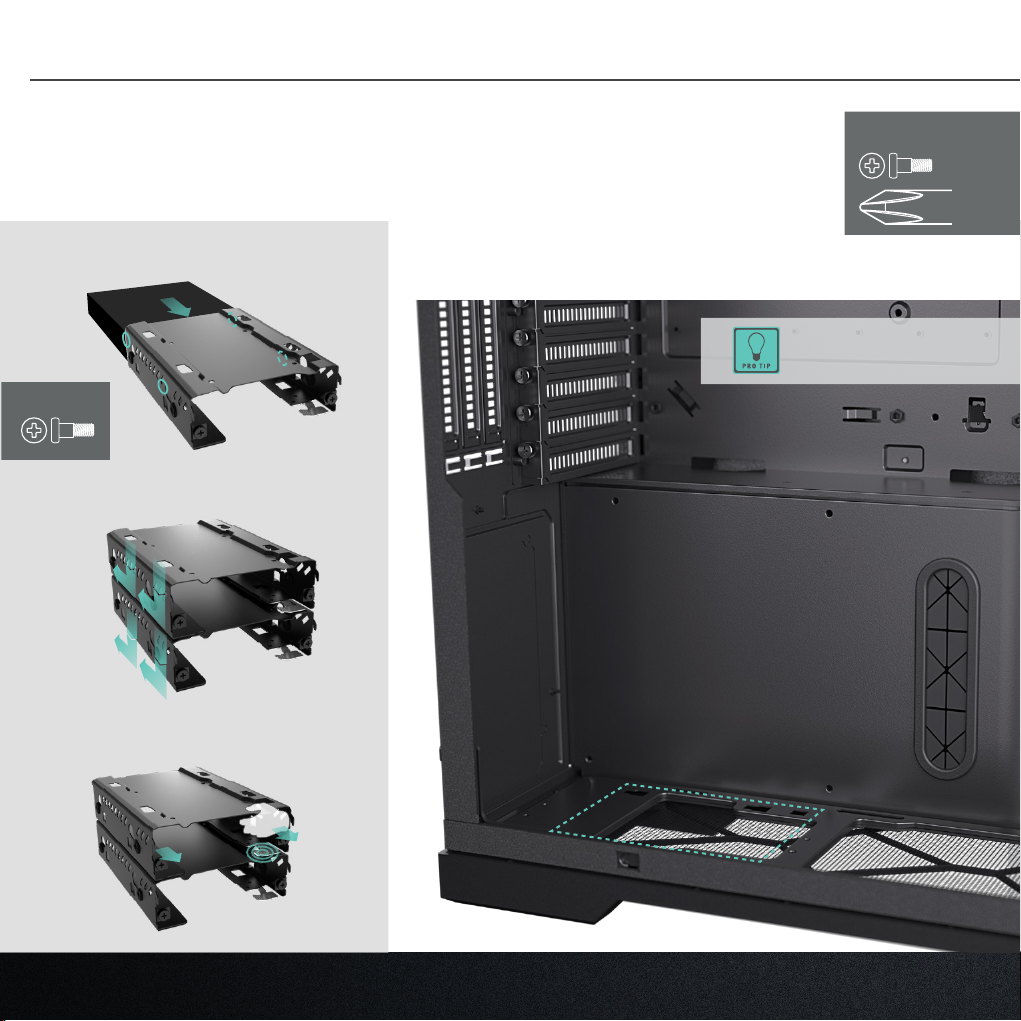

INSTALLING DRIVES ENTHOO PRO II

3.5” HDD INSTALLATION

4x Phanteks Stackable 3.5” HDD Brackets are included.

Additional brackets are sold separately (PH-HDDKT_03).

HDD INSTALLATION

HDD

STACK / INSTALL

REQUIRES:

BOTTOM COMPARTMENT

4x HDD Brackets can be positioned in the bottom compartment. The cables can be

easily routed through the rubber grommet.

The HDD bracket can also house

a 2.5” SSD instead of a 3.5” HDD.

REMOVE

1. LIFT UP LATCH

2. PULL OUT

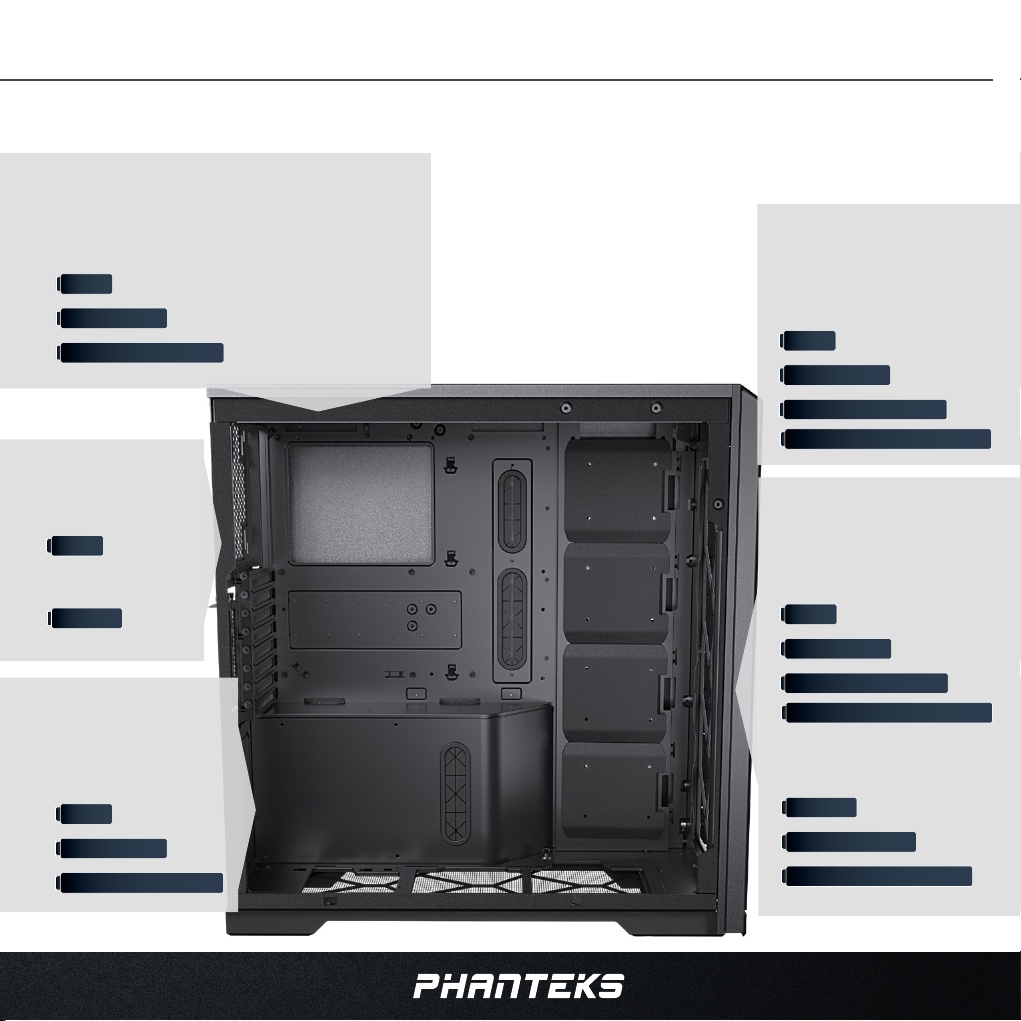

INSTALLING WATER COOLING ENTHOO PRO II

This overview shows all possible radiator form-factors, locations and clearances.

TOP

12 0 FORM FACTOR

max 120x460mm

120

240

360

*max motherboard component height: 55mm

REAR

12 0 FORM FACTOR

120

14 0 FORM FACTOR

140

BOTTOM

12 0 FORM FACTOR

max 120x450mm

120

240

360

SIDE

12 0 FORM FACTOR

max 135x530x32mm

120

240

360

480

FRONT

12 0 FORM FACTOR

max 145x530mm

120

240

360

480

14 0 FORM FACTOR

max 145*x530mm

140

280

420

*160mm when SSD Covers rotated

INSTALLING WATER COOLING ENTHOO PRO II

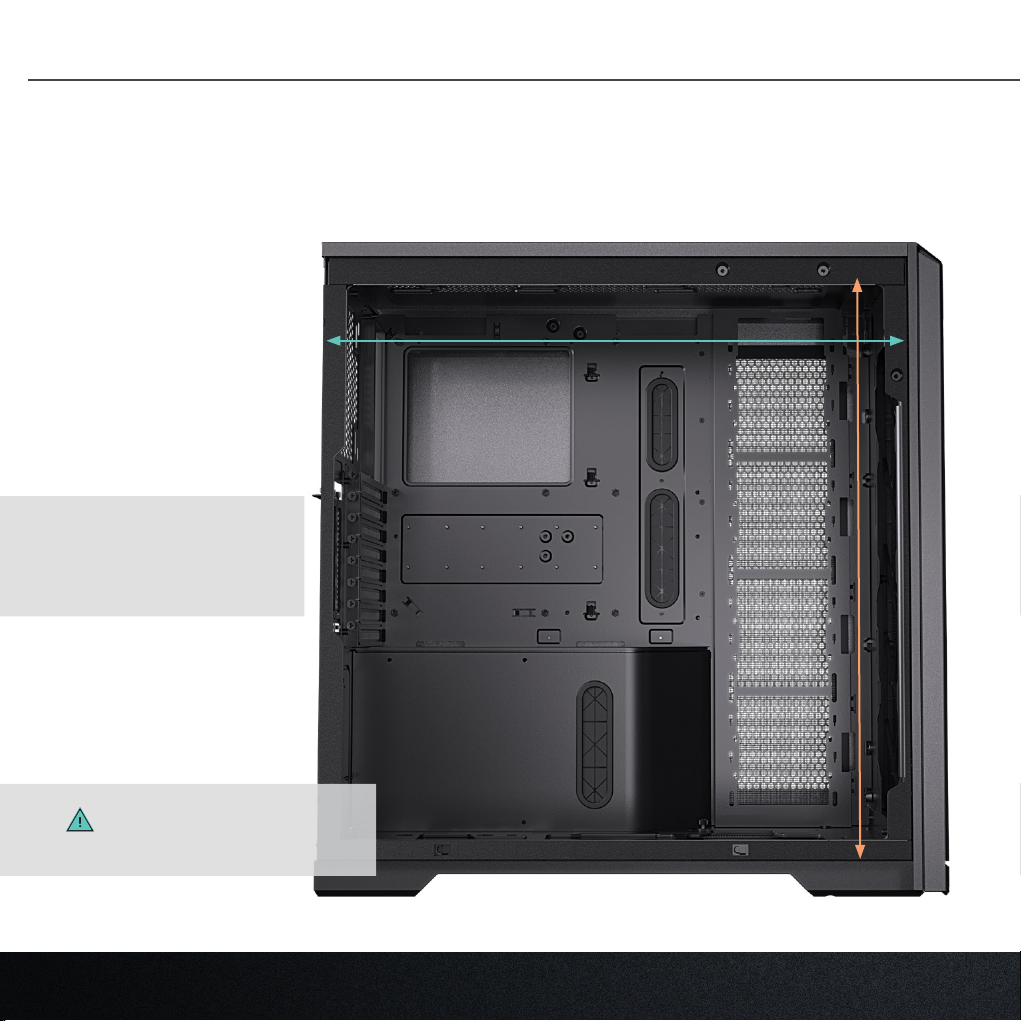

RADIATOR CLEARANCE

Some radiator clearances depend on other hardware installed. Subtracting the radiator and fan thickness shows the

remaining clearance for other radiators.

INTERNAL DIMENSIONS:

:510mm

:530mm

If the HDD trays are installed on the side fan

locations no front radiator can be placed there.

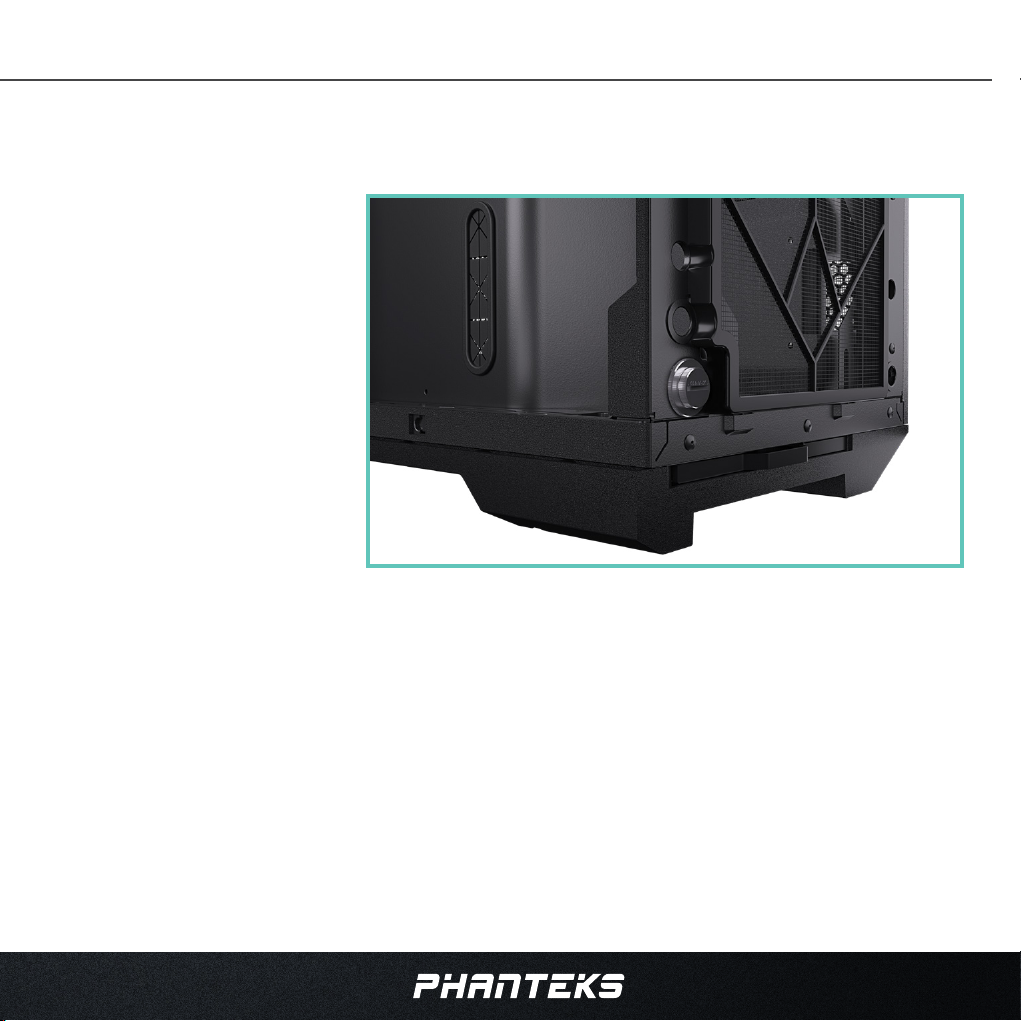

INSTALLING DRAIN PORT ENTHOO PRO II

We highly recommend installing a drain port if you plan to install a custom water-cooling conguration. This will ensure an easy

maintenance in the future.

DRAIN PORT

The Drain Port is installed in the Front

Panel using a Passthrough Fitting and

a Stop Fitting / Ball Valve. The port

diameter is 20.5mm.

Phanteks Passthrough tting:

PH-PTF_BK/CR_G1/4

Phanteks Stop tting:

PH-PG_BK/CR

Phanteks Ball-Valve tting:

PH-BVA_BK/CR_G1/4

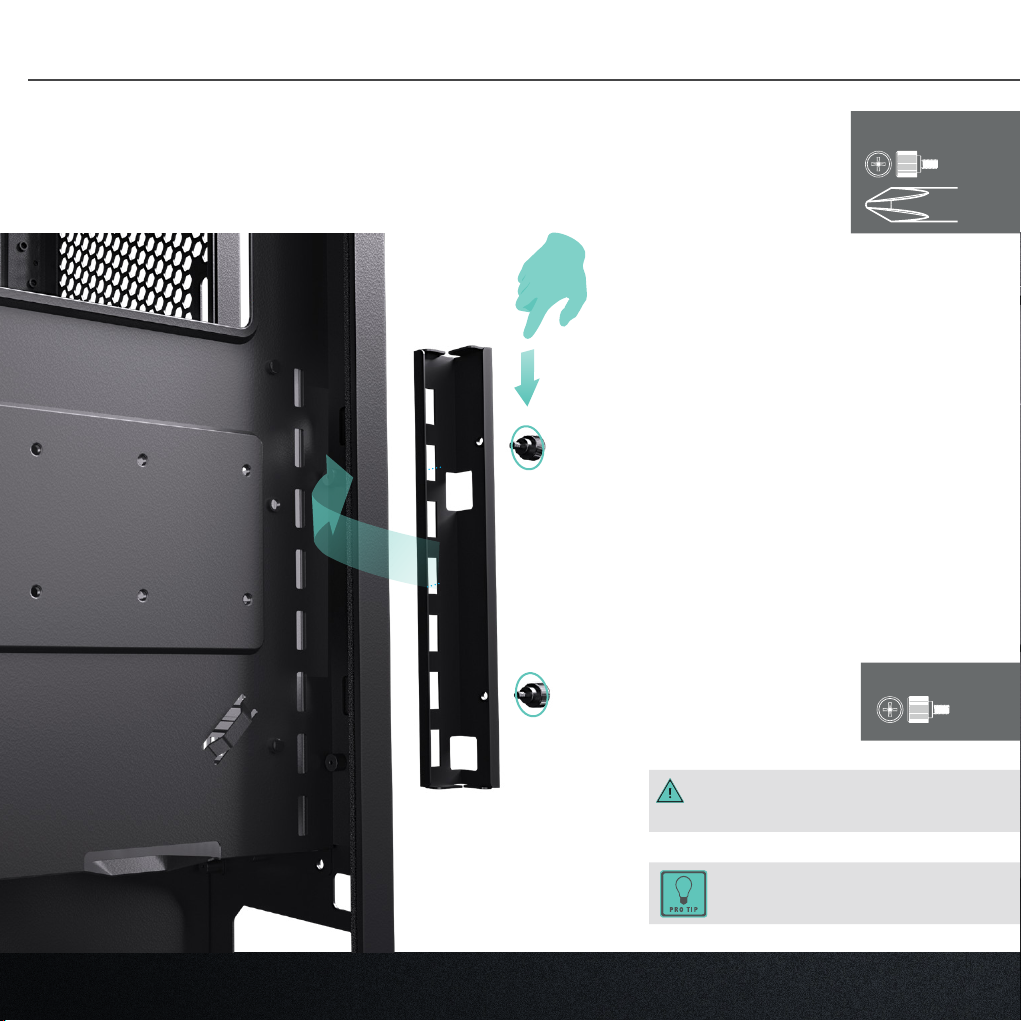

INSTALLING GPU ANTI-SAG BRACKET ENTHOO PRO II

To prevent your GPU from tipping down you can install the GPU Anti-Sag Bracket.

REQUIRES:

INSTALLING GPU ANTI-SAG BRACKET

INSTALL ALL GPU AND PCI CARDS

PLACE THE GPU ANTI-SAG BRACKET

INSERT THE THUMBSCREWS WITHOUT

TIGHTENING THEM

PRESS DOWN AND LOCK THE THUMBSCREWS

IN POSITION.

Always loosen the 2 thumb screws before

removing any GPU or PCI cards.

Hold the GPU in the correct position when

tightening the thumbscrews.

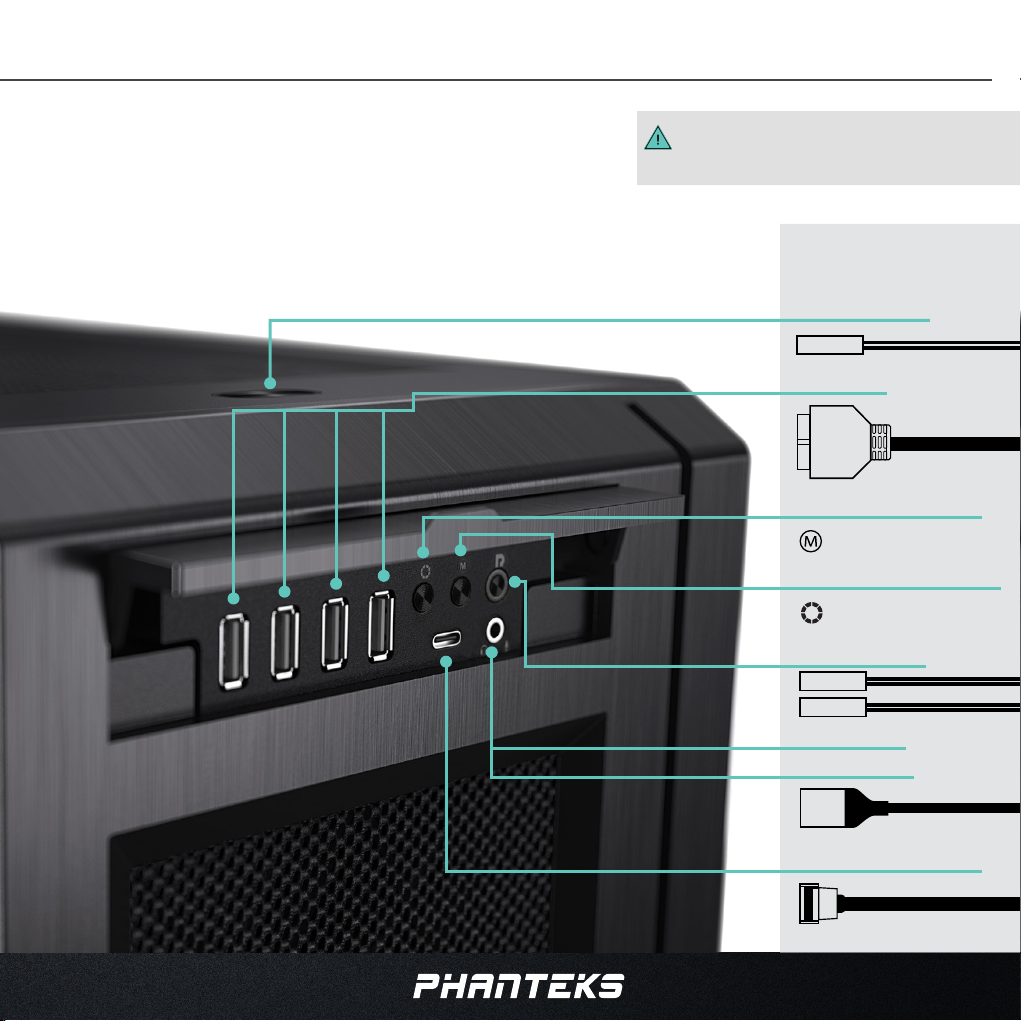

CONNECTING FRONT I/O ENTHOO PRO II

Please consult the motherboard manual for additional instructions.

* Only PH-ES620PTG model

Please make sure to consult your motherboard

manual before connecting the front I/O.

TO MOTHERBOARD

POWER BUTTON

Power SW

4X USB 3.0

USB 3.0

D-RGB MODE BUTTON*

D-RGB COLOUR BUTTON*

RESET BUTTON

Reset SW

HDD led

HEADPHONE

MICROPHONE

AUDIO

USB 3.1 GEN 2 TYPE-C

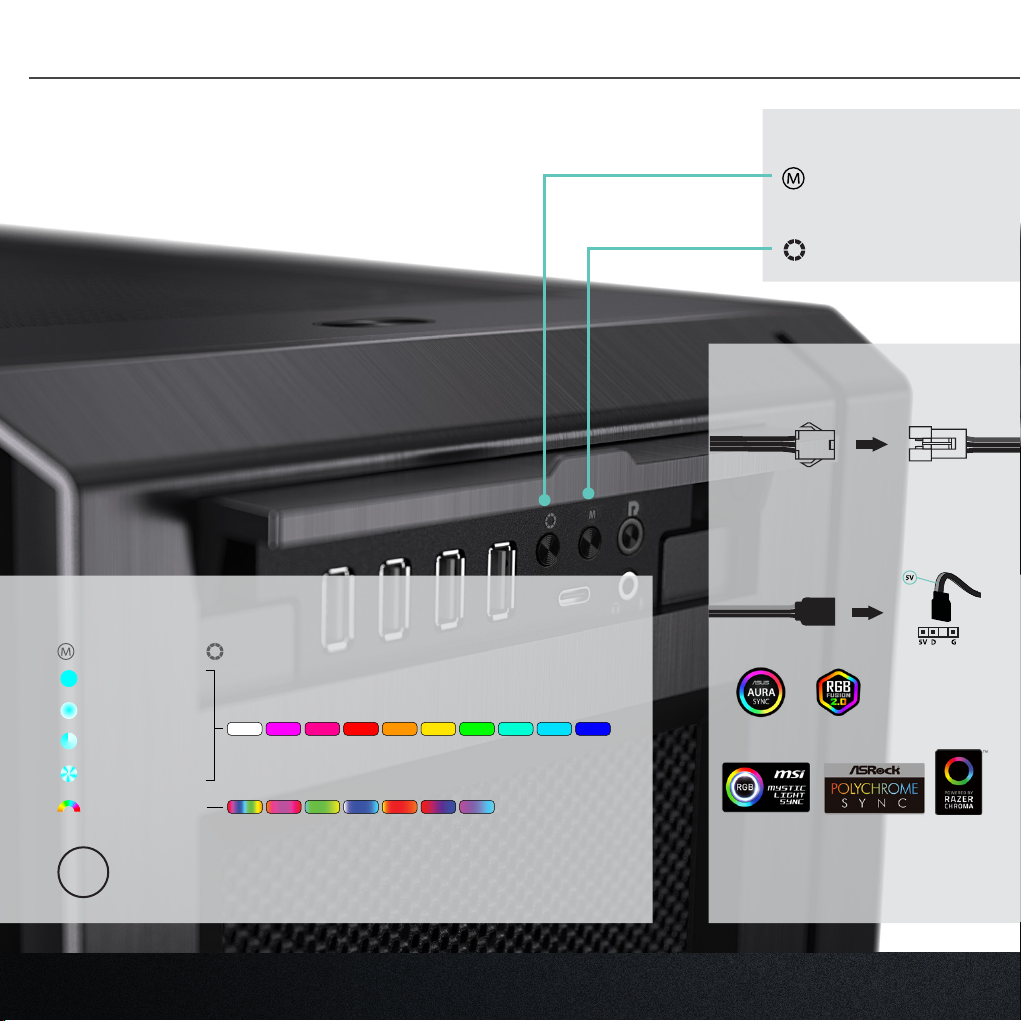

LIGHTING CONTROL ENTHOO PRO II

The Digital-RGB lighting can be easily controlled with the 2 buttons on the front of the chassis.

* Only PH-ES620PTG model

D-RGB MODE BUTTON*

D-RGB COLOUR BUTTON*

CONNECT MORE D-RGB PRODUCTS

To DIGITAL-RGB Products

SYNC TO MOTHERBOARD

D-RGB CONTROLS

MODE COLOR

Solid

Breathing

Radar

Sparkle

Rainbow

Press & Hold MODE: Turn off Front LED’s.

2 sec

Press & Hold MODE 2 sec again: Turn off all LED’s.

(allows the controller to sync to motherboard input)

To D-RGB Motherboard (optional)

Compatible with:

addressable

rainbow

addressable

MOTHERBOARD

D-RGB HEADER

CABLE MANAGEMENT ENTHOO PRO II

Use the double-loop Velcro ties to route your cables. Zip ties are included in the accessory bag to

manage any excess cables.

Use the double-loop Velcro ties to

split the cables into 2 channels.

Use the cable cover to hide all your

excesive cables.

DUST FILTERS

The Enthoo Pro 2 is equipped with a front, bottom, side, top and PSU lter. We recommend

to clean these lters every month to keep your cooling performance optimized.

ENTHOO PRO II

If cleaning the dust lters with water, make sure

to properly dry them before placing them back.

OPTIONAL UPGRADES ENTHOO PRO II

CABLE EXTENSION SET PH-CBCMBO

- Available in multiple colors

- Includes clear cable combs

- Also available as separate cables

Included cables: Motherboard 24-pin / CPU 4+4-pin / 2x GPU 6+2-pin

UNIVERSAL FAN CONTROLLER PH-PWHUB_02

Conveniently control both 4-pin

PWM and 3-pin DC fans with a single

controller. Control the speed with the

manual remote (software-free) or

synced to your motherboard.

HIGH STATIC PRESSURE MP FAN PH-F120MP / PH-F140MP

The MP fan is optimized for high static

pressure to deliver the highest performance

for a water cooled setup.

3.5” STACKABLE HDD BRACKETS PH-HDDKT_03

For 3.5” or 2.5” Drive

Upgrade up to 6x additional 3,5” HDDs with

the optional HDD brackets.

Contains 2x Stackable HDD Brackets.

Y-SPLITTER CABLES PH-CB-Y4P / PH-CB-Y3P

4-pin / 3-pin Fan splitters

Using splitter-cables you can install

more than 8 fans to the Universal

Fan Hub.

HIGH AIRFLOW SK PWM FAN

PH-F120SK_DRGB / PH-F120SK_BBK PH-F140SK_DRGB / PH-F140SK_BBK

The high airow SK PWM Fans provide

optimal air cooling and come in both

120mm or 140mm sizes and black or

D-RGB versions.

NEON STRIPS

PH-NELEDKT_M5 / PH-NELEDKT_CMBO / PH-NELEDKT_M1

Phanteks’ NEON Digital-RGB LED STRIPS provide the

smoothest lighting eect with many mounting positions

to highlight your system. Its easy to use and secure

mounting set lets you choose which hardware to highlight

with a diuse ray of light from the NEON LED strip.

HALOS FAN FRAMES

PH-FF120DRGBP_BK01 / PH-FF140DRGBP_BK01 PH-FF120DRGBA_BK01 / PH-FF140DRGBA_BK01

The Phanteks’ Halos D-RGB fan frames complements any

system build with ambient illumination. Using high density

LEDs, the Halos can illuminate dierent varieties of fans

including high performance fans made from PBT material.

OPTIONAL UPGRADES

ENTHOO PRO II

D-RGB Strips PH-DRGBLED_CMBO

Phanteks’ Digital-RGB LED Combo Kit

provides lighting solution that seamlessly

integrate to your Phanteks’ D-RGB products

and compatible D-RGB motherboards to

enhance your lighting experiences.

Phanteks PH-CBRS-FL22 allows to place

a GPU vertically. Compatible with PCI-E

3.0 standard, the riser cable features a

slim cable design for more exibility and

clean aesthetics.

See page 27

Revolt X Power Supply PH-P1000PS / PH-P1200PS

The Revolt X power supply unlocks

the Dual System Conguration. But

also works great as a “single system”

power supply.

for vertical GPU installation, see page 27 for dual-system GPU installation, see page 31

Vertical GPU Bracket PH-VGPUKT_02

With the optional Riser Cable you can place

any 2-slot or 3-slot GPU vertically. Compatible

with PCI-E 3.0 standard, the riser cable

features a slim cable design for more exibility

and clean aesthetics.

See page 27

150mm Flatline PCI-e x16 Riser Cable 90° PH-CBRS_FL15220mm Flatline PCI-e x16 Riser Cable 90° PH-CBRS_FL22

Phanteks PH-CBRS-FL15 is ideal for

extending GPU performance for the

second ITX system. Compatible with

PCI-E 3.0 standard, the riser cable

features a slim cable design for more

exibility and clean aesthetics.

Revolt PRO Power Supply PH-P850GC / PH-P1000GC

The Revolt PRO allows for a second power

supply to be installed in the Enthoo Pro 2.

With 2 power supplies you can either expand

the maximum power output or provide

redundancy to your system.

AMP Power Supply

The AMP series oers high quality gold certied

power supplies that can be connected to the

Revolt PRO to increase your power output or run a

power-redundant system.

PH-P550G / PH-P650G / PH-P750G

Dual 5.25’’ Bay PH-ODDBAY_01

The Dual 5.25” Bay allows for 2x

5.25” devices to be installed.

INSTALLING A VERTICAL GPU ENTHOO PRO II

There are 2 vertical GPU positions available for System 1.

We recommend the rst position using the Vertical GPU Bracket.

INSTALL USING THE VERTICAL GPU BRACKET

Vertical GPU Bracket with riser cable included sold separately.

(PH-VGPUKT_02)

Follow the instructions with the Vertical GPU Bracket.

INSTALL USING THE RISER CABLE ONLY

Riser Cable sold separately

(PH-CBRS_FL22)

REQUIRES:

We recommend to provide extra support

for the vertical GPU during transport.

INSTALLING A 5.25” BAY ENTHOO PRO II

INSTALL ANY 5.25” DEVICES INTO THE 5.25” BAY FIRST

PLACE THE 5.25” BAY INTO THE CHASSIS AND

SECURE WITH 3X PSU SCREWS

INSTALLING A DUAL SYSTEM ENTHOO PRO II

REMOVE THE PREINSTALLED PSU BRACKET

REMOVE:

INSTALL THE DUALSYSTEM BRACKET

REQUIRES:

The Revolt X power supply from Phanteks is required for

this conguration.

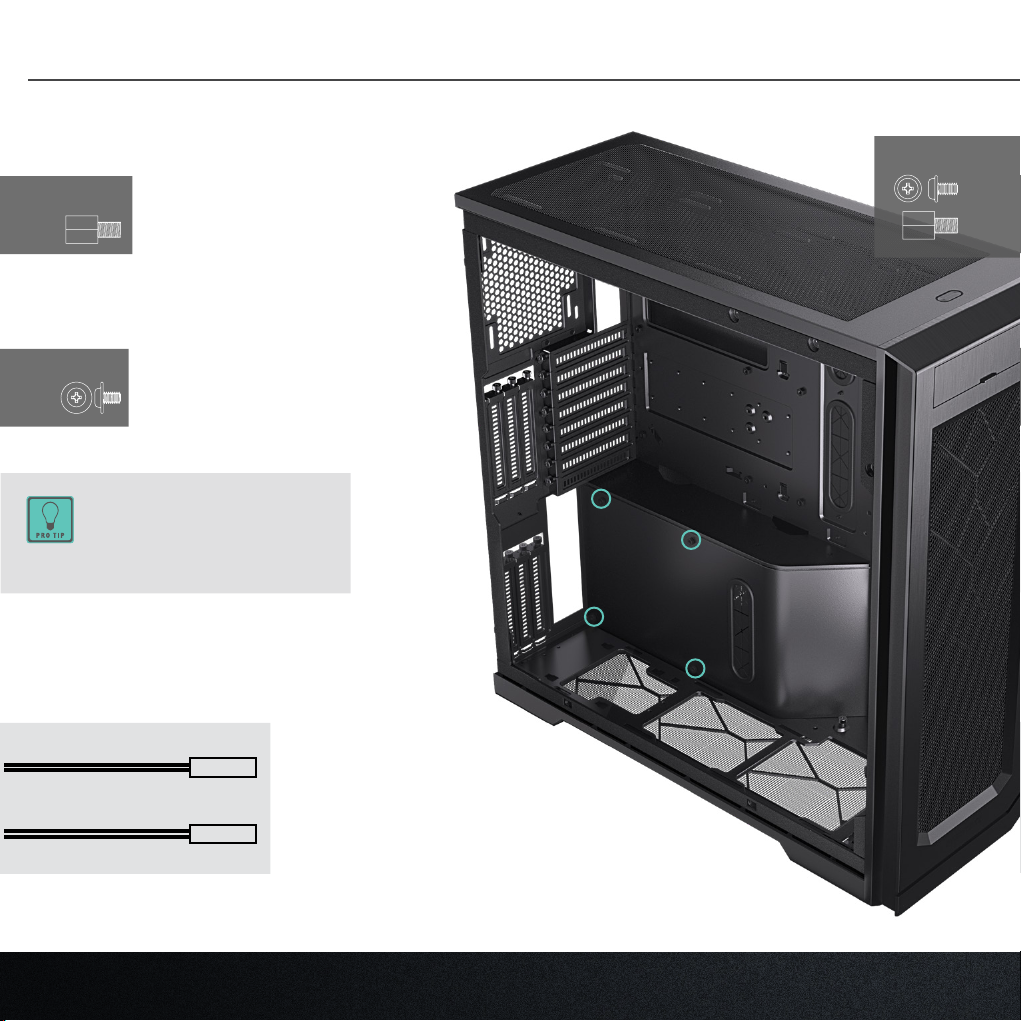

INSTALLING A DUAL SYSTEM ENTHOO PRO II

INSTALL 4X MOTHERBOARD

STANDOFFS

INSTALL THE MOTHERBOARD WITH

4X MOTHERBOARD SCREWS

The reset button and HDD led can be used as

power button and power led for the second

system.

REQUIRES:

CONNECT THE POWER BUTTON AND

POWER LED TO THE MOTHERBOARD

TO ITX MOTHERBOARD

Reset SW -> Power SW system 2

HDD LED -> Power LED system 2

INSTALLING A DUAL SYSTEM GPU

INSTALL RISER CABLE ON THE VERTICAL GPU MOUNT

Riser Cable sold separately

(PH-CBRS_FL15)

INSTALL VERTICAL GPU MOUNT

WITH 2 X SCREWS

ENTHOO PRO II

REQUIRES:

The GPU Mount has two mounting

positions. Position A allows for better

air cooling and 3-slot GPU cards.

Depending on your needs, it’s not always

necessary to install a GPU for your second

system when your CPU is equipped with an

integrated GPU.

As a Phanteks customer, you are priority number one. We have a dedicated team of

employees across the globe working hard every day to make sure we deliver the superior

experience you deserve. We are here for you. If you have a question or a concern about our

products, we have numerous ways you can reach us. Please choose one most convenient for

you to connect with our team.

CUSTOMER CARE

RMA AND TECHNICAL SUPPORT INTERNATIONAL

Email : support@phanteks.com

Facebook : @Phanteks

RMA AND TECHNICAL SUPPORT AMERICAS

Hours : Monday-Friday 9:00-5:00 PST

Phone number : +1(909)598-2115

Email : support@phanteksusa.com

Facebook : @Phanteks

For up-to-date information please check www.Phanteks.com

PHANTEKS

ENTHOO PRO 2 PAGE

PHANTEKS

FACEBOOK PAGE

PHANTEKS

INSTAGRAM PAGE

WARRANTY ENTHOO PRO II

PHANTEKS warrants its products to be free from defects in material and workmanship during

the warranty period; when given normal, proper and intended usage. If a product proves

to be defective in material or workmanship during the warranty period, PHANTEKS will,

at its sole option, repair or replace the product with same product or similar product. The

replacement product assumes the remaining warranty of the original product or 30 days,

whichever provides longer coverage for the customer.

DURATION OF WARRANTY:

1. Fans - 5 years

2. I/O Ports - 2 years

3. LED Lighting - 2 years

4. Buttons - 2 years

5. Chassis - 5 years

6. Front and Top Panels - 5 years

Please check www.phanteks.com/Warranty for more information.

Phanteks Enthoo Pro 2 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
