Phanteks Enthoo Primo User Manual

USER’S MANUAL

DESIGNED IN THE NETHERLANDS

INTRODUCTION

Congratulations on your purchase of the Phanteks Enthoo Series Case and welcome to the User’s Guide. Phanteks believes that meaningful designs are created through the fusion of form and function.

Caution

Please take a moment to carefully go through the installation guide. Phanteks will not take responsibility for any damages incurred due to incorrect installation and incorrect usage of this product. Thank you.

ENTHOO PRIMO

The bar has been set to a new standard with Phanteks’ release of their rst Enthoo Series case. Passionate about cooling and the one that brought you the world’s best air coolers, Phanteks enters the chassis arena with their functional design with exceptional cooling possibilities, the Enthoo Primo.

TABLE OF CONTENTS

1. SPECIFICATIONS ....................................................................................................................................................................................... 5

2. EXPLODED VIEW ...................................................................................................................................................................................... 6

3. ACCESSORIES ............................................................................................................................................................................................ 8

4. BRACKETS ................................................................................................................................................................................................... 9

5. I/O PORTS ..................................................................................................................................................................................................... 10

6. CONNECTIONS ......................................................................................................................................................................................... 11

7. PANEL REMOVAL ...................................................................................................................................................................................... 13

8. MOTHERBOARD INSTALLATION ......................................................................................................................................................... 15

9. POWER SUPPLY INSTALLATION .......................................................................................................................................................... 17

10. FILTERS REMOVAL .................................................................................................................................................................................... 19

11. FANS COMPATIBILITY ............................................................................................................................................................................. 20

12. PWM HUB .................................................................................................................................................................................................. 21

13. SSD/ODD INSTALLATION ..................................................................................................................................................................... 22

14. HARD DRIVE INSTALLATION ................................................................................................................................................................ 23

15. WATERCOOLING INSTALLATION ........................................................................................................................................................ 25

16. SERVICE AND SUPPORT ........................................................................................................................................................................ 31

1. SPECIFICATIONS

CASE SPECIFICATIONS

Dimension 250 mm x 650 mm x 600 mm (W x H x D) Form Factor Full tower Material(s) Aluminum faceplates, Steel chassis Motherboard support ATX, EATX, mATX, SSI EEB Weight 17.9 kg Front I/O 2x USB 3.0, 2x USB 2.0, Mic, Headphone,

LED ON/OFF switch, Power Reset Side window Yes, split-window design

EXPANSION & DRIVE BAYS

Expansion slots 8 Power supply slots 2 External 5.25” 5 Internal 3.5” 6 (2x 3HDD cages) Internal 2.5” 12 (2x 3HDD cages + 2x doublestack SSD brackets)

( *expandable to 3x)

COOLING 120 mm fan 140 mm fan

Front 2x 2x (2x included with LED) Top 4x 3x (1x included) Side 2x 2x Rear(top) 1x 1x (1x included) Rear(bottom) 1x 1x Bottom 4x 2x (1x included)

HDD 2x -

LIQUID COOLING 120 mm radiator 140 mm radiator

Front Up to 240 Top Up to 480 Up to 420 Side (w/out HDD cages) Up to 240 Rear 120 140 Bottom Up to 480 Up to 280

PH-F140SP (included fans)

Speed (rpm) 1200 ± 250 rpm Max Airow 82.1 CFM Static Pressure 1.33mm H2O Acoustical Noise 19 dB

CLEARANCE

Graphic card 257 mm (reservoir bracket installed)

277 mm (reservoir bracket installed w/o cover)

350 mm (no reservoir bracket)

390 mm (HDD cages in front position) 515 mm (no HDD cages)

CPU cooler 207 mm Cable management 30 mm

Model number PH-ES813P Warranty 5 Years

2. EXPLODED VIEW

1. Chassis

2. Left Side Panel

3. Side Window

4. Right Side Panel

5. Right Side Mesh Cover

6. Front Panel

7. Front Panel Door

8. ODD Cover

9. Front Cover Dust Filter

10. Top Panel Mesh Cover

11. Top Panel

12. Reservoir Bracket

13. Reservoir Bracket Cover

14. Bottom Radiator Bracket

15. Bottom Dust Filters

16. Tool-less ODD

17. Phanteks Logo plate

18. Front Mesh Cover

19. Hard Drive Cage

20. Hard Drive Stand

21. SSD Bracket

22. Pump Bracket

23. Side Radiator Bracket

1. Châssis

2. Panneau latéral gauche

3. Fenêtre du côté

4. Panneau latéral droit

5. Couvercle de grille du côté droit

6. Panneau frontal

7. Porte du panneau frontal

8. Couvercle du ODD

9. Filtre de poussière du couvercle frontal

10. Couvercle de grille du panneau supérieur

11. Panneau supérieur

12. Support du réservoir

13. Couvercle du support du réservoir

14. Support du radiateur inférieur

15. Filtres de poussière inférieurs

16. ODD sans outils

17. Plaque du logo Phanteks

18. Couvercle de grille du panneau frontal

19. Enclos du disque dur

20. Support du disque dur

21. Support SSD

22. Support de pompe

23. Support de radiateur latéral

1. Chassi

2. Painel Lateral Esquerdo

3. Janela Lateral

4. Painel Lateral Direito

5. Tampa de Malha Lateral Direita

6. Painel frontal

7. Porta do Painel Frontal

8. Cobertura ODD

9. Tampa Dianteira ltro de poeira

10. Tampa de Malha do Painel Superior

11. Painel Superior

12. Suporte do Reservatório

13. Tampa do Suporte do Reservatório

14. Suporte do Radiador Inferior

15. Filtros de Pó Inferiores

16. ODD sem Ferramenta

17. Placa de Logotipo Phanteks

18. Tampa de malha frontal

19. Berço do Disco Rígido

20. Suporte do Disco Rígido

21. Suporte do SSD

22. Suporte da Bomba

23. Suporte do Radiador Lateral

1. Gehäuse

2. Linke Seitenblende

3. Seitliches Fenster

4. Rechte Seitenblende

5. Rechte Blende – Gitterabdeckung

6. Frontblende

7. Frontblendentür

8. Abdeckung für optisches Laufwerk

9. Frontabdeckung-Staublter

10. Deckblende – Gitterabdeckung

11. Deckblende

12. Reservoir-Halterung

1. Telaio

2. Pannello laterale sinistro

3. Finestra laterale

4. Pannello laterale destro

5. Copertura di rete laterale destra

6. Pannello frontale

7. Sportello pannello frontale

8. Coperchio ODD

9. Copertura frontale ltro antipolvere

10. Copertura di rete pannello superiore

11. Pannello superiore

12. Staa serbatoio

13. Reservoir-Halterungsabdeckung

14. Untere Kühlkörperhalterung

15. Untere Staublter

16. Werkzeugloses optisches Laufwerk

17. Phanteks-Logoplatte

18. Vordere Gitterabdeckung

19. Festplattenkäg

20. Festplattenständer

21. SSD-Halterung

22. Pumpenhalterung

23. Seitliche Kühlkörperhalterung

13. Copertura staa serbatoio

14. Staa inferiore radiatore

15. Filtri antipolvere inferiori

16. ODD ad incastro

17. Piastra logo Phanteks

18. Copertura di rete frontale

19. Cage disco rigido

20. Supporto disco rigido

21. Staa SSD

22. Staa della pompa

23. Staa radiatore laterale

1. Chasis

2. Panel lateral izquierdo

3. Ventana lateral

4. Panel lateral derecho

5. Cubierta de malla del lateral derecho

6. Panel frontal

7. Puerta del panel frontal

8. Cubierta de la unidad de disco óptico

9. Filtro de polvo de la cubierta frontal

10. Cubierta de malla del panel superior

11. Panel superior

12. Soporte del depósito

1. Behuizing

2. Linker zijpaneel

3. Zij raam

4. Rechter zijpaneel

5. Rechterzijde mesh deksel

6. Voorpaneel

7. Voorpaneel deur

8. ODD deksel

9. Voordeksel stolter

10. Toppaneel mesh deksel

11. Toppaneel

12. Reservoir beugel

13. Cubierta del soporte del depósito

14. Soporte del radiador inferior

15. Filtros de polvo inferiores

16. Unidad de disco óptico sin herramientas

17. Placa con logotipo de Phanteks

18. Cubierta de malla frontal

19. Compartimento de disco duro

20. Soporte de disco duro

21. Soporte de unidad de estado sólido

22. Soporte de bomba

23. Soporte del radiador lateral

13. Reservoir beugel deksel

14. Bodem radiator rek

15. Bodem stolter

16. Gereedschapsloos ODD bevestiging

17. Phanteks logoplaat

18. Voorzijde mesh deksel

19. Harde schijf kooi

20. Harde schijf stand

21. SSD beugel

22. Pomp beugel

23. Zij radiator beugel

3. ACCESSORIES

ITEM DESCRIPTION USE QTY ITEM DESCRIPTION USE QTY

Screw M3 x 5mm

Stand O Screws Motherboard 5 Screw M4 x 8mm Reservoir Bracket 8

Screw 6-32 x 6mm PSU 9 CM6 #11 HDD 12

Motherboard/

ODD/SSD

28 Screw 5 x 10KT Fan installation 12

Thumb Screws

6-32 x 6mm

Screw 6-32 x 31mm Front/HDD fans 10 PWM6# x 6mm Hook n Loop Screw 2

ITEM DESCRIPTION USE QTY

PSU, Brackets,

HDD cages

150mm Zip Tie 10

188 x 10 x 1.8mm

110 x 10 x 1.8mm

Rubber Stand 2nd PSU 2

10 CM6 #5 Pump Bracket 5

Hook n Loop

(long)

Hook n Loop

(short)

ITEM DESCRIPTION USE QTY

Alumnium

Plate

Logo Plate

4. BRACKETS

SSD Bracket Support SSD

SSD-Halterung Staa SSD Suporte do SSD Soporte de unidad de estado sólido SSD beugel

Reservoir Bracket Support du réservoir

Reservoir-Halterung Staa serbatoio Suporte do Reservatório Soporte del depósito Reservoir beugel

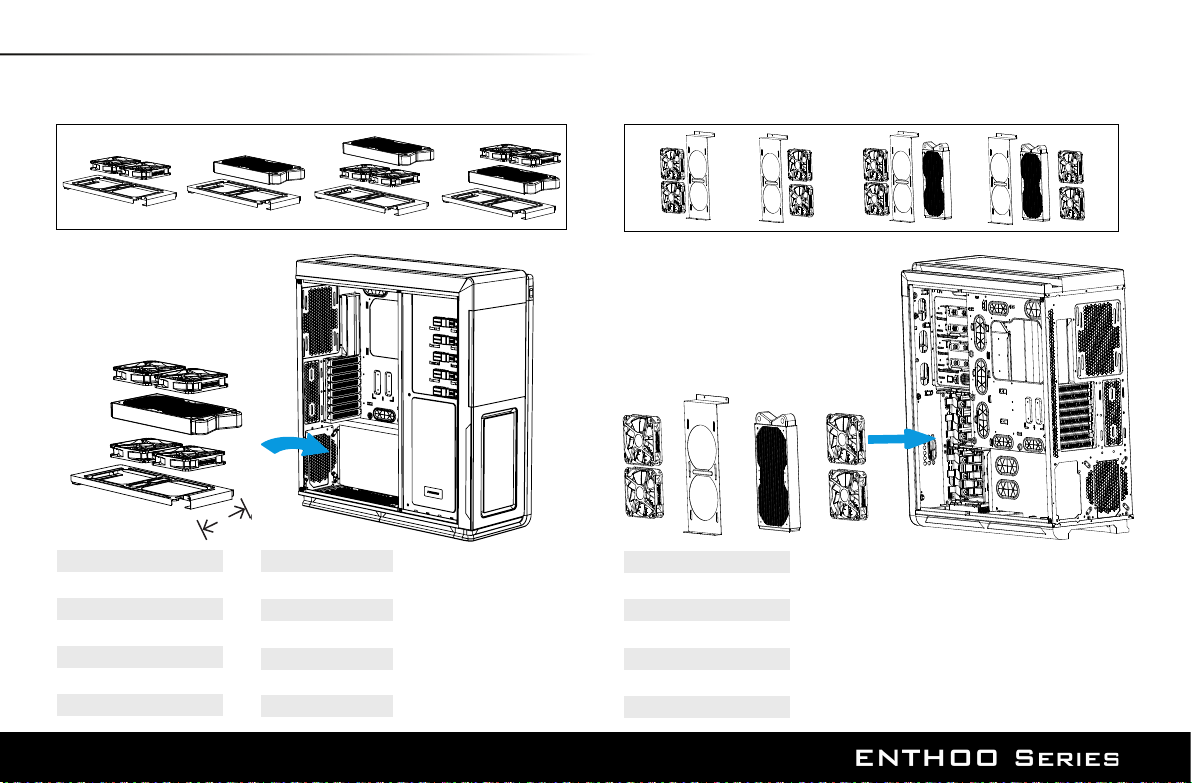

Side Radiator Bracket Support de radiateur latéral

Seitliche Kühlkörperhalterung Staa radiatore laterale Suporte do Radiador Lateral Soporte del radiador lateral Zij radiator beugel

Bottom Radiator Bracket Support du radiateur inférieur

Untere Kühlkörperhalterung Staa inferiore radiatore Suporte do Radiador Inferior Soporte del radiador inferior Bodem radiator beugel

Pump Bracket Support de pompe

Pumpenhalterung Staa della pompa Suporte da Bomba Soporte de bomba Pomp beugel

5. I/O PORTS AND FRONT PANEL

FRONT VIEWTOP VIEW

1 2

4 5

6 **

** See page 10 for connection details.

** Voir page 10 pour les détails de connexion ** Einzelheiten zum Anschließen nden Sie auf Seite 10. ** Fare riferimento a pagina 10 per dettagli sul collegamento. ** Ver pagina 10 para detalhes de conexão. ** Consulte la página 10 para obtener información sobre la conexión. ** Zie pagina 10 voor aansluiting details

1. Microphone

2. Headphone

3. USB 2.0

7 8

4. USB 3.0

5. Power Reset

6. LED ON/OFF Switch

7. HDD LED

8. Power Button

1. Microphone

2. Casque

3. USB 2.0

4. USB 3.0

5. Réinitialisation de l’alimentation

6. Bouton MARCHE/ARRÊT LED

7. HDD LED

8. Bouton d’alimentation

1. Microfono

2. Cue

3. USB 2.0

4. USB 3.0

5. Ripristino alimentazione

6. LED interruttore d’accensione/ spegnimento

7. LED HDD

8. Tasto d’alimentazione

1. Microfoon

2. Hoofdtelefoon

3. USB 2.0

4. USB 3.0

5. Power Reset

6. LED aan/uit knop

7. HDD LED

8. Power knop

1. Mikrofon

2. Kopfhörer

3. USB 2.0

4. USB 3.0

5. Reset

6. LED-Ein-/Ausschalter

7. Festplatten-LED

8. Ein-/Austaste

1. Microfone

2. Fone de ouvido

3. USB 2.0

4. USB 3.0

5. Redenição de Energia

6. Interruptor LIGA/DESLIGA do LED

7. HDD LED

8. Botão de Alimentação

1. Micrófono

2. Cascos

3. USB 2.0

4. USB 3.0

5. Resetear

6. Interruptor LED de encendido/ apagado

7. LED de la unidad de disco duro

8. Botón de alimentación
