USER’S MANUAL
AT X
3
INTRODUCTION
Congratulations on your purchase of the Phanteks Enthoo Series
Case and welcome to the User’s Guide. Phanteks believes that
meaningful designs are created through the fusion of form and
function.
Caution
Please take a moment to carefully go through the installation guide. Phanteks will not
take responsibility for any damages incurred due to incorrect installation and incorrect
usage of this product. Thank you.

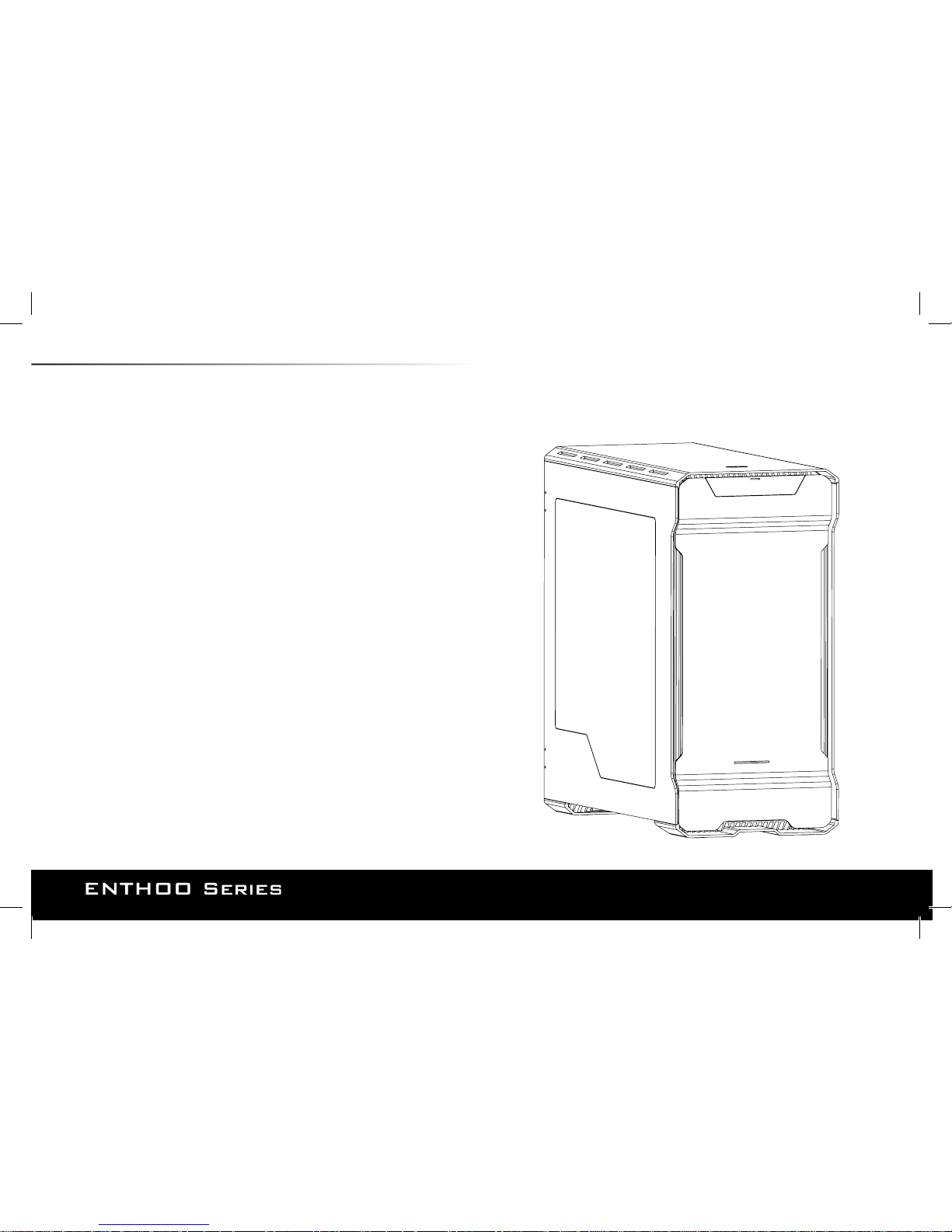

The EVOLV ATX, a full tower chassis designed
for enthusiasts and system builders who want a
minimalistic design without compromising features.
Its aluminum exterior features Phanteks’ quick
release system for easy access to the components.
The EVOLV ATX is equipped with the innovative
radiator bracket, the new HDD mounting system,
and many other rich features that the Enthoo Series
is known for. Unleash unlimited possibilities with
the EVOLV ATX.
4
TABLE OF CONTENTS
1. SPECIFICATIONS ................................................................................................................................................................................................................. 5
2. EXPLODED VIEW ................................................................................................................................................................................................................ 6
3. ACCESSORIES & BRACKETS ............................................................................................................................................................................................ 8
4. I/O PORTS ............................................................................................................................................................................................................................. 9
5. CONNECTIONS ................................................................................................................................................................................................................... 10
6. PANEL REMOVAL ................................................................................................................................................................................................................. 11
7. MOTHERBOARD INSTALLATION ................................................................................................................................................................................... 13
8. POWER SUPPLY INSTALLATION ..................................................................................................................................................................................... 14
9. FILTERS REMOVAL .............................................................................................................................................................................................................. 15
10. FANS COMPATIBILITY ....................................................................................................................................................................................................... 16
11. RADIATOR BRACKET INSTALLATION .......................................................................................................................................................................... 17
12. HARD DRIVE INSTALLATION .......................................................................................................................................................................................... 19
13. HARD DRIVE CAGE .......................................................................................................................................................................................................... 20
14. DROP-N-LOCK SSD BRACKET ......................................................................................................................................................................................... 22
15. WATERCOOLING INSTALLATION ................................................................................................................................................................................... 23
16. PWM HUB INSTALLATION ................................................................................................................................................................................................ 26
17. UPGRADE OPTIONS .......................................................................................................................................................................................................... 29
18. SUPPORT AND SERVICES ................................................................................................................................................................................................. 30
5
1. SPECIFICATIONS
PH-F140SP (included)
Speed (rpm) 1200 ±250 rpm
Max Airow 82.1 CFM
Static Pressure 1.33mm H2O
Acoustical Noise 19dB
CLEARANCE
Graphic card 420 mm (16.54 in) No HDD brackets
300 mm (11.8 in) HDD brackets installed
CPU cooler 194 mm (7.6 in)
Cable Management 35 mm (1.38 in)
Memory Clearance 120 mm form factor: 68 mm (2.68 in)
(motherboard - fan) 140 mm form factor: 48 mm (1.89 in)
Warranty 5 Years*
CASE SPECIFICATIONS
Dimension 230 mm x 495 mm x 510 mm (W x H x D)
9.25 in x 19.5 in x 20.1 in
Form Factor Full Tower
Material(s) Aluminum (3mm), Steel chassis
Motherboard support E-ATX *(up to 264mm wide), ATX, Micro ATX,
Mini ATX
Front I/O 2x USB 3.0, Mic, Headphone, Reset
Side window Yes
EXPANSION & DRIVE BAYS
Expansion slots 7
Internal 3.5” 5 (2x extra upgrade slot)
Internal 2.5” 2 (1x extra upgrade slot)
COOLING 120 mm 140 mm
Front 3x 2x (2 included)
Top 3x 2x
Rear 1x 1x (1 included)
LIQUID COOLING 120 mm radiator 140 mm radiator
Front Up to 360 Up to 280
Top Up to 360 Up to 280
Rear 120 140
Mid Tower
E-ATX *(limited to 264mm wide), ATX,
Micro ATX, Mini ATX
8 (5x included)
3 (2x included)
6
2. EXPLODED VIEW
1. Chassis
2. Top Panel
3. SSD Bracket
4. PH-F140SP
5. Right Side Panel
6. Front Panel
7. HDD Tray
8. Hard Drive Cage
9. Front Mesh cover
10. Window Left Side Panel
11. Mid-plate Bracket
12. Rear Dust Filters
13. Radiator Bracket
1
2
7
6
5
10
3
9
8
12
13
4
11
7
1. Châssis
2. Filtres de poussière inférieurs
3. Support SSD
4. PH-F140SP
5. Panneau latéral droit
6. Panneau frontal
7. Bacs HDD
8. Enclos du disque dur
9. Couvercle de grille du
panneau frontal
10. Panneau latéral gauche
11. Plaque centrale multifonctions
12. Panneau supérieur
13. Support de radiateur latéral
1. Telaio
2. Filtri antipolvere inferiori
3. Staa SSD
4. PH-F140SP
5. Pannello laterale destro
6. Pannello frontale
7. Vassoi per disco rigido
8. Cage disco rigido
9. Copertura di rete frontale
10. Pannello laterale sinistro
11. Piastra centrale multifunzione
12. Pannello superiore
13. Staa radiatore laterale
1. Chassi
2. Painel Superior
3. Suporte do SSD
4. PH-F140SP
5. Painel Lateral Direito
6. Painel frontal
7. Tabuleiros de HDD
8. Berço do Disco Rígido
9. Tampa de malha frontal
10. Painel Lateral Esquerdo
11. Placa média multifuncional
12. Filtros de Pó Inferiores
13. Suporte do Radiador Lateral
1. Chasis
2. Panel superior
4. Soporte de unidad de estado sólido
5. Panel lateral derecho
6. Panel frontal
7. Bandejas de unidad de disco duro
8. Compartimento de disco duro
9. Cubierta de malla frontal
10. Panel lateral izquierdo
11. Placa central multifuncional
12. Filtros de polvo inferiores
13. Soporte del radiador lateral
1. Gehäuse
2. Untere Staublter
4. SSD-Halterung
5. Rechte Seitenblende
6. Frontblende
7. Festplatteneinsätze
8. Festplattenkäg
9. Vordere Gitterabdeckung
10. Linke Seitenblende
11. Multifunktionale Platte in der Mitte
12. Untere Staublter
13. Seitliche Kühlkörperhalterung
1. Behuizing
2. Toppaneel
4. SSD beugel
5. Rechter zijpaneel
6. Voorpaneel
7. Harde schijf houder
8. Harde schijf kooi
9. Voorzijde mesh deksel
10. Linker zijpaneel
11. Multifunctional mid-plate
12. Bodem stolter
13. Zij radiator beugel
8
3. ACCESSORIES & BRACKETS
9
4. I/O PORTS
1. USB 3.0
2. Mikrofon
3. Kopfhörer
4. Reset
5. Ein-/Austaste
1. USB 3.0
2. Microfone
3. Fone de ouvido
4. Redenição de Energia
5. Botão de Alimentação
1. USB 3.0
2. Microphone
3. Casque
4. Réinitialisation de l’alimentation
5. Bouton d’alimentation
1. USB 3.0
2. Microfono
3. Cue
4. Ripristino alimentazione
5. Tasto d’alimentazione
1. USB 3.0
2. Microfoon
3. Hoofdtelefoon
4. Power Reset
5. Power knop
1. USB 3.0
2. Micrófono
3. Cascos
4. Resetear
5. Botón de alimentación.
1. USB 3.0
2. Microphone
3. Headphone
4. Reset
5. Power Button
1
2
3
4
5
10
IntA P2_D+
IntA P2_D-
GND
IntA P2_SSTX+
IntA P2_SSTXGND
IntA P2_SSRX+
IntA P2_SSRX-
Vbus
No Pin
ID
IntA P1_D+
IntA P1_D-
GND
IntA P1_SSTX+
IntA P1_SSTX-
GND
IntA P1_SSRX+
IntA P1_SSRX-
Vbus
USB 3.0

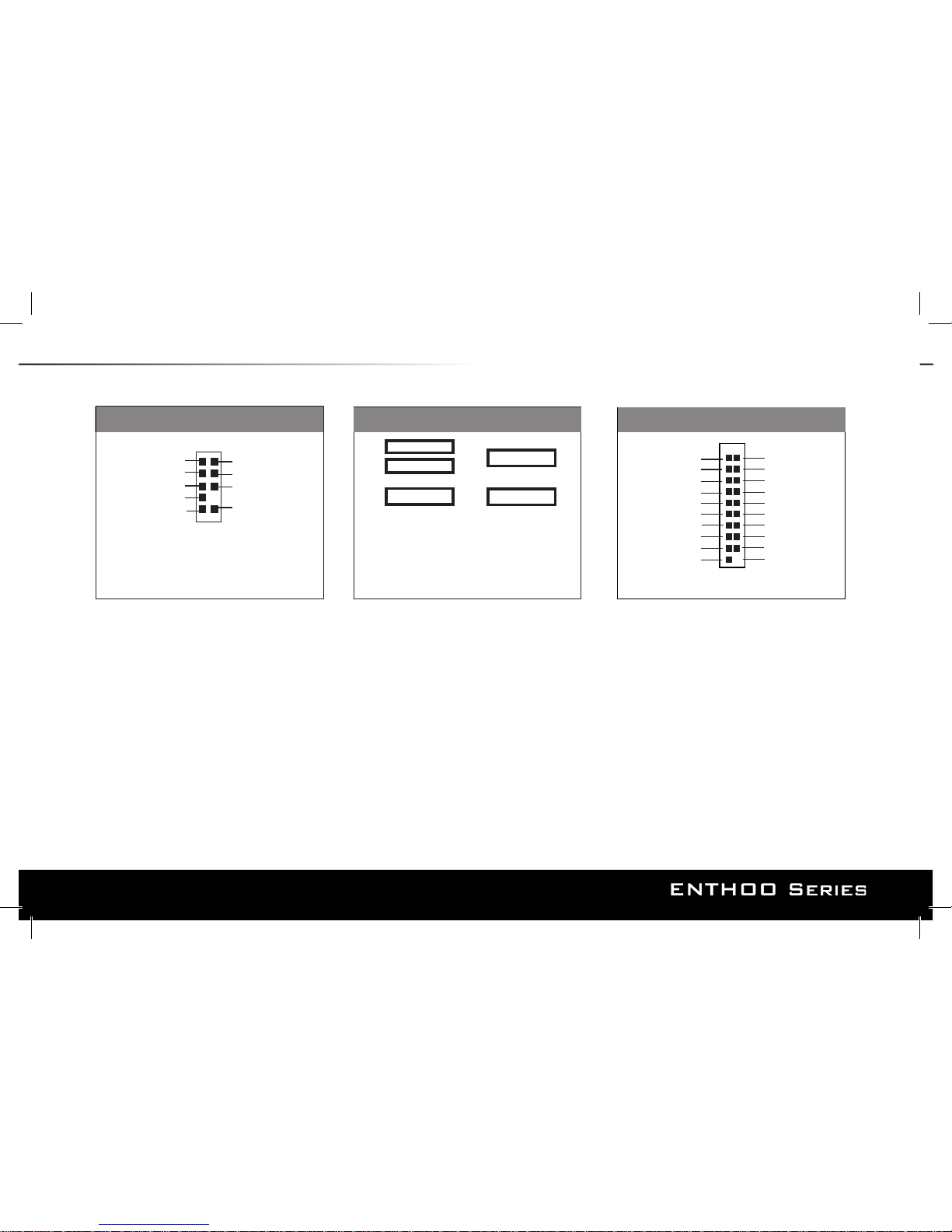

5. CONNECTIONS
AUDIO
AGND
AVCC
MIC2_JD
LINE2_JD
MIC2 L
MIC2 R
FRO-R
F_IO_SEN
FRO-L
PANEL
Power SW
Power LED +
Reset SW
H.D.D LED
Power LED -
