SxTAG Operation Manual

Software Release 1.02

Manual Revision 3

PHSXT-200 3

Contents

About this Manual

Notice

The information in this document has been produced by PHABRIX Ltd with care and is believed to be accurate. PHABRIX Ltd does not assume responsibility for loss or damage resulting from errors, omissions or inaccuracies herein. This document is subject to change and revisions may be made and issued to include such changes.

No part of this document may be reproduced, stored in a retrieval system or transmitted in any form or by any means, electronic, mechanical, recorded or otherwise without the prior written consent of PHABRIX Ltd.

Revision

This manual is a revision controlled document. Any changes to any page content will be reﬂected in the overall revision status of the whole manual.

Revision Date Software Version Comment

1 28/02/2014 0.12.0024 First release of manual

2 15/07/2014 1.01.12275 Full product release

3 12/11/2014 1.02.12980 Power management

Phabrix® Limited

ii PHSXT-200 3Contents 11/14

Getting Started

Package Contents

The shipping box should contain the following:

1 black carrying bag containing:

PHABRIX SxTAG unit

Power Supply Unit

Mains lead

CD Manual

The shipping box will also contain this Manual on a CD, note that the Web Site always contains the latest version of the manual. The version of software that this manual supports is on the front page.

General Safety

Avoiding Personal Injury

Contents

This instrument is designed for use by qualiﬁed personnel only.

No user serviceable parts are provided. Units should be returned to your local PHABRIX agent for servicing.

The Operator should NOT remove the case from the unit.

Do not spill any liquid onto the unit or its power adaptor.

Do not look directly into the ﬁbre optic connections of cable as this may cause

permanent damage to the eye.

Power Supply

Make sure that the unit is connected to the correct power supply voltage. A power supply adaptor is supplied with the unit which may be connected to any AC power supply between 100 and 240VAC at 50-60Hz. Only the supplied power adaptor should be used with the unit. Do not use a damaged AC cable with the unit as it may cause a shock or ﬁre hazard. Replacement AC cables are available from your local PHABRIX agent.

SxTAG Operation Manual iiiPHSXT-200 3

Contents

Installation Environment

Operating Temperature

The unit should only be operated between 0 and 40 °Centigrade. If the unit is

operated at a higher temperature there is a possibility of a ﬁre hazard. If the temperature is changed rapidly from a cold environment to a hot environment, moisture can be created internally which can cause malfunction or damage the unit. Allow the unit to sit for 30 minutes without power applied to reduce any possibility of condensation. If the temperature rises above 60°Centigrade a warning dialog will be given. If the temperature rises above 65°Centigrade the unit will be turned OFF. Under both conditions, an event will be added to the event log to show what happened.

Input/Output Terminals

Do not connect the input or output BNC connectors to external power as this can damage the internal circuitry and cause the unit to work incorrectly.

The BNC connectors ﬁtted on this unit are 75Ω type which are not compatible with 50Ω plugs.

The use of 50Ω plugs will permanently damage the connectors on the unit. The

use of 50Ω plugs is considered to be misuse of the equipment and will therefore invalidate the unit’s warranty.

SFP Cage

When the SFP cage is ﬁtted, either an SFP or a bung must be ﬁtted in the SFP

cage at all times to prevent the SxTAG overheating.

When Not In Use

Disconnect the unit from the power supply and AC power source when not in use.

Maintenance

Wipe the case, and knobs gently with a soft cloth, lightly dampened with a neutral cleaning agent. A screen cleaning cloth may be used to clean the LCD. Do not apply force to the LCD when cleaning or it may be damaged.

Remove the power supply from the unit and turn OFF before cleaning. Do not

allow any water or other liquid to enter the unit while cleaning.

iv PHSXT-200 3Contents 11/14

Disposal of Equipment

This product is subject to the European WEEE (Waste Electrical and

Electronic Equipment) directive and should be disposed of according to the regulations of each country.

Contents

SxTAG Operation Manual vPHSXT-200 3

Contents

vi PHSXT-200 3Contents 11/14

Contents

Getting Started iii

Contents

Package Contents

General Safety.............................................................................................................iii

Avoiding Personal Injury Power Supply

Installation Environment

Operating Temperature Input/Output Terminals SFP Cage When Not In Use Maintenance

Disposal of Equipment

........................................................................................................iii

.........................................................................................iii

.........................................................................................................iii

.............................................................................................iv

..........................................................................................iv

...........................................................................................iv

................................................................................................................iv

....................................................................................................iv

..........................................................................................................iv

................................................................................................ v

Description

SxTAG Instrument 1–3

Overview Turning on and off the instrument Menu Operation

SxTAG Software Options

..................................................................................................................... 1–3

............................................................................... 1–3

......................................................................................................... 1–4

Main Menu Instrument Status Using the Menus Input / Output Selection

Overview SDI data stream analysis Command scripts with print report

Enhanced remote control........................................................................................ 1–8

2K-SDI Option Ancillary Data status Dolby bit-stream Analyzer Dolby bit-stream Generator AES Eye

............................................................................................................ 1–4

................................................................................................... 1–5

.................................................................................................... 1–5

......................................................................................... 1–6

............................................................................................. 1–7

................................................................................................................ 1–7

....................................................................................... 1–7

......................................................................... 1–8

........................................................................................................ 1–10

.............................................................................................. 1–10

...................................................................................... 1–10

.................................................................................... 1–11

.................................................................................................................. 1–11

SxTAG Operation Manual viiPHSXT-200 3

Contents

Menu Reference

Generator Menu 2–3

Contents

Video Out (Generator Option)

Output Standard Colour Format EDH Errors SMPTE 352 Pattern Ident Sx 2K-SDI Option

Genlock Menu

Source Reference Out Delay

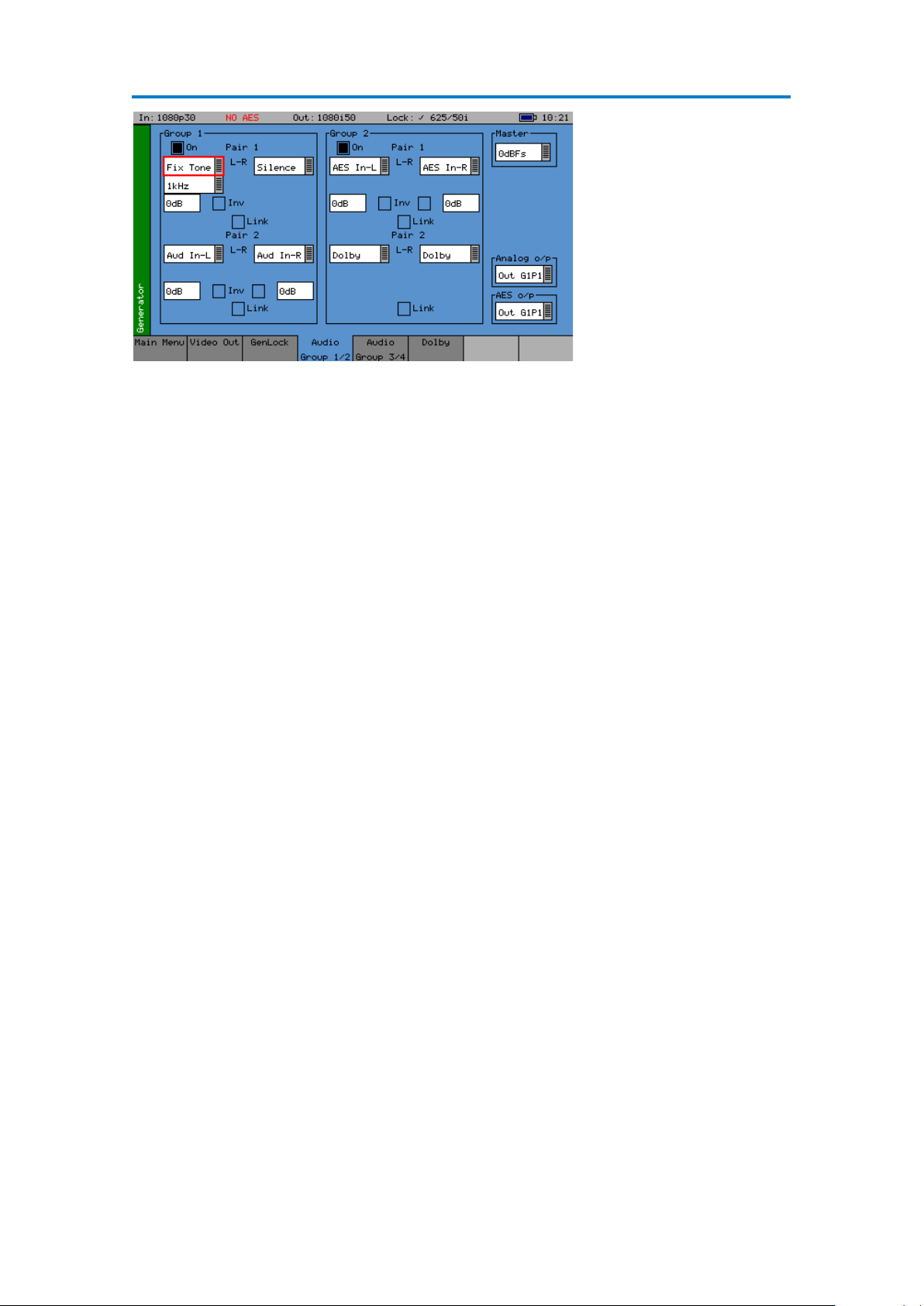

Audio Group Menu

Group n Master Analog o/p AES o/p

Dolby (Dolby Generator Option)

Overview Dolby E Dolby Digital Dolby Digital Plus Dolby E Synchronisation - Generator Reference Editing Program Information Program Meta Data Editing Default Program Meta Data Embedding Dolby on SDI Stream Embedding Dolby Signals on AES Stream

................................................................................................................... 2–3

................................................................................................................ 2–3

........................................................................................................ 2–4

........................................................................................................................ 2–4

..................................................................................................................... 2–4

............................................................................................................ 2–4

................................................................................................................... 2–5

...................................................................................................................... 2–7

................................................................................................... 2–8

............................................................................................................. 2–9

.................................................................................................................... 2–9

........................................................................................................ 2–9

..................................................................................................................... 2–9

...................................................................................................... 2–10

.................................................................................................................. 2–10

................................................................................................................... 2–10

.............................................................................................................. 2–10

.................................................................................................................. 2–10

................................................................................................................ 2–11

.................................................................................................................. 2–11

.......................................................................................................... 2–11

................................................................................................... 2–12

..................................................................................... 2–3

.................................................................................. 2–11

.................................................................................. 2–12

................................................................................... 2–13

................................................................................... 2–15

............................................................................ 2–15

..................................................... 2–12

............................................................... 2–15

Analyzer Menu 2–17

Overview Picture

viii PHSXT-200 3Contents 11/14

..................................................................................................................... 2–17

........................................................................................................................ 2–18

Analyzer Source Selection Sample, Line and Field Selection Aspect Ratio

...................................................................................................................... 2–19

Zoom Active Picture Cursor Composite Input Termination

....................................................................................................................... 2–19

Blue

........................................................................................................... 2–18

......................................................................................................... 2–19

.................................................................................................................... 2–19

...................................................................................... 2–18

............................................................................ 2–18

.................................................................................. 2–19

Waveform Monitor ......................................................................................................2–20

Analyzer Source Selection Sample, Line and Field Selection Waveform Type Magniﬁcation Cursors Setup Button Dialogue External Reference

Vectorscope

Analyzer Source Selection Sample, Line and Field Selection Magniﬁcation Graticule Setup Button Dialogue Composite Subcarrier Phase Alignment

Signal Data

Analyzer Source Selection Type

................................................................................................................... 2–21

................................................................................................................. 2–23

................................................................................................................. 2–25

....................................................................................................................... 2–25

...................................................................................................... 2–21

......................................................................................................... 2–21

................................................................................................. 2–22

......................................................................................................... 2–24

................................................................................................................ 2–24

...................................................................................... 2–20

............................................................................ 2–20

........................................................................................... 2–22

...................................................................................... 2–23

............................................................................ 2–23

........................................................................................... 2–24

.................................................................. 2–24

...................................................................................... 2–25

Signal Information Menu 2–27

Contents

Overview Video Status

MISC Status

Video Timing ANC Status (ANC Option) ANC Inspector (SDI Data Option)

SFP Info

..................................................................................................................... 2–27

................................................................................................................ 2–27

EDH/CRC ERRORS EDH DATA Cable Length Active Picture CRC

Payload ID – SMPTE 352 Video Format

ANC Inspector Setup Error Triggers

.............................................................................................................. 2–27

................................................................................................................ 2–29

............................................................................................................... 2–30

...................................................................................................................... 2–34

.................................................................................................. 2–27

.......................................................................................................... 2–28

.................................................................................................. 2–28

...................................................................................... 2–29

......................................................................................................... 2–29

........................................................................................... 2–31

................................................................................ 2–32

.............................................................................................. 2–33

......................................................................................................... 2–33

Audio Menu 2–35

Meters Audio Status Dolby Status (Dolby Analyzer Option)

AES Eye (CVBS In) Option

........................................................................................................................ 2–35

............................................................................................................... 2–36

......................................................................... 2–37

Overview Dolby E Dolby Digital Dolby Digital Plus Analyser Reference Source selection Dolby E Framing Values Dolby E Programme conﬁguration Dolby Digital Programme conﬁguration Dolby Digital Plus Programme conﬁguration Programme Metadata Peak Metering

................................................................................................................ 2–37

.................................................................................................................. 2–37

.......................................................................................................... 2–37

................................................................................................... 2–38

................................................................................................ 2–38

..................................................................................................... 2–38

......................................................................................... 2–38

.......................................................................... 2–39

................................................................. 2–40

.......................................................... 2–40

............................................................................................ 2–41

........................................................................................................ 2–42

........................................................................................... 2–43

SxTAG Operation Manual ixPHSXT-200 3

Contents

System Menu 2–45

Memories

Saving Memories Recalling Memories Renaming Memories Adding Additional Memories Clearing Memories Exporting Memories Disk Space

Command Scripts

Steps, Actions and Parameters Creating Command Scripts Editing Command Scripts Running a Script

Network

Remote Control of Sx Instrument (Cost Option)

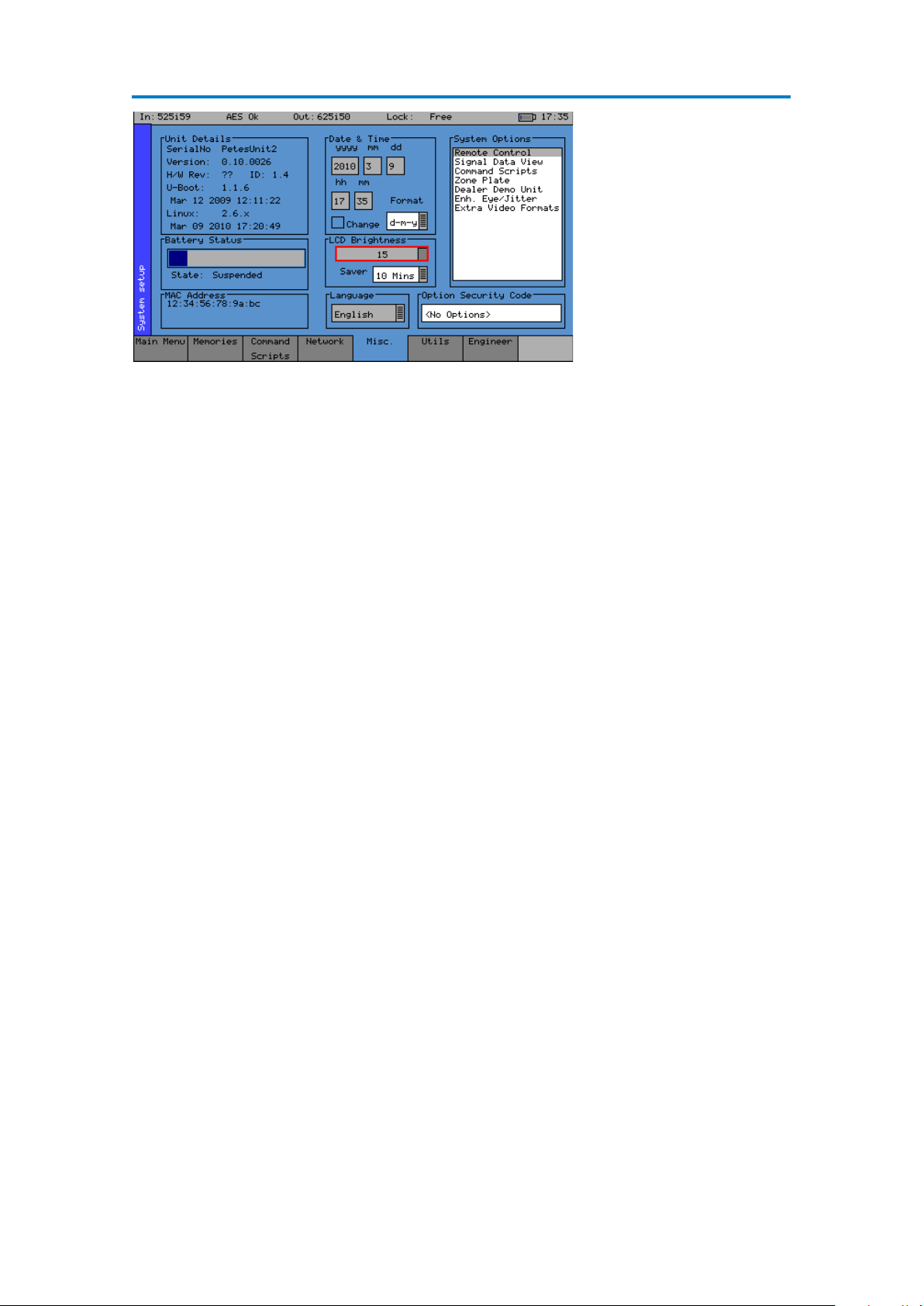

Misc

Changing The Date/Time Changing the Date Format: Setting LCD Brightness Setting Screen Saver Mode Setting User Language Changing Options Security Code

Utils

Dealer Features Hardware Status System Temperature Voltages

Engineer...................................................................................................................... 2–53

Clear Memories Default Settings SDI In - SFP Out Set User Login Adding/Deleting Users Editing The Prompt Text Software Upgrade CVBS Out Gain CVBS Inputs Audio Calibration

.................................................................................................................... 2–45

................................................................................................... 2–45

................................................................................................ 2–45

.............................................................................................. 2–45

.................................................................................. 2–46

................................................................................................. 2–46

............................................................................................... 2–46

............................................................................................................. 2–46

........................................................................................................ 2–47

............................................................................... 2–47

..................................................................................... 2–48

....................................................................................... 2–48

..................................................................................................... 2–49

...................................................................................................................... 2–50

...................................................... 2–50

............................................................................................................................ 2–51

........................................................................................ 2–51

.................................................................................... 2–51

........................................................................................... 2–51

.................................................................................... 2–51

........................................................................................... 2–51

............................................................................ 2–51

............................................................................................................................ 2–52

...................................................................................................... 2–52

.................................................................................................... 2–52

............................................................................................... 2–52

................................................................................................................. 2–52

...................................................................................................... 2–53

..................................................................................................... 2–53

........................................................................................................ 2–53

............................................................................................ 2–54

......................................................................................... 2–54

.................................................................................................. 2–55

....................................................................................................... 2–55

........................................................................................................... 2–55

................................................................................................... 2–55

Logging Menu 2–57

Overview Event Log

Log Setup.................................................................................................................... 2–58

Log ANC Status

..................................................................................................................... 2–57

.................................................................................................................... 2–57

Audio Thresholds Video Status AES Status Dolby Status (Requires Dolby Analysis Option) Logging Log Time Limit

.................................................................................................................. 2–59

.................................................................................................... 2–58

........................................................................................................... 2–58

............................................................................................................. 2–59

........................................................................................................ 2–59

........................................................................................................... 2–60

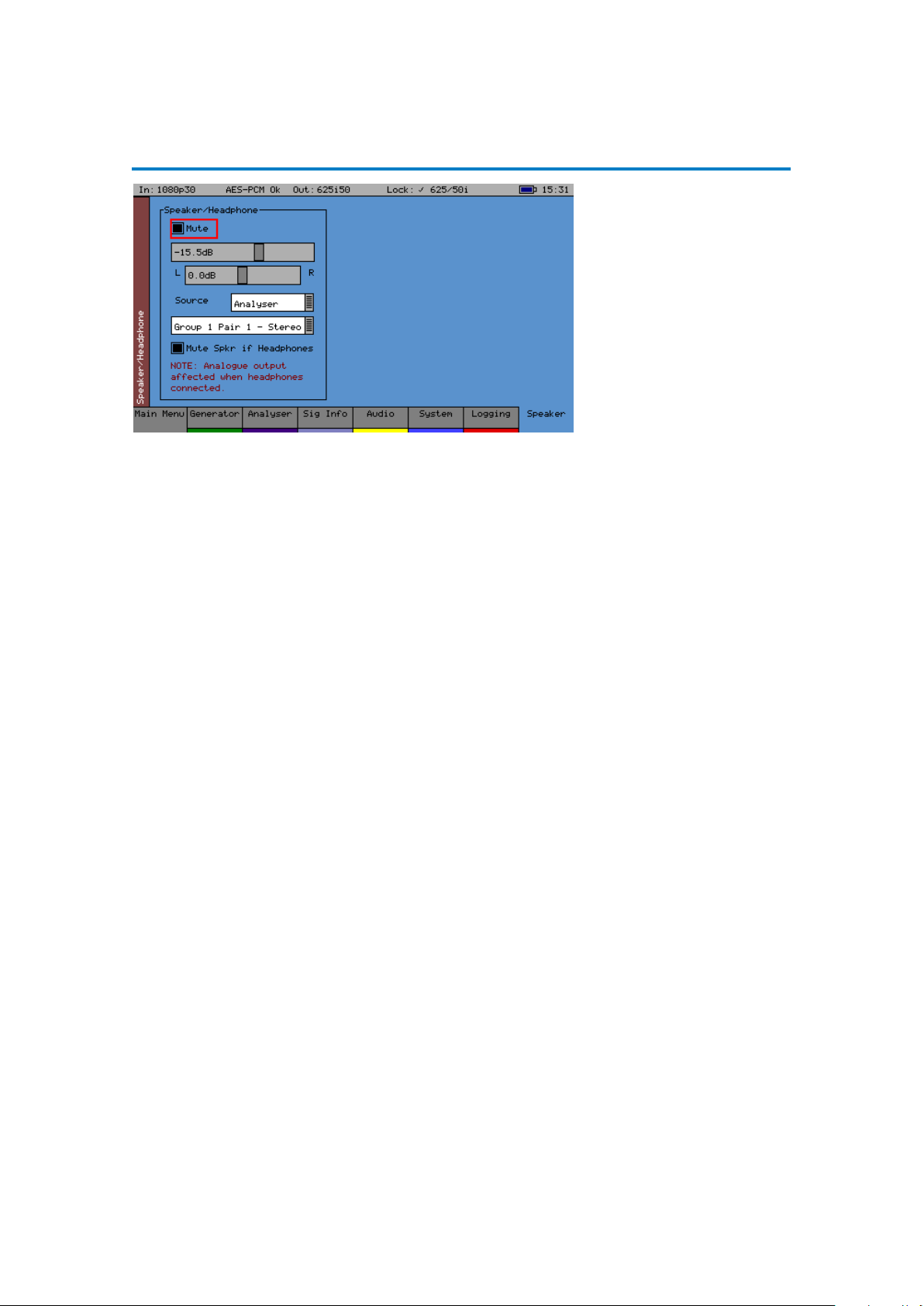

Speaker Menu 2–61

Overview

x PHSXT-200 3Contents 11/14

..................................................................................................................... 2–61

...................................................... 2–59

Glossary

Glossary of Terms A–3

Speciﬁcation

SxTAG Instrument B–3

Contents

Operating Environment Expected Behavior

LCD Monitor LCD Flicker Remote Network Operation

Dimensions Front Panel BNC Panel

SDI I/O PAL/NTSC Out PAL/NTSC (AES Eye) IN REF I/O ( SFP Cage (Option)

Control Panel

Power Connection Networking Audio I/O Connector Analogue Balanced Audio Input (15-Way Connector) Analogue Balanced Audio Output (15-Way Connector) Analyzer AES Input (15-Way Connector) Generator AES Output (15-Way Connector) Headphone Output Local Control

...........................................................................................................B–3

.............................................................................................................B–3

.................................................................................................................B–3

.................................................................................................................B–4

...................................................................................................................B–4

.................................................................................................................B–5

..............................................................................................................B–6

.............................................................................................................B–6

..........................................................................................................B–7

...............................................................................................B–3

......................................................................................................B–3

....................................................................................B–3

........................................................................................................B–5

...........................................................................................B–5

..................................................................................................B–5

...................................................................................................B–6

...............................................................................................B–6

.................................................................B–7

............................................................B–7

.................................................................................................B–7

.............................................B–6

..........................................B–7

Supported Video Formats B–9

SD 270 Mb/s HD 1.485 Gb/s (SMPTE 292M) Dual Link 1.485 Gb/s (SMPTE 327M) 3G Level-A 2.97 Gb/s (SMPTE 425M-A) 3G Level-B 2.97 Gb/s (SMPTE 425-B) 2K-SDI Formats Option

..............................................................................................................B–9

..................................................................................B–9

.........................................................................B–10

.....................................................................B–12

.........................................................................B–13

...............................................................................................B–14

SxTAG Operation Manual xiPHSXT-200 3

Contents

Maintenance

Warranty C–3

Overview Warranty Exceptions Product Registration

.....................................................................................................................C–3

...................................................................................................C–3

Maintenance C–5

General Maintenance Preventative Maintenance

..................................................................................................C–5

...........................................................................................C–5

Software Maintenance C–7

Installing New Software

Software Download from Internet FTP Transfer from a connected PC

Reverting to a Earlier Version of Software Sx File Structure

Patterns Scripts Setup Idents Fonts

....................................................................................................................C–9

.....................................................................................................................C–9

......................................................................................................................C–10

.........................................................................................................C–9

.................................................................................................................C–9

...............................................................................................C–7

...........................................................................C–7

..........................................................................C–8

...................................................................C–8

xii PHSXT-200 3Contents 11/14

PHABRIX

broadcast excellence

Description

SxTAG Operaon Manual 1–1PHSXT-200 3

Description

1–2 PHSXT-200 3Descripon 11/14

SxTAG Instrument

Overview

Conﬁgured as an entry level portable analyser, the TAG can be easily upgraded using a range of software options to provide a sophisticated instrument for testing broadcast infrastructures.

The PHABRIX® TAG has been created to incorporate new interfaces that appeal to customers looking for a cost effective entry into professional test and measurement.

The PHABRIX® TAG includes support for SD-SDI and HD-SDI as standard with the option to upgrade to 3G-SDI (Level A and Level B).

Composite analysis and generation has been incorporated to support those regions making the transition between analogue and digital television.

An SFP cage has been integrated into the design principally for optical infrastructure testing, however, the cage will support a wider range of SFPs as they become available. Composite locking reference generation and input reference waveform analysis have also been included.

For audio support the PHABRIX® TAG provides a D15 breakout connector providing both balanced analogue and AES input/output. AES waveform display allows a visual check of levels and reference lock. Advanced audio features including Dolby® E, Dolby® Digital and Dolby® Digital Plus are supported allowing TAG to be considered as a replacement for the discontinued Dolby® DM100.

Description

Power On/Off

Internal Speaker

Menu Buttons

Cursor/OK Buttons

Turning on and off the instrument

To turn on your PHABRIX SxTAG Instrument press the red button at the top right hand corner of the front panel.

Once the system has started, pressing the button again will turn it off. If for some reason the instrument stops responding, pressing and holding the button for a few seconds will turn it off.

The unit is battery operated and the battery should last for between 3 and 6 hours dependent on which video standard is being used and whether the input and outputs are active. If the unit is turned ON and the battery is almost discharged, it will turn itself OFF. If the battery level starts to get too low for operation a dialogue will be displayed prompting the user to turn off the unit. The current settings will also be saved. The unit should then be connected to the power supply unit as soon as possible to recharge the battery. The battery should be fully

charged in about 4 hours. The battery will charge faster if the unit is turned off while charging.

SxTAG Operaon Manual 1–3PHSXT-200 3

Description

Menu Operation

Main Menu

The Main menu, displayed on the OLED screen gives access to the software modules available on the SxTAG instrument. The buttons beneath the screen correspond to the menu areas. Pressing on any of these buttons will display the corresponding menu.

This page displays an overview for the system. It shows the video input and output standards and frame rate. The audio status for the generator shows which audio groups are being generated whilst the audio status for the input shows which groups are present and an overview of the channel status for each audio channel.

Audio channel status is displayed as:

‘P’ if PCM audio is present,

‘N’ if NON-PCM audio is present,

‘E’ if Dolby-E packets are present

‘D’ if Dolby-Digital packets are present

‘+’ if Dolby-Plus packets are present

V if the validity bit is set

Dolby-E program conﬁguration and Timing status is also displayed if the Dolby-E analysis option has been purchased and a Dolby-E signal has been detected on the selected input. If the generator is generating errors then the video standard is displayed in red. If the input detects errors, then the input standard will be displayed in red if the analyser is monitoring the input.

If the unit is connected to the network, the current TCP/IP address of the unit is displayed in the Remote Control box. If the unit is NOT connected to a network and is set to DHCP mode, it will show ‘acquiring’ to show that the connection hasn’t been made yet. The model type is

displayed at the bottom right corner of the screen.

1–4 PHSXT-200 3Descripon 11/14

Instrument Status

The top line of the menus shows the unit status and includes the Input Video status, Genlock status, battery status and current time. If the unit is being powered by the AC adaptor, the battery status will not be shown. If a command script is being run, this is shown on the top line to the left of the time as “Script”. A red “Log” is shown on the status line if there are any events in the event log.

A red “Log” is shown on the status line if there are any events in the event log.

If a 3G video standard is selected the video standard display will be shown as 3GA if it is a 3G-Level A standard, 3GB if it is a 3G-Level B dual link standard, 3G2 if it is a 3G-level B dual stream (two patterns) standard or DL if it is a dual link output.

The input video standard will be shown in red if the input signal has errors, but only if the analyzer is connected to the input. If the analyzer is set to monitor the output, the input standard will be shown in brown.

The output standard will be shown in red if the instrument is generating errors. The output standard will show OFF if the generator output is Off.

Using the Menus

The Main menu is the top level menu from which all other menus are selected on the SxTAG instrument. The main menus are:

Description

Generator allowing the unit to be locked to an external reference and providing a

fully populated Composite, SD-SDI, HD-SDI and Fibre video test pattern generator and audio tone generator if the Generator option is installed.

Analyser allows the selected Composite, SDI or Fibre input signal to be analysed in

the form of a Picture, Waveform monitor and Vectorscope.

Sig Info allows detailed signal information about the video and audio status for the

SDI or Fibre video input source to be displayed.

Audio gives access to the Audio Meters and Audio Status displays allowing the

levels of the embedded SDI audio, AES audio and analogue audio to be displayed.

System allows the setup of system wide settings including memories, date/time and

software.

Logging selects the logging page to view and setup the error logging system.

Speaker selects the speaker/headphone setup page to allow the selected embedded

SDI audio, AES audio and analogue audio to be heard.

See chapter 2 : “Menu Reference” for full details of these menus.

The Menu buttons select which instrument is in use as well as selecting the options for the instrument. The bottom of the display shows the function of each Menu button.

When in a speciﬁc function eg Generator, Analyser etc, the cursor controls () on the right hand of the instrument select a ﬁeld to edit. The current ﬁeld has a red box around it. Pressing the OK button starts or ends editing of that ﬁeld. Check boxes are always in edit mode and pressing the OK button inverts the current state.

When editing some types of ﬁelds, the menu buttons at the bottom take on different functionality to allow cancelling edit mode or setting the value for the ﬁeld. When lists of options are displayed the menu buttons allow selection of the ﬁrst/last item in the list as well as paging through the available options. If the list of items is small, the available items may be displayed on the menu buttons for instant access.

SxTAG Operaon Manual 1–5PHSXT-200 3

Description

The buttons along the bottom of the display change the currently displayed page when not editing a data ﬁeld. The left hand button always selects the top level menu and system overview page. So for example pressing the ﬁrst button will select the “Main Menu”, selecting the second button will select the “Generator” menu, selecting the third button with select “Analyser”, etc.

Input / Output Selection

The SxTAG has 2 bidirectional BNC connections, one for Reference input / output and the other for SDI video input / output.

The direction of SDI I/O connection is selected on the Main Menu using the drop down lists as well as in the “Output” section of the “Generator” - “Video Out” menu. Note that if the Generator software option is not installed then this connection will be an input.

The direction of the “Ref I/O” connection is selected on the Main Menu using the drop down list or in the “Reference Out” section of the “Generator” - “Genlock” menu where it is controlled by the “On” check box.

The input to be monitored using the Analyser can be selected in the drop down list in the bottom right corner of the Picture, Waveform, Vectorscope, Signal Data and other Instruments.

If an SFP module is ﬁtted the SPF Input can also be selected from this drop down list to be monitored using the Analyser.

Both AES and Analogue audio output can be enabled using the drop down menus on the Main Menu.

1–6 PHSXT-200 3Descripon 11/14

SxTAG Software Options

Overview

The SxTAG instrument has a range of software options that can enhance its functionality for speciﬁc applications.

The Generator option (PHSXT-GEN) allows the creation of video test signals for analogue composite video, SD-SDI and HDSDI video as standard. 3G-SDI, 2K SDI and Fibre video functionality can be purchased as additional options. The Generator option also allows the generation of both analogue and digital audio test tones and allows the unit to be locked to an external locking reference.

SDI data stream analysis

The SDI analysis option (PHSXOSD) provides the engineer with a detailed view of the data words contained within the SDI stream. This allows the analysis of complex faults and is particularly useful when determining compatibility issues between equipment and when debugging new product developments particularly in a R&D environment. Detail within the active SDI stream can be viewed with continuous update.

Description

The SDI Analysis option provides the following functional areas:

Grid displays the SDI data in the form of an array.

Stream allows the SDI continuous data stream to be viewed.

Component allows the video components to be displayed in separate columns.

Splt allows the video components to be display individually.

Ancillary Data allows the user to capture whole Ancillary data packets identiﬁed by their

data id (DID).

Ancillary Status allows additional ‘user deﬁned’ selections with the appropriate DID or SDID

code.

Access to the SDI analysis functionality is via the Analyser - Signal Data menu. See the “Analyser - Signal Data” section in chapter 2 for full details.

SxTAG Operaon Manual 1–7PHSXT-200 3

Description

Command scripts with print report

Applications include repeated test sequences as required by manufacturer Test Departments, R&D Departments, Systems Integrators and Commissioning/Support Engineers.

A script requires a set of memories to conﬁgure the unit and then a script ﬁle which recalls those memories and speciﬁes times and actions for each step. The process of creating a command script requires these two ﬁles to activate the sequence.

Additionally a script can be created as a simple text ﬁle on a PC and then transferred to the unit via Ethernet and recalled at any time. A large number of named scripts and memories may coexist within the instruments store to be recalled as required.

Access to the Command Scripts functionality is the “System” - “Command Scripts” menu. See chapter 2 for details.

The Command Script option (PHSXOS) allows a series of predeﬁned actions to be run through within the PHABRIX Sx using a script stored in internal memory.

The command scripts option can be used to automatically step through a sequence of instrument states, controlling the generator, analyser and logging functions. If required the instrument will prompt the user before going onto a subsequent state.

Enhanced remote control

The Enhanced remote control option (PHSXOR) gives users full remote control of the unit via TCP/IP Sockets to allow any aspect of the unit to be modiﬁed or queried.

This allows complex applications to be created to perform test and measurement functions such as automated testing of routers or other broadcast equipment.

PHABRIX products act as a server and listen on a port waiting for incoming requests from clients such as a PC. Using this method of communication the Sx range can provide a variety of information to the control device it is connected to and be controlled in speciﬁed areas of the product using the command details included. All visual controls on the product have an associated command.

Messages may be sent to ‘set’ or ‘get’ data from a command ie if you ‘set’ a value the unit will be conﬁgured accordingly and a reply returned and if you ‘get’ a value from the PHABRIX unit it will reply with that value. All messages are acknowledged to increase the security of the interface ie closed loop communication.

The control structure can be selected as Passive or Active. Passive control allows simple remote control where the host PC is in control and sends commands when it wants to change data or get information. It is this method which is the most popular use for remote control.

1–8 PHSXT-200 3Descripon 11/14

Active control is when the PHABRIX unit synchronizes with the host PC. Any changes on the PHABRIX unit will result in a message being sent to the host PC. This method is useful for controlling a PHABRIX unit from another unit or via the PC simulator software. It requires more complex software on the host to respond to the returned messages.

The option provides a programming guide with command information and examples on a CD. A Windows™ application for testing the interface is also provided as part of this option.

See the Remote Control Guide for details

Programmable zone plate

The Programmable zone plate option (PHSXOZ) adds a range of pre-programmed zone plate patterns along with user deﬁned controls over several parameters which can be saved to custom buffers.

Using the Main menu>memories window, multiple saves of zone plates can be saved to the system by checking the video box and saving by name. In use the zone plate can be used to test a range of video processing requirements using horizontal, vertical and temporal (time) controls. Temporal control is particularly useful for testing up/down converters and applications which compress signals.

Description

Aspect ratios can be tested using the horizontal and vertical controls. Frequency sweep is particularly useful and also available using this option. By feeding in the signal generated, the output of the device can be sent back into the Sx instrument’s waveform monitor to determine the usable bandwidth of the system. Once purchased, the zone plate editor is reached by selecting the button next to the standard zone plate.

Advanced formats

This option (PHSXOF) provides advanced formats include 4:2:2 YUV, 4:4:4 RGB and 4:4:4 YUV at 10/12 bit and 3G level A and B. For broadcast manufacturers this option allows rigorous testing of many more formats beyond the standard signals used in traditional broadcasting.

For broadcast manufacturers this option allows rigorous testing of many more formats, beyond the standard signals used in traditional broadcasting. Among the support for 3G level B on the SxTAG and SxTAG is the ability to generate and analyse signals such as SMPTE 425-B carrying 1 x 372M dual link payload.

Uniquely the PHABRIX units create three pathological signals in all formats which will be of great interest to broadcast manufacturers. The ﬁrst is as deﬁned in SMPTE RP198 and is the split ﬁeld signal with the equaliser test in the ﬁrst half and the PLL test in the second half. The second and third are separate full-frame EQ test and PLL tests signals. To maintain a regular parity distribution and mitigate any DC offset, the EQ part of the pattern inverts a bit at the start of the ﬁrst line in each alternate frame. This is the form of 3G Level B Pathological signal that many video manufacturers are adopting as their test signal of choice as it stresses electronic circuits more thoroughly.

SxTAG Operaon Manual 1–9PHSXT-200 3

Description

2K-SDI Option

This provides analysis of, and test pattern generation for, 2K digital cinema as deﬁned in the SMPTE ST 2048-2:2011 standard (“2048 x 1080 Digital Cinematography Production Image FS/709 Formatting for Serial Digital Interface”) and SMPTE 428-9 (D-Cinema Distribution Master - Image Pixel Structure Level 3 - Serial Digital Interface Signal Formatting).

Ancillary Data status

This option (PHSXO-2K) supports the new SDI practice for HD and 3G Level A and Level B signal transfer of 2K advanced formats including 4:2:2 Y’C’bC’r, 4:4:4 R’G’B’ and 4:4:4 Y’C’bC’r at 10/12 bit as well as 4:4:4 X’Y’Z’ at 12-bit. For broadcast manufacturers this option allows rigorous testing of many more formats beyond the standard signals used in traditional broadcasting.

The Ancillary Status option (PHSXOVNC) provides broadcasters, studios, OB and broadcast manufacturers with a detailed analysis of the ancillary data present in a SDI signal.

A simple grid layout provides a quick view check for an engineer of the available vanc/anc ancillary data. The packet type is then displayed as present, absent or red if in fault. Simple icons next to the packet indicate the fault. Each ancillary packet available from the grid view can be set to enable logging and then presented together with other information in the events window of the logging menu.

This option further allows additional ‘user deﬁned’ selections with the appropriate DID or SDID code. Any ancillary packet code can be saved down for future recall. Please note this option does not fully decode the ancillary data. It is used to identify if the packet is present in the signal.

Dolby bit-stream Analyzer

The Dolby bit-stream Analyzer option (PHSXOBD-A ) displays Dolby E, Dolby Digital and Dolby Digital Plus metadata present in a selected audio stream and determines whether the Dolby E packet is timed correctly on the SDI video stream. The Dolby audio may be monitored from any of the SDI input embedded audio channel pairs or the AES input. Peak audio levels are also displayed for Dolby E.

The start menu window displays both the V Bit information and PCM values along with a snapshot of the Dolby audio metadata if a Dolby is present. Using the Signal Information Dolby menu will present the full analysis display which forms the major analytical tool for this option.

1–10 PHSXT-200 3Descripon 11/14

The Dolby metadata screen carries primary information including signal source, Dolby-E ‘guard band’ timing, CRC errors, program channel and metadata detail. The characters shown in white will only be presented when a Dolby signal is introduced into the unit.

Peak audio levels included in the Dolby E meta data packet are displayed allowing the user to select the appropriate set of meters to display Dolby levels which will follow the selected Dolby source. Logging for Dolby errors, Dolby E Timing, Common metadata and Program metadata can be also be controlled.

Note: this option does NOT decode Dolby audio

Dolby bit-stream Generator

The PHABRIX Sx Dolby bit-stream generator option (PHSXOBD-G) uniquely adds signiﬁcant Dolby E, Dolby Digital and Dolby Digital Plus metadata generation features to the Sx range.

The Dolby generation option provides broadcast engineers with a highly functional set of tools for Dolby E, Dolby Digital and Dolby Digital Plus streaming. It is unique in being the world’s ﬁrst metadata Dolby generator with editable proﬁles.

Description

With a selection of Dolby streams to choose from, engineers can quickly enter and adjust parameters to check broadcast infrastructure.

This option allows the display of Dolby metadata present in a selected audio stream and determines whether the Dolby E packet is timed correctly on the SDI video stream.

Dolby streams are provided for all program conﬁgurations with ﬁxed audio data. Among the tools included in the Dolby E streaming option is the ability to adjust the ‘start of frame’ for Dolby E packets.

The generated Dolby audio follows the video generator reference source. There is also the ability to edit the program conﬁguration and bit depth with ﬁxed audio signal. The PCM stream can be carried on any embedded or AES pair. The option can sets the video line number where the internally generated Dolby audio test stream begins. Metadata can be edited by the user and stored in memories.

Purchased in combination with the Dolby analysis option PHSXOBD-A will allow a closed loop test scenario with both generation and analysis toolsets.

Note: this option does NOT generate Dolby audio.

AES Eye

It can be difﬁcult to check that the AES audio signal is correctly locked to the studio reference. The AES Eye Option allows the AES waveform to displayed on the unit. If the studio locking reference is also connected to the unit, then the AES Eye waveform can be displayed locked to this reference.

SxTAG Operaon Manual 1–11PHSXT-200 3

Description

1–12 PHSXT-200 3Descripon 11/14

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

PHABRIX

broadcast excellence

Menu Reference

PHSXT-200 3

SxTAG Operation Manual

2–1

Menu Reference

2–2 PHSXT-200 3Menu Reference 11/14

Generator Menu

Video Out (Generator Option)

If the SxTAG instrument has the Generator option (PHSXT-GEN) installed it can create video test signals for all supported SD and HD SDI output standards including the 3GHz standards at 1080p/50/59/60. It will support Y,Cr,Cb formats as well as RGB formats.

Output

The check boxes in the Output section enable the output of the generated test pattern.

Menu Reference

SFP - enables the SD, HD or 3G test pattern on a supported small form-factor pluggable device ﬁtted in the SFP cage.

SDI - enables the SD, HD or 3G test pattern on the SDI I/O BNC connector and turn of the SDI analyser input.

CVBS - enables PAL (625i 50) or NTSC (525i 59) test patterns on the PAL/NTSC Out BNC connector.

Standard

The menus in the Standard section are used to select the desire video output format. The topleft box selects the basic mode of the Sx instrument and determines the video format to be generated from the choice of SD-SDI, HD-SDI, 3G-Level A, 3G-Level B and SD-CVBS (PAL/NTSC)

When one of the SDI formats is selected only valid colour formats and frame rates for the output standard may be selected.

When CVBS is selected the menus in this section control the type of 625i and 525i line encoding of the generated Composite video output:

PAL-I - 625i @ 50 fps with 4.433 MHz colour subcarrier

PAL-N 625i @ 50 fps with 3.582 MHz) colour subcarrier

PAL-N (ARG) - 625 @ 50 fps with 3.582 MHz colour subcarrier

PAL-M - 525i @ 59.95 fps with 3.575 MHz colour subcarrier

NTSC-M - 525i @59.95 fps with 3.579 MHz) colour subcarrier with 7.5 IRE setup

NTSC-M (Jp) - 525i @59.95 fps with 3.579 MHz) colour subcarrier without setup

SxTAG Operation Manual 2–3PHSXT-200 3

Menu Reference

Colour Format

Currently only YCbCr 4:2:2 10 bit picture formats are supported by the standard product but an Option may be purchased to enable other colour formats. The following colour modes may be selected dependent on line standard selected and option installed:

The Advanced Formats option (provides advanced formats including 4:2:2 YUV, 4:4:4 RGB and 4:4:4 YUV at 10/12 bit and 3G level A and B. The 2K-SDI formats option supports the new SDI practice for HD and 3G Level A and Level B signal transfer of 2K advanced formats including 4:2:2 Y’C’

EDH

If the output signal is SD (PAL-625 or NTSC-525) the insertion of EDH information may be turned on or off.

YCbCr 422 10bit YCbCr 444 12bit YCbCr 444 10bit YCbCrA 4444 10bit YCbCr 422 12bit RGB 444 10bit RGBA 4444 10bit RGB 444 12bit XYZ 444 12bit

bC’r, 4:4:4 R’G’B’ and 4:4:4 Y’C’bC’r at 10/12 bit as well as 4:4:4 X’Y’Z’ at 12-bit.

Errors

This ﬁeld enables the insertion of CRC or EDH errors into the video signal. This allows checking of third party error detection circuitry. In SD there is one EDH ancillary packet per ﬁeld. When errors are being inserted every EDH value gets deliberately corrupted. This creates one error count per ﬁeld. (Actually one AP error and one FF error). In HD there is a CRC value calculated for each line. When errors are being inserted the CRC value on line number 1 gets deliberately corrupted. This creates one CRC error count per frame. There is also the option to generate CRC errors (not SD EDH errors) on only the switching line in ﬁeld 1 which can be used to check that any downstream equipment ignores errors on switching lines.

SMPTE 352

This checkbox allows the SMPTE 352 Payload ID ﬁeld to be inserted into the video output stream. The state of this check box is stored separately for SD, HD and HD-3G line standards. Note that for HD-3G line standards the Payload ID should be turned ON.

2–4 PHSXT-200 3Menu Reference 11/14

Pattern

This selects the video pattern that is output by the generator. Many standard patterns are provided by the Sx instrument. You may also upload your own test patterns to the Sx instrument into the ‘Patterns’ directory and then select them using the ‘User File’ option in this ﬁeld. See the ‘File Structure - Patterns’ section for ﬁle formats supported. If a ‘User File’ has been selected, the ‘i’ button beside the ﬁle can be selected to get information on the ﬁle properties. Unsupported ﬁle types will be displayed as a black image. If the video standard is changed while a user ﬁle is loaded and there is no ﬁle for the new standard present, a black image will be loaded and the User File blanked.

If Check ﬁeld/Pathological is selected when a dual stream format has been

selected, BOTH outputs will be forced to check ﬁeld due to internal hardware limitations. If another pattern is selected, the Check ﬁeld pattern will be deselected. The exceptions to this are when Colour Field or Zone Plate are selected as test patterns.

The Check ﬁeld/Pathological/PLL Check/EQ Check patterns will only look like the picture above when a YCbCr 422 10 bit colour mode is selected. Other colour modes will have different pictures but still create the SDI data stream required by SMPTE.

A bouncing Box may be overlaid on the current test pattern by selecting the “Box” check box.

Menu Reference

100% Bars

Check-ﬁeld Pathological

Legal Ramp

Bowtie

Grey Bars - 11

Black, Red, Green, Blue, Yellow, Cyan, Magenta, White, Custom

Colour Field

75% Bars

EQ Test

Valid Ramps

Tartan Bars

Grey Bars – 11 vertical

Downloadable ﬁles in bitmap(.bmp), 10bit DPX/YUV (.dpx, .yuv), Targa (.tga) and Phabrix .pat/.rgb/.yc4 compressed ﬁles User File

75% Bars + Red

PLL Test

Multi-Burst

Grey Bars - 5

SMPTE 219/ARIB-28 Bars – 3 variants

SMPTE Bars

Luma Ramp

Pluge

Grey Bars – 5 -vertical

Zone plate

SxTAG Operation Manual 2–5PHSXT-200 3

Menu Reference

Colour Field If colour ﬁeld is the selected test pattern, another control selects which

Zone Plate A basic zone plate generator is supplied with all Sx instruments. The zone

colour to generate. Three user deﬁnable custom colours may be deﬁned using the “->” button. Custom colours are edited using the Red-Green-Blue sliders. When setting the colour using the RGB sliders, the YCbCr values will show the values for the current colour space. When setting the colour using the YCbCr sliders, the RGB values will show the values for the current colour space.

plate selector will contain 3 user customisable zone plates as well as several pre-determined zone plates. The ‘->’ button displays a dialogue which allow the parameters of the zone plate to be adjusted for the custom zone plates. Any of the preset zone plates may be copied to the custom zone plates to act as a starting point for a new zone plate. As the zone plate settings are stored in user memories a large number of custom zone plates are available for use.

Moving Zone-2H - A moving zone plate centred on the screen.

Static Zone-2H - A static zone plate centred on the screen from DC to the nyquist frequency at left/right edges.

Static Zone-2V - A static zone plate centred on the screen from DC to the nyquist frequency at top/bottom edges.

Sweep-Horiz - A horizontal sweep from DC to nyquist frequency horizontally.

Sweep-Vert - A vertical sweep from DC vertically.

Grating-50kHz - A 50kHz frequency sine wave when using an HD output.

Grating-1MHz@HD - A 1MHz frequency sine wave when using an HD output.

Grating-5MHz@HD - A 5MHz frequency sine wave when using an HD output

Custom This allows editing of Custom zone plate settings. Three custom zone plates

can be set up and can be copied from an existing presets using the ‘Copy To’ button.

Mode - sets which type of Zone Plate is being produced. It may be Zone Plate (circular pattern) Grating (Linear horizontal or vertical grid) Sweep (Frequency sweeps from start to end Frequency)

Start Phase - sets the start phase of the sine wave generated by the zone plate generator and is set in degrees from 0-360

Phase Rate - is used to set the rate of change of phase of the sine wave and thus changes the speed that the zone plate moves at. It is speciﬁed in degrees per frame.

Angle - changes the angle of the zone plate and thus can change a horizontal sweep into a vertical sweep or rotate an elliptical zone plate pattern.

2–6 PHSXT-200 3Menu Reference 11/14

XScale/Start Freq - sets the horizontal scale of grating patterns or the start value of the zone plate sweep frequency.

YScale/End Freq - sets the vertical scale of grating patterns or the end value of the zone plate sweep frequency.

Ident

An picture or text ‘Ident’ may be set to identify an SDI source. This Ident can be turned on/ off from this page but changing the text/font/bitmap is performed by selecting the Edit button to bring up the Ident Dialogue. An overview of what the Ident is can be seen beside the Edit button. Note: If zone plate or colour ﬁeld are selected, text cannot be overlaid over them.

A smaller version of the video output signal is displayed on this page with any overlaid ident.

This dialogue allows selection of either a user deﬁned bit map picture which has been downloaded into the ‘Idents’ directory of the Sx instrument or user deﬁned text.

Menu Reference

For both types, the position of the ident can be set to one of Top-Left, Top-Centre, Top-Right, Left-Centre, Centre-Screen, Right Centre, Bottom-Left, Bottom-Centre, Bottom-Right. When text ident is used, the font, font size and colour can be speciﬁed. Several fonts are built in to the Sx instrument, other true-type (.ttf) fonts may be downloaded as required.

When editing text, the keyboard above is displayed to allow easy editing. Move the cursor to select the key to ‘press’ and then press ‘Ok’ to ‘press’ it. The Shift menu key causes the next keyboard to change to shift mode for the next key press.

The Caps Lock menu key locks the keyboard in all capitals mode. The Alt Gr. key shows any language dependent alternate keys that may be pressed. Several country keyboard styles are provided. Note that not all fonts support all non-English characters.

SxTAG Operation Manual 2–7PHSXT-200 3

Menu Reference

Sx 2K-SDI Option

The Sx 2K-SDI option allows the generation and analysis of 2K video formats for YCrCb, RGB and XYZ colour spaces.

XYZ colour space is a non-linear format that requires additional treatment by the Sx generator and analyser circuitry to convert between linear and non-linear data formats. Only a limited number of non-linear test patterns are provided for XYZ as the traditional linear test patterns that are normally available in SD, HD and 3G are not applicable and will produce misleading results when analysed.

100% Colour Bars is generated in RGB colour space and needs to be analysed using the RGB colour space selection in the Waveform monitor. This test pattern is provided to check the accuracy of the colour paths through the equipment under test.

Legal Ramp is generated in XYZ non-linear format and needs to be analysed using the X’Y’Z’ colour space selection in the Waveform monitor. This test pattern is provided to check the accuracy of the data path through the equipment under test.

Multiburst is generated in XYZ non-linear format and needs to be analysed using the X’Y’Z’ colour space selection in the Waveform monitor. This test pattern is provided to check the frequency response and sample rate of the data passed through the equipment under test.

Colour Field produces ﬁxed level colours in RGB colour space that are converted to equivalent XYZ colour space values and needs to be analysed using the RGB colour space selection in the Waveform monitor.

User File allows user-deﬁned test patterns that have been created in XYX non-linear colour space to be selected.

The XYZ, X, Y and Z settings in the Waveform monitor display the XYZ colour space in its native non-linear form. So test patterns such as Legal Ramp will be displayed as curves instead of straight lines.

The X’Y’Z’, X’, Y, and Z’ settings in the waveform monitor display the XYZ colour space with a reverse transform to convert it to linear form. So test patterns such as Legal Ramp will be displayed as straight lines.

The Picture monitor and Vector scope instruments will automatically apply the appropriate transforms to display the images in YCrCb, RGB and XYZ colour spaces correctly. The colour space transform to be applied is deﬁned by the SMPTE 352 payload.

2–8 PHSXT-200 3Menu Reference 11/14

Genlock Menu

The unit can create video test signals that are either free-running or locked to a studio reference signal.

The Genlock menu is used to select an external locking reference or set the unit to free run.

Source

The unit may be locked to

External - an external locking reference connected to the “Ref I/O” connector, such as a studio reference, which can either be black & burst or a Tri-Level sync

Input 1 - the SDI video input present on the “SDI I/O” connector.

Menu Reference

CBVS In - the Composite video input present on the “PAL/NTSC (AES Eye)” connector.

Free Run - the unit can operate using its own internal SPG

Note that the “On” check box in the “Reference Out” section controls whether the “External” source is from an externally connected source or from an internally generated source.

Reference Out

The SxTAG can either accept an external locking reference signal or can create a black & burst reference output for PAL (SD-625i50) or NTSC (SD-525i59). The drop down menu box allows the selection of either “SD-625i50” or “SD-525i59” and the “On” check box when selected change the REF I/O connection from input to output.

The Reference output signal can either be black and burst or 75% colour bars.

Delay

The Composite and SDI output generated by the unit can be advanced/delayed with respect to the currently selected locking reference. Controls are provided for line and pixel advance/delay for Composite and SDI output. For composite output the Phase control allows the subcarrier phase of the PAL/NTSC composite output to be adjusted with respect to the reference burst phase of the External locking reference black & burst signal.

Note that due to the difference in position of the synchronisation pulse of the Composite video output compared to the equivalent SD-SDI synchronisation pulse there is a difference of 17 pixels. If the SD SDI output needs to be exactly matched to the locking reference then a value of 0 needs to be entered in the “Pixels” ﬁeld. If, however, the composite output needs to be matched to the reference then a value of -17 should be entered in the “Pixels” ﬁeld.

The Zero button is used to set the menu value for Phase back to zero once the exact subcarrier phase of the composite output has been setup for the currently selected locking reference signal. This can be used when comparative phase measurements are being made between the input and output of any equipment under test.

SxTAG Operation Manual 2–9PHSXT-200 3

Menu Reference

Audio Group Menu

Group n

Each of the four groups may be separately enabled. When enabled, the source and level of each channel in a pair can be selected.

The source for each channel may be Silence, Fixed tone (a range of ﬁxed frequencies), variable tone (where the frequency can be set on 1Hz steps from 1Hz to 23.99kHz), white noise. The AES input or Balanced analogue audio input may also be selected if present. If the Dolby Generation option has been purchased, the source may be set to ‘Dolby’ at which time the other channel in the audio pair is also set to ‘Dolby’ and gain control disabled.

The Sx instrument can embed an audio signal on all 16 embedded audio outputs.

The Audio Group menu controls which audio channels, pairs or groups have test tones applied and the type of tone.

The “Inv” check box phase-inverts the audio signal to allow checking of third-party audio mixing.

The “Link” check box links the left and right channels of a pair so that changing the level on the left hand channel changes the level on the right hand channel.

Master

The master level sets the 0dB level for all the embedded audio channels. Thus if the Master level is set to -18dB and group 1 pair 1 output is set to -2dB, the actual level output on that pair is -20dB. This feature allows all embedded outputs to be adjusted together as well as giving a simple method to change from -18dB to -20dB based standard levels. The Master level will not adjust the level of an AES input signal selected for embedding on SDI output.

Analog o/p

The “Analog o/p” control selects the source audio for the Balanced analogue audio output available via the “Audio I/O” connector.

AES o/p

The “AES o/p” control selects the source for the AES output of the Sx instrument and can be:

The AES input (via the built-in sample rate converter) to allow easy conversion to 48kHz sample rate AES signals.

A mirrored output of the speciﬁed embedded AES stream contained within the SDI output to allow easy generation of audio tones or white noise.

One of the embedded input pairs on the SDI input to allow use as a de-embedder.

Off, if the output is not required.

Note that the AES output is always at a 48kHz sample rate. The AES input may be at any sample rate from 32kHz to 192kHz.

2–10 PHSXT-200 3Menu Reference 11/14

Dolby (Dolby Generator Option)

The Sx instrument Dolby Generator software option allows generation of Dolby-E, Dolby Digital and Dolby Digital Plus pre-encoded test signals to check that they are transferred transparently through the broadcast chain unaffected by routers/switchers, satellite links, etc.

The Audio - Dolby menu controls the generation of Dolby test data.

Note that with this software version Non-Keyed signals are generated which may

be incompatible with certain VTRs.

Overview

Menu Reference

There are a number of Dolby broadcast digital audio standards that transport audio data over an SMPTE 337M AES carrier with a 48kHz sample rate. The type of Dolby to be generated can be selected from the drop down list in the top left corner of the menu:

Dolby E

Dolby Digital

Dolby Digital Plus

These standards can be used to transport mono, stereo, 5.1 and 7.1 audio programmes:

Dolby 5.1 - involves ﬁve channels for normal-range speakers (20 Hz – 20,000 Hz) (right front, centre, left front, rear right, rear left) and one channel (20 Hz – 120 Hz allotted audio) for the subwoofer driven low-frequency effects.

Dolby 7.1 uses six channels in the primary program (Independent Substream) for a standard 5.1 surround sound mix and then the 2 remaining 2 channels in an ancillary programme (Dependent Substream) to provide the additional down-mix.

Dolby E

Dolby E is an audio encoding and decoding technology developed by Dolby Laboratories that allows up to 8 channels of audio (mono, stereo, 5.1 or 7.1) that for a primary programme (Programme 1) and optional ancillary programs. These 8 channels are compressed (lossless) into a digital stream that can be transferred between compatible devices and stored on a standard stereo pair of audio tracks. The most elaborate mode in common use is Dolby 7.1 which uses all eight channels to provide surround sound.

Dolby Digital

Dolby Digital (AC-3) is a ‘perceptual audio’ system for digital audio that allows the reduction of data needs to deliver high-quality sound. This system was developed primarily for DTV, DVD and HDTV. This format allow up to six channels of sound (mono, stereo or 5.1) in the form of a single ‘program’ that can be delivered at different bit rates. These 6 channels are compressed (lossy) into a digital stream that can be broadcast. The most elaborate mode in common use is Dolby 5.1 with uses all six channels to provide surround sound.

SxTAG Operation Manual 2–11PHSXT-200 3

Menu Reference

Dolby Digital Plus

Dolby Digital Plus (E-AC-3) is a more advanced version of Dolby Digital that provides a more efﬁcient encoding algorithm that provide enough bandwidth that allows up to 20 channels of audio (mono, stereo, 5.1, 7.1 up to 13.1) that for a primary programme (Programme 1) and optional ancillary programs that can be delivered at much lower bit rates than Dolby Digital. These 20 channels are compressed (lossy) into an independent digital data stream plus up to 8 dependent sub stream that can be transferred between compatible devices and stored on a standard stereo pair of audio tracks. The most elaborate mode in common use is Dolby 7.1 with uses eight channels to provide surround sound.

Dolby E Synchronisation - Generator Reference

The Dolby audio test signal produced by the Sx instrument is affected by the use of a reference signal connected to the Sx instrument and by the following settings:

Free Run - If the generator is not locked to reference, the Dolby signal will be generated synchronous to the generator. If the generator is running at a fast progressive rate (50-60 fps) it will generate packets on every other frame.

External Reference/Ext SDI reference - If the generator is locked to an external signal, the reference signal MUST be of an appropriate standard. See the table below for examples.

Video Output Format

1080i50 1080i50, 625i50(PAL)

1080i59 1080i59, 525i59(NTSC)

1080p25 1080p25, 1080i50, 625i50(PAL)

1080p29 1080p29, 1080i59, 525i59(NTSC)

720p50 1080p25, 720p25, 1080i50, 625i50(PAL) – due to length of

720p59 1080p29, 720p29, 1080i59, 525i59(NTSC) – due to length of

1080p50 1080p25, 720p25, 1080i50, 625i50(PAL) – due to length of

1080p59 1080p29, 720p29, 1080i59, 525i59(NTSC) – due to length of

Valid Reference Formats

packet being over 1 frame long

packetbeing over 1 frame long

packet being over 1 frame long

Editing Program Information

Stream type: Only Dolby-E streams can be generated with this software version.

Conﬁg, Bit Depth: The program conﬁguration and Bit Depth can be changed to load the pre-

encoded ﬁle.

Stream contents: The tones generated are of a ﬁxed predeﬁned frequency. Four sets of pre-

encoded streams are provided:

Ramp Var - Each channel has a different frequency to allow checking of channels. The levels are ramped so that different channels have different levels.

-3dB Fixed - All the tones are at -3dB co-phased/timed and are at the same frequency.

-18dB Fixed - All the tones are at -3dB co-phased/timed and are at the same frequency.

-20dB Fixed - All the tones are at -3dB co-phased/timed and are at the same frequency.

Fixed Frequency values for “Fixed level“streams above:

2–12 PHSXT-200 3Menu Reference 11/14

Frame Rate Normal Frequency LFE Frequency

23.98 4.8kHz 211Hz

24 6kHz 240Hz

25/50 6kHz 240Hz

29.97/59.84 6kHz 133Hz

30/60 6kHz 240Hz

Dolby-E start line: The start line can be used to set valid or invalid ranges to allow checking of

the Dolby-E guard band on downstream equipment. If the start line is set outside the valid range speciﬁed by Dolby, the line number will be displayed in RED.

Relative to Ideal If this check box is checked, the line number displayed is relative to the

Dolby speciﬁed ideal line. A value of ‘0’ therefore starts the Dolby-E packet on the ‘Ideal Line’ for that video format.

Frame Rate This is set by default to the currently generated frame rate but may be

modiﬁed by the user to test downstream equipment.

Original rate This is set by default to the currently generated frame rate but may be

modiﬁed by the user to test downstream equipment.

Menu Reference

Note that if generating a progressive fast rate video standard such as 720p50,

720p59 or 720p60 etc. the Dolby-E signal will always be generated at the related slower rate. This is a Dolby restriction as the packets are over 1 frame in length for these video formats.

Program Meta Data Editing

Many of the meta-data ﬁelds may be edited to test downstream equipment. The Channel Mode ﬁeld may be edited to invalid settings but they will be shown in RED to show that they are invalid. The settings currently being edited are for the selected program but multiple program meta-data values can be modiﬁed and the settings for all programs are stored in memories.

Meta-data changes and line changes will happen cleanly so that no corruption to the Dolby signal will occur.

A maximum of 30 characters may be used for program description text. If the text is longer than this, extra characters will be ignored.

The “Generator” – “Dolby” menu allows the metadata for a Dolby E data stream to be setup for testing purposes. The main purpose of setting these metadata ﬁelds is to check that they are transferred transparently through the broadcast chain unaffected by routers/switchers, satellite links, etc. For any programme this metadata would be created as part of Dolby E authoring process. Using the Dolby generator, the following metadata can be setup for Program 1:

Dialogue Norm is the normal audio level for dialogue. Ideally all transmitted programs

would have the same value.

BsMod (Bitstream Mode) indicates the type of audio service that the bitstream

contains. Complete Main (CM) is the normal mode of operation and contains a complete audio program including dialog, music, and effects.

Ctr DnMix (centre down-mix) is a weighting value used in the encoding and decoding of

surround sound mixes for a Dolby 5.1 Independent Substream.

Sur DnMix (surround down-mix) is a weighting value used in the encoding and decoding

of surround sound mixes for a Dolby 5.1 Independent Substream.

SxTAG Operation Manual 2–13PHSXT-200 3

Menu Reference

LRoCtrDnMix (left/right/stereo/centre down-mix) is a weighting value used in the encoding

LRoSurDnMix (left/right/stereo/surround down-mix) is a weighting value used in the

LR CtrDnMix (left/right/centre down-mix) is a weighting value used in the encoding and

LR SurDnMix (left/right/surround down-mix) is a weighting value used in the encoding and

Chan Mode deﬁnes the channel conﬁguration for Program 1 (ie mono, stereo, 5.1

Line Mode this is an Operational Mode / Dynamic Compression Mode that is used

RFMode this is an Operational Mode / Dynamic Compression Mode that is used

and decoding of surround sound mixes for a Dolby 7.1 Dependent Substream.

encoding and decoding of surround sound mixes for a Dolby 7.1 Dependent Substream.

decoding of surround sound mixes for a Dolby 5.1 Independent Substream.

channels).

by consumer and professional decoder products that simpliﬁes the implementation of Dialogue Normalization, Dynamic Range Control, and down mixing functions, all of which are necessary in Dolby Digital products.

Room Type this informational parameter indicates the type and calibration of the mixing

room used for the ﬁnal audio mixing session.

MixLevel the Surround Down mix Level parameter indicates the nominal Lo/Ro down

mix level of the Surround channel(s) with respect to the Left and Right channels

DolbySurnd the Dolby Surround Mode parameter indicates whether or not a two-

channel Dolby Digital bitstream is conveying a Dolby Surround encoded program.

DownMixMod this controls the Down Mix Mode which is used by the content creator to

optimize Center and Surround channel levels for use in stereo down mix mode for any two-channel programmes.

D Sur Ex this controls the Dolby Surround Ex channel that provides an extra audio

channel for Dolby 5.1. The extra surround channel of the Dolby Surround Ex system is matrix-encoded onto the discrete left-surround and right-surround channels of the 5.1 mix.

The following control bits can also be set:

LFE the LFE Channel parameter enables or disables the Low-Frequency Effects

(LFE) channel.

HPF this parameter can be used to activate the DC High pass ﬁlter for all input

channels.

LPF the LFE Low pass Filter parameter can be used to activate a 120 Hz low-

pass ﬁlter applied to the LFE input channel.

Sur 3dB Alt the Surround Channel 3 dB Attenuation function is use to apply a 3 dB

attenuation to the Surround channels of a multichannel soundtrack created in a room with ﬁlm style calibration, when encoding it for consumer home theater playback.

2–14 PHSXT-200 3Menu Reference 11/14

Sur Ph+Filter the Surround Channel 90-Degree Phase-Shift feature is used for generating

multichannel Dolby Digital bitstreams that can be down-mixed in an external two channel decoder to create a true Dolby Surround compatible output.

Org Stream the Original Bitstream informational parameter sets the value of a single bit

within the Dolby Digital bitstream. This bit has a value of 1 (box checked) if the bitstream is an original. If it is a copy of an original bitstream, it has a value of 0.

within the Dolby Digital bitstream. If this bit has a value of 1 (box checked), the information in the bitstream is indicated as protected by copyright. If it has a value of 0, it is not copyright protected.

RF 0v Prot the RF Over-modulation Protection parameter determines whether or not

an RF pre-emphasis ﬁlter is used in the overload protection algorithm to prevent RF over-modulation in set-top box decoders.

Default Program Meta Data

Pressing the “Default” button will return program meta-data settings to their default values.

Embedding Dolby on SDI Stream

To embed Dolby signals on an SDI stream, the Audio source for that channel should be set to ‘Dolby’. These source selections are found on the Generator – Audio Group 1,2,3,4 pages. Selecting one channel of an audio pair to ‘Dolby’ will force the other channel in the pair to select ‘Dolby’ also. As the Dolby streams are data, the volume and phase controls are disabled. Changing a channel from Dolby to another source will cause the other channel in the pair to select silence.

Menu Reference

Embedding Dolby Signals on AES Stream

To embed Dolby signals on the AES output, the Audio source for the AES output should be set to ‘Dolby’. This selection is found on the right hand side of the Generator – Audio Group 1,2,3,4 pages.

SxTAG Operation Manual 2–15PHSXT-200 3

Menu Reference

2–16 PHSXT-200 3Menu Reference 11/14

Analyzer Menu

Overview

The SxTAG signal analyzer displays the selected Composite, SDI or Fibre video input or output signal. The source for the analyzer is set by the ﬁeld at the bottom right of the page. The current line and sample are the same for all pages of the analyzer and therefore when selecting a sample on the Signal Data page, the cursor will show where that is on the ‘Full Picture’ page.

Menu Reference

SxTAG Operation Manual 2–17PHSXT-200 3

Menu Reference


The Picture monitor will automatically apply the appropriate transforms to display the images in YCrCb, RGB and XYZ colour spaces correctly. The colour space transform to be applied is deﬁned by the SMPTE 352 payload.

Analyzer Source Selection

The Picture monitor can display the Composite input, the SDI input, the SFP video input or the generator test pattern. This is done using the drop down menu in the bottom right-hand corner of the menu.

With Picture selected, the video picture is displayed in a window as a downconverted display.

If the picture window is selected and current tab button is pressed again to enter full-screen mode, the cursors may be moved by pressing the OK button again.

The displayed options will be different depending on whether SDI or Composite video is being displayed.

Sample, Line and Field Selection

Sample: Specify the current sample for analysis.

Line: Specify the current line for analysis.

Field: (Only for interlaced formats) This control selects the ﬁeld for analysis. If the

current line is in Field 1, changing the ﬁeld will change to the same line in ﬁeld 2. The ﬁeld number will change to show the correct ﬁeld for the current line number.

The picture will automatically view the horizontal or vertical blanking areas if the line or sample values are in the blanking area.

Aspect Ratio

The aspect ratio of PAL (625 lines) may be set to be either 4:3 or 16:9 as required for the source signal. NTSC (525) signals are always 4:3 aspect ratio and HD signals are always 16:9.

2–18 PHSXT-200 3Menu Reference 11/14

Zoom

If the Zoom check box is not checked, the picture displayed is a down-converted picture to ﬁll the window or the full screen as requested. If checked, then a pixel on the LCD display will reﬂect a pixel in the video signal. In zoom mode, no ﬁltering is used.

Active Picture

If the ActPix check box is selected, only active picture is displayed for picture view and waveform monitor, all other VBI data such as TRS words ANC data and audio is blanked.

Cursor

A cursor may be turned ON over the area of the picture speciﬁed by the speciﬁed line and sample.

if the focus cursor is moved to the picture window and OK pressed, the cursor may be used to scroll around the window. Press OK again to cancel this mode. When in zoom mode, the cursor is always in the centre of the window and the picture scrolls behind it. If the cursor is moved to an area of interest on the picture, the same area will be visible on the SDI data option (if purchased).

Note that the normal cursor menu keys may be used but are not visible. Press OK

again to cancel cursor adjustment mode.

Menu Reference

Composite Input Termination

The “Term” check box that is present when composite video is displayed is used to terminate the composite video input. Un-terminating the composite input can be useful if the signal being monitored is terminated at the end of the cable run.

Blue

Show only the Blue aspect of the picture Blue.

SxTAG Operation Manual 2–19PHSXT-200 3

Menu Reference

Waveform Monitor

Analyzer Source Selection

The Waveform monitor can display the Composite input, the SDI input, the SFP video input, the analogue locking Reference input or the generator test pattern. This is done using the drop down menu in the bottom right-hand corner of the menu.

The Waveform menu displays the selected input in the form of a waveform monitor.

The display may be restricted to a single line or all lines may be displayed at the same time. The display can be formatted as all streams (Luma and Chroma) or just a single stream.

The displayed options will be different depending on whether SDI or Composite video is being displayed.

Sample, Line and Field Selection

The line, sample and ﬁeld controls all track the related controls on other pages.

The ‘All’ check box forces the waveform monitor to display all lines, overlaid on each other. Otherwise the speciﬁed line is displayed.

Sample: Specify the current sample for analysis.

Line: Specify the current line for analysis. This is useful when test patterns are

transmitted as part of a programme on speciﬁc video lines.

Field: (Only for interlaced formats) This control selects the ﬁeld for analysis. If the

current line is in Field 1, changing the ﬁeld will change to the same line in ﬁeld 2. The ﬁeld number will change to show the correct ﬁeld for the current line number.

All the All check box forces the waveform monitor to display all lines, overlaid

on each other. Otherwise the speciﬁed line is displayed.

The waveform will automatically view the horizontal or vertical blanking areas if the line or sample values are in the blanking area.

2–20 PHSXT-200 3Menu Reference 11/14

Waveform Type

The waveform monitor displays the selected signal in one of 5 formats as set by the Mode control:

YCbCr The Y, Cr and Cb waveforms are shown as three separate waveforms in a

Parade format

Y Only the luminance channel is shown

Cb Only the blue chroma channel is shown

Cr Only the red chroma channel is shown

GBR The Green, Blue and Red waveforms are shown as three separate waveforms

in a Parade format

Red Only the red channel is shown

Green Only the blue chroma channel is shown

Blue Only the red chroma channel is shown

XYZ, X, Y , Z settings in the Waveform monitor display the 2K-SDI XYZ colour space in its

native non-linear form. So test patterns such as 2K. XYZ Legal Ramp will be displayed as curves instead of straight lines.

X’Y’Z’, X’, Y, Z’ settings in the waveform monitor display the 2K-SDI XYZ colour space with

a reverse transform to convert it to linear form. So test patterns such as 2K, XYZ Legal Ramp will be displayed as straight lines.

Menu Reference

Normal This shows the full composite video waveform.

Chroma This shows the chrominance of the composite waveform.

Low Pass This shows the low pass luminance of the composite waveform.

Magniﬁcation

The next 2 controls show the vertical and horizontal magniﬁcations. If either value is set to a value other than x1, a vertical or horizontal offset will be shown on the bottom right edge of the waveform display.

The waveform can be offset by moving the focus cursor to the waveform window and pressing OK. The menu keys can then be used to scroll around the window. The offset will be the same for all magniﬁcations values so switching between x1 and x5 will not lose the offset used in x5 mode.

The vertical offset values are in signal level bits but displayed in the current scale units so switching between scales will keep the same offsets.

Cursors

Cursors may be displayed over the waveform to allow measurement of time or amplitude values. The cursor may be set to several modes:

Off: Cursors are hidden

Pict: The cursor is displayed at the current pixel point. If in YCbCr or RGB mode, three

cursors are displayed. Otherwise a single cursor is displayed. The cursor position tracks across the picture monitor and Signal Data tabs.

Ampl: Two cursors are displayed to allow measurement of signal amplitudes.

Time: Two cursors are displayed to allow measurement of signal timing.

Both: Amplitude and time cursors are displayed.

SxTAG Operation Manual 2–21PHSXT-200 3

Menu Reference

To use the cursors, use the navigation keys to move the focus to the waveform display and press OK. You should then get a display similar to that below. Note that the menu keys shown depend on the display mode and cursor mode.

The navigation keys now move the selected cursor around the waveform display which will scroll if moved out of the visible area. The x10 and x100 buttons magnify the action of the navigation keys if held down.

The Select Window button is only available in YCbCr or RGB modes and selects the window that the cursor is displayed in.

The Amplitude Cursor and/or the Timing Cursor buttons switch the currently active cursor. In each direction two cursors are displayed. The currently active cursor is the one displayed as a full line (rather than the dotted cursor). The bottom of the waveform screen shows the cursor measurements in the current format which may be Decimal, Percentage or Hexadecimal for amplitude measurements or Pixels/uS for timing measurements. The difference between the two cursors is also displayed in absolute form.

The Cursor Mode button changes the current mode without having to leave the navigation window.

Setup Button Dialogue

The Waveform Setup menu allows the vertical and horizontal scale of the waveform display to be setup as well as controlling the intensity and persistence of the display.

Active Picture: If checked, only active picture is displayed for picture view and waveform

monitor, all other VBI data such as TRS words ANC data and audio is blanked. This control tracks the state of the ActPix control on the Picture.

Vertical Scale: The axes and measurements for the waveform monitor can be displayed

either in percentages or in hex or decimal values as required.

Horizontal Scale: The timing measurements may be set in either pixels or micro-seconds (us)

Intensity Controls the brightness of the waveform.

Persistence Controls the amount of time each pixel sample of the waveform remains on

the display before it is replaced by a new value.

When viewing the composite or reference input the displayed waveform is a digital rendition of the actual analogue signal. This may have interference artefacts due to data sample rate differences between the display and the data itself. The value in the numeric box below Persistence can be used to control these artefacts without loosing waveform resolution.

External Reference

Selecting the Ext Ref check box is when a PAL or NTSC signal is being viewed, will horizontal reposition the waveform to show the difference in position between the composite input signal and the locking reference signal.

2–22 PHSXT-200 3Menu Reference 11/14

Vectorscope

The Vectorscope menu displays the selected input in the form of a vectorscope. This may be set to show either the 100% bar positions or 75% positions. The colour bar position boxes will change according to the colour space for the current input video standard.

The Vectorscope will automatically apply the appropriate transforms to display the images in YCrCb, RGB and XYZ colour spaces correctly. The colour space transform to be applied is deﬁned by the SMPTE 352 payload.

Analyzer Source Selection

Menu Reference

The displayed options will be different depending on whether SDI or Composite video is being displayed.

Sample, Line and Field Selection

The line, sample and ﬁeld controls all track the related controls on other pages.

The ‘All’ check box forces the waveform monitor to display all lines, overlaid on each other. Otherwise the speciﬁed line is displayed.

Sample: Specify the current sample for analysis.

Line: Specify the current line for analysis. This is useful when test patterns are

transmitted as part of a programme on speciﬁc video lines.

Field: (Only for interlaced formats) This control selects the ﬁeld for analysis. If the

current line is in Field 1, changing the ﬁeld will change to the same line in ﬁeld 2. The ﬁeld number will change to show the correct ﬁeld for the current line number.

All the All check box forces the waveform monitor to display all lines, overlaid

on each other. Otherwise the speciﬁed line is displayed.

SxTAG Operation Manual 2–23PHSXT-200 3

Menu Reference

Magniﬁcation

The “Zoom2 function allows the vector scope display to be zoomed-in to the Centre, Cyan,

Graticule

The “100%”/”75%” drop down selects the graticule scale to match the colour bars being analysed.

Setup Button Dialogue

Yellow, Green, Magenta, Red or Blue positions at x1, x2, x5 or x10 magniﬁcations.

The Vectorscope Setup menu allows the intensity and persistence of the display to be adjusted. A colour wheel background can also be added.

Intensity Controls the brightness of the waveform.

Persistence Controls the amount of time each pixel sample of the waveform remains on

the display before it is replaced by a new value.

Background Allows the selection of different intensities of the colour wheel as the

graticule background

When viewing the composite input the displayed waveform is a digital rendition of the actual analogue signal. This may have interference artefacts due to data sample rate differences between the display and the data itself. The value in the numeric box below Persistence can be used to control these artefacts without loosing waveform resolution.

Composite Subcarrier Phase Alignment

When viewing a PAL or NTSC signal, the Ref check box when selected will lock the vectorscope to the subcarrier phase of the locking reference signal. The value entered into the Deg (degree) box to place the PAL or NTSC burst in the correct alignment is a measure of the subcarrier phase difference between the input signal and locking reference.

2–24 PHSXT-200 3Menu Reference 11/14

Signal Data

The Signal Data menu shows the video signal as a data stream in several formats as described below. In each mode, the data may be displayed in hexadecimal, decimal or binary formats. The binary format is not available in grid mode. The data may also be displayed as 10-bit or 8-bit format.

To simplify scrolling around the SDI signal view, use the cursor keys to move the red focus rectangle to the data display and press OK. The focus rectangle should change to a blue colour and the cursor keys allow the display to be scrolled in any direction. The menu keys at the bottom allow the Line/Sample to be adjusted by 10 or 100 in any direction.

Note that the line number of a line of video changes at the end of active video.

This gives the strange side effect that the line number for pixels in horizontal blanking is the same as the line number for the active picture after that line.

Menu Reference

Analyzer Source Selection

The Signal Data display can view the SDI input (In1), the SFP video input (SFP In) or the generator SDI test pattern (Out 1). This is done using the drop down menu in the bottom righthand corner of the menu.

Note that when in Colour modes other than YCbCr 422 10 bit, the pixel RGB or

YCbCr values are packed into 10 bit values across the different streams and thus will give unfamiliar values. When the ‘UnPack’ check box is checked the values in

the active picture are unpacked to RGB or YCbCr values.

Type

Grid: In this mode the data is shown in an X-Y format with lines and samples at the same

time. Thus this is a representation of the picture but in data format. If the cursor keys are used to select the grid window and ‘OK’ pressed, the cursor keys will scroll around the window. The luma (Y) channel is shown in white whilst the Cr and Cb channels are shown in with a red or blue tint respectively.

Strm: This is one of 3 modes for displaying the samples on the current line only. The

cursor keys may be used to scroll the sample number when ‘OK’ has been pressed. The ‘info’ column shows the type of data being displayed.

AP - Active picture VBL - Vertical blanking HBL - Horizontal blanking

Comp: This is a similar to the Strm mode above but in a component mode with Cr and Cb

in different columns. See Strm mode above for the info column description.

Split: This mode shows the 2 streams split into 4 parts to show Y, Y’, Cr and Cb in

separate columns. See Strm mode above for the info column description.

SxTAG Operation Manual 2–25PHSXT-200 3

Menu Reference

2–26 PHSXT-200 3Menu Reference 11/14

Test Equipment Depot - 800.517.8431 - 99 Washington Street Melrose, MA 02176 - TestEquipmentDepot.com

Menu Reference

Signal Information Menu

Overview

These pages give a detailed view of the status of the input (or generator output) signal. They are sub-divided into Video, Misc, Audio and Ancillary (ANC) status.

Video Status

The Video Status menu display the status of the selected video input and displays any errors that have been found in the data stream.

EDH/CRC ERRORS

This displays the EDH or CRC status of the analyzer input as appropriate for the video standard being monitored. The status of each EDH/ CRC count is displayed as the number of seconds since an error occurred. The individual CRC ﬁelds may be reset individually or together. The ‘running time’ ﬁeld shows the time since the last error reset occurred. The error rate ﬁeld shows the number of errors per second. The running time will also be affected by the input being lost or being intermittent. CRC errors are ignored on the switching line if the ‘Ignore switch line’ check box is checked.

ANC checksum errors are also detected and counted and may be logged.

When analysing a 3G-Level B signal, the CRC status is displayed for each link or stream present according to the input video format. On an Sx instrument with a Dual-Link with 2 video inputs, only one 3G-Level B may be analysed for CRC status at a time.

EDH DATA

If the signal is SD (PAL-625 or NTSC-525) the EDH values for both active picture (AP) and full-ﬁeld (FF) are displayed for each ﬁeld. To enable engineers checking EDH integrity, the EDH values calculated for active picture and full-ﬁeld are also displayed.

Under normal conditions, the EDH-AP values should be constant, the full-ﬁeld values may change if audio or other ancillary data is embedded in the SDI signal.

The EDH ﬂags for active picture, full-ﬁeld and ancillary data are also displayed for diagnostic purposes.

Edh: Error Detected Here - This is set to 1 if a SDI error was detected. In the case of ancillary data, this means that one or more ANC data packets had an incorrect checksum.

Eda: Error Detected Already - This is set to 1 if a SDI error was detected in the signal received by the previous device.

Idh: Internal error Detected Here - This is set to 1 if a hardware error was detected in the previous device.

SxTAG Operation Manual 2–27PHSXT-200 3

Menu Reference

Ida: Internal error Detected Already - This is set to 1 if an idh ﬂag was received by the previous device.

Ues: unknown error status: This is set to 1 if the previous device received an SDI signal from a device not supporting EDH.

Note that there is only one EDH detector which is connected to the input currently being analysed. On an Sx instrument with multiple video inputs, only the current input being analysed can check for EDH errors.

Cable Length

The Sx instrument measures the cable length connected to the SDI input BNC and the measurement is only an approximate value.

The cable type may be set to one of the following:

The selected cable type will affect the cable length measurement.

Active Picture CRC

Belden 8282, 1694A, 1505, 1855A.

Canare L-5CFB

Image 1000

16-bit CCITT CRCs are calculated for the active picture data of the received signal. This can be used to give a known value for known static picture content and allows the user to determine if the active picture content is as expected.

CRCs are calculated independently upon each 10-bit stream (luminance and chrominance) of the interface.

For example the generated 1920x1080, 100% bars in YCC422-10 should always produce a luminance CRC of 0x0AB4 and a chrominance CRC of 0xB88E, no matter what scanning mode (interlaced, segmented frame or progressive) or frame rate is used.

Note: when using 4:4:4, 4:4:4:4 or 12-bit video formats (in dual-link or 3Gbps)

the CRCs are calculated for each of the packed 10-bit virtual interfaces and will therefore generate different values from those for YCC422-10.

See the “Active Picture CRC Technical Information” section at the end of the manual for details of CRC calculation.

2–28 PHSXT-200 3Menu Reference 11/14

MISC Status

The Misc Status menu display the status the SMPTE 352 packets embedded in the selected video input and displays any errors that have been found.

Payload ID – SMPTE 352

If the Sx instrument has detected a SMPTE 352 ancillary packet, it will be displayed here in hex and decoded format.

The display shows the transport media, frame rate and interlaced/progressive/segmented frame mode, as well as colour format, bit depth, dynamic range and channel number. See the SMPTE 352 speciﬁcation for further details.

Menu Reference

When analysing a 3G-Level B signal, the SMPTE 352 status is displayed for each link or stream present according to the input video format. On an Sx instrument with Dual-Link with 2 video inputs, only one 3G-Level B may be analysed for 352 status at a time.

Video Format

This displays the currently detected line length for both active video and full line including blanking as well as the number of active lines for the inputs present.

Note that the video frequency displayed is only correct if the Sx instrument has

been calibrated and free running or has been connected to an accurate reference input.

If the input signal is not a known signal (i.e. the line count or pixel count is not recognised) The input status on the top line will show “Invalid” but the values in this section will be updated every few seconds.

The Re-sync counter displays the number of times the SDI data has been re-synchronised and can help detect intermittent SDI signal problems.

SxTAG Operation Manual 2–29PHSXT-200 3

Menu Reference

Video Timing

The timing of SDI input signals is displayed relative to the external reference. If no reference is present then an error message is displayed. If the signal is timed to within +/- 2 samples the values are displayed in black in lines and samples (spl) If mis-timed, then they will be displayed in red. A bar graph also displays the timing value which may either be line timing (+/- 0.1 lines or +/- 0.5 lines) or frame timing (+/- 0.5 frame). The total timing value is also displayed in micro seconds.

The RED arrow on the bar shows the SDI input timing and the BLUE arrow shows the current target timing point. The BROWN line shows the timing of the reference signal.

The Video Timing menu displays the relationship between the SDI and composite video inputs with respect to the locking reference input.

To compare timings of different signals, connect the signal to be compared to the SDI input and select the “Offset” button to make this the current offset. All future timings will be relative to this offset value.

To clear the current offset, move the focus to the 2 offset ﬁelds, press OK to edit them and then press default.

Note that all timing measurements are relative to line 1 on the SDI signal and

line 1 on the reference signal. This can lead to different values to other test and measurement instruments that include an SD (PAL/NTSC) offset in their calculations. By comparing line 1 timings, the Sx instrument can be used to accurately measure time delays through up/down/cross converters.

2–30 PHSXT-200 3Menu Reference 11/14

ANC Status (ANC Option)

The ANC status menu shows which ANC packets are present on the SDI input and whether they have any errors. Each ﬁeld is colour coded according to whether the ANC packet is present (White), missing (Grey), has errors (Red), or has previously had errors (yellow).

If the ﬁeld has errors then a symbol beside the ﬁeld shows which error type it is. The bottom of the page shows the symbol for each type of error. The Reset button resets the “Previous Errors” state.

The Setup button and dialog allows user deﬁned ANC packets to be conﬁgured.

Menu Reference

The packet name, data ID (DID) and SDID may be speciﬁed for up to 3 user-deﬁned ancillary packets. The stream ﬁeld speciﬁes whether the packet should be on the chroma stream, the luminance stream or both.

SxTAG Operation Manual 2–31PHSXT-200 3

Menu Reference

ANC Inspector (SDI Data Option)

The packet type can be selected using either the drop down list of known packets or the DID/ SDID number ﬁelds. If the DID/SDID values match a known type, then that type will be selected in the drop down list. This may be further ﬁltered using the Check Boxes on the Setup dialogue.

The Line and sample number of the detected packet is displayed to facilitate debugging of generation equipment. The complete data packet is displayed as a hexadecimal grid at the bottom of the page and may also be decoded into text above the grid.

If an error occurs in the packet, the header and checksum are displayed in red.

The SDI Data Option allows Ancillary data packets to be detected and checked for errors.

The ANC Inspector menu displays details of the ANC packets.

The display of data may be frozen by pressing the Freeze check box.

The ‘Found’ description shows in which stream the ANC packet was detected, Chroma or Luma and what kind of trigger was detected. This may be:

C Checksum Error

D DBN (Data block number) Error

P Parity Error

G ANC Gap error

Several of the above ﬂags may be displayed at the same time.

The ANC packets detected may be ﬁltered using the Setup dialogue. This allows a great deal of freedom in setting when the display will be triggered.

If the On Trigger check box is checked the data packet will cause the display to be frozen and the Freeze check box will turn red when a trigger condition is met. See the section on the ANC Inspector setup dialogue below. Un-checking the freeze button will restore normal operation.

The “->Cursor” button will copy the Line and Sample numbers to the SDI data view cursors to simplify navigation to the ANC packet under investigation.

2–32 PHSXT-200 3Menu Reference 11/14

ANC Inspector Setup

If the Setup button is pressed a dialogue box is shown to allow the ANC packet trigger parameters to be set. The trigger parameters allow only selected lines to be checked or excluded when checking for the presence of packets.

Line Range Filer If either of the Line Range Filter check boxes are checked then the range

of lines that the ANC inspector will check is limited to that range. If the Selection below the range is set to “Inside” then it will only check ANC packets inside the range (including the start and end lines). If it is set to “Outside” then it will only check ANC packets outside the speciﬁed range.

HANC/VANC Filter This is another ﬁlter for simpler selection of where to search for packets. It

may be selected to search the HANC are, the VANC area or both areas.

Menu Reference

VANC Area

HANC Area

Acve Picture

Error Triggers

If any of the “Errors” check boxes are checked, then the ANC packet data will only be displayed if an error occurs. The error states detected are:

Checksum: A checksum error in a packet was detected. (Sum of data between DID and

ﬁnal UDW)

DBN: A Data Block number error was detected in an audio packet. The DBN ﬁeld

(in the same place as the SDID) of an audio packet should either be 0 and never change OR increment from 1...255 and then start at 1 again.

Parity: A parity error was detected for the DID, SDID and DataCount words in a

packet. (Even Parity used and bit 9 is inverse of bit 8)

ANC Gaps The ANC packets were separated by a gap containing video blanking

data. EDH (DID=0xf4) packets are ignored. Note that if an EDH packet is marked for deletion, this will result in an ANC GAP error.

The Setup dialogue also shows when an ANC packet has been detected and where it was found. This makes changing a ﬁlter simpler as the effect of the ﬁlter can be determined without closing the dialogue.

This dialogue also allows the user deﬁned ANC packets to be conﬁgured.

SxTAG Operation Manual 2–33PHSXT-200 3

Menu Reference

SFP Info

The SFP Info menu displays details of the currently installed SFP module.

2–34 PHSXT-200 3Menu Reference 11/14

Audio Menu

Meters

Menu Reference

The Audio Meters menu displays up to 16 audio channels. The source for each block of 8 meters may be independently set to allow simultaneous metering of 8 inputs and 8 outputs or all 16 channels in an embedded SDI stream.

If AES or analogue inputs or outputs are present then these may also be metered. At the bottom of each meter is the current audio level for that channel in dBFs (decibels relative to 0dB full-scale).

If the Dolby metadata analysis option is installed then the audio levels deﬁned in the metadata can be displayed on the meters.

The scale used by the meters may be set to -18dB or -20dB according to the standard operating level used.

If the Dolby option has been purchased, the meters may be set to display the encoded Dolby levels for the speciﬁed audio pair or AES input.

Note that Dolby audio cannot be heard on the speaker as a Dolby decoder is not

present.

SxTAG Operation Manual 2–35PHSXT-200 3

Menu Reference

Audio Status

The Audio Status menu shows the Channel Status for the selected audio channel is displayed in decoded form as well as a hexadecimal dump of the bytes. The source may either come from the input signal or from the generator for comparison purposes.

2–36 PHSXT-200 3Menu Reference 11/14

Dolby Status (Dolby Analyzer Option)

The Dolby-E status option allows display of the Dolby-E meta-data present in the selected audio stream and determines whether the Dolby-E packet is timed correctly on the SDI video stream.

This option therefore allows the Dolby-E aspect of the signal to be timed correctly at all stages in a broadcast chain.

Checks can be made to see that the Dolby E has been created correctly and transferred transparently through the broadcast chain unaffected by routers/switchers, satellite links, etc.

Overview

There are a number of Dolby broadcast digital audio standards that transport audio data over an SMPTE 337M AES carrier with a 48kHz sample rate:

Menu Reference

Dolby E

Dolby Digital

Dolby Digital Plus

These standards can be used to transport mono, stereo, 5.1 and 7.1 audio programmes:

Dolby E

Dolby Digital

SxTAG Operation Manual 2–37PHSXT-200 3

Menu Reference

SDI

I/O

PAL/NTSC

OUT

PAL/NTSC

(AES-EYE)

REF

I/O

VIDEO

SFP

NON-MSA

SDI source with Dolby-E

embedded on a pair

Dolby Digital Plus

Analyser Reference

In order for the Dolby-E data to be decoded correctly, the internal audio circuitry requires a reference that is synchronized to the input signal. The Generator Reference MUST therefore NOT be set to Free-Run or Dolby-E errors may be detected. The description ﬁeld will display “Invalid Reference” if an incorrect reference is selected.

In this example, the SDI signal contains embedded audio with Dolby-E present on one or more audio pairs. The Sx instrument needs to lock its internal audio clock to the SDI signal (Generator – Genlock – Source=Input 1) and the Dolby Timing source should be set to SDI.

If the AES signal contains a Dolby-E stream. The SxTAG needs to lock its internal audio clock to the external reference signal and the Dolby Timing source should be set to Ext.Ref. The AES source MUST be locked to the same reference as the SxTAG.

Source selection

The Dolby-E may be monitored from any of the SDI input embedded audio channel pairs or the AES input.

Dolby E Framing Values

It is important for the Dolby-E packet to be positioned well away from the video switching line so that Dolby-E packets are not corrupted by downstream switchers. At all places in the signal chain where audio can be delayed by a different value to the video, the Dolby-E packet needs to be re-timed to make sure that this timing speciﬁcation is met. The position of the Dolby-E

packet in the video frame is displayed in lines and micro-seconds (us).

2–38 PHSXT-200 3Menu Reference 11/14

Dolby E Timing source

Dolby-E timing may be measured relative to the SDI input or the External reference. If the ‘Ideal’ check box is checked, the Dolby-E Frame timing is relative to the normal position that it should be, i.e. it should be as close to 0 as possible. Each video standard has a speciﬁed ‘Ideal’ line number that the Dolby-E packet should start on. If the Dolby-E timing line is outside the valid range of lines it will be displayed in red. If it is outside the ideal range it will be displayed in dark green – this is still a valid Dolby-E position but not recommended by Dolby. The timing measurement is always displayed in terms of the SDI input lines and thus if an AES input is used as the Dolby-E source, the line position will NOT be displayed.

If you do not have the same reference as the SDI source, you will have to set the Reference Source and Dolby Timing Source to be the SDI input.

IMPORTANT: If Dolby-E is present on a fast frame rate signal (50p, 59p or 60p) then it should always be referenced to a interlaced reference at the same ﬁeld rate as the packet length is longer than a single frame and must start at the beginning of an even numbered frame.

Dolby E Programme conﬁguration

This displays the Program conﬁguration (5.1+2 etc), the number of program in the meta-data, the frame rates and bit depths and time-code if any present.

Menu Reference

Errors: This displays the number of CRC errors detected in the Dolby-E meta-data.

Start Gain: These ﬁelds indicate the gain to be applied to the speciﬁed channel at the

beginning of the audio frame when decoding.

End Gain: These ﬁelds indicate the gain to be applied to the speciﬁed channel at the

end of the audio frame when decoding.

Program selection: Selects which set of program meta-data is shown. Up to 8 programs can be

encoded in the Dolby-E packet dependent on the Program Conﬁguration.

Program description User deﬁned description for the selected program.

Program Metadata The meta-data is displayed in a Dolby speciﬁed order. Any data not

required for the Program Conﬁguration speciﬁed is grayed out and the data hidden.

SxTAG Operation Manual 2–39PHSXT-200 3

Menu Reference

Dolby Digital Programme conﬁguration

Dolby Digital Plus Programme conﬁguration

When Dolby Digital metadata is analysed this displays channel conﬁguration and limited metadata that is sent with Dolby Digital.

When Dolby Digital Plus metadata is analysed this displays the Main, Dependent and Independent program stream conﬁguration and limited metadata that is sent with Dolby Digital Plus.

2–40 PHSXT-200 3Menu Reference 11/14

Programme Metadata

The “Audio” – “Dolby” menu allows the metadata for a Dolby E data stream to viewed. For any programme this metadata would be created as part of Dolby E authoring process. The following metadata can be viewed for Program 1:

Dialogue Norm is the normal audio level for dialogue. Ideally all transmitted programs

would have the same value.

BsMod (Bitstream Mode) indicates the type of audio service that the bitstream

contains. Complete Main (CM) is the normal mode of operation and contains a complete audio program including dialog, music, and effects.

Ctr DnMix (centre down-mix) is a weighting value used in the encoding and decoding of

surround sound mixes for a Dolby 5.1 Independent Substream.

Sur DnMix (surround down-mix) is a weighting value used in the encoding and decoding

of surround sound mixes for a Dolby 5.1 Independent Substream.

LRoCtrDnMix (left/right/stereo/centre down-mix) is a weighting value used in the encoding

and decoding of surround sound mixes for a Dolby 7.1 Dependent Substream.

LRoSurDnMix (left/right/stereo/surround down-mix) is a weighting value used in the

encoding and decoding of surround sound mixes for a Dolby 7.1 Dependent Substream.

Menu Reference

LR CtrDnMix (left/right/centre down-mix) is a weighting value used in the encoding and

decoding of surround sound mixes for a Dolby 5.1 Independent Substream.

LR SurDnMix (left/right/surround down-mix) is a weighting value used in the encoding and

decoding of surround sound mixes for a Dolby 5.1 Independent Substream.

Chan Mode deﬁnes the channel conﬁguration for Program 1 (ie mono, stereo, 5.1

channels).

Line Mode this is an Operational Mode / Dynamic Compression Mode that is used

RFMode this is an Operational Mode / Dynamic Compression Mode that is used

Room Type this informational parameter indicates the type and calibration of the

mixing room used for the ﬁnal audio mixing session.

MixLevel the Surround Down mix Level parameter indicates the nominal Lo/Ro down

mix level of the Surround channel(s) with respect to the Left and Right channels

DolbySurnd the Dolby Surround Mode parameter indicates whether or not a two-

channel Dolby Digital bitstream is conveying a Dolby Surround encoded program.

DownMixMod this controls the Down Mix Mode which is used by the content creator to

optimise Center and Surround channel levels for use in stereo down mix mode for any two-channel programmes.

D Sur Ex this controls the Dolby Surround Ex channel that provides an extra audio

channel for Dolby 5.1. The extra surround channel of the Dolby Surround Ex system is matrix-encoded onto the discrete left-surround and rightsurround channels of the 5.1 mix.

SxTAG Operation Manual 2–41PHSXT-200 3

Menu Reference

The following control bits can also be viewed:

LFE the LFE Channel parameter enables or disables the Low-Frequency Effects

HPF this parameter can be used to activate the DC High pass ﬁlter for all input

LPF the LFE Low pass Filter parameter can be used to activate a 120 Hz low-

Sur 3dB Alt the Surround Channel 3 dB Attenuation function is use to apply a 3 dB

Sur Ph+Filter the Surround Channel 90-Degree Phase-Shift feature is used for generating

Org Stream the Original Bitstream informational parameter sets the value of a single bit

(LFE) channel.

channels.

pass ﬁlter applied to the LFE input channel.

attenuation to the Surround channels of a multichannel soundtrack created in a room with ﬁlm style calibration, when encoding it for consumer home theatre playback.

multichannel Dolby Digital bitstreams that can be down-mixed in an external two channel decoder to create a true Dolby Surround compatible output.

within the Dolby Digital bitstream. This bit has a value of 1 (box checked) if the bitstream is an original. If it is a copy of an original bitstream, it has a value of 0.

RF 0v Prot the RF Over-modulation Protection parameter determines whether or not

an RF pre-emphasis ﬁlter is used in the overload protection algorithm to prevent RF over-modulation in set-top box decoders.

Peak Metering

The peak audio levels are included in the Dolby-E metadata packet and may be displayed on the Analyzer-Audio-Meters page. Select the appropriate set of meters to display Dolby levels and then they will follow the selected Dolby-E source.

Note that audio cannot be decoded by the Sx range of products and so you will

NOT be able to listen to the Dolby-E signal.

See the logging section for details on which changes of Dolby-E status may be logged.

2–42 PHSXT-200 3Menu Reference 11/14

AES Eye (CVBS In) Option

AES Eye menu allows an AES signal of 75Ω impeadance connected to the “PAL/NTSC (AES Eye) In” BNC connector to be displayed as an Eye pattern. This allows the amplitude and quality of the AES waveform to be seen and allows AES to reference locking to be checked

It can be difﬁcult to check that the AES audio signal is correctly locked to the studio reference. The AES Eye menu allows the AES waveform to displayed on the unit. If the studio locking reference is also connected to the unit, then the AES Eye waveform can be displayed locked to this reference. If the AES signal is not correctly locked to the reference then the Eye waveform will run through the display.

Ref This drop down list allows the reference source to be selected for the AES

waveform locking

Menu Reference

Trigger This drop down list allows the Eye waveform to be triggered either from the

AES signal itself (showing the level of jitter) or from the regenerated AES clock itself (showing the waveform without jitter.

The graticule displays ±1 Volt in 100mV increments

AES Signal

Studio Reference

SxTAG Operation Manual 2–43PHSXT-200 3

Menu Reference

2–44 PHSXT-200 3Menu Reference 11/14
