V02.02
PFTAS Pty Ltd
Pellet Fires Tasmania
7/1/2018
Pellet Heater User Manual - NB-Series
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 1 www.pftas.com.au
Table of Contents
INTRODUCTION ....................................................................................................................................... 2
1. Welcome ..................................................................................................................................... 2
2. Benefits ....................................................................................................................................... 2
3. Safety .......................................................................................................................................... 2
4. Fuel Requirement........................................................................................................................ 2
5. Specifications .............................................................................................................................. 4
6. Pellet fuel consumption .............................................................................................................. 5
7. Mechanical .................................................................................................................................. 6
8. Warranty ..................................................................................................................................... 7
USERS GUIDE ........................................................................................................................................... 8
1. Operations Instructions - Quick reference guide ........................................................................ 8
2. Operating Instructions – Detailed ............................................................................................... 9
a) Startup .................................................................................................................................... 9
b) Shutdown .............................................................................................................................. 10
c) Power Level - Pellet Feed rate .............................................................................................. 10
d) ECO Stage .............................................................................................................................. 11
e) Set the Thermostat Temperature ......................................................................................... 11
f) Automatic or Manual ............................................................................................................ 11
g) Check Temperatures ............................................................................................................. 11
3. Setup - reference guide ............................................................................................................. 12
4. Setup Instructions - Explained .................................................................................................. 13
a) User control of the Combustion Fan (Smoke fan) and Room Fan speeds ............................ 13
b) Cleaning ................................................................................................................................. 13
c) ECO Mode ............................................................................................................................. 13
d) Language ............................................................................................................................... 13
e) Setting the program schedule ............................................................................................... 14
f) Setting the clock .................................................................................................................... 14
g) Restore defaults .................................................................................................................... 14
h) Display Version ...................................................................................................................... 14
i) Exit setup ............................................................................................................................... 14
MAINTENANCE GUIDE .......................................................................................................................... 15
1. Error codes ................................................................................................................................ 15
2. Maintenance ............................................................................................................................. 16
a) Cleaning the surfaces ............................................................................................................ 16
b) Cleaning the fire pot before and after each lighting ............................................................. 16
c) Cleaning the combustion chamber ....................................................................................... 17
d) Cleaning the flue ................................................................................................................... 17
e) Frequency of Component Cleaning ....................................................................................... 17
f) Cleaning the Ash Drawer ....................................................................................................... 17
3. Troubleshooting ........................................................................................................................ 18
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 2 www.pftas.com.au
INTRODUCTION
1. Welcome
Thank you for choosing the NB-Series pellet burning heater. Your pellet heater is designed to provide
the utmost safety, reliability and efficiency. This guide will help you get the best from your heater
and should be retained for future reference.
2. Benefits
Your pellet fire gives you and your family all the benefits of the latest clean-burning technology.
Overseas, pellet heating has become very popular due to environmental and energy issues.
• Energy-efficient. Pellets are burnt at optimum fuel to air ratios. This means that they burn
efficiently (>90%) producing real heat for minimum cost.
• Environmental. Pellet fuel delivers a much cleaner burn than coal or wood and meets the
toughest emission standards in the world when burnt in a specifically designed pellet heaters.
Emission rates of around 0.1 gram are common for pellet heaters which is 25 times cleaner
than the current Australian standard for wood heaters (2.5 grams as at 2015). Pellet heaters
should only emit a small amount of visible smoke during the ignition phase which only lasts
for a few seconds each time the heater is started.
• Healthy. Because pellets burn so cleanly, there is little to no smoke, soot or ash to
contaminate the environment. Silica (sand) and other trace minerals found in the wood that
cannot burn accumulate in the ash pan and can be deposited onto your garden as fertilizer.
• Easy to use. The NB-Series pellet heater makes heating so easy. The fire starts with a push
of the switch or automatically with program and temperature control. No matches or
kindling or lugging heavy and dirty fire wood.
3. Safety
Installation: This appliance and flue system must be installed in accordance with the appropriate
requirements of the Australian Building Code.
• Always make sure that the firepot is ash-free before starting your fire.
• Keep the hopper lid closed unless adding fuel.
• Only use approved wood pellets – DO NOT use any other fuel or accelerants.
• Do not burn waste wood chips, paper, plastic or rubbish.
• Never open the front door after starting the fire.
• The front of heater will get hot, do not touch hot surfaces. Keep children clear and or use a
child safety guard.
• Only clean the heater when it is cold.
• Empty the ash pan before it over fills. Ash and embers must be cool before disposal.
• Never hang cloths too close to any heater.
4. Fuel Requirement
Your pellet heater has been designed to burn wood pellets only. Do not use any other type of fuel
as this will void any warranties stated in this manual.
Quality pellet fuel is a natural product manufactured without any binders or additives. The pellets
are formed under pressure from waste sawdust. There are many variables that will affect the
composition of the pellet fuel and the specifications. The performance of your pellet heater is greatly
affected by the type and quality of wood pellets being burned. As the heat output of various quality
wood pellets differs, so will the performance and heat output of the pellet heater. We recommend
the use of pellets that meet or exceed these standards. Please use a recommended pellet type.
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 3 www.pftas.com.au
Moisture content (as fired basis) CEN/TS 14774-1 and
ISO 687
≤12%
Ash content (as fired basis) ISO1171
≤0.7%
Volatile matter (dry, ash-free basis) ISO562 80% to 88%
Hydrogen content (as fired basis) ISO609 5.0%to 6.5%
Carbon content (as fired basis) ISO609 40% to 50%
Sulfur content (as fired basis) ISO 351 and ISO 334 ≤0.1%
Net (lower) calorific value (as fired basis) ISO1928
16900KJ/KG to
19500KJ/KG
Average 5.3 kWh/Kg
Diameter 5mm to 6.5mm
Length ≤30mm
CAUTION:
It is important to select and use only pellets that are dry and free of dirt or any impurities such as high
salt content. Dirty fuel will adversely affect the operation and performance of the unit and will void
the warranty. Do not use pellets if they have become damp and appear swollen from moisture.
Store pellets in a dry environment.
ASH: The ash content of the fuel and operation of your heater will directly determine the frequency
of cleaning. The use of high ash fuels may result in the heater needing to be cleaned daily. A low ash
fuel may allow longer intervals between cleaning.
CLINKERING: clinkers are silica (sand) or other impurities in the fuel that will form a hard mass during
the burning process. This hard mass will block the air flow through the Burn Pot and affect the
performance of the heater. Any fuel, even approved types, may tend to clinker. Check the Burn-Pot
daily to ensure that the holes are not blocked with clinkers and remove as necessary.
If they become blocked, remove the burn pot (when the unit is cold) and clean/scrape the clinkers out.
Clean the holes with a small pointed object if required. Refer to the section Routine Cleaning and
Maintenance.
Pellets made from Harwood present less clinkering than those made from softwood species. This
does not make one pellet better than another, just different cleaning requirements.
PELLET FEED RATES: Due to different fuel densities and sizes, pellet feed rates may vary. This may
require an adjustment to combustion fan’s speed or to the auger feed trim setting on low (contact
PFTAS).
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 4 www.pftas.com.au
5. Specifications
The Pellet heater is an advanced design and has individual fresh air input and exhaust venting systems.
Negative pressure burning technology causes high efficiency and little ash output during burning.
High output, quick heating and low fuel costs are its advantages.
Model Description
Min/Max
Heat Kw
Heat
Area
m2
Efficiency % Hopper
Kg
Burn
Kg/Hr
(Min/Max)
Electricity
running
watts
Size (W*H*D)
Weight
Kg
American
Styles
NB-PA-01-FS
Grace Pellet
Heater - Console
3/8 110 90 15 0.6/1.6 <100 648*555*530 100
NB-PA-FS
Grace Pellet
Heater - Console
4/13 170 90 30 1.0/2.3 <100 670*770*610 110
NB-PA-01
Grace Pellet
Heater - Insert
3/8 110 90 15 0.6/1.6 <100
Out-1000*935*280
In-430*715*370
100
NB-PA
Grace Pellet
Heater - Insert
4/13 170 90 30 1.0/2.3 <100
Out-1060*950*330
In-560*750*425
110
European
Styles
NB-P05
MacLeod
Bungalow
5 70 88 7 0.4/1.0 <100 550*720*240 75
NB-MAXI MacLeod MAXI 3/12 160 90 30 0.6/2.0 <100 540*1020*620 100
NB-MIDI MacLeod MIDI 3/9 120 90 12 0.6/1.6 <100 463*918*570 80
NB-MINI MacLeod MINI 3/6 80 90 8 0.6/1.2 <100 463*740*570 70
NB-PSC Matilda 3/6 80 90 8 0.6/1.2 <100 430*780*450 70
NB-PR9
MacLeod
ROUND
3/9 120 90 18 0.6/1.6 <100 480*994*500 110
NB-PF
MacLeod
Wellington
4/13 170 90 22 0.6/2.3 <100 720*765*475 130
NB-PHRA Sapphire 3/12 160 90 22 0.8/1.8 <100 622*1073*544 100
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 5 www.pftas.com.au
6. Pellet fuel consumption
a. Introduction
Modern pellet heaters have automatic feed control with fixed feed rate settings. This makes
the heater easy to use but does take away our ability to fine tune the pellet feed rate to
account for pellet fuel length differences that may occur.
b. Wood Pellet Length
From season to season, batch to batch or brand to brand, it's very likely that the pellets you
buy could be shorter or longer in length on average. This is very normal. There are several
variables that determine the length of a pellet during manufacturing and any one of them
could be different from brand to brand or season to season.
How does this effect burn? Longer pellets will feed less fuel into the fire with the rotations
of the auger than shorter pellets. If everything else in the pellet heater stays the same, and
the only difference in the fuel is pellet length, shorter pellets will provide more fuel to the fire
than longer pellets resulting in more heat output. Longer pellets will provide less fuel and
therefore produce less heat for the same setting.
c. Consumption Specifications
The fuel consumption rate for Pellet Heaters is usually stated as a minimum and a maximum.
These limits are based on an average. A heater may claim a minimum of 600 grams per hour
on low and 1.8 kgs on high. In reality these feed rates may be more or less depending on the
pellet length. Pellet heaters are designed to be reliable and not go out on the lowest setting.
If the minimum feed rate was set too low the heater could go out un-expectantly if the pellet
length was longer than the average.
d. Heat Output
The heat produced is directly related to the amount of fuel consumed. The faster fuel is
consumed the hotter the fire and the warmer your house will be. Conversely, less fuel, less
heat and lower cost to operate. Due to the ease of starting and stopping a modern pellet
heater, it is more economical to turn the heater off when in bed or when the house is
unoccupied.
e. Feed settings
The power settings P1 and P4 have been programed to provide as close as possible to the
rated specifications of the heater while using typical (normal) sized pellets. If you find that the
average pellet size is smaller than normal, select P2 or P3 as these setting has been programed
to feed less fuel.
f. Conclusion
Using the correct heat setting and or thermostat setting will maintain your desired comfort
level by replacing the heat being lost by your home. If you are unable to reach the desired
comfort level on the highest heat setting then you will require additional heating or reduce
the heat being lost (better insulation, reduce draughts etc). If your home is too hot on the
lowest setting (ECO) then turn the heater off manually or contact Pellet Fires Tasmania
Customer Service for more information and assistance.
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 6 www.pftas.com.au

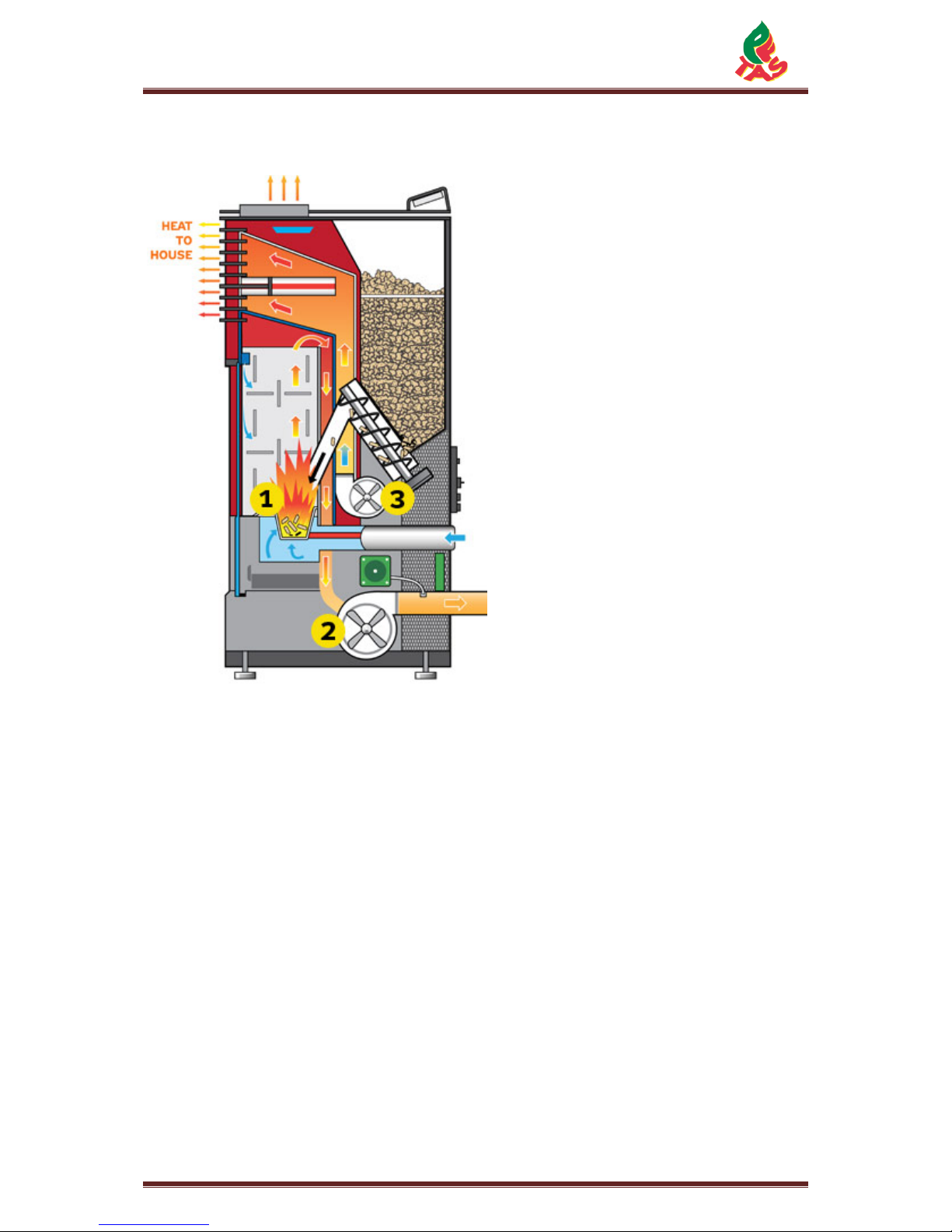

7. Mechanical
The heater is mainly made up of following
items - 1. Combustion burn pot 2. Exhaust fan
3. Room circulation fan and auger motor.
The following is a list of main components and
their functions:
IGNITER
The HEATER comes equipped with an
automatic electric igniter for lighting the fuel
when the heater is in lighting mode only. The
igniter remains energized for the first eight
minutes of the lighting sequence.
VACCUM SWITCH
The HEATER has a safety vacuum switch
located behind the left door, fastened to the
base. If a low pressure is created in the firebox
by a leak, opening the front door, a blocked flue,
or unsealed ash drawer, the vacuum switch will
sense it and cause the heater to go into a
shutdown mode.
AUGER AND AUGER MOTOR
The 2 RPM auger motor turns the auger lifting
pellets up the auger tube. The pellets are then
dropped down a tube and into the firepot. The
auger is controlled by the control board.
OVER TEMPERATURE THERMOSTAT
This safety switch is installed on the bottom of hopper and will shut off the heater if it senses excessive
temperatures (70 degrees).
CONVECTION BLOWER THERMOSTAT
This switch is installed on the vent pipe and turns the convection blower on when the heater is above
40 degrees.
ROOM THERMOSTAT
Measures room temperature and adjusts the heat output. Will switch between ECO (low) and what
ever power setting is chosen (P1 … P4).
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 7 www.pftas.com.au
8. Warranty
PFTAS Pty Ltd (ACN 119 678 090) herby warrants to the original purchaser of the NB-Series Pellet
Heater, that it will be free from defect in material and workmanship under normal use in accordance
with the Owner's Manual.
PFTAS shall at no cost to the consumer, upon such defects occurring, at its option repair or replace
such faulty materials or workmanship.
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You
are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced
if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
• Warranty coverage begins from the date of original installation or within three months of
purchase, whichever occurs first.
• This warranty is only valid while the appliance remains at the site of the original installation.
• This warranty only covers appliances that are purchased from an authorized PFTAS dealer or
distributor. Refer to www.pftas.com.au
.
• Service fees may apply if you seek warranty service from a dealer other than from whom you
originally purchased the product.
• Travel and shipping costs are not covered by this warranty.
• This warranty does not cover any defects, failures, operating difficulties or damage caused
due to accident, abuse, alteration, misapplication, improper installation, improper
maintenance or service or failure to perform normal and routine maintenance.
Warranty Period
Components Covered
Parts
Labour
5 years
1 year
All components not listed below
2 years
0 years
Firepots and burn pots
5 years
1 years
Firebox and heat exchanger
5 years
1 year
Flue parts
1 year
1 year
Ignitor
90 days
90 days
Glass window, door rope seals, external painted finishes.
90 days
90 days
All replacement parts and labour beyond the warranty period.
0 0 Normal wear and tear and internal paint finishes
The benefits of this warranty are in addition to all other rights and remedies to a consumer under the
Commonwealth of Australia Competition and Consumer Act 2010 or other Commonwealth or State
legislation and this warranty does not purport to limit or exclude such rights and remedies.
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 8 www.pftas.com.au
USERS GUIDE
1. Operations Instructions - Quick reference guide
Start
Stop
Display turns off after
10 secs of inactivity
Display turns on.
Change settings with
other buttons
Start Up process
commences
Shutdown process
commences
Automatic
Schedule
Power
Level
Skip the process
to stabilization
Press pellet
feed rate
P1, 2, 3, 4
Press to
toggle from
Auto to Man
Thermostat
Temperature
Check
Temperature
Increase or
decrease the
set point
Press to show
Room
Temp (R)
Press
& hold
3 seconds
Press
& hold
3 seconds
Press
& hold
3 seconds
Press
Start/Stop
Press to show
Protection
Temp (P)
Press to show
Exhaust
Temp (S)
Pellet Fires Tasmania
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 9 www.pftas.com.au
2. Operating Instructions – Detailed
a) Startup
• Check the hopper has pellets and the burn pot is clear of ash or clinker build up.
• Clean the burn pot, glass and ash pan if necessary.
• Press the On/Off button once and then again but hold until you hear a beep with
the second push.
Message, CLEANING will be shown first, (The exhaust system is flushed with air)
Message, FEEDING will be shown next, (Pellets are feed into the burn pot)
Message, LIGHTING will be shown next, (Electric igniter heats up and lights the pellets)
Message, STABILIZATION will be shown next (Normal operation, pellets are fed as per the power
setting and the room fan turns on once the heater reaches operating temperature.
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 10 www.pftas.com.au

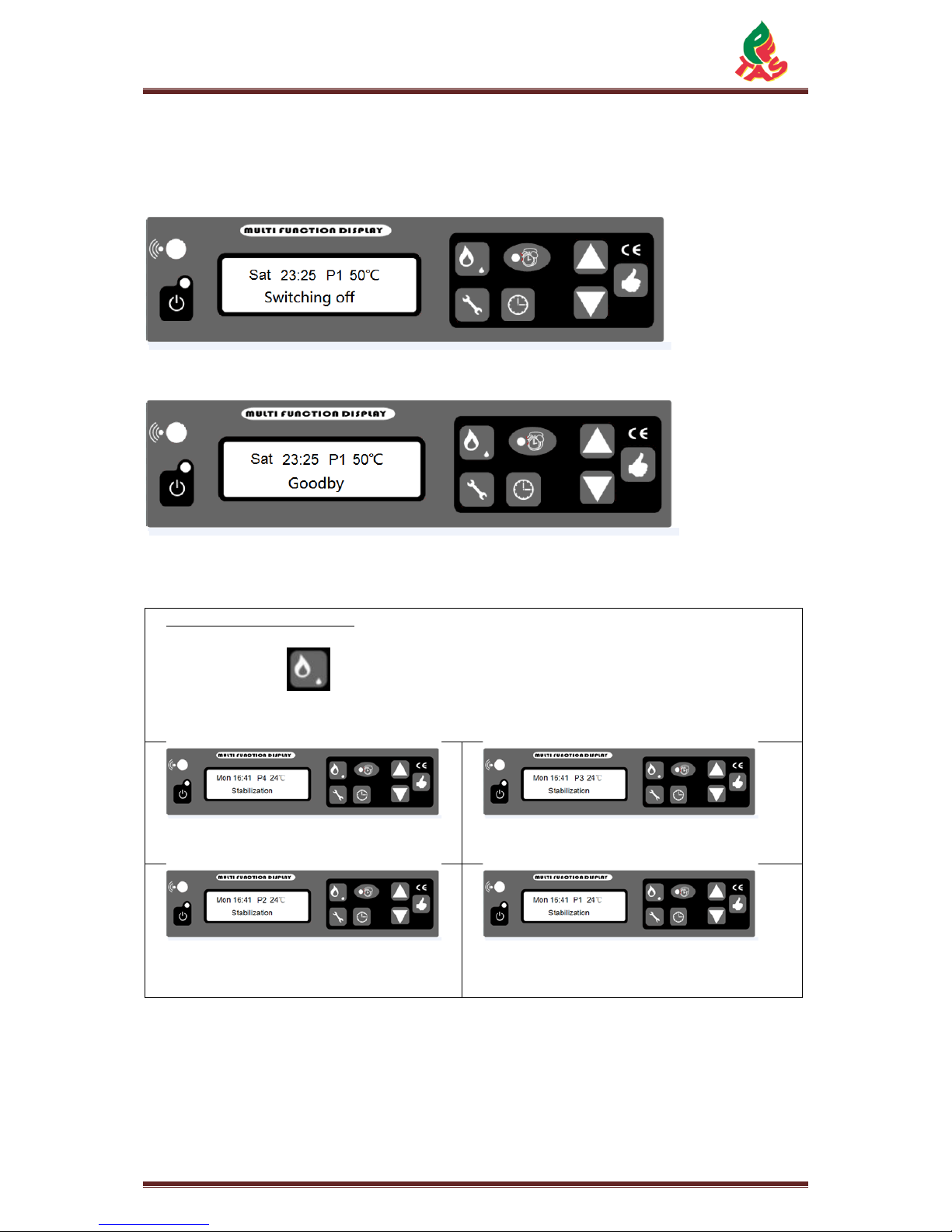

b) Shutdown
Press the On/Off button and hold panel button until you hear a beep.
Message, Switching Off will be shown first, (Fuel feed stops, pellets burn away)
After the temperature in the heater has cooled down, ‘GOODBYE’ is displayed. (STOPPED)
c) Power Level - Pellet Feed rate
FLAME POWER VARIATION
Pellet feed rate can be changed from a Maximum P1 (100%) to a Minimum P4 (ECO)
Pressing the key the feed quantity can be changed; the display shows the selected
power.
MINIMUM POWER P4
LOW POWER P3
MEDIUM POWER P2
MAXIMUM POWER P1
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 11 www.pftas.com.au
d) ECO Stage
If the room temperature exceeds the set room temperature the stove is stopped automatically if
ECO1 is selected or turns to minimum power in order to save energy if ECO2 is selected:
After the room temperature drops down, and below the set room temperature (3degrees), it
automatically switches on again or goes back to the previous Power level.
e) Set the Thermostat Temperature
Press the keys to adjust the room temperature set point.
The pellet heater will either operate at the set pellet feed rate (P1,P2,P3 or P4) until the actual
room temperature exceeds the set point at which time the heater will automatically switch to the
selected ECO Mode. (Turn off or run at minimum power).
f) Automatic or Manual
Automatic mode turns the heater on and or off as determined by the programmed timer schedule.
Press the Auto button to switch between Auto or Manual. If the light is on, the
automatic program is selected. Otherwise it is manual.
g) Check Temperatures
How to Check the Room temperature, Exhaust (Smoke) Temperature, Safety (Protection)
Temperature which is located under the hopper. Push button
• The number with “R” is the temperature for room.
• The number with “S” is the temperature for the Smoke
• The number with “P” is the temperature for the Protection.
o For example: The room temperature is 13 degrees.
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 12 www.pftas.com.au
3. Setup - reference guide
Press
& hold
2 seconds
Increase or
decrease the
Hour
Press
Increase or
decrease the
Day
Clock
Press to
toggle ON
or OFF
Increase or
decrease which
Hour to select
Monday
Schedule
Select
ECO1 or
ECO2
ECO
mode
Repeat
Increase or
decrease how
often to clean
Next
Increase or
decrease how
long to clean
Clean
schedule
Repeat
Increase or
decrease the
room fan
Next
Increase or
decrease the
combustion fan
P1
Repeat
Increase or
decrease the
room fan
Next
Increase or
decrease the
combustion fan
P2
Repeat
Increase or
decrease the
room fan
Next
Increase or
decrease the
combustion fan
P3
Repeat
Increase or
decrease the
room fan
Next
Increase or
decrease the
combustion fan
P4
Increase or
decrease the
combustion fan
P5
Increase or
decrease the
combustion fan
P6
Select
Language
Language
Press to
toggle ON
or OFF
Increase or
decrease which
Hour to select
Sunday
Schedule
Increase or
decrease the
Minuets
Press
Increase or
decrease the
Date
Press
Increase or
decrease the
Month
Press
Increase or
decrease the
Year
Press
Repeat
Press
anytime to
Exit setup
Restore
Defaults
(Y)es or (No)
Press
Version V02.02
Press
Repeat
Step through each day Monday to Sunday
Exit Setup
Start Setup
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 13 www.pftas.com.au
4. Setup Instructions - Explained
To enter the setup mode, press and hold the Spanner button DOWN until you hear a beep.
Please refer to the Setup reference guide for the correct button sequence; the following is an
explanation of each feature.
*Warning* Incorrect settings could result in poor performance and or operating failure. Please
contact Pellet Fires Tasmania for advice if required.
a) User control of the Combustion Fan (Smoke fan) and Room Fan speeds
Individual fan speeds can be set for each of the four power settings (P1-P4). Each power level has
settings of plus or minus 20% for each of fan ((S)moke fan and Room (F)an.
Normally the heater would be set to P1 and ECO2 which means that when the room temperature is
lower than what is set on the thermostat, the heater will run in Stabilization Mode using the P1 feed
rate, Combustion fan and room Fan settings. When the thermostat temperature is met, the heater
will run in ECO2 mode which is the P4 setting.
The Combustion fan (Smoke fan) controls the amount of air that is drawn through the burn pot.
• If the amount of air on P4 is too high, the pellet fuel will burn away too quickly, and you risk
the possibility of the fire going out.
• If the amount of air is too low, then you will see poor combustion characterized by a lazy flame.
The glass will go black faster than normal and the heater will require more cleaning. Pellets
could also build up in the burn pot.
• Adjust the Combustion fan to achieve a bright flame without black sooty tips and without
pellets being blown out of the burn pot.
The Room (F)and should be adjusted to provide sufficient convection air flow.
• The higher the air volume the louder the fan becomes but better air circulation is achieved.
• Too low a fan setting will result in poor heat circulation and the possibility of the heater over
heating and automatically shutting down.
b) Cleaning
The heater automatically cleans ash from the burn pot on a regular basis by reducing the fire to a very
low burn and then introducing a brief blast of air. You can choose how often you want the cleaning
process to occur and for how long it should take. The default settings should be adequate for the
type of pellet fuel available and need not be changed.
c) ECO Mode
When selected, the ECO1 option turns the heater OFF when the room temperature is above the
thermostat setting. ECO1 is NOT recommended for Tasmanian conditions and homes. The ECO2
option reduces the power (heat output) level to the lowest power setting (P4). This is like an
overnight burn setting and is the recommended option for medium and larger areas because it does
not cause the heater to go through the startup and shutdown sequences.
d) Language
Select the language of choice. Default is English.
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 14 www.pftas.com.au

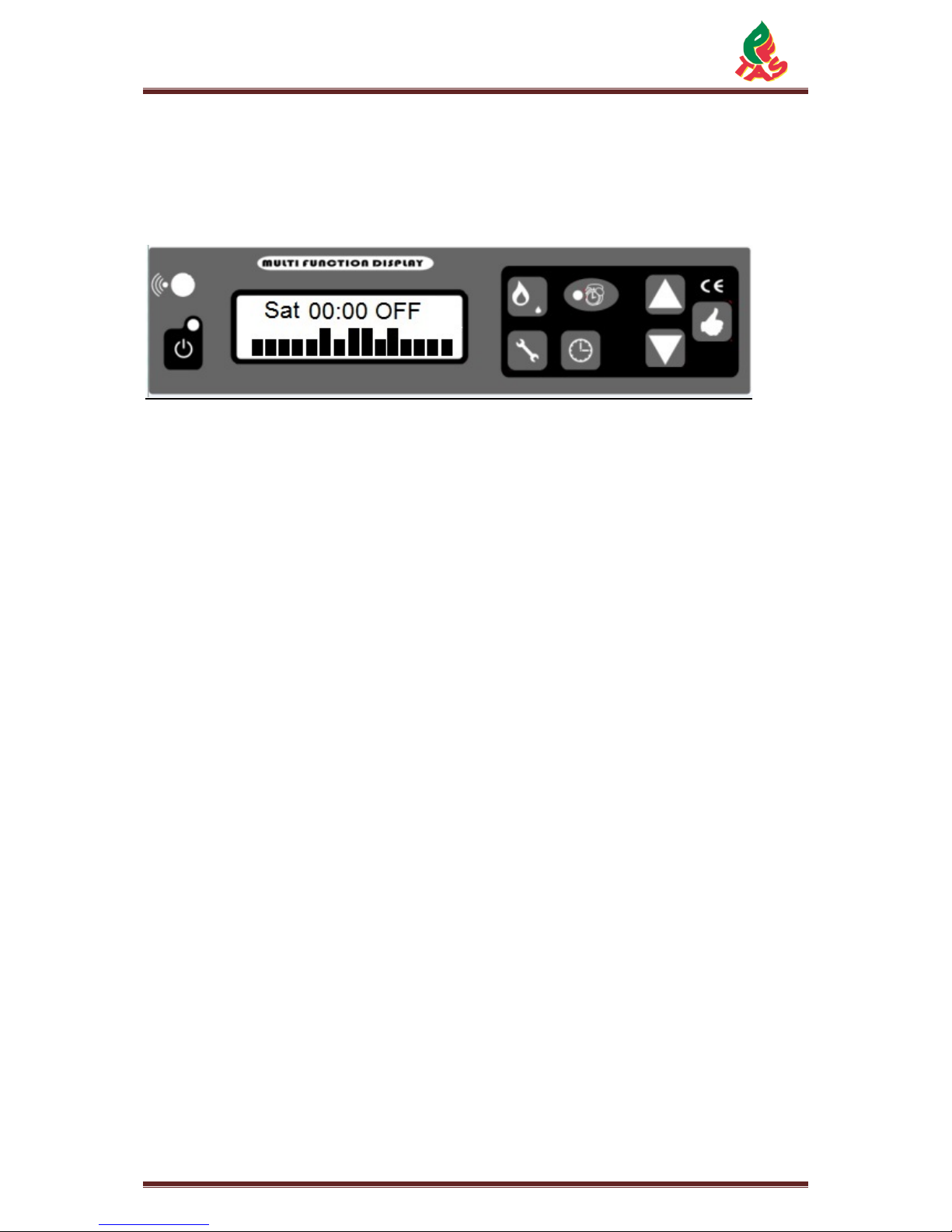

e) Setting the program schedule
Each hour of each day of the week can be set to be ON or OFF allowing simple or complex schedules
to be programmed which operate when the Auto setting is activated. EG - Automatically turn ON
and stay on between 6am and 8am then again from 4pm to 10pm Monday to Friday and OFF
Saturday and Sunday so that MANUAL operation is used as required on those days.
f) Setting the clock
The hour, minuets, day, month and year can be set to local time. Please adjust as required for day
light savings time.
g) Restore defaults
Select NO to use the changes you have just made or select YES to return to the previous defaults.
h) Display Version
The Firmware and Software versions are displayed for the Controller and Display modules.
i) Exit setup
Press the spanner button at any time to exit the setup programming mode.
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 15 www.pftas.com.au
MAINTENANCE GUIDE
1. Error codes
• Fire Error = protection was activated due to over temperature or a component failure.
Contact customer support.
• E1 = Fire went out. Refill the hopper and attempt to start again.
• E2 = Failure to light. Check ash in the burn pot, clean and attempt to start again. If the
heater fails to light after several attempts, contact customer support.
• E3 = Earthquake if a detector is fitted (only applicable in earthquake areas like Japan).
• E4 = Temperature sensor error.
• E5 = Vacuum problem. Check that the door is closed, or a service may be required due to a
buildup of ash or a blockage in the exhaust system or a failed vacuum switch.
• E6 = Hopper protection sensor over temperature. Check room fan speed.
• E7 = Power failure. Clear error code and resume operation.
• E8 = Blocked exhaust passages. Heater needs to be serviced.
• ESC1 = Temperature sensor 1 is short circuited. Contact customer support.
• ESO1 = Temperature sensor 1 is open circuited. Contact customer support.
• ESC2 = Temperature sensor 2 is short circuited. Contact customer support.
• ESO2 = Temperature sensor 2 is open circuited. Contact customer support.
• ESC3 = Temperature sensor 3 is short circuited. Contact customer support.
• ESO3 = Temperature sensor 3 is open circuited. Contact customer support.
o Temperature sensor 1 is the room thermostat
o Temperature sensor 2 is the exhaust sensor.
o Temperature sensor 3 is the protection sensor.
To clear an error code, Press and hold the key until you hear a beep. In the event of multiple
error messages (eg E1 and E5), it may be necessary to power off the heater at the power point and
then clear the error code.
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 16 www.pftas.com.au
2. Maintenance
Before carrying out any maintenance take the following precautions:
• Make sure that the fire has been turned off, and that the power supply has been disconnected
(Ensure that the plug is disconnected from the socket, thus avoiding accidental electric shocks).
• Make sure that all parts of the pellet heater are cold.
• Make sure that the ashes have cooled completely.
• Always use appropriate tools for maintenance.
• When you have finished re-install all safety guards before using the pellet heater again.
The pellet heater requires little maintenance if quality wood pellets are used which is why we
recommend pellet fuel that is manufactured to the AS/NZS4014.6.
a) Cleaning the surfaces
To clean the surfaces on the painted metal parts, use a damp cloth.
Important: the use of aggressive detergents or abrasive cleaners can damage the surfaces of the
stove. Do not clean with paint thinners or solvents.
b) Cleaning the fire pot before and after each lighting
You must check that the fire pot before and after each lighting. Ensure it is clean and that
no waste or residue blocks the holes, in order to always guarantee excellent combustion of the
stove. This will help avoid possible overheating, which could cause changes in the colour of
the paint, as well as failure to light the stove.
Only a clean fire pot can guarantee that the pellet stove will function without problems. During
operation, deposits may be formed, which have to be immediately eliminated. It is easy to see
when the fire pot has to be cleaned! It only needs a glimpse, each day, before switching on. For
minor cleaning, it can be left in the stove, but if the residue is difficult to remove, it has to be
extracted from its housing and the waste scraped out.
The residue of ash depends on the quality of pellets used. Important: even with a new batch of
pellets, although using the same brand, there may be differences during combustion and therefore
they may burn more or less cleanly.
Correct daily cleaning will allow the pellet heater to burn properly with high performance avoiding
problems in the long term which could require the intervention of a technician to repair the pellet
heater.
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 17 www.pftas.com.au
c) Cleaning the combustion chamber
The fire requires simple but frequent cleaning to guarantee correct functioning. Therefore,
clean the combustion chamber frequently by using a drum-type vacuum cleaner, making sure
that the ashes are cold first.
d) Cleaning the flue
The flue will require cleaning only once each season providing the correct fuel is used. You
should arrange for this when booking your annual service.
e) Frequency of Component Cleaning
Parts/Frequency
Daily
2-3 Days
30 Days
Annually
Performed By
Burn pot
•
Owner
Burn pot grill
•
Owner
Glass
•
Owner
Flu
• Technician
Door gasket
• Technician
Combustion chamber
•
Owner
Vacuum Hopper
•
Owner
Clean T discharge
• Technician
f) Cleaning the Ash Drawer
The ash drawer must be cleaned every 2 days, depending on the length of time the stove is used
and the type of pellet used. To access the drawer, open the door and extract the ashes drawer.
Pellet Heater User Manual - NB-Series
Pellet Fires Tasmania – V02.02-18/7 18 www.pftas.com.au
3. Troubleshooting
Problems
Reason
Solution
1. No panel display
No power.
Check the power outlet and heater
plug at the back of the heater.
Check the fuse –
2. The blower doesn’t work
after pressing the start
button.
If after 15 minutes, it still
does not work, there must
be a failure.
It is normal.
It will start automatically when
the temperature is below 30
degrees on the venting pipe.
Please wait
Electronic component failure
Contact customer service.
3. No pellet feed.
There are three feeding process stages.
A. During start up,
FEEDING is displayed.
Feed unit is blocked.
Clear the blockage.
No auger drive.
Contact customer support.
No fuel in the hopper. Fill the hopper.
B. Second stage ignites the
pellets. LIGHTING is
displayed.
It is normal
Please be patient
Igniter failure Contact customer support.
C. Normal operating
stage STABILIZATION is
displayed.
Feed unit is blocked.
Clear the blockage.
No auger drive. Contact customer support.
No fuel in the hopper.
Fill the fuel into the hopper.
4. Burn pot overflows.
Orange or lazy fire.
Lack of air for burning.
Clean the exhaust air way path.
5. The fire goes out.
The level of feeding speed is
too low or too much air
Contact customer support.
6. Heater switches off
after 15 minutes.
Heater has not reached
operating temperature.
Clean out the burn pot and start again.
If fails a second time contact customer
support.
The NB-Series of pellet heaters have been designed and built for the
European domestic pellet heating market and are imported, distributed,
and supported in Australia by PFTAS Pty Ltd, trading as Pellet Fires
Tasmania.
Contents of this manual may be updated without notice. For the latest
version of this manual please refer to our website
www.pftas.com.au
Loading...
