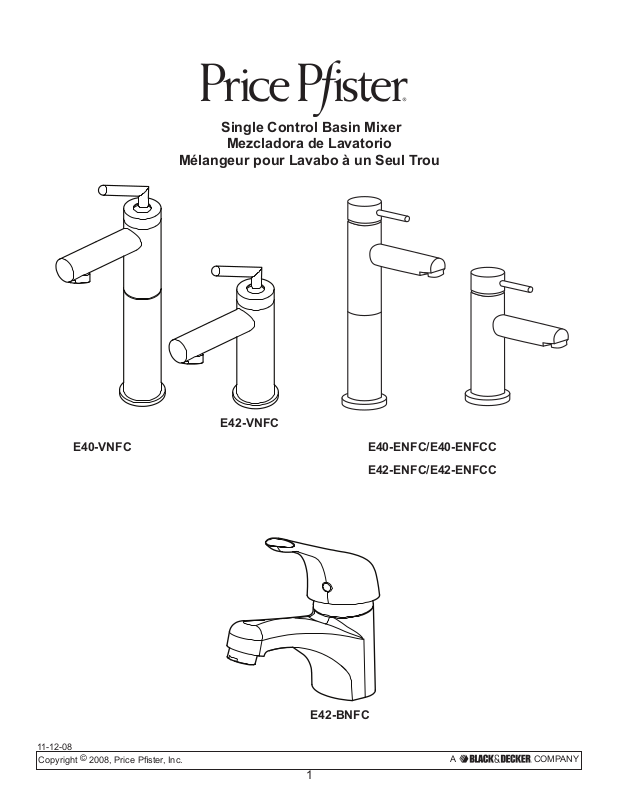

Pfister E42-BNFC User Manual [en, es, fr]

Single Control Basin Mixer
Mezcladora de Lavatorio
Mélangeur pour Lavabo à un Seul Trou
E42-VNFC
E42-ENFC/E42-ENFCC
E42-BNFC
11-12-08
Copyright © 2008, Price Pster, Inc.
A COMPANY
1
ENGLISH
Thank you for purchasing this Price Pster product. All Price Pster products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This faucet is easy to install using basic tools and our easy to follow illustrated instructions. If you have any questions regarding this product, contact your local distributor.

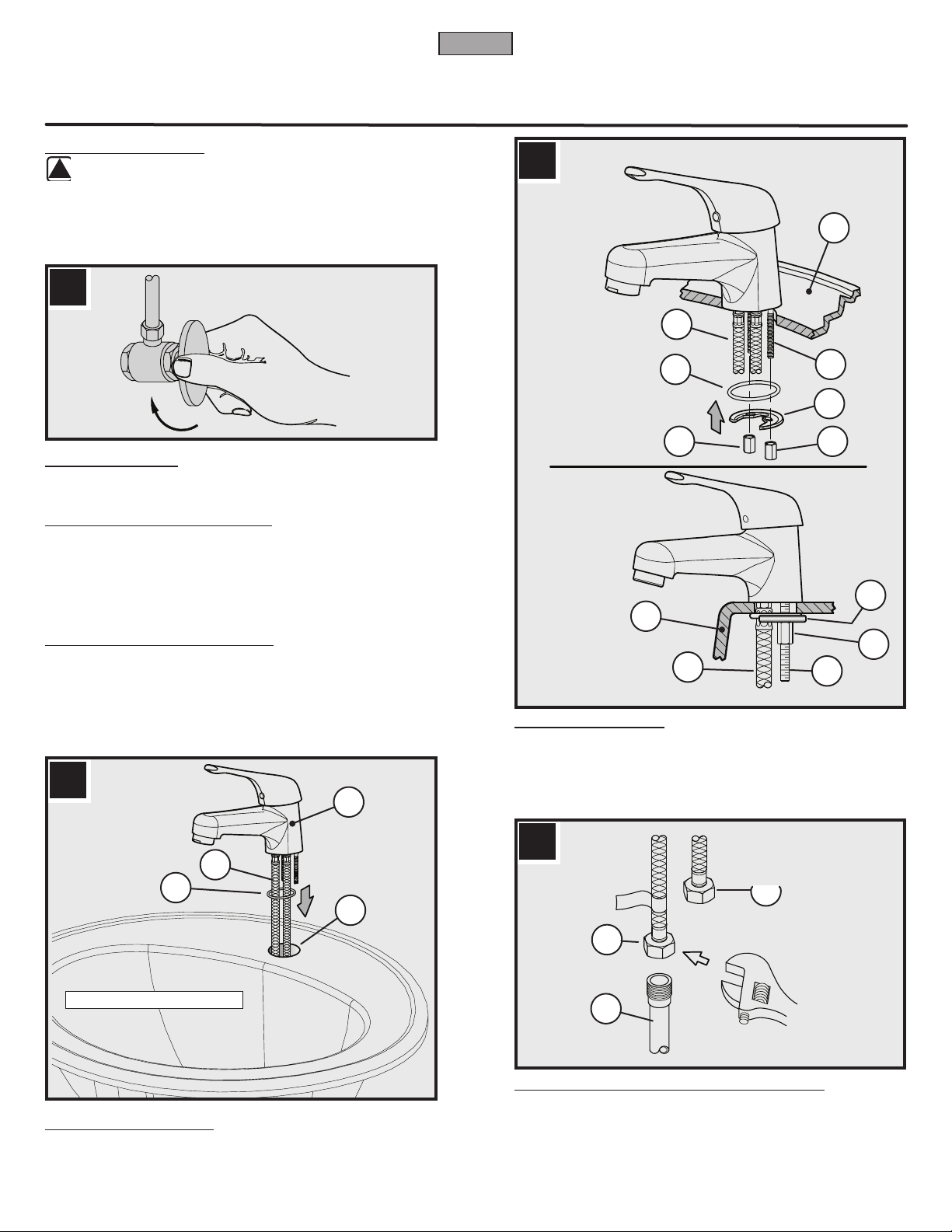

1 BEFORE PROCEEDING:
WARNING: Read all the instructions completely before proceeding.
Price Pster recommends calling a professional if you are uncertain about installing this product!
This product should be installed in accordance with all local and state plumbing and building codes. 2 WATER SHUT-OFF:
6
6F
2
6C
Locate water supply inlets and shut off the water supply valves. These are usually found near the water meter.
3 SURFACE PREPARATION: For optimum performance of your new Price Pster Single Control Lavatory faucet, a minimum water pressure of 20 PSI [137.89 KPascal] is required. Have the basic tools ready for removal of old valve. If you are replacing an existing faucet, disconnect the old one and clean the mounting surface thoroughly.
4 TOOLS RECOMMENDED: For Iron Pipe Installation:
• Phillips Screwdriver • Adjustable wrench • Pipe Wrench
• PTFE Plumbers Tape • Thread Sealant
• Slotted screwdriver
Some additional tools may be required.
5
5C
6A
6D
6B
6E
6E
6B
6F
6E
6C
6 SECURING THE FAUCET From underneath sink, feed O-Ring (6A) and Clamp Washer (6B) over the supply tubes (6C) and Clamp Screws (6D). Tread the Clamp Nuts (6E) on the Clamp Screws (6D) until faucet is rmly secured to the sink
(6F).
6D
5A
5B
5D
Model E42-ANFC is shown.
5 INSTALLING THE FAUCET Insert O-Ring (5B) through the Faucet Supply Tubes (5A). Insert Faucet Supply Tubes (5A) and O-Ring (5B) through the hole in sink
(5D). Align the Faucet Body (5C) to desired position.
7
7C
7B
7A
7 CONNECTING WATER SUPPLY LINES Connect hot Water Supply Line (7A) to hot Inlet tting (7B) indicated by red ag. Be sure to hold faucet inlet tting (7B) steady while tightening the supply line. Wrench tighten until seal is achieved.
Repeat for cold Water Supply (7C).
2
8
8A
8B
8F
8D
8E
8C
ENGLISH
10
10B
10D
10D
10C
10A
10B
10C
8G
8H
For Models E40-ENFC/E40-ENFCC/E42-ENFC/E42-ENFCC
please see Step 10 for specific Pop-Up Rod Installation.

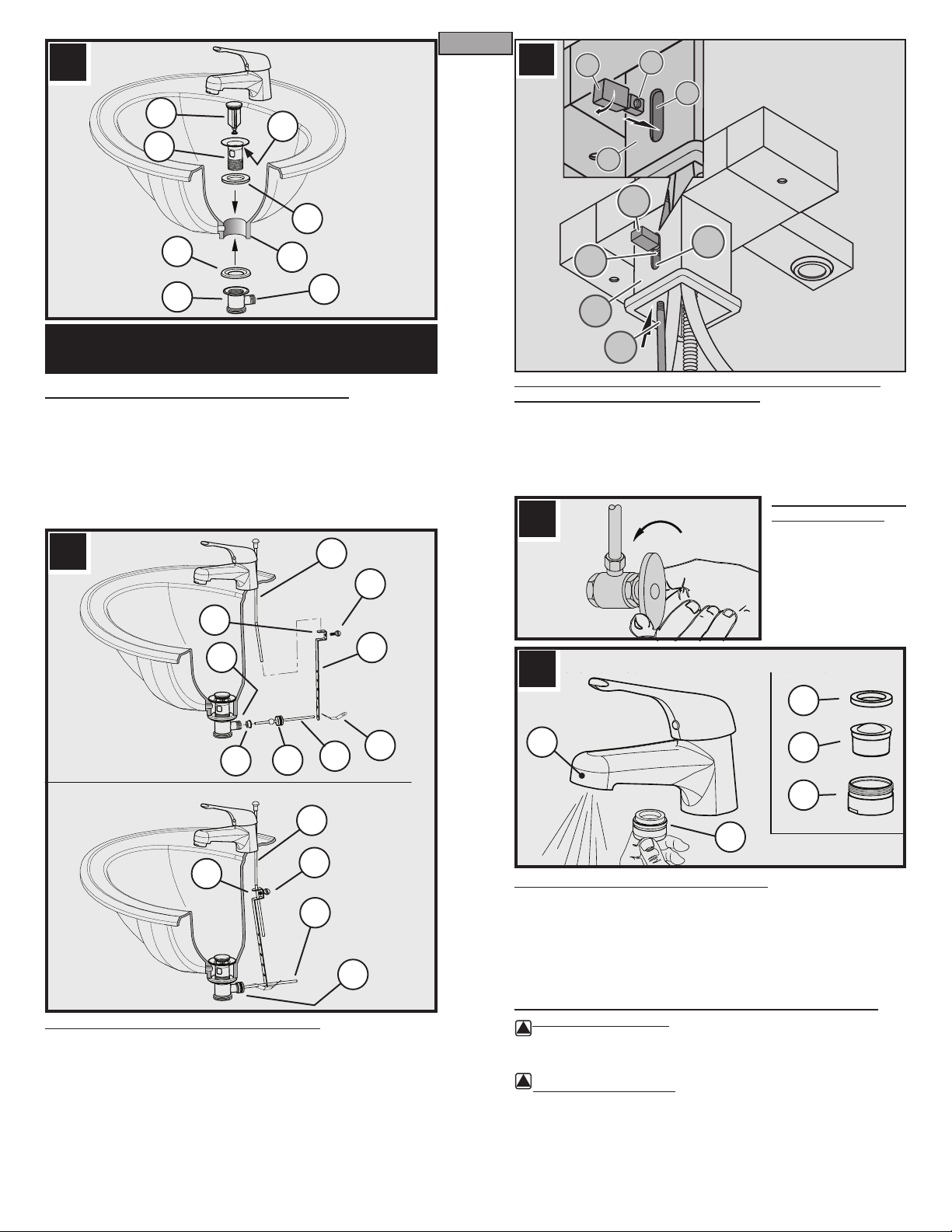

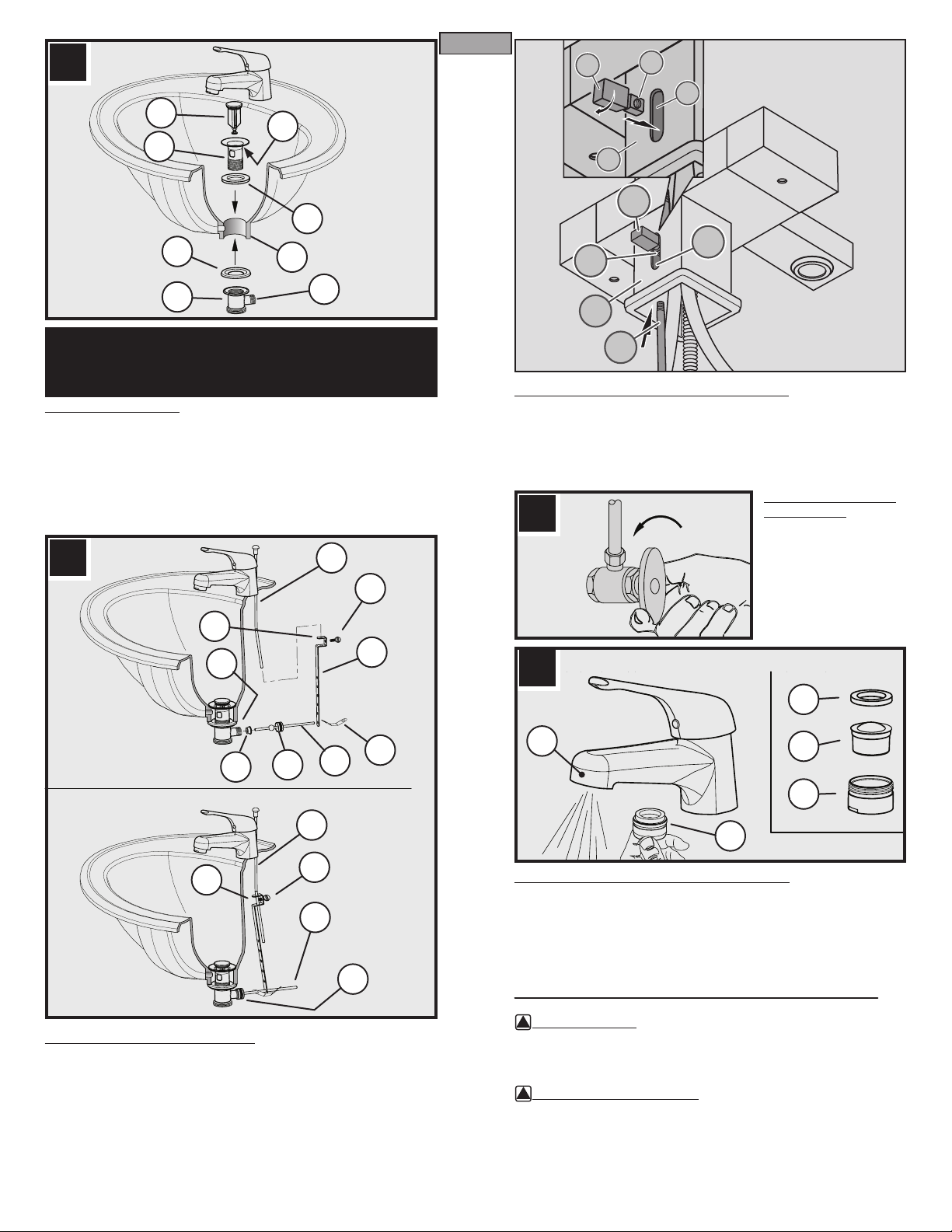

8 DRAIN POP-UP INSTALLATION Remove Stopper (8A) and apply Plumbers Putty to underside of Flange (8D) and to all treads. Insert Drain Body (8B) and Washer (8C) through Sink Hole (8E). From underneith the sink, place Washer (8F) on the bottom of the Sink Hole (8E) and thread the Lower Body (8G) securely into the Drain Body (8B). Do not over tighten and make sure that the Ball Rod Opening (8H) is facing the back of the sink. Insert Stoper (8A) though the Drain Body opening.
9D
9E
9A
9G
9J
9H
9
9F
9C
9B
10A
10E
10 POP-UP ROD INSTALLATION for E40-ENFC/E40-ENFCC; E42­ENFC/E42-ENFCC From back of Spout (10A) insert Knob (10B) vertically into Hole (10C) as shown. Rotate Knob (10B) to horizontal with Threaded Hole (10D) facing down. Insert Pop-Up Rod (10E) through the Base of Spout (10A) and thread onto Knob (10B).
11 FAUCET START UP
11
Turn on hot and cold water supplies, and check for leaks above and below the sink
12
12C
12B
12D
12E
9E
9J
9G
9A
9D
9 POP-UP ROD ADJUSTMENT Insert the Ball Rod (9A) and Ball Washer (9B) into the Ball Rod Opening (9C). Place the Clamp Nut (9D) in the Ball Rod (9A) and tighten securely to the Ball Rod Opening (9C). With Lift Rod (9E) in position on the faucet, insert Lift Rod Strap (9F) and retain it with Thumb Screw (9G). Insert one hole from the Spring Clip (9H) into the Ball Rod (9A). Guide the Ball Rod (9A) one of the holes in the Lift Strap (9J) and secure it with the second hole in the Spring Clip (9H). Adjust the height of the Lift Rod (9E) by loosening up the Thunb Screw (9G) and reseting it tightly.
12A
12 FLUSHING & AERATOR CLEANING After installation is complete, remove Aerator (12A) from Spout (12B). Turn water supply valves on and turn faucet on. Allow both hot and cold water to run at least one minute each until all foreign matter has cleared the line. While water is running, check for leaks. To clean aerator lift out Insert (12C) and screen (12D) from aerator Basket (12E). Rinse parts and replace.
CAUTION: Maintenance
DISASSEMBLY
• Replacement parts may be available at the store where you purchased your faucet.
• Please contact your local distributor for replacement parts if needed.
• Always turn off water and relieve pressure before working on your faucet.
NOTE: Trim Care
Cleaning Instructions: For all Handles and decorative nishes, use only a soft cloth dampened with plain water to clean and shine. Use of polish, detergents, abrasive cleaners, organic solvents or acid may cause damage. Use of other than a soft damp cloth will nullify our warranty! Special Trim: Trim products which contain Porcelain or other similar substance are not acceptable for public areas or Commercial use. Installation of Said Trim is at Users Risk!
3
