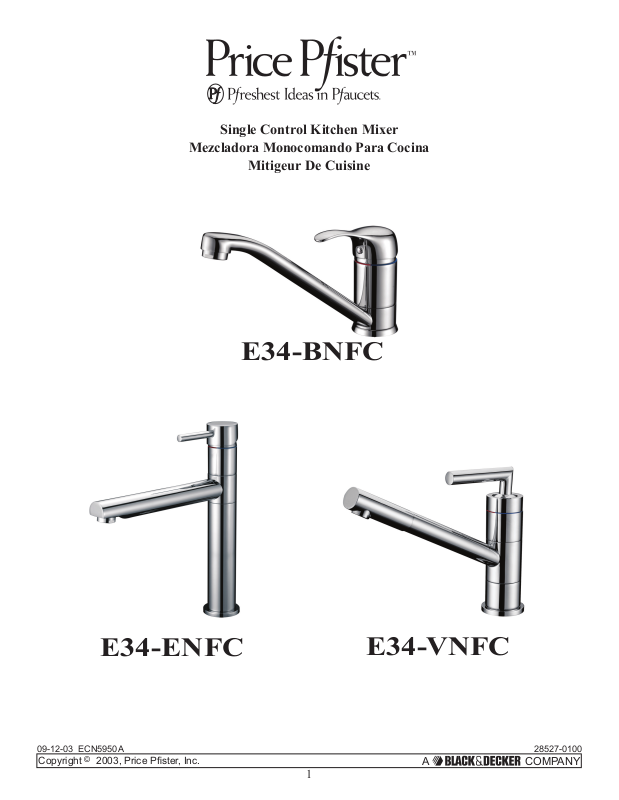

Pfister E34-BNFC User Manual

Single Control Kitchen Mixer
Mezcladora Monocomando Para Cocina
E34-BNFC
E34-ENFC
09-12-03 ECN5950A 28527-0100
Copyright © 2003, Price Pster, Inc.
1
E34-VNFC
A COMPANY
ENGLISH
Thank you for purchasing this Price Pster kitchen faucet. All Price Pster products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This kitchen faucet is easy to install using basic tools and our easy to follow illustrated instructions. If you have any questions regarding your kitchen faucet installation call 1-800-Pfaucet (1-800-732-8238).
BEFORE PROCEEDING
Locate water supply inlets and shut off the water supply valves. These are usually found under the sink or near the water meter. If you are replacing an existing faucet, remove the faucet from the sink and clean the sink surface thoroughly.
TOOLS RECOMMENDED
Pliers Flashlight 9/16” and 11/16” open end wrenches
2
6
6E
6A
Adjustable wrenches (optional) Plumber’s putty Flaring tool (for copper tube installations)
Your installation may require supply tubes and / or shut-off valves.

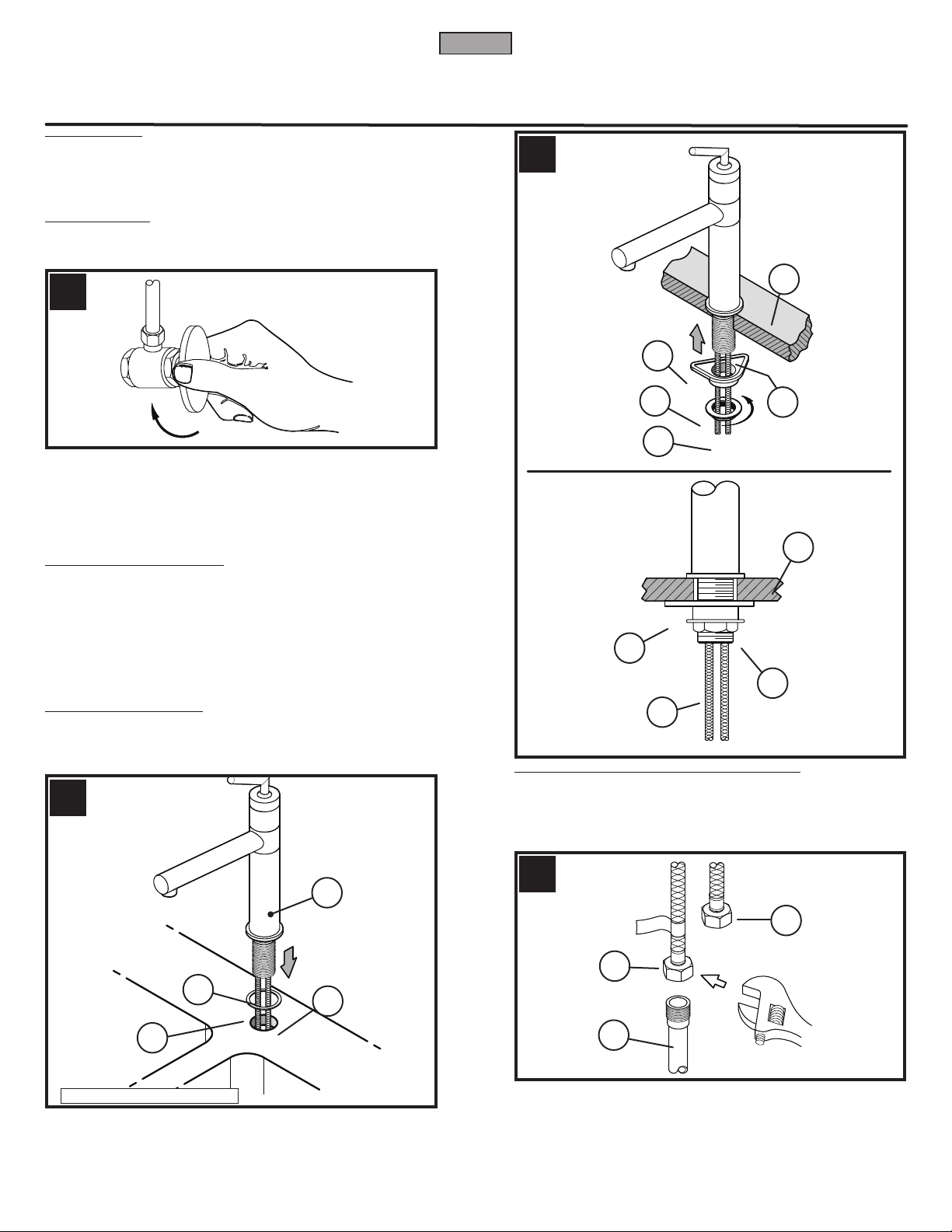

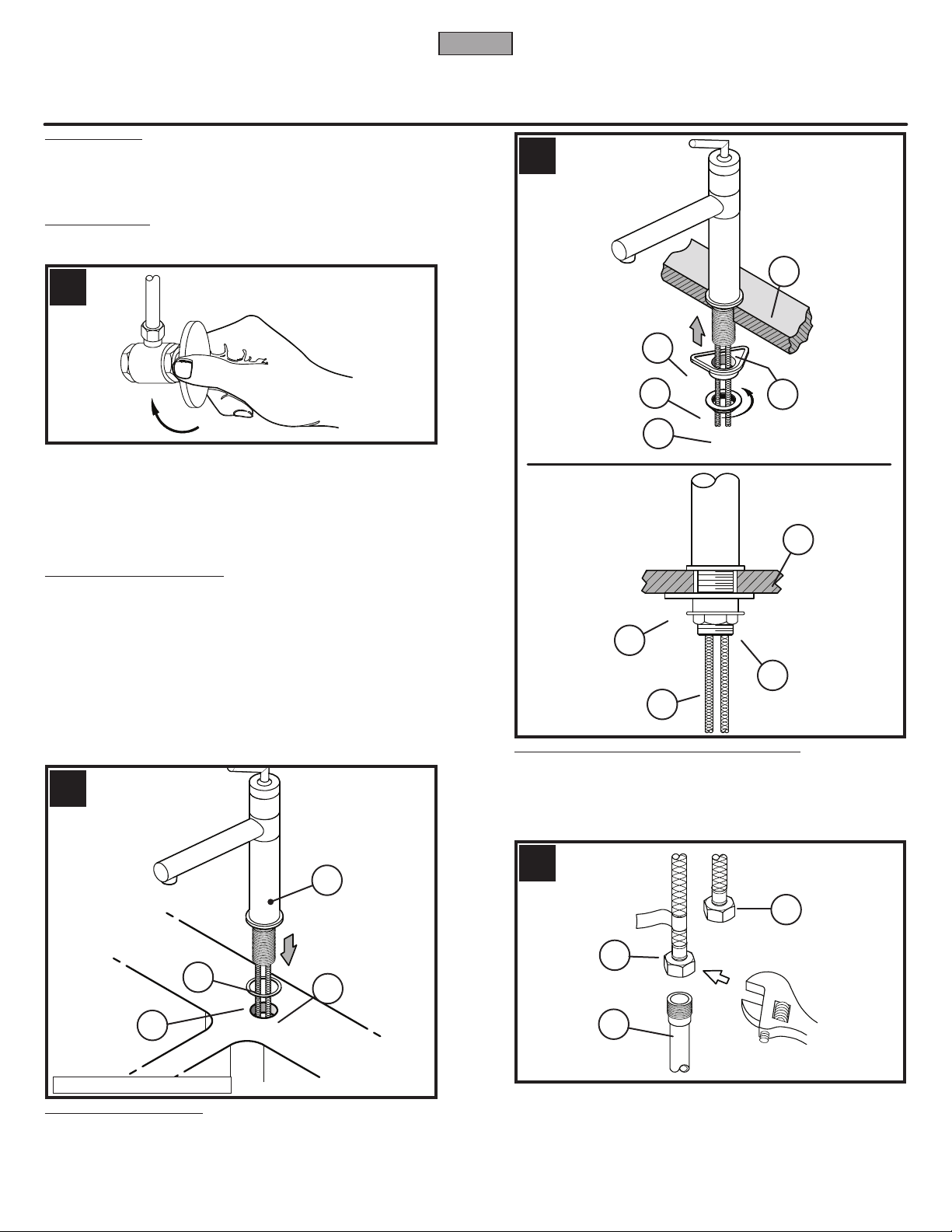

1A INSTALLING OPTIONAL DECK PLATE
(For single hole mount, go to step 1B)
Ensure that plastic putty plate (A) is pressed on to deck plate (B). Place a bead of plumber’s putty in the goove along the outer edge of the putty plate (A). Install the deck plate (B) over the three holes in your sink. From underneath sink, hand tighten wing nuts (C). Caution: do not over tighten wing nuts. Remove any excess putty from around the outside edge of the deck plate (B). To continue with the installation, go to step 2A.
1B INSTALLING SINGLE POST RING
Pass single post ring (A) over copper inlet / outlet tubes (B), and press onto faucet body (C). Note: The tabs on the faucet body (C) must be aligned to the grooves inside the single post ring (B). To ensure this is the case, rotate the single post ring (B). When the tabs are aligned, the ring will cease to rotate.
5
6B
6D
6C
6E
6A
6B
6C
2A INSTALLING THE FAUCET USING THE OPTIONAL DECK PLATE
Ensure that the mounting gasket (A) is pressed frimly in to the faucet body (B). Feed the pull-out hose (C) up through the faucet body (B), until the pull-out hose tting is ush with the bottom of the mounting shank (D) (see illustration). Insert the faucet supply tubes (E) and mounting shank (D)
5A
5B
Model E34-FNFC is shown
5C
5D
7
7C
7B
7A
through the hole in the deck plate (F). Note: The tabs on the faucet body (B) must be aligned to the grooves inside the deck plate (F). To ensure this is the case, rotate the faucet body (B) back and forth. When the tabs are aligned, the faucet will cease to rotate.
2
8
From underneath sink, feed the lockwasher (G) and brass mounting nut (H) over the supply tubes (E). Thread the brass mounting nut on to the mounting shank (D). Wrench tighten brass mounting nut (H), until faucet is rmly
9
9B
9C
9A
ENGLISH
From underneath sink, feed the lockwasher (F) and brass mounting nut (G) over the supply tubes (E). Thread the brass mounting nut on to the mounting shank (D). Wrench tighten brass mounting nut (H), until faucet is rmly secured to sink.

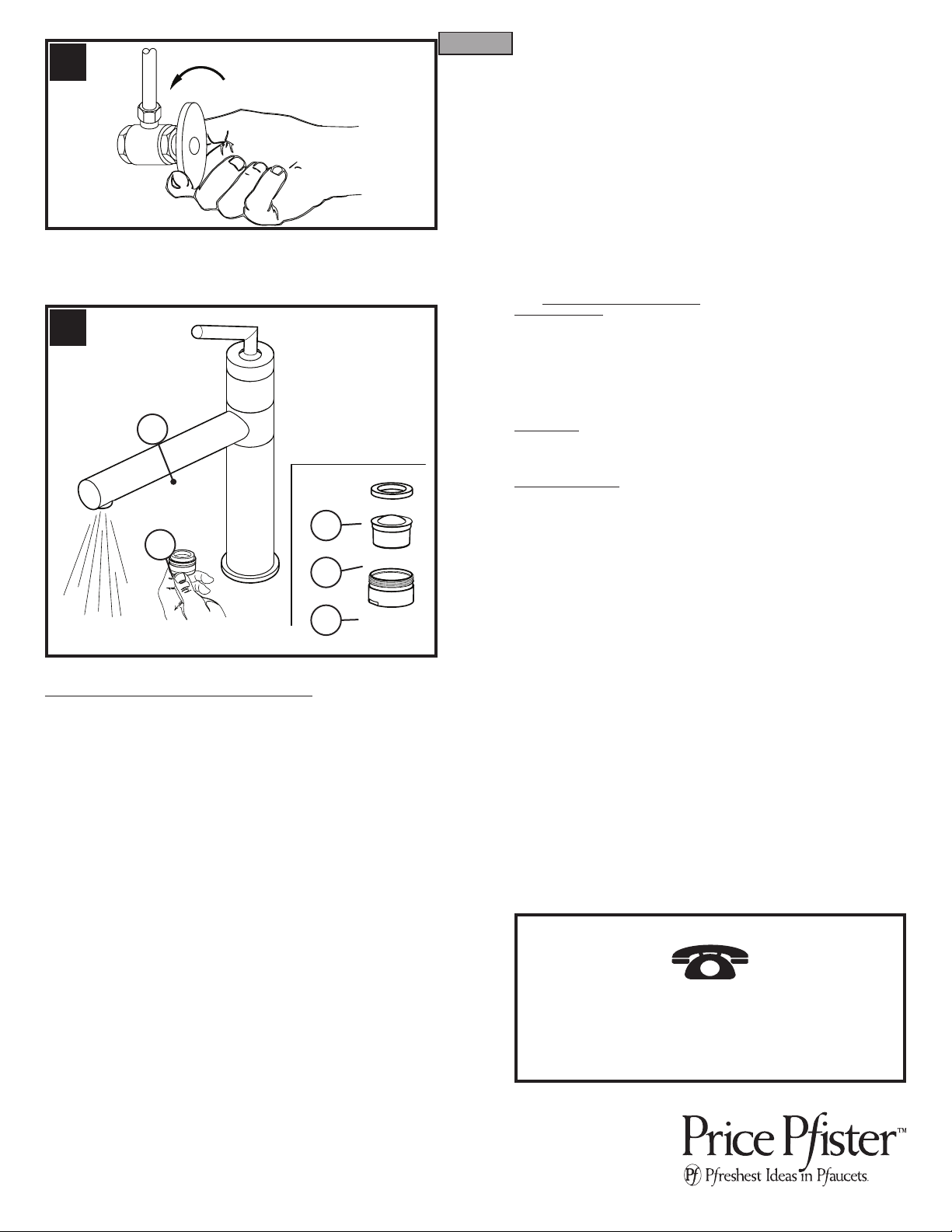

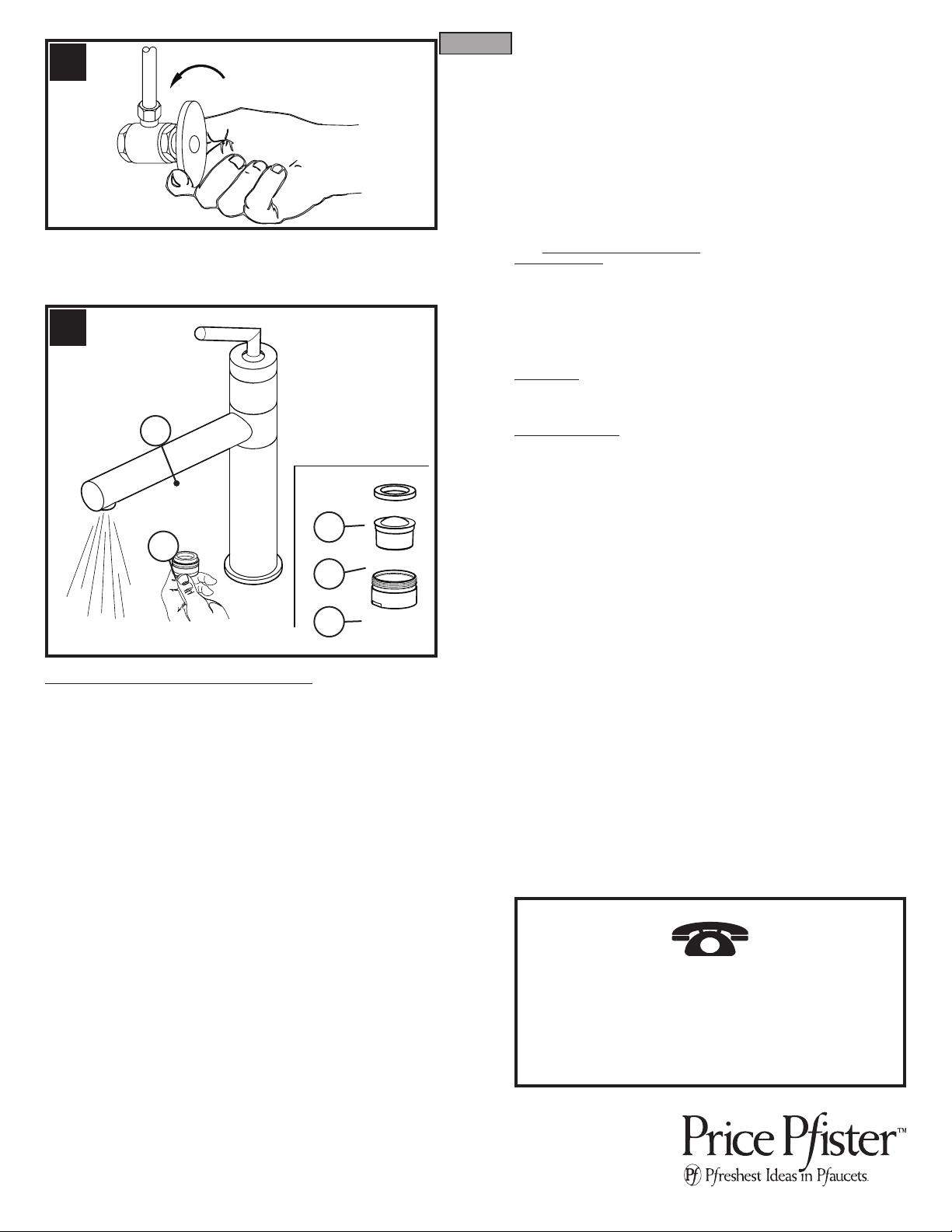

3 ATTACHING WEIGHT / CONNECTING PULL-OUT HOSE TO FAUCET
Feed the pull-out hose (A) down through the faucet body (B), until sprayhead (C) docks into faucet spout (D). Insert the end of the pull-out hose (A) into the weight (E). From underneath sink, push quick connect housing (F), located on the end of the pull-out hose (A) rmly upward onto the receiving tube (G), until unable to push any further. Pull down on quick connect housing (F). If the housing and the inner collet (H) separate slightly, but do not pull off the receiving tube (G), quick connect is secure.
CONNECTING WATER SUPPLY LINES4
Separating supply tubes
Gently separate hot and cold supply tubes (A), approximately three inches apart.
A Flexible supply lines (not included)
Connect hot water supply line to hot inlet tting (B), indicated by red tag. Repeat for cold water supply.
HOLD STEADY
Be sure to hold faucet inlet tting (C) steady with an 11/16” wrench while tightening exible supply line nut (D). Turn until seal is achieved.
B Rigid supply connections
(3/8” O.D. compression ttings included)
Slide water supply nut (E), friction ring (F), and cone washer (G) onto 3/8” O.D. water supply line end. Flare the end of water supply line (H) with a aring tool. Insert ared hot water supply line (H) into faucet hot supply tube end (J) and hand tighten nut (B) and hand tighten nut (E). Repeat procedure for cold water supply.
9D
9E
secured to sink.
2B INSTALLING THE FAUCET USING THE SINGLE POST RING
Ensure that the mounting gasket (A) is pressed frimly in to the faucet body (B). Feed the pull-out hose (C) up through the faucet body (B), until the pull-out hose tting is ush with the bottom of the mounting shank (D) (see illustration). Insert the faucet supply tubes (E) and mounting shank (D) through the hole in the sink.
Any questions or concerns on Price Pster products, contact your local Price Pster distributor or point of contact.
3
ESPAÑOL
Thank you for purchasing this Price Pster kitchen faucet. All Price Pster products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This kitchen faucet is easy to install using basic tools and our easy to follow illustrated instructions. If you have any questions regarding your kitchen faucet installation call 1-800-Pfaucet (1-800-732-8238).
BEFORE PROCEEDING
Locate water supply inlets and shut off the water supply valves. These are usually found under the sink or near the water meter. If you are replacing an existing faucet, remove the faucet from the sink and clean the sink surface thoroughly.
TOOLS RECOMMENDED
Pliers Flashlight
6
6E
2
6A
9/16” and 11/16” open end wrenches Adjustable wrenches (optional) Plumber’s putty Flaring tool (for copper tube installations)
Your installation may require supply tubes and / or shut-off valves.
1A INSTALLING OPTIONAL DECK PLATE
(For single hole mount, go to step 1B)
Ensure that plastic putty plate (A) is pressed on to deck plate (B). Place a bead of plumber’s putty in the goove along the outer edge of the putty plate (A). Install the deck plate (B) over the three holes in your sink. From underneath sink, hand tighten wing nuts (C). Caution: do not over tighten wing nuts. Remove any excess putty from around the outside edge of the deck plate (B). To continue with the installation, go to step 2A.
5
6B
6D
6C
6E
6A
6B
6C
2A INSTALLING THE FAUCET USING THE OPTIONAL DECK PLATE
Ensure that the mounting gasket (A) is pressed frimly in to the faucet body (B). Feed the pull-out hose (C) up through the faucet body (B), until the pull-out hose tting is ush with the bottom of the mounting shank (D) (see illustration). Insert the faucet supply tubes (E) and mounting shank (D) through the hole in the deck plate (F). Note: The tabs on the faucet body (B)
5C
5A
5D
5B
Se muestra el Modelo
1B INSTALLING SINGLE POST RING
Pass single post ring (A) over copper inlet / outlet tubes (B), and press onto faucet body (C). Note: The tabs on the faucet body (C) must be aligned to the grooves inside the single post ring (B). To ensure this is the case, rotate the single post ring (B). When the tabs are aligned, the ring will cease to rotate.
E34-FNFC
7
7C
7B
7A
must be aligned to the grooves inside the deck plate (F). To ensure this is the case, rotate the faucet body (B) back and forth. When the tabs are aligned, the faucet will cease to rotate.
4
8
From underneath sink, feed the lockwasher (G) and brass mounting nut (H) over the supply tubes (E). Thread the brass mounting nut on to the mounting shank (D). Wrench tighten brass mounting nut (H), until faucet is rmly secured to sink.
9
9B
ESPAÑOL
From underneath sink, feed the lockwasher (F) and brass mounting nut (G) over the supply tubes (E). Thread the brass mounting nut on to the mounting shank (D). Wrench tighten brass mounting nut (H), until faucet is rmly secured to sink.
3 ATTACHING WEIGHT / CONNECTING PULL-OUT HOSE TO FAUCET
Feed the pull-out hose (A) down through the faucet body (B), until sprayhead (C) docks into faucet spout (D). Insert the end of the pull-out hose (A) into the weight (E). From underneath sink, push quick connect housing (F), located on the end of the pull-out hose (A) rmly upward onto the receiving tube (G), until unable to push any further. Pull down on quick connect housing (F). If the housing and the inner collet (H) separate slightly, but do not pull off the receiving tube (G), quick connect is secure.
CONNECTING WATER SUPPLY LINES4
Separating supply tubes
Gently separate hot and cold supply tubes (A), approximately three inches apart.
A Flexible supply lines (not included)
Connect hot water supply line to hot inlet tting (B), indicated by red tag. Repeat for cold water supply.
HOLD STEADY
Be sure to hold faucet inlet tting (C) steady with an 11/16” wrench while tightening exible supply line nut (D). Turn until seal is achieved.
B Rigid supply connections
(3/8” O.D. compression ttings included)
9C
9A
9D
9E
2B INSTALLING THE FAUCET USING THE SINGLE POST RING
Ensure that the mounting gasket (A) is pressed frimly in to the faucet body (B). Feed the pull-out hose (C) up through the faucet body (B), until the pull-out hose tting is ush with the bottom of the mounting shank (D) (see illustration). Insert the faucet supply tubes (E) and mounting shank (D) through the hole in the sink.
En caso de cualquier pregunta o problema con respecto a los productos Price Pster, comuníquese con su distribuidor local o punto de contacto de Price Pster.
5
FRAN
ÇAIS
Thank you for purchasing this Price Pster kitchen faucet. All Price Pster products are carefully engineered, and factory tested to provide long trouble-free use under normal conditions. This kitchen faucet is easy to install using basic tools and our easy to follow illustrated instructions. If you have any questions regarding your kitchen faucet installation call 1-800-Pfaucet (1-800-732-8238).
BEFORE PROCEEDING
Locate water supply inlets and shut off the water supply valves. These are usually found under the sink or near the water meter. If you are replacing an existing faucet, remove the faucet from the sink and clean the sink surface thoroughly.
TOOLS RECOMMENDED
Pliers Flashlight 9/16” and 11/16” open end wrenches
6
6E
2
6A
Adjustable wrenches (optional) Plumber’s putty Flaring tool (for copper tube installations)
Your installation may require supply tubes and / or shut-off valves.
1A INSTALLING OPTIONAL DECK PLATE
(For single hole mount, go to step 1B)
Ensure that plastic putty plate (A) is pressed on to deck plate (B). Place a bead of plumber’s putty in the goove along the outer edge of the putty plate (A). Install the deck plate (B) over the three holes in your sink. From underneath sink, hand tighten wing nuts (C). Caution: do not over tighten wing nuts. Remove any excess putty from around the outside edge of the deck plate (B). To continue with the installation, go to step 2A.
1B INSTALLING SINGLE POST RING
Pass single post ring (A) over copper inlet / outlet tubes (B), and press onto faucet body (C). Note: The tabs on the faucet body (C) must be aligned to the grooves inside the single post ring (B). To ensure this is the case, rotate the single post ring (B). When the tabs are aligned, the ring will cease to rotate.
5
6B
6D
6C
6E
6A
6B
6C
2A INSTALLING THE FAUCET USING THE OPTIONAL DECK PLATE
Ensure that the mounting gasket (A) is pressed frimly in to the faucet body (B). Feed the pull-out hose (C) up through the faucet body (B), until the pull-out hose tting is ush with the bottom of the mounting shank (D) (see illustration). Insert the faucet supply tubes (E) and mounting shank (D) through the hole in the deck plate (F). Note: The tabs on the faucet body (B)
5A
5B
Modèle E34-FNFC représenté
5C
7
7C
7B
5D
7A
must be aligned to the grooves inside the deck plate (F). To ensure this is the case, rotate the faucet body (B) back and forth. When the tabs are aligned, the faucet will cease to rotate.
6
8
From underneath sink, feed the lockwasher (G) and brass mounting nut (H) over the supply tubes (E). Thread the brass mounting nut on to the mounting shank (D). Wrench tighten brass mounting nut (H), until faucet is rmly secured to sink.
9
9B
9C
9A
FRAN
ÇAIS
3 ATTACHING WEIGHT / CONNECTING PULL-OUT HOSE TO FAUCET
Feed the pull-out hose (A) down through the faucet body (B), until sprayhead (C) docks into faucet spout (D). Insert the end of the pull-out hose (A) into the weight (E). From underneath sink, push quick connect housing (F), located on the end of the pull-out hose (A) rmly upward onto the receiving tube (G), until unable to push any further. Pull down on quick connect housing (F). If the housing and the inner collet (H) separate slightly, but do not pull off the receiving tube (G), quick connect is secure.
CONNECTING WATER SUPPLY LINES4
Separating supply tubes
Gently separate hot and cold supply tubes (A), approximately three inches apart.
A Flexible supply lines (not included)
Connect hot water supply line to hot inlet tting (B), indicated by red tag. Repeat for cold water supply.
HOLD STEADY
Be sure to hold faucet inlet tting (C) steady with an 11/16” wrench while tightening exible supply line nut (D). Turn until seal is achieved.
B Rigid supply connections
(3/8” O.D. compression ttings included)
Slide water supply nut (E), friction ring (F), and cone washer (G) onto 3/8” O.D. water supply line end. Flare the end of water supply line (H) with a aring tool. Insert ared hot water supply line (H) into faucet hot supply tube end (J) and hand tighten nut (B) and hand tighten nut (E). Repeat procedure for cold water supply.
9D
9E
2B INSTALLING THE FAUCET USING THE SINGLE POST RING
Ensure that the mounting gasket (A) is pressed frimly in to the faucet body (B). Feed the pull-out hose (C) up through the faucet body (B), until the pull-out hose tting is ush with the bottom of the mounting shank (D) (see illustration). Insert the faucet supply tubes (E) and mounting shank (D) through the hole in the sink.
From underneath sink, feed the lockwasher (F) and brass mounting nut (G) over the supply tubes (E). Thread the brass mounting nut on to the mounting shank (D). Wrench tighten brass mounting nut (H), until faucet is rmly secured to sink.
Pour toute question ou problème con c e rn a n t les p r o du i t s Pri c e Pster, s’adresser au distributeur ou point de contact local Price Pfister.
7
