eStarling connected touchscreen frame user manual

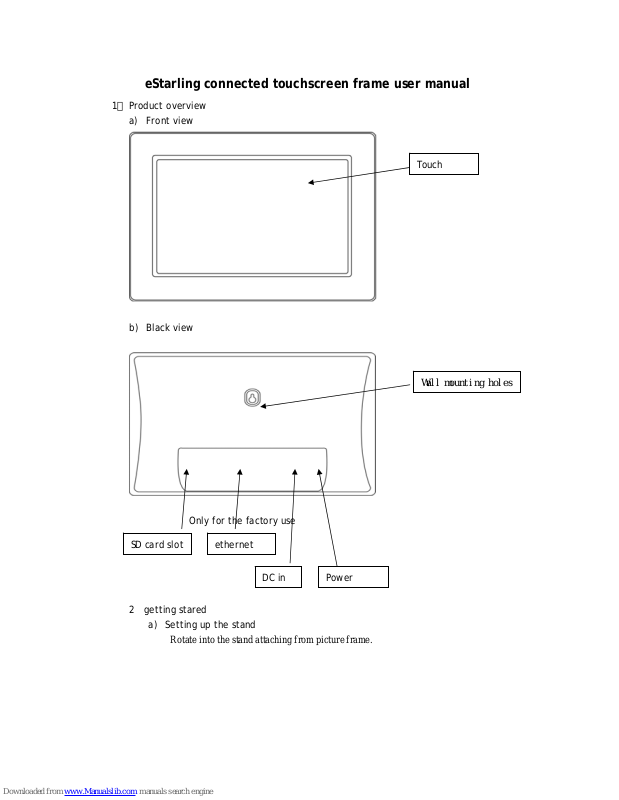

1． Product overview
a) Front view
b) Black view
Only for the factory use
2 getting stared
a) Setting up the stand
Rotate into the stand attaching from picture frame.
Touch
SD card slot ethernet
DC in Power
Wall mounting holes
b) Plugging in the power cord.
c) Press the power button to turn on the frame
d) Connecting to your wireless network
When you turn on the frame, it will scan for any available WiFi networks
automatically. Please choose your specified Wi-Fi network,then please input your
password into the blank(if you set your wireless as encryption). Enter your password
through pressing the virtual Keyboard buttons displayed on frame screen
(Note:
i) In case of not finding specified SSID, please select Scan Again. In case of scanning
failure again and comparatively complicated Wi-Fi network security , please
select Manual Setup and Enter to set up your Wi-Fi networks as below. We do not
recommend “Manual setup” if you are not a technology wiz.
3) setting up content source
A) setting up gmail account
After setting up your gmail account, you are able to send photos to your frame by
attachment. The frame will get these photos immediately and starting slideshow.
B) getting pictures from RSSFEED
RSSFEED module need keep to media RSS 2.0 protocol, and it just contain
photos .RSSFEED sent by gmail as follow format:
subject: command
[add rss]#*url_link_address*#
[remove rss]#*url_link_address*#
Please write “command” this word into your email subject. At this rate, our system will
parse your RSS comand. [add rss] is adding new rss link to your frame, Oppositely,
[remove rss] is removing old rss from your frame.
Example: [add rss]#*
feed://api.flickr.com/services/feeds/groups_pool.gne?id=72526026@N00&format=rss_2
00*#
4) doing more with your frame
A) playing video
i) Tap
(Home), then (video). Slide to highlight a video source then tap play.
ii) Slide to the right/left to move up/down the music source list, then tap play.
iii) Slide right/left to go to the previous/next song, or tap Select all, then tap the
Play button on the bottom of the border to start playing video.
iv) Tap (resume) on the right border to return to your slide show.
b) getting weather
5）changing setting
a) Setting the clock and timer
v) Tap (Home), then (Settings).
vi) Highlight Clock and timer, then tap Select.
vii) Highlight Set time, then tap Select.
viii)Choose the correct day and time, then slide to adjust it.
ix) Tap Save to accept your changes.
B) Changing brightness
c) Changing volume
d) Adjust calibration
Adjust the touch screen calibration, there is a cross appear on your screen,
please press the center of this cross while it show up.
e) Upgrading firmware
The frame will upgrade firmware automatically when it find new version on
internet. Caution: Please do not shut down the frame while it upgrading.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this equipment.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator
& your body.
REMINDING
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may
cause undesired operation.
