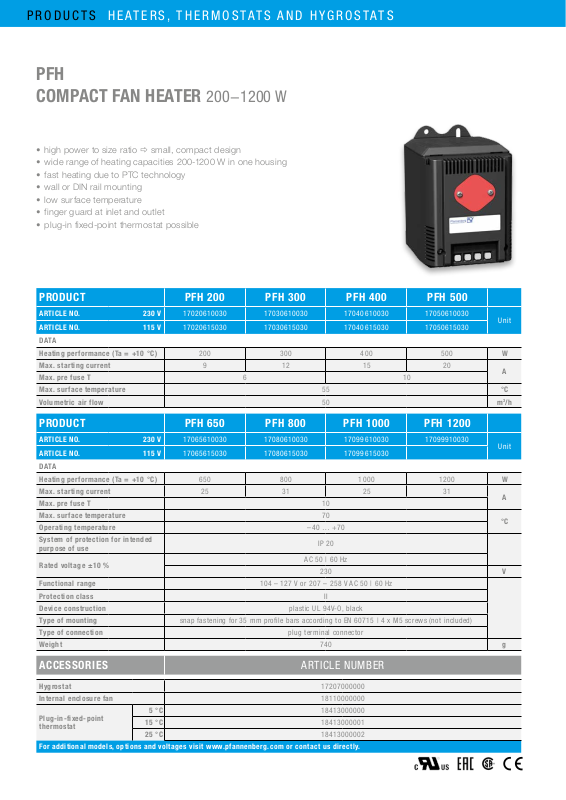

Pfannenberg PFH Data Sheet
PRODUCTS HEATERS, THERMOSTATS AND HYGROSTATS
PFH
COMPACT FAN HEATER 200−1200 W
• high power to size ratio small, compact design
• wide range of heating capacities 200-1200 W in one housing
• fast heating due to PTC technology
• wall or DIN rail mounting
• low surface temperature
• finger guard at inlet and outlet
• plug-in fixed-point thermostat possible
PRODUCT PFH 200 PFH 300 PFH 400 PFH 500
ARTICLE NO. 230 V 17020610030 17030610030 17040610030 17050610030
ARTICLE NO. 115 V 17020615030 17030615030 17040615030 17050615030
DATA
Heating performance (Ta = +10 °C) 200 300 400 500 W
Max. starting current 9 12 15 20
Max. pre fuse T 6 10
Max. surface temperature 55 °C
Volumetric air flow 50 m
Unit
PRODUCT PFH 650 PFH 800 PFH 1000 PFH 1200
ARTICLE NO. 230 V 17065610030 17080610030 17099610030 17099910030
ARTICLE NO. 115 V 17065615030 17080615030 17099615030
DATA
Heating performance (Ta = +10 °C) 650 800 1000 1200 W
Max. starting current 25 31 25 31
Max. pre fuse T 10
Max. surface temperature 70
Operating temperature –40 … +70
System of protection for intended
purpose of use
Rated voltage ±10 %
Functional range 104 – 127 V or 207 – 258 V AC 50 | 60 Hz
Protection class II
Device construction plastic UL 94V-O, black
Type of mounting snap fastening for 35 mm profile bars according to EN 60715 | 4 x M5 screws (not included)
Type of connection plug terminal connector
Weight 740 g
IP 20
AC 50 | 60 Hz
230 V
Unit
°C
A
3
/h
A
ACCESSORIES
Hygrostat 17207000000
Internal enclosure fan 18110000000
Plug-in-fixed-point
thermostat
For additional models, options and voltages visit www.pfannenberg.com or contact us directly.
5 °C 18413000000
15 °C 18413000001
25 °C 18413000002
ARTICLE NUMBER
Dimensions
D
Option 1
Option 2
X1
2 2 3
mm
X
Y
Z
A
B
C
D
E
F
G
Ø F
A
F
PFH
88
142
126
129
142
134
88
35
5.5
6
Z
Y
X
B
C
F
G Ø F
E
Schematics
Standard
without internal thermostat
Option 1
with internal thermostat
Option 2
with internal thermostat and
external thermostat which
control independent to each other
E1 E1 E1
N N N
M1
L L L
1~
X1
M1
1~
B1
X1
LL LN N NL1 L1 L1
AND HYGROSTATS
HEATERS, THERMOSTATS
M1
1~
B1
M1: fan
E1: PTC - heating element
X1: connection
B1: thermostat (optional)
