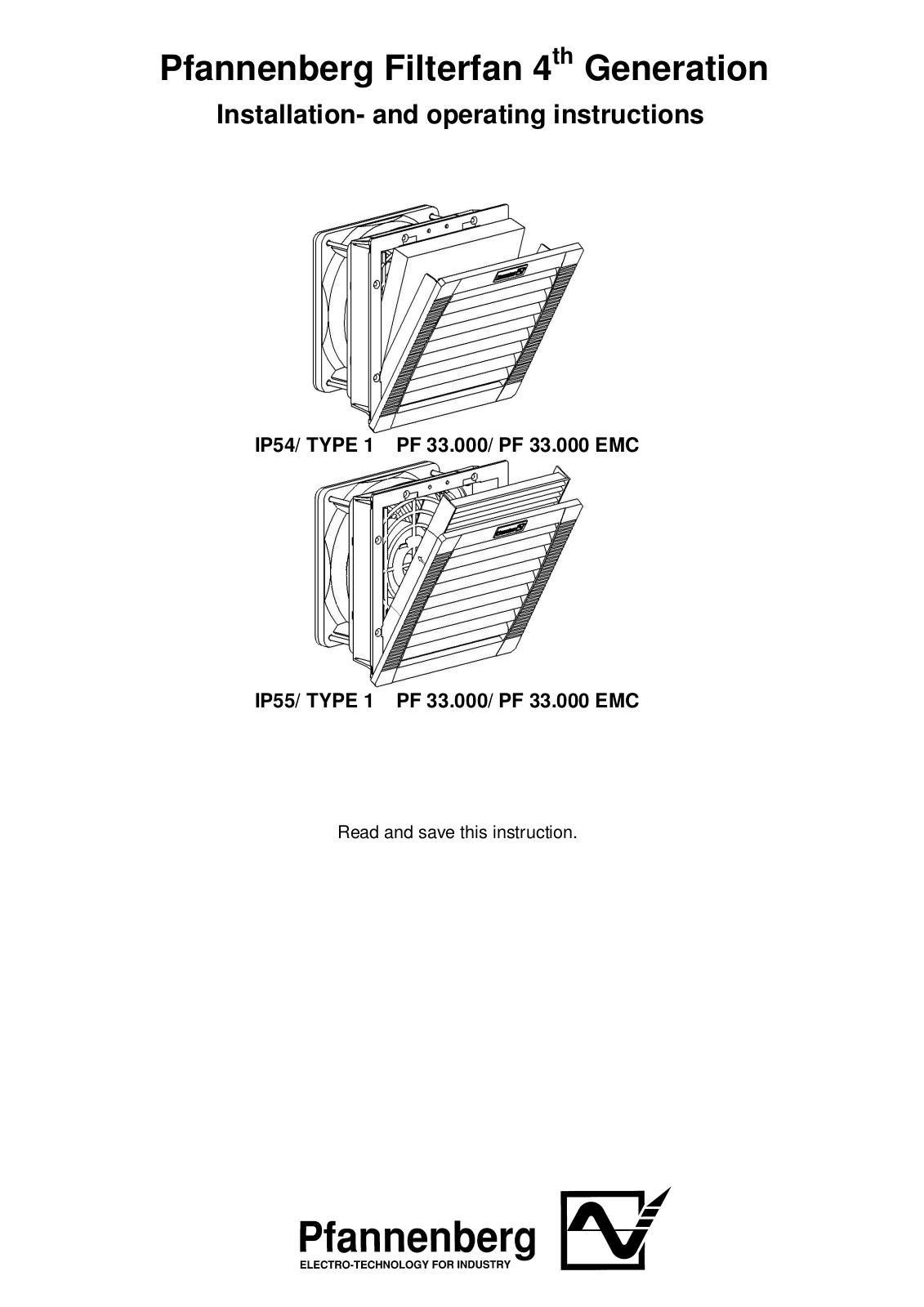

Pfannenberg Filterfan 4th Generation
I
nstallation- and operating instructions
IP54/ TYPE 1 PF 33.000/ PF 33.000 EMC
IP55/ TYPE 1 PF 33.000/ PF 33.000 EMC
Read and save this instruction.

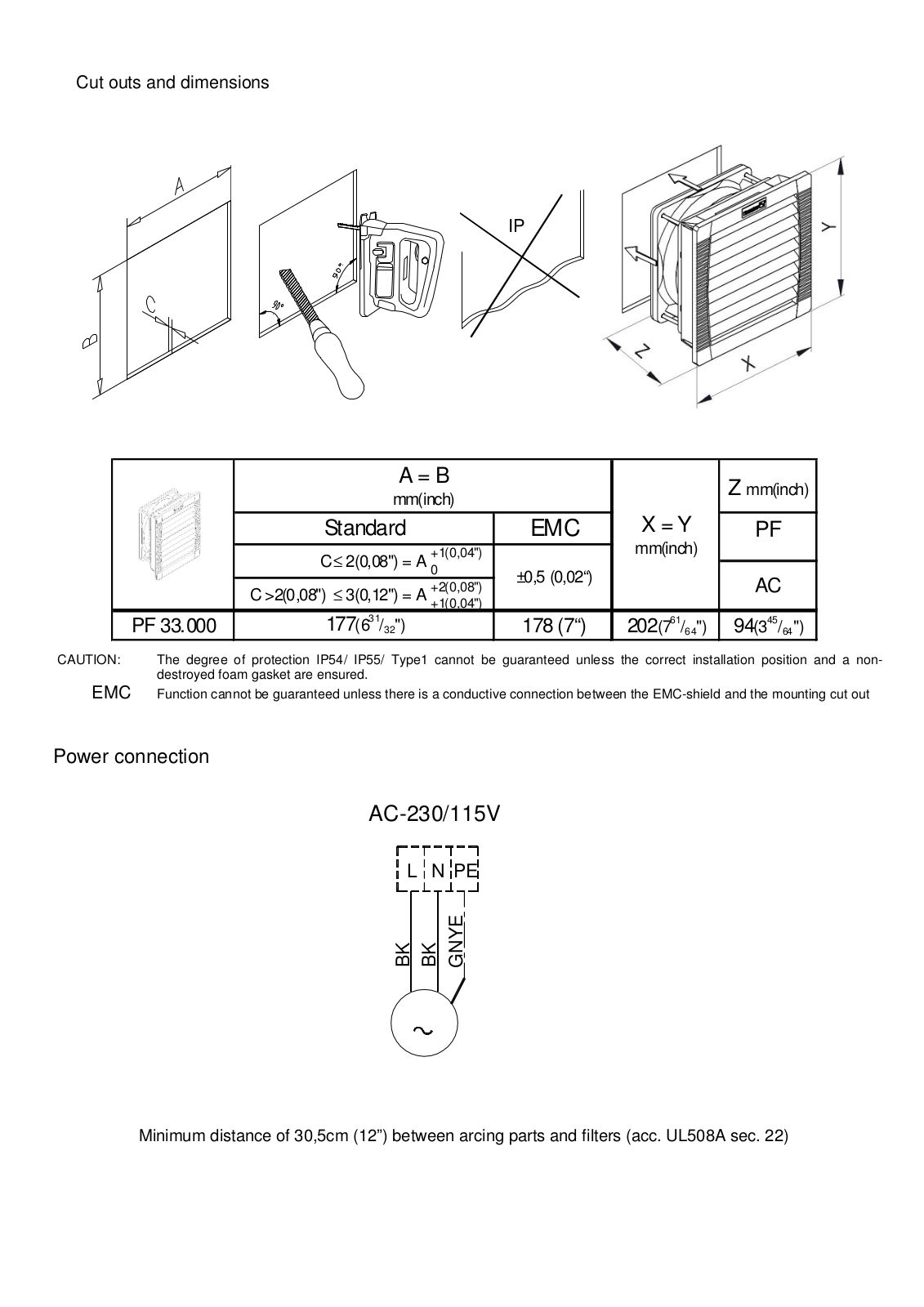

Cut outs and dimensions
+1(0,04")
BK BK
GNYE
LN
AC
IP
A = B
mm(inch)
Standard
C ≤ 2(0,08") = A
C >2(0,08") ≤ 3(0,12") = A
177
PF 33.000 178 (7“) 202
CAUTION: The degree of protection IP54/ IP55/ Type1 cannot be guaranteed unless the correct installation position and a non-
EMC Function cannot be guaranteed unless there is a conductive connection between the EMC-shield and the mounting cut out
Power connection
destroyed foam gasket are ensured.
(631/32")
+1(0,04")
0
+2(0,08")
EMC
±0,5 (0,02“)
X = Y
mm(inch)
(761/64")
-230/115V
Z
mm(inch)
PF
AC
94
(345/64")
PE
Minimum distance of 30,5cm (12”) between arcing parts and filters (acc. UL508A sec. 22)

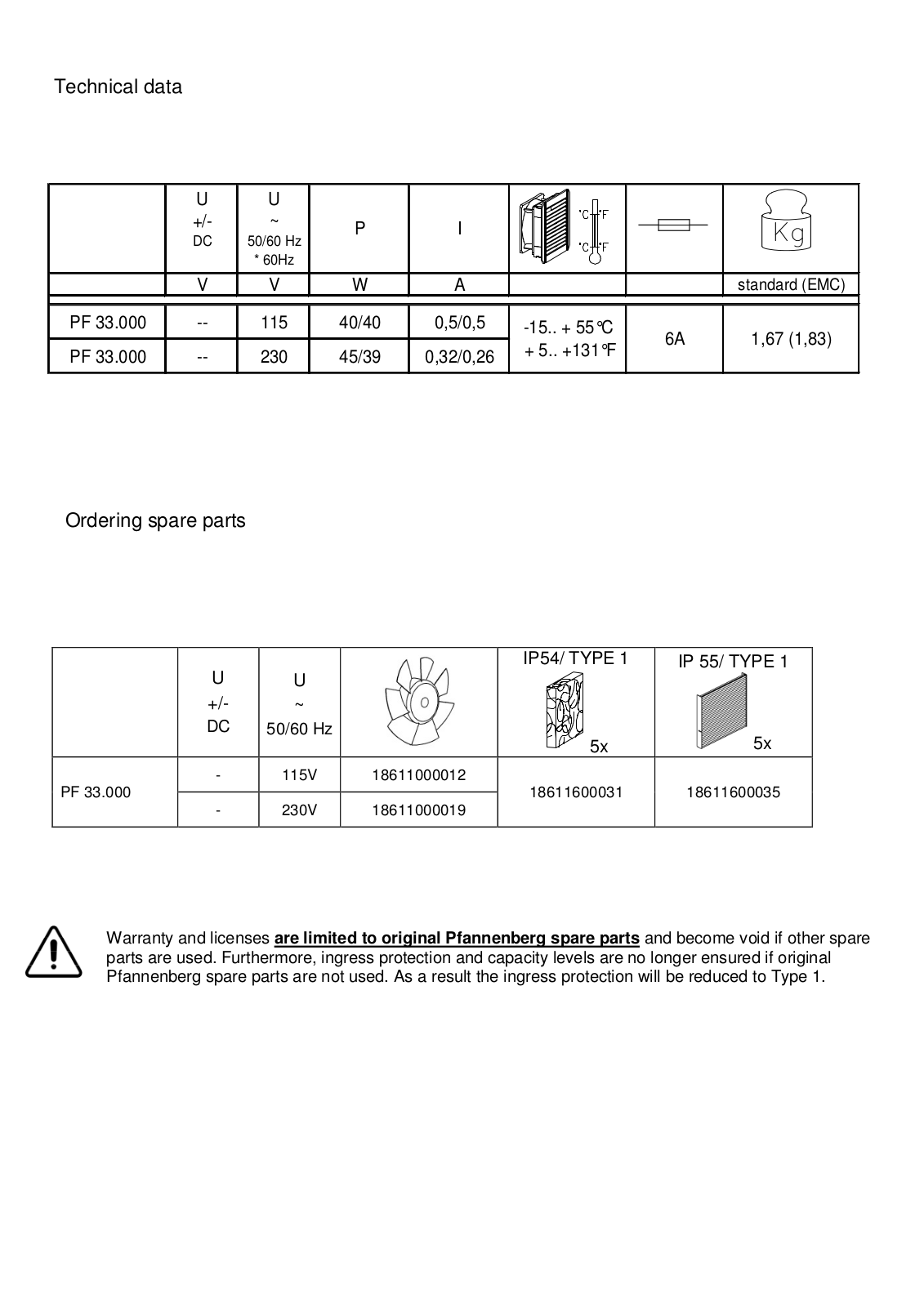

echnical data
T
Технические данные
U
+/-
DC
V V W A
U
~
50/60 Hz
* 60Hz
P I
standard (EMC)
PF 33.000 -- 115 40/40 0,5/0,5
PF 33.000 -- 230 45/39 0,32/0,26
Ordering spare parts
www.filterfan.com · spareparts@pfannenberg.com
U
+/-
DC
U
~
50/60 Hz
-15.. + 55°C
+ 5.. +131°F
Приобретение запасных деталей
IP54/ TYPE 1
5x
6A
IP 55/ TYPE 1
1,67 (1,83)
5x
PF 33.000
Warranty and licenses are limited to original Pfannenberg spare parts and become void if other spare
parts are used. Furthermore, ingress protection and capacity levels are no longer ensured if original
Pfannenberg spare parts are not used. As a result the ingress protection will be reduced to Type 1.
- 115V 18611000012
18611600031 18611600035
- 230V 18611000019
085408110 www.filterfan.com

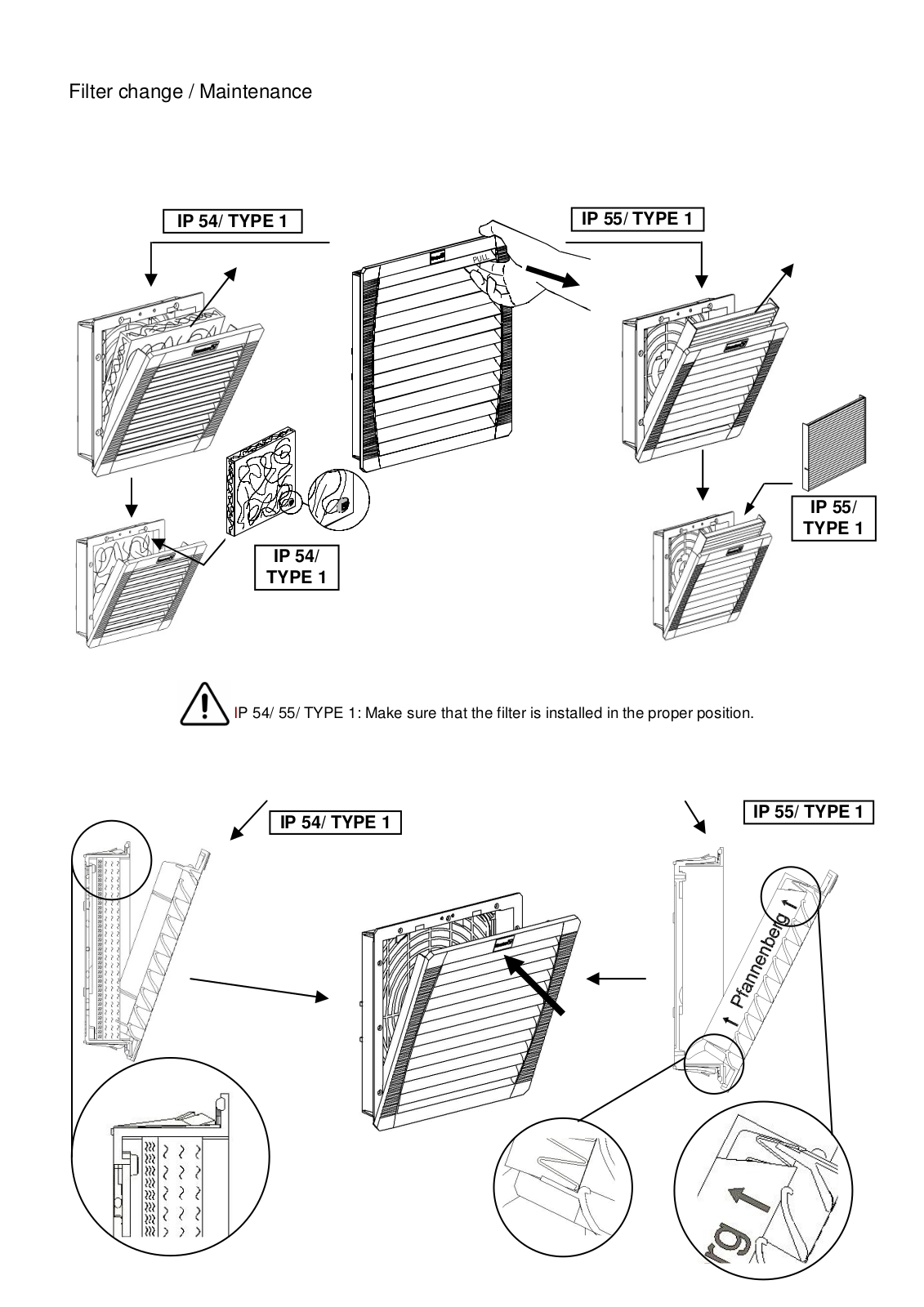

Filter change / Maintenance
IP 54/ TYPE 1
IP 55/ TYPE 1
IP 54/ TYPE 1
IP 55/
IP 55/ TYPE 1
IP 54/
L
L
U
P
TYPE 1
IP 54/ 55/ TYPE 1: Make sure that the filter is installed in the proper position.
TYPE 1
