SPECTRA series compact status lights
P 200 SLF / P 100 SLF (Ø 60 mm)
• compact status light series, also for use where space is limited
• large variety of mounting methods due to modular design principle:
– panel-mounted devices with convenient plug contact (P 100)
– surface-mounted devices for mounting directly or on a wall bracket
or a tubular stand (P 200)
• durable, sturdy and functionally reliable due to the use of
high-quality plastic
• optimum illumination due to prismatic coloured lens
• also for exposed installation locations by combining wall bracket and
tubular stand
• high IP protection in any installation position
r =
2 m
Range as
per EN 54
IP 65
Protection
system
Electrical data P 200 SLF P 100 SLF
Rated voltage 12 – 250 V * 12 – 250 V *
Power consumption 5 W 5 W
* Light source not included
+ 50 °C
- 25 °C
Operating
temperature

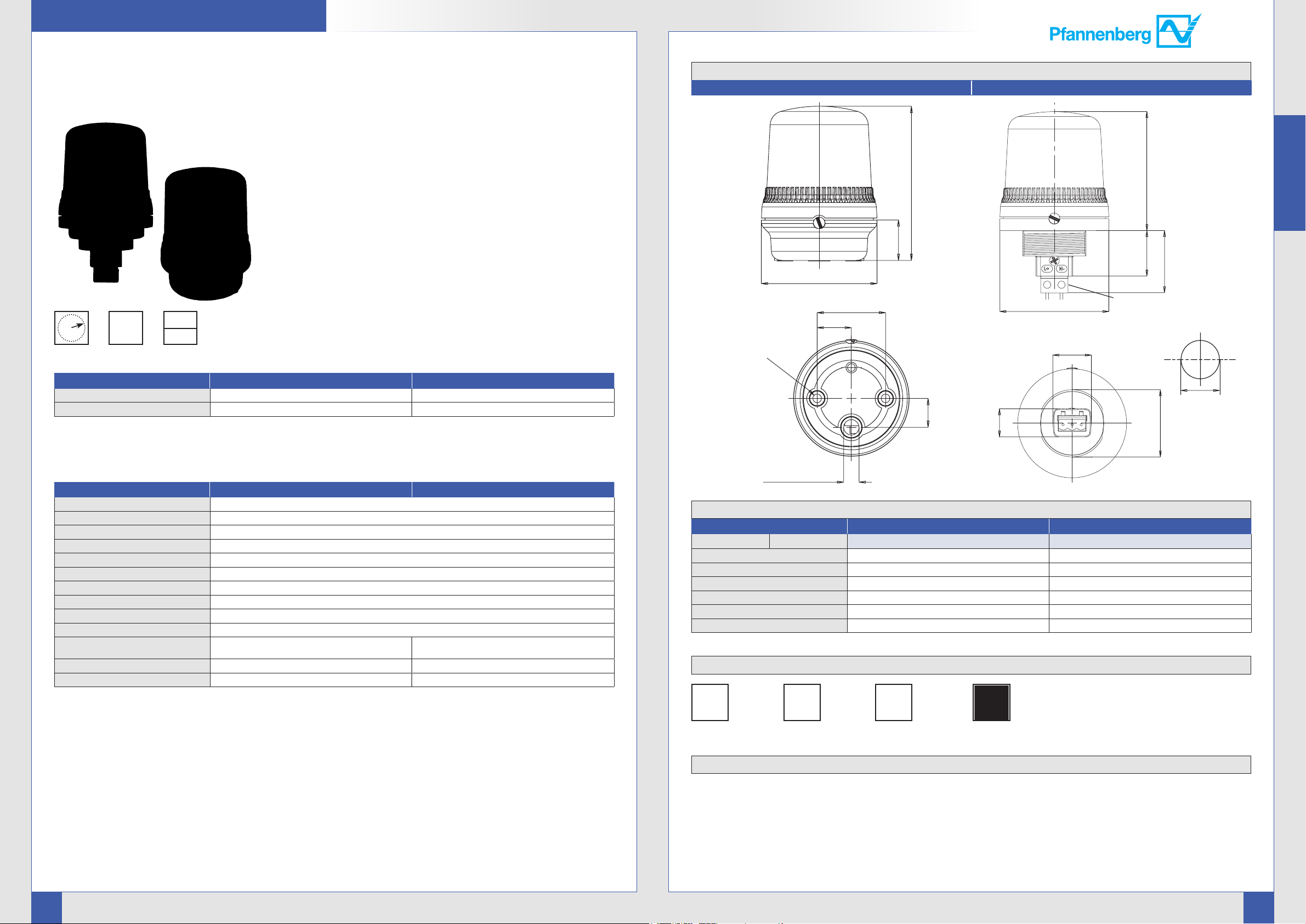

Dimensions
mounting holes
2 x Ø 4.5 mm
P 200 FLF P 100 FLF
80
25
Ø 60
plug terminal
connector
17.5
36
15
16
Ø 60
21.23
65.5
25
thread
PG29
Continuous Lights
35.5
Panel cut-out
Mechanical data P 200 SLF P 100 SLF
Operating mode continuous light
Light source lament lamp BA9s
Light power 5 W
Lens colours clear, yellow, amber, red, green, blue
Lens type prismatic
Operating temperature - 25 °C ... + 50 °C
Relative humidity 90% @ + 20 °C
Protection system according to EN 60529 IP 65
Material polycarbonate (PC), UL 94 VO f1
Design bayonet with anti-tamper locking screw
Mounting
Connecting terminals screw terminals 1.5 mm
Weight 77 g 90 g
surface mounting (wall bracket and tubular stand
available as accessories)
2
panel-mounting: Ø 37.5 mm (PG29)
screw terminals 1.5 mm2, pluggable
cable entry Ø 8 mm
Ordering details
Article numbers P 200 SLF P 100 SLF
Lens colour Rated voltage 12 – 250 V * 12 – 250 V *
clear 213 20 61 1 000 213 10 61 1 000
yellow 213 20 61 3 000 213 10 61 3 000
amber 213 20 61 4 000 213 10 61 4 000
red 213 20 61 5 000 213 10 61 5 000
green 213 20 61 6 000 213 10 61 6 000
blue 213 20 61 7 000 213 10 61 7 000
* Please order light bulb separately
Options / accessories
only for
P 200 SLF
Wall
bracket
Article number:
213 90 00 0 000
Tubular
stand
137 mm
Article number:
213 91 00 0 000
only for
P 200 SLF
only in
combination
Wall
holder
Article number:
282 50 20 0 000
with tubular
stand
See pages 122-124 for further information
Light source
Conformity to standards
The visual characteristics of continuous lights conform to the European standard DIN EN 842: ‘Machine safety – visual alarm signals’.
Requirements contained in the DIN EN 981 standard: ‘Machine safety – system of acoustic and visual alarm and information signals’, can be fullled.
The colours ‘red’ for the emergency signal and ‘yellow’ for the warning signal conform to the requirements of IEC 73 / DIN EN 60073 / VDE 0199:
‘Coding of display devices and control elements using colours and supplementary means’.
References to visual alarm devices can be found in the following standards:
EN 60825-1 Radiation safety of laser devices, identical to IEC 825 and DIN-VDE 0837
DIN EN 54 Fire alarm systems
DIN 54113-2 Radiation protection regulations for the technical operation of X-ray equipment up to 500 kV
