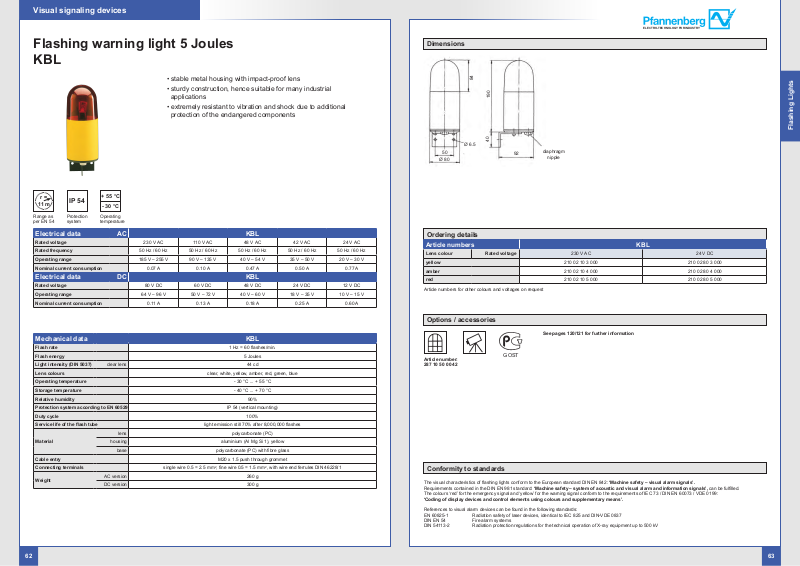

Visual signaling devices
Flashing warning light 5 Joules
KBL
•stable metal housing with impact-proof lens
•sturdy construction, hence suitable for many industrial applications
•extremely resistant to vibration and shock due to additional protection of the endangered components
r = |
|
IP 54 |
|
+ 55 °C |
|
|
|
|
|
|
11 m |
|
|
- 30 °C |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
Range as |
Protection |
|
Operating |
|
|
|
|
|
||
per EN 54 |
system |
|
temperature |
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
Electrical data |
|
AC |
|
|
KBL |
|
|
|||
Rated voltage |
|
|
|
|
230 V AC |
110 V AC |
48 V AC |
42 V AC |
24 V AC |
|
Rated frequency |
|
|
|
50 Hz / 60 Hz |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
50 Hz / 60 Hz |
||
Operating range |
|
|
|
185 V – 255 V |
90 V – 135 V |
40 V – 54 V |
35 V – 50 V |
20 V – 30 V |
||
Nominal current consumption |
0.07 A |
0.10 A |
0.47 A |
0.50 A |
0.77 A |
|||||
Electrical data |
|
DC |
|
|
KBL |
|
|
|||
Rated voltage |
|
|
|
|
80 V DC |
60 V DC |
48 V DC |
24 V DC |
12 V DC |
|
|
|
|
|
|
|
|
|
|
||
Operating range |
|
|
|
64 V – 96 V |
50 V – 72 V |
40 V – 60 V |
18 V – 35 V |
10 V – 15 V |
||
|
|
|
|
|
|
|||||
Nominal current consumption |
0.11 A |
0.13 A |
0.18 A |
0.25 A |
0.60 A |
|||||
|
|
|
|
|
|
|
|
|
|
|
Mechanical data |
|
KBL |
|
Flash rate |
|
1 Hz = 60 flashes/min. |
|
Flash energy |
|
5 Joules |
|
Light intensity (DIN 5037) |
clear lens |
44 cd |
|
Lens colours |
|
clear, white, yellow, amber, red, green, blue |
|
Operating temperature |
|
- 30 °C ... + 55 °C |
|
Storage temperature |
|
- 40 °C ... + 70 °C |
|
Relative humidity |
|
90% |
|
Protection system according to EN 60529 |
IP 54 (vertical mounting) |
||
Duty cycle |
|
100% |
|
Service life of the flash tube |
|
light emission still 70% after 8,000,000 flashes |
|
|
|
lens |
polycarbonate (PC) |
|
|
|
|
Material |
housing |
aluminium (Al Mg Si 1), yellow |
|
|
|
base |
polycarbonate (PC) with fibre glass |
|
|
|
|
Cable entry |
|
M20 x 1.5 push through grommet |
|
Connecting terminals |
|
single wire 0.5 = 2.5 mm2, fine wire 0.5 = 1.5 mm2, with wire end ferrules DIN 46228/1 |
|
Weight |
|
AC version |
260 g |
|
|
|
|
|
DC version |
300 g |
|
|
|
||
|
|
|
|
ELECTRO-TECHNOLOGY FOR INDUSTRY
Dimensions
<![if ! IE]> <![endif]>84 |
|
|
|
|
<![if ! IE]> <![endif]>Lights |
|
|
|
<![if ! IE]> <![endif]>190 |
|
|
|
|
|
|
|
|
|
|
<![if ! IE]> <![endif]>Flashing |
|
|
<![if ! IE]> <![endif]>40 |
|
|
|
|
|
|
|
|
|
|
|
Ø 6.5 |
|
|
|
|
|
|
50 |
|
|
92 |
diaphragm |
|
|
Ø 80 |
|
|
|
nipple |
|
|
|
|
|
|
|
|
Ordering details
Article numbers |
|
|
KBL |
||
|
|
||||
Lens colour |
|
Rated voltage |
230 V AC |
|
24 V DC |
|
|
|
|
|
|
yellow |
|
210 02 10 3 000 |
|
210 02 80 3 000 |
|
amber |
|
210 02 10 4 000 |
|
210 02 80 4 000 |
|
red |
|
210 02 10 5 000 |
|
210 02 80 5 000 |
Article numbers for other colours and voltages on request
Options / accessories
See pages 120/121 for further information
GOST
Article number: 287 10 50 0 042
Conformity to standards
The visual characteristics of flashing lights conform to the European standard DIN EN 842: ‘Machine safety – visual alarm signals’.
Requirements contained in the DIN EN 981 standard: ‘Machine safety – system of acoustic and visual alarm and information signals’, can be fulfilled. The colours ‘red’ for the emergency signal and ‘yellow’ for the warning signal conform to the requirements of IEC 73 / DIN EN 60073 / VDE 0199:
‘Coding of display devices and control elements using colours and supplementary means’.
References to visual alarm devices can be found in the following standards:
EN 60825-1 |
Radiation safety of laser devices, identical to IEC 825 and DIN-VDE 0837 |
DIN EN 54 |
Fire alarm systems |
DIN 54113-2 |
Radiation protection regulations for the technical operation of X-ray equipment up to 500 kV |
