YOUR 206 AT A GLANCE |
|
14-06-2004
YOUR 206 AT A GLANCE

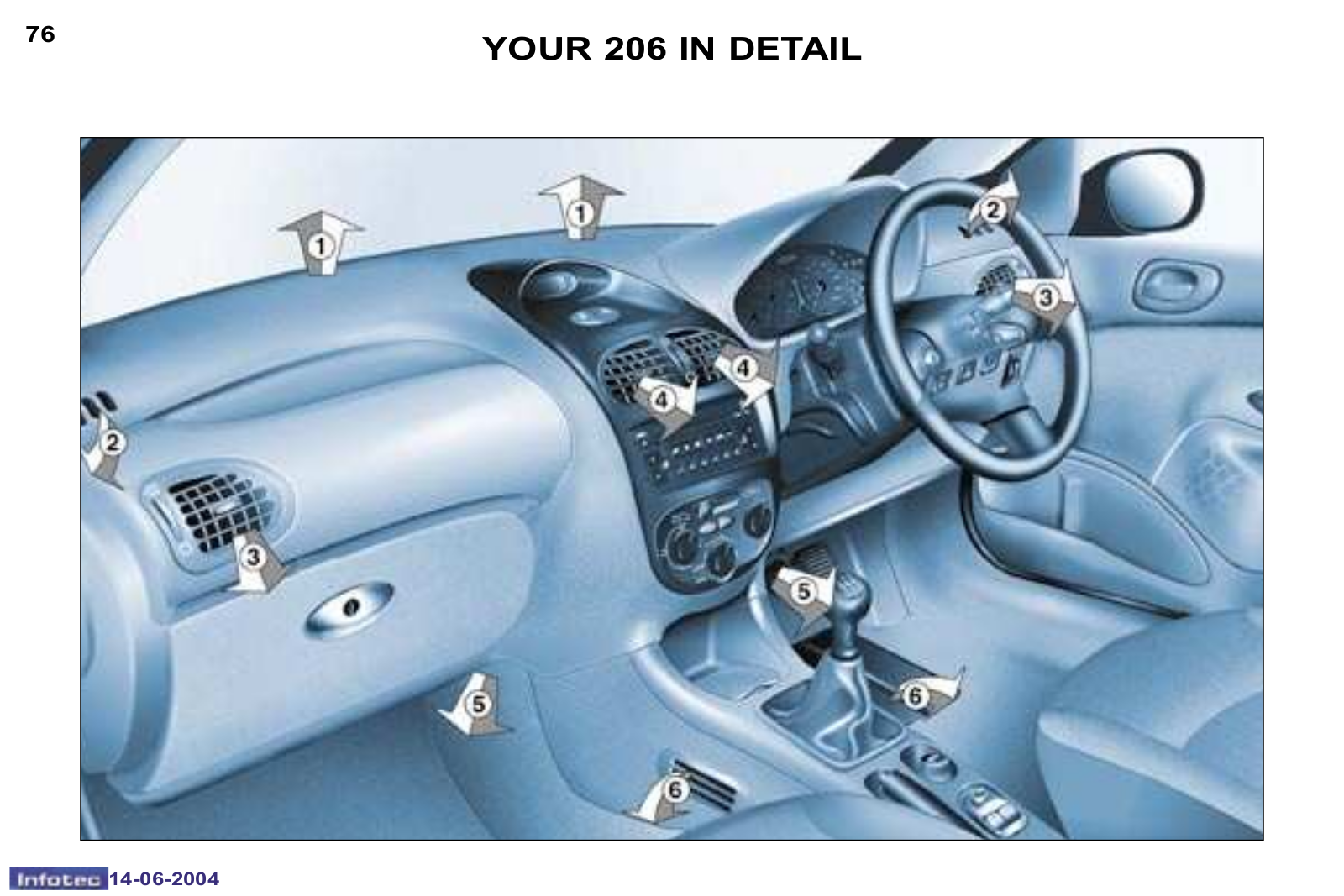

1Side window demisting vents
2Adjustable side vent
3Passenger air bag
4Windscreen demisting vents
5Multifunction display
6Central locking switch
7Hazard warning lights switch
8Instrument panel lighting rheostat
9Lights and direction indicators stalk
10Steering wheel height adjustment control
11Steering lock
12Windscreen wiper stalk
14-06-2004
13Driver's air bag Horn
14Audio equipment remote control
15Headlamp height adjustment
16Passenger air bag disarming switch*
17Rear window locking switch
18Dynamic stability control (ESP/ASR) button
19Storage compartment
20Fuse box
21Gear lever
22Lighter
23Rear electric window switches
3
24Alarm button
25Front electric window switches
26Electric mirrors switch
27Handbrake
28Front ashtray
29Controls for heating, ventilation, air conditioning and heated rear screen and mirrors
30Audio equipment
31Adjustable centre vents
32Glove box
33Bonnet opening control
* According to country.
4
KEYS
The keys enable you to switch on the ignition and independently operate the locks on the front doors, the tailgate (saloon), the passenger air bag disarming switch, the fuel iller lap and the steering lock.
Central locking and unlocking
From the driver's door, you can lock and unlock the doors and the tailgate. If one of the doors, the tailgate or the rear screen (206 SW) is open, the central locking will not work.
96
YOUR 206 AT A GLANCE
Remote control
Press button A to remotely lock the vehicle.
This is conirmed by ixed lighting of the direction indicators for approximately two seconds.
Press button B to remotely unlock the vehicle.
This is conirmed by rapid lashing of the direction indicators for approximately two seconds.
206 SW: press and hold button B to unlock the vehicle and open the rear screen.
Key in ignition
If you leave the key in the ignition, a buzzer reminds you of this when opening the driver's door.
Locating the vehicle
To locate your vehicle, when you have left it locked in a car park:
Fpress button A, the courtesy lights will switch on and the indicator lights lash for a few seconds.
STARTING
The 4 positions of the key in the ignition:
1- STOP position: the ignition is off.
2- 1st notch, Accessories position:
the ignition is off but the accessories can be used.
3- 2nd notch, Running position:
the ignition is on.
3- Starting position: operates the starter.
Steering lock
Before starting, unlock the steering if necessary, by gently turning the steering wheel at the same time as you turn the key.
It is advisable to press the clutch pedal while operating the starter, to make starting easier.
14-06-2004
4
KEYS
The keys enable you to switch on the ignition and independently operate the locks on the front doors, the tailgate (saloon), the passenger air bag disarming switch, the fuel iller lap and the steering lock.
Central locking and unlocking
From the driver's door, you can lock and unlock the doors and the tailgate. If one of the doors, the tailgate or the rear screen (206 SW) is open, the central locking will not work.
96
YOUR 206 AT A GLANCE
Remote control
Press button A to remotely lock the vehicle.
This is conirmed by ixed lighting of the direction indicators for approximately two seconds.
Press button B to remotely unlock the vehicle.
This is conirmed by rapid lashing of the direction indicators for approximately two seconds.
206 SW: press and hold button B to unlock the vehicle and open the rear screen.
Key in ignition
If you leave the key in the ignition, a buzzer reminds you of this when opening the driver's door.
Locating the vehicle
To locate your vehicle, when you have left it locked in a car park:
Fpress button A, the courtesy lights will switch on and the indicator lights lash for a few seconds.
STARTING
The 4 positions of the key in the ignition:
1- STOP position: the ignition is off.
2- 1st notch, Accessories position:
the ignition is off but the accessories can be used.
3- 2nd notch, Running position:
the ignition is on.
3- Starting position: operates the starter.
Steering lock
Before starting, unlock the steering if necessary, by gently turning the steering wheel at the same time as you turn the key.
It is advisable to press the clutch pedal while operating the starter, to make starting easier.
14-06-2004
YOUR 206 AT A GLANCE
Starting a petrol engine
Do not press the accelerator.
Operate the starter, without releasing the key, until the engine turns.
Starting a diesel engine
Do not press the accelerator.
Turn the key to the ''Running'' position.
If the engine is warm enough, the pre-heat light does not come on and you can start immediately.
If the pre-heat light comes on, wait for it to go out before operating the starter.
If the engine stalls, it is necessary to return the key to the ''STOP'' position before restarting.
Never race a cold engine.
Never run the engine in a conined space.
Do not make any modiications to the steering lock.
FRONT AIR BAGS
Disarming the passenger air bag*
Insert the ignition key into switch 1 and turn it to:
-the ON position; the passenger air bag is armed.
-the OFF position; the passenger air bag is disarmed.
Operating check
With the ignition on (2nd notch of the ignition), illumination of this warning light, accompanied by a message
on the multifunction display, indicates that the passenger air bag is disarmed (switch in the "OFF" position).
The warning light remains on throughout the disarming process.
5
Precautions regarding the passenger air bag
For a vehicle itted with a disarming switch:
-disarm the air bag if you install a rear-facing child seat,
-arm the air bag for an adult passenger.
For a vehicle not itted with a disarming switch:
-do not install a rear-facing child seat on the front passenger seat.
In no circumstances should you place your feet or any other object on the fascia.
* According to country. |
124 |
14-06-2004
8 |
YOUR 206 AT A GLANCE |
|
STEERING WHEEL
CONTROLS
Lights
Front lights (ring A)
Lights off
Side lights
Dipped/main beam headlamps
Automatic switching on of lights
Automatic switching on of lights
To activate or deactivate the function, place the key in the accessories position with the lights stalk in position AUTO/0 and press the end of the stalk for more than four seconds.
14-06-2004
Rear fog lamp (ring B)
Rear fog lamp (rotation of the ring forwards)
Front fog lamps/Rear fog lamp (ring C)
Front fog lamps (1st rotation of the ring forwards)
Front fog lamps and rear fog lamp (2nd rotation of the ring forwards)
102
Windscreen wipers Front
2 Fast wipe
1 Normal wipe
I Intermittent wipe or
AUTO Automatic wipe 0 Off
êSingle wipe
Wash-wipe: pull the stalk towards you.
Rear |
|
|
|
|
|
Off |
Intermittent |
Wash- |
|||
|
|
wipe |
wipe |
||
|
|
|
|
|
|
|
|
|
|
|
|
Automatic wipe
In the AUTO position, the windscreen wipers operate automatically and adjust
their speed to the intensity of the rainfall.
104
YOUR 206 AT A GLANCE |
9 |
|
|
|
|

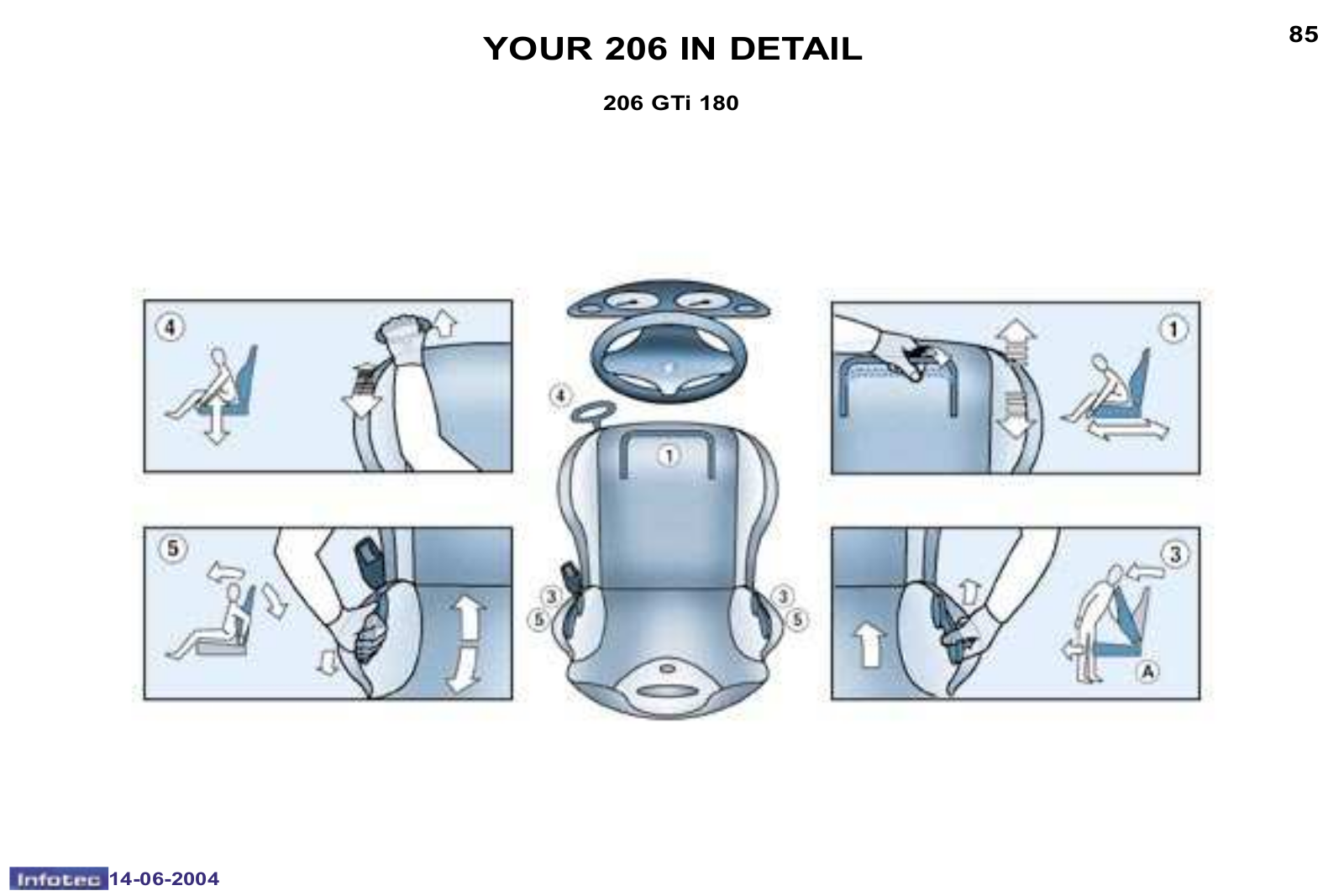

FRONT SEATS (saloon and 206 SW)
1 - Forwards/backwards adjustment.
2 - Head restraint height and angle adjustment.
3 - Access to rear seats (3-door).
14-06-2004
4 - Height adjustment.
5 - Seat back angle adjustment.
Never drive with the head restraints removed.
84
10
Rear seats
To fold the rear seats:
-Lift the front of the seat cushion 1,
-Tilt the seat cushion 1 against the front seats,
-Position the seat belt under the belt holder 2,
-Pull control 3 to unlock the seat back
4,
-Remove or lower the head restraint,
-Tilt the seat back 4.
When reitting, take care not to trap the seat belts.
87
YOUR 206 AT A GLANCE
Load space cover
To install:
-position (1) one end of the cover roller in one of the two supports,
-compress (2) the opposite end of the roller and position it,
-release it (3) so that it engages,
-unroll (4) the cover to the boot pillars,
-insert the cover guides (5) in the rails on the pillars.
To remove:
-remove the cover guides from the rails on the pillars,
-return the cover to its roller, compress it and remove it from its support.
117
14-06-2004
YOUR 206 AT A GLANCE |
|
11 |
|
|
|
|
||
BOOT LAYOUT (206 SW) |
||
1 |
- Grab handles and coat hook |
|
2 |
- |
Coat hooks |
3 |
- High load retaining net |
|
|
|
ixings |
4 |
- |
Hooks |
5 |
- 12 V accessories socket |
|
6 |
- |
Storage nets |
7 |
- |
Retaining straps |
8 |
- |
Load space cover |
9 |
- |
Lashing rings |
117
14-06-2004
YOUR 206 AT A GLANCE
Starting a petrol engine
Do not press the accelerator.
Operate the starter, without releasing the key, until the engine turns.
Starting a diesel engine
Do not press the accelerator.
Turn the key to the ''Running'' position.
If the engine is warm enough, the pre-heat light does not come on and you can start immediately.
If the pre-heat light comes on, wait for it to go out before operating the starter.
If the engine stalls, it is necessary to return the key to the ''STOP'' position before restarting.
Never race a cold engine.
Never run the engine in a conined space.
Do not make any modiications to the steering lock.
FRONT AIR BAGS
Disarming the passenger air bag*
Insert the ignition key into switch 1 and turn it to:
-the ON position; the passenger air bag is armed.
-the OFF position; the passenger air bag is disarmed.
Operating check
With the ignition on (2nd notch of the ignition), illumination of this warning light, accompanied by a message
on the multifunction display, indicates that the passenger air bag is disarmed (switch in the "OFF" position).
The warning light remains on throughout the disarming process.
5
Precautions regarding the passenger air bag
For a vehicle itted with a disarming switch:
-disarm the air bag if you install a rear-facing child seat,
-arm the air bag for an adult passenger.
For a vehicle not itted with a disarming switch:
-do not install a rear-facing child seat on the front passenger seat.
In no circumstances should you place your feet or any other object on the fascia.
* According to country. |
124 |
14-06-2004
|
YOUR 206 AT A GLANCE |
7 |
||
|
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
ELECTRIC WINDOWS
1.Driver's electric window.
Manual operation: press or pull the switch lightly. The window stops as soon as the switch is released.
Automatic operation: press or pull the switch irmly. One touch completely opens or closes the window.
Automatic opening and closing only operate when the engine is running.
2.Passenger's electric window.
3.Rear left electric window.
4.Rear right electric window.
ELECTRIC MIRRORS
Turn knob 5 to the right or to the left to select the corresponding mirror.
Move knob 5 in all four directions to adjust.
Electric folding mirrors
With the ignition on, turn knob 5 to position A.
109 |
110 |
14-06-2004
6

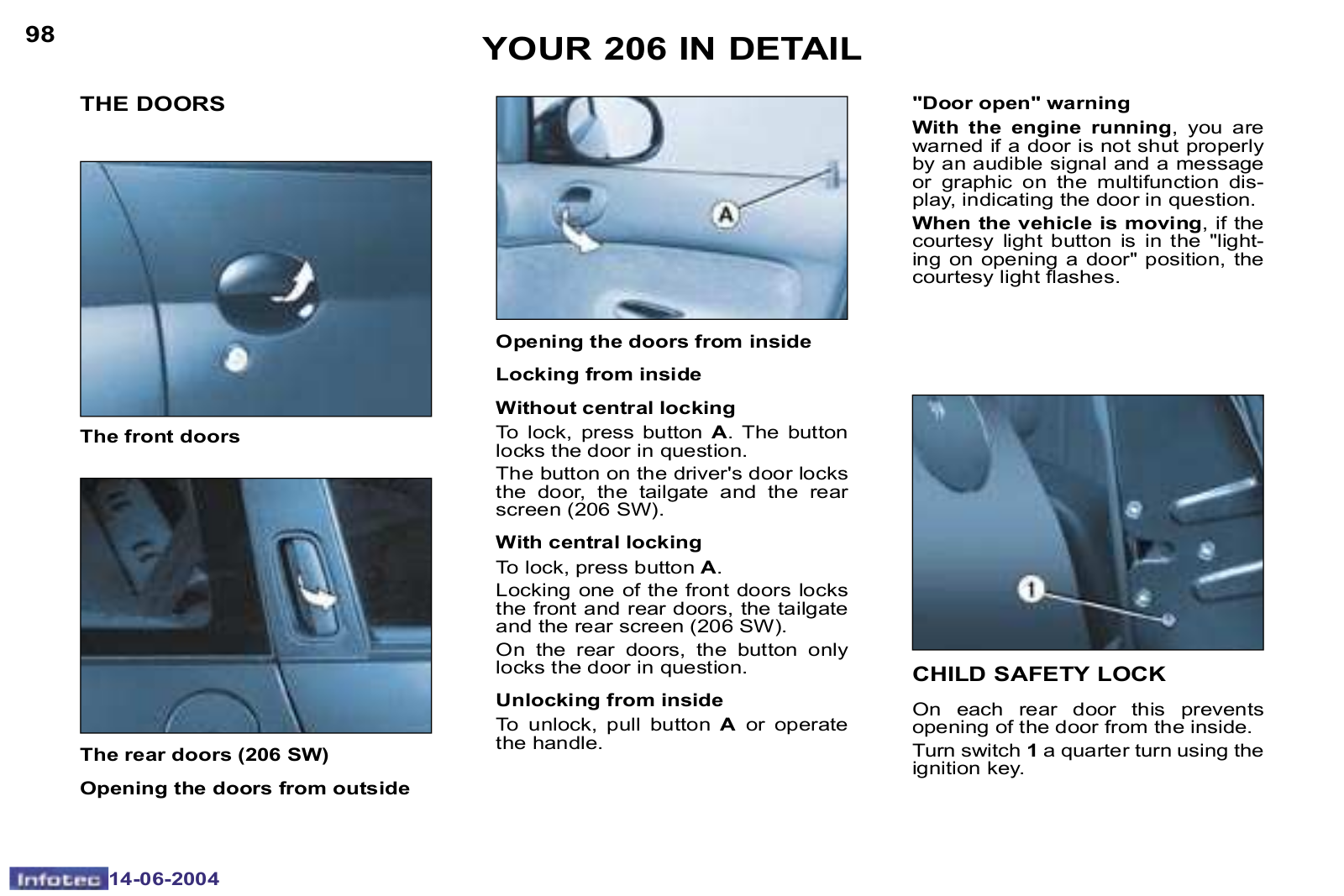

DOORS
Front doors
Rear doors (206 SW)
YOUR 206 AT A GLANCE
LOCKING/UNLOCKING THE BOOT AND THE REAR SCREEN (206 SW)
The boot and the rear screen cannot be opened simultaneously.
With the rear screen closed, to open the boot, pull the handle A and lift.
With the boot closed, to open the |
|
rear screen, press and hold the |
|
unlocking button on the remote |
|
control or pull the handle B, then |
|
lift the rear screen using the wind- |
|
screen wiper arm (at C). |
|
The lighting is switched on by |
|
opening the boot or the rear |
|
screen. |
|
Note: Close the rear screen us- |
|
ing the windscreen wiper arm |
C |
or by pressing the centre of the |
|
window. |
99 |
98 |
|
14-06-2004
|
YOUR 206 AT A GLANCE |
15 |
||||
|
|
|
||||
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
STEERING WHEEL HEIGHT |
OPENING THE BONNET |
ADJUSTMENT |
|
When stationary, lower the handle to unlock the steering wheel.
Adjust to the desired height and lift the handle to lock the steering wheel.
From inside the vehicle: pull the handle.
From the outside: lift the catch and raise the bonnet. Secure the strut to hold the bonnet open.
111 |
101 |
14-06-2004
14 |
YOUR 206 AT A GLANCE |
|
THE "PORSCHE TIPTRONIC SYSTEM" AUTOMATIC GEARBOX
The 4-speed automatic gearbox offers the choice between the comfort of fully automatic gear changing, enhanced by a sport program and a snow program, or manual gear changing.
Position selection grid
FMove the lever in the grid to select a position.
The indicator light for the position selected comes on on the instrument panel display.
14-06-2004
Park: to park the vehicle and to start the engine, handbrake applied or released.
Reverse: to reverse (select this position with the vehicle stationary and the engine at idle).
Neutral: to start the engine and to park, handbrake applied.
Note: if position N is engaged inadvertently while driving, allow the engine to slow down before engaging position D to accelerate.
Drive: to drive, in automatic mode.
Manual: to select the gears. S: sport program.
T: snow program.
Manual changing of the four gears:
FPush the lever towards the + sign to change up to a higher gear and pull the lever towards the - sign to change down to a lower gear.
Note: the S (sport) and T (snow) programs are not operational during manual operation.
Starting the engine
Fwith the handbrake applied, select position P or N on the grid,
Fturn the ignition key to the Starting position.
Starting the vehicle
With the engine running, to start the vehicle from position P:
Fthe brake pedal must be pressed in order to exit position P,
Fselect position R, D or M, then progressively decrease the pressure on the brake pedal; the vehicle moves off immediately.
You can also start from position N:
Frelease the handbrake, with your foot on the brake,
Fselect position R, D or M, then progressively decrease the pressure on the brake pedal; the vehicle moves off immediately.
When the engine is running at idle, with the brakes released, if position R, D or M is selected,
the vehicle moves, even if the accelerator pedal is not pressed.
For this reason, do not leave children in the vehicle, with the engine
running, without super- 119 vision.
12 |
YOUR 206 AT A GLANCE |
|
HEATING/AIR
CONDITIONING
N° |
Symbol |
Function |
|
|
|
1 |
|
Setting the air |
|
distribution. |
|
|
|
|
|
|
|
2 |
|
Air intake control. |
|
|
|
3 |
|
Temperature |
|
adjustment. |
|
|
|
|
|
|
|
4 |
|
Demisting the rear |
|
screen and mirrors. |
|
|
|
|
|
|
|
5 |
|
Air low adjustment. |
|
|
|
6 |
|
Air conditioning |
|
control. |
|
|
|
|
|
|
|
78
80
14-06-2004
YOUR 206 AT A GLANCE |
13 |
|||
|
|
|||
|
|
|
|
|
|
AUTOMATIC |
|
|
|
|
AIR CONDITIONING |
|||
|
|
|
|
|
|
N° |
Symbol |
Function |
|
|
|
|
|
|
|
1 |
|
Air low adjustment. |
|
|
|
|
|
|
|
2 |
|
Setting the air |
|
|
|
distribution. |
|
|
|
|
|
|
|
|
|
|
|
|
|
3 |
|
Air intake control. |
|
|
|
|
|
|
|
4 |
|
Air conditioning |
|
|
|
control. |
|
|
|
|
|
|
|
|
|
|
|
|
|
5 |
|
Demisting the rear |
|
|
|
screen and mirrors. |
|
|
|
|
|
|
|
|
|
|
|
|
|
6 |
|
Switching off. |
|
|
|
|
|
|
|
7 |
|
Temperature |
|
|
|
adjustment. |
|
|
|
|
|
|
|
|
|
|
|
|
|
8 |
|
Automatic comfort |
|
|
|
program. |
|
|
|
|
|
|
|
|
|
|
|
|
82 |
9 |
|
Automatic visibility |
|
|
program. |
|
||
|
|
|
||
|
|
|
|
|
14-06-2004
18 |
INSTRUMENTS AND CONTROLS |
|
INSTRUMENT DIALS: PETROL - DIESEL MANUAL GEARBOX (saloon and 206 SW)
1.Seat belt not fastened warning light*
2.Passenger air bag disarmed warning light*
3.Air bags warning light
4.Front fog lamps indicator light
5.Anti-lock braking system (ABS) warning light
6.Rear fog lamp indicator light
7.Diesel pre-heat warning light
8.Left hand direction indicator
9.Total distance recorder, service indicator and engine oil level indicator
14-06-2004
10.Right hand direction indicator
11.Engine diagnostics warning light
12.Main beam headlamps indicator light
13.Handbrake, low brake luid level and electronic brake force distribution warning light
14.Dipped beam headlamps indicator light
15.Battery charge warning light
16.Engine oil pressure and temperature warning light
17.Water in diesel ilter warning light
18.Coolant low level warning light (Diesel)
19.Engine oil temperature indicator
20.Total distance recorder button
21.Central (STOP) warning light
22.Speedometer
23.Coolant temperature indicator
24.Rev counter
25.Lighting rheostat button
26.Fuel level indicator
27.Low fuel level warning light
28.Dynamic stability control (ESP/ASR) warning light
* According to destination.
INSTRUMENTS AND CONTROLS |
19 |
|
|
|
|
|
|
INSTRUMENT DIALS: PETROL MANUAL GEARBOX (206 GTi 180)
1.Seat belt not fastened warning light*
2.Passenger air bag disarmed warning light*
3.Air bags warning light
4.Front fog lamps indicator light
5.Anti-lock braking system (ABS) warning light
6.Rear fog lamp indicator light
7.Left hand direction indicator
8.Total distance recorder, service indicator and engine oil level
indicator
14-06-2004
9.Right hand direction indicator
10.Engine diagnostics warning light
11.Main beam headlamps indicator light
12.Handbrake, low brake luid level and electronic brake force distribution warning light
13.Dipped beam headlamps indicator light
14.Battery charge warning light
15.Engine oil pressure and temperature warning light
16.Engine oil temperature indicator
17.Total distance recorder button
18.Central (STOP) warning light
19.Speedometer
20.Coolant temperature indicator
21.Rev counter
22.Lighting rheostat button
23.Fuel level indicator
24.Low fuel level warning light
25.Dynamic stability control (ESP/ASR) warning light
* According to country
20 |
INSTRUMENTS AND CONTROLS |
|
INSTRUMENT DIALS: PETROL AUTOMATIC GEARBOX (saloon and 206 SW)
1.Seat belt not fastened warning light*
2.Passenger air bag disarmed warning light*
3.Air bags warning light
4.Front fog lamps indicator light
5.Anti-lock braking system (ABS) warning light
6.Rear fog lamp indicator light
7.Left hand direction indicator
8.Total distance recorder, service indicator and engine oil level indicator
14-06-2004
9.Right hand direction indicator
10.Engine diagnostics warning light
11.Main beam headlamps indicator light
12.Handbrake, low brake luid level and electronic brake force distribution warning light
13.Dipped beam headlamps indicator light
14.Battery charge warning light
15.Engine oil pressure and temperature warning light
16.Operating programs
17.Gear indicator
18.Total distance recorder button
19.Central (STOP) warning light
20.Speedometer
21.Coolant temperature indicator
22.Rev counter
23.Lighting rheostat button
24.Fuel level indicator
25.Low fuel level warning light
26.Dynamic stability control (ESP/ASR) warning light
* According to destination.
INSTRUMENTS AND CONTROLS |
21 |
|
INSTRUMENTS AND CONTROLS
A permanently lit warning light or one lashing, with the engine running, indicates an operating fault of the unit concerned.
The illumination of certain warning lights may be accompanied by an audible signal and a message on the multi-function display. Do not ignore this warning: consult a PEUGEOT dealer as soon as possible.
If the central STOP warning light comes on when you are driving, stop your vehicle immediately, where it is safe to do so.
Central (STOP) warning light
Linked to the warning
lights:
-engine oil pressure and temperature,
-low coolant level,
-handbrake,
-low brake luid level,
-electronic brake force distribution system fault.
Linked to the coolant temperature indicator.
You must stop if the light lashes with the engine running.
Consult a PEUGEOT dealer.
14-06-2004
Engine oil pressure and temperature warning light
Linked to the central (STOP) warning light.
You must stop.
This warning light indicates one of the following:
-insuficient oil pressure,
-a lack of oil in the lubrication circuit. Top up the level.
-an oil temperature which is too high. The warning light is acompanied by an audible signal. To lower the oil temperature, reduce your speed.
Consult a PEUGEOT dealer.
Diesel engine low coolant level warning light
Linked to the central (STOP) warning light.
You must stop.
Wait for the engine to cool before topping up the level.
The cooling circuit is pressurised.
In the event of breakdown and to prevent any risk of burns, unscrew the cap by two turns to allow the pressure to drop.
When the pressure has dropped, remove the cap and top up the level.
Consult a PEUGEOT dealer.
Handbrake, low brake fluid and
Electronic Brake Force Distribution system
fault warning light
Linked to the central (STOP) warning light.
This indicates one of the following:
-that the handbrake is applied or not fully released,
-an excessive drop in brake luid level (if the warning light remains on even when the handbrake is released).
-a fault in the Electronic Brake Force Distribution system, if lit at the same time as the ABS warning light.
You must stop.
Consult a PEUGEOT dealer.
Anti-lock braking system (ABS) warning light
This comes on for several seconds each time the ignition is switched on.
If the warning light remains on or comes on above 8 mph (12 km/h), this indicates an ABS malfunction.
However, the vehicle retains conventional servo-assisted braking.
Illumination of this warning light, accompanied by an audible signal and a message on the multi-function display, indicates a fault in the ABS system.
Consult a PEUGEOT dealer.
22 |
INSTRUMENTS AND CONTROLS |
|
Dynamic stability control system (ESP/ ASR) warning light
This comes on for a few seconds each time the ignition is switched on.
With the engine running and when the vehicle is moving, it comes on if the system is activated.
It lights permanently when the system is disarmed.
If the warning light remains lit with the engine running and when the vehicle is moving, consult a PEUGEOT dealer.
Battery charge warning light
This indicates one of the following:
-faulty operation of the charging circuit,
-slack battery or starter terminals,
-a cut or slack alternator belt,
-an alternator failure.
Consult a PEUGEOT dealer.
14-06-2004
Engine diagnostics warning light (according to model)
This comes on for a few seconds each time the ignition is switched on.
If it comes on with the engine running, this indicates incorrect operation of the injection, ignition or emission control system.
If the warning light lashes, there is a risk of damage to the catalytic converter on petrol engines.
Consult a PEUGEOT dealer.
PEF saturation warning (Diesel)
An audible signal and a message on the multi-function display indicate clogging of the diesel ilter (PEF), this is the beginning of saturation of the particle emission ilter due to exceptionally prolonged urban driving conditions: low speed, long trafic jams,
In order to regenerate the ilter, you are advised to drive at a speed of 40 mph (60 km/h) or above as soon as possible when trafic conditions permit for at least ive minutes, until the message disappears. If this fault persists, consult a PEUGEOT dealer as soon as possible.
Diesel additive level warning (Diesel)
An audible signal and a message on the multi-function display indicate a low diesel additive level. This additive must be topped up, consult a PEUGEOT dealer as soon as possible.
Diesel engine pre-heat warning light
Wait until the warning light goes out before starting the engine.
If the temperature is high enough, the warning light comes on for less than one second. You can start the engine without waiting.
Low fuel level warning light
When this light irst comes on, you have enough fuel to drive at least 30 miles (50 km). The tank capacity is approximately 50 litres.
Water in diesel filter indicator*
If this warning light comes on, accompanied by an audible signal and a message on the multi-function display, this indicates that there is a risk of damage to the injection system.
Consult a PEUGEOT dealer as soon as possible.
INSTRUMENTS AND CONTROLS |
23 |
|
Seat belt not fastened warning light*
When the ignition is switched on, this indicator light comes on if the driver has not fastened his seat belt.
Above 12 mph (20 km/h), the warning light lashes for about two minutes accompanied by an increasingly audible signal and a message on the multifunction display. This warning light remains lit until the driver's seat belt is fastened.
Passenger air bag disarmed warning light*
Illumination of this warning light accompanied by a message on the multi-function display, indicates that the passenger air bag is disarmed.
The warning light remains lit as long as the passenger air bag is disarmed.
Always consult a PEUGEOT dealer if the warning light lashes.
Air bags warning light
The light will come on for a few seconds when the igni-
tion is switched on.
With the engine running, illumination of this warning light, accompanied by an audible signal and a message on the multi-function display, indicates a fault in the air bags.
Consult a PEUGEOT dealer.
14-06-2004
Coolant temperature indicator
-needle in zone (A), the temperature is correct,
-needle in zone (B), the temperature is too high. The central STOP warning light lashes.
You must stop.
Consult a PEUGEOT dealer.
* According to country.
Engine oil temperature indicator
With the engine running, this indicates the oil temperature:
-needle in zone (C), the temperature is correct,
-needle in zone (D), the temperature is too high. To lower the oil temperature, reduce your speed.
INSTRUMENTS AND CONTROLS |
23 |
|
Seat belt not fastened warning light*
When the ignition is switched on, this indicator light comes on if the driver has not fastened his seat belt.
Above 12 mph (20 km/h), the warning light lashes for about two minutes accompanied by an increasingly audible signal and a message on the multifunction display. This warning light remains lit until the driver's seat belt is fastened.
Passenger air bag disarmed warning light*
Illumination of this warning light accompanied by a message on the multi-function display, indicates that the passenger air bag is disarmed.
The warning light remains lit as long as the passenger air bag is disarmed.
Always consult a PEUGEOT dealer if the warning light lashes.
Air bags warning light
The light will come on for a few seconds when the igni-
tion is switched on.
With the engine running, illumination of this warning light, accompanied by an audible signal and a message on the multi-function display, indicates a fault in the air bags.
Consult a PEUGEOT dealer.
14-06-2004
Coolant temperature indicator
-needle in zone (A), the temperature is correct,
-needle in zone (B), the temperature is too high. The central STOP warning light lashes.
You must stop.
Consult a PEUGEOT dealer.
* According to country.
Engine oil temperature indicator
With the engine running, this indicates the oil temperature:
-needle in zone (C), the temperature is correct,
-needle in zone (D), the temperature is too high. To lower the oil temperature, reduce your speed.
24 |
INSTRUMENTS AND CONTROLS |
|
Display screen showing the positions of the automatic gearbox selector lever
Park
Reverse
Neutral
Drive
Manual mode:
1st gear engaged
2nd gear engaged
3rd gear engaged
4th gear engaged
Automatic gearbox indicator lights
"SPORT" Indicator light
This comes on when the "SPORT" program is selected.
"SNOW" Indicator light
This comes on when the "SNOW" program is selected.
Operating abnormality
If the Sport and Snow indicator lights lash, accompanied by an audible signal and a message on the multifunction diplay, consult a PEUGEOT dealer.
14-06-2004
INSTRUMENTS AND CONTROLS |
25 |
|
INSTRUMENT PANEL DISPLAY
After switching on the ignition, three functions are shown in succession:
-service indicator,
-engine oil level indicator,
-total distance recorder, it remains displayed for 30 seconds when the ignition is switched off, on opening the driver's door, as well as on locking and unlocking the vehicle.
Service indicator
This is a visual reminder of when the next service is due. This service is to be carried out according to the manufacturer's servicing schedule.
Operation
As soon as the ignition is switched on and for 5 seconds, the spanner symbolising ''service operation'' is lit. The trip recorder display shows the distance remaining (in round igures) before the next service.
Example: 4,800 miles/km remain before the next service is due. When the ignition comes on and for 5 seconds the display indicates:
5 seconds after the ignition is switched on, the total distance recorder resumes normal operation and the display shows the total or trip distances.
The distance remaining before the next service is less than 500 miles (1,000 km).
Example: 400 miles (900 km) remain before the next service is due.
When switching on the ignition and for 5 seconds, the display shows:
5 seconds after the ignition is switched on, the total distance recorder resumes normal operation and the symbol remains lit.
This indicates that a service should be carried out shortly. The display shows the total or trip distances.
The service is overdue.
Each time the ignition is switched on and for 5 seconds, the symbol and the excess distance lash.
Example: the service is overdue by 300 miles/km. The service should be carried out very shortly.
When the ignition is switched on and for 5 seconds, the display shows:
5 seconds after the ignition is switched on, the total distance recorder resumes normal operation and the symbol remains lit. The display shows the total or trip distances.
Note: the service spanner lights if the two-year interval has been exceeded*.
* According to country.
14-06-2004
26 |
INSTRUMENTS AND CONTROLS |
|
Resetting the service indicator
Your PEUGEOT dealer carries out this operation after each service. The reset procedure is as follows:
-Switch off the ignition.
-Press and hold button 1.
-Switch on the ignition.
The display begins a 10 second countdown.
-Keep button 1 pressed for 10 seconds.
The display shows [= 0] and the service symbol disappears.
Engine oil level indicator
When the ignition is switched on, the engine oil level is indicated for approximately 10 seconds, after the service information.
Surplus of oil
Flashing of the six squares and displaying of "max" indicate a surplus of oil which could damage the engine.
If the surplus of oil is conirmed by a check using the dipstick, contact a PEUGEOT dealer without delay.
Lack of oil
Flashing of the six segments and displaying of "min" indicate a lack of oil which could damage the engine.
If the lack of oil is conirmed by a check using the dipstick, it is essential that the level is topped up.
Oil level gauge fault
Flashing of the six segments indicates a malfunction of the oil level gauge.
There is a risk of damage to the engine. Contact a PEUGEOT dealer.
The level read on the gauge will only be correct if the vehicle is on level ground and the engine has been off for more than 10 minutes.
14-06-2004
INSTRUMENTS AND CONTROLS |
27 |
|
Total distance recorder
Briely pressing button 1 alternates between the total and trip distance displays.
To reset the trip recorder to zero, when it is displayed press button 1 until zeros appear.
LIGHTING RHEOSTAT
With the lights on, press the button to vary the intensity of the lighting of the instruments and controls. When the lighting reaches the minimum (or maximum) setting, release the button then press it again to increase (or reduce) the brightness.
As soon as the lighting is of the required brightness, release the button.
HAZARD WARNING
LIGHTS
Press the button, the direction indicators lash.
They can operate with the ignition off.
Automatic lighting of hazard warning lights*
When braking in an emergency, depending on the force of deceleration, the hazard warning lights come on automatically. They switch off automatically the irst time you accelerate.
It is also possible to switch them off by pressing the button.
* According to destination.
14-06-2004
28 |
|
YOUR 206 IN DETAIL |
||
|
|
|||
|
CLOCK |
|
DISPLAY A |
|
|
|
|
|
|
|
|
|
|
|
Button 1: hour adjustment Button 2: minute adjustment
Press and hold the button for rapid advance.
14-06-2004
This displays the following information:
-the time,
-the date,
-the outside temperature* (this lashes if there is a risk of ice),
-the audio system displays,
-a door check
(e.g.: ''left front door open''),
-warning messages
(e.g. ''remote control battery lat'') or information
- messages
(e.g. ''economy mode active''), displayed temporarily.
Adjusting the parameters
Press and hold button 1 for two seconds to access the settings; the data lashes, indicating it is ready to be modiied.
Then, each press of button 1 scrolls through the various data in the following order:
-language of information displayed,
-hours (12 then 24 hour mode),
-minutes,
-year,
-month,
-day,
-unit of temperature (degrees Celsius or Fahrenheit).
Pressing button 2 allows modiication of the data selected. Press and hold for rapid advance (return to start after the last possible value).
After 7 seconds with no action, the main display returns; the modiied data are now recorded.
Note: Pressing button 2 briely displays the outside temperature for a few seconds.
* According to model.
DISPLAY B
This enables the following information to be displayed:
-the time,
-the date,
-the outside temperature (this lashes when there is a risk of ice),
-the radio displays,
-the status of the doors. The display shows you, by means of a graphic, whether a door is open,
-the warning messages (e.g. ''battery charge low'') or information messages (e.g. "fuel tank low''), displayed temporarily, can be cleared by pressing button 1 or 2,
-the trip computer.
YOUR 206 IN DETAIL |
29 |
|
Setting the parameters
Press button 1 for two seconds to access the settings. The information lashes to show it is ready to be modiied.
Then, individual presses on button 1 allow you to scroll through the various data in the following sequence:
-language in which the information is displayed,
-unit of distance (kms or miles),
-unit of temperature (degrees Celsius or Fahrenheit),
-time format (12 then 24 hour mode),
-hour,
-minutes,
-year,
-month,
-day.
Pressing button 2 allows you to change the information selected. Maintain the pressure for rapid scrolling.
After 7 seconds without operation, the screen returns to the main display and the modiied data is recorded.
14-06-2004
30
MONOCHROME SCREEN CT
This is controlled by the RT3 GPS audio/telephone keypad.
It enables the following information to be displayed:
-the time,
-the date,
-the outside temperature (a message warns you when there is a risk of ice),
-the audio source displays (radio, CD, ...),
-the telematic system displays (telephone, services, ...),
-the status of the openings (doors, bonnet, ...),
-the warning messages (e.g. "Fuel level low") and vehicle functions status messages (e.g. "Passenger air bag deactivated") displayed temporarily,
-the trip computer display (see corresponding section),
-the satellite navigation system displays (see corresponding section).
YOUR 206 IN DETAIL
Note: to enable you to use all of your system's functions, you have two CD ROMs: one, "Coni guration", contains the software and the various display and spoken information languages, the other, "Navigation", contains the satellite navigation system map data.
Main menu
Press the RT3 audio/telephone "MENU" button to access the main menu and select one of the following applications:
-navigation - guidance (see section "Satellite navigation system"),
-audio functions (see "RT3 Audio/ telephone" section),
-trip computer (see corresponding section),
-directory (see "RT3 audio/telephone" section),
-telematics(see"RT3audio/telephone" section),
-coni guration.
Coniguration menu
This gives access to the following parameters:
-"Adjust the brightness": adjust the brightness of the display.
-"Sound": voice synthesiser setting (for the masculine/feminine voice parameter; insert the coni guration CD-Rom); setting of the spoken commands.
-"International parameters": date and time setting (12 or 24 hour mode, adjustment of the minutes on GPS); units setting (l/100 - °C or mpg - °F).
-"Choice of the language": choice of the language of the display, information and spoken commands (German, English, Spanish, French, Italian, Dutch, Portuguese: insert the coni guration CD-Rom).
14-06-2004
Loading...
