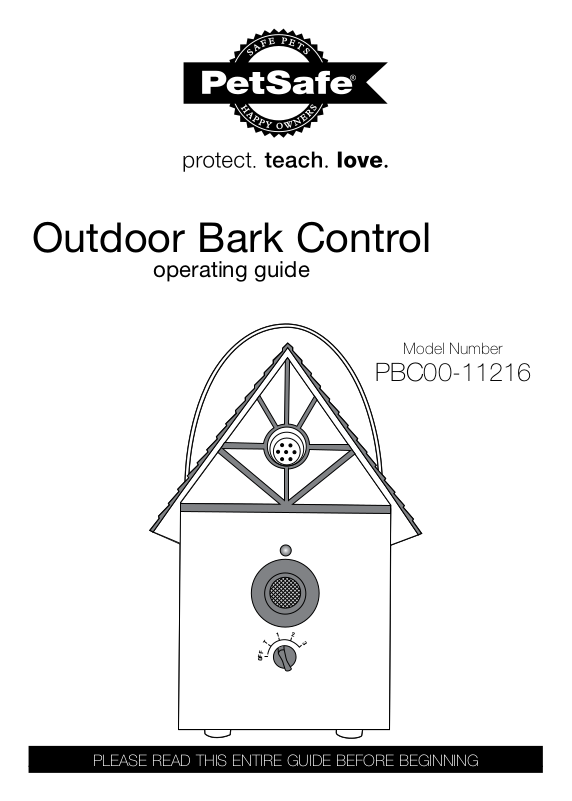

Page 1
Outdoor Bark Control
operating guide
Model Number
PBC00-11216
2
2
1
1
3
3
T
T
OFF
OFF
PLEASE READ THIS ENTIRE GUIDE BEFORE BEGINNING
Page 2
Important Safety Information
Explanation of Attention Words and Symbols used in this
guide
This is the safety alert symbol. It is used to alert you to potential personal injury
hazards. Obey all safety messages that follow this symbol to avoid possible injury
or death.
WARNING indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
CAUTION, used with the safety alert symbol, indicates a hazardous
situation which, if not avoided, could result in minor or moderate injury.
CAUTION, used without the safety alert symbol, indicates a hazardous
situation which, if not avoided, could result in harm to your pet.
Risk of explosion. Do not short circuit, mix old and new batteries,
disposed, they must be protected from shorting. Dispose of used batteries properly.
Aggressive dogs can cause severe injury and even death to their owner and others. If you
are unsure whether this product is appropriate for your dog, please consult your
veterinarian or certified trainer.
:
Keep at arms length away from the human ear to avoid hearing damage if a dog begins
barking while you are setting up, mounting or hanging the Outdoor Bark Control.
:
Humans should also avoid standing very close to the Outdoor Bark Control when it is on.
:
This device is intended for use only with dogs. Never attempt to use it for any purpose
not described in this manual.
:
For outdoor use only. Please visit our website or contact the Customer Care Center for
information on PetSafe
:
The Outdoor Bark Control is not a toy. Keep it out of the reach of children. Use it only for
its bark control purpose.
dispose of in fire, or expose to water. When batteries are stored or
Not for use with aggressive dogs. Do not use this Product if your
dog is aggressive, or if your dog is prone to aggressive behavior.
Humans cannot hear the ultrasonic sound, however precautions should
be taken when preparing the Outdoor Bark Control for use.
®
Bark Control products.
2 Customer Care Center 1-800-732-2677
Page 3
Thank you for choosing the PetSafe® brand. You and your pet deserve a
companionship that includes memorable moments and a shared understanding
together. Our products and training tools promote a lifestyle of protection,
teaching, and love—essentials that influence memories for a lifetime. If you have
any questions about our products or training your pet, please visit our website at
www.petsafe.net or contact our Customer Care Center at 1-800-732-2677.
To get the most protection out of your warranty, please register your product
within 30 days at www.petsafe.net. By registering and keeping your receipt,
you will enjoy the product’s full warranty and should you ever need to call the
Customer Care Center, we will be able to help you faster. Most importantly,
PetSafe
®
will never give or sell your valuable information to anyone. Complete
warranty information is available online at www.petsafe.net.
Table of Contents
Components ..........................................................................................................4
Features .................................................................................................................4
Possible Uses for the Outdoor Bark Control .........................................................4
How the PetSafe
Key Definitions ......................................................................................................5
Installation and Setup ............................................................................................5
To Insert and Remove the Battery ......................................................................... 6
Modes of Operation ..............................................................................................6
What to Expect During Use of the Outdoor Bark Control .....................................7
Regular Maintenance ............................................................................................7
To Test the Outdoor Bark Control ..........................................................................7
Frequently Asked Questions ..............................................................................8
Troubleshooting ...................................................................................................8
Terms of Use and Limitation of Liability ................................................................9
Customer Care International .................................................................................9
Battery Disposal ..................................................................................................10
FCC .....................................................................................................................10
®
Outdoor Bark Control Works ....................................................4
www.petsafe.net 3
Page 4
Components
2
2
1
1
T
T
OFF
OFF
3
3
PetSafe
®
Operating Guide
Outdoor Bark Control
Features
:
Uses ultrasonic sound to deter unwanted barking
:
Detects barks up to 50 feet with the use of an internal microphone
:
4 levels of operation including a test mode
:
Durable and weatherproof for outdoor use
Possible Uses for the Outdoor Bark Control
:
Stop your barking dog
:
Stop your neighbors’ barking dog
:
Train puppies not to bark
:
Deter barking dogs on camping trips
How the PetSafe® Outdoor Bark Control Works
When the PetSafe® Outdoor Bark Control is within range of a barking dog, an internal
microphone picks up the sound and the unit is automatically activated. The Outdoor Bark
Control emits an ultrasonic sound. The ultrasonic sound can be heard by dogs but is silent
to humans. Startled by the high-pitched sound that is safe and effective, the dog should
stop barking, as it will associate its bark with this unpleasant noise. When the dog stops
barking the ultrasonic sound also stops. The PetSafe
levels and a test mode. It is effective up to 50 feet.
Note: If the dog is deaf or hearing impaired, he may not react to the Outdoor Bark Control.
®
Outdoor Bark Control has 3 range
4 Customer Care Center 1-800-732-2677
Page 5
Key Definitions
Two Color LED: Shows good or low
battery.
Microphone
Metal Hanger
Microphone: Used to detect barking.
Sound Activated Speaker: Produces the
ultrasonic sound.
Switch with 4 Levels of Operation:
Off: Used to conserve battery life
Test: Used to verify the microphone and
speaker are functional
1=Low Range: Up to 15 feet
Two Color
LED
Sound
Activated
Speaker
Switch with
4 Levels of
Operation
2=Medium Range: Up to 30 feet
3=High Range: Up to 50 feet
Metal Hanger: For hanging the Outdoor
Bark Control.
Provisions
for Mounting
Provisions for Mounting: Used to mount the
Outdoor Bark Control on a tree, post, etc.
Battery Door: Used to enclose the battery.
Battery
Door
(Back View)
Installation and Setup
The PetSafe® Outdoor Bark Control should be placed facing the dog and within range of
the dog. The unit is designed with provisions for hanging or mounting and should be
positioned at a height of no more than 5 feet. The Outdoor Bark Control can also stand
alone. It can be placed in a tree, hanging from a pole, on a fence post, etc. For best
results, the area between the Outdoor Bark Control and the dog should be free of any
large obstacles.
2
2
1
1
3
3
T
T
OFF
OFF
2
2
1
1
3
3
T
T
F
F
F
F
O
O
2
2
1
1
3
3
T
T
FF
FF
O
O
www.petsafe.net 5
Page 6
To Insert and Remove the Battery
1. The PetSafe® Outdoor Bark Control utilizes a replaceable 9-volt battery (not included).
The battery door is located on the back of the unit. Pull the battery door open.
2. Insert the 9-volt battery with the positive side oriented as shown.
Replace the battery door by positioning the top edge, and snap the bottom of battery door
into place.
Replace
Battery Door
Top End First
Lift Battery Door
Battery Life
Average battery life is 2 months, depending on how often the dog barks. To conserve
battery life, turn to the “OFF” position when the Outdoor Bark Control is not in use.
Do not attempt to cut into or pry open the battery. Be sure to discard the
used battery properly.
Two Color LED
The two color LED indicator shows good or low battery. Good battery equals 1 flash every
5 seconds with Green LED. Low battery equals 3 flashes every 5 seconds with the Red
LED. If there are no LED lights it is time to change the battery. When emitting the ultrasonic
sound, the Red LED is solid. When in test mode, the Red LED will flash if battery is low.
Modes of Operation
:
Begin use of the Outdoor Bark Control on the Low Range setting and only increase to
the Medium Range setting if the dog does not respond.
:
If the dog does not respond to the Medium Range, increase to High Range.
:
Turn to the TEST Mode to verify that your Outdoor Bark Control is working properly. Do
not use this Mode for normal operation. See “To Test the Outdoor Bark Control.”
6 Customer Care Center 1-800-732-2677
Page 7
Sensitivity Setting Range
Low Up to 15 feet
Medium Up to 30 feet
High Up to 50 feet
What to Expect During Use of the Outdoor
Bark Control
Place the PetSafe® Outdoor Bark Control within range of the dog with the unit switched
to Low, Medium or High. Most dogs will understand very quickly that the Outdoor Bark
Control is disrupting their urge to bark and will relax and stop barking.
You should notice a reduction in the dog’s barking within the first two weeks that the
Outdoor Bark Control is in use. Please note this product may not work on deaf or hearing
impaired dogs.
Excessive barking can cause a real strain on your relationship with your pet, as well as
cause disruptions in your neighborhood. In some situations this product may become an
aid to barking cessation, and not necessarily a cure. Please visit www.petsafe.net to view
other customized solutions to the problem of too much barking.
Regular Maintenance
:
Remove the battery before cleaning.
:
Clean the PetSafe Outdoor Bark Control with a damp cloth.
:
Do no use any kind of spray chemicals or solvent to clean.
:
Do not immerse in water or any other liquid.
Note: the Outdoor Bark Control is weatherproof. However, if water enters into the
microphone it may disrupt the unit’s operation. After the microphone is dry it will resume
working properly.
To Test the Outdoor Bark Control
1. Turn the Mode Switch to TEST.
2. Hold the unit with the Indicator Light facing towards you. The unit should be arms length
away from your mouth.
3. In order to trigger the unit, say “Woof” loudly towards the Microphone.
4. The LED light will flash red and there will be an audible sound to indicate that it is
functioning properly.
5. If the Indicator Light does not flash and there is no audible sound, ensure that the
battery is properly installed and/or replace the battery. If the Indicator Light still does not
flash, contact the Customer Care Center.
6. Return the Mode Switch to Low Range before you begin using the Outdoor Bark Control.
Note: The TEST Mode is not intended for normal operation. If the Outdoor Bark Control is
left in TEST Mode, it can send false signals and may reduce battery life.
www.petsafe.net 7
Page 8
Frequently Asked Questions
What is the range for the
PetSafe
Control?
Is the Outdoor Bark Control
effective on all dogs?
Will the Outdoor Bark Control
work for multiple dogs?
Can I use the Outdoor Bark
Control indoors?
Can a dog become
desensitized to the
ultrasonic sound?
Can humans hear the
ultrasonic sound?
®
Outdoor Bark
Troubleshooting
The green LED light stopped
flashing and there is no red
light.
:
The PetSafe® Outdoor Bark Control detects barking
and sends the ultrasonic sound up to 50 feet.
:
The product may not work on deaf or hearing
impaired dogs.
:
Yes, it is effective on all dogs within range of the
Outdoor Bark Control.
:
No, we do not recommend using the product indoors.
For Indoor Bark Control product information, please
visit our website at www.petsafe.net or call our
Customer Care Center.
:
There are some situations where dogs become
desensitized. To avoid this, only turn the Outdoor
Bark Control on during periods of unwanted barking
(i.e. leave it off when you are away).
:
The ultrasonic sound cannot be heard by humans.
Occasionally the speaker may vibrate which can
make a sound.
:
Ensure that the battery is properly installed.
:
Replace the battery.
:
If the green LED light is still not flashing, contact the
Customer Care Center.
8 Customer Care Center 1-800-732-2677
Page 9
Terms of Use and Limitation of Liability
1. Terms of Use
This Product is offered to you conditioned upon your acceptance without modification of the
terms, conditions and notices contained herein. Usage of this Product implies acceptance of
all such terms, conditions, and notices.
2. Proper Use
This Product is designed for use with pets where training is desired. The specific temperament
of your pet may not work with this Product. We recommend that you not use this Product if
your pet is less than 8 pounds or if your pet is aggressive. If you are unsure whether this is
appropriate for your pet please consult your veterinarian or certified trainer.
Proper use includes reviewing the entire Guide provided with your Product and any specific
Caution statements.
3. No Unlawful or Prohibited Use
This Product is designed for use with pets only. This pet training device is not intended
to harm, injure or provoke. Using this Product in a way that is not intended could result in
violation of Federal, State or local laws.
4. Limitation of Liability
In no event shall Radio Systems
incidental, special or consequential damages, or any damages whatsoever arising out of or
connected with the use or misuse of this Product. Buyer assumes all risks and liability from the
use of this Product.
5. Modification of Terms and Conditions
Radio Systems
under which this Product is offered.
®
Corporation be liable for any direct, indirect, punitive,
®
Corporation reserves the right to change the terms, conditions and notices
Customer Care International
USA & Canada - Tel: 800-732-2677
Monday - Friday 8 AM - 8 PM / Saturday 9 AM – 5 PM
Australia - Tel: 1800 786 608
Monday - Friday 8:30 AM - 5 PM
New Zealand - Tel: 0800 543 054
Monday - Friday 10:30 AM - 7 PM
This product has the benefit of a limited manufacturer’s warranty. Details of the warranty
applicable to this product and its terms can be found at www.petsafe.net and/or are available
by sending a stamped addressed envelope to PetSafe
West Business Park, Ackhurst Road, Chorley, Lancashire PR7 1NL, United Kingdom.
®
Ltd. Redthorn House, Unit 9, Chorley
www.petsafe.net 9
Page 10
Battery Disposal
Separate collection of spent batteries is required in many regions; check the regulations in
your area before discarding spent batteries. At the end of the product life, please contact
our Customer Care Center to receive instructions on proper disposal of the unit. Please
do not dispose of the unit in household or municipal waste. For a listing of Customer Care
Center telephone numbers in your area, visit our website at www.petsafe.net.
FCC
This device complies with IC ES-003; this device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received including interference that may cause
undesirable operation.
10 Customer Care Center 1-800-732-2677
Page 11
www.petsafe.net 11
Page 12
Radio Systems® Corporation
10427 PetSafe Way
Knoxville, TN 37932
1-800-732-2677
www.petsafe.net
400-1556
©2007 Radio Systems Corporation
Loading...
