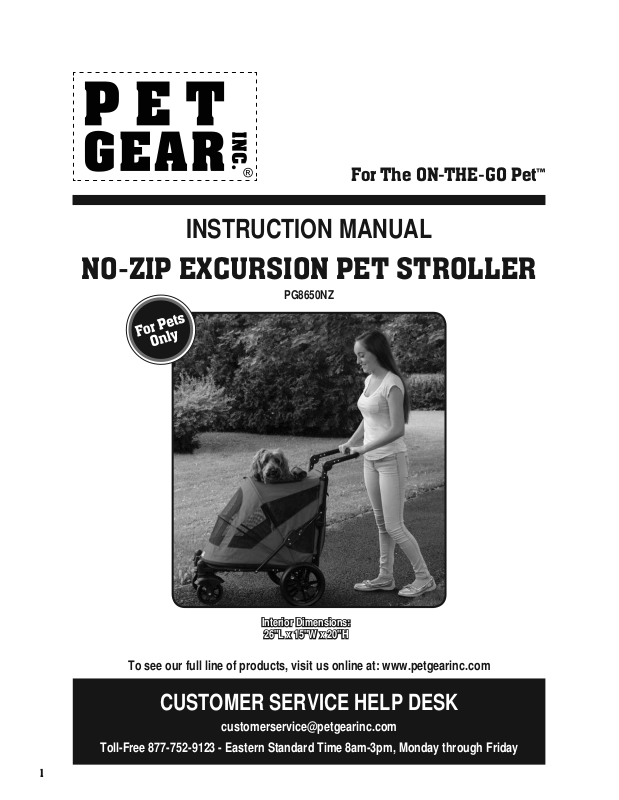

Page 1
For The ON-THE-GO Pet
INSTRUCTION MANUAL
NO-ZIP EXCURSION PET STROLLER
PG8650NZ
™
Interior Dimensions:
26"L x 15"W x 20"H
To see our full line of products, visit us online at: www.petgearinc.com
CUSTOMER SERVICE HELP DESK
Toll-Free 877-752-9123 - Eastern Standard Time 8am-3pm, Monday through Friday
1
Page 2
PARTS LIST
Check that you have all the parts shown BEFORE assembling your product.
If any parts are missing, call Customer Service.
2-Front Wheels
Stroller
2-Back Wheels
Removable Internal Liner
2
N0-ZIP EXCURSION PET STROLLER • PG8650NZ
Page 3
ck
BACK WHEEL ASSEMBLY
Step 1. Hold down lock release button shown
in Figure A and slide back wheel into axle
shown in Figure B.
When the wheel meets the stroller, let go of
the lock release.
Step 2. Pull on wheel to make sure
the wheel is engaged.
Repeat on other side.
When finished it should look like Figure C.
C.
A.
Lock/Release Button
B.
To Remove Back Wheels :
Hold down the lock/release
button (Figure A) and pull
wheel off.
A.
N0-ZIP EXCURSION PET STROLLER • PG8650NZ
Inside
Lock/Release Button
Outside
3
Page 4
FRONT WHEEL ASSEMBLY
Step 1. To attach front wheel, hold down on the wheel
release button as shown in Figure D.
Wheel Release Button
D.
Stroller with wheels
assembled.
Step 2. While holding down the wheel release button, insert the metal post on the wheel and push down until the
wheel meets the stroller (Figure E.) Let go of the wheel
release. Pull up slightly on wheel to be sure it’s locked in
place. Repeat for other front wheel.
E.
STROLLER ASSEMBLY
When all wheels are on stroller, carefully place the stroller
on all 4 wheels and begin to pull up on handle to unfold
the stroller shown in Figure F.
F.
To Remove Front Wheels :
Hold down wheel release button and pull wheel out.
4
N0-ZIP EXCURSION PET STROLLER • PG8650NZ
Page 5
STROLLER ASSEMBLY
As you unfold the stroller, straighten the side latches until they lock in place shown in Figures G and H. You will
hear a click when the slide latches are engaged.
G. H.
To adjust handlebar, push in buttons located on each side of the
handlebar and adjust to comfort shown in Figure I.
I.
N0-ZIP EXCURSION PET STROLLER • PG8650NZ
5
Page 6
STROLLER ASSEMBLY
as
To open the front canopy on your stroller, simply push the release button located on the front of your stroller and lift the
canopy shown in Figures J and K. To close the front of your stroller, clip the canopy back into the front of the stroller.
J. K.
Release Button
To open the back of your stroller, simply push the release
button located on the back of your stroller and open the
rear door shown in Figures L and M. To close the back
of your stroller, clip the rear door into the back of the
stroller.
L.
Release Button
M.
6
N0-ZIP EXCURSION PET STROLLER • PG8650NZ
Page 7
FRONT WHEEL LOCKING INSTRUCTIONS
Step 1. To use stroller in locked position for jogging,
push wheel lock down shown in Figure N.
N. O.
Wheel Lock
Step 2. To use stroller in swivel position, push wheel
lock up, shown in Figure O.
TO ASSEMBLE BACK TRAY
Step 1. To assemble the back tray, align the
holes on the front of the tray with both of the
knobs on the stroller, and secure into place by
pushing forward, then down.
N0-ZIP EXCURSION PET STROLLER • PG8650NZ
7
3
Page 8
TO FOLD/PACK UP STROLLER
Step 1. Fold down handlebar by pushing in the buttons
located on each end of the handlebar shown in Figure P.
P.
Step 2. Pull up on the hooked part of the side latch (Figure Q.) until latch disengages.
Q.
TO FOLD/PACK UP STROLLER
Step 3. Fold sides inward and push forward shown in
Figure R.
R.
8
N0-ZIP EXCURSION PET STROLLER • PG8650NZ
Page 9
LOOKING AFTER YOUR STROLLER
• Always store product in a clean, dry place.
• Not recommended for use on the beach.
• Do not put heavy items on top of the stroller.
• Clean frame by wiping with a lightly oiled cloth.
• Do not use detergent or abrasives. Spot clean fabric with dry cleaning fluid or mild soap and warm water.
• To ensure easy maneuverability and to minimize wear and tear, (especially wheels, axles, and swivels),
®
keep all moving parts clean and lubricated with WD40
• NOTE: Do not lubricate brake components or swivel locks.
• Regularly check stroller for loose parts. These should be tightened or replaced.
or light machine oil.
WHEEL MAINTENANCE
• To clean and lubricate front and rear wheels, push out locking lever under wheel housing to
release rear wheel.
• To ensure ease of maneuverability and to minimize wear and tear, keep all moving parts clean
®
and lubricated with WD40
• Push wheel sets back on until they click and lock in position; pull on wheel housings to ensure
they are secure.
• Push stroller back and forth and rotate swivels around to work in lubricant.
• Clean the rear wheel assembly and the rest of the frame with warm, soapy water; clean off with
warm water and dry thoroughly.
• NOTE: Do not lubricate brake components or swivel locks.
or light machine oil.
9
N0-ZIP EXCURSION PET STROLLER • PG8650NZ
Page 10
WARNING!
FOR PETS ONLY.
Not intended to be used as a restraining device for aggressive or dangerous animals that dig, chew or paw
aggressively. Do not leave your pet unattended. PET GEAR is not liable for any damage caused by aggressive,
destructive, immature or untrained animals. Do not use near an open or exposed flame. Failure to follow these
warnings and the instructions could result in serious injury or death.
• Do not carry additional bags, goods, or accessories in or on stroller except as recommended in the
manufacturer’s instructions.
• Recommended use of an approved safety restraint correctly fitted and adjusted.
• Do not leave pet unsupervised in stroller.
• Before making adjustments to stroller ensure that pet’s body is clear of any moving parts.
• Do not hang bags from handles as this may cause the product to become unstable.
• Do not use on escalator or stairs; fold stroller and carry.
• Put on brake whenever you park the stroller.
• Ensure stroller is completely erected and check that all locks are engaged before placing pet in stroller.
• Do not overload as stroller may become unstable; maximum weight of pet using this stroller not to
exceed 150 lbs.
REPLACEMENT PARTS
Use only PET GEAR replacement parts.
Please have your model number ready before calling.
You can also request parts: http://www.petgearinc.com/main.asp?sel=2
192 Sheldon Avenue West Rutland, VT05777 877-752-9123 www.petgearinc.com
N0-ZIP EXCURSION PET STROLLER • PG8650NZ
10
