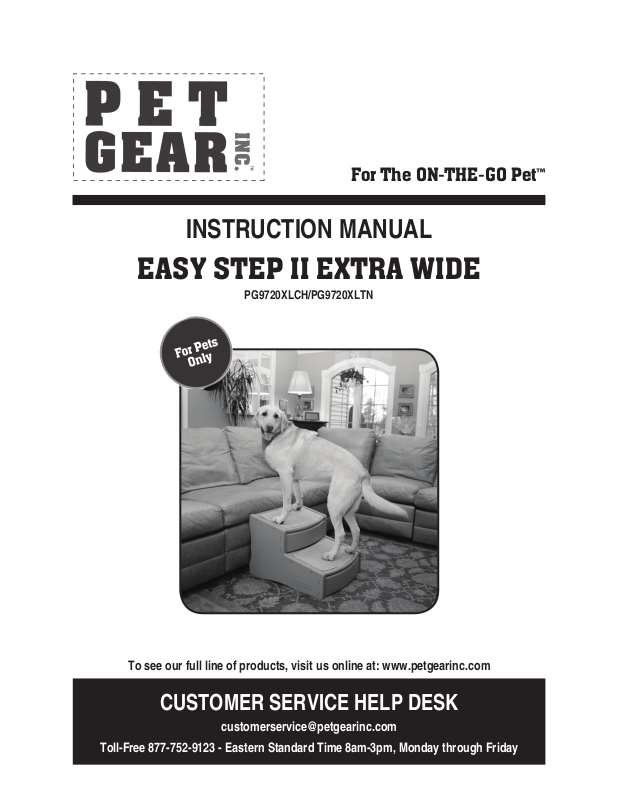

Page 1
For The ON-THE-GO Pet
INSTRUCTION MANUAL
EASY STEP II EXTRA WIDE
PG9720XLCH/PG9720XLTN
™
To see our full line of products, visit us online at: www.petgearinc.com
CUSTOMER SERVICE HELP DESK
Toll-Free 877-752-9123 - Eastern Standard Time 8am-3pm, Monday through Friday
Page 2
PARTS LIST
Check that you have all the parts shown BEFORE assembling your product.
If any parts are missing, call Customer Service.
A
Left Panel
C
D
Riser
Dowel
B
Right Panel
G
Center Support Panel
E
Top Stair
2
EASY STEP 11 EXTRA WIDE • PG9720XL
F
Bottom Stair
Page 3
ASSEMBLY INSTRUCTIONS
Step 1
Place right panel, part (B) on oor with PET GEAR Logo
facing the oor and insert top stair, part (E).
Keep the STRAIGHT EDGE toward the back and rug
facing the top. Make sure there are no gaps between
parts after inserting.
(If inserting part is difcult put a little dish soap on
doweled end before inserting.)
Step 2
Insert riser, part (C). Make sure there are no gaps
between parts after inserting.
Step 3
Insert bottom stair, part (F). Note the CURVED SIDE
direction. Make sure there are no gaps between parts
after inserting.
E
B
C
F
Step 4
Insert riser, part (C). Make sure there are no gaps
between parts after inserting.
EASY STEP 11 EXTRA WIDE • PG9720XL
C
3
Page 4
ASSEMBLY INSTRUCTIONS
Step 5
Insert center support panel, part (G), in middle row of
holes. Make sure there are no gaps between parts after
inserting.
Center Row of Holes
Step 6
Insert dowel, part (D), into hole and slide into notch on
center support panel.
G
Insert
Dowel
Notch
D
D
G
4
EASY STEP 11 EXTRA WIDE • PG9720XL
Page 5
ASSEMBLY INSTRUCTIONS
Step 7
Attach left panel, part (A). Align all holes before pushing
panel down.
Make sure there are no gaps between parts after inserting.
A
WARNING!
FOR PETS ONLY.
Not intended to be used as a restraining device for aggressive or dangerous animals that dig, chew or paw
aggressively. Do not leave your pet unattended. PET GEAR is not liable for any damage caused by aggressive,
destructive, immature or untrained animals. Do not use near an open or exposed ame. Failure to follow these
warnings and the instructions could result in serious injury or death.
REPLACEMENT PARTS
Use only PET GEAR replacement parts.
Please have your model number ready before calling.
You can also request parts: http://www.petgearinc.com/main.asp?sel=2
192 Sheldon Avenue∙West Rutland, VT∙05777∙877-752-9123∙www.petgearinc.com
EASY STEP 11 EXTRA WIDE • PG9720XL
5
