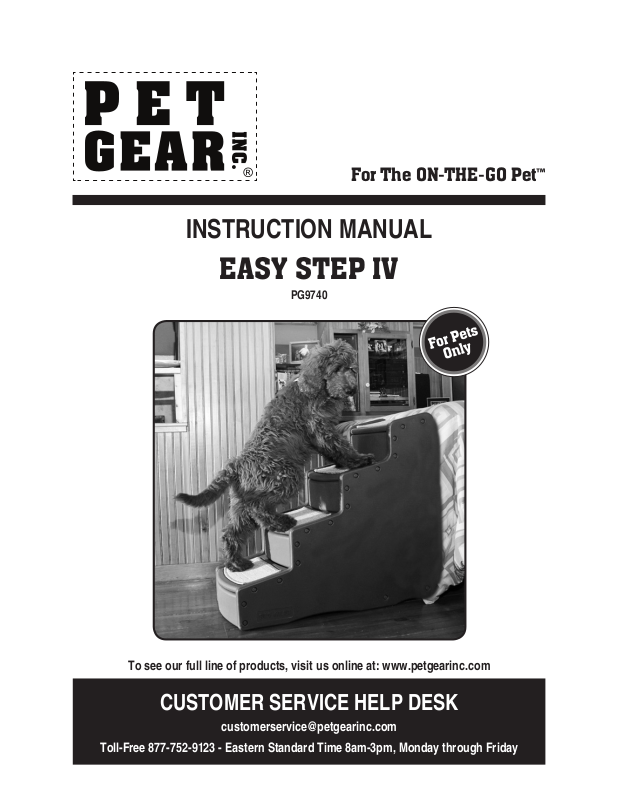

Page 1
For The ON-THE-GO Pet
INSTRUCTION MANUAL
EASY STEP IV
PG9740
™
To see our full line of products, visit us online at: www.petgearinc.com
CUSTOMER SERVICE HELP DESK
Toll-Free 877-752-9123 - Eastern Standard Time 8am-3pm, Monday through Friday
Page 2
PARTS LIST
Check that you have all the parts shown BEFORE assembling your product.
If any parts are missing, call Customer Service.
A
Left Panel
B
Right Panel
C
Risers
D
Dowels
E
Top Stair
with Straight Edge
2
EASY STEP IV • PG9740
F
Middle and
Bottom Stairs
with Curved Side
Page 3
ASSEMBLY INSTRUCTIONS
Make sure
rubber
grippers
are on the
bottom.
Step 1
With rubber grippers on the bottom, place right
panel, part (B) on oor with PET GEAR Logo
facing the oor and insert top stair, part (E).
Keep the STRAIGHT EDGE toward the back and
rug facing the top. Make sure there are no gaps
between parts after inserted. (If inserting part
is difcult put a little dish soap on doweled end
before inserting.)
Step 2
Insert riser, part (C).
Make sure there are no gaps between parts
after inserting.
Curved
Side
E
C
Straight Edge
B
F
Step 3
Insert second stair, part (F). Note the CURVED
SIDE direction. Make sure there are no gaps
between parts after inserting.
Step 4
Insert riser, part (C). Make sure there are no
gaps between parts after inserting.
B
C
EASY STEP IV • PG9740
3
Page 4
ASSEMBLY INSTRUCTIONS
Step 5
Insert third stair, part (F). Note the CURVED SIDE
direction. Make sure there are no gaps between parts
after inserting.
Step 6
Insert riser, part (C). Make sure there are no gaps
between parts after inserting.
Curved
Side
F
F
C
Step 7
Insert bottom stair, part (F). Note the CURVED SIDE
direction. Make sure there are no gaps between parts
after inserting.
4
EASY STEP IV • PG9740
Curved
Side
F
Page 5
ASSEMBLY INSTRUCTIONS
Step 8
Insert the nal riser, part (C). Make sure there are no gaps
between parts after inserting.
Step 9
Insert dowels, part (D). Make sure there are no gaps between
parts after inserting.
F
C
Step 10
Attach left panel, part (A). Align all holes before pushing
panel down. Make sure there are no gaps between parts
after inserting.
D
D
D
A
EASY STEP IV • PG9740
5
Page 6
WARNING!
FOR PETS ONLY.
Not intended to be used as a restraining device for aggressive or dangerous animals that dig, chew or paw
aggressively. Do not leave your pet unattended. PET GEAR is not liable for any damage caused by aggressive,
destructive, immature or untrained animals. Do not use near an open or exposed ame. Failure to follow these
warnings and the instructions could result in serious injury or death.
REPLACEMENT PARTS
Use only PET GEAR replacement parts.
Please have your model number ready before calling.
You can also request parts: http://www.petgearinc.com/main.asp?sel=2
192 Sheldon Avenue • West Rutland, VT 05777 • 877-752-9123 • www.petgearinc.com
6
EASY STEP IV • PG9740
