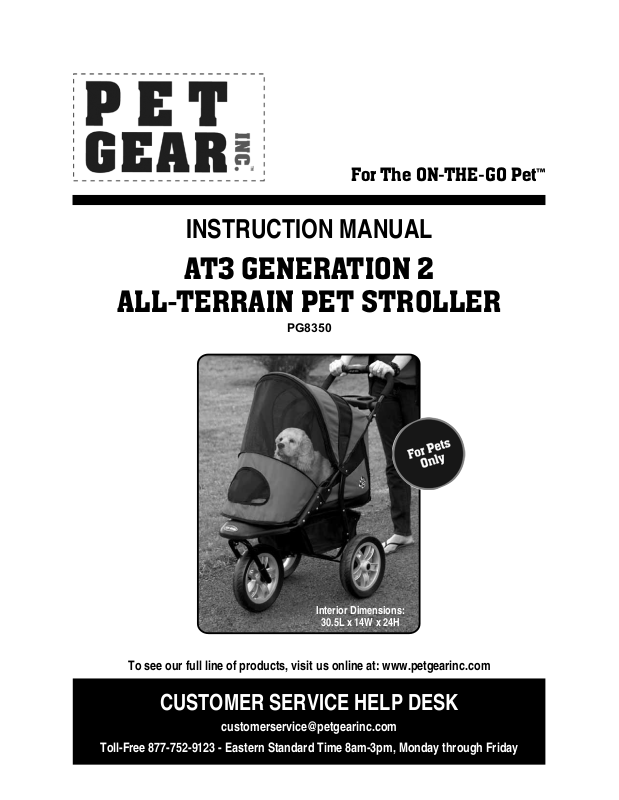

Page 1
For The ON-THE-GO Pet
INSTRUCTION MANUAL
AT3 GENERATION 2
All-TERRAIN PET STROllER
PG8350
AT
™
Interior Dimensions:
30.5L x 14W x 24H
To see our full line of products, visit us online at: www.petgearinc.com
CUSTOMER SERVICE HELP DESK
Toll-Free 877-752-9123 - Eastern Standard Time 8am-3pm, Monday through Friday
Page 2
PARTS LIST
Check that you have all the parts shown BEFORE assembling your product.
If any parts are missing, call Customer Service.
Front
Stroller
Wheel
Axle
2-Rear Wheels
INSTRUCTIONS FOR USE
Spread the canopy apart to the open position.
Canopy
Back View of Stroller
A.
Step Here
Apply brake lever by pushing down with toe.
Ensure brakes are applied when parking stroller.
Release by lifting brake lever with toe.
WARNING: Never leave your stroller parked
Ensure the canopy is closed
before folding the stroller.
2
AT3 GENERATION 2 All-TERRAIN PET STROllER • PG8350BS/PG8350RP
without applying brakes.
Page 3
Step 1. Release folding latch (B).
UNFOLDING THE STROLLER
Step 2. Spread handle (C) and seat
apart until the frame clicks and locks
on both sides.
Step 3. Ensure that the stroller is
locked in on both sides before using.
FOLDING THE STROLLER
C.
B.
Step 1. Before folding the stroller, unzip
stroller, and open the canopy.
Step 2. Slide second frame lock release
(E) to the right, while squeezing the main
frame lock release (D) rotate the folding
mechanism almost 180 degrees forward
until stroller releases and handle is
lowered.
Step 3. When closed, push folding latch
(B) onto catch.
See above to view latch (B).
E.
D.
Folding
Mechanism
AT3 GENERATION 2 All-TERRAIN PET STROllER • PG8350BS/PG8350RP
3
Page 4
ASSEMBLY INSTRUCTIONS
Step 1. Push back wheels on to axle, as shown
in Figure F, until they lock into place.
F.
Step 2. Pull on wheel to make sure the wheel is
engaged. Repeat on other side. When nished it
should look like Figure G.
G.
Shown with both back wheels in place.
H.
Back Wheels
Inside Outside
To remove wheel, push the lock/release button
(Figure H) and pull wheel off.
Lock/Release Button
4
AT3 GENERATION 2 All-TERRAIN PET STROllER • PG8350BS/PG8350RP
Page 5
ASSEMBLY INSTRUCTIONS
Step 3. To attach front wheel, slide plastic wheel support
up and into tubing.
Tubing Tubing
Step 4. Slide wheel up, until velco pins pop out
of holes.
Velco Pin
Velco Pin
Step 5. To use stroller in locked position for jogging,
push pin in.
Locked Position
Step 6. To use stroller in swivel position, pull pin
down, and to the right.
Swivel
Position
AT3 GENERATION 2 All-TERRAIN PET STROllER • PG8350BS/PG8350RP
5
Page 6
LOOKING AFTER YOUR STROLLER
• Always store product in a clean, dry place.
• Not recommended for use on the beach.
• Do not put heavy items on top of the stroller.
• Clean frame by wiping with a lightly oiled cloth.
• Do not use detergent or abrasives. Spot clean fabric with dry cleaning uid or mild soap and
warm water.
• To ensure easy maneuverability and to minimize wear and tear, (especially wheels, axles, and
swivels), keep all moving parts clean and lubricated with WD40® or light machine oil.
• NOTE: Do not lubricate brake components or swivel locks.
• Regularly check stroller for loose parts. These should be tightened or replaced.
WHEEL MAINTENANCE
• To clean and lubricate front and rear wheels, push out locking lever under wheel housing to
release rear wheel.
• To ensure ease of maneuverability and to minimize wear and tear, keep all moving parts clean and
lubricated with WD40® or light machine oil.
• Push wheel sets back on until they click and lock in position; pull on wheel housings to ensure
they are secure.
• Push stroller back and forth and rotate swivels around to work in lubricant.
• Clean the rear wheel assembly and the rest of the frame with warm, soapy water; clean off with
warm water and dry thoroughly.
• NOTE: Do not lubricate brake components or swivel locks.
6
AT3 GENERATION 2 All-TERRAIN PET STROllER • PG8350BS/PG8350RP
Page 7
WARNING!
FOR PETS ONLY.
Not intended to be used as a restraining device for aggressive or dangerous animals that dig, chew or paw
aggressively. Do not leave your pet unattended. PET GEAR is not liable for any damage caused by aggressive,
destructive, immature or untrained animals. Do not use near an open or exposed ame. Failure to follow these
warnings and the instructions could result in serious injury or death.
• Do not carry additional bags, goods, or accessories in or on stroller except as recommended
in the manufacturer’s instructions.
• Recommended use of an approved safety restraint correctly tted and adjusted.
• Do not leave pet unsupervised in stroller.
• Before making adjustments to stroller ensure that pet’s body is clear of any moving parts.
• This stroller is designed for one pet only.
• Do not hang bags from handles as this may cause the product to become unstable.
• Do not use on escalator or stairs; fold stroller and carry.
• Put on brake whenever you park the stroller.
• Ensure stroller is completely erected and check that all locks are engaged before placing pet
in stroller.
• Do not overload as stroller may become unstable; maximum weight of pet using this stroller
not to exceed 60 lbs.
• Any goods carried in the basket not to exceed 6 lbs.
REPLACEMENT PARTS
Use only PET GEAR replacement parts.
Please have your model number ready before calling.
You can also request parts: http://www.petgearinc.com/main.asp?sel=2
192 Sheldon Avenue∙West Rutland, VT∙05777∙877-752-9123∙www.petgearinc.com
AT3 GENERATION 2 All-TERRAIN PET STROllER • PG8350BS/PG8350RP
7
