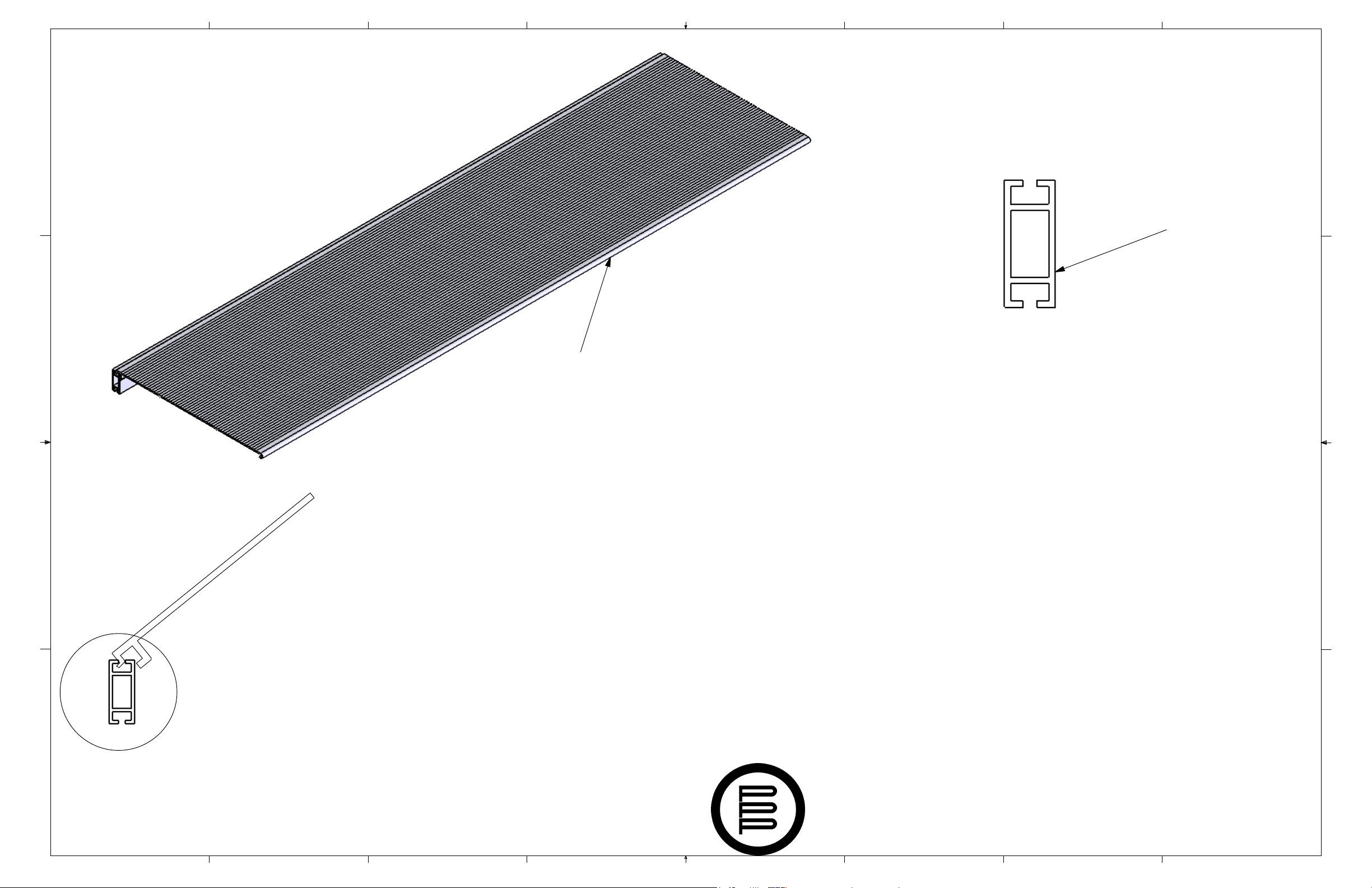

BEAM
C
SHELF
C

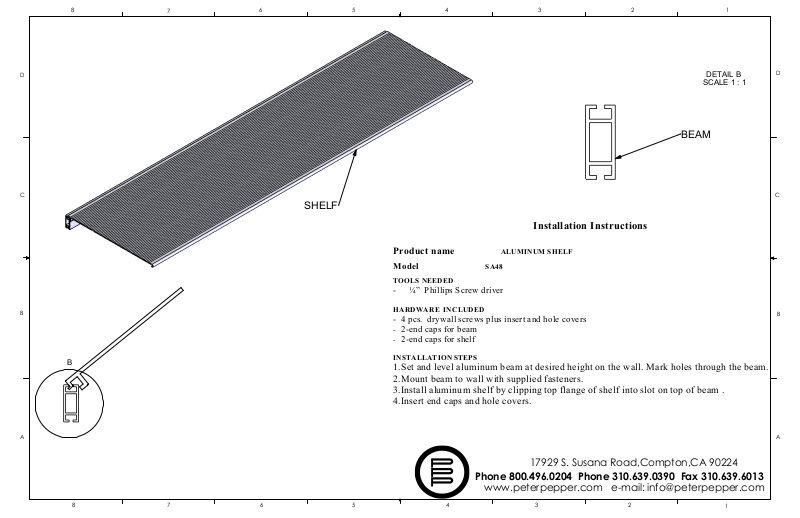

Installation Instructions
Product name
Model SA48
TO OL S N EE DE D
- ¼” Phillips Screw driver
B
HA RD WARE INCLUDED
- 4 pcs. drywall screws plus insert and hole covers
- 2-end caps for beam
-
2-end caps for shelf
B
INSTA LL AT ION S TEPS
1.Set and level aluminum beam at desired height on the wall. Mark holes through the beam.
2.Mount beam to wall with supplied fasteners.
3.Install aluminum shelf by clipping top flange of shelf into slot on top of beam .
4.Insert end caps and hole covers.
ALUM INUM SHELF
B
A
A
17929 S. Susana Road,Compton,CA 90224
Phone 800.496.0204 Phone 310.639.0390 Fax 310.639.6013
www.peterpepper.com e-mail: [email protected]
