Corporate Office: PerTronix Inc. 440 E. Arrow Highway, San Dimas, California 91773 * Phone [phone] * FAX [phone] * www.dougsheaders.com

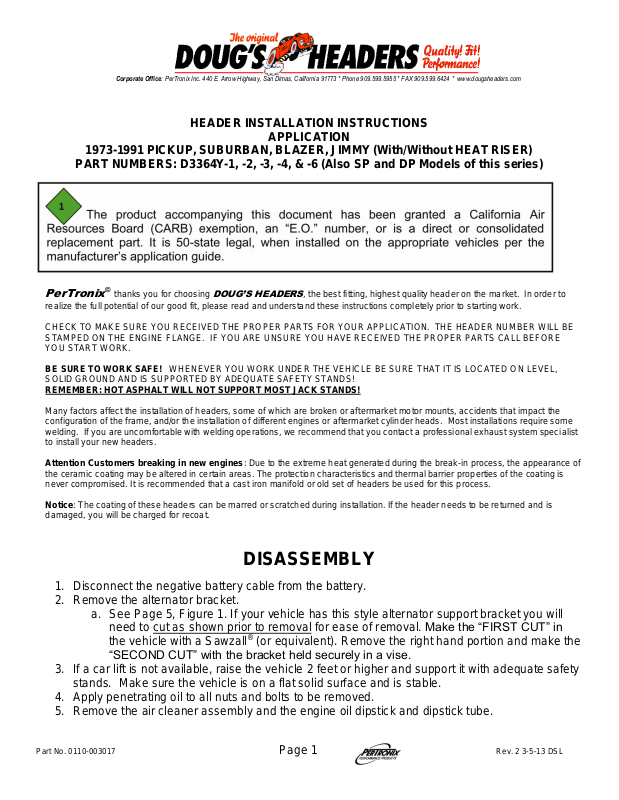

HEADER INSTALLATION INSTRUCTIONS

APPLICATION

1973-1991 PICKUP, SUBURBAN, BLAZER, JIMMY (With/Without HEAT RISER)

PART NUMBERS: D3364Y-1, -2, -3, -4, & -6 (Also SP and DP Models of this series)

PerTronix

realize the full potential of our good fit, please read and understand these instructions completely prior to starting work.
CHECK TO MAKE SURE YOU RECEIVED THE PROPER PARTS FOR YOUR APPLICATION. THE HEADER NUMBER WILL BE

STAMPED ON THE ENGINE FLANGE. IF YOU ARE UNSURE YOU HAVE RECEIVED THE PROPER PARTS CALL BEFORE
YOU START WORK.

BE SURE TO WORK SAFE! WHENEVER YOU WORK UNDER THE VEHICLE BE SURE THAT IT IS LOCATED ON LEVEL,
SOLID GROUND AND IS SUPPORTED BY ADEQUATE SAFETY STANDS!

REMEMBER: HOT ASPHALT WILL NOT SUPPORT MOST JACK STANDS!

Many factors affect the installation of headers, some of which are broken or aftermarket motor mounts, accidents that impact the
configuration of the frame, and/or the installation of different engines or aftermarket cylinder heads. Most installations require some
welding. If you are uncomfortable with welding operations, we recommend that you contact a professional exhaust system specialist
to install your new headers.

Attention Customers breaking in new engines: Due to the extreme heat generated during the break-in process, the appearance of
the ceramic coating may be altered in certain areas. The protection characteristics and thermal barrier properties of the coating is
never compromised. It is recommended that a cast iron manifold or old set of headers be used for this process.

Notice: The coating of these headers can be marred or scratched during installation. If the header needs to be returned and is
damaged, you will be charged for recoat.

©

thanks you for choosing

DOUG’S HEADERS

, the best fitting, highest quality header on the market. In order to

DISASSEMBLY

1. Disconnect the negative battery cable from the battery.

2. Remove the alternator bracket.
a. See Page 5, Figure 1. If your vehicle has this style alternator support bracket you will

need to cut as shown prior to removal for ease of removal. Make the “FIRST CUT” in
the vehicle with a Sawzall® (or equivalent). Remove the right hand portion and make the
“SECOND CUT” with the bracket held securely in a vise.

3. If a car lift is not available, raise the vehicle 2 feet or higher and support it with adequate safety

stands. Make sure the vehicle is on a flat solid surface and is stable.

4. Apply penetrating oil to all nuts and bolts to be removed.

5. Remove the air cleaner assembly and the engine oil dipstick and dipstick tube.

Part No. 0110-003017 Page 1 Rev. 2 3-5-13 DSL

6. Note the location and arrangement of the spark plug wires and carefully remove them. Use a

twisting motion while pulling away from the plug. Pull the boot, not the wire.

7. If applicable, remove the spark plug wire looms (leaving the wires in the looms) and secure the

looms out of the way.

8. Remove the spark plugs.

9. If applicable, remove the A.I.R. harnesses (smog pump fittings) from the stock exhaust

manifolds by disconnecting them at the junctions to the hoses.

10. If applicable, disconnect the oxygen sensor wiring at the harness end and remove the wiring

from any tie-downs that may be present. Remove the oxygen sensor. (Note: Failure to
disconnect the oxygen sensor wiring so that it is free to rotate with the oxygen sensor can
seriously damage the oxygen sensor).

11. Remove the catalytic converter clamp and stock head pipes and connector pipe. (Note: The

use of heat and/or force may be necessary to separate the system at this point. Do not cut this
junction apart. It is illegal to modify the front of the catalytic converter).

12. Clean the head surface of any carbon deposits or other foreign material.

ASSEMBLY

1. If applicable, trial fit the A.I.R. harness onto the headers, removing them before installing the

headers.

2. On some 1981 and later models, the air conditioning bracket may require modification as

shown on Page 5, Figure 2.

3. Apply a THIN film of Ultra Copper Hi-Temp Sensor-Safe Silicone Sealer to the header side of

one of the supplied gaskets and glue it to the driver side header. Masking tape can be used to
help stick the gasket to the manifold.

4. Apply anti-seize to all header bolts being used.

5. Apply a THIN film of Ultra Copper Hi-Temp Sensor-Safe Silicone Sealer to the engine side of

the gasket and install the driver side header from below the vehicle. Use the original bolt (NOT

A SUPPLIED HEADER BOLT) in the front bolt hole. Use a supplied 3/8” lock-washer and the
1” spacer on this bolt as well. Install the supplied 3/8”-16 X 1 ¼” header bolts and 3/8” lock-

washers in the remaining 5 bolt holes. Tighten to 35 ft/lbs.

6. Reinstall the driver side spark plugs.

7. Reinstall the alternator bracket and weld the two pieces back together where the “First Cut”

was made (as shown on Page 5, Fig. 1).

8. Reinstall the driver side spark plug wiring harness looms using the four supplied ¼” dia. x 3.4”

long aluminum spacers, ¼”-20 x 1 ¼” hex head cap screws and ¼” lock-washers.

9. If applicable, reinstall the oxygen sensor into the fitting in the header. If no sensor, install the

18mm O2 plug.

10. If applicable, reinstall the A.I.R. harness onto the driver side header and securely tighten the

fittings. Reconnect the feed hose.

11. Apply a THIN film of Ultra Copper Hi-Temp Sensor-Safe Silicone Sealer to the header side of

one of the supplied gaskets and glue it to the passenger side header. Masking tape can be
used to help stick the gasket to the manifold.

12. Apply a THIN film of Ultra Copper Hi-Temp Sensor-Safe Silicone Sealer to the engine side of

the gasket and install the passenger side header from below the vehicle using the supplied
3/8”-16 x 1 ¼” header bolts and 3/8” lock-washers. Tighten to 35 ft/lbs.

13. Reinstall the engine oil dipstick tube and dipstick.

14. Reinstall the passenger side spark plugs.

Part No. 0110-003017 Page 2 Rev. 2 3-5-13 DSL

15. Reinstall the passenger side spark plug wiring harness looms (and if applicable, the dipstick

tube support bracket). (Note: The dipstick tube may require slight, careful bending to conform
to its new location. Allow at least ¼” clearance between the dipstick and the header.

16. If applicable, reinstall the passenger side A.I.R. harness on the header, tighten securely, and

reconnect the feed hose.

17. Reinstall all spark plug wiring.

18. Install the supplied catalytic converter adapter into the entrance of the catalytic converter, with

the bolt hole clocking as shown on Page 6, Figure 3. Use a hammer and block of wood to drive
the adapter in until it stops, then reinstall the factory clamp loosely.

19. Attach the supplied Y-pipe assembly to the header collectors and the catalytic converter

adapter using the appropriately sized supplied collector gaskets, 3/8”-16 x 1 ¼” hex head cap
screws, nuts and washers. Assemble loosely so that it can be properly aligned later in the
assembly procedure.

20. If applicable, the supplied heat riser (replaces your original heat riser) should also be installed

between the passenger side header collector and the Y-pipe assembly at this point, using
another supplied 2 ½” collector gasket and the 3, 3/8”-16 x 2 ½” hex head cap screws (instead
of the 1 ¼” hex head cap screws), nuts and lock-washers. (See Page 6, Figure 4 for an
exploded view of the heat riser assembly).

21. Reattach the vacuum tube to the heat riser.

22. Check for proper alignment of the Y-pipe and tighten the bolts.

23. With the exhaust system aligned properly, tighten the catalytic converter adapter clamp.

24. If applicable, attach the supplied Hot Air Pickup Tube as shown on Page 6, Figure 4.

25. An example of a completed assembly is shown on Page 7, Figure 5.

26. Reinstall the air cleaner assembly.

27. Connect the negative battery cable.

IMPORTANT CHECK LIST

Be sure that all brake lines and fuel lines are clear of headers and/or connector pipes.
All spark plug wires, battery cables, or other electrical components should be clear of headers

and/or connector pipes.

If dipstick tube was removed, make sure it is installed properly and that the dipstick has been

replaced.
Double-check the tightness of all bolts including brackets and accessories.
Perform these checks again after the first 1000 miles.

START THE ENGINE

Start the engine and allow it to warm up to operating temperature.

Caution! Hot parts! Wear protective clothing as needed.

Check for any unusual noises or exhaust leaks. If every thing is OK, stop the engine and

tighten all bolts while the engine is still warm.

NOTE: Check the bolts periodically to make sure they have not loosened. Re-tighten after the

first 500 miles and then again at 1000 miles.

Part No. 0110-003017 Page 3 Rev. 2 3-5-13 DSL

PARTS / HARDWARE LIST

Qty. Description

1 Right side header

1 Left side header

1 Y-Pipe assy.

1 Connector Pipe

2 Header gaskets

1 O2 sensor plug, 18mm

1 3/8” Spacer, 1” long, mild steel

4 ¼” Spacer, ¾” long, aluminum

4 ¼-20 x 1 ¼” Hex head cap screw

4 ¼” lock-washer

1 Hot air pickup

1 Worm gear hose clamp, Stainless, #24

12 3/8”-16 x 1 ¼” header bolt

21 3/8” Lock-washer

9 3/8” Hex nut

1 Cat. Conv. adapter: 2 ½” in X 2 ½” out X 4 ½” long (None supplied w/D3364Y-3, -4, -6)

1 Cat. Conv. adapter: 3” in x 3” out x 4 ½” long (None supplied w/D3364Y-1 & -2)

1 Vacuum heat riser (None supplied w/D3364Y-2, -3, -5)

3 3/8”-16 x 2 ½” hex head cap screw (None supplied w/D3364Y-2, -3)

6 3/8”-16 x 1 ¼” hex head cap screw (9 supplied w/D3364Y-2, -3)

4 2 ½” Collector gaskets (3 supplied w/D3364Y-2, -4 & -6)

(2 supplied w/D3364Y-3)
1 3” Collector gasket (None supplied w/D3364Y-1 & -2)
1 Sticker (C.A.R.B., E.O., D-57-19)
1 Installation instruction sheet
1 Warranty statement sheet
1 Doug’s merchandise card
1 Decal: DOUG’S HEADERS

Description

Heating torch
Mig welder
Cut-off saw
Sawzall® (or equivalent) w/metal cutting 6” blade

3/8”, 7/16”, 9/16”, ½”, ¾”, 7/8”, 10mm and 13mm wrenches
9/16” Line wrench (flare nut)
5/16”, 7/17”, ½” and 9/16” sockets
3/8” & 7/16” and15mm deep sockets
5/8” spark plug socket

Ratchet and extensions
Pliers and an adjustable jaw wrench
Torque wrench
Rust penetrant
High temp 700° F “sensor-safe” silicon sealer:

TOOLS / LUBRICANTS / SEALERS REQUIRED LIST

Part No. 0110-003017 Page 4 Rev. 2 3-5-13 DSL

ALTERNATOR SUPPORT BRACKET MODIFICATION

SECOND CUT

FIRST CUT

(Disassembly

Step 2)

WELD

(Assembly

Step 7)

Discard

- Make the “FIRST CUT” in the vehicle with a Sawzall

®

(or equivalent).

- Remove the right hand portion, place securely in a vice and make
the “SECOND CUT”.

- Discard the shaded area.

AIR CONDITIONING BRACKET MODIFICATION

CUT HERE

Discard

Figure 1

Figure 2

Part No. 0110-003017 Page 5 Rev. 2 3-5-13 DSL

Figure 3

HEAT RISER

EXHAUST PIPE TO MUFFLER

FLAT GASKET

FLAT GASKET

HEAT RISER

HEADER COLLECTOR

Figure 4

Part No. 0110-003017 Page 6 Rev. 2 3-5-13 DSL

Figure 5

D3364Y-1 ASSEMBLED

HEADER
PRIMARY
TUBE

HOT AIR PICKUP
HEADER FLANGE

WORM GEAR
HOSE CLAMP

This tube is supplied to attach the hot air tube from the air cleaner to the header.

- Clamp the hot air pickup tube to the header primary tube using a supplied worm gear
hose clamp.

- The location is determined by the stock configuration.

- If your vehicle is equipped with a solid tube for the hot air pickup, ensure that the
adapter is located in a position that is as close to stock as possible.

- Attach the flex hose from the air cleaner to the hot air pickup tube mounted on the
header and secure it using a supplied worm gear hose clamp.

- Flexible emissions duct hose is available at most retail auto parts stores should yours require
replacement.

HOT AIR PICKUP TUBE

Figure 6

Part No. 0110-003017 Page 7 Rev. 2 3-5-13 DSL

AIR INJECTION LOOM INFORMATION

Note: Should you require replacement of the stock air injection looms, your local GM parts
department may be able to provide replacement air injection looms using these part numbers:

Dual AIR Pump Single AIR Pump

Driver side: 14102115 Driver side: 330544
Passenger side: 14102114 Passenger side: 330544

HEAT RISER INFORMATION

What is a heat riser?

The heat riser is a valve that closes off the exhaust on one bank of a V8’s cylinders when the
engine is cold. This routes the hot exhaust gases from the closed-off bank through the exhaust
cross-over at the center of the intake manifold and out through the exhaust manifold on the “open”
side. The exhaust heat helps the gasoline in the cold intake manifold reach evaporation temperature
more quickly, eliminating “puddling” of raw gasoline in the intake manifold and making the vehicle
much more driveable when it is cold. As the engine warms up, the valve opens, allowing the
exhaust to flow out through both headers.

What is an “E.F.E. valve”?

“E.F.E.” stands for Early Fuel Evaporation, and “E.F.E. valve” is often considered to be another
name for the heat riser. Some vehicles, however, have what is referred to as an “E.F.E. system”.

An E.F.E. system might include both a heat riser in the exhaust manifold and a hot air pickup that
draws the engine’s intake air across one of the exhaust manifolds to preheat it during cold start
conditions. Whatever combination your vehicle came equipped with in its stock configuration is
what must be reinstalled and reconnected when headers are installed in order for your vehicle
to be smog legal. If in doubt, consult your new-car dealership parts department or an authorized
smog inspection/maintenance station.

What controls the operation of the heat riser?

There are two types of heat risers: mechanical and vacuum. The mechanical types use a bi-metallic
strip which works like a heat-sensitive spring, opening the valve when it gets hot enough. The
vacuum type uses a vacuum canister similar to the vacuum advance on an ignition distributor.
Vacuum routed through a heat-sensitive switch (usually monitoring engine coolant temperature)
pulls the valve closed when the engine is cold, and then allows it to open by shutting off the
vacuum supply when normal operating temperature is reached.

Part No. 0110-003017 Page 8 Rev. 2 3-5-13 DSL
