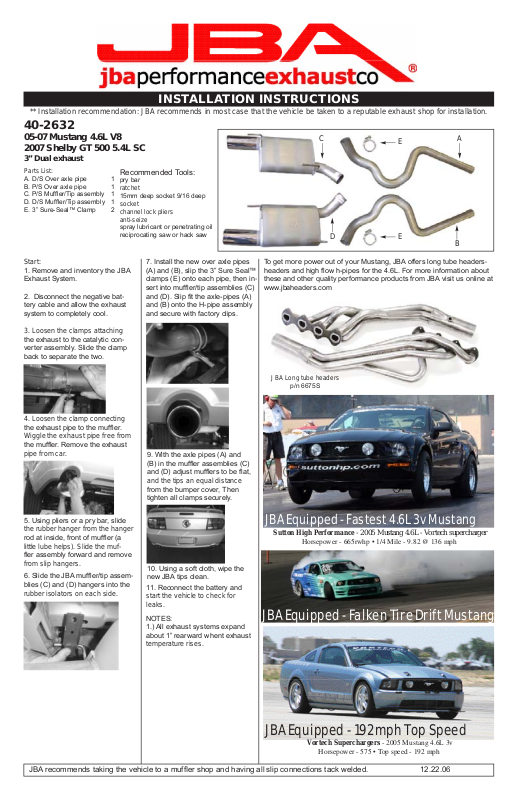

INSTALLATION INSTRUCTIONS

** Installation recommendation: JBA recommends in most case that the vehicle be taken to a reputable exhaust shop for installation.

40-2632

05-07 Mustang 4.6L V8
2007 Shelby GT 500 5.4L SC

3” Dual exhaust

C

E

A

Parts List:

A. D/S Over axle pipe 1
B. P/S Over axle pipe 1
C. P/S Mufer/Tip assembly 1
D. D/S Mufer/Tip assembly 1
E. 3” Sure-Seal™ Clamp 2

Start:

1. Remove and inventory the JBA
Exhaust System.

2. Disconnect the negative bat-

tery cable and allow the exhaust
system to completely cool.

3. Loosen the clamps attaching

the exhaust to the catalytic con-

verter assembly. Slide the clamp
back to separate the two.

Recommended Tools:

pry bar

ratchet

15mm deep socket 9/16 deep

socket
channel lock pliers
anti-seize

spray lubricant or penetrating oil
reciprocating saw or hack saw

7. Install the new over axle pipes
(A) and (B), slip the 3” Sure Seal™

clamps (E) onto each pipe, then in-

sert into mufer/tip assemblies (C)
and (D). Slip t the axle-pipes (A)
and (B) onto the H-pipe assembly
and secure with factory clips.

D

E

B

To get more power out of your Mustang, JBA offers long tube headers-

headers and high ow h-pipes for the 4.6L. For more information about
these and other quality performance products from JBA visit us online at
www.jbaheaders.com

4. Loosen the clamp connecting

the exhaust pipe to the mufer.

Wiggle the exhaust pipe free from

the mufer. Remove the exhaust

pipe from car.

5. Using pliers or a pry bar, slide

the rubber hanger from the hanger

rod at inside, front of mufer (a

little lube helps). Slide the muf-

er assembly forward and remove

from slip hangers.

6. Slide the JBA mufer/tip assem-

blies (C) and (D) hangers into the

rubber isolators on each side.

JBA Long tube headers

p/n 6675S

9. With the axle pipes (A) and
(B) in the mufer assemblies (C)
and (D) adjust mufers to be at,

and the tips an equal distance

from the bumper cover, Then
tighten all clamps securely.

JBA Equipped - Fastest 4.6L 3v Mustang

Sutton High Performance - 2005 Mustang 4.6L - Vortech supercharger

Horsepower - 665rwhp • 1/4 Mile - 9.82 @ 136 mph

10. Using a soft cloth, wipe the
new JBA tips clean.

11. Reconnect the battery and

start the vehicle to check for
leaks.

NOTES:

1.) All exhaust systems expand
about 1” rearward whent exhaust

temperature rises.

JBA Equipped - Falken Tire Drift Mustang

JBA Equipped - 192mph Top Speed

Vortech Superchargers - 2005 Mustang 4.6L 3v

Horsepower - 575 • Top speed - 192 mph

JBA recommends taking the vehicle to a mufer shop and having all slip connections tack welded. 12.22.06
