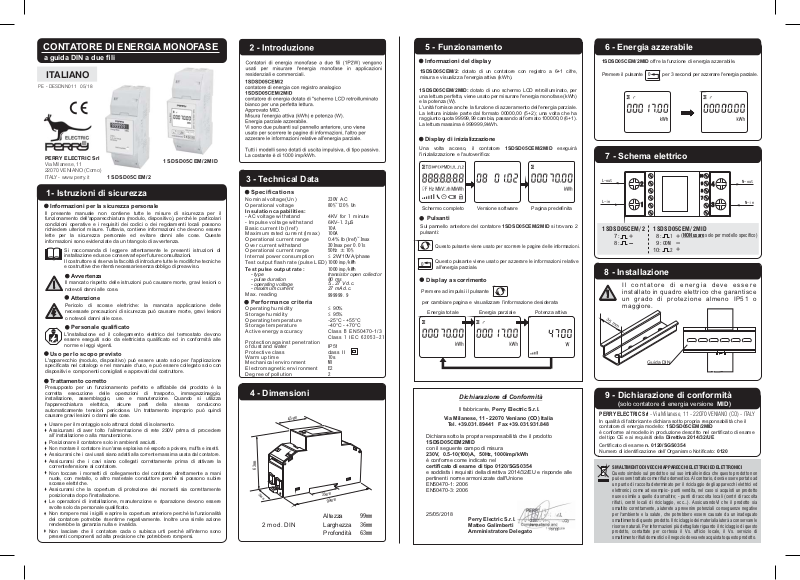

Perry Electric 1SDSD05CEM/2, 1SDSD05CEM/2MID Technical Data Manual

CONTATORE DI ENERGIA MONOFASE
a guida DIN a due fili
ITALIANO
PE - DESDNN011 05/18
PERRY ELECTRIC Srl
Via Milanese, 11 22070 VENIANO (Como) ITALY - www.perry.it
1SDSD05CEM/2
1- Istruzioni di sicurezza
Informazioni per la sicurezza personale
Il presente manuale non contiene tutte le misure di sicurezza per il funzionamento dell'apparecchiatura (modulo, dispositivo), perché le particolari condizioni operative e i requisiti dei codici o dei regolamenti locali possono richiedere ulteriori misure. Tuttavia, contiene informazioni che devono essere lette per la sicurezza personale ed evitare danni alle cose. Queste informazioni sono evidenziate da un triangolo di avvertenza.
Si raccomanda di leggere attentamente le presenti istruzioni di installazione eduso econservarle per futureconsultazioni. Il costruttore si riserva lafacoltà di introdurre tutte le modifiche tecniche e costruttiveche riterrànecessarie senza obbligodi preavviso.
Avvertenza
Il mancato rispetto delle istruzioni può causare morte, gravi lesioni o notevoli danni alle cose.
Attenzione
Pericolo di scosse elettriche: la mancata applicazione delle necessarie precauzioni di sicurezza può causare morte, gravi lesioni o notevoli danni alle cose.
Personale qualificato
L'installazione ed il collegamento elettrico del termostato devono essere eseguiti solo da elettricista qualificato ed in conformità alle norme e leggi vigenti.
Uso per lo scopo previsto
L'apparecchio (modulo, dispositivo) può essere usato solo per l'applicazione specificata nel catalogo e nel manuale d'uso, e può essere collegato solo con dispositivi e componenti consigliati e approvati dal costruttore.
Trattamento corretto
Presupposto per un funzionamento perfetto e affidabile del prodotto è la corretta esecuzione delle operazioni di trasporto, immagazzinaggio, installazione, assemblaggio, uso e manutenzione. Quando si utilizza l'apparecchiatura elettrica, alcune parti della stessa conducono automaticamente tensioni pericolose. Un trattamento improprio può quindi causare gravi lesioni o danni alle cose.
Usare solo dotati di isolamentoper il montaggio attrezzi .
Assicurarsi di aver tolto l’alimentazione di rete 230V prima di procedere all’installazione o alla manutenzione.
Posizionare il contatore solo in ambienti asciutti. Non montare il contatore in un'area esplosiva né esporlo a polvere, muffa e insetti. Assicurarsi che i cavi usati siano adatti alla corrente massima usata dal contatore.
Assicurarsi che i cavi siano collegati correttamente prima di attivare la corrente/tensione al contatore.
Non toccare i morsetti di collegamento del contatore direttamente a mani nude, con metallo, o altro materiale conduttore perché si possono subire scosse elettriche. Assicurarsi che la copertura di protezione dei morsetti sia correttamente posizionata dopo l'installazione.
Le operazioni di installazione, manutenzione e riparazione devono essere svolte solo da personale qualificato.
Non rompere mai i sigilli e aprire la copertura anteriore perché la funzionalità del contatore potrebbe risentirne negativamente. Inoltre una simile azione renderebbe la garanzia nulla e invalida.
Non lasciare che il contatore cada o subisca urti perché all'interno sono presenti componenti ad alta precisione che potrebbero rompersi.
1SDSD05CEM/2MID
3 - Technical Data
Specifications
Nominal voltage(Un) Operational voltage
Insulation capabilities:
- voltage withstandAC
- Impulse voltage withstand Basic current Ib(Iref) Maximum rated current (Imax) Operational current range Over current withstand Operational current range Internal power consumption Test output flash rate )(pulse LED
Test pulse output rate:
- type
- pulse duration
- operating voltage
- maximum current
Max. reading
Performance criteria
Operating humidity Storage humidity Operating temperature Storage temperature Active energy accuracy
Protection against penetration of dust and water Protective class Warm up time
Mechanical environment Electromagnetic environment Degree of pollution
4 - Dimensioni
mm
5
4
m 3m
6
3
6m
m
2 mod. DIN
230V AC 80%~120% Un
4KV 1for minute 6SKV-1.2µ
10A 100A 0 4% Ib. (Iref)~Imax 30Imax 0.01sper 50Hz ± 10% ≤/2W/10VA phase 1000imp/kWh
1000imp/kWh
transistor open collector 80 ms
5...27 V d.c. 27 mA d.c.
999999.9
90%95%
-25°C - +55°C
-40°C - +70°C
Class B EN50470-1/3 Class 1 62053-21IEC
IP51 class II
10s M1 E2 2
m
5m
3
m
99m
Altezza Larghezza Profondità
99mm 36mm 63mm
5 - Funzionamento
Informazioni del display
1SDSD05CEM/2: dotato di un contatore con registro a 6+1 cifre,
misura e visualizza l'energia attiva (kWh).
1SDSD05CEM/2MID: dotato di uno schermo LCD retroilluminato, per una lettura perfetta,viene usato per misurare l'energia monofase (kWh) e lapotenza (W). L'unità fornisce anche la funzione di azzeramento dell'energia parziale. La lettura iniziale parte dal formato 00000,00 (5+2); una volta che ha raggiunto quota99999,99 cambia, passando alformato 100000,0 (6+1). La letturamassima è999999,9kWh.
Display di inizializzazione
Una volta acces eseguiro, il contatore à1SDSD05CEM/2MID l'inizializzazione e l'autoverifica:
Schermo completo
Versione software
Pulsanti
Sul pannello anteriore si trovanodel contatore 2 pulsanti:
Questo pulsante viene usato per scorrere le pagine delle informazioni.
Questo pulsante viene usato per azzerare le informazioni relative
0
all'energia parziale.
1SDSD05CEM/2MID
Display a scorrimento
Premere ad impulsi il pulsante
per cambiare pagina e visualizzare l’informazione desiderata
Energia totale Energia parziale Potenza attiva
Dichiarazione di Conformità
Il fabbricante, Perry Electric S.r.l.
Via Milanese, 11 - 22070 Veniano (CO) Italia
Tel. +39.031.89441 Fax +39.031.931.848
Dichiara sotto la propria responsabilità che il prodotto
1SDSD05CEM2MID
con il seguente campo di misura
230V, 0.5-10(100)A, 50Hz, 1000imp/kWh
è conforme come indicato nel
certificato di esame di tipo 0120/SGS0354
e soddisfa i requisiti della direttiva 2014/32/EU e risponde alle pertinenti norme armonizzate dall'Unione EN50470-1: 2006 EN50470-3: 2006
25/05/2018
Perry Electric S.r.l. Matteo Galimberti Amministratore Delegato
Pagina predefinita
6 - Energia azzerabile
1SDSD05CEM/2MID offr la funzione di energia azzerabile.e
Premere il pulsante per 3 secondi per azzerare l'energia parziale.
0
7 - Schema elettrico
( solo per modello specico)NON usare
+ +
10
9
4
8
7
3
N-out
N-in
L-out
L-in
1SDSD05CEM/2
7:
+
8:
2
1
1SDSD05CEM/2MID
8:
1
9:
COM
2
10:
8 - Installazione
Il contatore di energia deve essere installato in quadro elettrico che garantisce un grado di protezione almeno IP51 o maggiore.
35 mm
Guida DIN
Conformity Declaration
9 - Dichiarazione di conformità
( MID)solo contator versionee di energia
PERRY ELECTRIC Srl - Via Milanese, 11 - 22070 VENIANO (CO) - ITALY
In qualità di fabbricante dichiara sotto propria responsabilità che il contatore di energia modello: è conforme al modello in produzione descritto nel certificato di esame del tipo CE e ai requisiti della Direttiva 2014/32/UE
Certificato di esame n. 0120/SGS0354 Numero di identificazione dell’Organismo Notificato: 0120
SMALTIMENTODI VECCHIAPPARECCHI ELETTRICI EDELETTRONICI
Questo simbolo sul prodotto o sul suo imballo indica che questo prodotto non può esseretrattato come rifiutodomestico. Alcontrario, dovràessere portato ad un punto di raccolta determinato per il riciclaggio degli apparecchi elettrici ed elettronici, come ad esempio:- punti vendita, nel caso si acquisti un prodotto nuovo simile a quello da smaltire; - punti di raccolta locali (centri di raccolta rifiuti, centri locali di riciclaggio, ecc...). AssicurandoVi che il prodotto sia smaltito correttamente, aiuterete a prevenire potenziali conseguenze negative per l'ambiente e la salute, che potrebbero essere causate da un inadeguato smaltimento diquesto prodotto.Il riciclaggio deimateriali aiuterà aconservare le risorse naturali. Per informazioni più dettagliate riguardo il riciclaggiodi questo prodotto, contattate per cortesia il Vs. ufficio locale, il Vs. ser vizio di smaltimento rifiutidomestici oil negozio doveavete acquistatoquesto prodotto.
1SDSD05CEM/2MID
SINGLE PHASE ENERGY METER
Two Wires Din Rail, 2
ENGLISH
PE - DESDNN011 05/18
PERRY ELECTRIC Srl
Via Milanese, 11 22070 VENIANO (Como) ITALY - www.perry.it
1SDSD05CEM/2
1- Safety Instructions
Information for your own safety
This manual does not contain all of the safety measures for operation of the equipment(module,device),because special operating conditions, and local code requirements or regulations may necessitate further measures. However, it does contain information which must be read for your personal safety and to avoid material damages. This information is highlighted by a warning triangle and is represented as follows, depending on the degree of potential danger.
Read this manual carefully before using the product as it provides important guidelines regarding safety, installation and use. The manual must be preserved with care for future reference. The manufacturer reserves the right to introduce any technical and/or constructive changes deemednecessary, with noprior notice.
Warning
This means that failure to observe the instruction can result in death, serious injury or considerable material damage.
Caution
This means hazard of electric shock and failure to take the necessary safety precautions will result in death, serious injury or considerable material damage.
Qualified personnel
Operation of the equipment (module, device) described in this manual may only be performed by qualified personnel. Qualified personnel in this manual means person who are authorized to commission, start up, ground and label devices, systems and circuits according to safety and Regulatory standards.
Use for t he i ntend ed p urpos e
The equipment (device, module) may only be used for the application specified in the catalogue and the user manual, and only be connected with devices and components recommended and approved by .PERRY
Proper handling
The prerequisites for perfect, reliable operation of the product are proper transport, proper storage, installation and assembly, as well as proper operation and maintenance. When operating electrical equipment, certain parts of this equipment automatically carry dangerous voltages. Improper handling can therefore result in serious injuries or material damage.
Use only insulating tools Do not connect while circuit is live ( ).230V~
Place the meter only in dry surroundings. Do not mount the meter in an explosive area or expose the meter to dust, mildew and insects. Make sure the used wires are suitable for the maximum current of this meter.
Make sure the wires are connected correctly before activatingAC the current/voltage to the meter.
Make sure the used wires are suitable for the maximum current of this meter.
Do not touch the meter connecting clamps directly with your bare hands, with metal, blank wire or other material as you may get an electrical shock.
Make sure the protection cover is placed after installation. Installation, maintenance and reparation should only be done by
qualified personnel.
Never break the seals and open the front cover as this might influence the functionality of the meter, and will avoid any warranty.
Do not drop, or allow physical impact to the meter as there are high precision components inside that may break.
1SDSD05CEM/2MID
3 - Technical Data
Specifications
Nominal voltage(Un) Operational voltage
Insulation capabilities:
- voltage withstandAC
- Impulse voltage withstand Basic current Ib(Iref) Maximum rated current (Imax) Operational current range Over current withstand Operational current range Internal power consumption Test output flash rate )(pulse LED
Test pulse output rate:
- type
- pulse duration
- operating voltage
- maximum current
Max. reading
Performance criteria
Operating humidity Storage humidity Operating temperature Storage temperature Active energy accuracy
Protection against penetration of dust and water Protective class Warm up time
Mechanical environment Electromagnetic environment Degree of pollution
4 - Dimensions
mm
5
4
m 3m
6
3
6m
m
2 mod. DIN
230V AC 80%~120% Un
4KV 1for minute 6SKV-1.2µ
10A 100A 0 4% Ib. (Iref)~Imax 30Imax 0.01sper 50Hz ± 10% ≤/2W/10VA phase 1000imp/kWh
1000imp/kWh
transistor open collector 80 ms
5...27 V d.c. 27 mA d.c.
999999.9
90%95%
-25°C - +55°C
-40°C - +70°C
Class B EN50470-1/3 Class 1 62053-21IEC
IP51 class II
10s M1 E2 2
m
5m
3
m
99m
Height
99mm
Width
36mm
Depth
63mm
5 - Operation
Display info
1SDSD05CEM/2 equipped with a 6+1 register counter, measures
and displays active energy (kWh).
1SDSD05CEM/2MID
reading isused tomeasure single phaseenergy (kWh)and power (W). The unitprovides alsoa resettable partialenergy. The initial reading starts from 0000 .00 ( +2), once it is go05 up to 9999.99, thereading will changeto 00000.0 ( +1).916 The max.reading is 99999.9kWh.9
with a white backlit LCD screen for perfect
Initialization display
When is power on, it will initialize and1SDSD05CEM/2MID do self-checking:
Full Screen
Software version Default page
Buttons
There are two buttons on the front panel of 1SDSD05CEM/2MID:
This button is used to scroll the information pages.
0
This button is used to reset the partial energy information.
Scroll display
Press the button
to change page and to see the wished information
Total energy
Partial energy
Active energy
Declaration of Conformity
The Manufacturer, Perry Electric S.r.l.
Via Milanese, 11 - 22070 Veniano (CO) Italia
Tel. +39.031.89441 Fax +39.031.931.848
Ensure and declare that apparatus:
1SDSD05CEM2MID
with the measurement range
230V, 0.5-10(100)A, 50Hz, 1000imp/kWh
in conformity with the type as described in theis
EC-type examination certificate 0120/SGS0354
and satisfy the appropriate requirements of the Directive 2014/32/EU with the relevant harmonized standards by the European Union EN50470-1: 2006 EN50470-3: 2006
25/05/2018
Perry Electric S.r.l. Matteo Galimberti Amministratore Delegato
Both provide a function of resettable energy.1SDSD05CEM/2MID
User can press the right button
for 3 seconds to reset the partial energy.
L-out
L-in
1SDSD05CEM/2 1SDSD05CEM/2MID
PERRY ELECTRIC Srl - Via Milanese, 11 - 22070 VENIANO (CO) - ITALY
Declare underour sole responsibility as manufacturerthat thesingle phase active import/export (kWh) indoor elect ric ity m ete r 1SDSD05CEM/2MID cor respo nd tothe production model describedin the -type examinationEC certicateand to the requirements of the Directive 2014/32/UE type
6 - Resettable Energy
0
7 - Wiring Diagram
10
( only for specic model)DO NOT use
+ +
9
4
8
7
3
2
1
8:
10:
1
9:
COM
2
7:
+
8:
8 - Installation Diagram
The digital energy meter has to be installed in switchboards granting an protection degree of at least IP51 or superior.
35 mm
DIN Rail
Conformity Declaration
9 - Conformity Declaration
(MID version meters only)
0120/SGS0Examination Certicate no. 354
Nb0120Identication Number of the
DISPOSING OFOLD ELECTRICALAND ELECTRONIC EQUIPMENT
This symbolon theproduct or onits packaging indicates that this product cannot be treated as household waste. On the contrar y, it must be taken to a specific collection centrefor recyclingelectrical and electronicequipment, suchas:
- outlets,if asimilar product tothe onebeing disposed ofis beingpurchased
- localcollection centres(waste collection centres,local recyclingcentres, etc.). By making sure the product is disposed of correctly, you will help prevent potential negative consequences for theenvironment and human health, which could otherwise be caused by inadequate disposal of this product. Recycling materials will help conserve natural resources. For more detailed infor mation about recycling this product, please contact the local office in your area, the household wastedisposal service inyour area orthe shop whereyou purchased this product.
N-out
N-in
