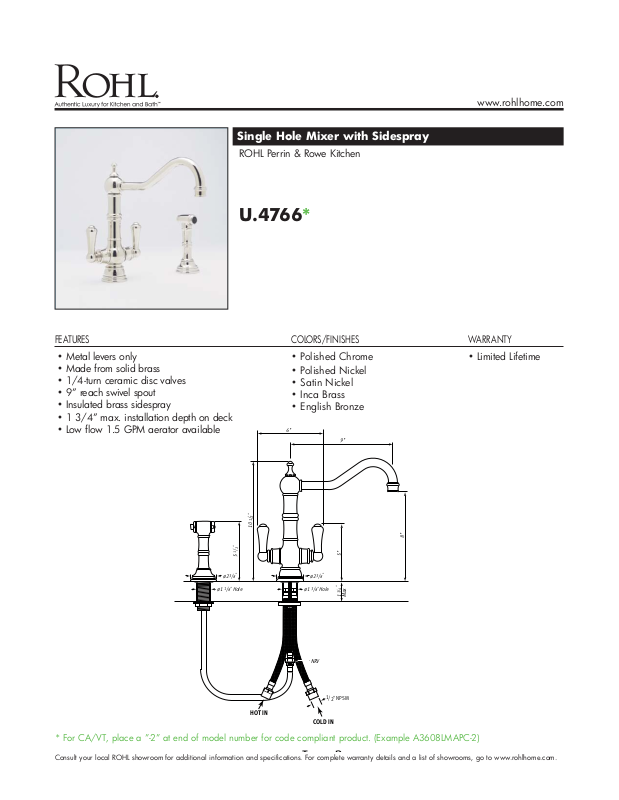

Page 1
U.4766*
FEATURES COLORS/FINISHES WARRANTY
www.rohlhome.com
• Metal levers only
• Made from solid brass
• 1/4-turn ceramic disc valves
• 9” reach swivel spout
• Insulated brass sidespray
• 1 3/4” max. installation depth on deck
• Low flow 1.5 GPM aerator available
• Polished Chrome
• Polished Nickel
• Satin Nickel
• Inca Brass
• English Bronze
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
• Limited Lifetime
ROHL Perrin & Rowe Kitchen
Single Hole Mixer with Sidespray
* For CA/VT, place a ”-2” at end of model number for code compliant product. (Example A3608LMAPC-2)
6"
9"
"
2
/
1
10
"
2
/
1
5
"
3
ø2
/
8
"
1
ø1
/
Hole
8
HOT IN
ø2 3/
3
ø1
NRV
"
8
"
/
Hole
8
1
COLD IN
5"
"
4
/
3
1
/2" NPSM
Max
8"
Page 2
Where * Indicated Specify Color.
www.rohlhome.com
Consult your local ROHL showroom for additional information and specifications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
U.4766 Spare Parts
9.20772*
9.25552
9.17793*
9.18380*
9.26400
9.13362
9.28624
9.13145/Hot
9.13146/Cold
9.12760*
9.28421
9.24194*
9.26760*
9.28426*
9.18380*
9.27776*
9.18425*
9.19776
