PERRIN & ROWE
U.4543HT
FEATURES
• Brass construction
• Metal lever only
• Dual-spray functionality with ability to toggle between
stream and spray settings
• 2 1/2” max installation deck depth
• Ceramic disc control cartridge
• 7 1/4” reach swivel C-spout
• Retractable pull-down metal hand spray
• Nylon hose
• Quick Connect system for easy installation
• 1.75 GPM
• Handle rotation is only 1 1/8” from the center of the
faucet to the backsplash
• Please allow 2” clearance from backsplash to center of
faucet hole
®

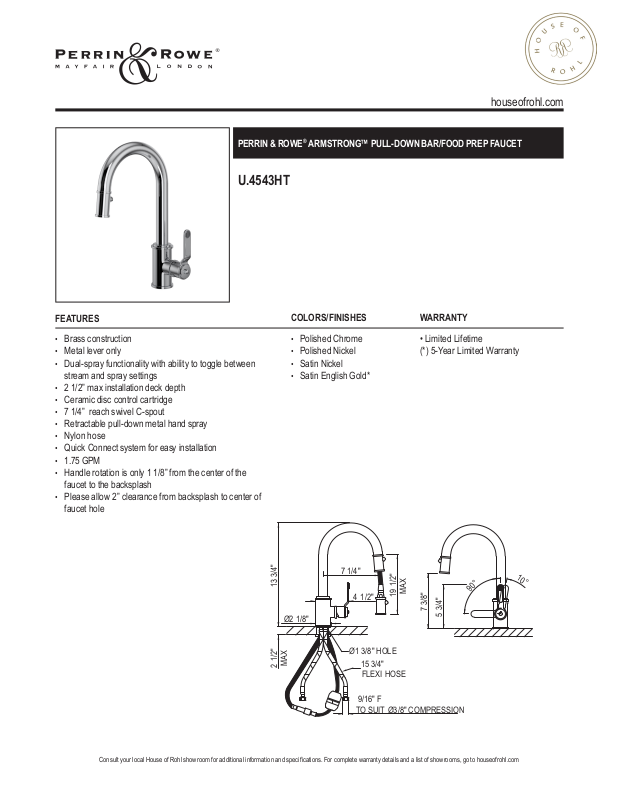

ARMSTRONG™ PULL-DOWN BAR /FOOD PREP FAUCET
COLORS/FINISHES WARRANTY
• Polished Chrome
• Polished Nickel
• Satin Nickel
• Satin English Gold*
• Limited Lifetime
(*) 5-Year Limited Warranty
7 1/4"
13 3/4"
4 1/2"
Ø2 1/8"
Ø1 3/8" HOLE
MAX
2 1/2"
Consult your local House of Rohl showroom for additional infor mation and specications. For complete warranty details and a list of showrooms, go to houseofrohl.com
15 3/4"
FLEXI HOSE
9/16" F
TO SUIT Ø3/8" COMPRESSION
1/2"
19
MAX
7 3/8"
90°
5 3/4"
10°
