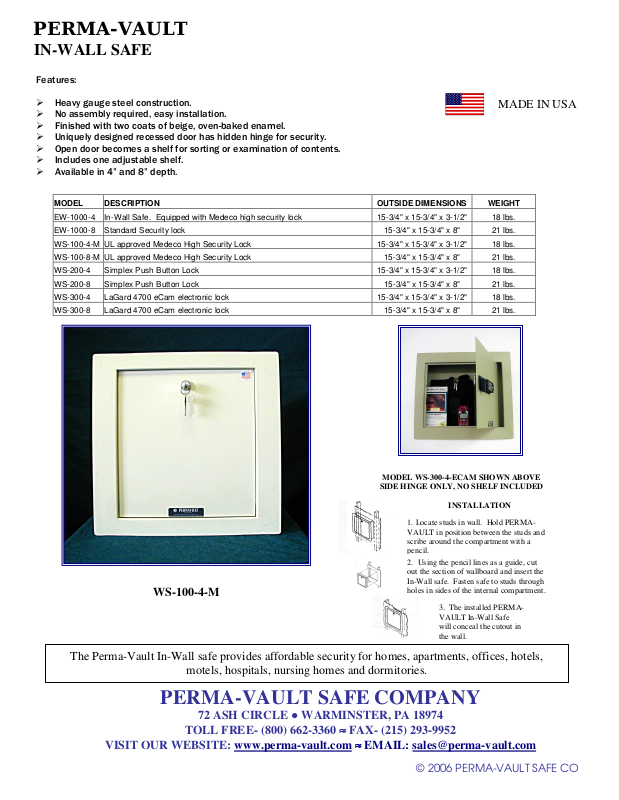

Perma-Vault PMV1007 Installation and Assembly

2. Using the pencil lines as a guide, cut

VAULT SAFE CO

PERMA-VAULT

IN-WALL SAFE

Features:

 Heavy gauge steel construction.
 No assembly required, easy installation.
 Finished with two coats of beige, oven-baked enamel.
 Uniquely designed recessed door has hidden hinge for security.
 Open door becomes a shelf for sorting or examination of contents.
 Includes one adjustable shelf.
 Available in 4” and 8” depth.

MODEL DESCRIPTION OUTSIDE DIMENSIONS WEIGHT

EW-1000-4 In-Wall Safe. Equipped with Medeco high security lock 15-3/4" x 15-3/4" x 3-1/2" 18 lbs.

EW-1000-8 Standard Security lock 15-3/4" x 15-3/4" x 8" 21 lbs.

WS-100-4-M UL approved Medeco High Security Lock 15-3/4" x 15-3/4" x 3-1/2" 18 lbs.

WS-100-8-M UL approved Medeco High Security Lock 15-3/4" x 15-3/4" x 8" 21 lbs.

WS-200-4 Simplex Push Button Lock 15-3/4" x 15-3/4" x 3-1/2" 18 lbs.

WS-200-8 Simplex Push Button Lock 15-3/4" x 15-3/4" x 8" 21 lbs.

WS-300-4 LaGard 4700 eCam electronic lock 15-3/4" x 15-3/4" x 3-1/2" 18 lbs.

WS-300-8 LaGard 4700 eCam electronic lock 15-3/4" x 15-3/4" x 8" 21 lbs.

The Perma-Vault In-Wall safe provides affordable security for homes, apartments, offices, hotels,

motels, hospitals, nursing homes and dormitories.

PERMA-VAULT SAFE COMPANY

72 ASH CIRCLE ● WARMINSTER, PA 18974

TOLL FREE- [phone] ≈≈≈≈ FAX- [phone]

VISIT OUR WEBSITE: www.perma-vault.com ≈≈≈≈ EMAIL: [e-mail]

MODEL WS-300-4-ECAM SHOWN ABOVE

SIDE HINGE ONLY, NO SHELF INCLUDED

INSTALLATION

1. Locate studs in wall. Hold PERMA­VAULT in position between the studs and
scribe around the compartment with a
pencil.

out the section of wallboard and insert the
In-Wall safe. Fasten safe to studs through
holes in sides of the internal compartment.

3. The installed PERMA­VAULT In-Wall Safe
will conceal the cutout in
the wall.

© 2006 PERMA-
