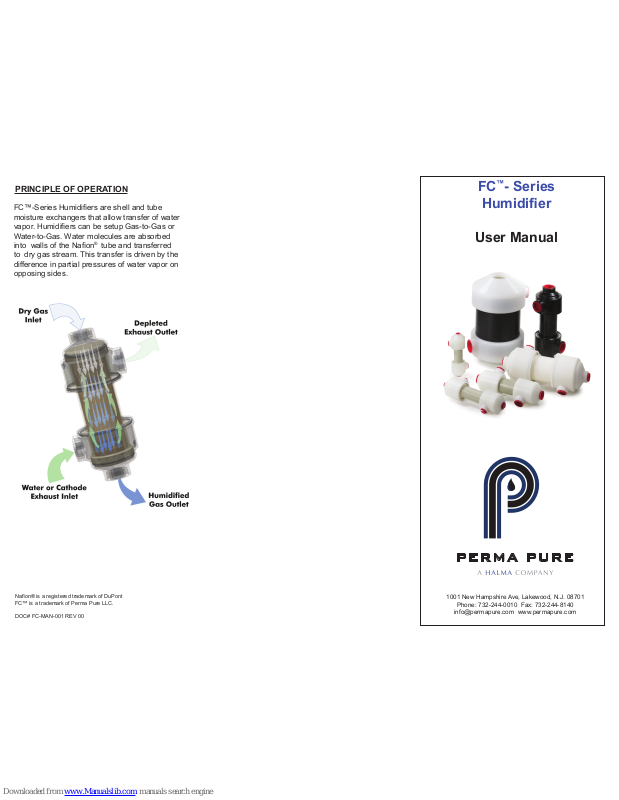

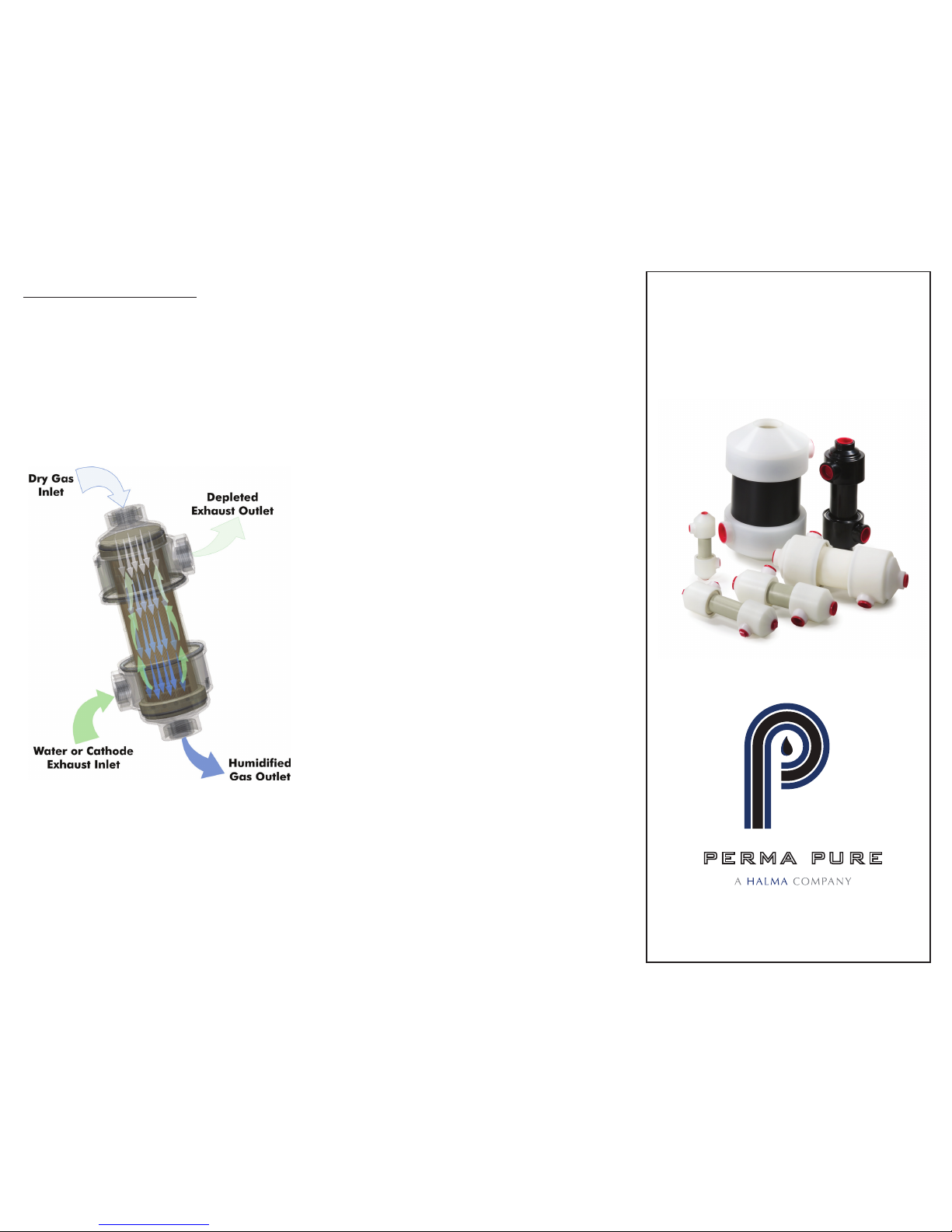

PRINCIPLE OF OPERATION

Naon® is a registered trademark of DuPont
FC™ is a trademark of Perma Pure LLC.

DOC# FC-MAN-001 REV 00

FC™-Series Humidiers are shell and tube
moisture exchangers that allow transfer of water
vapor. Humidiers can be setup Gas-to-Gas or
Water-to-Gas. Water molecules are absorbed
into walls of the Naon® tube and transferred
to dry gas stream. This transfer is driven by the
difference in partial pressures of water vapor on
opposing sides.

FC™- Series

Humidier

User Manual

1001 New Hampshire Ave, Lakewood, N.J. 08701

Phone: [phone] Fax: [phone]

[email protected] www.permapure.com

PERMA PURE

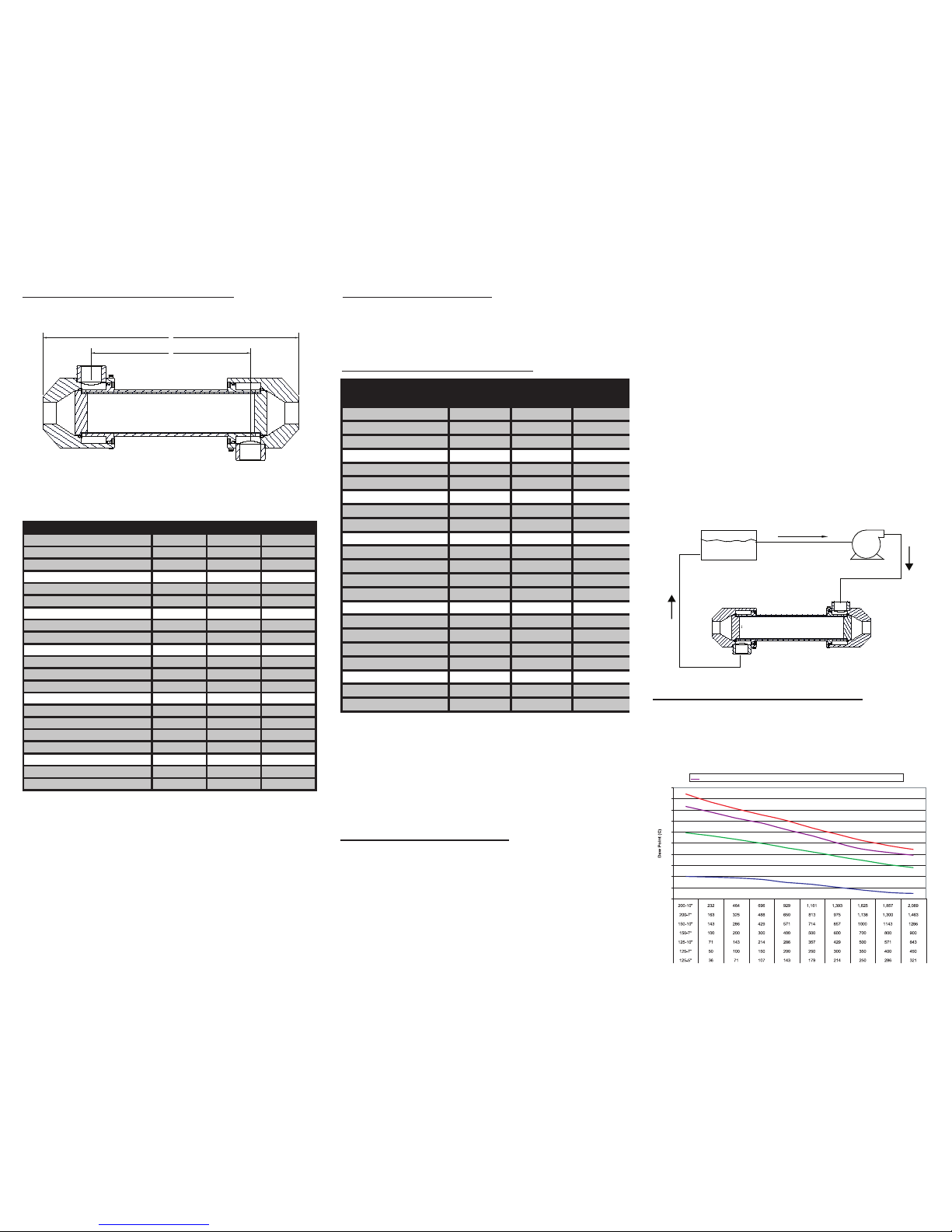

FC HUMIDIFIER SPECIFICATIONS

SETUP 2: WATER-TO-GAS

SETUP 1: GAS TO GAS

In Water-to-Gas setup, the humidication process is
endothermic. Heated water needs to be continuous­ly circulated through the humidier so as to prevent
cold spots from forming inside and reducing perfor­mance. Flow with greater pressure must be owing
inside tubes to prevent tubing collapse, which can
lead to poor performance and permanent leaks
through the headers.

Performance can be controlled by increasing heat
or by decreasing sample ow. Chart below shows
performance of various models.

WATER-TO-GAS PERFORMANCE

A
B

GAS-TO-GAS PERFORMANCE

In Gas-to-Gas setup, constant dewpoint wet gas
needs to be continuously owing at same ow rate as
sample.

Model Number A B Ports

FC125-240-5PP 8.25" 4.75" 1/2"

FC125-240-7PP 10.25" 6.75" 1/2"

FC125-240-10PP 13.25" 9.75" 1/2"

FC150-480-7PP 11.50" 6.75" 3/4"

FC150-480-10PP 14.50" 9.75" 3/4"

FC200-780-7PP 11.25" 6.50" 1"

FC200-780-10PP 14.25" 9.50" 1"

FC300-1660-7ABS 12.10" 5.60" 1.5"

FC300-1660-10ABS 15.10" 8.60" 1.5"

FC300-1660-15ABS 20.10" 13.60" 1.5"

FC400-2500-10PP 16.63" 8.63" 2"

FC400-2500-12PP 18.63" 10.63" 2"

FC400-2500-15PP 21.63" 13.63" 2"

FC400-2500-20PP 26.63" 18.63" 2"

FC600-7000-8PP 15.5 7.25 2"

FC600-7000-14PP 21.5 13.25 2"

Model Number

4 Deg. 6 Deg. 9 Deg.

FC125-240-5PP 13 30 40

FC125-240-7PP 18 42 56

FC125-240-10PP 25 60 80

FC150-480-7PP 35 84 112

FC150-480-10PP 50 120 160

FC200-780-7PP 57 137 182

FC200-780-10PP 80 195 260

FC300-1660-7ABS 121 291 387

FC300-1660-10ABS 173 415 553

FC300-1660-10HP 173 415 553

FC300-1660-15ABS 259 623 830

FC400-2500-10ABS 260 625 833

FC400-2500-12ABS 312 750 1000

FC400-2500-15ABS 390 938 1250

FC400-2500-20ABS 520 1250 1667

FC600-7000-8PP 583 1400 1860

FC600-7000-14PP 1020 2450 3267

Approach Temperature*

DI water is required for humidication, and the water
should be circulated at 4 LPM for 100 LPM of dry
gas ow.

The surface of Naon™ in a Water-To-Gas setup
chemically behaves like liquid water, and will react
with anything in the gas that would react with liquid
water. Additionally, users may experience losses
when humidifying gases that are soluble in water.
Liquid water under pressure can transfer directly
through the membrane in liquid form, and provisions
should be taken to evaporate that water down­stream of the gas exit as necessary.

Water to Gas Humidification using FC-Style Humidifiers

80

75

70

65

60

55

50

45

40

35

30

Outlet DP (75C water) Outlet DP (60C water) Outlet DP (40C water) Outlet DP (80C water)

* Units are expressed as ow rate of air (slpm) in
relation to approach dewpoint temperature. Approach
temperature is dened as difference between wet gas
entering humidier and humidied stream outlet. For
example, for FC-125-240-10PP at 25 lpm, wet gas
enters humidier at 70°C at Approached
Temperature of 4°C, humidied stream outlet would
be 66°C.

WATER
PUMP

FLOW

D.I. WATER
