Perlick PR48, PS84, PR72, PS60 User Manual
INSTALLATION AND OPERATION INSTRUCTIONS
CUSTOM PASS-THRU BACK BAR CABINET — SELF CONTAINED AND REMOTE
MODEL NOS.
PS Series
PR Series
PS Series
IMPORTANT INFORMATION
Fill out the enclosed warranty card and mail to the
Perlick Corporation to register the warranty. If the
card is not returned, the warranty period will begin
from the date the equipment is shipped from the
factory.
This manual has been prepared to assist you in the
installation of your Cabinet and to acquaint you with
its operation and maintenance.
We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If service is required, your dealer can
provide you with a list of qualified service agents. For
your own protection, never return merchandise for
credit without our approval.
We thank you for selecting a Perlick product and
assure you of our continuing interest in your
satisfaction.
PR Series
Table of Contents
PREPARING THE CABINET
Specifications .....................................................2,3
List of Included Parts .............................................
Tools Required ......................................................
Plumbing ................................................................4
Electrical ................................................................
Uncrating and Inspection .......................................
Placing the Cabinet ...............................................4
Leveling the Cabinet ..............................................4
Installing Legs ......................................................
Installing the Base Plate ........................................
Electrical Condensate Evapaway Kit ....................

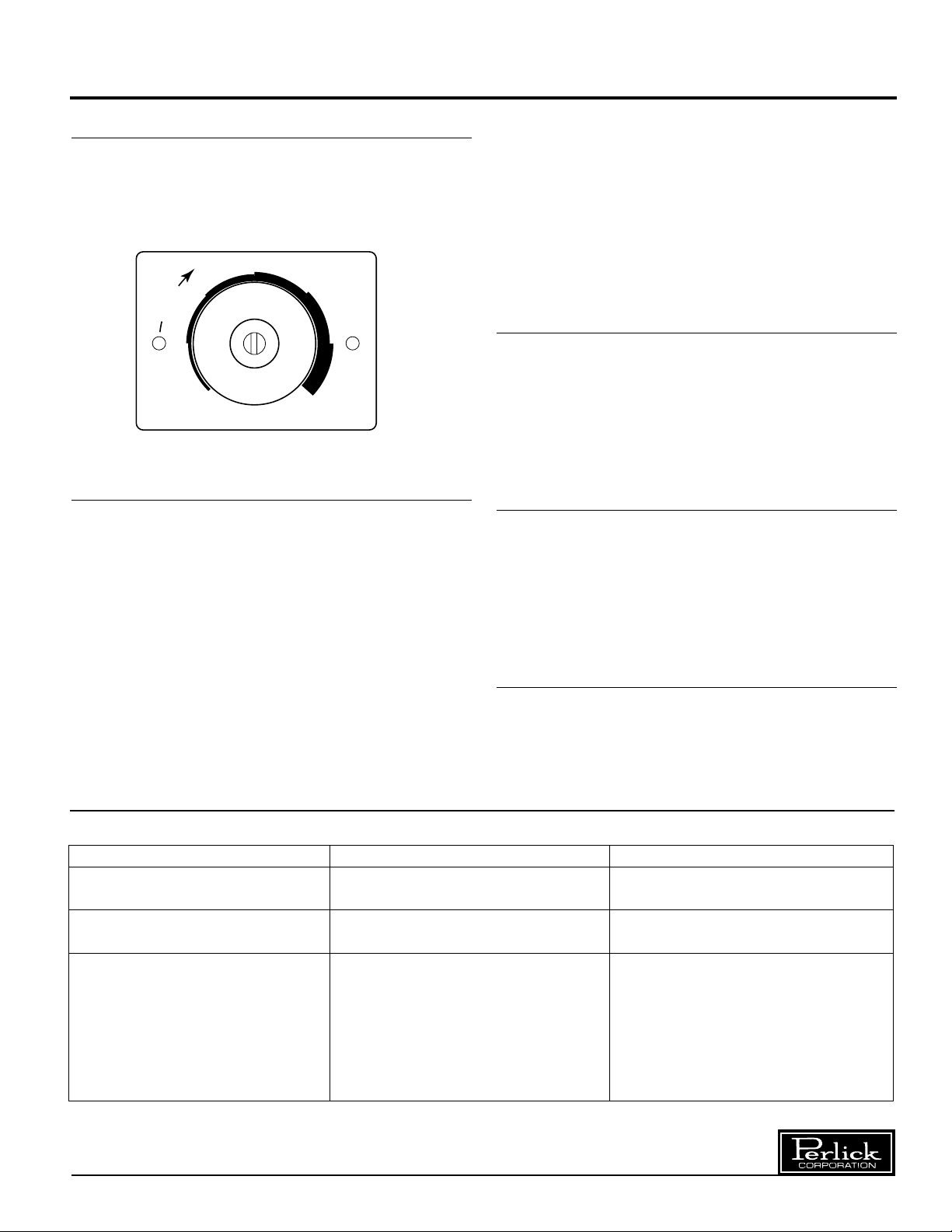

Refrigeration and Temperature Control .................
Cleaning the Cabinet .............................................5
Cleaning Stainless Steel .......................................5
Replacement Parts ................................................
Reversing Door Hinge ...........................................
Wiring Diagram ......................................................8
4
4
4
4
4
4
4
5
6
7
WARNING: When lifting, the full weight of the
cabinet must be supported. Lift from the cabinet
base and not from the top. Improper lifting can
result in severe damage to the cabinet.
8300 West Good Hope Road • Milwaukee, WI 53223 • Phone 414-353-7060 • Fax 414-353-7069
Toll Free 800-558-5592 • E-Mail: Perlick@Perlick.com • www.Perlick.com
Form No. Z2279
Rev 08.01.07
Installation and Operating Instructions
34 1/2”
[876]
27 7/16
[697]”
DOOR
OPENING
TYP.
31 1/4” [794]
DOOR
HGT. TYP.
6 3/8”
[163]
31 1/4”
[794]
7 1/2”
[191]
6 1/2”
[165]
15 7/8”
[403]
26 3/4”
[679]
22 3/4”
[578]
R23 1/2”
3 5/16”
[80]
R23 1/2”
23 1/2”
[597]
23 1/2”
[597]
22” [559]
4 1/8” [105]
18 3/4”[476]
DOOR SILL
TO
DOOR SILL
EVAPORATOR
DRAIN HOLE
19 7/8”
[505]
DOOR
OPENING
84” [2134] 3 DOOR
60” [1524] 2 DOOR
68” [1727] 3 DOOR
44” [1118] 2 DOOR
Sizes and Specifications Custom Pass-Thru Cabinets – Self Contained
MODEL NOS. PS60 PS84*
NUMBER OF DOORS 2 Door 3 Door
CABINET Length 60” (1524) 84” (2134)
DIMENSIONS Depth 26
(mm) Height 34
CASE CAPACITY
(based on 12oz. Export bottle) 12.9 20.4
CONDENSING UNIT H.P.
RUNNING LOAD –AMPS 5.7 7.8
Ship Wt. Lbs. (kg.) 380 (172) 490 (222)
INTERIOR
Walls:
Door sill: High strength polyethylene. Door pan and ceiling: High strength polystyrene. Floor pan and
Stainless steel. Includes pilasters, (2) vinyl coated shelves and floor rack per door, and interior lights.
EXTERIOR: Front, back, top and sides stainless steel. Bottom galvanized steel.
DOOR HINGING Stainless steel hinges with standard locations as illustrated. For special hinging specify
hinge locations starting from left to right. Field reversible.
DOOR HARDWARE
Door handles: Black vinyl with chrome ends. Lock finish: chrome
REFRIGERATION R-134A capillary tube-type. Aluminum fin and copper tube evaporator, epoxy coated coil. Adjustable
temperature control. Self-defrosting. Pull-out condensing unit for service and cleaning.
Compressor left, standard.
ELECTRICAL 115V, 60Hz., 1 phase AC. Furnished with 3-prong, 6 foot NEMA5-15 P cord. Contact Perlick for other voltage/
frequency requirements.
PLUMBING
the cabinet thru a
Cabinet comes with 4 feet of 1/2” vinyl tubing for evaporator drain. The tubing exits from the center bottom of
15
/16” Dia. hole in back of the mullion.
INSULATION Foamed-in-place polyurethane, 2” walls, 1
OPTIONAL • Leg set
• Laminated grille Door finishes
ACCESSORIES & • Tapping kit - 3 door only** • Brass hardware Black vinyl coated
MODIFICATIONS • Laminated top
• Base plates Stainless steel
• Laminated ends • Condensate Evapaway kit Customers choice of laminate
Prepared for field lamination
Glass door with black vinyl coated frame
Glass door with stainless steel frame
Glass door with laminated frame
* Energy Star approved (solid doors only). **Voids Energy Star approval.
3
/4” (679) 263/4” (679)
1
/2” (876) 341/2” (876)
1
/4
1
/3
1
/2” top.
Form No. Z2279
Rev 08.01.07
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
2
Installation and Operating Instructions
34 1/2”
[876]
27 7/16”
[697]
DOOR
OPENING
TYP.
31 1/8”
DOOR
HGT. TYP.
6 3/8”
[163]
31 1/4”
[794]
7 1/2”
[191]
6 1/2”
[146]
15 7/8”
[403]
26 3/4”
[679]
22 3/4”
[578]
R23 1/2”
R23 1/2”
23 1/2”
[597]
23 1/2”
[597]
4 1/8” [105]
6 9/16” [167]
18 3/4” [476]
DOOR SILL
TO
DOOR SILL
24” [610]
REFRIGERATION &
ELECTRICAL ACCESS
ACCESS RIGHT
OR LEFT
19 7/8”
[505]
DOOR
OPENING
72” [1829] 3 DOOR
48” [1219] 2 DOOR
68” [1727] 3 DOOR
44” [1118] 2 DOOR
Sizes and Specifications, Custom Pass-Thru Cabinets – Remote
MODEL NOS. PR48 PR72
NUMBER OF DOORS 2 Door 3 Door
CABINET Length 48” (1219) 72” (1829)
DIMENSIONS Depth 26
(mm) Height 34
CASE CAPACITY
(based on 12oz. Export bottle) 12.9 20.4
AMPS .9 .9
BTU/HR 2060 2500
Ship Wt. Lbs. (kg.) 310 (141) 400 (181)
INTERIOR
Walls:
Door sill: High strength polyethylene. Door pan and ceiling: High strength polystyrene. Floor pan and
Stainless steel. Includes pilasters, (2) vinyl coated shelves and floor rack per door, and interior lights.
EXTERIOR: Front, back, top and sides stainless steel. Bottom galvanized steel.
DOOR HINGING Stainless steel hinges with standard locations as illustrated. For special hinging specify
hinge locations starting from left to right. Field reversible.
DOOR HARDWARE
Door handles: Black vinyl with chrome ends. Lock finish: chrome
REFRIGERATION Aluminum fin and copper tube evaporator, epoxy coated coil.
ELECTRICAL 115V, 60Hz., 1 phase AC. Contact Perlick for other voltage/ frequency requirements.
PLUMBING
the cabinet thru a
Cabinet comes with 4 feet of 1/2” vinyl tubing for evaporator drain. The tubing exits from the center bottom of
15
/16” Dia. hole in back of the mullion.
INSULATION Foamed-in-place polyurethane, 2” walls, 1
OPTIONAL • Leg set
• Laminated ends Door finishes
ACCESSORIES & • Tapping kit - 3 door only • Brass hardware Black vinyl coated
MODIFICATIONS • Laminated top
• Base plates Stainless steel
• Condensate Evapaway kit Customers choice of laminate
Prepared for field lamination
Glass door with black vinyl coated frame
Glass door with stainless steel frame
Glass door with laminated frame
3
/4” (679) 263/4” (679)
1
/2” (876) 341/2” (876)
1
/2” top.
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.
3
Form No. Z2279
Rev 08.01.07
