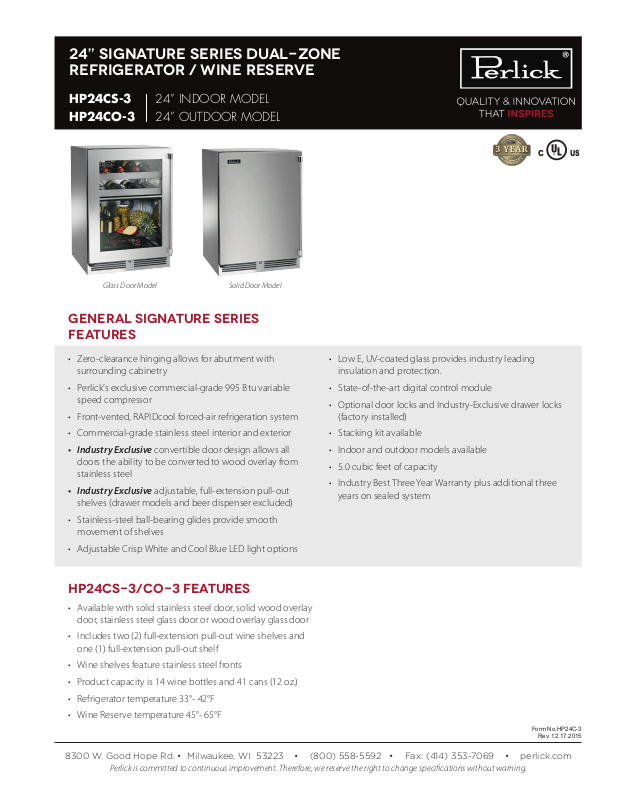

Perlick HP24CS32L Specs

24” signature series dual-zone
refrigerator / wine reserve

HP24CS-3 24” INDOOR MODEL
HP24CO-3 24” OUTDOOR MODEL

Glass Door Model

Solid Door Model

general signature series
features

• Zero-clearance hinging allows for abutment with
surrounding cabinetry

• Perlick’s exclusive commercial-grade 995 Btu variable
speed compressor

• Front-vented, RAPIDcool forced-air refrigeration system

• Commercial-grade stainless steel interior and exterior

• Industry Exclusive convertible door design allows all
doors the ability to be converted to wood overlay from
stainless steel

• Industry Exclusive adjustable, full-extension pull-out
shelves (drawer models and beer dispenser excluded)

• Stainless-steel ball-bearing glides provide smooth
movement of shelves

• Adjustable Crisp White and Cool Blue LED light options

C

• Low E, UV-coated glass provides industry leading
insulation and protection.

• State-of-the-art digital control module

• Optional door locks and Industry-Exclusive drawer locks
(factory installed)

• Stacking kit available

• Indoor and outdoor models available

• 5.0 cubic feet of capacity

• Industry Best Three Year Warranty plus additional three
years on sealed system

US

HP24CS-3/CO-3 features

• Available with solid stainless steel door, solid wood overlay
door, stainless steel glass door or wood overlay glass door

• Includes two (2) full-extension pull-out wine shelves and
one (1) full-extension pull-out shelf

• Wine shelves feature stainless steel fronts

• Product capacity is 14 wine bottles and 41 cans (12 oz.)

• Refrigerator temperature 33°- 42°F

• Wine Reserve temperature 45°- 65°F

Form No.HP24C-3

Rev. 12.17.2015

8300 W. Good Hope Rd. • Milwaukee, WI 53223 • [phone] • Fax: [phone] • perlick.com

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without warning.

product specifications indoor models

1 5/8"

SCALE: 1:14

HP24CS/HP24CO

Overall Width 23-7/8” (60.64 cm.)

Overall Height 34-1/4” (86.96 cm.)

Overall Depth 24” (60.96 cm.)

Opening Width 24” (60.96 cm.)

Opening Height 34-3/8” (87.31 cm.)

Opening Depth 24” (60.96 cm.)

Refrigerated Volume 5.0 cu. ft.

Door Swing Clearance 25” (63.5 cm.) minimum

Electrical 115V, 60Hz., 1 Phase, 2.3 amps

Plumbing None Required

Annual Energy Usage 295 kWh/yr

Shipping Weight 203 lbs (92.08 kg.)

50" Area in which

electrical outlet must be located.

HP24CS-3-1L* Solid stainless steel door, hinge left

HP24CS-3-2L* Solid wood overlay door, hinge left

HP24CS-3-3L* Stainless steel glass door, hinge left

HP24CS-3-4L* Wood overlay glass door, hinge left

outdoor models

HP24CO-3-1L* Solid stainless steel door, hinge left

HP24CO-3-2L* Solid wood overlay door, hinge left

HP24CO-3-3L* Stainless steel glass door, hinge left

HP24CO-3-4L* Wood overlay glass door, hinge left

* Also available hinge right

1 3/8" Min.

clearance from

a corner to

acheive 90

door swing.

9 13/16"

7 9/16"

Power cord 6-5/8" off floor.*

20"

90° Swing

required for

pull-out shelf

clearance.

23 7/8"

20"

15/16"

6 5/16"

11 15/16"

24 15/16"
Min. clearance
for door swing.

1 3/8" Value may

change with a

custom pull.

9 13/16"

*- Leg leveler can add
3/4" to these dimensions
when fully extended.

1/16" tolerance)

(with

Value may change

with a wood overlay door.

18 1/4"

24"

4 7/8" Typ.

Shelf

Spacing

10 5/8"

*34 5/16"

3 1/2"

*3 7/8"

8300 W. Good Hope Rd. • Milwaukee, WI 53223 • [phone] • Fax: [phone] • perlick.com

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without warning.

14 1/8"

15/16"

3 1/2"

11 15/16" 6 5/16"

10" Max.

product ht.

1 5/8" Shelf

Adjustability

Form No.HP24C-3

Rev. 12.17.2015
