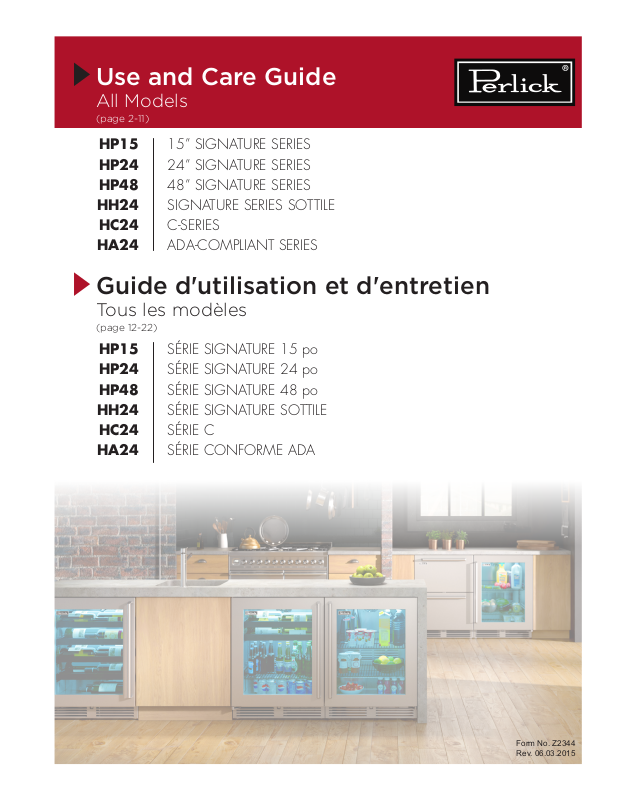

Perlick HP15RO33RC, HP15WS31RC Maintance Manual

Use and Care Guide

All Models

(page 2-11)

HP15 HP24 HP48

HH24

HC24

HA24

15” SIGNATURE SERIES 24” SIGNATURE SERIES 48” SIGNATURE SERIES SIGNATURE SERIES SOTTILE C-SERIES ADA-COMPLIANT SERIES

Guide d'utilisation et d'entretien

Tous les modèles

(page 12-22)

HP15 HP24 HP48

HH24

HC24

SÉRIE SIGNATURE 15 po SÉRIE SIGNATURE 24 po SÉRIE SIGNATURE 48 po SÉRIE SIGNATURE SOTTILE SÉRIE C

HA24

SÉRIE CONFORME ADA

Form No. Z2344 Rev. 06.03.2015

PERLICK RESIDENTIAL INSTALLATION MANUAL

TABLE OF CONTENTS

Warranty Information ................................................................. 2

Safety Information ......................................................................... 4

Operation ............................................................................................ 4

Digital Temperature Control .................................................... 4

Dial Temperature Control .......................................................... 6

CONGRATULATIONS

Congratulations on your purchase of a Perlick high quality residential refrigeration product. Perlick’s innovative product oering gives you the opportunity to enjoy the functionality and user friendliness in just about any room of your home, including kitchens, bedrooms, entertainment rooms, basements and even bathrooms.

All Perlick products are built with commercial grade stainless steel, providing you with the beauty and durability for a lifetime of use. This installation guide will show you how to properly install your new perlick product.

We dedicate considerable time to ensure that our products provide the highest level of customer satisfaction. If, however, service is required, call Perlick at 800.558.5592. For your own protection, never return merchandise for credit without our approval.

We thank you again for selecting a high quality Perlick product. We hope you enjoy using it.

Outdoor Model Start-Up/Winterizing ...............................7

LED/Light Bulb Replacement..................................................7

Stainless Steel Care and Cleaning ........................................ 8

Product/Replacement Part Information ...........................9

Troubleshooting ..............................................................................10

PERLICK RESIDENTIAL PRODUCTS WARRANTY

WARRANTY:

Perlick Corporation (“Perlick”) warrants to the original retail purchaser that during the Basic Warranty Period, Perlick’s products will be free from free from defects in material and workmanship, and during the Extended Warranty Period, the hermetically sealed refrigeration system contained in Perlick’s undercounter refrigerator will be free from defects in material and workmanship. This system consists entirely of the compressor, condenser, drier, connecting tubing, evaporator and hot gas bypass valve.

The Basic Warranty Period is as follows:

• For a new product or oor display model, other than the H50IM

Clear Ice Maker: The three (3) year period commencing on

the date of purchase by the original retail purchaser, except that the Basic Warranty Period will be the two (2) year period commencing on the date of purchase by the original retail purchaser if the purchase of the product is not registered with Perlick within ninety (90) days of purchase in the manner described below.

Model Number: _____________________________________

Serial Number: _____________________________________

Purchase Date: _____________________________________

Dealer Name/Address:

__________________________________________________

Phone Number: ____________________________________

• For the H50IM Clear Ice Maker or a factory second (B-Stock)

product: The one (1) year period commencing on the date of

purchase by the original retail purchaser.

The Extended Warranty Period applies only to the hermetically sealed refrigeration system contained in Perlick’s undercounter refrigerators. The Extended Warranty Period is the portion of the six (6) year period commencing on the date of purchase by the original retail purchaser that is not covered by the Basic Warranty Period.

REMEDY:

Perlick will provide the parts and labor necessary to repair or replace (at Perlick’s option) any parts proven to be defective in material or workmanship during the Basic Warranty Period. Perlick will provide the replacement parts, but not the labor, for any parts of the hermetically sealed refrigeration system proven

IMPORTANT!

Read and understand all information in this manual before attempting the installation. All plumbing and

electrical work must be performed by a qualiﬁed technician and conform to all applicable state and local codes.

perlick.com

PERLICK RESIDENTIAL INSTALLATION MANUAL

DANGER

WARNING

CAUTION

to be defective in materials or workmanship during the Extended Warranty Period. The cost of freight to ship the replacement parts will be paid by Perlick. Replacement parts are warranted for the remainder of the original warranty period, or ninety (90) days, whichever is longer.

REGISTRATION:

Your Perlick product can be registered via the online Warranty Registration form at http://www.perlick.com/residentialproducts/service-support/warranty-registration/.

OTHER TERMS AND CONDITIONS:

This Warranty applies only to products installed in the fty states of the United States, the District of Columbia and the ten provinces of Canada.

To obtain the warranty coverage described in this Warranty, Perlick or its authorized distributor or dealer must receive written notice of the warranty claim within the applicable warranty period. To receive parts and/or service and the name and telephone number of the nearest Perlick authorized service representative, please contact your Perlick dealer or distributor, or Perlick’s Customer Service Department by writing to it at Perlick Corporation, Attn: Customer Service Department, 8300 West Good Hope Road, Milwaukee, Wisconsin 53223; or by calling Perlick’s Customer Service Department at 800-5585592; or by e-mailing Perlick’s Customer Service Department at warrantyserv@perlick.com. In addition, you can notify Perlick of a warranty claim by visiting Perlick’s website at http://www. perlick.com/residential-products/service-support/ and lling out and submitting the Technical Service Request form that appears there.

All service provided by Perlick under this Warranty must be performed by Perlick’s authorized service representatives, unless otherwise specied by Perlick in writing. Service will be provided during normal business hours.

This Warranty applies only to the original retail purchaser of the Perlick product, and may not be assigned or transferred.

THIS WARRANTY DOES NOT APPLY TO:

• Damage to Products occurring during transportation.

• Products for which the original proof of purchase, delivery date or serial number cannot be veried.

• Products for which the defective parts are not returned for inspection if requested by Perlick.

• Damage to other property caused by the products, including but not limited to loss of food due to spoilage and damage caused by water leakage.

THIS LIMITED WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESSED OR IMPLIED, INCLUDING BUT NOT LIMITED TO ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE; PROVIDED HOWEVER, THAT TO THE EXTENT REQUIRED BY LAW, IMPLIED WARRANTIES ARE INCLUDED BUT DO NOT EXTEND BEYOND THE DURATION OF THE EXPRESS WARRANTY FIRST SET ABOVE.

PERLICK’S SOLE LIABILITY AND YOUR EXCLUSIVE REMEDY UNDER THIS WARRANTY ARE SET FORTH IN THE PARAGRAPH ENTITLED “REMEDY” SET FORTH ABOVE.

PERLICK SHALL HAVE NO LIABILITY WHATSOEVER FOR ANY INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES ARISING FROM THE SALE, USE OR INSTALLATION OF THE PRODUCT OR FROM ANY OTHER CAUSES WHATSOEVER, WHETHER BASED ON WARRANTY (EXPRESS OR IMPLIED) OR OTHERWISE BASED ON CONTRACT, TORT OR ANY OTHER THEORY OF LIABILITY. IN NO EVENT SHALL PERLICK’S LIABILITY WITH RESPECT TO A PRODUCT EXCEED THE PURCHASE PRICE OF THE PRODUCT.

Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This Warranty gives you specic legal rights, and you may also have other rights, which vary from state to state.

SAFETY

PLEASE READ all instructions completely before attempting to install or operate the unit. Take particular note of the DANGER, WARNING and CAUTION information in the manual. The information is important for the safe and ecient installation, operation and care of your Perlick unit.

• Products that are used in a manner that is not normal residential or light commercial use.

• Products that are: improperly installed; misused or abused; operated with low voltage; wired in a manner not conforming to electrical codes; not properly operated in accordance with Perlick’s instructions; not cleaned or maintained in accordance with Perlick’s instructions; modied; or damaged by lightning or other acts of nature.

• Consumable items such as light bulbs.

• Cosmetic damage.

• Adjustments to controls, door reversal, cleaning the condenser or other routine maintenance.

Indicates a hazard that WILL result in serious injury or death if precautions are not followed.

Indicates a hazard MAY cause serious injury or death if precautions are not followed.

Indicates a hazard where minor injury or product damage may occur if precautions are not followed.

perlick.com

PERLICK RESIDENTIAL INSTALLATION MANUAL

OPERATION

MASTER SWITCH

Signature Series products come equipped with a master power switch located behind the louvered toe kick. Remove the toe kick to turn power on or o to the unit.

INTERIOR LIGHT

Door units are equipped with an interior light that illuminate when the door is opened. All HP24 and HH24 models come standard with adjustable blue and white LED lighting. HC and HA come with a specialty appliance light located on back wall or ceiling depending on the model. The cabinet also comes equipped with a manual light switch for displaying the products through a glass door. Always ensure that the manual light switch is in the OFF position before closing a solid wood or stainless steel door. If manual light switch is left on for an extended period of time, it may increase the cabinet temperature, and cause the refrigeration system to run harder.

LOADING PRODUCT

Before storing perishables, turn unit on and allow it to operate for a minimum of 24 hours to allow temperatures to stabilize. When loading items into the unit, do not block internal louvers and fan guard openings or performance will be decreased.

CHECKING PRODUCT TEMPERATURE

1). To accurately check the temperature of product stored in the refrigerated compartment, insert an accurate thermometer into a plastic unbreakable bottle, partially lled with water. Tighten bottle cap securely.

Perlick Signature Series, C-Series and ADA Compliant freezer units come standard with state-of-the-art digital control. Please note there are three sets of instructions; one for 24” Signature Series Dual-Zone models, one for C-Series, and another set for 15”, 24” Single-Zone and Sottile, and 48” Signature Series and ADA-Compliant Freezer models.

Programming Button Denitions:

SET button

DEFROST button (melting snowake)

UP arrow

DOWN arrow

ON/OFF button

Signature Series Dual-Zone Control Instructions

Upper Compartment:

To view the upper compartment temperature, press and release the DEFROST button (melting snowake).

Lower Compartment (Must be coldest zone):

Display reading always shows the lower compartment temperature.

Setpoint Display:

Press and release the SET button; display will read St1. Press SET again and the LOWER compartment setpoint will be displayed.

2). Place the bottle in the desired area for 24 hours. Refrain from opening the unit during the testing period. After 24 hours, check the temperature of the water. Adjust the temperature accordingly using the following procedures:

DIGITAL TEMPERATURE CONTROL

Signature Series Models

Figure 1. Digital Temperature Controller

perlick.com

Press SET again; the display will read St2. Press SET again and the UPPER compartment temperature will be displayed.

Changing the Lower Compartment Temperature:

1. Press and hold the SET button until the display shows St1 with”F” ashing.

2. Press SET again to display the upper compartment’s current temperature (“F” will continue to ash).

3. Use the UP or DOWN arrow key to scroll to the desired temperature. The controller will memorize the new temperature.

Changing the Upper Compartment Temperature:

1. Press and hold the SET button until the display shows St1 with”F” ashing. Press the DOWN arrow once; the display will read St2,

2. Press SET again to display the upper compartment’s current temperature (“F” will continue to ash).

3. Use the UP or DOWN arrow key to scroll to the desired temperature. The controller will memorize the new temperature.

PERLICK RESIDENTIAL INSTALLATION MANUAL

NOTE: Dependent on the model and conguration, the controllers have been programmed to only allow a temperature adjustment within a specied range. See the chart below for the specied range allowed for your unit.

Signature Series – Dual-Zone Units

Model Range (F)

HP24D Upper 51° - 65° / Lower 45° - 60°

Dual-Zone Temperature Scale

To change F to C, press and hold the down arrow for 3 seconds.

Signature Series 15”, 24” Single-Zone and Sottile, and 48” , ADA Freezer Control Instructions

To Set Target Temperature

Press and release the SET button. Display will show the current temperature setpoint.

To Change Setpoint Temperature

1. Press and hold the SET button until the display shows the current setpoint temperature with the “F” ashing.

2. Use the UP and DOWN arrow button to scroll to the desired temperature.

To Start A Manual Defrost (Freezer Models Only)

Press the DEFROST button (melting snowake)

To Set Maximum Stored Temperature

Press the UP arrow button to see the maximum stored temperature. To reset the maximum stored temperature, while displayed, press and hold the SET button until ‘rst’ ashes in the display.

To Set Minimum Stored Temperature

Press the DOWN arrow button to see the minimum stored temperature. To reset the minimum stored temperature, while displayed, press and hold the SET button until ‘rst’ ashes in the display.

Signature Series – HP15 Models

Model Min Temp Set Max Temp Set

HP15R 33° F 42° F HP15B 33° F 48° F

HP15W 45° F 65° F

HP15T 33° F 42° F

Signature Series – HP24 Models

Model Min Temp Set Max Temp Set

HP24R 33° F 42° F HP24F -10° F 10° F HP24B 33° F 48° F

HP24W 45° F 65° F

HP24T 33° F 42° F

Signature Series – HP48 Models

Model Min Temp Set Max Temp Set

HP48WO 40° F 65° F

HP48WW 40° F 65° F

Signature Series Sottile

Model Min Temp Set Max Temp Set

HH24RS 33° 42° HH24BS 33° 48°

HH24WS 45° 65°

ADA-Compliant Series

Model Min Temp Set Max Temp Set

HA24FB -10° 10

LED Functions

The following table describes LED functions

LED Mode Function

On/O

Press the ON/OFF button to turn the unit on or o.

Key Combinations:

Press the UP and DOWN arrow buttons to lock and unlock the keyboard

Press the SET and DOWN arrow buttons simultaneously to enter programming mode.

Press the SET and UP arrow buttons simultaneously to return to room temperature display.

ON Compressor is on

Flashing Anti-short cycle

delay is on

ON Defrost is on

ON Alarm is on

Flashing You are in the process of

programming the unit

perlick.com

PERLICK RESIDENTIAL INSTALLATION MANUAL

DIGITAL TEMPERATURE CONTROL

C-Series Models

Figure 2. nEW 961 Digital Temperature Controller

Perlick C-Series units come standard with digital control.

Programming Button Denitions:

STAND-BY (ESC)

Press and release

• Returns to the previous menu level

• Conrms parameter value

Press for at least 5 sec.

• Activates the Standby function (o) (When outside the menus)

SET (ENTER)

Press and release

• Opens Machine Status menu and displays alarms (if active)

Press for at least 5 sec.

• Opens Programming menu

• Conrm commands

C-Series Models

Model Temp Range

HC24R 33° - 42° F

HA24BB 33° - 48° F

HA24WB 45° - 65° F

LED Functions

The following table describes LED Funtions

Defrost LED

Permanently on: defrost active Flashing: manual defrost active O: otherwise

Evaporator LED

Permanently on: fans active O: otherwise

Aux LED

Permanently on: Aux output active O: otherwise

Alarm LED

Permanently on: alarm active Flashing: alarm acknowledged O: otherwise

Compressor LED

Permanently on: compressor active Flashing: a delay, a protection or a locked start-up O: otherwise

°C LED

Permanently on: display the temperature O: otherwise

NOTE: When switched on, the device performs a Lamp Test; the display and LEDs will ash for several seconds to check that they all

function correctly.

Press and release

• Scroll menu items

• Increases values

Press for at least 5 sec.

• Activates the Manual Defrost function

DOWN

Press and release

• Scroll menu items

• Decreases values

Press for at least 5 sec.

• Function can be congured by the user

To Change Setpoint Temperature

1. Press . “SP” will be displayed. Press again to display current setpoint temperature.

2. Press and to modify it and or to save the change.

On/O

To turn the unit o, press and hold for at least 5 seconds. “OF” will be displayed. To turn the unit on again, press and hold

for at least 5 seconds.

NOTE: Dependent on the model and conguration, the controllers have been programmed to only allow a temperature adjustment within a specied range. See the chart below for the specied range

allowed for your unit.

perlick.com

DIAL TEMPERATURE CONTROL

ADA-Compliant Models

(Excludes ADA Freezer - HA24F models use digital controller found on page 5)

OFF

Figure 3. Dial Temperature Controller

COLD

Use a straight slot screwdriver to adjust the dial temperature control. The control is located at the top rear panel of the cabinet. Approximate temperature ranges are as follows:

ADA-Compliant Series

Model Temp Range

HA24RB 33° - 42° F HA24BB 35° - 48° F

HA24WB 45° - 65° F

Adjust the temperature as follows:

CAUTION

DANGER

PERLICK RESIDENTIAL INSTALLATION MANUAL

Colder Temperature:

Turn the adjusting screw clockwise (to the right).

Warmer Temperature:

Turn the adjusting screw counterclockwise (to the left).

Temperature Control OFF:

Turn the adjusting screw completely counterclockwise to the OFF position until a click is heard.

NOTE: The condenser fan motor turns o with the compressor.

MAINTENANCE

SEASONAL MAINTENANCE FOR ULAPPROVED DOOR MODELS

Winterizing

This process should occur when the daily low temperatures is at or below the temperatures stated below: Freezer models: 32° F Refrigerator models: 38° F Beverage Center: 42° F Wine Reserve: 45° F

It is best to winterize your unit before the low temperatures listed above.

1. Turn the unit to OFF position by pressing the OFF button on the controller. The controller displays the word “OFF” and, for Signature Series models, turn the master switch located behind the grille o (if the power cord is accessible, unplug the power cord. If not, turn o the circuit breaker to the electrical receptacle the cabinet is plugged into). For C-Series units, unplug or turn o the circuit breaker.

2. Remove all contents from the unit.

OUT

Operating the unit at temperatures lower than those recommended will void the warranty.

Spring Start-Up

This process should occur after the daily low temperatures is below the temperatures stated below: Freezer models: 32° F Refrigerator models: 38° F Beverage Center: 42° F Wine Reserve: 45° F

1. Remove the grille.

2. Check the condensing unit to ensure it is clear of loose debris, and clean as necessary with a vacuum cleaner.

3. Reattach front grille to the unit.

4. Clean the interior of the unit using stainless steel cleaner and polish (see page 9).

5. Clean the exterior of the unit using stainless steel cleaner and polish (see page 9).

6. Plug the unit into the electrical receptacle or turn on the circuit breaker.

7. Turn on the master switch located behind the grille if model is Signature Series. Press the OFF button one time to turn the unit on. The controller display will show the actual temperature inside the cabinet.

8. The cooling process will begin to bring the unit to the set temperature. It’s recommended you run the unit for 24 hours to stabilize the operating temperature before using.

Never attempt to repair or perform maintenance on the unit until the main electrical power to the unit has been disconnected!

3. Remove the front grille.

4. Clean the condenser by using a vacuum cleaner to remove loose debris (leaves, dirt, etc.) that may have accumulated inside the grille.

5. Reinstall the front grille.

6. Clean the interior of the unit using stainless steel cleaner and polish (see page 9).

7. Clean the exterior of the unit using stainless steel cleaner and polish (see page 9).

NOTE: Do not place a cover over the unit. While not required, you may choose to remove the unit from the outdoor location and store indoors.

LED REPLACEMENT SIGNATURE SERIES

Call your Perlick Factory Authorized Service Center. For the location of the Service Center in your area, contact your selling dealer, inquire via the web at www.perlick.com, E-mail us at warrantyserv@perlick.com, or call (800) 558-5592 during normal business hours.

LIGHT BULB REPLACEMENT CSERIES, ADACOMPLIANT & SHALLOWDEPTH SERIES

To replace a defective or burnt out bulb, remove the glass light cover by pulling out on the cover, unscrew the bulb and replace it with an identical or smaller bulb. The Perlick replacement part number is 67026.

perlick.com

+ 15 hidden pages
