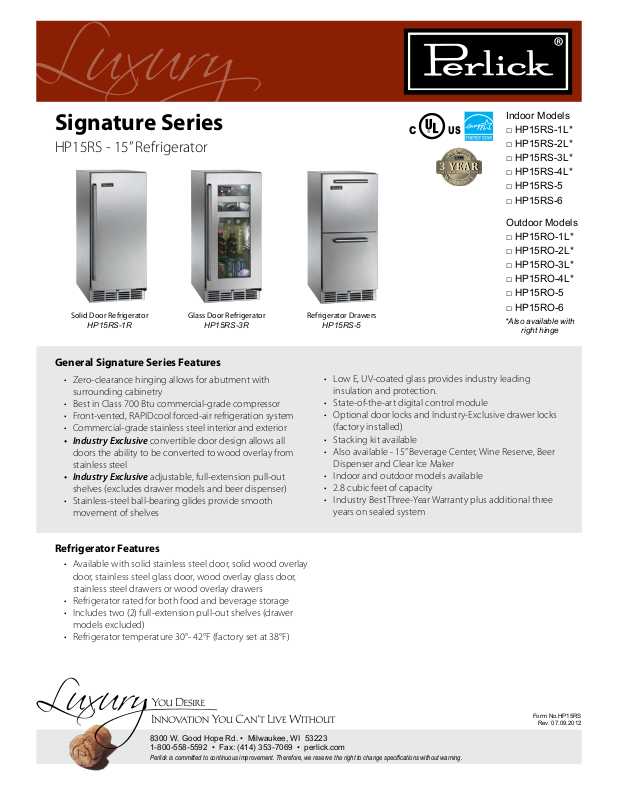

HP15RS - 15” Refrigerator
Solid Door Refrigerator
HP15RS-1R
General Signature Series Features
• Zero-clearance hinging allows for abutment with
surrounding cabinetry
• Best in Class 700 Btu commercial-grade compressor
• Front-vented, RAPIDcool forced-air refrigeration system
• Commercial-grade stainless steel interior and exterior
• Industry Exclusive convertible door design allows all
doors the ability to be converted to wood overlay from
stainless steel
• Industry Exclusive adjustable, full-extension pull-out
shelves (excludes drawer models and beer dispenser)
• Stainless-steel ball-bearing glides provide smooth
movement of shelves
Glass Door Refrigerator
HP15RS-3R
Indoor Models
C
US
Y
R
’
T
S
S
B
U
E
D
S
T
N
I
3 YEAR
FULL 3 YEA RS, 6 Y EARS ON SEALE D SYSTEM
W
Y
A
T
R
N
R
A
□ HP15RS-1L*
□ HP15RS-2L*
□ HP15RS-3L*
□ HP15RS-4L*
□ HP15RS-5
□ HP15RS-6
Outdoor Models
□ HP15RO-1L*
□ HP15RO-2L*
□ HP15RO-3L*
□ HP15RO-4L*
□ HP15RO-5
Refrigerator Drawers
HP15RS-5
□ HP15RO-6
*Also available with
• Low E, UV-coated glass provides industry leading
insulation and protection.
• State-of-the-art digital control module
• Optional door locks and Industry-Exclusive drawer locks
(factory installed)
• Stacking kit available
• Also available - 15” Beverage Center, Wine Reserve, Beer
Dispenser and Clear Ice Maker
• Indoor and outdoor models available
• 2.8 cubic feet of capacity
• Industry Best Three-Year Warranty plus additional three
years on sealed system
right hinge
Refrigerator Features
• Available with solid stainless steel door, solid wood overlay
door, stainless steel glass door, wood overlay glass door,
stainless steel drawers or wood overlay drawers
• Refrigerator rated for both food and beverage storage
• Includes two (2) full-extension pull-out shelves (drawer
models excluded)
• Refrigerator temperature 30°- 42°F (factory set at 38°F)
8300 W. Good Hope Rd. • Milwaukee, WI 53223
1-800-558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without warning.
Form No.HP15RS
Rev. 07.09.2012
