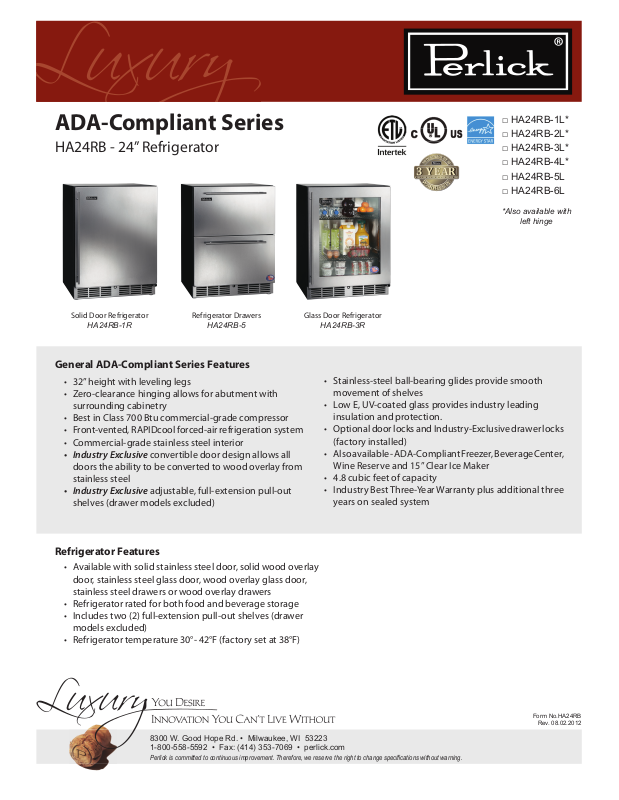

Perlick HA24RB6 Specifications
ADA-Compliant Series
Y
Y
S
B
E
S
T
W
A
R
R
A
HA24RB - 24” Refrigerator
Y
R
’
T
S
S
B
U
E
D
S
T
N
I
3 YEAR
FULL 3 YEA RS, 6 Y EARS ON SEALE D SYSTEM
W
Y
A
T
R
N
R
A
□ HA24RB-1L*
□ HA24RB-2L*
□ HA24RB-3L*
□ HA24RB-4L*
□ HA24RB-5L
□ HA24RB-6L
*Also available with
left hinge
Solid Door Refrigerator
HA24RB-1R
Refrigerator Drawers
HA24RB-5
General ADA-Compliant Series Features
• 32” height with leveling legs
• Zero-clearance hinging allows for abutment with
surrounding cabinetry
• Best in Class 700 Btu commercial-grade compressor
• Front-vented, RAPIDcool forced-air refrigeration system
• Commercial-grade stainless steel interior
• Industry Exclusive convertible door design allows all
doors the ability to be converted to wood overlay from
stainless steel
• Industry Exclusive adjustable, full-extension pull-out
shelves (drawer models excluded)
Refrigerator Features
• Available with solid stainless steel door, solid wood overlay
door, stainless steel glass door, wood overlay glass door,
stainless steel drawers or wood overlay drawers
• Refrigerator rated for both food and beverage storage
• Includes two (2) full-extension pull-out shelves (drawer
models excluded)
• Refrigerator temperature 30°- 42°F (factory set at 38°F)
Glass Door Refrigerator
HA24RB-3R
• Stainless-steel ball-bearing glides provide smooth
movement of shelves
• Low E, UV-coated glass provides industry leading
insulation and protection.
• Optional door locks and Industry-Exclusive drawer locks
(factory installed)
• Also available - ADA-Compliant Freezer, Beverage Center,
Wine Reserve and 15” Clear Ice Maker
• 4.8 cubic feet of capacity
• Industry Best Three-Year Warranty plus additional three
years on sealed system
Form No.HA24RB
Rev. 08.02.2012
8300 W. Good Hope Rd. • Milwaukee, WI 53223
1-800-558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifi cations without warning.
Product Speci cations
50" Area in which
A
A
25 5/16"
Values may change
due to custom pull
with a wood overlay door
when fully extended.
* Leg levelers can add
3/4" to these dimensions
24" ADA Compliant HA24 Models
SCALE: 1:10
DR.:
DATE:
10/1/09JMP
when fully extended.
* Leg levelers can add
3/4" to these dimensions
24" ADA Compliant HA24 Models
Available Models - ADA-Compliant Refrigerators
Overall Width 23-7/8” (60.64 cm.)
Overall Height 32” (81.28 cm.)
Overall Depth 24” (60.96 cm.)
Opening Width 24” (60.96 cm.)
Opening Height 32-1/8” (81.60 cm.)
Opening Depth 24” (60.96 cm.)
Refrigerated Volume 4.8 cu. ft.
Door Swing Clearance 25” minimum
Electrical 115V, 60Hz., 1 Phase,
2.3 amps
Plumbing None Required
Annual Energy Usage 320 kWh/yr
Shipping Weight 181 lbs (82.27 kg)
Y
R
’
T
S
S
B
U
E
D
S
T
N
I
3 YEAR
FULL 3 YEA RS, 6 Y EARS ON SEALE D SYSTEM
W
Y
A
T
R
N
R
A
electrical outlet must be located
7 9/16"
Power cord 63/8" off floor.*
HA24RB-1L*
HA24RB-2L*
HA24RB-3L*
HA24RB-4L*
HA24RB-5
HA24RB-6
Solid stainless steel door, hinge left
Solid wood overlay door, hinge left
Stainless steel glass door, hinge left
Wood overlay glass door, hinge left
Stainless steel drawers
Wood overlay drawers
* Also available hinge right
Drawer Models
50" Area in which
electrical outlet must be located
7 9/16"
24" ADA Compliant HA24 Models
Power cord 63/8" off floor.*
9 11/16" Max.
product ht.
6 3/16"
25 5/16"
Values may change
due to custom pull
with a wood overlay door
24"
(with 1/16" tolerance)
17 1/4"
1 3/16" Min.
clearance from
a corner to
acheive 90
door swing.
20 3/4"
90.0° Swing
required for
pullout shelf
clearance.
23 7/8"
20"
6 5/16"
11 7/8"
24 15/16"
Min clearance
for door swing
24 1/4"
32"*
18 3/16"
17 13/16"
Inside drawer.
(Top & Bottom)
*
Leg levelers can add
3/4" to these dimensions
when fully extended.
20 13/16"
24 5/16"
17 11/16"
25 3/8"
Values may change
due to custom pull
with a wood overlay door
24"
(with 1/16" tolerance)
18 3/16"
1 5/16"
9 5/8" Max.
product ht.
8 3/8"
2" Shelf
adjustability.
10 1/2" 6 3/4"
3 3/16"
4 7/16" Max.
product ht.
3 1/2"
* 3 7/8"
8300 W. Good Hope Rd. • Milwaukee, WI 53223
1-800-558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifi cations without warning.
3 1/2"
6 5/16" 11 7/8"
4 5/16" Lowest
shelf location.
PRINTED
SCALE: 1:10
DR.:
DATE:
95009
Form No.HA24RB
Rev. 08.02.2012
10/1/09JMP
