Open the door to

Inspiration

Innovation

NEW Blue and White LED Lighting Included on all Signature Series models, you can change the look of your Perlick from Crisp White to Cool Blue illumination with just the ip of a switch.

Forced-air refrigeration Perlick’s RAPIDIcool™ technology circulates cool air via a fan located at the top of the refrigerator. Chills beverages in under 30 minutes — the fastest temperature pulldown in the industry!

Extra-wide magnetic gasket Produces stronger seal between door and unit for better, more ecient cooling.

Adjustable height, full-extension pullout shelves Vinyl-coated protection and commercial-

grade slides provide an unmatched solution in convenience and reliability.

Strong, yet elegant door pulls Sturdy and attractive design that run full height of the door.

Variable-speed compressor Provides optimal eciency and performance with considerably less noise (24- and 48-inch Signature Series models only).

Doors (and drawers) that readily accept a fully integrated wood panel Seamlessly integrate your

Perlick into surrounding cabinetry with wood panels from your cabinetmaker built to Perlick specications. Wood accepting overlay kits are available for all solid door, glass door and drawer models.

Commercial-grade, zero-clearance hinging

Laser-cut for a level of precision that ensures strength and a straight hang of the door.

State-of-the-art control modules A discreetly located module for each temperature zone.

Recessed, UV-protected lighting Light is recessed into the ceiling to prevent accidental contact with goods.

All stainless steel interior The elegant look of the outside continues to the inside of the cabinet for a sanitary, aesthetic design.

24” Signature Series Refrigerator (shown)

Quality & innovation thaT

inspires

CONTENTS

Find Your Perfect Perlick .....................................................................6

Freezers ......................................................................................................11

Refrigerators............................................................................................19

Beverage Centers.................................................................................29

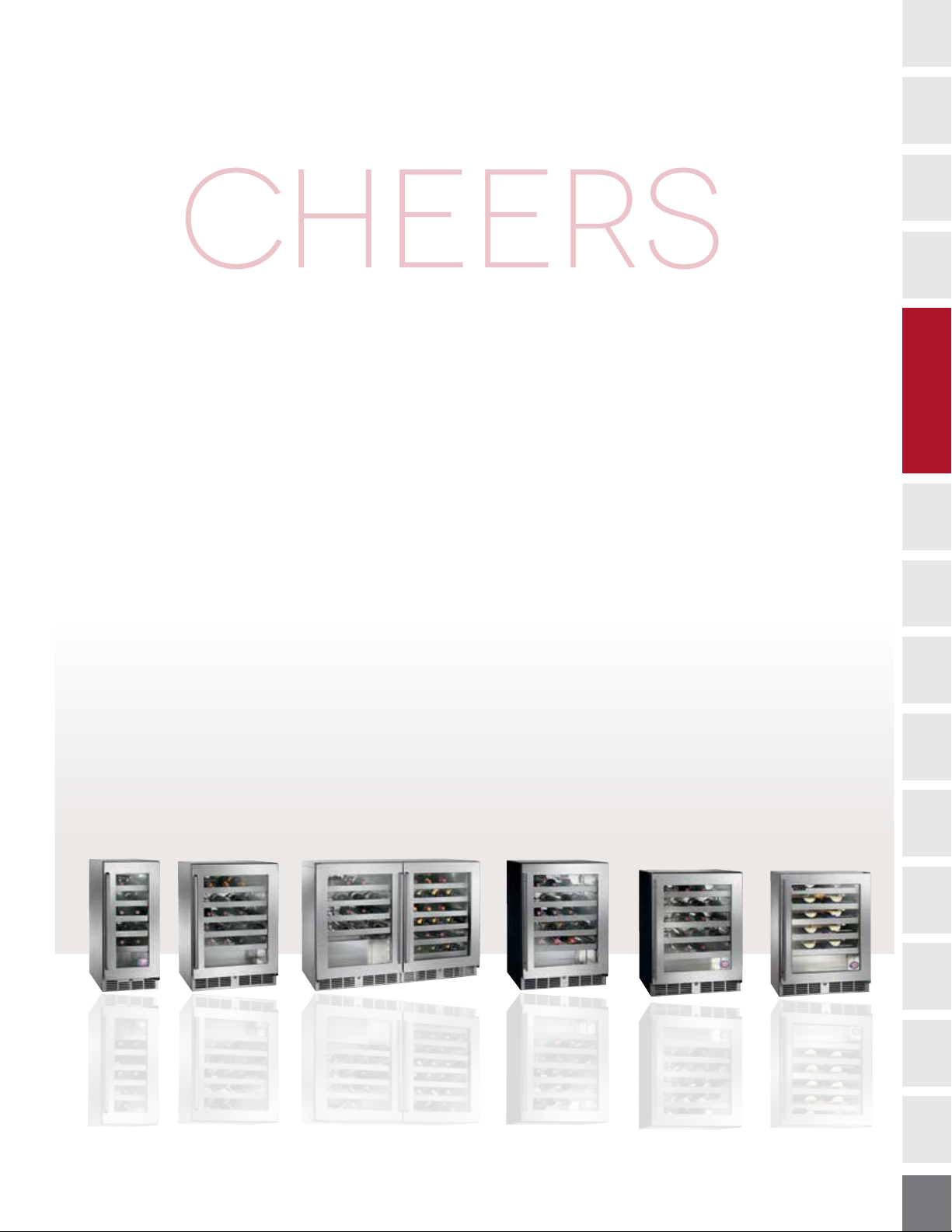

Wine Reserves ........................................................................................39

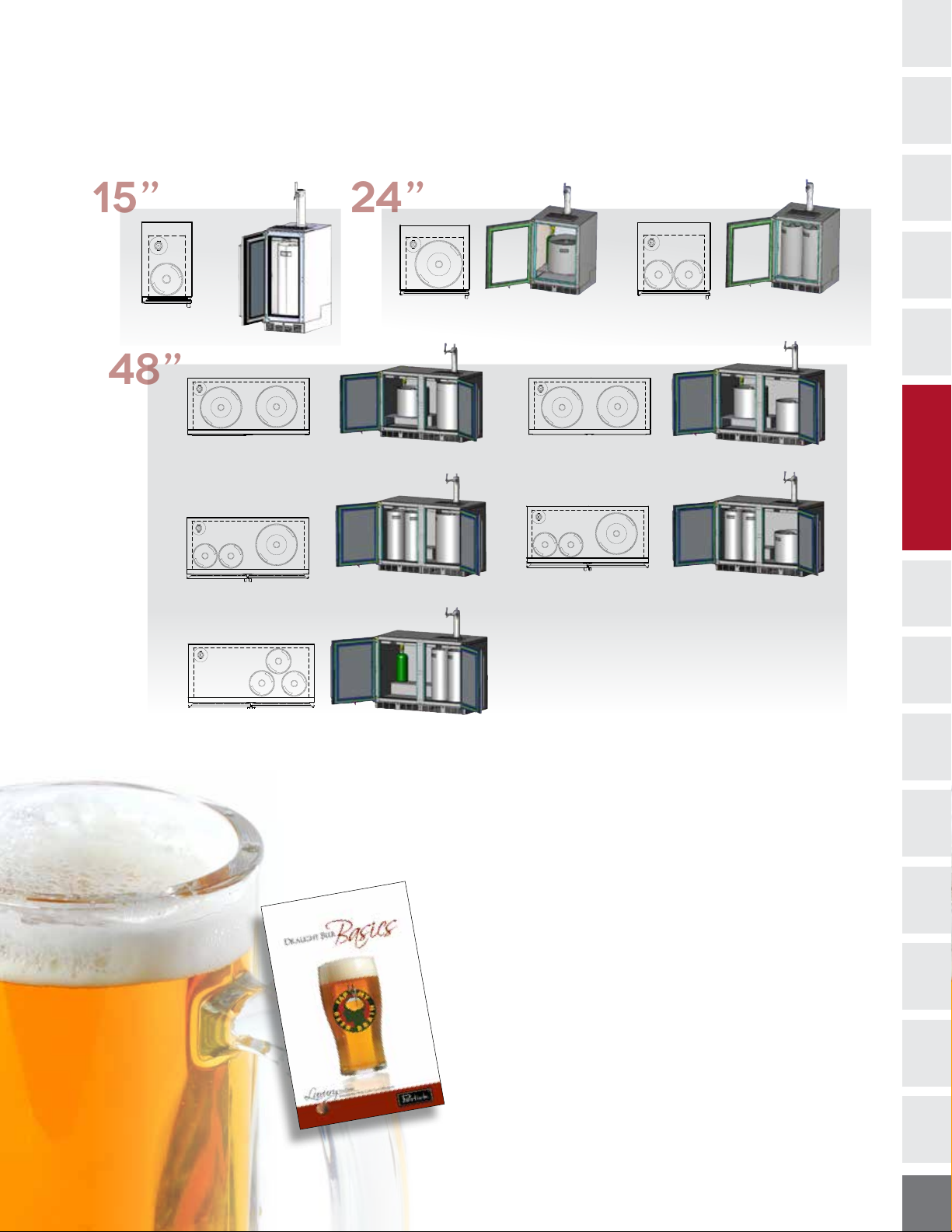

Beer Dispensers ....................................................................................49

NEW Dual-Zone Models ................................................................57

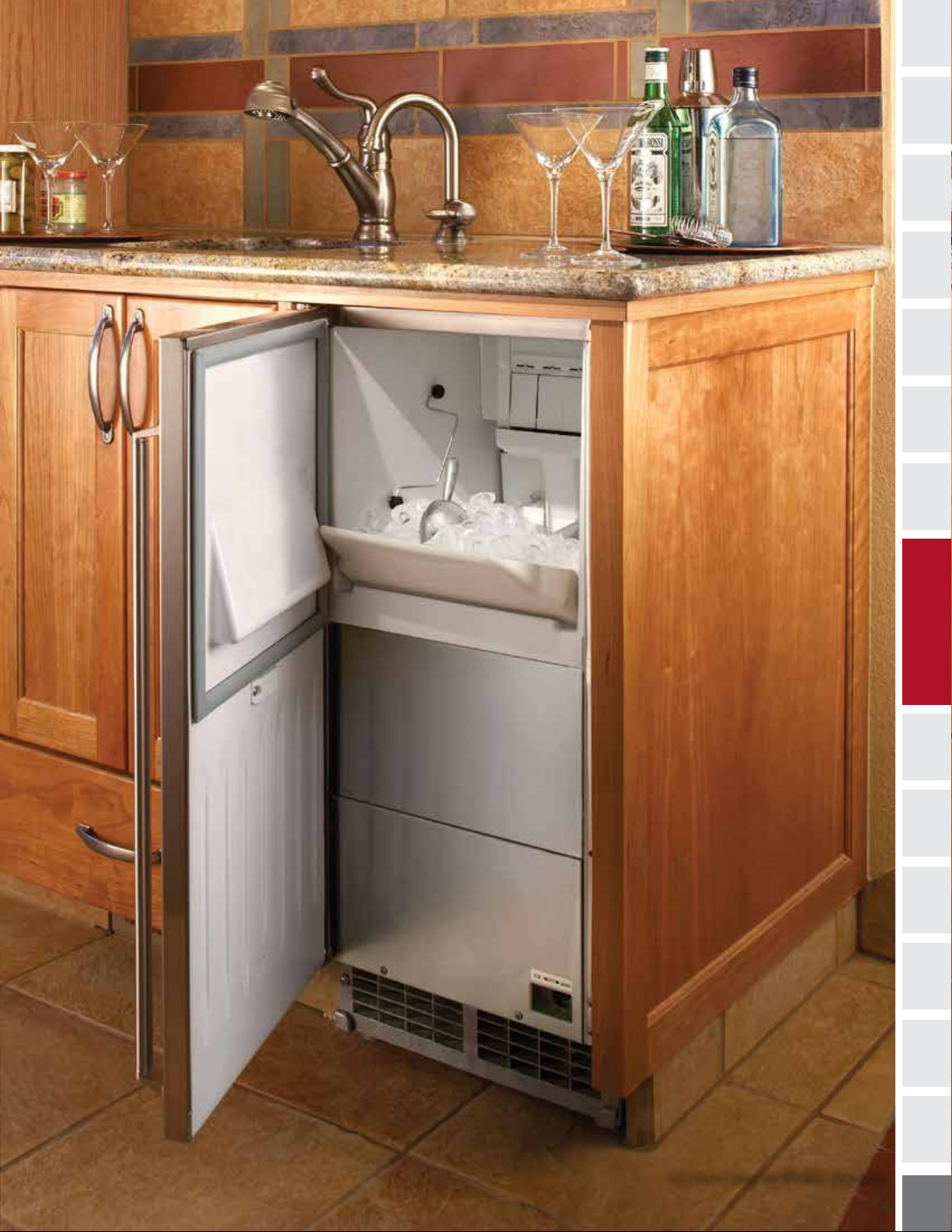

Clear Ice Makers ....................................................................................65

Outdoor Models ...................................................................................71

Quick Reference ...................................................................................78

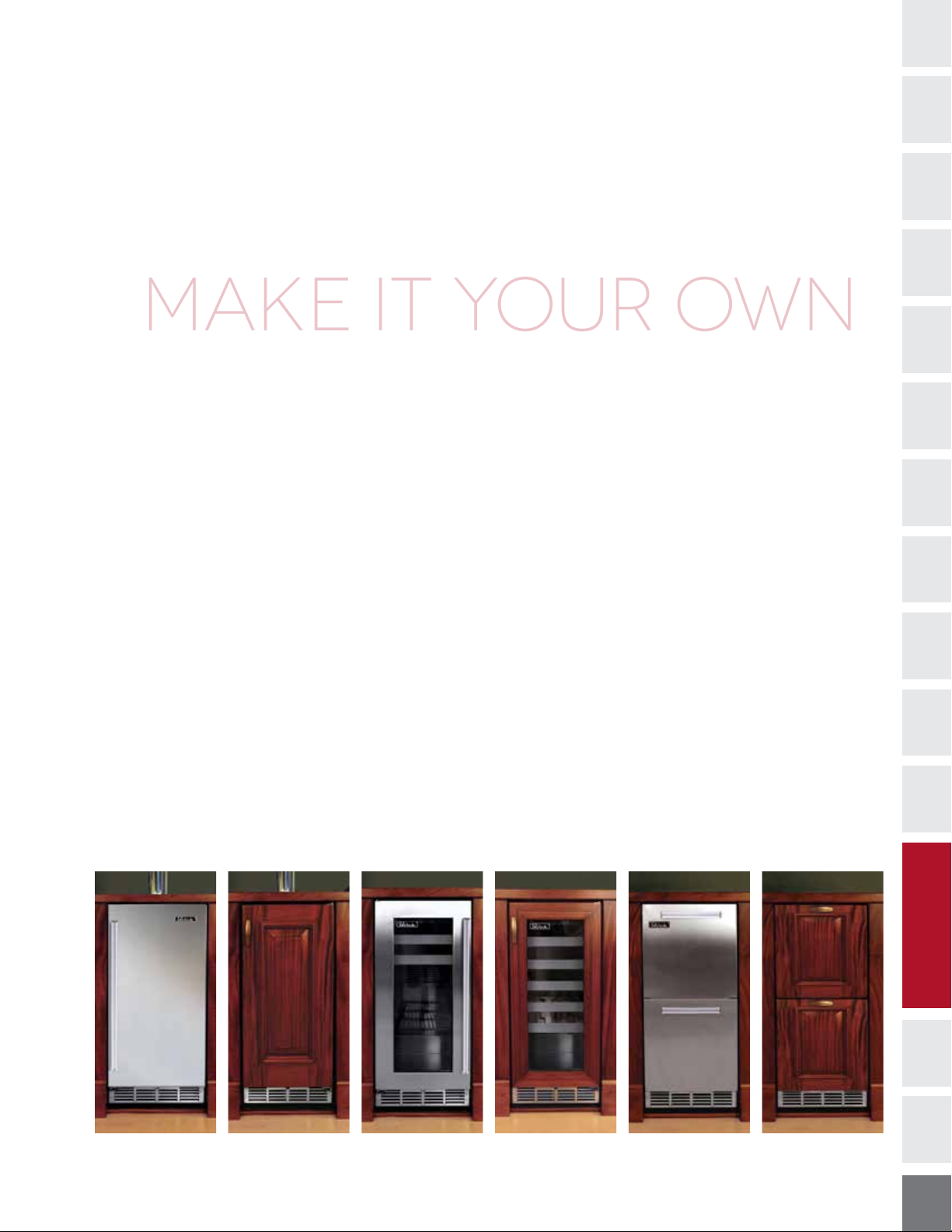

Door Styles...............................................................................................83

Accessories ..............................................................................................84

Specications .........................................................................................86

Enjoy ice cold beverages, brewery-fresh draft beer, the perfectly chilled vintage, crisp fruits and vegetables bursting with avor, and even chilled face cream – all made possible with Perlick’s quality line of residential undercounter refrigeration.

Featuring the most innovative products in the industry, Perlick makes it easier than ever to add refrigeration to any room of the home – including the home bar, entertainment room, kitchen, family room and bathroom – no matter how much space you have.

For more than 95 years, Perlick’s award-winning products have inspired our customers.

Get inspired. Choose Perlick.

Why Choose PERLICK?

10.

Is it possible to be inspired by your refrigeration? It is when you choose Perlick.

Oering unmatched quality and innovative, industry-leading features, Perlick has been pleasing customers since 1917. Here are the top ten promises Perlick makes to our customers:

The fastest cool. Front-vented, RAPIDcool™ forced-air refrigeration system circulates

cool air, chilling your room temperature product inside your units in under 30 minutes – the fastest in the industry.

Ease of use. Enjoy industry-exclusive full-extension pullout shelving and easy-gliding

drawers with stainless steel ball bearing glides that ensure smooth extension.

The most sanitary interiors. Our commercial grade stainless steel interiors are

durable, attractive, easy to clean, and resistant to odors, stains and mold. They’re what the professionals choose for their kitchens.

The best airﬂow. Unlike the competition, our high quality vinyl-coated grid shelving

allows for optimal airﬂow throughout your unit, so no air is blocked and the temperatures within your unit stay consistently cold.

Whisper-quiet compressor. Perlick’s variable-speed compressor is the most energy

ecient and quietest compressor available. It delivers consistent temperature throughout your unit, and best of all, it uses half the energy of a standard compressor.

Doors and drawers to ﬁt your decor. The convertible door design allows you to

convert your Perllck doors and drawers to wood overlay to match your cabinetry, and zero-clearance hinging allows for perfect abutment with surrounding cabinetry.

Perfect for indoors and out. Many of our units are UL rated for both indoor and

outdoor use, so you can enjoy Perlick wherever you are.

The best insulation. Two-inch thick walls provide superior insulation and minimize

vibrations, while low-E, UV-coated glass oers industry-leading protection and insulation.

Industry-best full three year warranty plus 3 additional years on the sealed refrigeration systems*. Enjoy peace of mind with the best warranty in the

business. We stand behind our products.

Made in the U.S.A. Your Perlick product is proudly made in Milwaukee, Wisconsin,

U.S.A., so you can feel good about supporting American industry.

Get Inspired. Choose Perlick.

*Product must be registered within 90 days to receive full warranty.Clear Ice Makers excluded.

Perlick

Find Your Perfect

Signature Series

• Designed with fully integrated depth to allow ush t with cabinetry

• Zero-clearance hinging allows for abutment with cabinetry

• Available in 15”, 24”, 48” and all new 24” dual-zone congurations

• Perlick’s exclusive whisper-quiet variable-speed compressor (24” series has a 995-Btu, and the 48” series has a 1,985-Btu). The 15” series uses a standard 700-Btu compressor.

• With 3/4-inch wood overlay, the unit will stand ush with cabinetry

• Front-vented, RAPIDCool™ forced-air refrigeration system

• Commercial-grade stainless steel interior and exterior

• Digital temperature control and Crisp White™ and Cool Blue™ LED lighting

• Industry Exclusive adjustable black vinyl-coated full-extension shelves

• Industry Exclusive convertible door design allows all doors to be converted to wood overlay from stainless steel

• Low-E, UV-coated glass provides industry leading insulation and protection.

• Available in both indoor and outdoor models

• NEW Dual-Zone models available, featuring two independently-controlled temperature zones within a 24” footprint.

C-Series

• Designed with fully-integrated depth to allow ush t with cabinetry

• Zero-clearance hinging allows for abutment with cabinetry

• Best in Class 700-Btu commercial-grade compressor

• With 3/4-inch wood overlay, the unit will stand ush with cabinetry

• Front-vented, RAPIDCool™ forced-air refrigeration system

• Commercial-grade stainless steel interior

• Interior temperature control and light

• Industry Exclusive adjustable black vinylcoated full-extension shelves

• Industry Exclusive convertible door design allows all doors to be converted to wood overlay from stainless steel

• Low-E, UV-coated glass provides industry leading insulation and protection.

• Outdoor refrigerator with solid door or drawers available.

Perlick is proud to oer the widest selection of undercounter refrigeration products in the industry, making it easier than ever to ﬁnd the unit that is perfect for your space. There are four series of refrigeration available, including Perlick’s Signature Series, C-Series, ADA-Compliant Series and the world’s ﬁrst and only 18-inch Shallow-Depth Series. Below you’ll ﬁnd highlights from each series to start you o on your search for the perfect Perlick.

ada-compliant series 18” shallow-depth series

Introduction

• 32” height with leveling legs

• Designed for maximum capacity while adhering to strict 34” counter height ADA-Compliant requirements

• Designed with fully integrated depth to allow ush t with cabinetry

• Best in Class 700-Btu commercial-grade compressor

• Front-vented, RAPIDcool forced-air refrigeration system

• Commercial-grade stainless steel interior

• Industry Exclusive adjustable black vinylcoated full-extension shelves

• Industry Exclusive convertible door design allows all doors to be converted to wood overlay from stainless steel

• 32” height with leveling legs

• Designed for maximum capacity while adhering to strict 34” counter height ADA-Compliant requirements

• Industry Exclusive 18” depth for design exibility

• Designed with fully integrated depth to allow ush t with cabinetry

• Best in Class 700-Btu whisper-quiet commercialgrade compressor

• Front-vented RAPIDcool forced-air refrigeration system

• Commercial-grade stainless steel interior

• Industry Exclusive adjustable black vinyl-coated full-extension shelves

• Industry Exclusive convertible door design allows all doors to be converted to wood overlay from stainless steel

24-inch C-Series Beverage

Center (shown)

Inspire

“Since the introduction of the Perlick residential product oering, our ﬁrm has speciﬁed, procured and installed well over 200 units. We have found that Perlick’s wide selection of product oerings, fresh

Introduction

styling and features included as standard are suited well for any residential or commercial application. The environments in which we have installed the Perlick units require very quiet refrigeration systems, yet each unit must be robust and reliable for a demanding clientele. To date with over 200 units installed globally, we have experienced no failures or the need for any warranty service. At RDS our reputation is our brand, and the Perlick oering and product reliability complements our philosophy well.”

Fred Lillian, General

Manager/Director of Operations

Restaurant Design and Sales

Inspire

“Perlick’s undercounter refrigeration is an

attractive and dependable addition for my

residential projects. For my discerning clients,

Perlick equipment is a must-have.”

Tradewinds Hawaii, Kona, Hawaii

John Repasky, Owner

Signature Series 48-inch solid door

Freezer/glass door Refrigerator (shown)

Cold

Freezers

When it comes to stylish freezer solutions for your entertaining purposes, we have thought of it all. Quiet, powerful and energyecient, all Perlick freezers feature forced-air refrigeration, automatic hot gas defrost and our unique variable speed compressor.

Perlick’s door models are ideal for frozen pizzas, bulky boxes or other frozen goods. Drawers are the perfect freezer storage solution for containers of ice cream, frozen fruits and vegetables, breads, ice packs, and other items. Perlick’s undercounter freezers are also perfect for your bar area, as they are available with Industry Exclusive full-extension vinylcoated racks for storing martini glasses and beer mugs.

FREEZERS

24- and 48-inch Signature Series

ADA-Compliant

Series

Features

Freezers

• Available in door and drawer models; door models include two (2) adjustable black vinyl-coated

full-extension shelves

• Maintenance-free automatic defrost

• Powered by a commercial-grade compressor

• Convertible door design allows all doors the ability to be converted to wood overlay from

stainless steel

• 2-inch thick walls provide superior insulation and minimize vibrations

• Zero-clearance hinging allows for abutment with surrounding cabinetry

• Freezer temperature: -10 to 10 degrees F (Factory set to 0°F)

Signature Series models feature

Crisp White and Cool Blue LED

lighting; easily switch back and

forth with the ip of a switch!

Features commercial-grade

stainless steel interior

Optional vinyl-coated martini

racks available for storing martini

glasses and beer mugs

FREEZERS

24-inch Signature Series Freezer

Drawers (left) and 15-inch Signature

Series Refrigerator Drawers

Freezers

Perlick’s Patented

24” Signature Series

HP24FS-1R HP24FS-5 HP48FR-S-1L-1R

HP24FS

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.2 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 191 lbs.

48” Signature Series

HP48FR-S

Overall Width 47-7/8” (121.60 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 11 cu. ft. Voltage 115/60/1 Amps 3.8

SpecicationsDoor Styles

Shipping Weight 332 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 5 - stainless steel drawers 6 - integrated wood overlay drawers

• Two (2) Industry Exclusive full-extension pullout shelves (adjustable) (door models only)

• Freezer equipped with hot gas defrost for maintenance-free defrosting

Features

• Available with stainless steel drawers

• Indoor and outdoor models available

1 - solid stainless steel door 2 - integrated solid wood overlay door 5 - stainless steel drawers

(Freezer)

6 - integrated wood overlay drawers

• Two (2) Industry Exclusive full-extension pullout shelves (adjustable) (door models only)

• Freezer equipped with hot gas defrost for maintenance-free defrosting

Features

• Available with stainless steel drawers

24” ADA-COMPLIANT

SERIES

FREEZERS

HP48FR-S-5-5 HA24FB-1R HA24FB-5

HP48FR-S Freezer/Refrigerator

• Two (2) Industry Exclusive full-extension pullout shelves (drawer models excluded)

• Industry Exclusive stainless steel drawers tall enough to store milk gallons and Corona bottles

• Refrigerator zone temperature: 30° to 42° F

• Refrigerator zone door styles: 1, 2, 3, 4, 5, 6

Additional Compartment Information

HA24FB

Overall Width 23-7/8” (60.64 cm) Overall Height 32” (81.28 cm) Overall Depth 24” (60.96 cm) Capacity 4.8 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 196 lbs.

1 - solid stainless steel 2 - integrated wood overlay 5 - stainless steel drawers 6 - integrated wood overlay drawers

• Two (2) Industry Exclusive full-extension pullout shelves (adjustable) (drawer models

excluded)

• Available with Industry Exclusive stainless

Features

steel drawers

Models

Available

24” Signature Series Freezer

HP24FS-1L*† 24” freezer with solid stainless steel door, hinge left

HP24FS-2L*† 24” freezer with integrated solid wood overlay door, hinge left

HP24FS-5L† 24” freezer with solid stainless steel drawers

HP24FS-6L† 24” freezer with solid wood overlay drawers

48” Signature Series Freezer

HP48RB*† 48” freezer/refrigerator

Available Door Styles

Freezer

Refrigerator

1 2 3 4 5 6

1 - Solid stainless steel door 2 - Solid wood overlay door 3 - Stainless steel glass door 4 - Wood overlay glass door 5 - Solid stainless steel drawers 6 - Solid wood overlay drawers

24” ADA-Compliant Series Freezer

HA24FB-1L* 24” ADA-Compliant freezer with solid stainless steel door, hinge left

HA24FB-2L* 24” ADA-Compliant freezer with integrated solid wood overlay door, hinge left

HA24FB-5 24” ADA-Compliant freezer with solid stainless steel drawers

HA24FB-6 24” ADA-Compliant freezer with solid wood overlay drawers

* Also available with right hinge

† Energy Star rated model

Optional Freezer Accessories

(L) Factory Installed Door lock

RS-15-15R Shelf, refrigerator (15” unit)

RS-24-24R Shelf, refrigerator (24” unit)

RS-24-24DS Shelf, divider (24” unit)

RS-24-24M Shelf, Martini Rack (24” unit)

HP24 Stacking kit (24” unit)

HP48 Stacking kit (48” unit)

Make it your own ...

Customize your Perlick product with any of our Perlick accessories. For our full line

of accessories, see our Accessories

Gallery on pages 84 and 85.

66736 Casters (24”/48” unit)

67439L Hinge kit, left

67439R Hinge kit, right

65305-1 Door handle (Signature Series)

65870 Door handle (C-Series, ADA-Compliant Series,

67164 6” toe kick and riser (ADA-Compliant model)

18” Shallow-Depth Series)

DESIGNinspiration

Entertaining? Our industry exclusive martini rack lets you chill your martini glasses and beer mugs icy cold before serving beverages for your guests’ — and your own — optimal enjoyment!

FREEZERS

24-inch Signature Series Freezer with

optional Martini Rack (shown)

Inspire

“We have been proud to showcase a Perlick beverage refrigerator in our conference room for the last three to four years. Not only have we enjoyed it — our clients have enjoyed it. The design is classic, industrial and clean — very much in alignment with our design aesthetic.”

Susan Marinello, Principal

Design Director

Susan Marinello Interiors

15-inch Signature Series

Refrigerator Drawers

(shown)

chill

refrigerators

Perlick’s luxury undercounter units are the perfect solution to adding customizable refrigeration to any room of your home. In a bathroom, our 15-inch drawers (shown left) are great for bottled water, medication and cosmetics. The 24-inch glass door refrigerators are great for kitchens that need a touch more refrigeration, and are the perfect height for storing children’s snacks. And, our 48-inch units oer the most refrigeration capacity (12 cubic feet) along with the ability to customize storage space with the options of a freezer, refrigerator, beverage center, wine reserve or beer dispenser.

REFRIGERATORS

Our ADA-Compliant line makes refrigeration accessible to all, while our C-Series refrigerator provides an aordable option. Our new line of internationally renowned ShallowDepth refrigerators solve any design challenge thanks to their exclusive 18-inch depth.

15-, 24- and 48-inch Signature Series C-Series ADA-Compliant

Series

18-inch

Shallow-

Depth Series

Features

refrigerators

• Available in door and drawer models; door models include two (2) adjustable black vinyl-coated

full-extension shelves

• Powered by a commercial-grade compressor

• 2-inch thick walls provide superior insulation and minimize vibrations

• Commercial-grade sanitary stainless steel interior

• Zero-clearance hinging allows for abutment with surrounding cabinetry

• Refrigerator rated for both food and beverage storage

• Refrigerator temperature 30 to 42 degrees F (Factory set to 38°F)

Signature Series models feature

Crisp White and Cool Blue LED

lighting; easily switch back and

forth with the ip of a switch!

Convertible door design allows all

doors the ability to be converted to

wood overlay from stainless steel

Drawers are deep enough to hold

gallons of milk and Corona bottles

REFRIGERATORS

48-inch Signature Series Refrigerator/Wine

Reserve (top), 48-inch Signature Series

Freezer/Refrigerator Drawers (below)

Refrigerators

15” Signature Series

24” Signature Series

HP15RS-3R

HP15RS

Overall Width 14-7/8” (37.78 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 3.0 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 144 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door 5 - stainless steel drawers 6 - integrated wood overlay drawers

HP15RS-1R

HP15RS-5

HP24RS-3R HP24RS-5

HP24RS

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.2 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 191 lbs.

HP24RS-1R

• Two (2) full-extension pullout shelves (adjustable) (door models only)

• Available with Industry Exclusive stainless steel drawers

Features

• Indoor and outdoor models available

• Two (2) full-extension pullout shelves (adjustable) (door models only)

• Available with stainless steel drawers

• Indoor and outdoor models available

Features

Perlick’s Patented

48” Signature Series

REFRIGERATORS

HP48RR-S-1L-3R

HP48*

Overall Width 47-7/8” (121.60 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 11.0 to 12.0 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 332 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

(Refrigerator)

5 - stainless steel drawers 6 - integrated wood overlay drawers

• Two (2) full-extension pullout shelves (adjustable) (door models only)

• Available with stainless steel drawers

• Refrigerator zone temperature: 30° to 42°F

Features

• Indoor and outdoor models available

(HP48RR and HP48RT only)

*Multiple 48” congurations with a refrigerator compartment are available. See page 26 for complete list of models.

HP48RR-S-1L-1R

HP48RR-S-5-5

HP48FR-S Freezer/Refrigerator

• Freezer equipped with hot gas defrost for maintenance-free defrosting

• Capacity: 11.0 cu. ft.

• Freezer zone temperature: -10° to 10° F

• Freezer door styles: 1, 2, 5, 6

HP48RW-S Refrigerator/Wine Reserve

• Wine Reserve holds up to 48 bottles of wine

• Capacity: 11.0 cu. ft.

• Wine Reserve zone temperature: 40° to 68°F

• Wine Reserve door styles: 1, 2, 3, 4

HP48RT-S Refrigerator/Beer Dispenser

• Complete, self-contained beer system

• Available with one, two or three taps to accommodate up

Additional Compartment Information

to three dierent types of beer

• Will hold one 1/2 barrel + 1/4 barrel (drawer model excluded) or one, two or three 1/6 kegs

• Capacity: 12.0 cu. ft.

• Beer Dispenser zone temperature: 30° to 42°F

• Beer Dispenser door styles: 1, 2

HP48RT-S-3L-1R

HP48RW-S-3L-3R

Refrigerators

C-Series 24” ADA-Compliant

series

HC24RB-3R HC24RB-5

HC24RB

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.3 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 183 lbs.

HC24RB-1R

HA24RB-3R

HA24RB

Overall Width 23-7/8” (60.64 cm) Overall Height 32” (81.28 cm) Overall Depth 24” (60.96 cm) Capacity 4.8 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 181 lbs.

HA24RB-1R

HA24RB-5

• Two (2) full-extension pullout shelves (adjustable) (drawer models excluded)

• Refrigerator with solid door or drawers available as outdoor model

Features

• Two (2) full-extension pullout shelves (adjustable) (drawer models excluded)

• Available with stainless steel drawers

Features

18” shallow-depth

series

REFRIGERATORS

HH24RS-3R HH24RS-1R

HH24RS

Overall Width 23-7/8” (60.64 cm) Overall Height 32” (81.28 cm) Overall Depth 18” (45.72 cm) Capacity 3.1 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 185 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Industry Exclusive 18” depth

• Two (2) full-extension pullout shelves (adjustable)

Features

DESIGNinspiration

Looking to add versatile food and beverage storage? Perlick’s Refrigerator Drawers are versatile and deep enough to ﬁt chilled goods and beverages such as large juice bottles and a gallon of milk in the kitchen, and taller bottles of beer like Corona in your bar or entertainment area. Plus, our smaller 15-inch Refrigerator Drawers are great for chilling bottled water, medication and natural cosmetics in the bath. Let Perlick inspire you in every area of your home.

Models

Available

15” Signature Series Refrigerator

HP15RS-1L* † 15” refrigerator with solid stainless steel door, hinge left

HP15RS-2L* † 15” refrigerator with integrated solid wood overlay door, hinge left

HP15RS-3L* † 15” refrigerator with stainless steel glass door, hinge left

HP15RS-4L* † 15” refrigerator with integrated wood overlay glass door, hinge left

HP15RS-5† 15” refrigerator with solid stainless steel drawers

HP15RS-6† 15” refrigerator with integrated solid wood overlay drawers

24” Signature Series Refrigerator

HP24RS-1L* † 24” refrigerator with solid stainless steel door, hinge left

HP24RS-2L* † 24” refrigerator with integrated solid wood overlay door, hinge left

HP24RS-3L* † 24” refrigerator with stainless steel glass door, hinge left

HP24RS-4L* † 24” refrigerator with integrated wood overlay glass door, hinge left

HP24RS-5† 24” refrigerator with solid stainless steel drawers

HP24RS-6† 24” refrigerator with integrated solid wood overlay drawers

48” Signature Series Refrigerator

HP48FR* † 48” freezer/refrigerator

HP48RR* 48” refrigerator=refrigerator

HP48RB * 48” refrigerator/beverage center

HP48RT* 48” refrigerator/beer dispenser

HP48RW* 48” refrigerator/wine reserve

Available Door Styles

Freezer

Refrigerator

Beverage Center

Wine Reserve

1 2 3 4 5 6

1 - Solid stainless steel door 2 - Solid wood overlay door 3 - Stainless steel glass door 4 - Wood overlay glass door 5 - Solid stainless steel drawers 6 - Solid wood overlay drawers

Beer Dispenser

24” C-Series Refrigerator

HC24RB-1L* † 24” Commercial-Series refrigerator with solid stainless steel door, hinge left

HC24RB-2L* † 24” Commercial-Series refrigerator with integrated solid wood overlay door, hinge left

HC24RB-3L* † 24” Commercial-Series refrigerator with stainless steel glass door, hinge left

HC24RB-4L* † 24” Commercial-Series refrigerator with integrated wood overlay glass door, hinge left

HC24RB-5† 24” Commercial-Series refrigerator with solid stainless steel drawers

HC24RB-6† 24” Commercial-Series refrigerator with integrated solid wood overlay drawers

* Also available with right hinge

† Energy Star rated model

24” ADA-Compliant Series Refrigerator

HA24RB-1L* † 24” ADA-Compliant refrigerator with solid stainless steel door, hinge left

HA24RB-2L* † 24” ADA-Compliant refrigerator with integrated solid wood overlay door, hinge left

HA24RB-3L* † 24” ADA-Compliant refrigerator with stainless steel glass door, hinge left

HA24RB-4L* † 24” ADA-Compliant refrigerator with integrated wood overlay glass door, hinge left

HA24RB-5† 24” ADA-Compliant refrigerator with solid stainless steel drawers

HA24RB-6† 24” ADA-Compliant refrigerator with integrated solid wood overlay drawers

18” Shallow-Depth Series Refrigerator

HH24RS-1L* † 18” Shallow-Depth refrigerator with solid stainless steel door, hinge left

HH24RS-2L* † 18” Shallow-Depth refrigerator with integrated solid wood overlay door, hinge left

HH24RS-3L* † 18” Shallow-Depth refrigerator with stainless steel glass door, hinge left

HH24RS-4L* † 18” Shallow-Depth refrigerator with integrated wood overlay glass door, hinge left

* Also available with right hinge

† Energy Star rated model

REFRIGERATORS

Optional Refrigerator Accessories

(L) Factory Installed Door lock

RS-15-15R Shelf, refrigerator (15” unit)

RS-24-24R Shelf, refrigerator (24” unit)

RS-24-24DS Shelf, divider (24” unit)

RS-24-24M Shelf, martini Rack (24” unit)

RS-18-18R Shelf, refrigeration (18” depth unit)

HP15 Stacking kit (15” unit)

HP24 Stacking kit (24” unit)

HP48 Stacking kit (48” unit)

66736-15 Casters (15” unit)

66736 Casters (24”/48” unit)

67439L Hinge kit, left

67439R Hinge kit, right

65305-1 Door handle (Signature Series)

65870 Door handle (C-Series, ADA-Compliant Series,

18” Shallow-Depth Series)

67164 6” toe kick and riser

67360 6” toe kick and riser (18” Shallow-Depth Series)

Make it your own ...

Customize your Perlick product with any

of our Perlick accessories. For our full

line of accessories, see our Accessories

Gallery on pages 84 and 85.

Inspire

“In addition to compliments regarding the aesthetics and ease of use of the Perlick refrigerators used in our rooms, our guests are consistently amazed by how quiet the units are.”

Tim Dixon, Owner

The Iron Horse Hotel, Milwaukee, Wisconsin

24-inch C-Series Beverage

Center with optional Wood Wine Fronts (shown)

(photo courtesy of The Iron Horse Hotel)

refresh

beverage

centers

The practicality of a refrigerator meets the elegance of a wine reserve in Perlick’s full line of beverage centers. Two full-extension wine racks keep your wine at the perfect serving temperature, while the full-extension refrigerator shelf keeps cans, bottles and snacks chilled below. With a variety of sizes available, Perlick makes it easy, and stylish, to refresh any room in your home.

BEVERAGE

CENTERS

15-, 24- and 48-inch Signature Series C-Series

ADA-Compliant

Series

18-Inch

Shallow-

Depth Series

Features

beverage centers

• All models include two (2) adjustable black vinyl-coated full-extension wine shelves and one (1) adjustable

black vinyl-coated full-extension shelf

• Powered by a commercial-grade compressor

• Convertible door design allows all doors the ability to be converted to wood overlay from stainless steel

• 2-inch thick walls provide superior insulation and minimize vibrations

• Commercial-grade sanitary stainless steel interior

• Zero-clearance hinging allows for abutment with surrounding cabinetry

• Beverage Center rated for both food and beverage storage

• Beverage Center temperature 30 to 48 degrees F (Factory set to 42°F)

Signature Series models feature

Crisp White and Cool Blue LED

lighting; easily switch back and

forth with the ip of a switch!

Full-extension wine shelves are

vinyl-coated, virtually eliminating

any vibration to bottles

Low-E, UV-coated glass provides

industry leading insulation

and protection

BEVERAGE

CENTERS

18-inch Shallow-Depth Beverage

Center (shown)

beverage centers

15” Signature Series 24” Signature Series

HP15BS-3R HP15BS-1R HP24BS-3R HP24BS-1R

HP15BS

Overall Width 14-7/8” (37.78 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 3.0 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 150 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Two (2) full-extension wine shelves and one (1) full-extension vinyl-coated shelf that are removable and adjustable

• Will hold 8 wine bottles (750 ml) on wine

Features

shelves

HP24BS

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.2 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 203 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Two (2) full-extension wine shelves and one (1) full-extension vinyl-coated shelf.

• Will hold 16 wine bottles (750 ml) and 42 cans (12 oz)

Features

Perlick’s Patented

48” Signature Series

HP48RB-S-3L-3R HP48RB-S-1L-1R

BEVERAGE

CENTERS

HP48*

Overall Width 47-7/8” (121.60 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 12 cu. ft. Voltage 115/60/1 Amps 3.8

SpecicationsDoor Styles

Shipping Weight 332 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

(Beverage Center)

• Two (2) separate temperature zones

• Two (2) full-extension wine shelves and one (1) full-extension vinyl-coated shelf

• Beverage Center temperature: 30° to 48°F

Features

• Will hold 16 wine bottles (750 ml) and 42 cans (12 oz)

*Multiple 48” congurations with a beverage center compartment are available. See page 36 for complete list of models.

HP48RB-S Refrigerator / Beverage Center

• Perfect for storing food, cans, bottles and wine

• Refrigerator zone features two (2) full-extension pull-out shelves (drawer models excluded)

• Refrigerator zone available with stainless steel drawer or integrated wood overlay drawers

• Refrigerator temperature: 30° to 42° F

• Refrigerator door styles: 1, 2, 3, 4, 5, 6

Additional Compartment Information

beverage centers

C-Series

HC24BB-3R HC24BB-1R HA24BB-3R HA24BB-1R

24” ADA-Compliant

series

HC24BB

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.3 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 195 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Two (2) full-extension wine shelves and one (1) full-extension vinyl-coated shelf

• Will hold 16 wine bottles (750 ml) and 42 cans (12 oz)

Features

HA24BB

Overall Width 23-7/8” (60.64 cm) Overall Height 32” (81.28 cm) Overall Depth 24” (60.96 cm) Capacity 4.8 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 195 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Two (2) full-extension wine shelves and one (1) full-extension vinyl-coated shelf

• Will hold 16 wine bottles (750 ml) and 42 cans (12 oz)

Features

18” Shallow-depth

series

HH24BS-3R HH24BS-1R

DESIGNinspiration

Short on space? We have solutions so you can enjoy a Perlick Beverage Center in nearly any room. At just over a foot wide, our sleek and slim 15” Signature Series model can squeeze into the narrowest spaces. Our 18” Shallow-Depth model oers less depth, so you can enjoy your Perlick – as well as a little more ﬂoor space.

BEVERAGE

CENTERS

HH24BS

Overall Width 23-7/8” (60.64 cm) Overall Height 32” (81.28 cm) Overall Depth 18” (47.72 cm) Capacity 3.1 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 185 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Industry Exclusive 18” depth design

• Two (2) full-extension wine shelves and one (1) full-extension vinyl-coated shelf

• Will hold 10 wine bottles (750 ml) and 42

Features

cans (12 oz)

Models

Available

15” Signature Series Beverage Center

HP15BS-1L* † 15” beverage center with solid stainless steel door, hinge left

HP15BS-2L* † 15” beverage center with integrated solid wood overlay door, hinge left

HP15BS-3L* † 15” beverage center with stainless steel glass door, hinge left

HP15BS-4L* † 15” beverage center with integrated wood overlay glass door, hinge left

24” Signature Series Beverage Center

HP24BS-1L* † 24” beverage center with solid stainless steel door, hinge left

HP24BS-2L* † 24” beverage center with integrated solid wood overlay door, hinge left

HP24BS-3L* † 24” beverage center with stainless steel glass door, hinge left

HP24BS-4L* † 24” beverage center with integrated wood overlay glass door, hinge left

48” Signature Series Beverage Center

HP48RB* 48” refrigerator/beverage center

Available Door Styles

Refrigerator

Beverage Center

1 2 3 4 5 6

1 - Solid stainless steel door 2 - Solid wood overlay door 3 - Stainless steel glass door 4 - Wood overlay glass door 5 - Solid stainless steel drawers 6 - Solid wood overlay drawers

24” C-Series Beverage Center

HC24BB-1L* † 24” Commercial-Series beverage center with solid stainless steel door, hinge left

HC24BB-2L* † 24” Commercial-Series beverage center with integrated solid wood overlay door, hinge left

HC24BB-3L* † 24” Commercial-Series beverage center with stainless steel glass door, hinge left

HC24BB-4L* † 24” Commercial-Series beverage center with integrated wood overlay glass door, hinge left

24” ADA-Compliant Series Beverage Center

HA24BB-1L* † 24” ADA-Compliant beverage center with solid stainless steel door, hinge left

HA24BB-2L* † 24” ADA-Compliant beverage center with integrated solid wood overlay door, hinge left

HA24BB-3L* † 24” ADA-Compliant beverage center with stainless steel glass door, hinge left

HA24BB-4L* † 24” ADA-Compliant beverage center with integrated wood overlay glass door, hinge left

18” Shallow-Depth Series Beverage Center

HH24BS-1L* † 18” Shallow-Depth beverage center with solid stainless steel door, hinge left

HH24BS-2L* † 18” Shallow-Depth beverage center with integrated solid wood overlay door, hinge left

HH24BS-3L* † 18” Shallow-Depth beverage center with stainless steel glass door, hinge left

HH24BS-4L* † 18” Shallow-Depth beverage center with integrated wood overlay glass door, hinge left

* Also available with right hinge

† Energy Star rated model

Optional Beverage Center Accessories

(L) Factory Installed Door lock

RS-15-15R Shelf, refrigerator (15” unit)

RS-15-15W Shelf, wine (15” unit) SS fronts

RS-24-24R Shelf, refrigerator (24” unit)

RS-24-24W Shelf, wine (24” unit) SS fronts

RS-24-24DS Shelf, divider (24” unit)

RS-24-24M Shelf, martini Rack (24” unit)

RS-18-18R Shelf, refrigerator (18” depth unit)

RS-18-18W Shelf, wine (18” depth unit) SS fronts

67115-15 Wine shelf wood faces (15” unit) (bundle of 5)

67115-24 Wine shelf wood faces (24” unit) (bundle of 6)

HP15 Stacking kit (15” unit)

HP24 Stacking kit (24” unit)

HP48 Stacking kit (48” unit)

66736-15 Casters (15” unit)

66736 Casters (24”/48” unit)

67439L Hinge kit, left

67439R Hinge kit, right

65305-1 Door handle (Signature Series)

65870 Door handle (C-Series, ADA-Compliant Series,

18” Shallow-Depth Series)

67164 6” toe kick and riser

67360 6” toe kick and riser (18” Shallow-Depth Series)

Make it your own ...

Customize your Perlick product with any of our Perlick accessories. For our full line of accessories, see

our Accessories Gallery on pages

84 and 85.

BEVERAGE

CENTERS

Inspire

“The impressive wine storage capabilities, clean lines and industrial feel of Perlick’s products, along with the ability to use glass doors, appealed to our entire design team.”

Marc Steron, Managing Partner

Shanahan’s Steakhouse

Denver, Colorado

48” Wine Reserve/Wine Reserve (shown)

cheers

wine

reserves

For the serious wine connoisseur, Perlick manufactures the most well-built and skillfully designed wine storage in the world. Perlick’s wine reserves are simply designed and built to store wines properly and beautifully, and oer numerous features not found in any competitor models.

Available in 15-, 24-, 48- and 18-inch Shallow-Depth congurations, Perlick wine reserve’s t any room in your home. Each unit features stunning stainless steel interiors, vinyl-coated full-extension wine racks and is available in a variety of door styles.

RESERVES

WINE

15-, 24- and 48-inch Signature Series C-Series

ADA-Compliant

Series

18-Inch

Shallow-

Depth Series

Features

wine reserves

• Black vinyl-coated full-extension wine shelves are adjustable to accommodate oversized

(magnum) bottles

• Powered by a whisper-quiet, commercial-grade compressor

• Convertible door design allows all doors the ability to be converted to wood overlay

from stainless steel

• 2-inch thick walls provide superior insulation and minimize vibrations

• Commercial-grade sanitary stainless steel interior

• Zero-clearance hinging allows for abutment with surrounding cabinetry

• Wine Reserve temperature 40 to 68 degrees F (Factory set to 45°F)

Wine Reserve temperature:

40 to 68 degrees F to properly chill

white or red wines

Low-E, UV-coated glass provides

industry leading insulation

and protection

Stacking kits available for all models to

create the perfect custom storage

RESERVES

WINE

Two (2) 24-inch Signature Series

Wine Reserves with optional wood

wine fronts (shown stacked)

wine reserves

15” Signature Series 24” Signature Series

HP15WS-3R HP15WS-1R HP24WS-3R HP24WS-1R

HP15WS

Overall Width 14-7/8” (37.78 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 3.0 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 175 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Five (5) full-extension shelves that hold up to 20 wine bottles (750 ml) with additional room on the bottom; shelves are adjustable to accommodate magnum bottles

Features

• Indoor and outdoor models available

HP24WS

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.2 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 222 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Five (5) full-extension shelves that hold up to 40 wine bottles (750 ml) with additional room on the bottom; shelves are adjustable to accommodate magnum bottles

Features

• Indoor and outdoor models available

Perlick’s Patented

48” Signature Series

HP48WO-S-3L-3R HP48RW-S-3L-3R

RESERVES

WINE

HP48WW-S-1L-1R

HP48*

Overall Width 47-7/8” (121.60 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Voltage 115/60/1 Amps 3.8 Shipping Weight 332 lbs.

SpecicationsDoor Styles

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

(Wine Reserve)

• Ten (10) full-extension shelves that hold up to 80 wine bottles (750 ml) with additional room on the bottom of the left compartment; shelves are adjustable to accommodate

Features

magnum bottles.

• Available with one (WO) or two (WW) temperature zones.

*Multiple 48” congurations with a wine reserve compartment are available. See page 46 for complete list of models.

HP48RW-S Refrigerator/Wine Reserve

• Refrigerator rated for both food and beverage storage

• Refrigerator temperature: 30° to 42° F

• Capacity: 11 cubic ft.

• Door styles available for refrigerator compartment: 1, 2, 3, 4, 5, 6

HP48WW-S Wine Reserve/Wine Reserve

• Unit features two separate temperature zones — giving you the ability to store both red and white wine at dierent temperatures

• Wine Reserve temperature: 40° to 68° F

• WW model capacity: 11 cu. ft.

HP48WO-S Wine Reserve=Wine Reserve

Additional Compartment Information

• Single temperature zone throughout

• Wine Reserve temperature: 40° to 68° F

• WO model capacity: 12 cu. ft.

Wine Reserves

C-Series 24” ADA-Compliant

Series

HC24WB-3R HC24WB-1R HA24WB-3R HA24WB-1R

HC24WB

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.3 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 215 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Five (5) full-extension wine shelves that are adjustable to accommodate magnum bottles

• Will hold 40 wine bottles (750 ml) plus room for ve additional bottles below

Features

HA24WB

Overall Width 23-7/8” (60.64 cm) Overall Height 32” (81.28 cm) Overall Depth 24” (60.96 cm) Capacity 4.8 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 190 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Five (5) full-extension wine shelves that are adjustable to accommodate magnum bottles

• Will hold 40 wine bottles (750 ml) plus room for ve additional bottles below

Features

18” Shallow-Depth

DESIGNinspiration

Do you like the rustic Napa Valley look of wooden wine shelving? We oer wine shelf wood faces for all Wine Reserves so you can get the look you want.

Series

HH24WS-3R HH24WS-1R

HH24WS

Overall Width 23-7/8” (60.64 cm) Overall Height 32” (81.28 cm) Overall Depth 18” (45.72 cm) Capacity 3.1 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 185 lbs.

RESERVES

WINE

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Industry Exclusive 18” depth design

• Five (5) full-extension wine shelves that are adjustable to accommodate magnum bottles

• Will hold 20 wine bottles

Features

Models

Available

15” Signature Series Wine Reserves

HP15WS-1L* 15” wine reserve with solid stainless steel door, hinge left

HP15WS-2L* 15” wine reserve with integrated solid wood overlay door, hinge left

HP15WS-3L* 15” wine reserve with stainless steel glass door, hinge left

HP15WS-4L* 15” wine reserve with integrated wood overlay glass door, hinge left

24” Signature Series Wine Reserves

HP24WS-1L* 24” wine reserve with solid stainless steel door, hinge left

HP24WS-2L* 24” wine reserve with integrated solid wood overlay door, hinge left

HP24WS-3L* 24” wine reserve with stainless steel glass door, hinge left

HP24WS-4L* 24” wine reserve with integrated wood overlay glass door, hinge left

48” Signature Series Wine Reserves

HP48RW 48” refrigerator/wine reserve

HP48WW 48” wine reserve/wine reserve (two zone)

HP48WO 48” wine reserve=wine reserve (single zone)

Available Door Styles

Refrigerator

Wine Reserve

1 2 3 4 5 6

1 - Solid stainless steel door 2 - Solid wood overlay door 3 - Stainless steel glass door 4 - Wood overlay glass door 5 - Solid stainless steel drawers 6 - Solid wood overlay drawers

24” C-Series Wine Reserves

HC24WB-1L* 24” Commercial-Series wine reserve with solid stainless steel door, hinge left

HC24WB-2L* 24” Commercial-Series wine reserve with integrated solid wood overlay door, hinge left

HC24WB-3L* 24” Commercial-Series wine reserve with stainless steel glass door, hinge left

HC24WB-4L* 24” Commercial-Series wine reserve with integrated wood overlay glass door, hinge left

24” ADA-Compliant Series Wine Reserves

HA24WB-1L* 24” ADA-Compliant wine reserve with solid stainless steel door, hinge left

HA24WB-2L* 24” ADA-Compliant wine reserve with integrated solid wood overlay door, hinge left

HA24WB-3L* 24” ADA-Compliant wine reserve with stainless steel glass door, hinge left

HA24WB-4L* 24” ADA-Compliant wine reserve with integrated wood overlay glass door, hinge left

18” Shallow-Depth Series Wine Reserves

HH24WS-1L* 18” Shallow-Depth wine reserve with solid stainless steel door, hinge left

HH24WS-2L* 18” Shallow-Depth wine reserve with integrated solid wood overlay door, hinge left

HH24WS-3L* 18” Shallow-Depth wine reserve with stainless steel glass door, hinge left

HH24WS-4L* 18” Shallow-Depth wine reserve with integrated wood overlay glass door, hinge left

* Also available with right hinge

Optional Wine Reserve Accessories

(L) Factory Installed Door lock

RS-15-15R Shelf, refrigerator (15” unit)

RS-15-15W Shelf, wine (15” unit) SS fronts

RS-24-24R Shelf, refrigerator (24” unit)

RS-24-24W Shelf, wine (24” unit) SS fronts

RS-24-24DS Shelf, divider (24” unit)

RS-18-18R Shelf, refrigeration (18” depth unit)

RS-18-18W Shelf, wine (18” Depth unit) SS fronts

65629 Wine bottle display rack (24” unit)

68151-2 Wine bottle display rack (18” depth unit)

67115-15 Wine shelf wood faces (15” unit) (bundle of 5)

67115-24 Wine shelf wood faces (24” unit) (bundle of 6)

HP15 Stacking kit (15” unit)

HP24 Stacking kit (24” unit)

HP48 Stacking kit (48” unit)

66736-15 Casters (15” unit)

66736 Casters (24”/48” unit)

67439L Hinge kit, left

67439R Hinge kit, right

65305-1 Door handle (Signature Series)

65870 Door handle (C-Series, ADA-Compliant Series,

18” Shallow-Depth Series)

67164 6” toe kick with riser

Make it your own ...

Customize your Perlick product with

any of our Perlick accessories. For

our full line of accessories, see our

Accessories Gallery on pages 84 and 85.

RESERVES

WINE

67360 6” toe kick with riser (18” Shallow-Depth Series)

To learn more about wine storage and preservation, visit perlick.com

to download a PDF of our Enemies

of Wine brochure.

Inspire

“We are extraordinarily happy with Perlick’s products and our relationship with the company. Perlick’s products have managed to make our customers happy, while reducing our operating expenses and increasing our bottom line.”

Greg Karl, President and COO

Epicurean Culinary Group

2-Tap Dispensing head on a

48-inch Refrigerator + Beer

Dispenser unit (shown)

DRAUGHT

beer

dispensers

Beer Dispensers

Enjoy brewery-fresh draught beer at home with a Perlick Signature Series Beer Dispenser. Since before Prohibition, Perlick has been making the nest commercial beverage dispensing equipment on the market. Today, you can avail yourself of a wide range of choices for your home needs — including models with one, two and even three taps. Available in 15-, 24- and 48-inch sizes, you can impress guests with your ability to serve cold draught beer from around the world without leaving your home bar!

15-, 24- and 48-inch Signature Series

DISPENSERS

BEER

Features

beer dispensers

• Available with up to three (3) taps to accommodate multiple types of beer (48-inch models only)

• Powered by a whisper-quiet, commercial-grade compressor

• Convertible door design allows all doors the ability to be converted to wood overlay

from stainless steel

• 2-inch thick walls provide superior insulation and minimize vibrations

• Commercial-grade sanitary stainless steel interior

• Zero-clearance hinging allows for abutment with surrounding cabinetry

• Portable drainer; no plumbing required

• Complete, self-contained beer system

• Drawers are deep enough to hold gallons of milk and Corona bottles

• Beer Dispenser temperature 30 to 42 degrees F (Factory set to 38°F)

Beer Dispenser temperature:

30 to 42 degrees F to accomodate

various types of beer

Convertible door design allows all

doors the ability to be converted to

wood overlay from stainless steel

15” Signature Series Beer Dispenser is the

rst 15” Beer Dispenser on the market

DISPENSERS

BEER

(left to right) 24-inch Signature Series

Beverage Center with optional Wood

Wine Fronts, 15-inch Signature Series Beer

Dispenser (shown)

beer dispensers

15” Signature Series 24” Signature Series

HP15TS-1R HP24TS-1R2

HP15TS

Overall Width 14-7/8” (37.783 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 3.0 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 144 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door

• Capacity to hold one (1) 1/6 barrel

• Beer Dispenser temperature: 30° to 42°F

• Available with one (1) tap

• Includes one (1) of Perlick’s patented front-

Features

seated sanitary Perl faucet and one (1) Low prole coupler for “D” system keg valves

HP24TS

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.2 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 193 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door

• Capacity to hold one (1) 1/4 barrel or two (2) 1/6 barrels

• Beer Dispenser temperature: 30° to 42°F

• Available with one (1) or two (2) taps

Features

• Each tap includes one (1) of Perlick’s patented front-seated sanitary Perl faucet and one (1) Low prole coupler for “D” system keg valves

Perlick’s Patented

48” Signature Series

HP48RT-S-3L-1R2 HP48RT-S-1L-1R2 HP48RT-S-5-1R2

HP48RT-S

DISPENSERS

BEER

Overall Width 47-7/8” (121.60 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 12 cu. ft. Voltage 115/60/1 Amps 3.8

SpecicationsDoor Styles

Shipping Weight 332 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door

(Beer Dispenser)

• Can be ordered with one (1), two (2) or three (3) taps

• Capacity to hold 1/6, 1/4 and 1/2 barrel congurations

• Beer Dispenser temperature: 30° to 42°F

Features

• Each tap includes one (1) of Perlick’s patented front-seated sanitary Perl faucet and one (1) Low prole coupler for “D” system keg valves

Refrigerator/Beer Dispenser

• Refrigerator rated for both food and beverage storage

• Refrigerator zone includes two (2) full-extension pull-out shelves (drawer models excluded)

• Refrigerator temperature: 30° to 42° F

• Door styles available for refrigerator compartment: 1, 2, 3, 4, 5, 6

Additional Compartment Information

Models

Available

15” Signature Series Beer Dispenser

HP24TS-1L* 24” beer dispenser with solid stainless steel door, hinge left

HP24TS-2L* 24” beer dispenser with integrated solid wood overlay door, hinge left

24” Signature Series Beer Dispenser

HP24TS-1L* 24” beer dispenser with solid stainless steel door, hinge left

HP24TS-2L* 24” beer dispenser with integrated solid wood overlay door, hinge left

48” Signature Series Beer Dispenser

HP48RT* 48” refrigerator/beer dispenser

Available Door Styles

1 2 3 4 5 6

Refrigerator

Beer Dispenser

* Also available with right hinge

Optional Beer Dispenser Accessories

(L) Factory Installed Door lock

RS-24-24R Shelf, refrigerator (24” unit)

RS-24-24DS Shelf, divider (24” unit)

66736-15 Casters (15” unit)

66736 Casters (24”/48” unit)

67439L Hinge kit, left

67439R Hinge kit, right

65305-1 Door handle (Signature Series)

63797 Cleaning kit (includes pump, sanitizer and tools

to clean the lines)

BLC4 Sanitizer, 4-oz. bottle

BLC32 Sanitizer, 32-oz. bottle

63992 European keg coupler kit

308-40B Faucet lock

67141-1 Perlick faucet handle

1 - Solid stainless steel door 2 - Solid wood overlay door 3 - Stainless steel glass door 4 - Wood overlay glass door 5 - Solid stainless steel drawers 6 - Solid wood overlay drawers

Make it your own ...

Customize your Perlick product with any

of our Perlick accessories. For our full

line of accessories, see our Accessories

Gallery on pages 84 and 85.

67782 Drip pan for beer dispensers

KEG LAYOUTS

15”

24”

48”

Below you’ll nd keg congurations for Perlick 15-, 24- and 48-inch Beer Dispensers. Note that 15-inch units can accommodate one (1) tap, 24-inch units can accommodate up to two (2) taps, and 48-inch units can accommodate up to three (3) taps.

(1) 1/6

(1) 1/4 + (1) 1/2*

(2) 1/6 + (1) 1/2*

(empty) + (3) 1/6

(1) 1/4

(2) 1/6

(1) 1/4 + (1) 1/4

(2) 1/6 + (1) 1/4

Please note that a 1/2 barrel can only t when the refrigerator compartment is a door style. If refrigerator drawers are on the left, a 1/2 barrel will not t into the cabinet.

DISPENSERS

BEER

To learn more about draught beer, visit

perlick.com to download a PDF of our

Draught Beer Basics brochure.

INSPIRE

“As the leader in quality undercounter refrigeration,

Perlick Corporation has expanded its Signature Series

with a line of inventive, 24” Dual-Zone refrigerated units.

The line oers the exibility to be installed indoors or

outdoors – all units, including units congured with glass

doors, are UL-rated for outdoor use.”

Largest and most prestigious awards program for product

and project design in the architectural and design industry

ADEX Awards for Design Excellence

2013 ADEX Winner Signature

Series Dual-Zone Wine Reserve (shown)

NEW

dual-zone

models

Enjoy your margaritas on the rocks or frozen, store beer, soda and other beverages along with wine for entertaining, and ensure that your white and red wines chill properly at two dierent temperatures – all with Perlick Dual-Zone.

Indoors or out, enjoy two independently-controlled temperature zones within one footprint with the 24-inch Signature Series Dual-Zone line. These award-winning products let you enjoy the ultimate in food and beverage storage and serving and are UL-rated for both indoor and outdoor use. And as always, they feature the industryleading style and benets you’ve come to expect from your Perlick.

24” DUAL-ZONE

MODELS

dual-zone

refrigerator/

wine reserve

dual-zone

freezer/

refrigerator

dual-zone

wine reserve

Features

DUAL-ZONE PRODUCTS

• Two separate temperature zones are each independently controlled by state-of-the-art

digital controls

• Convertible door design allows all doors/drawers the ability to be converted to wood overlay

from stainless steel

• Powered by a whisper-quiet, commercial-grade compressor

• Front-vented, RAPIDcool forced-air refrigeration system

• Commercial-grade stainless steel interior

• Zero-clearance hinging allows for abutment with surrounding cabinetry

• 2-inch thick walls provide superior insulation and minimize vibrations

• Low-E, UV-coated glass provides industry leading insulation and protection

• State-of-the-art digital control module

• 5.0 cubic feet of capacity

NEW Crisp White and Cool

Blue LED light (now standard

on all Signature Series models)

independently-controlled

temperature zones

UL-approved for outdoor useFeatures two (2)

24” DUAL-ZONE

MODELS

Signature Series Dual-Zone Freezer/

Refrigerator Drawers

dual-zone mode ls

Refrigerator/

Freezer drawers

HP24ZS-5 HS24CS-3L HP24CS-1R

HP24ZS

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.0 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 191 lbs.

wine reserve

HP24CS

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.0 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 203 lbs.

5 - solid stainless steel drawers 6 - integrated solid wood overlay drawers

• Refrigerator (top drawer) 30°- 42°F (factory set to 38°F)

• Freezer (bottom drawer) -10- 10°F (factory set to 0°F)

Features

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Refrigerator temperature (top compartment) 30°- 42°F (factory set to 38°F)

• Wine Reserve temperature (bottom compartment) 40°- 68°F (factory set to 55°)

Features

• Three (3) full-extension wine shelves hold total of 24 bottles (750 ml.)

wine reserve/

wine reserve

DESIGNinspiration

Need to save space but have an array of refrigeration needs? The indoor/

outdoor 24” Dual-Zone Refrigerator/ Wine Reserve lets you store wines at their

optimal temperatures while beer, other beverages and food chill separately below – all within the same unit. Perlick is the only manufacturer to oer a refrigerator and a wine reserve within the same 24” footprint.

24” DUAL-ZONE

MODELS

HP24DS-3R

HP24DS

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.0 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsDoor Styles

Shipping Weight 222 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door

• Wine Reserve temperature (both compartments) 40°- 68°F (factory set to 55°F)

• Six and a half (6 1/2) full-extension wine shelves that hold up to 46 wine bottles (750 ml.)

Features

HP24DS-1R

Models

Available

dual-zone freezer/refrigerator drawers

HP24ZS-5 24” freezer/refrigerator drawers with solid stainless steel drawers

HP24ZS-6 24” freezer/refrigerator drawers with solid wood overlay drawers

dual-zone refrigerator/wine reserve

HP24CS-1L* 24” refrigerator/wine reserve with solid stainless steel door, hinge left

HP24CS-2L* 24” refrigerator/wine reserve with integrated solid wood overlay door, hinge left

HP24CS-3L* 24” refrigerator/wine reserve with stainless steel glass door, hinge left

HP24CS-4L* 24” refrigerator/wine reserve with solid wood overlay glass door, hinge left

dual-zone wine reserve

HP24DS-1L* 24” wine reserve/wine reserve with solid stainless steel door, hinge left

HP24DS-2L* 24” wine reserve/wine reserve with integrated solid wood overlay door, hinge left

HP24DS-3L 24” wine reserve/wine reserve with stainless steel glass door, hinge left

HP24DS-4L 24” wine reserve/wine reserve with solid wood overlay glass door, hinge left

* Also available with right hinge

Optional Freezer Accessories

(L) Factory Installed Door lock

RS-24-24R Shelf, refrigerator (24” unit)

RS-24-24DS Shelf, divider (24” unit)

HP24 Stacking kit (24” unit)

66736 Casters (24”/48” unit)

67439L Hinge kit, left

67439R Hinge kit, right

65305-1 Door handle (Signature Series)

Make it your own ...

Customize your Perlick product with any

of our Perlick accessories. For our full

line of accessories, see our Accessories

Gallery on pages 84 and 85.

Introducing dual-zone

small footprint, big design and features

The new 24” Signature Series Dual-Zone line adds three industry-exclusive products and 40 more conﬁgurations to Perlick’s already impressive residential product line-up.

In fact, Perlick is the only manufacturer to oer 24” Dual-Zone units UL-rated for both indoor and outdoor use.

Enjoy Perlick’s Dual-Zone line of products, which oers big design inspiration for both indoors and outdoors as well as industry-exclusive features within one 24” footprint.

24” Dual-Zone Wine Reserve – With one zone for red wines and another

for whites, this industry-exclusive model features programmable ranges of 40 - 68°F for each zone to chill vintages to their optimal serving temperature. The zones are interchangeable/reversible to accommodate your wine preferences and storage needs. Store up to 46 wine bottles on the adjustable shelves. This model has been awarded a 2013 ADEX Gold Award for Design Excellence.

24” Dual-Zone Freezer/Refrigerator Drawers – The bottom

drawer stores frozen goods while the top drawer perfectly chills in the industry’s ﬁrst indoor and outdoor freezer/refrigerated drawer model. The freezer temperature range is -10 - 10°F and the refrigerator temperature range is 30 - 42°F. The freezer drawer is equipped with an automatic hot gas defrost for maintenance-free defrosting. Chill both your refrigerated and frozen goods in just one unit, indoors or out. This model has been awarded a 2013 ADEX Platinum Award for Design Excellence.

24” Dual-Zone Refrigerator/Wine Reserve – This model features

the industry-exclusive ability to properly store food and other beverages as well as wine in two independently controlled temperature zones. The refrigerator zone is 30 - 42°F and the wine reserve zone range is 40 - 68°F. The wine reserve capacity is 21 wine bottles (750 ml.), while the refrigeration capacity equivalent is 41 cans (12 oz.). It’s never been easier to store all your foods, beers, other beverages and wines together in one unit for entertaining.

24” DUAL-ZONE

MODELS

Inspire

“Perlick’s innovative ideas help me provide excellent solutions for my clients. Their 18-inch Shallow-Depth Series beverage center can easily t into smaller space wet bars and entertainment centers. I’ve always been a fan of Perlick’s “top hat” clear ice maker which showcases their ability to deliver impeccable quality with high style and air.”

Marie Lail Blackburn, CMKBD

Principal, MLBdesigngroup

15-inch Clear Ice Maker (shown)

brrr!

clear ice

makers

Measuring a mere 15 inches wide, the Perlick Clear Ice Maker can create up to 50 pounds of crystal-clear ice in a single day (and stores up to 22 pounds), fullling even the most generous home entertaining needs.

The distinctive top hat shape of each cube is more than just attractive: The shape is part of Perlick’s method in ensuring that each cube is absolutely free of impurities, for a awless look and taste. This unique shape also prevents the ice from clumping, guaranteeing that you always serve your guests the perfect beverage every time.

CLEAR ICE

MAKERS

15-inch Signature

Series

ADA-Compliant

Series

Features

clear ice makers

• Up to 55 lbs. of ice production per 24 hours

• Can store up to 22 lbs. of ice

• Unique top hat shape prevents ice from clumping

• Quiet, ecient operation

• Easily disassembled water circuit for easy cleaning

• Optional drain pump

• Optional wood overlay door panel to match surrounding cabinetry

• Stainless steel exterior and elegant stainless steel polished handle

• Ice Makers carry a full one (1) year warranty

Distinctive top hat shape

of each cube is more than

attractive; the shape ensures

that each cube is absolutely free of impurities for awless

look and taste.

Can store up to 22 lbs. of iceDurable stainless steel

exterior and elegant stainless

steel polished handle

clear ice makers

15” Signature Series ada-compliant

Series

CLEAR ICE

MAKERS

H50IMS

Overall Width 14-7/8” (37.78 cm) Overall Height 33-1/2” (85.09 cm) Overall Depth 22-5/8” (57.47 cm) Storage Capacity 22 lbs. of ice Voltage 115/60/1 Amps 3.4

Specications

Shipping Weight 115 lbs.

Ambient Temp. Range: 45°-100°F Water Temp. Range: 45°- 95°F Voltage Range: 104V-127V Water Pressure: 7-113 psig

Operation

Plumbing: 1/2” FTP Water Inlet, 1/2” FPT Drain

Limits/Plumbing

• Ice production of up to 55 lbs. per 24 hours

• UL approved for outdoor use

• Optional drain pump

• R-134A refrigerant

Features

H50IMS-AD

Overall Width 14-7/8” (37.78 cm) Overall Height 31-1/2” (80.01 cm) Overall Depth 22-5/8” (57.47 cm) Storage Capacity 22 lbs. of ice Voltage 115/60/1 Amps 3.4

Specications

Shipping Weight 115 lbs.

Ambient Temp. Range: 45°-100°F Water Temp. Range: 45°- 95°F Voltage Range: 104V-127V Water Pressure: 7-113 psig

Operation

Plumbing: 1/2” FTP Water Inlet, 1/2” FPT Drain

Limits/Plumbing

• Ice production of up to 55 lbs. per 24 hours

• UL approved for outdoor use

• Optional drain pump

• R-134A refrigerant

Features

Models

Available

15” Signature Series Clear Ice Maker

H5OIMS-L 15” clear ice maker with solid stainless steel door, hinge left

H5OIMS-R 15” clear ice maker with solid stainless steel door, hinge right

H5OIMW 15” clear ice maker with solid wood overlay door, hinge left or right

15” ADA-Compliant Series Clear Ice Maker

H5OIMS-ADL 15” ADA-Compliant clear ice maker with solid stainless steel door, hinge left

H5OIMS-ADR 15” ADA-Compliant clear ice maker with solid stainless steel door, hinge right

H5OIMW-AD 15” ADA-Compliant clear ice maker with solid wood overlay door, hinge left or right

Optional clear ice maker Accessories

63802 Ice Maker Pump

68117-1 Optional Stainless Steel Toe Kick

Tip your cap to

perfect ice

Each ice cube features a distinctive and stylish top hat shape which, like the Clear Ice Maker, is more than just attractive — it serves multiple functions. The “top hat” shaped ice is part of Perlick’s method of ensuring that each cube is absolutely free of impurities, for a awless look and taste.

The unique shape is also extremely functional because the top hat design prevents the ice from clumping, guaranteeing that the perfect beverage is served every time.

Make it your own ...

Customize your Perlick product with any

of our Perlick accessories. For our full

line of accessories, see our Accessories

Gallery on pages 84 and 85.

CLEAR ICE

MAKERS

15-inch Clear Ice Maker (shown)

Inspire

“The most well built commercial product for the residential home.”

Mike Placido , Assistant Sales Manager

Atherton Appliance & Kitchens

15-inch Signature Series Clear Ice Maker (left) and 24-inch Signature Series Dual-Zone Outdoor Refrigerator/Freezer Drawers (right)

gather

outdoor

models

Designed to complement any outdoor kitchen or entertainment space, Perlick’s line of Signature Series and C-Series Outdoor units feature unprecedented quality and durability.

The Signature Series Outdoor line includes a freezer, refrigerator, wine reserve, beverage center and 1-, 2or 3-tap beer dispenser to complement any outdoor entertainment area.

Perlick now oers an outdoor refrigerator as part of its C-Series product line. These stylish and functional units can hold up to 108 bottles of beer with room left over to store food for the grill.

OUTDOOR

MODELS

15-, 24- and 48-inch Signature Series C-Series

dual-zone

series

outdo or mode ls

15” Signature Series

HP15RO-3R

HP15TO-1R

HP15BO-3R HP15WO-3R HP15RO-1R HP15RO-5

HP15

Overall Width 14-7/8” (37.783 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 3.0 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsAvailable

Shipping Weight 175 lbs.

• Refrigerator

• Wine Reserve

• Beverage Center

Models

• Beer Dispenser

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door 5 - stainless steel drawers

Door Styles

6 - integrated wood overlay drawers

Temperature 30° to 42° F Door Styles Available 1, 2, 3, 4, 5, 6

• Industry Exclusive Refrigerator Drawers tall enough to store milk gallons and Corona bottles

• Two (2) Industry Exclusive full-extension pullout

Refrigerator

shelves

Temperature 30° to 48° F Door Styles Available 1, 2, 3, 4

• Two (2) wine shelves, one (1) Industry Exclusive fullextension pullout shelf; each wine shelf holds four

Center

Beverage

Wine

Beer

(4) bottles of wine

Temperature 40° to 68° F Door Styles Available 1, 2, 3, 4

• Five (5) wine shelves to hold a total of 20 wine bottles

Reserve

• Shelves are removable and adjustable to accommodate magnum bottles

Temperature 30° to 42° F Door Styles Available 1, 2

• Complete, self-contained beer system

• Portable drainer; no plumbing required

• Will hold one 1/6 keg

Dispenser

24” Signature Series

HP24RO-3R HP24BO-3R HP24WO-3R HP24FO-5 HP24RO-1R

HP24TO-1R2

HP24

Temperature -10° to 10° F Door Styles Available 1, 2, 5, 6

• Two (2) Industry Exclusive full-extension pullout

Freezer

shelves (drawer models excluded)

OUTDOOR

MODELS

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.2 cu. ft. Voltage 115/60/1 Amps 2.3

SpecicationsAvailable

Shipping Weight 191 - 222 lbs.

• Freezer

• Refrigerator

• Wine Reserve

• Beverage Center

Models

• Beer Dispenser

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door 5 - stainless steel drawers

Door Styles

6 - integrated wood overlay drawers

Temperature 30° to 42° F Door Styles Available 1, 2, 3, 4, 5, 6

• Industry Exclusive Refrigerator Drawers tall enough to store milk gallons and Corona bottles

• Two (2) Industry Exclusive full-extension pullout

Refrigerator

shelves (drawer models excluded)

Temperature 30° to 48° F Door Styles Available 1, 2, 3, 4

• Two (2) wine shelves, one (1) Industry Exclusive full-

Center

Beverage

Wine

Beer

extension pullout shelf; each wine shelf holds eight (8) bottles of wine

Temperature 40° to 68° F Door Styles Available 1, 2, 3, 4

• Five (5) wine shelves to hold a total of 40 wine

Reserve

bottles

• Shelves are removable and adjustable to accommodate magnum bottles

Temperature 30° to 42° F Door Styles Available 1, 2

• Complete, self-contained beer system

• Portable drainer; no plumbing required

Dispenser

• Will hold one 1/4 keg or two 1/6 kegs

outdo or mode ls

48” Signature Series

HP48RR-O-5-5

HP48*

Overall Width 41-7/8” (121.603 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 12.0 cu. ft. Voltage 115/60/1 Amps 2.3 Shipping Weight 360 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 3 - stainless steel glass door 4 - integrated wood overlay glass door 5 - stainless steel drawers

Door Styles

6 - integrated wood overlay drawers

• Low-E, UV-coated glass provides industryleading insulation and protection (glass door option)

• Interior digital display is located on the inside

Features

of the unit and is therefore protected from the elements

*Multiple 48” outdoor congurations are available. See page 77 for complete list of models.

HP48RT-O-3L-1R2

Rerigerator=Refrigerator HP48RR-O

• Industry Exclusive refrigerator drawers tall enough to store milk gallons and Corona bottles

• Two (2) Industry Exclusive full-extension pullout shelves (per zone, drawer models excluded)

Refrigerator

• Refrigerator temperature: 30° to 42°F

Refrigerator=

• Refrigerator door styles: 1, 2, 3, 4, 5, 6

Refrigerator/Beer Dispenser HP48RT-O

• Beer dispenser is a complete, self-contained beer system; includes a portable drainer, so no plumbing is required

• Available with one (1), two (2) or three (3) taps to accommodate up to three dierent types of beer

Refrigerator/

• Will hold a variety of keg congurations (see page 55

Beer Dispenser

for diagrams)

• Refrigerator zone temperature: 30° to 42°F

• Beer Dispenser zone temperature: 30° to 42°F

• Refrigerator zone door styles: 1, 2, 3, 4, 5, 6

• Beer Dispenser zone door styles: 1, 2

C-Series

DESIGNinspiration

Need refrigeration for your outdoor kitchen or entertaining space? Turn to Perlick. Perlick boasts the widest selection of outdoor models in the industry. Available in 15-, 24- and 48inch conﬁgurations, there is sure to be a Perlick that will meet your food and beverage refrigeration needs.

HC24RO-1R HC24RO-5

HC24RO

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.3 cubic ft. Voltage 115/60/1 Amps 3.8 Shipping Weight 183 lbs.

1 - solid stainless steel door 2 - integrated solid wood overlay door 5 - stainless steel drawers 6 - integrated wood overlay drawers

Door Styles

• Refrigerator rated for both food and beverage storage

• Best in Class 700-Btu commercial-grade compressor

Features

OUTDOOR

MODELS

Models

Available

15” Outdoor Signature Series Refrigerator

HP15RO-1L* 15” refrigerator with solid stainless steel door, hinge left

HP15RO-2L* 15” refrigerator with integrated solid wood overlay door, hinge left

HP15RO-3L* 15” refrigerator with stainless steel glass door, hinge left

HP15RO-4L* 15” refrigerator with integrated wood overlay glass door, hinge left

HP15RO-5 15” refrigerator with solid stainless steel drawers

HP15RO-6 15” refrigerator with integrated solid wood overlay drawers

15” Outdoor Signature Series Beverage Center

HP15BO-1L* 15” beverage center with solid stainless steel door, hinge left

HP15BO-2L* 15” beverage center with integrated solid wood overlay door, hinge left

HP15BO-3L* 15” beverage center with stainless steel glass door, hinge left

HP15BO-4L* 15” beverage center with integrated wood overlay glass door, hinge left

15” Outdoor Signature Series Wine Reserve

HP15WO-1L* 15” wine reserve with solid stainless steel door, hinge left

HP15WO-2L* 15” wine reserve with integrated solid wood overlay door, hinge left

HP15WO-3L* 15” wine reserve with stainless steel glass door, hinge left

HP15WO-4L* 15” wine reserve with integrated wood overlay glass door, hinge left

15” Outdoor Signature Series Beer Dispenser

HP15TO-1L* 15” beer dispenser with solid stainless steel door, hinge left

HP15TO-2L* 15” beer dispenser with integrated solid wood overlay door, hinge left

24” Outdoor Signature Series Freezer

HP24FO-1L* 24” freezer with solid stainless steel door, hinge left

HP24FO-2L* 24” freezer with integrated solid wood overlay door, hinge left

HP24FO-5 24” freezer with solid stainless steel drawers

HP24FO-6 24” freezer with integrated solid wood overlay drawers

24” Outdoor Signature Series Refrigerator

HP24RO-1L* 24” refrigerator with solid stainless steel door, hinge left

HP24RO-2L* 24” refrigerator with integrated solid wood overlay door, hinge left

HP24RO-3L* 24” refrigerator with stainless steel glass door, hinge left

HP24RO-4L* 24” refrigerator with integrated wood overlay glass door, hinge left

HP24RO-5 24” refrigerator with solid stainless steel drawers

HP24RO-6 24” refrigerator with integrated solid wood overlay drawers

24” Outdoor Signature Series Beverage Center

HP24BO-1L* 24” beverage center with solid stainless steel door, hinge left

HP24BO-2L* 24” beverage center with integrated solid wood overlay door, hinge left

HP24BO-3L* 24” beverage center with stainless steel glass door, hinge left

HP24BO-4L* 24” beverage center with integrated wood overlay glass door, hinge left

24” Outdoor Signature Series Wine Reserve

HP24WO-1L* 24” wine reserve with solid stainless steel door, hinge left

HP24WO-2L* 24” wine reserve with integrated solid wood overlay door, hinge left

HP24WO-3L* 24” wine reserve with stainless steel glass door, hinge left

HP24WO-4L* 24” wine reserve with integrated wood overlay glass door, hinge left

24” Outdoor Signature Series Beer Dispenser

HP24TO-1L* 24” beer dispenser with solid stainless steel door, hinge left

HP24TO-2L* 24” beer dispenser with integrated solid wood overlay door, hinge left

48” Outdoor Signature Series

HP48RR-O 48” refrigerator=refrigerator

HP48RT-O 48” refrigerator/beer dispenser

Available Door Styles

Refrigerator

Beer Dispenser

1 2 3 4 5 6

1 - Solid stainless steel door 2 - Solid wood overlay door 3 - Stainless steel glass door 4 - Wood overlay glass door 5 - Solid stainless steel drawers 6 - Solid wood overlay drawers

* Also available with right hinge

24” C-Series Refrigerator

HC24RO-1L* 24” Commercial-Series refrigerator with solid stainless steel door, hinge left

HC24RO-2L* 24” Commercial-Series refrigerator with integrated solid wood overlay door, hinge left

HC24RO-5 24” Commercial-Series refrigerator with solid stainless steel drawers

HC24RO-6 24” Commercial-Series refrigerator with integrated solid wood overlay drawers

15” Signature Series Clear Ice Maker

HMOIMS-L 15” clear ice maker with solid stainless steel door, hinge left

HMOIMS-R 15” clear ice maker with solid stainless steel door, hinge right

HMOIMW 15” clear ice maker with solid wood overlay door, hinge left or right

OUTDOOR

MODELS

15” ADA-Compliant Series Clear Ice Maker

HMOIMS-ADL 15” ADA-Compliant clear ice maker with solid stainless steel door, hinge left

HMOIMS-ADR 15” ADA-Compliant clear ice maker with solid stainless steel door, hinge right

HMOIMW-AD 15” ADA-Compliant clear ice maker with solid wood overlay door, hinge left or right

Model & Series

quick reference

Overall

Dimensions Shelving Capacity

Door Styles

Available

UL Rated for

Outdoor

15” Signature Series

HP15RS

HP15RO

14-7/8”W x 24” x 34-1/4” 2 full-extension

pullout shelves*

3.0 cu. ft. 1 4 2 5 3 6

HP15RO

REFRIGERATOR

24” Signature Series

HP24RS

HP24RO

24” C-Series

HC24RB

23-7/8” x 24” x 34-1/4”

2 full-extension pullout shelves*

5.2 cu. ft.

5.3 cu. ft.

1 4

2 5 3 6

1 4

2 5

HP24RO

HC24RO

3 6

ADA-Compliant

Series

HA24RB

18” Shallow-Depth

Series

23-7/8” x 24” x 32”

23-7/8” x 18” x 32”

2 full-extension pullout shelves*

4.8 cu. ft.

3.8 cu. ft.

1 4

2 5 3 6

1 3

2 4

N/A

HH24RS

15” Signature Series

HP15BS

HP15BO

24” Signature Series

HP24BS

HP24BO

14-7/8”W x 24” x 34-1/4” 1 full-extension

pullout shelf + 2 wine

shelves

23-7/8” x 24” x 34-1/4”

1 full-extension

pullout shelf + 2 wine

shelves

3.0 cu. ft. 1 3 2 4

5.2 cu. ft.

1 3

2 4

HP15BO

HP24BO

BEVERAGE CENTER

24” C-Series

HC24BB

ADA-Compliant

Series

HA24BB

18” Shallow-Depth

Series

23-7/8” x 24” x 34-1/4”

23-7/8” x 24” x 32”

23-7/8” x 18” x 32”

HH24BS

Door Styles For Every Design

Perlick has a variety of door styles to complement any design. The numbered images below coordinate with the “Door Styles Available” column in the Quick Reference chart. All doors can be hinged left or right, and wood overlay doors are fully integrated for a seamless look.

Solid Stainless

Steel Door

1 2 3

Solid Wood

Overlay

1 full-extension

pullout shelf + 2 wine

shelves

1 full-extension

pullout shelf + 2 wine

shelves

1 full-extension

pullout shelf + 2 wine

shelves

Stainless Steel

Glass Door

5.3 cu. ft.

4.8 cu. ft.

3.8 cu. ft.

Wood Overlay

Glass Door

1 3

N/A

2 4

1 3

N/A

2 4

1 3

N/A

2 4

4 5 6

Solid Stainless

Steel Drawers

Solid Wood

Overlay Drawers

WINE RESERVE

Overall

Model & Series

15” Signature Series

HP15WS

Dimensions Shelving Capacity

14-7/8”W x 24” x 34-1/4” 5 full-extension

pullout wine shelves

3.0 cu. ft.

(20 wine bottles)

Door Styles

Available

1 2 3 4

UL Rated for

Outdoor

HP15WO

24” Signature Series

HP24WS

HP24WO

24” C-Series

HC24WB

ADA-Compliant

Series

HA24WB

18” Shallow-Depth

Series

HH24WS

23-7/8” x 24” x 34-1/4”

23-7/8” x 24” x 32”

23-7/8” x 18” x 32”

5 full-extension

pullout wine shelves

5 full-extension

pullout wine shelves

5 full-extension

pullout shelves

5 full-extension

pullout wine shelves

5.2 cu. ft.

(40 wine bottles)

5.3 cu. ft.

(40 wine bottles)

4.8cu. ft.

(40 wine bottles)

3.8 cu. ft.

(20 wine bottles)

1 3 2 4

1 3

2 4

1 3

2 4

HP24WO

N/A

15” Signature Series

HP15TS HP15TO

14-7/8”W x 24” x 34-1/4” Not Available 3.0 cu. ft.

(one 1/6 keg)

1 2 HP15TO

BEER DISPENSER

FREEZER

MAKER

CLEAR ICE

24” Signature Series

HP24TS HP24TO

24” Signature Series

HP24FS HP24FO

ADA-Compliant

Series

HA24FB

15” Signature Series

H50IMS

ADA-Compliant

Series

H50IMS-AD

24” Refrigerator/

Freezer Drawers HP24ZS/HP24ZO

23-7/8” x 24” x 34-1/4” Not Available 5.2 cu. ft.

(up to 1/4 keg)

23-7/8” x 24” x 34-1/4”

2 full-extension

5.2 cu. ft.

pullout shelves*

23-7/8” x 24” x 32”

2 full-extension

4.8 cu. ft.

pullout shelves*

14-7/8” x 22-5/8” x 33-1/2”

Not Available

22 lbs. of ice

(produces 55 lbs.

of ice/day)

14-7/8” x 22-5/8” x 31-1/2”

Not Available

22 lbs. of ice

(produces 55 lbs.

of ice/day)

23-7/8” x 24” x 34-1/4”

Not Available

5.2 cu. ft.

(Drawer Model)

1 2 HP24TO

1 5

HP24FO

2 6

1 5

N/A

2 6

1 2

5 6

H50IMS

H50IMS-AD

HP24ZO

REFERENCE

QUICK

24” Refrigerator/

Wine Reserve

HP24CS/HP24CO

23-7/8” x 24” x 34-1/4”

1 full-extension

pullout shelf + 3 wine

shelves

5.0 cu. ft.

1 3

2 4

HP24CO

MODELS

NEW DUAL-ZONE

24” Wine Reserve/

Wine Reserve

HP24DS/HP24DO

23-7/8” x 24” x 34-1/4”

6 + 1/2 wine shelves

5.0 cu. ft.

1 3

2 4

* Door models only; drawer models excluded

HP24DO

Model & Series

quick reference

Overall

Dimensions Shelving Capacity

Door Styles Available

Left Right

UL Rated for

Outdoor

48” Signature Series

Freezer/Refrigerator

HP48FR

47-7/8”W x 24” x 34-1/4” 2 full-extension

pullout shelves (L)*

2 Full-extension

pullout shelves (R)*

11 cu. ft. 1 5

2 6

1 4

2 5 3 6

N/A

48” Signature Series

48-inch Models

48” Signature Series

Refrigerator/

Refrigerator

HP48RR

Refrigerator/

Beverage Center

HP48RB

Refrigerator/

Beer Dispenser

HP48RT

Refrigerator/

Wine Reserve

HP48RW

47-7/8”W x 24” x 34-1/4” 2 full-extension

pullout shelves (L)*

2 Full-extension

pullout shelves (R)*

47-7/8”W x 24” x 34-1/4” 2 full-extension

pullout shelves (L)*

2 full-extension wine shelves + 1 full-extension pullout shelf (R)

47-7/8”W x 24” x 34-1/4” 2 full-extension

pullout shelves (L)*

47-7/8”W x 24” x 34-1/4” 2 full-extension

pullout shelves (L)*

6 full-extension

wine shelves (R)

12 cu. ft. 1 4

2 5 3 6

12 cu. ft 1 4

2 5 3 6

12 cu. ft 1 4

2 5 3 6

11 cu. ft 1 4

2 5 3 6

1 4

HP48RR-O 2 5 3 6

1 3

N/A

2 4

1 2 HP48RT-O

1 3

N/A

2 4

48” Signature Series

Wine Reserve/

Wine Reserve HP48WW/WO

* Door models only; drawer models excluded

47-7/8”W x 24” x 34-1/4” 4 full-extension

wine shelves (L)

6 full-extension

wine shelves (R)

11 cu. ft

(WW)

12 cu. ft.

(WO)

1 3 2 4

1 3

2 4

N/A

“Perlick is an environmentally responsible manufacturer. We recycle everything ...from paper to stainless steel and everything in between. We even have our own

Doing Our Part

At Perlick, we take great pride in the designations and certications we’ve earned for our green practices. We believe that environmentally friendly manufacturing is just as important as the products that we put our name on.

Our commitment to environmental initiatives has earned us certication by the Wisconsin Green Tier Program. This designation is given to manufacturers that continually evolve their eorts to meet high standards set toward superior environmental performance. We take extra steps to run our facility in an environmentally conscious manner, including housing our own water purication system inhouse to ensure the water we send out of the plant is as clean as the water coming in.

environmental

responsibility

water treatment facility on-site to make sure the water we send out of Perlick is clean and not harmful to the environment.”

Je Wimberly, VP of Sales, Perlick Corporation

Perlick is proud to oer a wide variety of products that have earned the Energy Star label. These products are identied as energy-ecient by the EPA because of their reduced greenhouse gas emissions and their signicant energy savings nationwide. When you see the Energy Star label on one of our many Perlick products, you know that you are purchasing a product that is energy-ecient without sacricing features and performance.

Several Perlick products also meet Consortium for Energy Eciency (CEE) specications for energy performance. These residential initiatives promote greater availability of high-eciency appliances, lighting, HVAC systems and gas heating to consumers. CEE identies energy saving opportunities in the residential market, as the products and equipment it covers counts for a sizable portion of a typical household’s energy bill.

Products that have earned the Energy Star label are clearly marked throughout this design guide.

(From upper left counterclockwise): Two (2) 24-inch

Wine Reserves (stacked), 48-inch Refrigerator/

Beverage Center, 15-inch Beer Dispenser– All with

custom wood overlay

make it your own

door styles

We love stainless steel, but that doesn’t mean you have to. Perlick doors and drawers are manufactured to readily accept a fully-integrated wood panel, which means you can seamlessly blend any of our units into your new or existing cabinetry. Wood panels are built to Perlick specications by your cabinetmaker, which means you are in full control of the wood, design and nish of your doors and drawers.

Perlick is the only manufacturer to feature a Convertible Door Design, which means any of our doors can be converted to wood overlay from stainless steel. As the look of your space changes, so can the look of your Perlick. Wood overlays are simple to install, which means you can change out panels to match new cabinetry or decor. Visit perlick.com to download wood overlay templates and create your custom look today.

Available Door Styles

Solid Stainless

Steel Door

Solid Wood

Overlay Door

Stainless Steel

Glass Door

Wood Overlay

Glass Door

Stainless Steel

Drawers

DOOR STYLES

Wood Overlay

Drawers

make it your own

SHELVING

accessories

Perlick oers an array of accessories to complement any of our quality refrigeration products. Whether it is one of our exclusive martini shelves, stacking kits or our commercialquality tapping products, we have the right accessories to put the personal touch on your Perlick. Each accessory is designed for each application and maintains the highest quality and craftsmanship.

RS-15-15R Shelf,

Refrigerator 15”

RS-24-24M Shelf,

Martini Rack 24”

RS-15-15WS Shelf, Wine

15” (stainless steel front)

RS-24-24DS Shelf,

Divider

RS-24-24R Shelf,

Refrigerator 24”

RS-18-18R Shelf,

Refrigerator (18” Depth)

RS-24-24WS Shelf, Wine 24” (stainless steel front)

RS-18-18W Shelf, Wine

(18” Depth)

displays / wine shelf fronts

65629 Wine Bottle

Display Rack 24”

67115-15 Wine Shelf

wood faces 15” (6)

67115-24 Wine Shelf

wood faces 24” (6)

65305-4 Drawer Handle (15” Signature Series Only)

65305-1 Door Handle (Signature Series Only)

handles / hardware

65870 Door Handle (C-Series, ADA-Compliant, Shallow-Depth Only)

6”

67164 6” Toe Kick Kit for

ADA-Compliant Series

67360 6” Toe Kick Kit for 18” Shallow-Depth Series

(L) Factory Installed

Door Lock

67439L/67439R Left (L)

or Right (R) Door Hinge Kit

toe kicks / RISERS

68117-1 Optional SS Toe

Kick for Ice Makers

66736 Casters (add -15 for

15”, -24 for 24” units)

HP15/HP24/HP48

Stacking Kits

BLC4/BLC32 Sanitizer, 4-

or 32-oz. bottle

63797 Cleaning Kit

Beer dispenser / ice maker accessories

63992 European Keg

Coupler, Kit

63802 Pump for

Clear Ice Maker

308-40B Faucet Lock

67782 Drip Pan for Beer

Dispenser

67141-1 Perlick

Faucet Handle

ACCESSORIES

50" Area in which

Drawers

Signature Series HP15 Models

 Leg leveler can add 3/4" to these dimensions when fully extended.

SCALE: 1:10

DR.:

PRINTED

DATE:

7/31/2012

95004

9/30/09DAS

SHEET 3 OF 3

Power cord 65/8" off floor.*

" 11 17

7/31/2012 10:39 AM

" Values may change

due to custom pull

with a wood overlay door.

Drawers

Signature Series HP15 Models

 Leg leveler can add 3/4" to these dimensions when fully extended.

Signature Series HP15 Models

 Leg leveler can add 3/4" to these dimensions when fully extended.

24"

" Values may change

due to custom pull

with a wood overlay door.

4 1/4" Lowest shelf location.

2" Shelf

adjustability.

" 18

" 6

50" Area in which

electrical outlet must be located

" Min.

clearance from

a corner to acheive 90 door swing.

11"

Signature Series HP15 Models

 Leg leveler can add 3/4" to these dimensions when fully extended.

DATE:

SCALE: 1:10

DR.:

DAS

9/30/09

24"

(with 1/16" tolerance)

" Values may change

due to custom pull

with a wood overlay door.

Power cord 65/8" off floor.*

90° Swing

required for

 Leg leveler can add 3/4" to these dimensions when fully extended.

DATE:

SCALE: 1:10

DR.:

DAS

9/30/09

Signature series

15”

" Min.

clearance from

a corner to

acheive 90

door swing.

specifications

50" Area in which

electrical outlet must be located

Power cord 65/8" off floor.*

11"

90° Swing

required for

pullout shelf

clearance.

50" Area in which

electrical outlet must be located

Min clearance for door swing

Power cord 65/8" off floor.*

Door Models

" 1

" 8 21

PERLICK CORPORATION

MILWAUKEE, WI 53223

Drawer Models

pullout shelf

clearance.

11"

148"

Min clearance for door swing

*3 7/8"

" *34

" Values may change

due to custom pull

with a wood overlay door.

24"

(with

1/16" tolerance)

" 6

" Values may change

due to custom pull

with a wood overlay door.

24"

(with

1/16" tolerance)

" 18

2" Shelf

adjustability.

4 1/4" Lowest shelf location.

Inside drawer

(Top & Bottom)

9 3/16" Max.

" 11 17

* -Leg leveler can add 3/4” to these dimensions when fully extended

Overall Width 14-7/8” (37.78 cm)

*3 7/8"

product ht.

"*34

10 3/4" Max.

product ht.

For complete specications, including drawings

of the 15” Beer Dispenser, visit perlick.com.

" 6

Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 3.0 cu. ft. Minimum Height Required 34-3/8” (87.31 cm) Electrical 115V, 60Hz, 1 Phase AC, 2.3 amps Plumbing none required

7 5/16" Max.

product ht.

20"

50" Area in which

electrical outlet must be located

SCALE: 1:10

DAS

DR.:

DATE:

9/30/09

when fully extended.

 Leg levelers can add

3/4" to these dimensions

Signature Series HP24 Models

Power cord 65/8" off floor. *

90° Swing

required for

50" Area in which

when fully extended.

 Leg levelers can add

3/4" to these dimensions

Signature Series HP24 Models

1/16" tolerance)(with

24"

" Values may change

due to custom pull

with a wood overlay door.

50" Area in which

electrical outlet must be located

when fully extended.

 Leg levelers can add

3/4" to these dimensions

Signature Series HP24 Models

SCALE: 1:10

DAS

DR.:

DATE:

9/30/09

Power cord 65/8" off floor. *

17 "

Inside Drawer

(Top & Bottom)

25 7/16" Value may change

due to custom pull

with a wood overlay door.

when fully extended.

 Leg levelers can add

3/4" to these dimensions

Signature Series HP24 Models

Signature series

" Min.

clearance from

a corner to acheive 90 door swing.

electrical outlet must be located

Power cord 65/8" off floor. *

20"

90° Swing required for

pullout shelf

clearance.

Min clearance

for door swing.

24”

pullout shelf

clearance.

Door Models

20"

Min clearance

for door swing.

specifications

" Values may change

due to custom pull

with a wood overlay door.

24"

1/16" tolerance)(with

" 6

2" Shelf

adjustability.

" Lowest

shelf location.

50" Area in which

electrical outlet must be located

* -Leg leveler can add 3/4” to these dimensions when fully extended

Overall Width 23-7/8” (60.64 cm)

Inside Drawer

(Top & Bottom)

Power cord 65/8" off floor. *

17 "

" 8 1

Overall Height 34-1/4” (86.96 cm)

Drawer Models

23 "

For complete specications, including drawings

25 7/16" Value may change

due to custom pull

with a wood overlay door.

(with

" 17

24"

1/16" tolerance)

" 6

*3 7/8"

" 8 1

"7*34

9 3/16" Max.

10 3/4" Max.

product ht.

of the 24” Beer Dispenser, visit perlick.com.

5 9/16" Max.

product ht.

SPECIFICATIONS

Overall Depth 24” (60.96 cm) Capacity 5.2 cu. ft. Minimum Height Required 34-3/8” (87.31 cm) Electrical 115V, 60Hz, 1 Phase AC, 2.3 amps Plumbing none required

50" Area in which

Signature Series HP48 Models

50" Area in which

Signature Series HP48 Models

Signature series

48”

specifications

 Leg leveler can add 3/4" to these dimensions when fully extended.

25 7/16" Values may change

due to custom pull

with a wood overlay door.

24"

(with 1/16" tolerance)

2" Shelf

adjustability.

6 3/16" Lowest

shelf location.

18 1/8"

19 5/8"

5 1/4"

1 11/16"

26 9/16"

1 1/4" Min.

clearance from

a corner to

acheive 90

door swing.

1 11/16"

electrical outlet must be located.

12 1/4"

19 5/8"

5 1/4"

22"

90° Swing required for pullout shelf

clearance.

Power cord 81/4" off floor.*

44"

24 15/16" Min. clearance for door swing.

47 7/8"

6 3/8"

11 3/4"

26 9/16" 19 7/8" 19 7/8"

20 5/8"

*34 5/16"

1 11/16"

26 9/16"

24 7/8"

25 7/16" Values may change

due to custom pull

with a wood overlay door.

24"

(with 1/16" tolerance)

20 11/16"

2" Shelf

adjustability.

2 1/4" Lowest shelf location.

electrical outlet must be located.

5 9/16" Max.

product ht.

 Leg leveler can add 3/4" to these dimensions when fully extended.

25 7/16" Values may change

due to custom pull

with a wood overlay door.

24"

1/16" tolerance)

(with

17 1/4"

3 3/16" 6 3/4" 10 1/2"

6 3/16"

8 3/8"

1 3/8"

9 3/16" Max.

product ht.

10 3/4" Max.

product ht.

12 1/4"

17 11/16"

Power cord 81/4" off floor.*

17 13/16"

Inside drawer

(Top & Bottom)

47 7/8"

17 13/16"

Inside drawer

(Top & Bottom)

*34 5/16"

9 3/16" Max.

product ht.

10 3/4" Max.

product ht.

6 3/16"

For complete specications, including drawings of

the 48” Beer Dispenser/Refrigerator, visit perlick.com.

Overall Width 47-7/8” (121.60 cm)

25 7/16" Values may change

due to custom pull

with a wood overlay door.

24"

(with

1/16" tolerance)

17 1/4"

Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 11.0-12.0 cu. ft. Minimum Height Required 34-3/8” (87.31 cm) Electrical 115V, 60Hz, 1 Phase AC, 2.3 amps Plumbing none required

50" Area in which

CSERIES HC24 CABINET

* Leg leveler can add

3/4" to these dimensions when fully extended.

1/16" tolerance)

24"

(with

" Values may change

due to custom pull

with a wood overlay door.

20"

50" Area in which

electrical outlet must be located.

CSERIES HC24 CABINET

* Leg leveler can add

3/4" to these dimensions when fully extended.

JMP 4/20/2012

SCALE: 1:10

DR.:

DATE:

95079

Power cord 65/8" off floor.*

pullout shelf

required for

90° Swing

" Min.

50" Area in which

CSERIES HC24 CABINET

 Leg levelers can add 3/4" to these dimensions when fully extended.

" Values may change

due to custom pull

with a wood overlay door.

5 9/16" Max.

50" Area in which

JMP

DATE:

DR.:

SCALE: 1:10

4/20/2012

CSERIES HC24 CABINET

* Leg levelers can add

3/4" to these dimensions when fully extended.

Power cord 65/8" off floor.*

Inside Drawer

(Top & Bottom)

*3 7/8"

C-Series

" Min.

clearance from

a corner to acheive 90 door swing.

electrical outlet must be located.

Power cord 65/8" off floor.*

20"

90° Swing

required for

pullout shelf

clearance.

Min. clearance

for door swing.

24”

clearance.

Door Models

20"

Min. clearance

for door swing.

*34

*3 7/8"

specifications

" Values may change

8 due to custom pull

with a wood overlay door.

24"

1/16" tolerance)

(with

2" Shelf

adjustability.

" Lowest

shelf location.

PRINTED

electrical outlet must be located.

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm)

" Values may change

Power cord 65/8" off floor.*

Inside Drawer

(Top & Bottom)

*34

10 13/16" Max.

10 3/4" Max.

product ht.

Drawer Models

238"

due to custom pull

with a wood overlay door.

24"

1/16" tolerance)(with

product ht.

SPECIFICATIONS

Overall Depth 24” (60.96 cm) Capacity 5.3 cu. ft. Minimum Height Required 34-3/8” (87.31 cm) Electrical 115V, 60Hz, 1 Phase AC, 2.3 amps Plumbing none required

50" Area in which

6 5/16" 11 7/8"

PRINTED

95009

10/1/09

UPPER DRAWER VOLUME

17 13/16" X 9 11/16" X 17 3/16" =

2965.85 CUBIC INCHES OR 1.716 CUBIC FEET

17 13/16"

[452]

17 3/16"

[437]

UPPER DRAWER VOLUME

17 13/16" X 9 11/16" X 17 3/16" =

2965.85 CUBIC INCHES OR 1.716 CUBIC FEET

BOTTOM DRAWER VOLUME

(17 13/16" X 9 11/16" X 10 7/16") + (17 13/16" X 4 1/2" X 6 11/16") =

2337.13 CUBIC INCHES OR 1.353 CUBIC FEET

ADA-compliant series

24”

7 9/16"

1 3/16" Min.

clearance from

a corner to

acheive 90

door swing.

specifications

electrical outlet must be located

Power cord 63/8" off floor.*

6 5/16"

11 7/8"

90.0° Swing required for

pullout shelf

clearance.

23 7/8"

20"

24 15/16" Min clearance for door swing

18 3/16"

Drawer Models

9 11/16"

[246]

17 13/16"

[452]

17 3/16"

[437]

9 11/16"

[247]

10 7/16"

[265]

4 1/2" [115]

6 11/16"

[170]

24" ADA Compliant HA24 Models

 Leg levelers can add 3/4" to these dimensions when fully extended.

25 3/8"

Values may change

due to custom pull

with a wood overlay door

24"

(with 1/16" tolerance)

18 3/16"

20 3/4"

3 1/2"

24 1/4"

* 3 7/8"

32"*

24 5/16"

20 13/16"

3 1/2"

Overall Width 23-7/8” (60.64 cm) Overall Height 32” (81.28 cm) Overall Depth 24” (60.96 cm) Capacity 4.8 cu. ft. Minimum Height Required 32-1/8” (81.60 cm) Electrical 115V, 60Hz, 1 Phase AC, 2.3 amps Plumbing none required

adjustability.

4 5/16" Lowest

shelf location.

2" Shelf

SCALE: 1:10

DR.:

JMP

DATE:

50" Area in which

18" SHALLOW DEPTH SERIES HH24 MODELS

shallow-depth series

1 1/4"* Min.

clearance from

a corner to

acheive 90°

door swing.

electrical outlet must be located.

2 5/8"

Power cord 2 3/16" off floor.*

90.0° Swing required for

pullout shelf

clearance.

23 7/8"

20"

4 13/16"

12 3/16"

7 3/8"20"

24 15/16" Min. clearance for door swing.

18”

* Leg levelers can add 3/4" to these dimensions when fully extended.

specifications

19 3/8" Values may change

due to custom pull

with a wood overlay door.

(with

1/16" tolerance)

12 3/16"

20 13/16"

24 5/16"

3 1/2"

*3 7/8"

32"

Overall Width 23-7/8” (60.64 cm) Overall Height 32” (81.28 cm) Overall Depth 18” (45.72 cm) Capacity 3.1 cu. ft.

24 5/16"

20 13/16"

3 1/2"

7 3/8"

4 13/16"

2" Shelf

adjustability.

4 1/4" Lowest shelf location.

SCALE: 1:6

SPECIFICATIONS

Minimum Height Required 32-1/8” (87.31 cm) Electrical 115V, 60Hz, 1 Phase AC, 2.3 amps Plumbing none required

NEW Signature series

HP24ZS/HP24ZO

24”

7 9/16"

DUAL-ZONE FREEZER/REFRIGERATOR DRAWERS specifications

50" Area in which

electrical outlet must be located.

Power cord 6-5/8" off floor.*

17 13/16"

Inside Drawer

(Top & Bottom)

17 5/8"

23 7/8"

*3 7/8"

1 3/8"

*34 1/4"

9 1/4"

Max.

product ht.

10 13/16"

Max.

product ht.

6 3/16"

8 3/8"

25 7/16" Values may

change due to custom

pull with a wood

overlay drawer.

24"

1/16" tolerance)

(with

17 5/16"

5 13/16"

11 1/2"

4 7/8"

7 1/4" Max.

product ht.

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm) Capacity 5.0 cu. ft. Minimum Height Required 34-3/8” (87.31 cm) Electrical 115V, 60Hz, 1 Phase AC, 2.3 amps Plumbing none required

NEW Signature series

50" Area in which

9 13/16"

HP24CS/HP24CO

7 9/16"

1 1/4" Min.

clearance from

a corner to

acheive 90

door swing.

24”

DUAL-ZONE refrigerator/wine reserve specifications

electrical outlet must be located.

Power cord 6-5/8" off floor.*

20"

90° Swing

required for

pull-out shelf

clearance.

6 5/16"

11 15/16"

24 15/16" Min. clearance for door swing.

26" Values may change

due to custom pull

with a wood overlay door.

23 7/8"

20"

*34 5/16"

9 13/16"

15/16"

14 1/8"

3 1/2"

15/16"

10 5/8"

3 1/2"

*3 7/8"

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm)

24 11/16"

18 1/4"

3 1/4" Typ.

Shelf

Spacing

10" Max.

product ht.

1 5/8" Shelf

ADJUSTABILITY

11 15/16" 6 5/16"

SPECIFICATIONS

Capacity 5.0 cu. ft. Minimum Height Required 34-3/8” (87.31 cm) Electrical 115V, 60Hz, 1 Phase AC, 2.3 amps Plumbing none required

NEW Signature series

HP24DS/HP24DO

SCALE: 1:14

24”

DUAL-ZONE refrigerator/wine reserve specifications

50" Area in which

electrical outlet must be located.

7 9/16"

1 1/4" Min.

clearance from

a corner to

acheive 90

door swing.

Power cord 6-5/8" off floor.*

6 5/16"

20"

11 15/16"

90° Swing

required for

pull-out shelf

clearance.

24 15/16" Min. clearance for door swing.

25 7/16" Values may change

due to custom pull

with a wood overlay door.

23 7/8"

20"

1 5/8"

9 13/16"

15/16"

*34 5/16"

10 5/8"

3 1/2"

*3 7/8"

9 13/16"

15/16"

14 1/8"

Overall Width 23-7/8” (60.64 cm) Overall Height 34-1/4” (86.96 cm) Overall Depth 24” (60.96 cm)

24 1/16"

18 1/4"

3 1/4" TYP.

SHELF

SPACING

3 1/2"

11 15/16" 6 5/16"

Capacity 5.0 cu. ft. Minimum Height Required 34-3/8” (87.31 cm) Electrical 115V, 60Hz, 1 Phase AC, 2.3 amps Plumbing none required

24-inch Signature Series Dual-Zone

Refrigerator/Wine Reserve (shown)

DOOR STYLES

8300 West Good Hope Road

Inspire

Milwaukee, WI 53223

800.558.5592 • www.perlick.com

Perlick HA24RB5, HC24BB3L, HP48RWS3L3R, HC24RB3R, HP24CS3R User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
