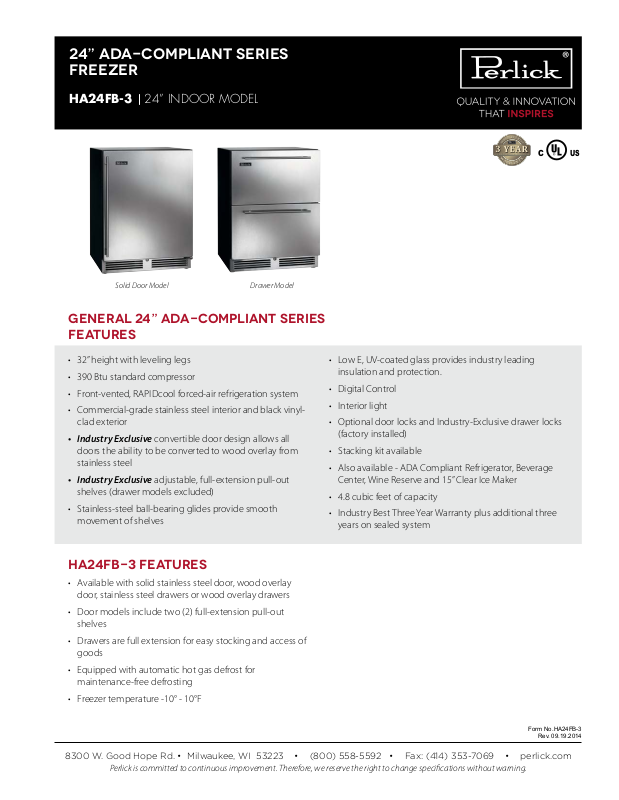

Perlick HA24FB-3 User Manual
24” ada-compliant series
freezer
HA24FB-3 24” Indoor Model
Solid Door Model
Drawer Model
general 24” ADA-Compliant series
features
• 32” height with leveling legs
• 390 Btu standard compressor
• Front-vented, RAPIDcool forced-air refrigeration system
• Commercial-grade stainless steel interior and black vinylclad exterior
• Industry Exclusive convertible door design allows all
doors the ability to be converted to wood overlay from
stainless steel
• Industry Exclusive adjustable, full-extension pull-out
shelves (drawer models excluded)
• Stainless-steel ball-bearing glides provide smooth
movement of shelves
C
• Low E, UV-coated glass provides industry leading
insulation and protection.
• Digital Control
• Interior light
• Optional door locks and Industry-Exclusive drawer locks
(factory installed)
• Stacking kit available
• Also available - ADA Compliant Refrigerator, Beverage
Center, Wine Reserve and 15” Clear Ice Maker
• 4.8 cubic feet of capacity
• Industry Best Three Year Warranty plus additional three
years on sealed system
US
HA24FB-3 features
• Available with solid stainless steel door, wood overlay
door, stainless steel drawers or wood overlay drawers
• Door models include two (2) full-extension pull-out
shelves
• Drawers are full extension for easy stocking and access of
goods
• Equipped with automatic hot gas defrost for
maintenance-free defrosting
• Freezer temperature -10° - 10°F
Form No.HA24FB-3
Rev. 09.19.2014
8300 W. Good Hope Rd. • Milwaukee, WI 53223 • (800) 558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without warning.
product specifications indoor models
50" Area in which
electrical outlet must be located
7 9/16"
24 15/16"
Min clearance
for door swing
18 3/16"
11 7/8"
6 5/16"
when fully extended.
*
- Leg levelers can add
3/4" to these dimensions
24" ADA Compliant HA24 Models
SCALE: 1:10
DR.:
PRINTED
DATE:
95009
10/1/09JMP
Power cord 6-3/8" off floor.*
90.0° Swing
required for
pull-out shelf
clearance.
50" Area in which
when fully extended.
*
- Leg levelers can add
3/4" to these dimensions
24" ADA Compliant HA24 Models
1/16" tolerance)
Value may change
with a wood overlay door.
24"
(with
1 1/2" Value may
change due to a
custom pull.
50" Area in which
when fully extended.
*
- Leg levelers can add
3/4" to these dimensions
24" ADA Compliant HA24 Models
Power cord 6-3/8" off floor.*
17 11/16"
SCALE: 1:10
DR.:
PRINTED
DATE:
95009
10/1/09JMP
50" Area in which
when fully extended.
*
- Leg levelers can add
3/4" to these dimensions
24" ADA Compliant HA24 Models
1/16" tolerance)
24"
(with
1 1/2" Value may
change due to a
Overall Width 23-7/8” (60.64 cm.)
Overall Height 32” (81.28 cm.)
Overall Depth 24” (60.96 cm.)
Opening Width 24” (60.96 cm.)
Opening Height 32-1/8” (81.60 cm.)
Opening Depth 24” (60.96 cm.)
Refrigerated Volume 4.8 cu. ft total
Door Swing Clearance 25” (63.50 cm.)
Electrical 115V, 60Hz., 1 Phase, 2.3 amps
Plumbing None Required
Shipping Weight 181 lbs (82.27 kg.)
Annual Energy
430 kWh
Consumption
HA24FB-3-1L*
HA24FB-3-2L*
HA24FB-3-5 Stainless steel drawers
HA24FB-3-6 Wood overlay drawers
*Also available with right hinge
Solid stainless steel door, hinged left
Solid wood overlay door, hinged left
1 1/2" Min.
clearance from
a corner to
acheive 90
door swing.
electrical outlet must be located
7 9/16"
7 9/16"
17 13/16"
Inside drawer.
(Top & Bottom)
Power cord 6-3/8" off floor.*
90.0° Swing
required for
pull-out shelf
clearance.
electrical outlet must be located
Power cord 6-3/8" off floor.*
23 7/8"
6 5/16"
18 3/16"
11 7/8"
20 3/4"
24 15/16"
Min clearance
for door swing
17 11/16"
3 1/2"
20"
23 7/8"
24 1/4"
* 3 7/8"
* 3 7/8"
1 1/2"
32"*
32"*
1 1/2" Value may
change due to a
custom pull.
24 5/16"
1 1/2" Value may
change due to a
custom pull.
9 11/16" Max.
product ht.
9 5/8" Max.
product ht.
20 13/16"
3 1/2"
6 3/16"
8 3/8"
24"
(with
1/16" tolerance)
Value may change
with a wood overlay door.
18 3/16"
6 5/16" 11 7/8"
24"
1/16" tolerance)
(with
Value may change with
a wood overlay.
17 1/4"
10 1/2" 6 3/4"
4 5/16" Lowest
shelf location.
3 3/16"
2" Shelf
adjustability.
4 7/16" Max.
product ht.
1 1/2"
Form No.HA24FB-3
Rev. 09.19.2014
8300 W. Good Hope Rd. • Milwaukee, WI 53223 • (800) 558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is committed to continuous improvement. Therefore, we reserve the right to change specications without warning.
