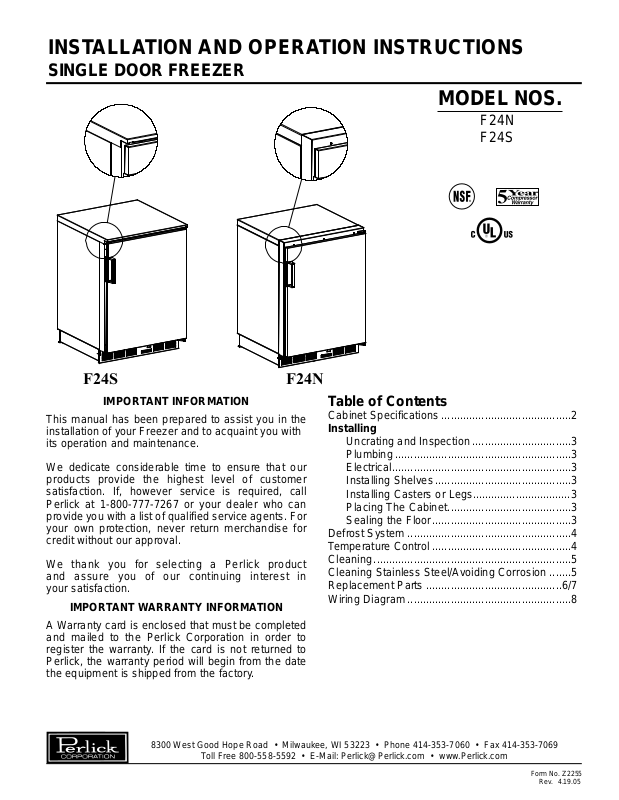

Perlick F24S User Manual

INSTALLATION AND OPERATION INSTRUCTIONS

SINGLE DOOR FREEZER

MODEL NOS.

F24N
F24S

F24S F24N

IMPORTANT INFORMATION

This manual has been prepared to assist you in the
installation of your Freezer and to acquaint you with
its operation and maintenance.

We dedicate considerable time to ensure that our
products provide the highest level of customer
satisfaction. If, however service is required, call
Perlick at 1-800-777-7267 or your dealer who can
provide you with a list of qualified service agents. For
your own protection, never return merchandise for
credit without our approval.

We thank you for selecting a Perlick product
and assure you of our continuing interest in
your satisfaction.

IMPORTANT WARRANTY INFORMATION

A Warranty card is enclosed that must be completed
and mailed to the Perlick Corporation in order to
register the warranty. If the card is not returned to
Perlick, the warranty period will begin from the date
the equipment is shipped from the factory.

Table of Contents

Cabinet Specifications ..........................................2

Installing

Uncrating and Inspection................................3

Plumbing.........................................................3

Electrical..........................................................3

Installing Shelves............................................3

Installing Casters or Legs

Placing The Cabinet........................................3

Sealing the Floor.............................................3

Defrost System .....................................................4

Temperature Control .............................................4

Cleaning................................................................5

Cleaning Stainless Steel/Avoiding Corrosion .......5

Replacement Parts ............................................6/7

Wiring Diagram.....................................................8

................................

3

8300 West Good Hope Road • Milwaukee, WI 53223 • Phone [phone] • Fax [phone]

Toll Free 800-558-5592 • E-Mail: [e-mail] • www.Perlick.com

Form No. Z2255

Rev. 4.19.05

Sizes and Specifications

+

ELEC TR IC AL

VE NT ILAT IO N

Single Door Freezer

MODEL NUMBERS

BLA CK DO OR F24NB F24SB
STAINLESS STEEL DOOR F24NS F24SS

SPECIFICATIONS

LENG TH (mm )
INTERIOR Cu. FT. (m3 )

GLAS S CAPAC ITY
CO ND ESING UNIT H .P .
AM PS
SH IP W T lb s. (kg)
INTERIOR

EXTERIOR

PLUM BING

INSULATION
TEMP ERA TU RE R ANGE

RE FR IG ERATION

DE FR OST SYS TE M

OP TION AL A CCESS ORIE S

Capacity calculations based on use of 3” dia. Glasses on standard shelving.

Both Models: Inner Liner is stainless steel. Includes two adjust­able vinyl coated shelves plus a bottom shelf

Back, top, and sid es are
galvanize d ste el

Both models: Fro nt is 20ga stainles s steel.
Doors are either black powder coat, 20ga C RS o r 20ga s tainless
steel. Bottom is 18ga galvanized steel with 20ga stainless

115V, 60Hz., 1 Phase. Furnish ed with 6 foot ru bber plu g-in c ord
None required. Moisture drains to self evaporating cond
in mach inery compartm en t
2 inch foamed-in-place polyurethane insulation
Adjus table from -1 0 to +10de g F (-23 to -12deg C)
R134a capillary tube type with hermetic condensing unit.
Fro nt ac cess fo r c ondenser and cleanin g
Fro nt vente d.

Solid-state, push button hot gas defrost system, manually initiated
at end of each day, automatically terminates after six hours.
Evaporator automatically defrosts every 4 hours for approximately
20 minutes (time/temperature terminated)

*Set of 4 c as ters (3 3/4 " h igh) P /N 65426
*Set of 4 a djustable legs (6" - 7 1/4" high) P /N 65 423

24" (6 10) 24" (6 10)

4.9 (0.14 ) 4.9 (0.14 )

86 Glasses 86 Glasses

1/5 HP 1/5 HP

2.0 2.0

145 (5 4) 145 (5 4)

Top a nd sides a re 20ga
sta inless steel
Back is galva nized steel

ens

grille

ate pan

DOOR SWING

23 7/8"

[610]

19 7/8"

[508]

34 1/2"

[887]

180

3 11/16"

[92]

8" [203]

8" [203]

8 7/16" [214]

TOP VIEW FRONT VIEW

Perlick is committed to continuous improvement. Therefore, we reserve the right to change specifications without prior notice.

30 9/16"

[776]

47 1/8"

[1197]

24 1/4"

29 1/4"

[743]

11 3/4"

[470]

5 9/16"
[141]

[615]

18 1/2"

[470]

25 3/4"

[654]

FINISHED

STAINLESS

TOP

NO FINISHED

TOP

END VIEW

2

Form No. Z2255

Rev. 4.19.05

Preparing the Cabinet – Single Door Freezer

TOP VIEW

SHOWN

Uncrating and Inspection

Remove all crating material before operating.
Carefully inspect cabinet for hidden damage.
If damage is discovered, file your claim immediately
with the transport company. Perlick is not
responsible for damage in transit.

Plumbing

No plumbing connections are required. Condensate
from the cooling coil is automatically evaporated
through a condensate pan located in the
condensing unit section.

Electrical

The cabinet must be connected to a separately
fused power source (see Electrical Specification
Plate) and grounded in accordance with National
and Local Electrical Codes.
CAUTION: Do not attempt to operate the equipment
on any other power source than that listed on the
Electrical Specification Plate.

Anti-tip (without Legs or Casters)

To prevent the cabinet from tipping forward and

to provide a stable installation, the cabinet must be
secured in place with an anti-tip device.

A set of metal anti-tip brackets and installation screws
(#10-3/4" wood screw) are supplied. These brackets

should be attached to the floor, at the back of the
cabinet; each bracket located to catch each rear
leveling leg when the cabinet is pushed backward
into position.

THE ANTI-TIP BRACKETS MUST CATCH EACH OF
THE LEVELING LEGS TO HAVE A STABLE AND

SAFE INSTALLATION.
Some installation sites might need to be modified to

provide a secure surface for attaching the bracket.
Refer to the illustration below for anti-tip mounting
bracket locations.

Placing the Cabinet

To assure maximum performance, fresh air must
be allowed to circulate through the machinery
compartment.

cabinet that would obstruct air flow at these grilles.
Do not place the unit in an unventilated small room.

Cabinet should be leveled front to back and side

to side.

Installing Casters or Legs (optional)

Attach casters or legs to the mounting bracket with
the lockwashers and 1/4-20 hex head nuts provided.
Attach bracket and leg/caster assembly to the side
of the cabinet base using the 1/4-20 hex head self­tapping machine screws provided.

Do not place anything in front of the
