Perlick DRLI1184 Owner Manual

24” C-SERIES
BEER DISPENSER

HC24TB-3-*** 24” INDOOR MODEL
HC24TO-3-*** 24” OUTDOOR MODEL

630SS Forward Sealing

Beer Faucet

Single Faucet Indoor

Two Faucet Indoor

GENERAL C-SERIES FEATURES

• Industry Exclusive front-vented RAPIDcool forced-air

refrigeraon system provides best-in-class cooling
performance

• Commercial-grade stainless steel interior. Indoor
models have black vinyl clad exterior; outdoor
models have stainless steel exterior

• All models available with stainless steel or panel
ready door. Panel ready doors come ready to accept
customer-supplied overlay and handle

HC24TB/TO FEATURES

• Available with stainless steel solid door or panel
ready solid door

• Industry Exclusive Perlick patented stainless steel
630SS Forward Sealing Beer Faucet

C

• Zero-clearance hinging allows for abutment with
surrounding cabinetry

• Interior light and digital control

• Comprehensive Full Three Year Warranty plus

addional three years on sealed system

US

• Air-cooled tower keeps beer cold from keg to tap

• Stores (1) 1/4 barrel or (2) 1/6 barrels

• Complete, self-contained beer system

• Portable drainer; no plumbing required

One 1/4 barrel

(standard or slim)

Two 1/6 barrel

• 1- or 2- faucet tapping kit

• Low prole coupler for “D” system keg values and

630SS standard beer faucet included

• Beer Dispenser temperature 33°- 42°F

FORM NO. Z2526

REV. A-09/07/2018

8300 W. Good Hope Rd. • Milwaukee, WI 53223 • [phone] • Fax: [phone] • perlick.com

Perlick is commied to connuous improvement. Therefore, we reserve the right to change specicaons without warning.

PRODUCT SPECIFICATIONS INDOOR MODELS

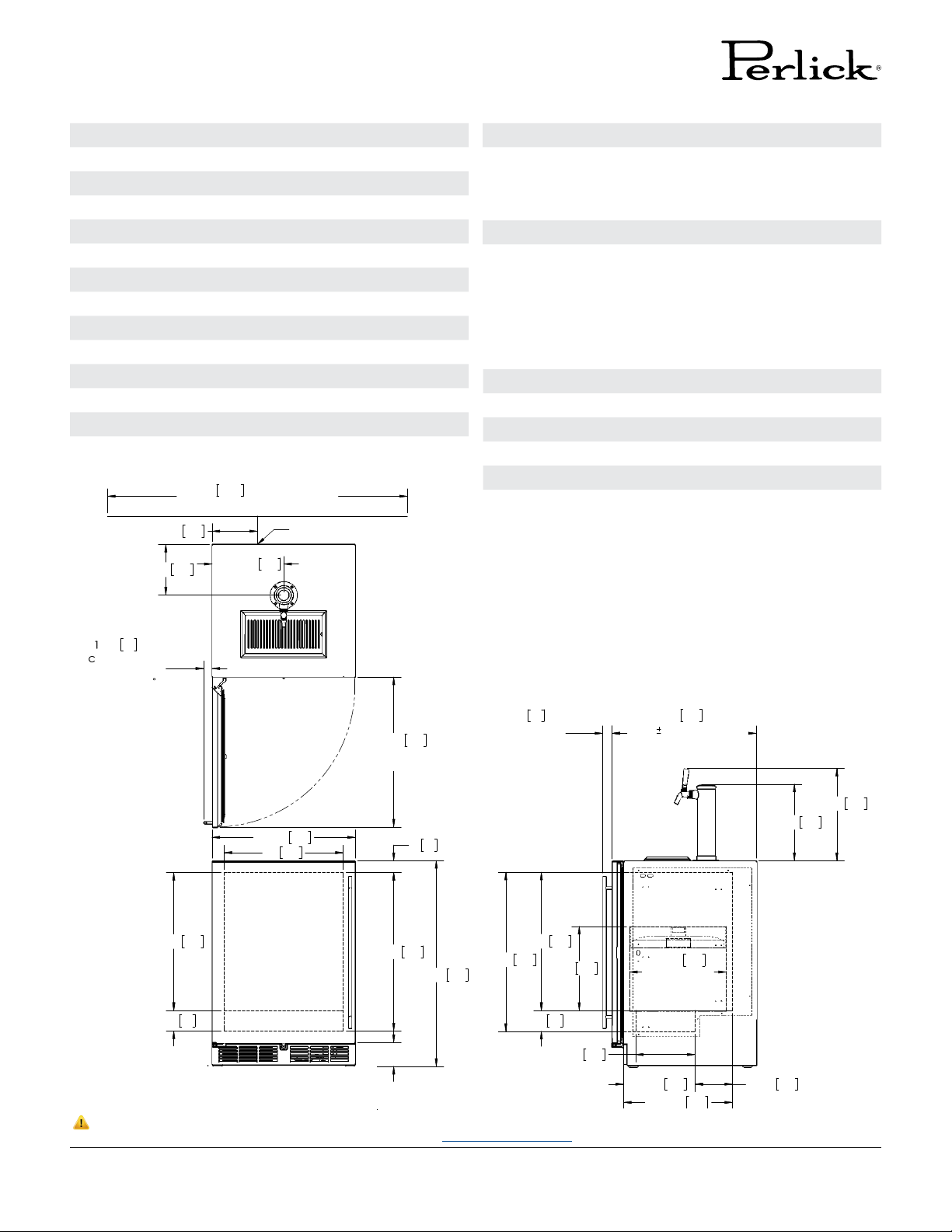

18 3/16" 461

SCALE: 1:10

DR.:

PRINTED

DATE:

9/5/2017

95079

4/20/2012JMP

SHEET 2 OF 4

RESIDENTIAL C-SERIES HC24 CABINET

Product Width 23-7/8” (606 mm.)

Product Height 34-1/4” (870 mm.)

Product Depth 24” (610 mm.)

Opening Width 24” (610 mm.)

Opening Height 34-1/2” (876 mm.)

Opening Depth** 24-7/8” (632 mm.)

Refrigerated Volume 5.2 cu. .

Door Swing Clearance 25” (635 mm.) minimum

Electrical 115V, 60Hz., 1 Phase, 2.3 amps

Compressor 525 BTU, standard

Plumbing None Required

Annual Energy Usage 305 kWh

Shipping Weight 222 lbs (100.7 kg.)

** Includes 7/8” plug clearance. To achieve 24” depth, you must recess the plug
into the wall directly behind the unit.

50" 1270 Area in which

electrical outlet must be located

7 9/16" 192

8 7/16"

214

11 15/16"

Power cord 6 5/8" [168] off floor. *

303

HC24TB-3-1L#* Stainless steel solid door, hinge le

HC24TB-3-2L#*† Panel ready solid door, hinge le

OUTDOOR MODELS

HC24TO-3-1L#* Stainless steel solid door, hinge le

HC24TO-3-2L#*† Panel ready solid door, hinge le

† This unit comes ready to accept customer-provided overlay panel and handle

# Add 1 for single faucet, 2 for two faucet

* Also available hinge right (R)

OPTIONAL ACCESSORIES

(L) Factory Installed Lock

66736 Caster Kit for HP24/HC24/HA24 models

63797 Beer Dispenser Cleaning Kit

40030S Keg Coupler, Lo-Boy “S” Series

308-40C Faucet Lock for C-Series 630SS Beer Faucets

BLC4/32 Beer Dispenser Sanizer (4oz. or 32 oz.)

Perlick accessories are available for purchase through an
authorized Perlick dealer. For a full list of accessories and to
nd a dealer near you, visit perlick.com/residenal

(HC24TO, HC24TB)

36 Min.

C

a corner to

acheive 90

door swing.

23 1/16" 583

3 1/2" 87

California Prop 65 Noce:

60623 7/8"

20" 504

PERLICK CORPORATION

MILWAUKEE, WI 53223

PROPERTY OF THE PERLICK CORP.

NOT TO BE COPIED OR USED DETRIMENTAL T O OUR INTERESTS

24 15/16"

Min. clearance

for door swing.

635

2" 51

26 9/16" 670

*34 5/16"

*3 15/16"

872

*- Leg leveler can add

3/4" [19] to these dimensions
when fully extended.

39

1 1/2"

Value may

change due to a

custom pull.

23 1/16" 585

26 9/16" 674

14" 356

3 1/2" 89

9 15/16" 252

24"

(with 1/16" tolerance)

with a wood overlay door.

610

Value may change

16 1/8" 410

Typical

quarter barrel.

WARNING: The materials used in this product may contain chemicals known to the State of California to cause cancer and

birth defects or other reproducve harm. For more informaon go to www.P65Warnings.ca.gov.

15 5/16" 390

32312 3/4"

6 1/4" 15911 7/8" 302
