24” C-SERIES
WINE RESERVE
HC24WB-3 24” INDOOR MODEL
Glass Door Model Solid Door Model
GENERAL C-SERIES FEATURES
• Industry Exclusive front-vented RAPIDcool forced-air
refrigeraon system provides best-in-class cooling
performance
• Commercial-grade stainless steel interior and black
vinyl clad exterior
• All models available with stainless steel or panel
ready door. Panel ready doors come ready to accept
customer-supplied overlay and handle
• Zero-clearance hinging allows for abutment with
surrounding cabinetry
HC24WB FEATURES
• Available with stainless steel solid door, panel ready
solid door, stainless steel glass door or panel ready
glass door
• Includes ve (5) full-extension wine shelves to
accommodate 40 wine boles (based on 750 ml.,
3” diameter boles)
• Wine shelves feature stainless steel fronts
C
• Industry Exclusive full extension wine shelves
provide easy access for stocking and retrieving
product. Shelves glide smoothly in and out of
cabinet on stainless steel ball bearing glides
• Interior lighng and digital control
• Low E, double pane UV-resistant glass provides
exceponal insulaon and protecon from light
• Comprehensive Full Three Year Warranty plus
addional three years on sealed system
US
ACCESSORIES
(L) Factory Installed Lock
66736 Caster Kit for HP24/HC24/HA24 models
67115-24 Wood Faces for Wine Shelf (7/pk)
Perlick accessories are available for purchase through an
authorized Perlick dealer. For a full list of accessories and to
nd a dealer near you, visit perlick.com/residenal
• Shelves are removable and adjustable to
accommodate oversized/magnum boles
• Cabinet construcon eliminates vibraon transfer to
reserve
• Wine Reserve temperature 45°- 65°F
FORM NO. Z2529
REV. A-09/07/2018
8300 W. Good Hope Rd. • Milwaukee, WI 53223 • (800) 558-5592 • Fax: (414) 353-7069 • perlick.com
Perlick is commied to connuous improvement. Therefore, we reserve the right to change specicaons without warning.
shelf location.
24 15/16" 634
7 9/16" 192
50" 1270 Area in which
electrical outlet must be located.
6 1/4" 159
11 7/8" 302
18 3/16" 461
20" 508

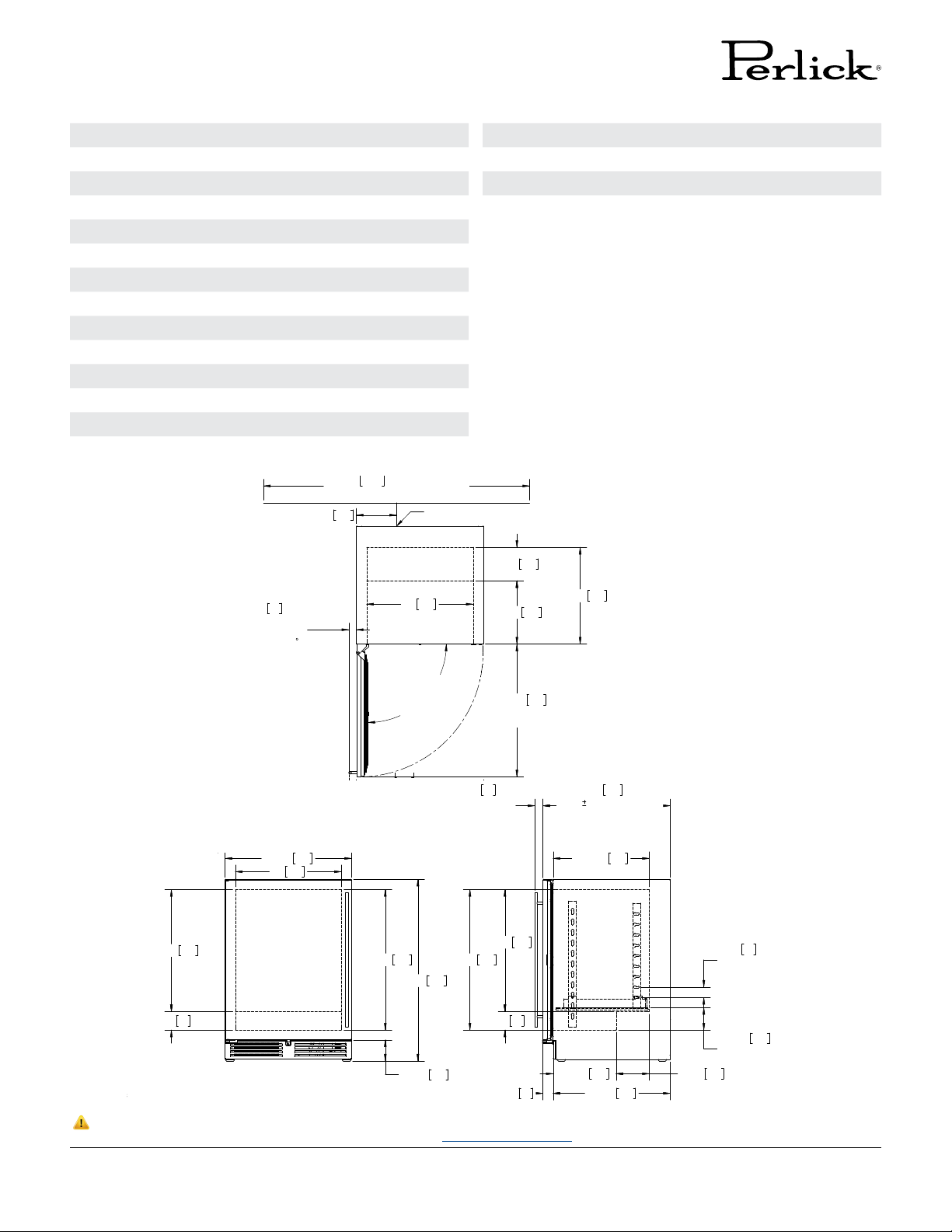

RESIDENTIAL C-SERIES HC24 CABINET
(HC24RB, HC24BB, HC24RO, & HC24WB)
*
- Leg leveler can add
3/4" [19] to these dimensions
when fully extended.
Power cord 6-5/8" [168] off floor.*
90° Swing
required for
pull-out shelf
DR.:
DATE:
9/5/2017
95079
4/20/2012JMP
SCALE: 1:10
PRODUCT SPECIFICATIONS INDOOR MODELS
50" 1270 Area in which
611
1/16" tolerance)
Value may change
with a wood overlay door.
RESIDENTIAL C-SERIES HC24 CABINET
(HC24RB, HC24BB, HC24RO, & HC24WB)
Product Width 23-7/8” (606 mm.)
Product Height 34-1/4” (870 mm.)
Product Depth 24” (610 mm.)
Opening Width 24” (610 mm.)
Opening Height 34-1/2” (876 mm.)
Opening Depth** 24-7/8” (632 mm.)
Refrigerated Volume 5.2 cu. .
Door Swing Clearance 25” (635 mm.) minimum
Electrical 115V, 60Hz., 1 Phase, 2.3 amps
Compressor 525 BTU, standard
Plumbing None Required
Annual Energy Usage N/A
Shipping Weight 195 lbs (88.45 kg.)
** Includes 7/8” plug clearance. To achieve 24” depth, you must recess the plug
into the wall directly behind the unit.
electrical outlet must be located.
7 9/16" 192
Power cord 6-5/8" [168] off floor.*
HC24WB-3-1L* Stainless steel solid door, hinge le
HC24WB-3-2L*† Panel ready solid door, hinge le
HC24WB-3-3L* Stainless steel glass door, hinge le
HC24WB-3-4L*† Panel ready glass door, hinge le
* Also available hinge right (R)
† This unit comes ready to accept customer-provided overlay panel and handle
6 1/4" 159
18 3/16" 461
*- Leg leveler can add
3/4" [19] to these dimensions
when fully extended.
1 1/2" 39
Value may
change due to a
custom pull.
24" 611
(with 1/16" tolerance)
Value may change
with a wood overlay door.
18 3/16" 461
11 7/8" 302 6 1/4" 159
23 1/16" 585
3 1/2" 89
PROPERTY OF THE PERLICK CORP.
California Prop 65 Noce:
1 1/2" 36 Min.
clearance from
a corner to
acheive 90
door swing.
clearance.
23 7/8" 606
20" 508
TS
20" 508
90° Swing
required for
Min. clearance
pull-out shelf
clearance.
for door swing.
change due to a
26 9/16" 674
*34 5/16" 872
26 9/16" 674
*3 7/8" 100
11 7/8" 302
24 15/16" 634
Min. clearance
for door swing.
1 1/2" 39
Value may
custom pull.
23 1/16" 585
3 1/2" 89
1 7/8" 49 22 1/8" 562
WARNING: The materials used in this product may contain chemicals known to the State of California to cause cancer and
birth defects or other reproducve harm. For more informaon go to www.P65Warnings.ca.gov.
