IDS-509FPP Hardware Installation Guide
PoE Managed Industrial Ethernet Switches
www.perle.com
Updated: November 2017
Version A1.11.24.2017
Document Part#:5500387-10(Rev I)
Page 2
THE SPECIFICATIONS AND INFORMATION REGARDING THE PRODUCTS IN THIS GUIDE ARE SUBJECT TO CHANGE
WITHOUT NOTICE. ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN THIS GUIDE ARE BELIEVED TO BE
ACCURATE BUT ARE PRESENTED WITHOUT WARRANTY OF ANY KIND, EXPRESS OR IMPLIED. USERS MUST TAKE
FULL RESPONSIBILITY FOR THEIR APPLICATION OF ANY PRODUCTS.
This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC
rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a
commercial environment. This equipment generates, uses, and can radiate radio-frequency energy and, if not installed and used in
accordance with this hardware guide may cause harmful interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference, in which case users will be required to correct the interference at their own
expense.
Modifications to this product not authorized by Perle could void the FCC approval and negate your authority to operate the product.
Perle reserves the right to make changes without further notice, to any products to improve reliability, function, or design.
Perle, the Perle logo, and IDS Switch are trademarks of Perle Systems Limited.
©2017. Perle Systems Limited.
IDS-509FPP Hardware Installation Guide
Page 3
Table of Contents
Preface . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Switch Models Views . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Port Status Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Terminal Block Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
DIP Switches . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Terminal Block Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

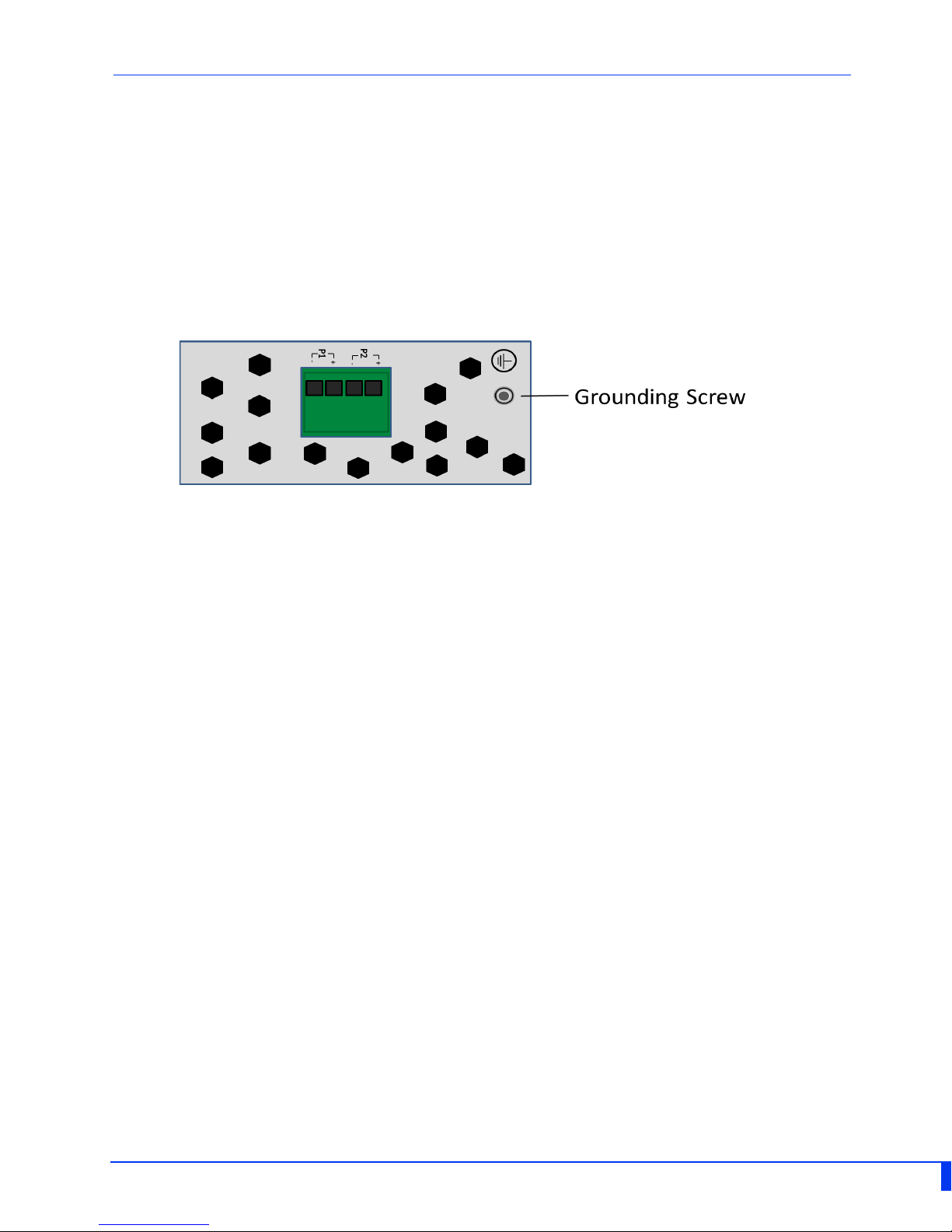

Grounding the IDS switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Connecting Power to the IDS Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Wiring the Relay Alarm . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Wiring Digital Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

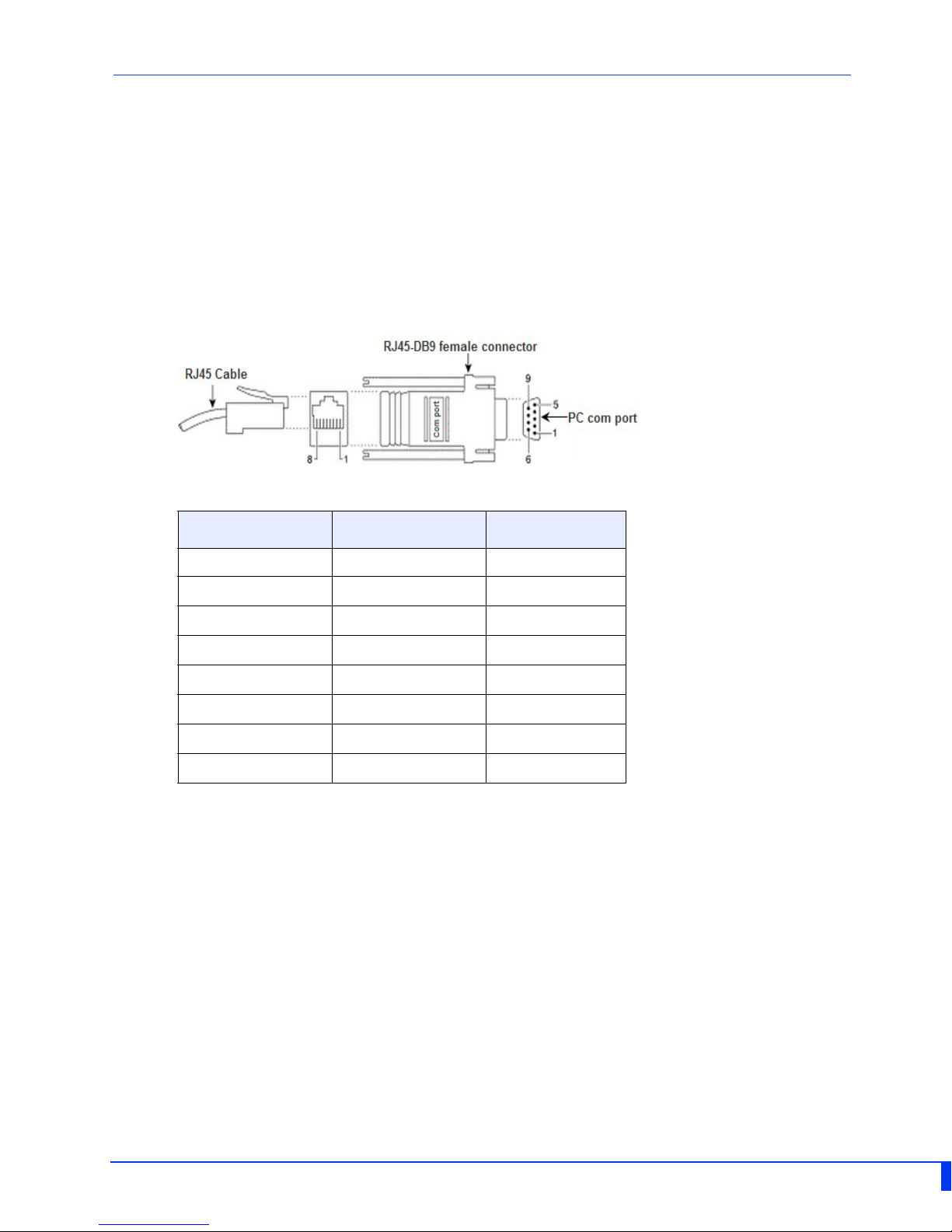

Connecting the Console Port . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15
Connecting Data Ports . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Resetting the Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17
Configuring the IDS Switch . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Appendix A - Technical Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Appendix B - Sample Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

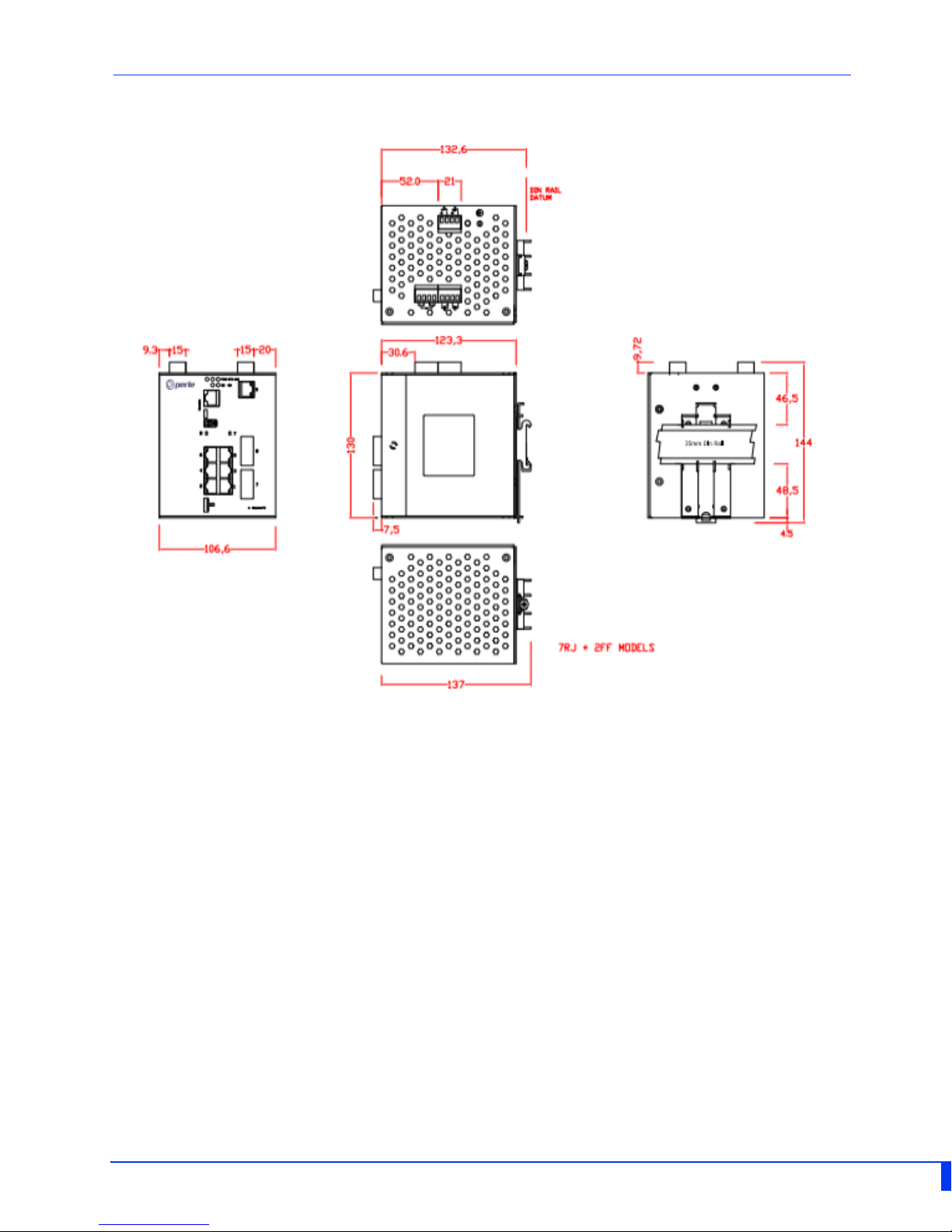

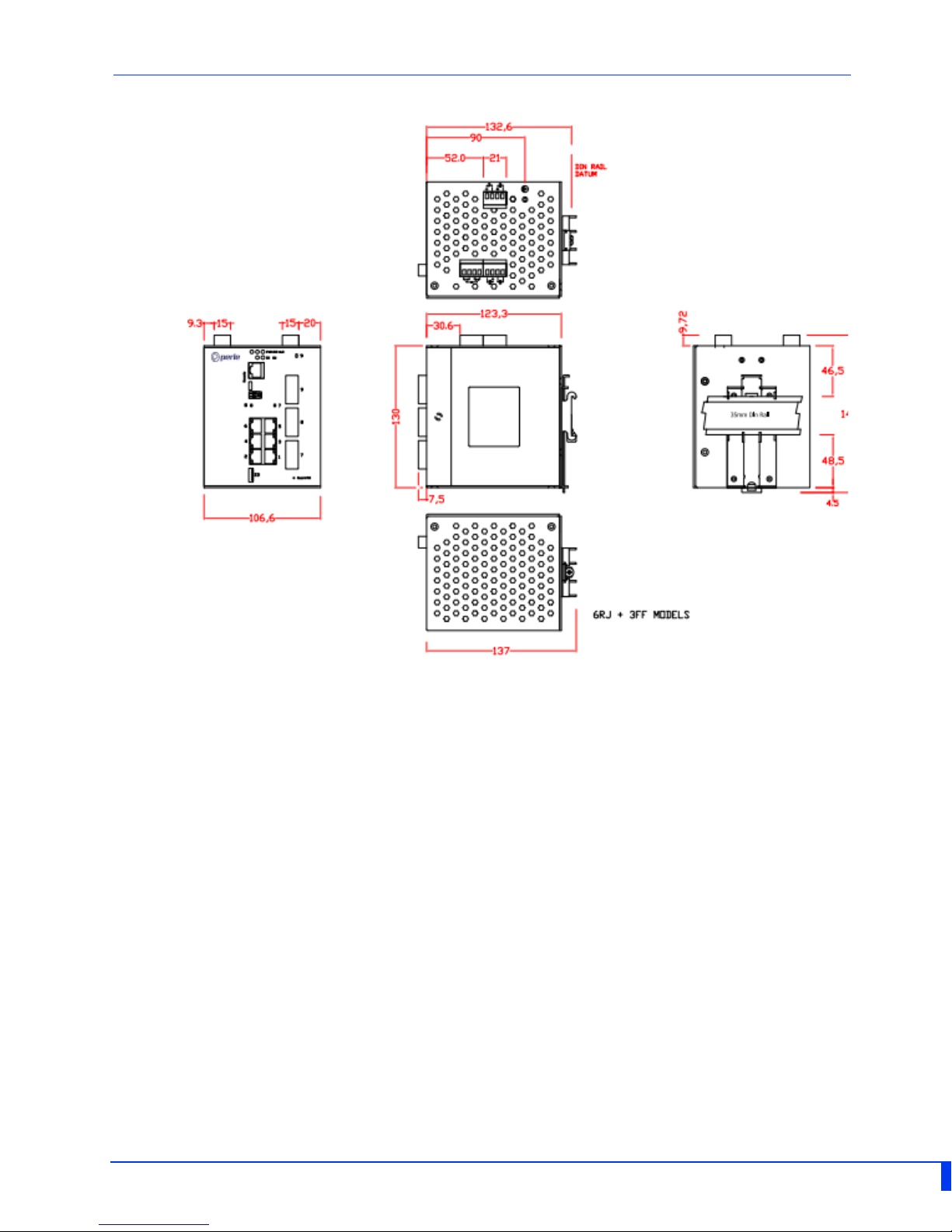

Appendix C - Mechanical Drawings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

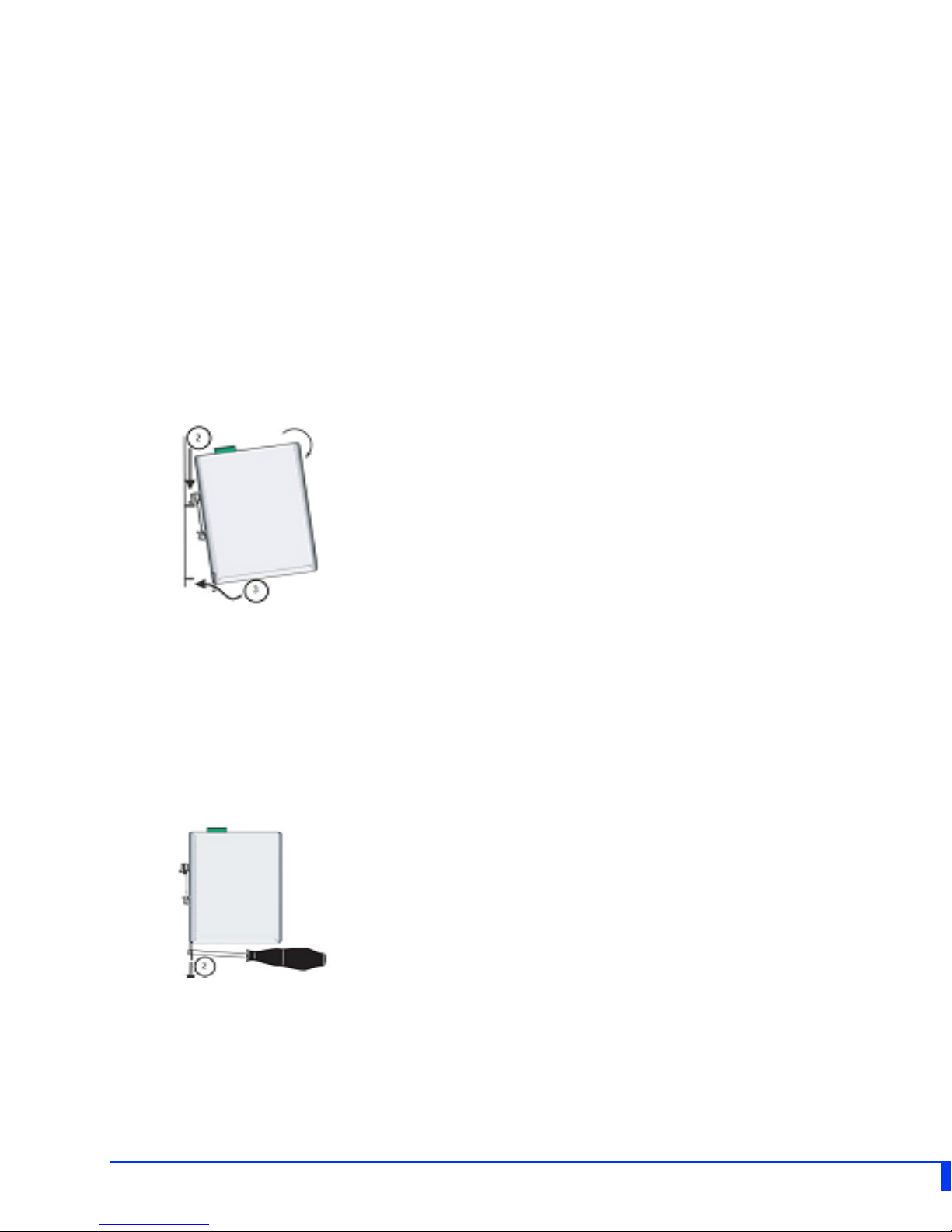

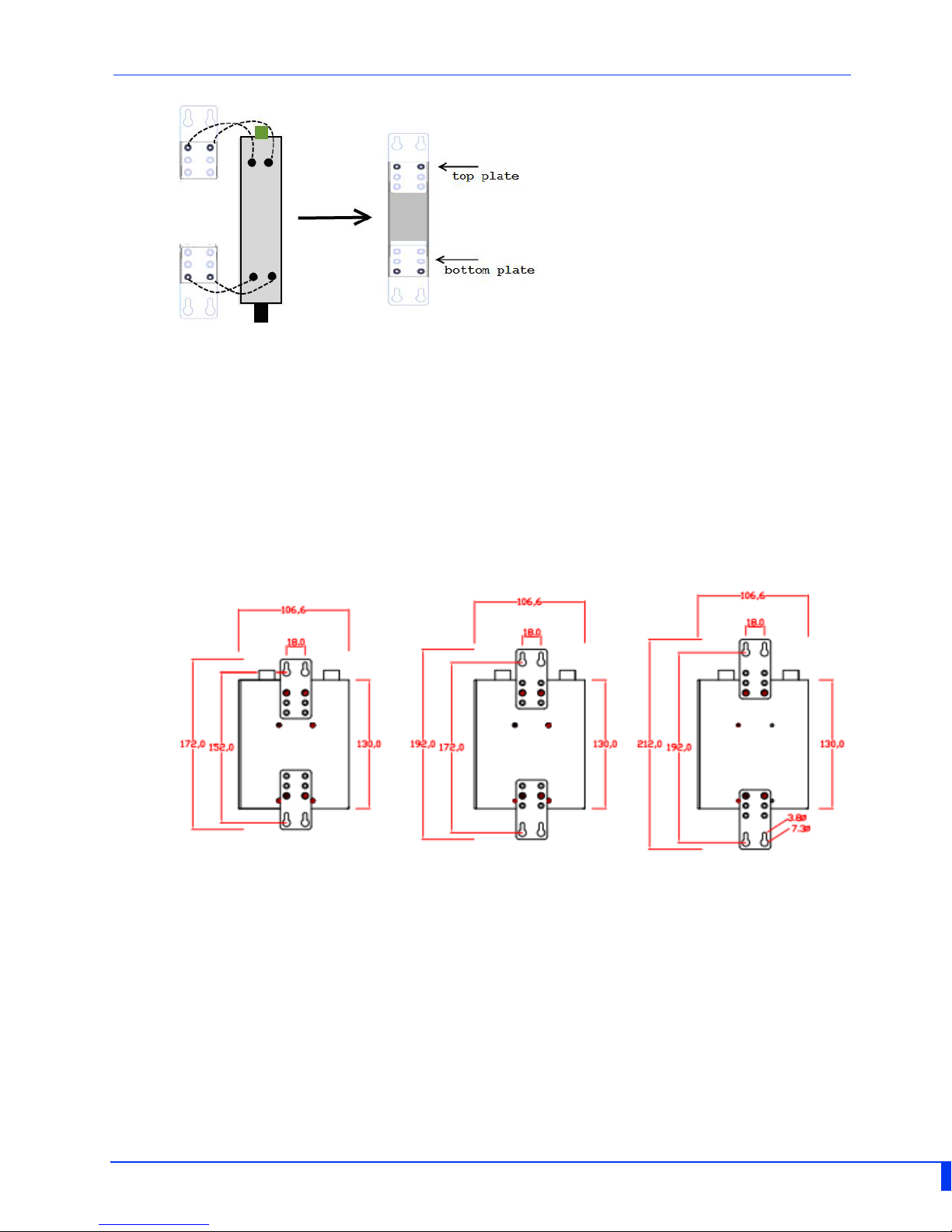

Appendix D - DIN Rail and Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Appendix E - IDS Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30

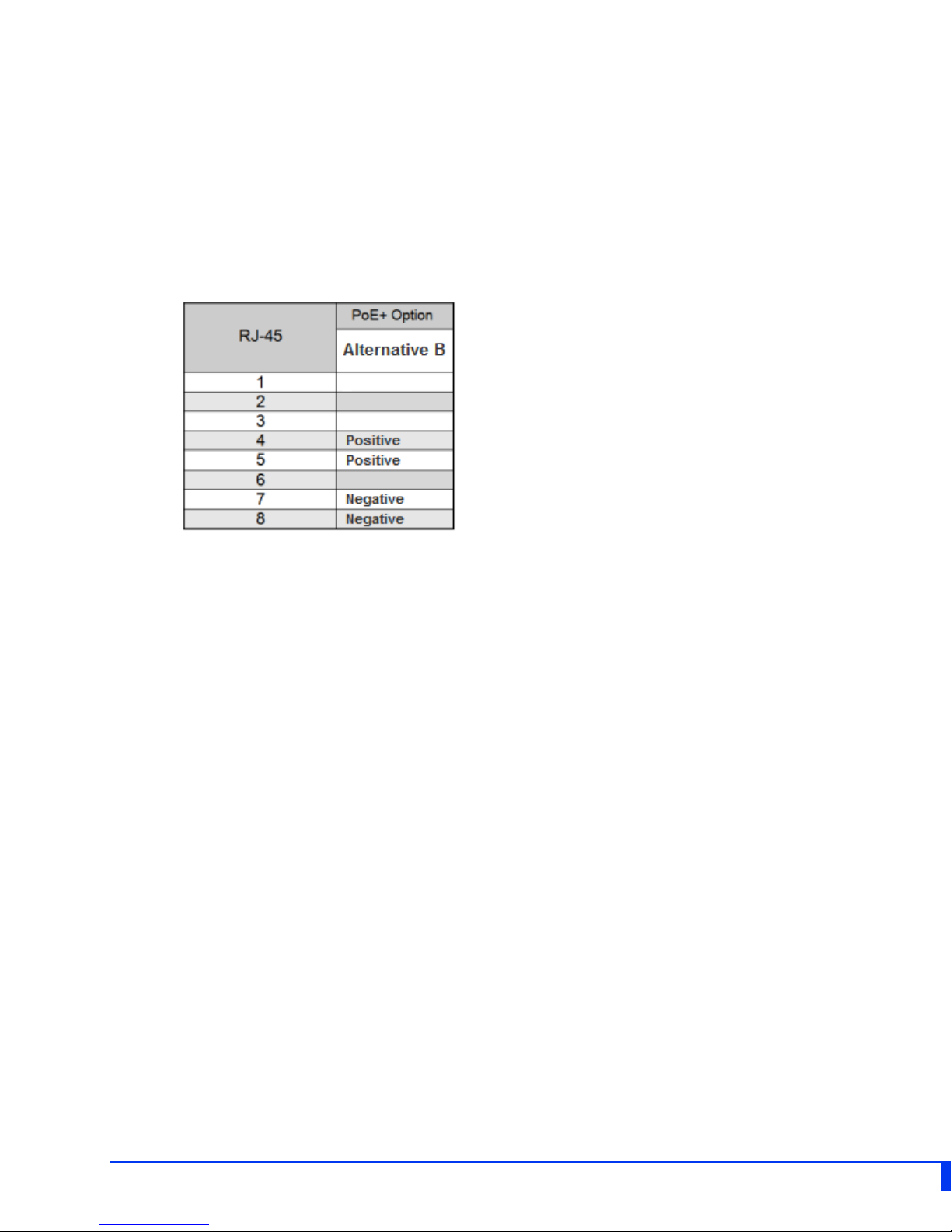

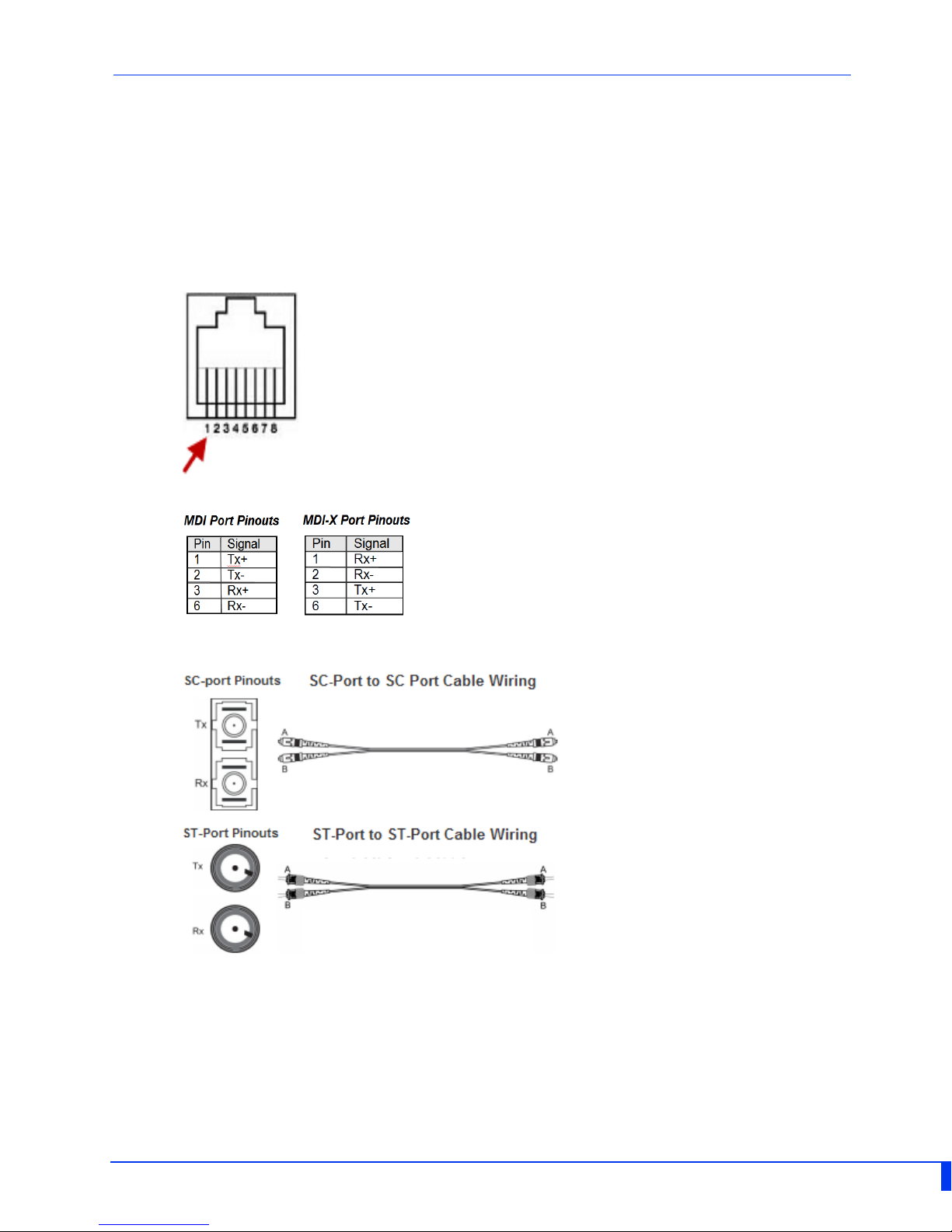

Appendix F - Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31
Page 4
Preface
Audience
This guide is for the network or computer technician responsible for installing Perle IDS
series switches. Familiarity with the concepts and terminology of Ethernet and local area
networks is required.
Purpose
This document describes the hardware and physical characteristics of the Perle IDS
switch. It covers hardware features as well as installation and operation of the switch. This
document does not cover how to configure your Perle IDS switch. Information to configure your Perle IDS switch can be found in the User’s Guide
Package Contents
• IDS switch with attached DIN rail mounting bracket
• Quick Start Guide
2
Document Conventions
This document contains the following conventions:
Most text is presented in the typeface used in this paragraph. Other typefaces are used to
help you identify certain types of information. The other typefaces are:
Note: Means reader take note: notes contain helpful suggestions.
Caution: Means reader be careful. In this situation, you might perform an action that
could result in equipment damage or loss of data.

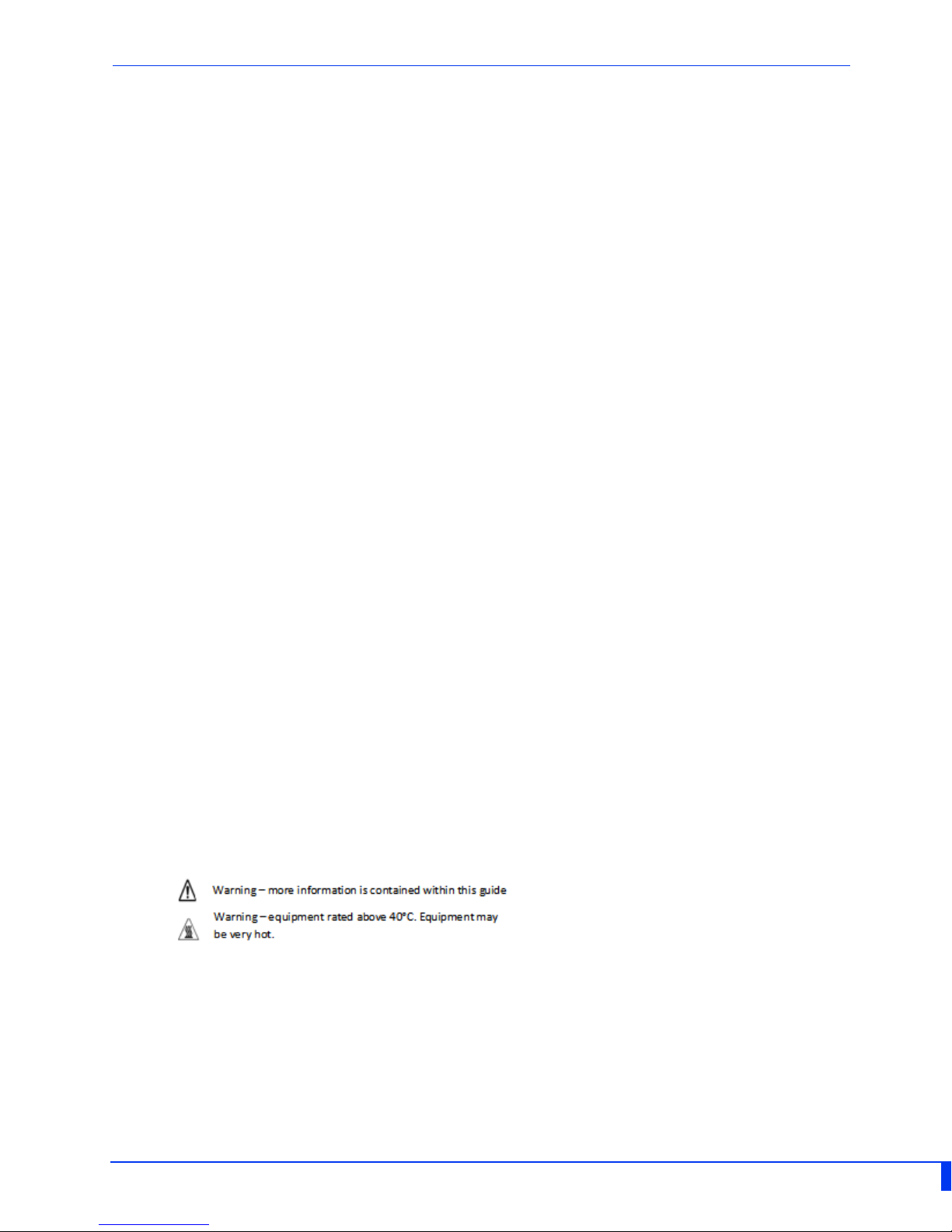

Warning: IMPORTANT SAFETY INSTRUCTIONS
Means danger. You are in a situation that could cause bodily injury. Before you work on
any equipment, be aware of the hazards involved with electrical circuitry and be familiar
with standard practices for preventing accidents. Only qualified personnel should connect
power to this unit.
IDS-509FPP Hardware Installation Guide
Page 5
3
Overview
This chapter discusses the following topics:
Switch Models Views
LED Indicators
Ports
Port Status Indicators
Terminal Block Connectors
DIP Switches
The table below gives a brief overview of the models covered in this guide. For more
details and for the most up-to-date list of models, please refer to the product pages at
www.perle.com.
10/100/1000
Standard Models
IDS-509F2PP6-XXXXXXX 1 6 2 Standard
IDS-509F3PP6-XXXXXXX 0 6 3 Standard
IDS-509F2PP6-XXXXXXX-XT 1 6 2 Industrial
IDS-509F3PP6-XXXXXXX-XT 0 6 3 Industrial
10/100/1000Base-T
Ethernet Ports
Base-T Ports
Ethernet
PoE+ Enabled
Fiber
Ports
100
Te mp
XXXXXXX - represents fiber ports of different wavelengths, distances and connectors
IDS-509FPP Hardware Installation Guide
Page 6
4

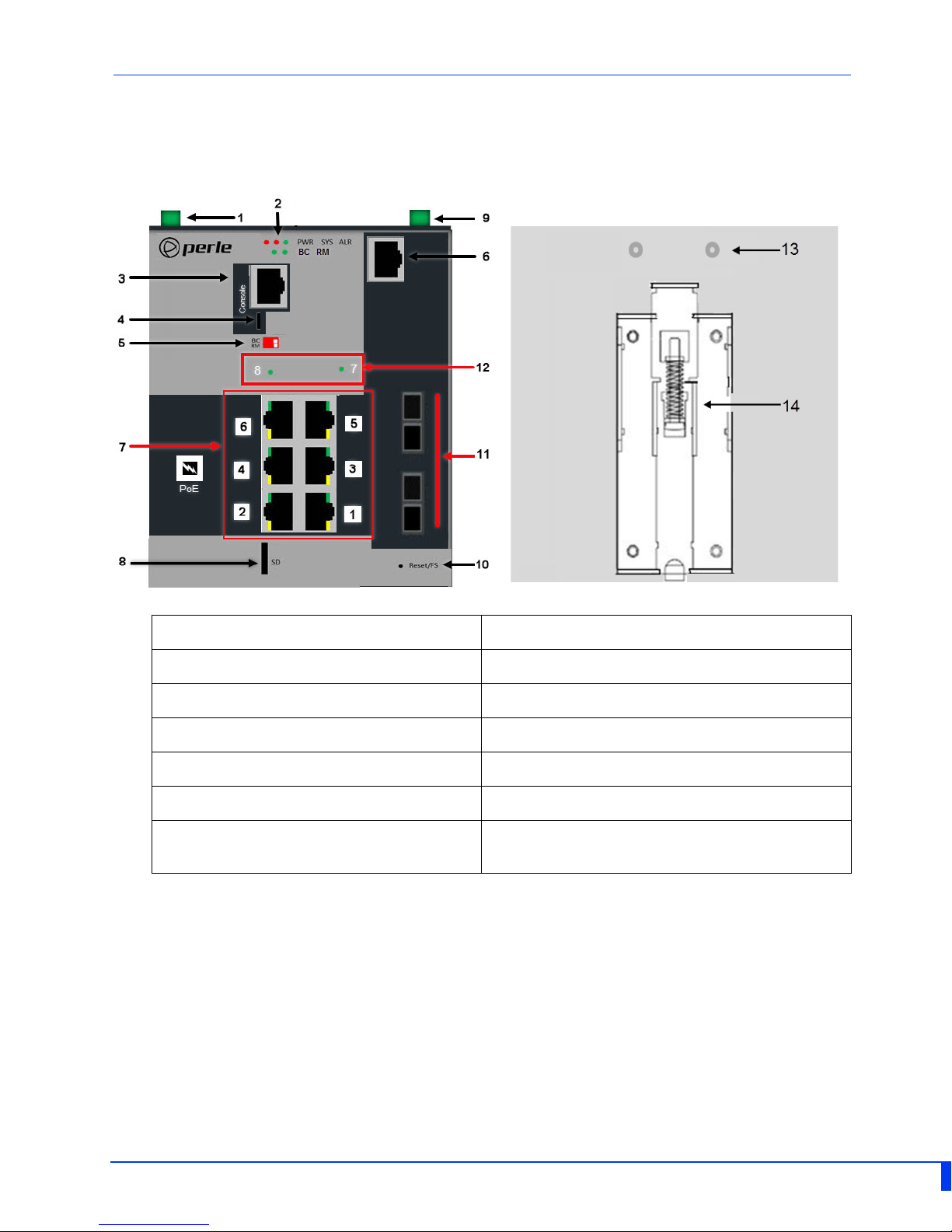

Switch Models Views
IDS-509F2PP6-xxxxxxx
IDS-509F2PP6-xxxxxxx-XT
1 – Terminal Block for Power 1, 2 8 – SD card slot
2 – Status LEDs 9 – Terminal Block for Digital Inputs/Relays
3 – Console Port – serial 10 – Reset/FS
4 – Console Port – USB 11 – 100Base-X Fiber ports
5 – DIP switches 12 – Fiber status
6 – 10/100/1000Base-T Ethernet Port 13 - Wall Mount Bracket Screw Holes
7 – 10/100/1000Base-T Ethernet Ports
14 - DIN Rail Clip
with PoE/PoE+ capability
IDS-509FPP Hardware Installation Guide
Page 7
5

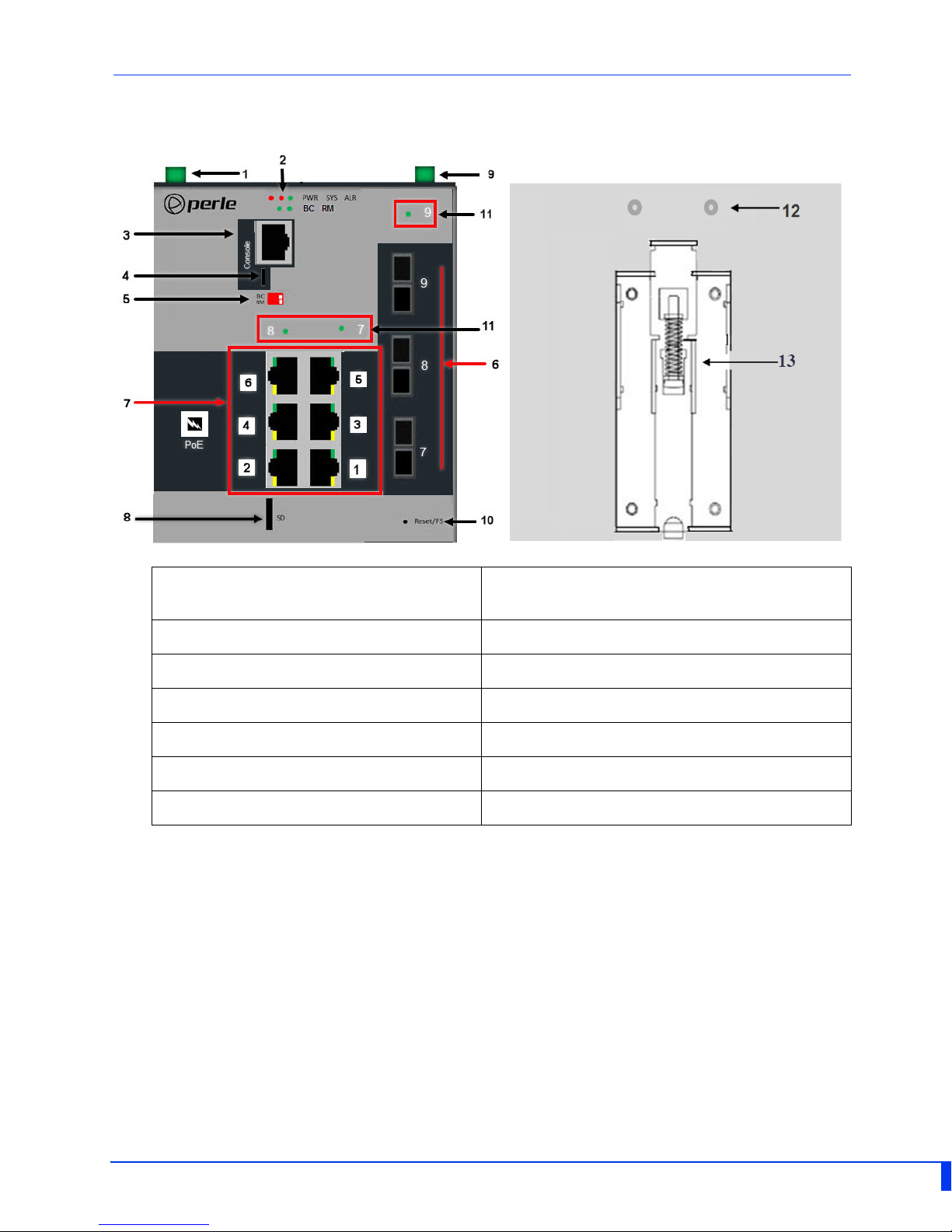

IDS-509F3PP6xxxxxxx
IDS-509F3PP6-xxxxxxx-XT
1 – Terminal Block for Power 1, 2 7 – 10/100/1000Base-T Ethernet Ports with
PoE/PoE+ capability
2 – Status LEDs 8 – SD card slot
3 – Console Port – serial 9 – Terminal Block for Digital Inputs/Relays
4 – Console Port – USB 10 – Reset/FS
5 – DIP switches 11 – Fiber status
6 – 100Base-X Fiber port 12 - Wall Mount Bracket Screw Holes
13 - DIN Rail Clip
IDS-509FPP Hardware Installation Guide
Page 8
6
LED Indicators
PWR (Power Inputs)
State Description
Green P1 and P2 Power inputs are within
specifications
Ye l lo w P1 or P2 providing power within
specifications
Red Neither P1 or P2 providing power
within specifications
Sys (System Status)
State Description
Green - blinking (after
power on)
Green - solid System ready/operating normally
Green - blinking slowly Fast Setup Mode activated/port
Green - blinking fast Fast Setup Mode activated/no port
Red Hardware fault or firmware load
Alr (Alarm)
State Description
Off No alarms configured
Green - solid Alarms configured, but no alarms
Red-solid Alarm condition detected
Red blinking Alarm condition detected and
System booting
available
available
error
detected
Alarm Relay activated
BC (Backup Coupling)
State Description
Off Backup Coupling not enabled
IDS-509FPP Hardware Installation Guide
Page 9
7
State Description
Green - solid Backup Coupling Link enabled
RM (Ring Master)
State Description
Off Ring Master not activated
Green - solid Ring Master Active, redundant
port blocked. Coupling Link
enabled
Green - flashing Ring Master unable to establish a
ring due to missing link on one of
the Ring ports
Yellow -solid Ring Master Active, redundant
port unblocked - indicates a break
in the Ring
IDS-509FPP Hardware Installation Guide
Page 10
8
Ports
10/100/1000Base-T Ethernet Port
This port provides the standard gigabit Ethernet interface. It provide speeds of 10/100 or
1000 Mb/s through twisted pair (UTP) cables of up to 100 meters (328ft) in length.
10/100/1000Base-T Ethernet Ports with PoE/PoE+ capability
These ports provide the standard gigabit Ethernet interface. They provide speeds of 10/
100 or 1000 Mb/s through twisted pair (UTP) cables of up to 100 meters (328ft) in length.
Ports 1 through 6 can provide power to PoE/PoE+ PD devices.
100Base-X fiber Ports
These ports are built in fiber modules that provide 100Base-X fiber connectivity. These
fiber ports are available on the switches in a variety of distances and wavelengths. SC or
ST connectors are available as well as single mode, multi mode, duplex and simple models. Consult the full model list at www.perle.com

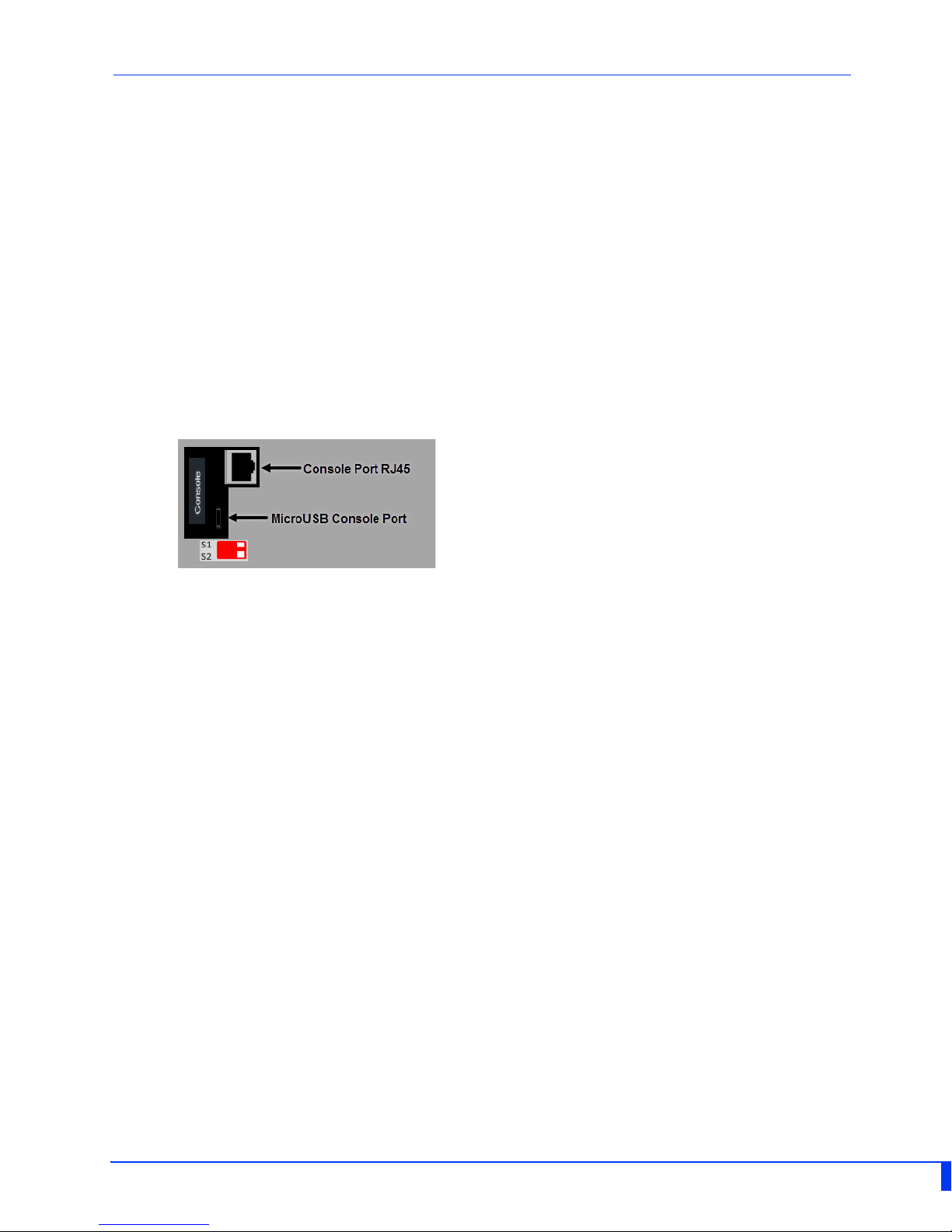

RJ45 Console Port
This is a console management port providing access to the switch management function
using the industry standard CLI command set. This port has an RJ-45 connector. See RJ45-Console Port Pinouts.
USB Console Port
The MicroUSB port is an alternative connection to the switch’s console. This provides
access to the switch management function using the industry standard CLI command set.
When connected the port presents a serial interface that can be used from a PC Terminal
emulation program (such as PuTTY).
Power Connector
The power input connector has provisions for dual inputs. Two independent power
sources can be used to power the switch. If one power input fails, the other power input
will power the switch.
Alarm Relay Connector
The Alarm Relay can be energized by the software or hardware under certain conditions.
It can then be used to trigger an external alarm circuit such as a light or sounding device.
This connector provides both Normally opened (NO) and Normally Closed (NC) dry contact on the connector block, both are associated with the same relay.
Digital Input Connector
Two Digital Inputs are provided that can be used for the generation of alarms (SNMP trap,
energizing of on board Alarm Relay etc.).
IDS-509FPP Hardware Installation Guide
Page 11
9

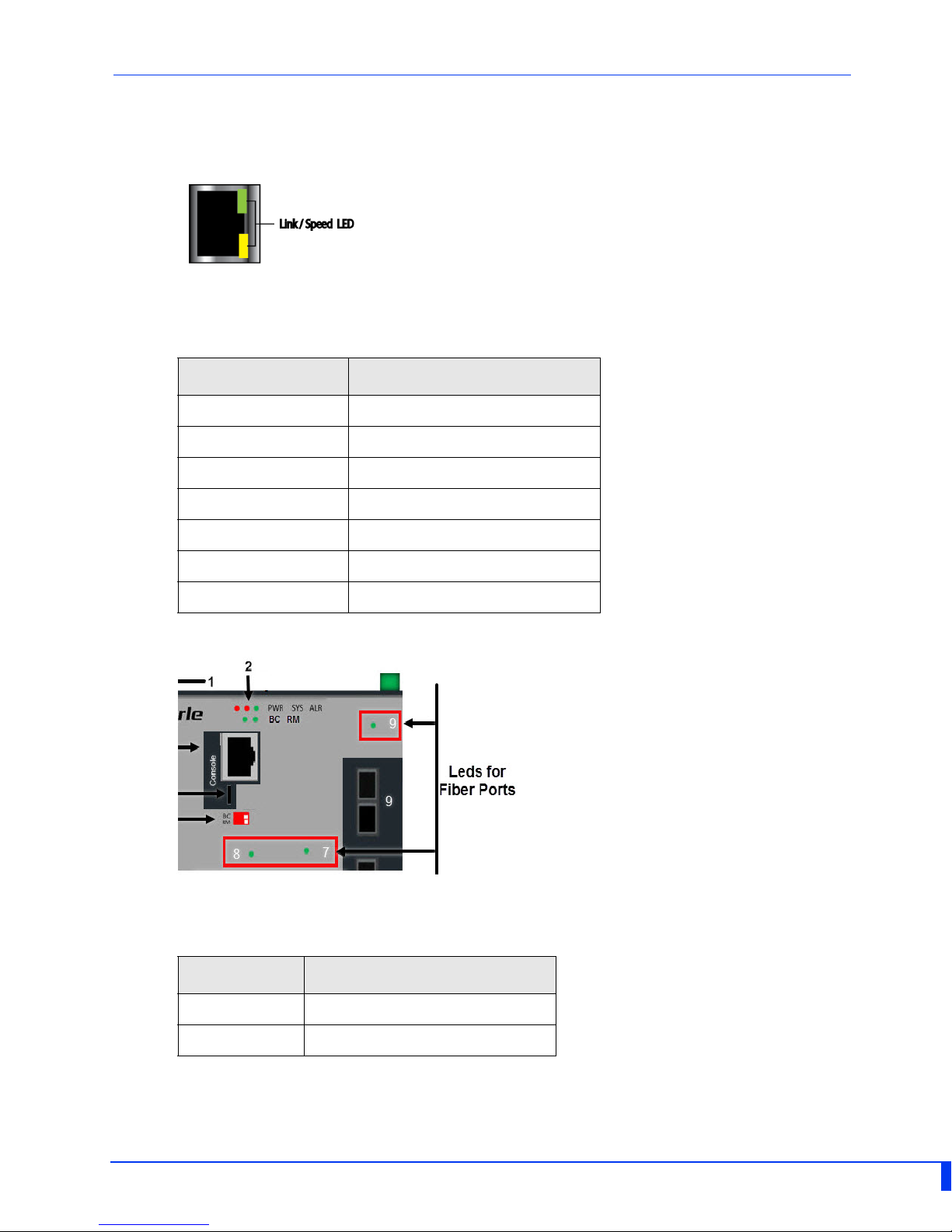

Port Status Indicators
Ethernet Port Status Indicators
Port Link / Speed (Green and Yellow LEDs)
State Description
Green 1000 Mbps
Green / Yellow 100 Mbps
Ye l lo w 10 Mbps
On solid Port Link
Random blinking Port Link and Activity
Slow blinking Error disabled
Rapid blinking Port in Fast Setup Mode
Fiber Port Status Indicators
Port Link
State Description
Green Link
Green Flashing Link/Activity
IDS-509FPP Hardware Installation Guide
Page 12
10

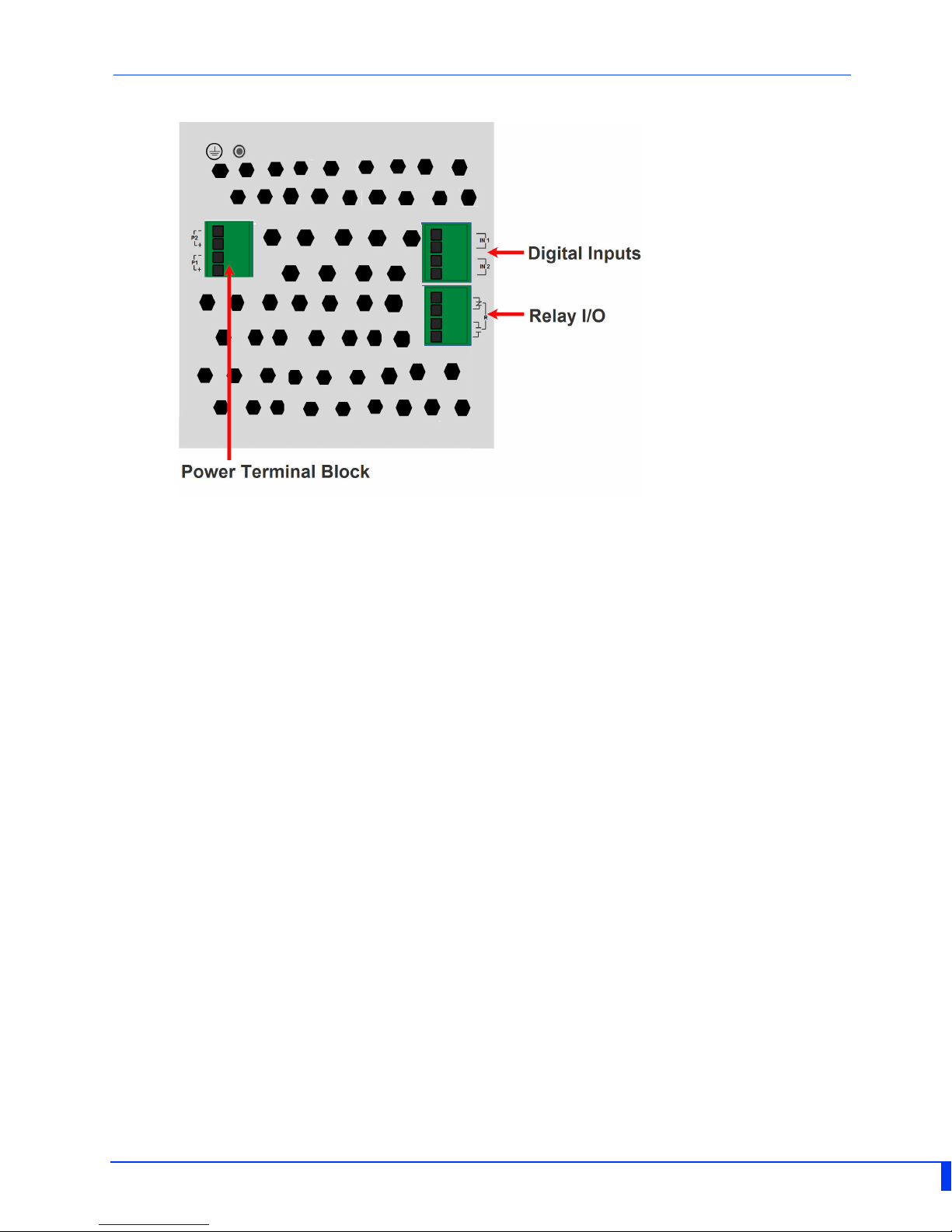

Terminal Block Connectors
P1 - Power Input 1
P2 - Power Input 2
IN 1 - Digital Input 1 - Dry Contact
IN 2 - Digital Input 2 - Wet Contact
R - Relay with 2 connection points - Normally Open (NO) / Normally Closed (NC)
IDS-509FPP Hardware Installation Guide
Page 13
11

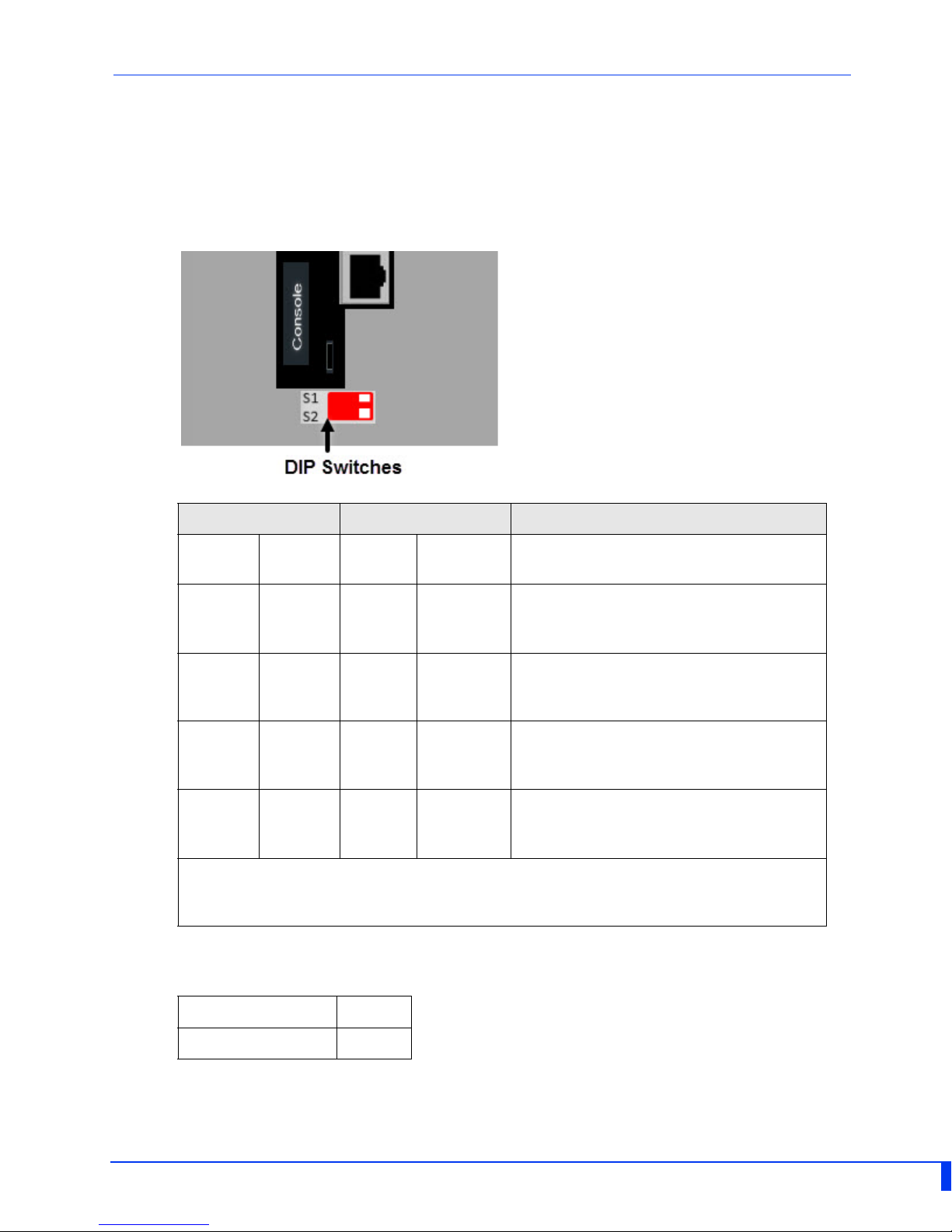

DIP Switches
The DIP switches on the IDS switch provide a quick and easy way to setup a Ring in order
to achieve improved network reliability and faster recovery times from network faults. A
Ring can also be setup and configured from any of the software configuration methods.
Software configuration methods provide access to additional parameters as well as the
more advanced Ring features.
DIP Switch Ring Feature
SW1 SW2 Ring
On On -- -- Software control - Ring Master
On Off Master Primary Ring Feature: enabled
Off On Client Standby Ring feature: enabled
Off Off Client Primary Ring Feature: enabled
Note 1: If the backup coupling feature is not used, then port 4 can be used as a normal
connection port.
Port Assignment
Role
Coupling
Mode
Description
functionality is controlled by software
configuration.
Ring Role: Master
Coupling: Active on Port: 4 (Note 1)
Ring Role: Client
Coupling: Backup on Port 4 (Note 1)
Ring Role: Client
Coupling: none
Ring Ports 1, 2
Coupling Port 4
Note: DIP switches are read during system boot up. If a DIP switch is changed the IDS switch must be
rebooted in order for the change to take effect.
IDS-509FPP Hardware Installation Guide
Page 14
12
Installation
This chapter discusses the following topics:
General Cautions and WarningsGeneral Cautions and WarningsGeneral Cautions and
WarningsGeneral Cautions and Warnings
Terminal Block Connectors
Grounding the IDS switch
Connecting Power to the IDS Switch
Wiring the Relay Alarm
Wiring Digital Inputs
Connecting the Console Port
Connecting Data Ports

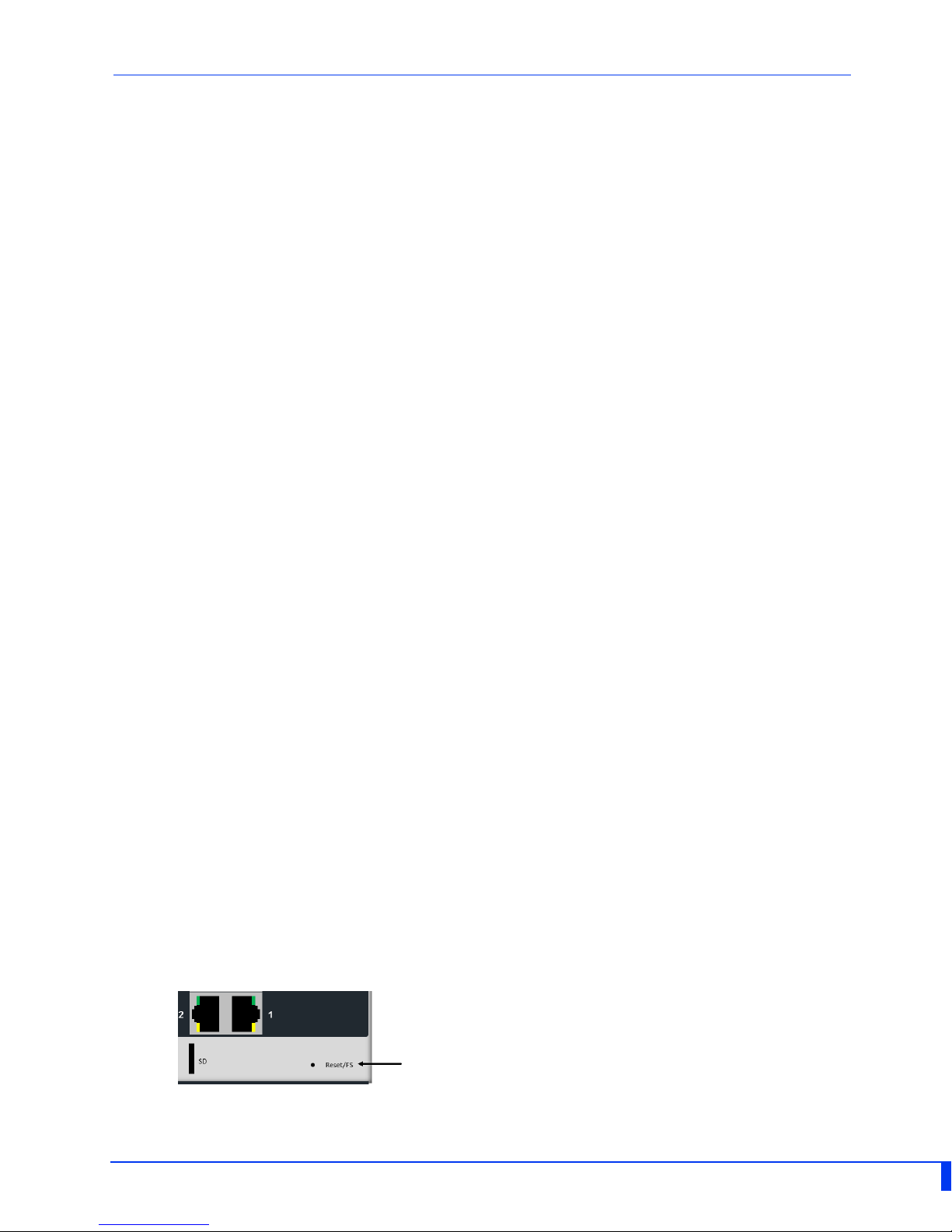

Resetting the Switch
Configuring the IDS Switch
General Cautions and Warnings
Warning: Power sources must be off prior to beginning the power connection steps. Read the installa-
tion instructions before you connect the unit to its power source.
Warning: Ensure that the voltage and current ratings of the intended power source are appropriate for
the IDS switch as indicated on the product label.
Warning: Ensure that the installation and electrical wiring of the equipment is performed by trained
and qualified personnel and that the installation complies with all local and national electrical codes.
Warning: This unit should be installed in a restricted access location where access can only be gained
by service personnel or users who have been instructed about the reasons for the restrictions applied to
the location and about any precautions that shall be taken; and access is through the use of a tool or
lock and key, or any means of security, and is controlled by the authority responsible for the location.
Warning: If the unit is installed vertically in a living or office environment, the device must be operated
exclusively in switch cabinets with fire protection characteristics in accordance with EN-60950-1
Warning: The working voltage inputs are designed for operation with Safety extra low Voltage (SELV ).
Connect only to SELV circuits with voltage restrictions in line with IEC/EN 60950-1.
Hazardous Location Warnings
Warning: This equipment shall be installed in an enclosure that provides a degree of protection not less
then IP54 in accordance with EN-60079-15 and accessible only by the use of a tool.
Warning: The equipment shall only be used in an area of not more than pollution degree 2, as defined
in IEC 60664-1.
Warning: These devices are open-type devices that are to be installed in an enclosure with tool remov-
able cover or door, suitable for the environment.
Warning: This equipment is suitable for use in Class 1, Division 2, Groups A, B, C, D, or only non hazard-
ous locations.
Warning: WARNING-EXPLOSION HAZARD - Do not disconnect equipment unless power has been
removed or the area is known to be non-hazardous.
Warning: WARNING-EXPLOSION HAZARD - Substitution of any components on this switch may impair
suitability for Class 1, Division 2.
Warning: Ensure power has been removed at the source of the alarm circuit prior to proceeding with
the connections to the alarm relay.
Warning: Ensure that voltage and current supplied by the alarm circuits are within the stated Alarm
Relay specifications.
Warning: In hazardous location installations, failure to remove from the source prior to completing the
wiring connections to the alarm relay could cause an electrical arc resulting in a possible explosion.
Warning: Power supply of the equipment must be rated appropriately (see Appendix for specifications)
with limited power. Limited power means complying with one of the following requirements.
Class 2 circuit according to Canadian Electrical Code, Part 1, C22.1
Class 2 circuit according to National Electrical Code, NFPA-70
Limited Power Supply (LPS) according to EN/IEC 60950-1;
IDS-509FPP Hardware Installation Guide
Page 15
13
Limited-energy circuit according to EN/IEC 61010-1
Warning: If this equipment is used in a manner not specified by the manufacturer, the protection pro-
vided by the equipment may be impaired.
Warning: In case of malfunction or damage, no attempts at repair should be made. Do not dismantle
the product. All repairs need to be made by a qualified Perle representative.
Warning: Explosion hazard. Do not remove or replace any ports, connectors, memory cards, lamps,
fuses plug-in modules (as applicable) or operate unless power has been disconnected or the area is free
of ignitable concentrations.
Warning: Explosion hazard. Do not disconnect while the circuit is live or unless the area is free of ignit-
able concentrations.
Warning: Transient protection shall be provided that is set at a level not exceeding 140% of the peak
rated voltage at the supply terminals to the equipment.
Warning: Install on or over a non-combustible surface.
Terminal Block Connectors
Grounding the IDS switch
If your installation requires additional grounding, follow this procedure.
Grounding the chassis requires the following items:
• One grounding lug (not provided)
• One 12AWG wire (not provided)
Follow the manufacturers instructions for attaching the ground wire to the grounding lug.
Attach the grounding lug to the chassis and secure with the grounding screw provided.
Connecting Power to the IDS Switch
The IDS switch has two power inputs that can be connected simultaneously to provide
redundant power. If one power source fails the other source acts as a backup, and powers
the switch
Wiring with suitable temperature ratings must be used. Refer to specification section for
details. Use copper wire only if the terminal is only for connection to copper wire.
1. Ensure the power source is off prior to connection
2. Strip both (12-16AWG) wires 7-8 mm(5/16th)
3. Loosen the terminal block screws and connect positive (+) / negative (-) wires into the
+/- terminals
4. Tighten terminal screws (0.5Nm torque). Ensure the wires are securely fastened.
5. Re-insert the Terminal Block connector if removed, Turn on power source. Check
LED indicators in the guide for power status
6. Connect P2 (power source 2, beginning at Step 1)
7. Ensure that there is one individual conductor for each clamping point.
See Terminal Block Connectors.
IDS-509FPP Hardware Installation Guide
Page 16
14
Wiring the Relay Alarm
The IDS switch has a relay with a Normally Closed (NC) terminal pair as well as a Normally Open (NO) one. Select the connection that suits the application. These terminals are
located on the top panel of the unit. The IDS switch can be connected to an external powered device such as a siren or light for visual or audible notification of an alarm status.
1. Ensure the power source is off prior to connection.
2. Strip 2x12-20AWG (3.31 mm² -0.52 mm²) twisted pair copper wires 7-8 mm.
3. Loosen the terminal block screws and connect wires into the terminals.
4. Tighten terminal screws. Ensure the wires are securely fastened.
5. Re-insert the Terminal block connector if removed.
6. Turn on power source.
See Terminal Block Connectors.
Warning: Ensure power has been removed at the source of the alarm circuit prior to pro-
ceeding with connections to the alarm relay.
Warning: Ensure the voltage and current supplied by the alarm circuits are within the
stated Alarm Relay specifications.
Warni ng: In hazardous location installations, failure to remove the power from the source
prior to completing the wiring connections to the alarm relay could cause an electrical arc
resulting in a possible explosion.
Wiring Digital Inputs
The IDS switch has two digital input connections, one to sense to Dry Contact and one to
sense a Wet Contact.
IN1: This can sense a dry contact. On this terminal pair the IDS switch provides a voltage
and current and can monitor the opening can closing of a dry contact switch.
IN2: This can sense a wet contact. On this terminal pair the IDS switch provides no voltage but relies on the input circuit to provide this. See specifications for values.
To connect these:
1. Ensure the power source is off prior to connection.
2. Strip 2x12-20AWG (3.31 mm² -0.52 mm²) twisted pair copper wires 7-8 mm.
3. Loosen the terminal block screws and connect wires into the terminals. For IN2,
ensure that the live side of the input circuit is connected to the + terminal and the
return to the -.
4. Tighten terminal screws. Ensure the wires are securely fastened.
5. Re-insert the Terminal block connector if removed.
6. Turn on power source.
See Terminal Block Connectors.
Warning: Ensure power has been removed at the source of the alarm circuit prior to pro-
ceeding with connections to the alarm relay.
IDS-509FPP Hardware Installation Guide
Page 17
15
Warni ng: Ensure the voltage and current supplied by the alarm circuits are within the
stated Digital Input specifications.
Warni ng: In hazardous location installations, failure to remove the power from the source
prior to completing the wiring connections to the alarm relay could cause an electrical arc
resulting in a possible explosion.
Connecting the Console Port
The IDS switch can be fully configured and managed from the console port. The console
ports provide direct access to the Command Line Interface (CLI). The MicroUSB console
port has priority on a reboot of the switch and will be activated first. If no USB console
port session is detected then the RJ45 console port will then be activated. See appendixes
for console port pinouts.
Console Ports
The console port is an 8-pin female connector (with DTE pinouts).
1. Connect an RJ45 cable to the IDS switch console port (RJ45) and the other end of the
cable to a COM port on your PC.
2. Choose Start > Control Panel > Systems or equivalent on the Windows Operating System you are using.
3. Click the Hardware tab and choose Device Manager, Expand the Ports (COM & LPT)
section. This will expand the drop down to show the number of com ports on your system. Connect the cable to one of these ports (probably com1 or com2).
4. Start an terminal-emulation program (such as Putty or SecureCRT) on the COM port
where you have connected the cable PC.
5. Configure this COM port within the terminal emulation program with the following
parameters:
• 9600 baud
• 8 data bits
• 1 stop bit
•No parity
• None (flow control)
6. Connect power to the switch as described in Connecting Power to the IDS Switch.
7. The PC will display the boot-loader sequence.
8. When the booting (see Booting, Resetting the Switch) of the IDS is completed, press
Enter to display the setup prompt.
Warning: If you connect or disconnect the console cable with the power applied to the
switch or any device on the network, an electrical arc can occur. This could cause an
IDS-509FPP Hardware Installation Guide
Page 18
16
explosion when installed in a hazardous location. Ensure the power is removed from all
devices prior to making the cable connection.
MicroUSB Console Port
1. Connect a USB cable to the PC’s USB port, then connect the other end of the cable to
the IDS switch’s micro-B USB connector.
2. Connect power to the switch as described in Connecting Power to the IDS Switch
3. On the PC Choose Start -> Control Panel -> Systems (or equivalent) on the Windows
Operating System, then open the Hardware tab. Choose the Device Manager, and
expand the Ports section. The assigned COM port appears can be identified.
4. Start an terminal-emulation program (such as Putty or SecureCRT) on the com port
where you have connect the cable to the PC.
5. Configure your COM port within the emulation program on the PC as:
• 9600 baud
• 8 data bits
• 1 stop bit
• No parity
• None (flow control)
6. The PC will display the boot-loader sequence.
7. Press Enter to display the setup prompt when the booting of the IDS is completed.
Warning: If you connect or disconnect the console cable with the power applied to the
switch or any device on the network, an electrical arc can occur. This could cause an
explosion when installed in a hazardous location. Ensure the power is removed from all
devices prior to making the cable connection.
IDS-509FPP Hardware Installation Guide
Page 19
17
Connecting Data Ports
Ethernet Connections
By default all of the 10/100/1000 ports will automatically set themselves up to match the
speeds of all attached devices. If auto negotiation is not supported by one or more attached
devices, the ports can be configured to operate at fixed speeds and duplex settings.
Warning: In hazardous location installations, failure to remove the power from the source
prior when completing the wiring connections to the Ethernet ports could cause an electrical arc resulting in a possible explosion.
To connect to 10Base-T, 100Base-TX or 1000Base-T follow these steps:
1. When connecting to devices, workstations, servers or routers connect a straight
through Ethernet cable to a 10/100/1000 RJ45 connector on the front of the IDS
switch. Gigabit Ethernet requires CAT5 or better.
2. Once the device is connected and link is established the link LEDs will turn on. These
LEDs will indicate whether you have a 10,100 or 1000 Mb/s link to the switch. See.
(LED Indicators) for more details.
Note: It may take a few seconds for the device to become active. By default the IDS
switch will have Rapid Spanning Tree (RSTP) protocol enabled. This protocol will first
check the network for any cabling loops prior to bringing the port up, in order to prevent
network disruptions.
Fiber Connections
To connect to 100Base-X follow these steps:
1. Connect 100Base-X devices to the fiber ports using appropriate fiber cables. Ensure
that cable implements the proper the TX to RX crossover
2. Once the device is connected and link is established the link LEDs will turn on.The
LED will begin to flash once data activity is initiated. See. (LED Indicators) for more
details.
Note: It may take a few seconds for the device to become active. By default the IDS
switch will have Rapid Spanning Tree (RSTP) protocol enabled. This protocol will first
check the network for any cabling loops prior to bringing the port up, in order to prevent
network disruptions.
Resetting the Switch
The Reset/Fast Setup button is located near the bottom of the switch. A small tool such as
a paper clip is needed to access the recessed button.
IDS-509FPP Hardware Installation Guide
Page 20
18
Soft Reset
To reset/restart the switch you can perform a soft reset. Press and immediately release the
reset button to perform a soft reset.
LED Behavior
PWR The PWR LED will remain solid yellow
during the boot process. Once the system
software has been loaded the PWR LED will
reflect the status of the power inputs.
Hard Reset
Hard Reset performs a power-off of the switch without requiring a disconnection of
power. Once powered off, the switch can be powered back on by pressing the reset switch
again or by disconnecting power at source and re-applying.
Press and hold the reset button for at least 8 seconds. The switch will perform a complete
power down and stay in the powered off state. Press the reset button again to power the
switch on.
LED Behavior
ALL All LEDs will be off after 8 seconds.
Reset to Factory Default Configuration
The switch can be reset to the Factory default configuration. When this is done, all configuration, user IDs, passwords and security certificates are deleted. The start-up and backup
software are unaffected. Follow this procedure:
• Power off the switch
• Press and hold the reset button
• While continuing to hold the reset button, apply power to the switch
• ALR LED will go on after power up; when it goes out; release the reset button
The switch is now reset to factory default configuration.
Booting the Switch
When first applying power to the IDS switch, it will startup and go through the boot process. The LEDs will behave according to the table below.
LED Behavior
PWR Yellow during the booting process. Once the system software has been
loaded, the PWR LED will reflect the status of the power inputs.
SYS Green blinking - Boot process underway.
IDS-509FPP Hardware Installation Guide
Page 21
19
Fast Setup Mode
This allows you to perform initial configuration of the switch using your Web browser.
Fast Setup Mode can be activated when the switch is in Factory Default. When started up
in this mode, the switch assigns itself an IP address and also assigns an IP address to the
connected PC. This makes it possible to initiate a Web session and the use of the Fast
Setup configurator. Switches are shipped in Factory default mode. Refer to the Quick Start
Guide that came with the switch for instructions on how to connect to the switch for the
first time.
LED Behavior
PWR Press and hold the Reset/FS button. Release button when LED
changes from Red to Yellow.
Port Link / Speed Rapid blinking on the first available RJ-45 port to which the PC
can be connected.
Password Recovery
When the switch is not in factory default, the "Fast Setup Mode" sequence will activate
Password recovery.
Note: The password recovery feature can be disabled in the software.
LED Behavior
ALR On solid - during reset process
Off - to indicate that reset has completed
IDS-509FPP Hardware Installation Guide
Page 22
20
Configuring the IDS Switch
The IDS switch can be configured, operated and monitored using any of the following
methods. See the IDS User’s Guide for more details.
CLI
A text-based Command Line Interface based on industry standard syntax and structure.
The CLI can be accessed from the console port. Once a valid IP address is configured on
the switch, Telnet, SSH or the Web interface can also be used to access the switch for
administration purposes. See the IDS Command Line Reference Guide for more information.
Web Device Manager
The Perle Web Device Manager is an embedded Web based application that provides an
easy to use browser interface for managing the switch. This interface provides the ability
to configure and manage the switch. This is accessible through any standard desktop web
browser. Requires the switch to have a valid IP address.
Fast Setup
This utility provides the ability to do either an initial setup (out of the box) or a recovery
setup. In order to use this utility a PC must be connected to one of the switches data ports and
the function is activated using the reset button on the front panel.
SNMP
The switch can be managed with an SNMP compatible management station that is running platforms such as HP Openview or Perle’s PerleVIEW NMS.
IDS-509FPP Hardware Installation Guide
Page 23
21
Appendix A - Technical Specifications
This appendix provides the technical specification for the IDS-509FPP(-XT) switches.
Technical Specifications
Power
Power Connector • 4-Pin Removable Terminal Block
• Grounding screw on metal chassis
• Dual Power Input
Dual Power Input • 54 VDC nominal 50-57 VDC (Poe+ IEEE 802.3at
type 2), 5.5A Max
• 48 VDC nominal 44-57 VDC (PoE 802.3af or
IEEE 802.3at type 1), 5.5A Max
Alarm Relay • NO (Normally Open), NC (Normally Closed con-
tacts
• 1.0A @ 24VDC or 0.5A @ 48VDC
• Requires Class 2/LPS or SELV circuit with Fuse
protection
Digital Input: IN1 • Connects to Dry Contact Circuit
• Provides: 12V, 36mA
• On: > 2.1mA (< 4K Ohms)
• Off: < 1.2mA (>9K Ohms)
Digital Input: IN2 • Connect to Wet Contact Circuit (requires external
power)
• Input Voltage Rating: -36 to +36 VDC
• Input Impedance: 4K Ohms
• On: >10VDC
•Off: <5VDC
Rated Cable Temperatures
IDS-509FPP
IDS-509FPP-XT
>98° C
>106° C
Overload Current Protection Fuse
Reverse polarity protection Yes
IDS-509FPP Hardware Installation Guide
Page 24
22
Technical Specifications
Interfaces
RJ45 Ports
• 1 - shielded RJ45 (509F2PP)
• Up to 100 meters (328 ft.)
• Auto-negotiation
• Auto-MDI/MDIX
• Ethernet isolation 1500 V
RJ45 PoE/PoE+ Ports
Voltage: voltage will match input voltage.
PoE Output
Power Output:
PoE devices 15.4 Watts
PoE+ devices 30 Watts
Amount of available power to PoE/PoE+ ports is
dependent upon sufficient voltage and power being
supplied to the switch.
Note: Power output can be managed through software
configuration.
100Base-X Fiber Ports • 2 -3 100Base-X in a variety of wavelengths,
distances and connectors
Console port • RJ45 DTE - serial port
• MicroUSB Type B female port - serial interface
Switch properties
Standards IEEE 802.3 for 10Base-T
IEEE 802.3u for 100Base-TX
IEEE 802.3ab for 1000Base-T
IEEE 802.3x for Flow Control
IEEE 802.3af or IEEE 802.3at type 1
Environmental Specifications
Operating Temperature Ranges
IDS-509FPP
IDS-509FPP-XT
-10° C to 60° C (14° F to 140° F).
-40° C to 75° C (-40° F to 167° F)
Storage Temperature Range
IDS-509FPP
IDS-509FPP-XT
-25° C to 70° C (-13° F to 158° F)
-40° C to 85° C (-40° F to 185° F)
Operating Humidity Range 5% to 90% non-condensing
Storage Humidity Range 5% to 90% non-condensing
Operating Altitude Up to 3,048 meters (10,000 feet)
IDS-509FPP Hardware Installation Guide
Page 25
23
Technical Specifications
Standards and Certifications
Standard Safety UL 60950-1, 2nd Ed.
CAN/CSA C22.2 No. 60950-1-07, 2nd Ed.
IEC 60950-1(ed 2)+am1+am2
EN 609501:2006+A1:2010+A11:2009+A12:2011+A2:2013
CB Report
CE Mark
Industrial Safety UL 61010-1 3rd Edition (Standard for Safety for
Industrial Control Equipment).
UL 61010-2-201:2013
CANCSA-C22.2 No. 61010-1-12
EN 61010-1(ed 3), IEC 61010-2-201
EN61010-1, EN 61010-2-201
Standard Emissions and
Immunity
FCC 47 Part 15 Subpart B:2016:Class A
CISPR 32-2015 / EN55032:2015 (Class A)
CISPR 24:2010/EN 55024:2010
Industrial EMC and Immunity IEC/EN 61000-4-2 (ESD): Contact discharge +/-
4kV, Air Discharge +/- 8kV
IEC/EN 61000-4-3 (RS) :20Vm 80Mhz-1GHz,
10Vm 1.4GHz-2GHz-2GHz, 5Vm 2GHz-2.7GHz
IEC/EN 61000-4-4 (EFT): DC power line +/- 2kV, I/
O +/- 1kV
IEC/EN 61000-4-5 (Surge): DC power line, Line/
Line +/-1 1kV, Line/Earth +/-1 1kV, Data Line line/
earth +/1 1kV
IEC/EN 61000-4-6 (CS):150Hz to 80 MHz; 10Vrms
IEC/EN 61000-4-8 (Magnetic Field)30 A/m
EN 61000-6-2:2005+AC:2005/IEC 61000-6-2:2005
(General Immunity in Industrial Environments)
EN 61000-6-4:2007+A1:2011/IEC 61000-64:2006+A1:2010 (EMC Generic Standards for
Industrial Environments)
ICES-003:2016
Laser Safety Class 1 Laser safety requirements for those models
with fixed fiber transceiver modules
EN 60825-1:2007
FDA/CDRH 21 CFR1040.10 and 21 CFR1040.11
Hazardous Locations (Hazloc) ANSI/ISA 12.12.01, Class 1 Division 2 Groups A-D
ATEX Class I Zone 2
IDS-509FPP Hardware Installation Guide
Page 26
24
Contacting Technical Support
Contact information for the Perle Technical Assistance Center (PTAC) can be found at the
link below.
www.perle.com/support_services/support_request.shtml
Warranty / Registration
This product is covered by the Perle Ethernet Switches Warranty. Details can be found at:
https://www.perle.com/support_services/warranty.shtml
IDS-509FPP Hardware Installation Guide
Page 27
25

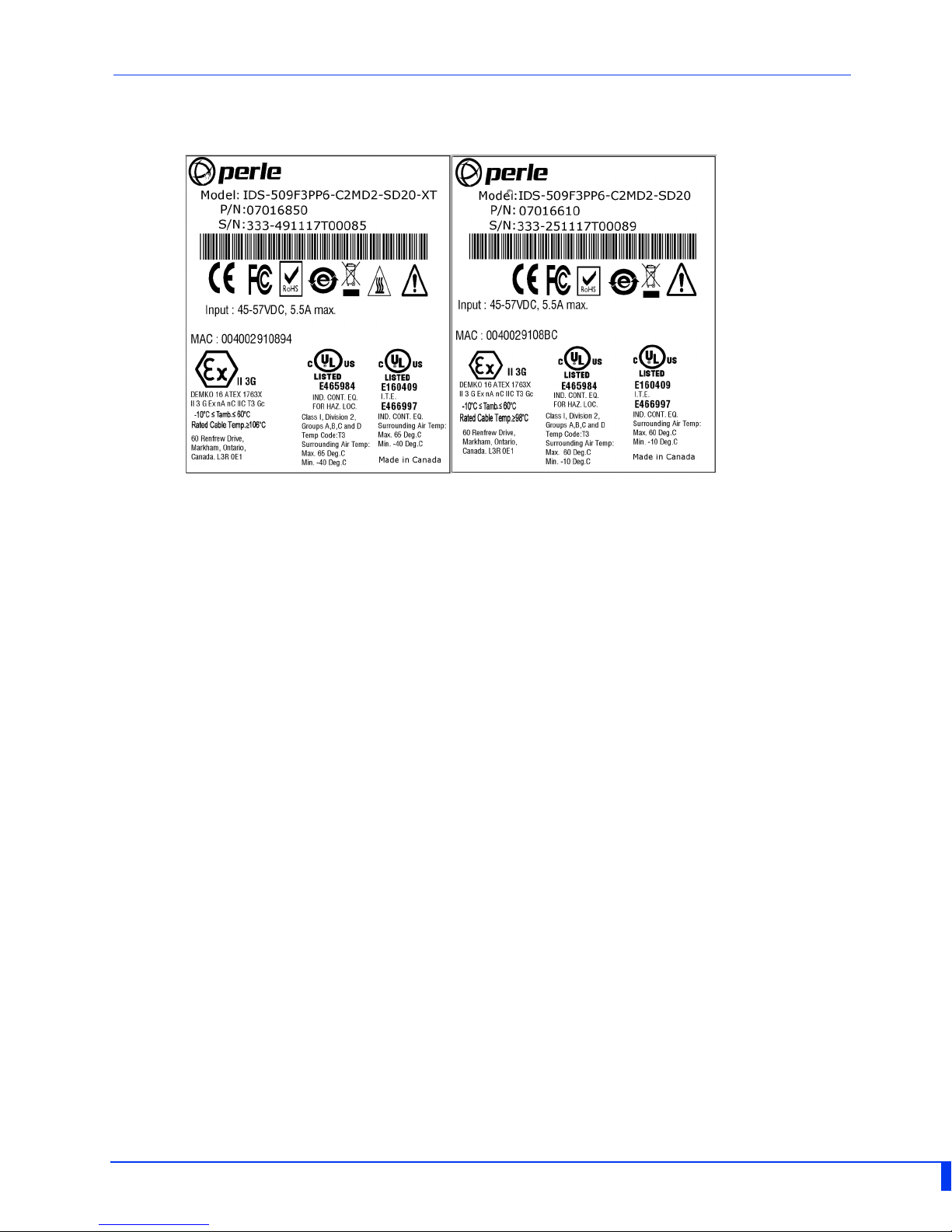

Appendix B - Sample Labels
IDS-509FPP Hardware Installation Guide
Page 28
26
Appendix C - Mechanical Drawings
IDS-509FPP Hardware Installation Guide
Page 29
27
IDS-509FPP Hardware Installation Guide
Page 30
28
Appendix D - DIN Rail and Wall Mounting
This appendix provides instructions on the following:
• Mounting the IDS Switch on a DIN Rail
• Removing the IDS from the DIN Rail
• Wall Mounting the IDS
Mounting the IDS Switch on a DIN Rail
1. The DIN rail clip will be fixed to the back of the IDS unit when you receive the switch.
2. Position the IDS switch such that the top hooks of the DIN rail clip attach onto the top
of the DIN rail.
3. Rotate the bottom of the IDS switch towards the rail. This will snap the bottom hooks
of the DIN rail clip onto the bottom of the DIN rail.
See diagram below
Removing the IDS from the DIN Rail
1. The DIN rail attachment clip has a slot at the bottom of the latch that is visible beneath
the switch when it is mounted.
2. Insert a flat blade screwdriver into the slot and twist the base to release the clip. Alternatively a downward force on the clip will release the clip.
3. When the clip is released, pull the bottom of the switch out slightly and remove the
switch from the DIN rail.
Wall Mounting the IDS
If you have purchased the optional wall mounting kit then proceed as below:
1. Remove the DIN rail clip from the rear panel on the IDS switch.
2. Attach the wall mount plates to the IDS switch as shown below using the screws
provided in the kit.
IDS-509FPP Hardware Installation Guide
Page 31
29
3. Use the wall mount plates as a guide to mark the spot where the screws will be placed.
4. Drive the screws into the wall leaving about 2 mm of the screw protruding from the
wall to allow room for sliding the wall mount panel between the wall and the screws.
5. Once the screws are fixed to the wall, insert the four screw heads through the large
parts of the keyhole shaped screw openings
6. Pull the IDS switch down to lock the IDS switch to the wall mount.
7. Tighten the four screws securely to the wall.
Note: for best results use screws with the following attributes Head diameter .5 - .6 mm
Shaft diameter 3 -3.5 mm
IDS-509FPP Hardware Installation Guide
Page 32
30
Appendix E - IDS Maintenance
• Ensure there is clearance of 50.8mm (2 inches) on all sides of the IDS switch to provide proper airflow through the unit
• Do not use solvents or cleaning agents on this unit
• Keep vent holes clear of debris
• If case gets dirty wipe with a dry cloth
• Ensure all cables are in good working condition
• Replace any frayed cables or cables without clips
IDS-509FPP Hardware Installation Guide
Page 33
31
Appendix F - Cables and Connectors
This appendix discusses the following topics:
• RJ45-Console Port Pinouts:
• Ethernet cables
• Ethernet Connector - 8 pin RJ45
• Fiber Port Cabling Requirements
• Connecting PoE/PoE+ devices
RJ45-Console Port Pinouts
The console port uses a shield cable with an 8-pin female connector (with DTE pinouts).
RJ-45 Console Function Direction
1 RTS OUT
2DTROUT
3TXDOUT
4GND-
5GND-
6RXDIN
7DSRIN
8CTSIN
Ethernet Cables
The 10/100/1000BaseT(X) ports located on the IDS switch’s front panel are used to connect to Ethernet-enabled devices. These Ethernet ports will automatically adjust depending on the type of Ethernet cable used (straight-through or cross-over), and the type of
device (NIC-type or HUB/Switch-type) connected to the port.
Requirements:
• Cat 5 UTP or STP, Cat 5e cables
• 24-22 AWG (0.20mm2 - 0.33mm2)
• Straight through or Ethernet Crossover cable
Note: An optional cable adapter is available to provide RJ45 to DB9 conversion: Perle’s optional RJ45 to DB9-F crossover adapter model DB0020C enables a straight through Ethernet cable to connect the RJ45 console port to a PC serial
port.
IDS-509FPP Hardware Installation Guide
Page 34
32
Fiber Cables
Duplex SC or ST connector
Multimode 50/125 or 62.5/125 micron fiber cable
Single mode 9/125 micron fiber cable
Simplex (BIDI, single strand) SC or ST connector
Multimode 50/125 or 62.5/125 micron fiber cable
Single mode 9/125 micron fiber cable
Ethnernet Connector - 8-pin RJ-45
Fiber Connections
IDS-509FPP Hardware Installation Guide
Page 35
33
Connecting PoE/PoE+ devices
• Supports IEEE 802.3af (Type 1) and IEEE 802at-2009 (Type 2) standards
• For PoE devices up to 15.4 watts per port
• For PoE+ devices up to 30 watts per port
Connect the copper cables from each TP port(RJ45) on the IDS-509PP switch to
compliant Powered Devices (PDs).
See below for RJ-45 pinouts for PoE/PoE+ ports.
IDS-509FPP Hardware Installation Guide
Loading...
