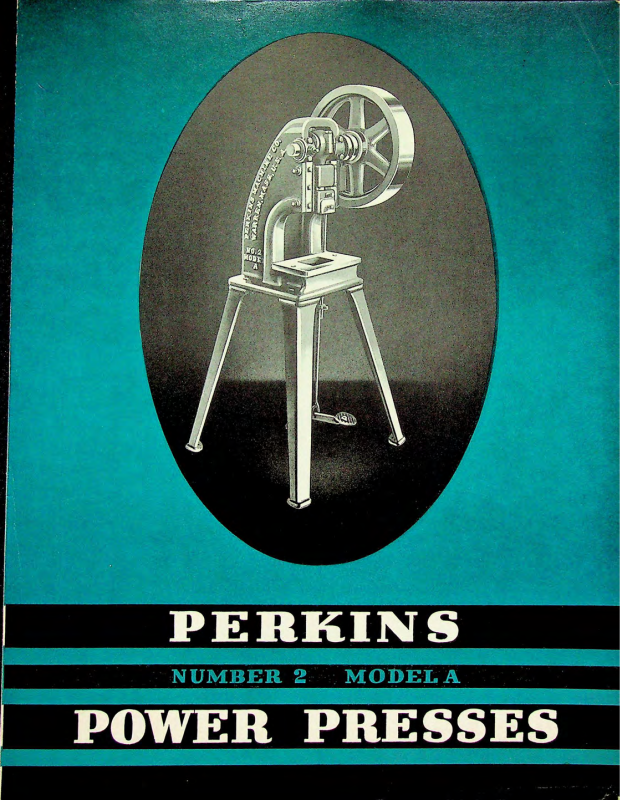

POWER
PERKINS
NUMBER 2
PRESSES
MODEL A
■
Page 2
..1U.
PERKINS
POWER
The No. 2 Model A press is designed for heavy duty blanking work.
With its solid eccentric shaft, box type of piston and reinforced frame, the
construction is ideal for any kind of hard usage.
Perkins No. 2 Model A Presses can be furnished in a variety of
strokes, die spaces and widths. With dial feeds or roll feeds, and motor drives
of the “V” belt, flat belt or direct geared type. This press has a plain sliding
dog clutch but can also be furnished with single trip safety clutch. The
standard press has no knock out in the piston. If desired a front to back knock
out can be furnished in a higher frame press. Cap front piston can also be sup-
plied.
We are prepared to furnish whatever is required for your particular class
of work, at standard prices.
No. 2 Model A
PRESS
This shows the No. 2A with high frame
and a knock out in the piston running
front to back. It is motor driven di
rectly to the flywheel by gearing and
is equipped with gear guard.
The No. 2A standard press
with direct geared motor
drive and guard with 3
phase control and wiring.
The No. 2A with “V” belt motor drive.
The flywheel is grooved for multiple
“
V” belts.
with flat belt with rocking motor base.
It can also be furnished
Page 3
SPECIFICATIONS
. . . of the Number
2
Model A
High Speed Press:
Stroke 1" standard. Can be supplied with strokes up
to 3".
Diameter of crankshaft at bearings
Distance bed to piston, stroke and adjustment up.
also special heights of
.................................9"
Distance from center of piston to back of press
Distance between the housings .............................
Distance from bed to center of shaft (standard
press) .............................................................
Hole in bed .....................................................
Area of bed ......................................................
Adjustment of piston ....................................
Area of piston ..................................................
Hole in piston for punch shank standard
(Can be furnished up to 1-9/16" round. Cap front at
extra cost.)
Speed 150 rpm of wheel. Can be run up to 300 if de
sired.
Balance wheel 18" diameter with 33^" face, weight
125 lbs.
Area of base of frame, body casting only, 153^" x 143^"
Floor space with legs attached 26" front to back and
27" right to left.
Weight of press
Clutch, sliding dog type furnished as standard equip
ment.
Single trip attachment at small extra cost.
Balance wheel has two driving pins which are square,
providing many renewing surfaces.
Bolster plate is not furnished with the standard press,
but may be had at small extra cost. Solid, or with
hole as desired.
Special strokes may be had up to 3".
Special high frames also furnished.
Special deep throats and also special widths.
Motor drives furnished with “V” belts, flat belts or
geared with flywheel cut as gear, with celeron pinion.
We can also furnish this press geared instead of plain
flywheel.
...7^"
and 12"
4"
5^"
....16^"
.4" x 5"
7" x 12"
.............
Va"
3%" square
......1"
round
500 lbs. net.
This feed roll is made in several sizes
and can also be furnished in different
widths, with or without top roll lift.
It has vertical adjustment. This roll
can be used for feeding paper, rubber,
etc. as well as brass and steel strip.
The No. 2A can be widened out to a
variety of widths for special work. This
illustration shows a wide geared press
for paper work. This also has a “V”
belt motor drive, and special bolster
plate.
Page 4
The No. 2 Model
dial feed attachment,
can be furnished with desired number
of stations. A geared head motor
used to provide the slow speed neces
sary for dial feed operation. This speed
is usually about 60 rpm.
A
standard press with
This dial feed
PERKINS MACHINE COMPANY
WAIIREN • MASSACHUSETTS • U • S • A •
is
The model A press can be supplied with
roll feeds as illustrated. The motor drive
is direct to the balance wheel by gear
ing. Feed rolls can be furnished in
various widths and with top roll lift.
Vertical adjustment is also a feature.
The No. 2A may be supplied with dove
tail piston and longer strokes as shown.
The piston travels up in the ways in
this case but may be furnished with
flush piston if desired. Cap front pis
tons can also be supplied.
PRINTED IN U.S.A.
HAND • FOOT • SCREW • POWER
PRESS
BUILDERS
PRESSES
FOR OVER 5 0 YEARS
FOR SHEET METAL WORK
